PullToRefreshListView XAML Control

Note

The PullToRefreshListView is no longer available in the Windows Community Toolkit. Please use the RefreshContainer. Read the Moving to RefreshContainer section for more info.

The PullToRefreshListView Control, is derived from the built-in List View in XAML. It lets the user pull down beyond the top limit on the listview to trigger a refresh of the content. This control can create rich, animations, and is easy to use.

This control is very common on mobile devices, where the user can pull from the top to force a content refresh in applications like Twitter.

This control uses the PullToRefreshLabel and ReleaseToRefreshLabel properties to provide a visual indication to the user.

If you want more than a text to display, you can then use PullToRefreshContent and ReleaseToRefreshContent. In this case the PullToRefreshLabel and ReleaseToRefreshLabel properties will be ignored.

The RefreshIndicatorContent can be used with the PullProgressChanged event to provide a custom visual for the user.

To cancel a refresh request just slide back to a position prior to the PullThreshold position. Upon release the RefreshIntentCanceled event will be raised and the RefreshIntentCanceledCommand, if any, will be executed.

Syntax

<Page ...
     xmlns:controls="using:Microsoft.Toolkit.Uwp.UI.Controls"/>

<controls:PullToRefreshListView Name="PullToRefreshListViewControl"
    ItemsSource="{x:Bind _items}"
    OverscrollLimit="0.4"
    PullThreshold="100"
    RefreshRequested="ListView_RefreshCommand"
    RefreshIntentCanceled="ListView_RefreshIntentCanceled"
    RefreshIntentCanceledCommand="{x:Bind RefreshIntentCanceled}"
    PullProgressChanged="ListView_PullProgressChanged">
    <controls:PullToRefreshListView.RefreshIndicatorContent>
        <!-- RefreshIndicator Content -->
    </controls:PullToRefreshListView.RefreshIndicatorContent>
</controls:PullToRefreshListView>

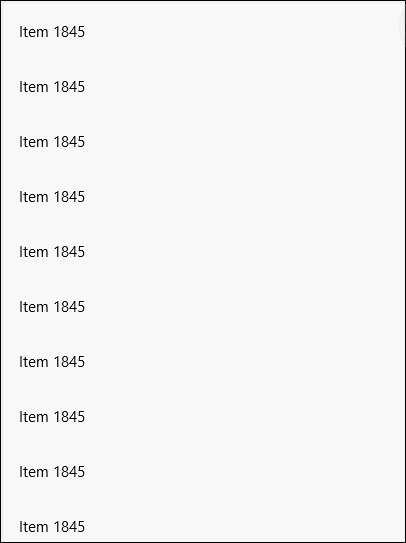

Sample Output

Properties

Property	Type	Description
IsPullToRefreshWithMouseEnabled	bool	Gets or sets a value indicating whether PullToRefresh is enabled with a mouse
OverscrollLimit	double	Gets or sets the Overscroll Limit. Value between 0 and 1 where 1 is the height of the control. Default is 0.3
PullThreshold	double	Gets or sets the PullThreshold in pixels for when Refresh should be Requested. Default is 100
PullToRefreshContent	object	Gets or sets the content that will be shown when the user pulls down to refresh
PullToRefreshLabel	string	Gets or sets the label that will be shown when the user pulls down to refresh. Note: This label will only show up if RefreshIndicatorContent is null
RefreshCommand	ICommand	Gets or sets the Command that will be invoked when Refresh is requested
RefreshIndicatorContent	object	Gets or sets the Content of the Refresh Indicator
RefreshIntentCanceledCommand	ICommand	Gets or sets the Command that will be invoked when a refresh intent is cancled
ReleaseToRefreshContent	object	Gets or sets the content that will be shown when the user needs to release to refresh
ReleaseToRefreshLabel	string	Gets or sets the label that will be shown when the user needs to release to refresh. Note: This label will only show up if RefreshIndicatorContent is null

Events

Events	Description
PullProgressChanged	Occurs when listview overscroll distance is changed
RefreshIntentCanceled	Occurs when the user has cancels an intent for the content to be refreshed
RefreshRequested	Occurs when the user has requested content to be refreshed

Sample Code

PullToRefreshListView Sample Page Source. You can see this in action in Windows Community Toolkit Sample App.

Moving to RefreshContainer

The 1803 version of Windows now includes its own implementation of pull-to-refresh controls, having RefreshContainer as the main control.

The PullToRefreshListView and the RefreshContainer share the same concepts and provide mostly the same functionality, with the caveat that the RefreshContainer works only with a touch interface.

What developers need to know to move to RefreshContainer?

• XAML: The RefreshContainer is very simple to use. Unlike the PullToRefreshListView, the RefreshContainer isn't based on the ListView control, so to use it you just need to add the XAML element as a parent of the element you'll use as your item container, like a ListView or a ScrollViewer.

• Code behind: The RefreshContainer invokes the RefreshRequested event whenever a refresh is triggered. Unlike most event handlers, it has the peculiarity of coming with a Deferral object, that you can get from the RefreshRequestedEventArgs by calling GetDeferral. To notify that your refresh code has completed, you can mark the deferral as completed by calling its Complete method or wrap your refresh code with a using statement of the deferral.

Note

Being a touch-only control, it's recommended that you also have a refresh button for users without a touch interface. You can trigger the RefreshRequested event by calling the RefreshContainer's RequestRefresh method.

Making the transition even easier

Starting with v3.0 of the Windows Community Toolkit, the PullToRefreshListView provides a new property called UseRefreshContainerWhenPossible. Setting the value to true will force the PullToRefreshListView to use a template based on the RefreshContainer when running on the 1803 version of Windows and above, and the regular template otherwise.

Using this property will enable you to take advantage of the RefreshContainer on devices that support it, while providing an experience based on PullToRefreshListView on devices that have not yet updated to the 1803 version of Windows. Make sure to test the experience on multiple OS releases and plan to fully transition to the RefreshContainer as the PullToRefreshListView will be removed from the Windows Community Toolkit in a future major release.

Note

When using the RefreshContainer, the RefreshIntentCanceled and the PullProgressChanged events are not invoked. In addition, the RefreshIntentCanceledCommand is not executed.

There are several PullToRefreshListView properties that have no effect when the PullToRefreshListView is using the RefreshContainer:

• OverscrollLimit
• PullThreshold
• RefreshIndicatorContent
• PullToRefreshLabel
• ReleaseToRefreshLabel
• PullToRefreshContent
• ReleaseToRefreshContent
• IsPullToRefreshWithMouseEnabled

Default Template

PullToRefreshListView XAML File is the XAML template used in the toolkit for the default styling.

Requirements

Device family	Universal, 10.0.15063.0 or higher
Namespace	Microsoft.Toolkit.Uwp.UI.Controls
NuGet package	Microsoft.Toolkit.Uwp.UI.Controls
