Button Main

A button gives the user a way to trigger an immediate action. It is one of the most foundational components in mixed reality. MRTK provides various types of button prefabs.

Button prefabs in MRTK

Examples of the button prefabs under MRTK/SDK/Features/UX/Interactable/Prefabs folder

Unity UI Image/Graphic based buttons

  • UnityUIInteractableButton.prefab
  • PressableButtonUnityUI.prefab
  • PressableButtonUnityUICircular.prefab
  • PressableButtonHoloLens2UnityUI.prefab

Collider based buttons

PressableButtonHoloLens2 PressableButtonHoloLens2

PressableButtonHoloLens2Unplated PressableButtonHoloLens2Unplated

PressableButtonHoloLens2Circular PressableButtonHoloLens2Circular

HoloLens 2's shell-style button with backplate which supports various visual feedback such as border light, proximity light, and compressed front plate

HoloLens 2's shell-style button without backplate

HoloLens 2's shell-style button with circular shape

PressableButtonHoloLens2_32x96 PressableButtonHoloLens2_32x96

PressableButtonHoloLens2Bar3H PressableButtonHoloLens2Bar3H

PressableButtonHoloLens2Bar3V PressableButtonHoloLens2Bar3V

Wide HoloLens 2's shell-style button 32x96mm

Horizontal HoloLens 2 button bar with shared backplate

Vertical HoloLens 2 button bar with shared backplate

PressableButtonHoloLens2ToggleCheckBox_32x32 PressableButtonHoloLens2ToggleCheckBox_32x32

PressableButtonHoloLens2ToggleSwitch_32x32 PressableButtonHoloLens2ToggleSwitch_32x32

PressableButtonHoloLens2ToggleRadio_32x32 PressableButtonHoloLens2ToggleRadio_32x32

HoloLens 2's shell-style checkbox 32x32mm

HoloLens 2's shell-style switch 32x32mm

HoloLens 2's shell-style radio 32x32mm

PressableButtonHoloLens2ToggleCheckBox_32x96 PressableButtonHoloLens2ToggleCheckBox_32x96

PressableButtonHoloLens2ToggleSwitch_32x96 PressableButtonHoloLens2ToggleSwitch_32x96

PressableButtonHoloLens2ToggleRadio_32x96 PressableButtonHoloLens2ToggleRadio_32x96

HoloLens 2's shell-style checkbox 32x96mm

HoloLens 2's shell-style switch 32x96mm

HoloLens 2's shell-style radio 32x96mm

Radial Radial

Checkbox Checkbox

ToggleSwitch ToggleSwitch

Radial button


Toggle switch

ButtonHoloLens1 ButtonHoloLens1

PressableRoundButton PressableRoundButton

Button Base Button

HoloLens 1st gen's shell style button

Round shape push button

Basic button

The Button (Assets/MRTK/SDK/Features/UX/Interactable/Prefabs/Button.prefab) is based on the Interactable concept to provide easy UI controls for buttons or other types of interactive surfaces. The baseline button supports all available input methods, including articulated hand input for the near interactions as well as gaze + air-tap for the far interactions. You can also use voice command to trigger the button.

PressableButtonHoloLens2 (Assets/MRTK/SDK/Features/UX/Interactable/Prefabs/PressableButtonHoloLens2.prefab) is HoloLens 2's shell style button that supports the precise movement of the button for the direct hand tracking input. It combines Interactable script with PressableButton script.

For HoloLens 2, it is recommended to use buttons with an opaque backplate. Transparent buttons are not recommended because of these usability and stability issues:

  • Icon and text are difficult to read with the physical environment
  • It is hard to understand when the event triggers
  • Holograms that are displayed through a transparent plane can be unstable with HoloLens 2's Depth LSR stabilization

Button plated

How to use pressable buttons

Unity UI based buttons

Create a Canvas in your scene (GameObject -> UI -> Canvas). In the Inspector panel for your Canvas:

  • Click "Convert to MRTK Canvas"
  • Click "Add NearInteractionTouchableUnityUI"
  • Set the Rect Transform component's X, Y, and Z scale to 0.001

Then, drag PressableButtonUnityUI (Assets/MRTK/SDK/Features/UX/Interactable/Prefabs/PressableButtonUnityUI.prefab), PressableButtonUnityUICircular (Assets/MRTK/SDK/Features/UX/Interactable/Prefabs/PressableButtonUnityUICircular.prefab), or PressableButtonHoloLens2UnityUI (Assets/MRTK/SDK/Features/UX/Interactable/Prefabs/PressableButtonHoloLens2UnityUI.prefab) onto the Canvas.

Collider based buttons

Simply drag PressableButtonHoloLens2 (Assets/MRTK/SDK/Features/UX/Interactable/Prefabs/PressableButtonHoloLens2.prefab) or PressableButtonHoloLens2Unplated (Assets/MRTK/SDK/Features/UX/Interactable/Prefabs/PressableButtonHoloLens2Unplated.prefab) into the scene. These button prefabs are already configured to have audio-visual feedback for the various types of inputs, including articulated hand input and gaze.

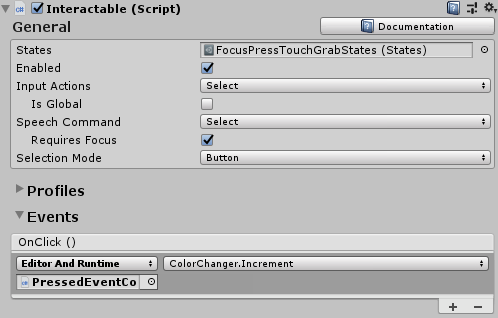

The events exposed in the prefab itself as well as the Interactable component can be used to trigger additional actions. The pressable buttons in the HandInteractionExample scene use Interactable's OnClick event to trigger a change in the color of a cube. This event gets triggered for different types of input methods such as gaze, air-tap, hand-ray, as well as physical button presses through the pressable button script.

How to Use Interactable

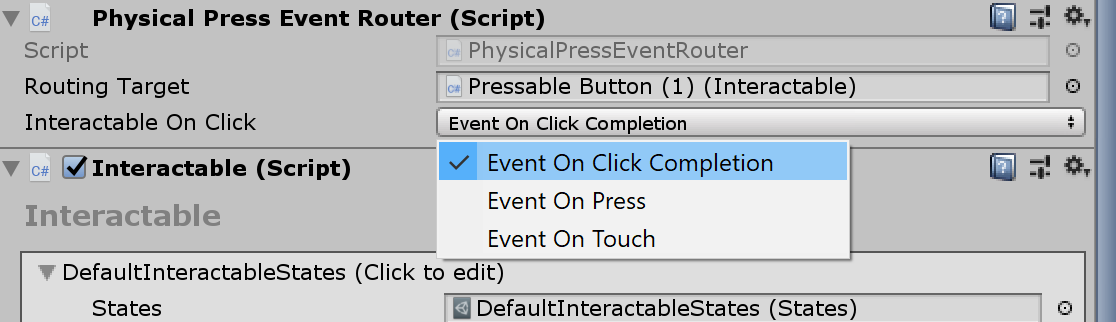

You can configure when the pressable button fires the OnClick event via the PhysicalPressEventRouter on the button. For example, you can set OnClick to fire when the button is first pressed, as opposed to being pressed and released, by setting Interactable On Click to Event On Press.

How to use events

To leverage specific articulated hand input state information, you can use pressable buttons events - Touch Begin, Touch End, Button Pressed, Button Released. These events will not fire in response to air-tap, hand-ray, or eye inputs, however. To support both near and far interactions, it is recommended to use Interactable's OnClick event.

How to use Pressable Buttons

Interaction states

In the idle state, the button's front plate is not visible. As a finger approaches or a cursor from gaze input targets the surface, the front plate's glowing border becomes visible. There is additional highlighting of the fingertip position on the front plate surface. When pushed with a finger, the front plate moves with the fingertip. When the fingertip touches the surface of the front plate, it shows a subtle pulse effect to give visual feedback of the touch point.

In HoloLens 2 shell-style button, there are many visual cues and affordances to increase the user's confidence on interaction.

Proximity light Focus highlight Compressing cage Pulse on trigger
Proximity light Focus highlight Compressing cage Pulse on trigger

The subtle pulse effect is triggered by the pressable button, which looks for ProximityLight(s) that live on the currently interacting pointer. If any proximity lights are found, the ProximityLight.Pulse method is called, which automatically animates shader parameters to display a pulse.

Inspector properties

Button Structure

Box Collider Box Collider for the button's front plate.

Pressable Button The logic for the button movement with hand press interaction.

Physical Press Event Router This script sends events from hand press interaction to Interactable.

Interactable Interactable handles various types of interaction states and events. HoloLens gaze, gesture, and voice input and immersive headset motion controller input are directly handled by this script.

Audio Source Unity audio source for the audio feedback clips.

NearInteractionTouchable.cs Required to make any object touchable with articulated hand input.

Prefab layout

The ButtonContent object contains front plate, text label and icon. The FrontPlate responds to the proximity of the index fingertip using the Button_Box shader. It shows glowing borders, proximity light, and a pulse effect on touch. The text label is made with TextMesh Pro. SeeItSayItLabel's visibility is controlled by Interactable's theme.

Button Layout

How to change the icon and text

MRTK buttons use a ButtonConfigHelper component to assist you in changing the button's icon, text and label. (Note that some fields may be absent if elements are not present on the selected button.)

Button Config Helper

Creating and Modifying Icon Sets

An Icon Set is a shared set of icon assets used by the ButtonConfigHelper component. Three icon styles are supported.

  • Quad icons are rendered on a quad using a MeshRenderer. This is the default icon style.
  • Sprite icons are rendered using a SpriteRenderer. This is useful if you prefer to import your icons as a sprite sheet, or if you want your icon assets to be shared with Unity UI components. To use this style you will need to install the Sprite Editor package (Windows -> Package Manager -> 2D Sprite)
  • Char icons are rendered using a TextMeshPro component. This is useful if you prefer to use an icon font. To use the HoloLens icon font you will need to create a TextMeshPro font asset.

To change which style your button uses, expand the Icons dropdown in the ButtonConfigHelper and select from the Icon Style dropdown.

To create a new button icon:

  1. In the Project window, right-click Assets to open the context menu. (You can also right-click any blank space inside the Assets folder or one of its subfolders.)

  2. Select Create > Mixed Reality > Toolkit > Icon Set.

    Screenshot of the Icon Set menu item.

To add quad and sprite icons, simply drag them into their respective arrays. To add Char icons, you must first create and assign a font asset.

In MRTK 2.4 and beyond, we recommend custom icon textures be moved into an IconSet. To upgrade the assets on all buttons in a project to the new recommended format, use the ButtonConfigHelperMigrationHandler. (Mixed Reality Toolkit -> Utilities -> Migration Window -> Migration Handler Selection -> Microsoft.MixedReality.Toolkit.Utilities.ButtonConfigHelperMigrationHandler)

Importing the Microsoft.MixedRealityToolkit.Unity.Tools package required to upgrade the buttons.

Upgrade window dialogue

If an icon is not found in the default icon set during migration, a custom icon set will be created in MixedRealityToolkit.Generated/CustomIconSets. A dialog will indicate that this has taken place.

Custom icon notification

Creating a HoloLens Icon Font Asset

First, import the icon font into Unity. On Windows machines you can find the default HoloLens font in Windows/Fonts/holomdl2.ttf. Copy and paste this file into your Assets folder.

Next, open the TextMeshPro Font Asset Creator via Window > TextMeshPro > Font Asset Creator. Here are the recommended settings for generating a HoloLens font atlas. To include all icons, paste the following Unicode range into the Character Sequence field:


Button creation 1

Once the font asset is generated, save it to your project and assign it to your Icon Set's Char Icon Font field. The Available Icons dropdown will now be populated. To make an icon available for use by a button, click it. It will be added to the Selected Icons dropdown and will now show up in the ButtonConfigHelper. You can optionally give the icon a tag. This enables setting the icon at runtime.

Button creation 3

Button creation 2

public void SetButtonToAdjust()
    ButtonConfigHelper buttonConfigHelper = gameObject.GetComponent<ButtonConfigHelper>();

To use your Icon Set select a button, expand the Icons dropdown in the ButtonConfigHelper and assign it to the Icon Set field.

Button Icon set

How to change the size of a button

HoloLens 2's shell-style button's size is 32x32mm. To customize the dimension, change the size of these objects in the button prefab:

  1. FrontPlate
  2. Quad under BackPlate
  3. Box Collider on the root

Then, click Fix Bounds button in the NearInteractionTouchable script which is in the root of the button.

Update the size of the FrontPlate Button Size customization 1

Update the size of the Quad Button Size customization 2

Update the size of the Box Collider Button Size customization 3

Click 'Fix Bounds' Button Size customization 4

Voice command ('see-it, say-it')

Speech Input Handler The Interactable script in Pressable Button already implements IMixedRealitySpeechHandler. A voice command keyword can be set here.

Buttons Speech

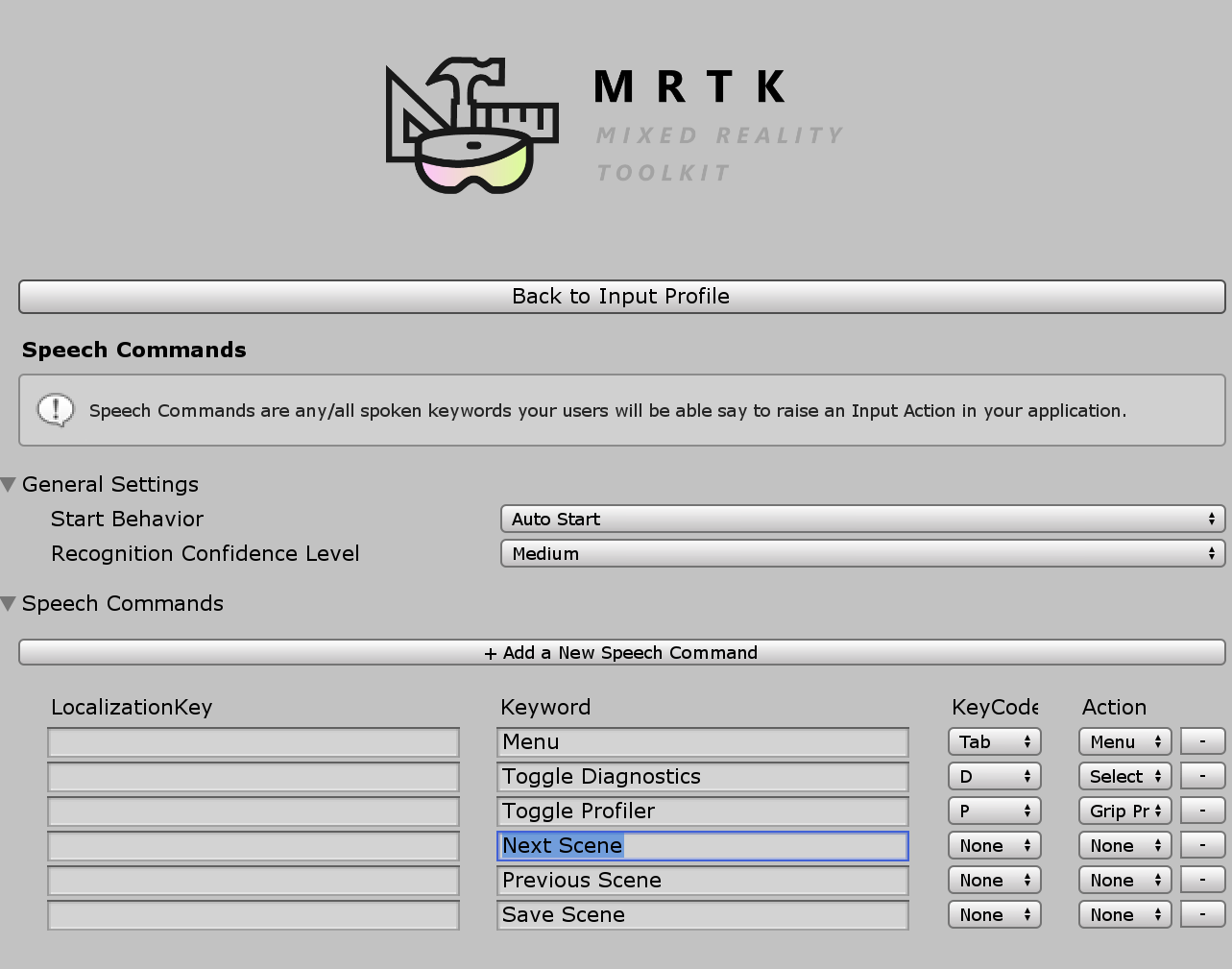

Speech Input Profile Additionally, you need to register the voice command keyword in the global Speech Commands Profile.

Button speech 2

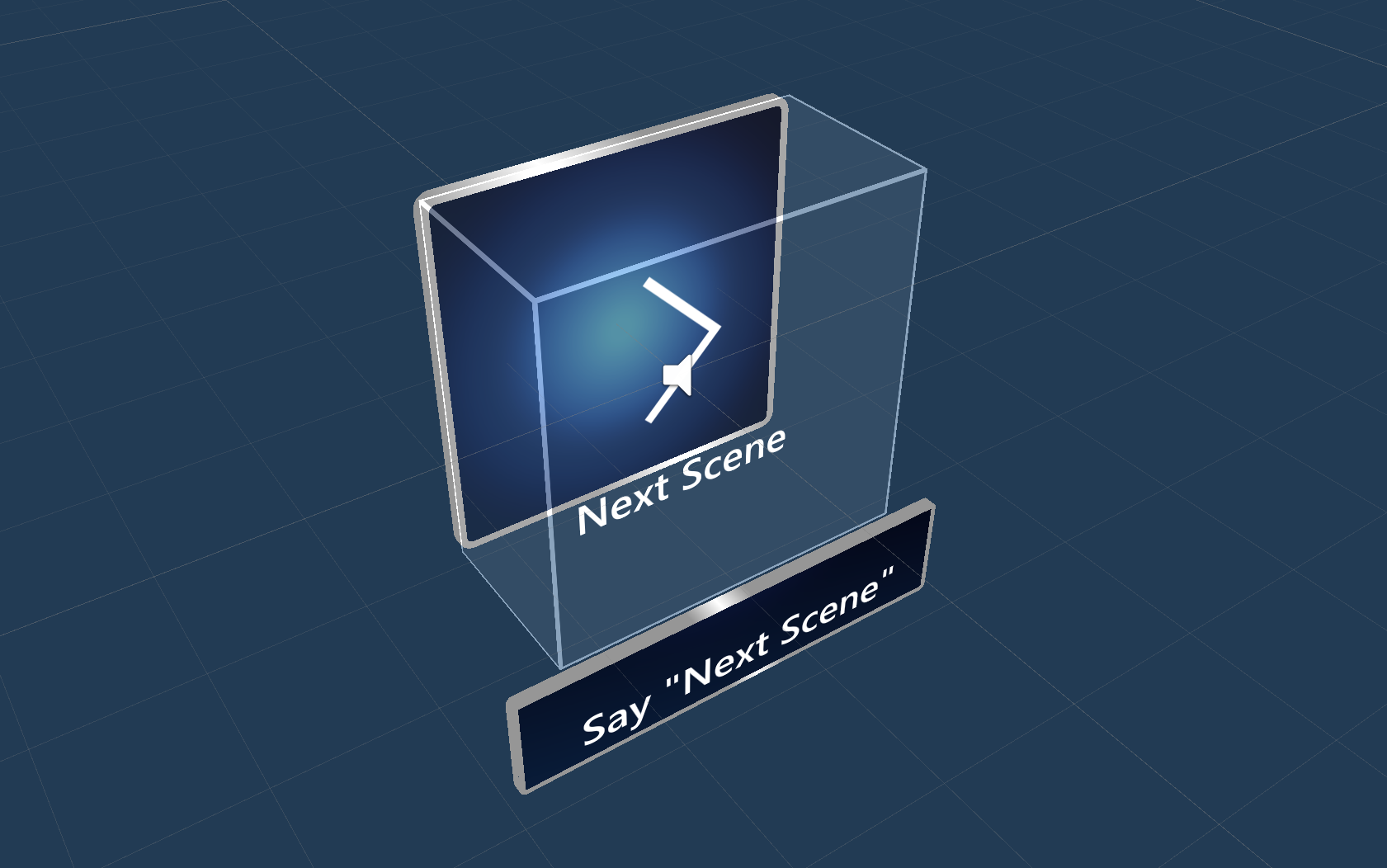

See-it, Say-it label The pressable button prefab has a placeholder TextMesh Pro label under the SeeItSayItLabel object. You can use this label to communicate the voice command keyword for the button to the user.

Button Speech 3

How to make a button from scratch

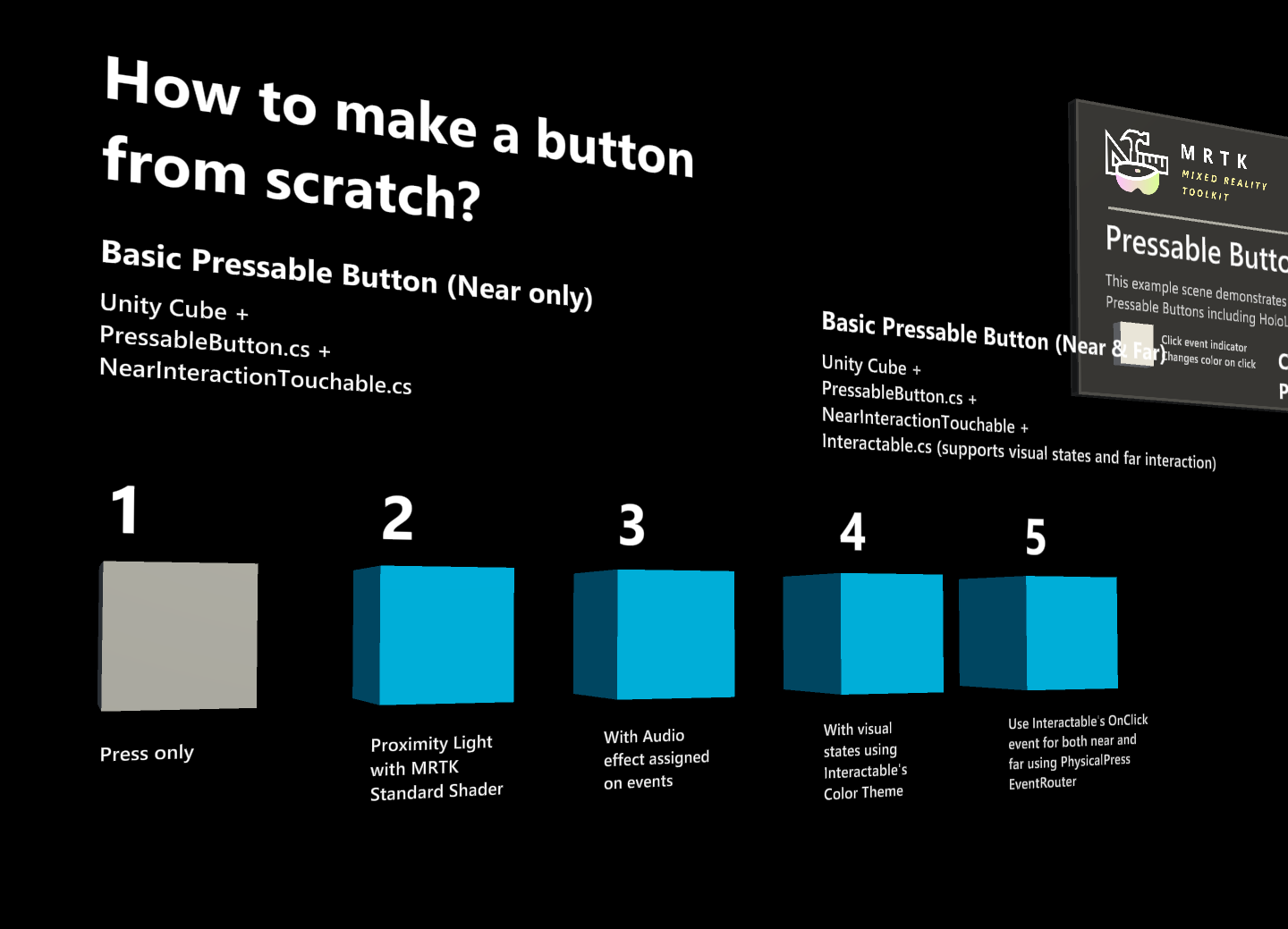

You can find the examples of these buttons in the PressableButtonExample scene.

Pressable button cube 0

1. Creating a pressable button with cube (near interaction only)

  1. Create a Unity Cube (GameObject > 3D Object > Cube)
  2. Add PressableButton.cs script
  3. Add NearInteractionTouchable.cs script

In the PressableButton's Inspector panel, assign the cube object to the Moving Button Visuals.

pressable button cube 3

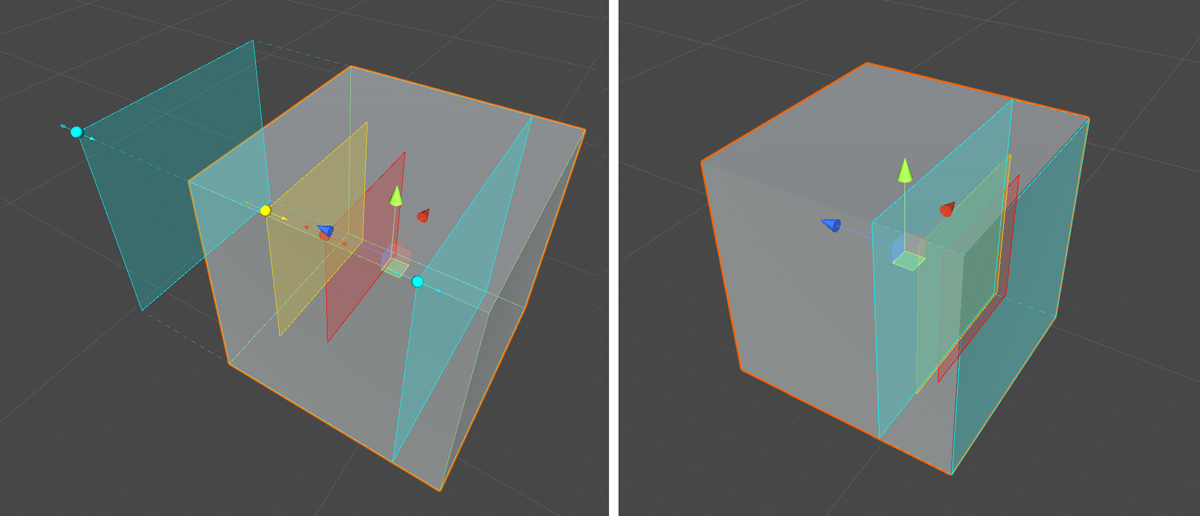

When you select the cube, you will see multiple colored layers on the object. This visualizes the distance values under Press Settings. Using the handles, you can configure when to start press (move the object) and when to trigger event.

Pressable Buton cube 1 Pressable button cube 2

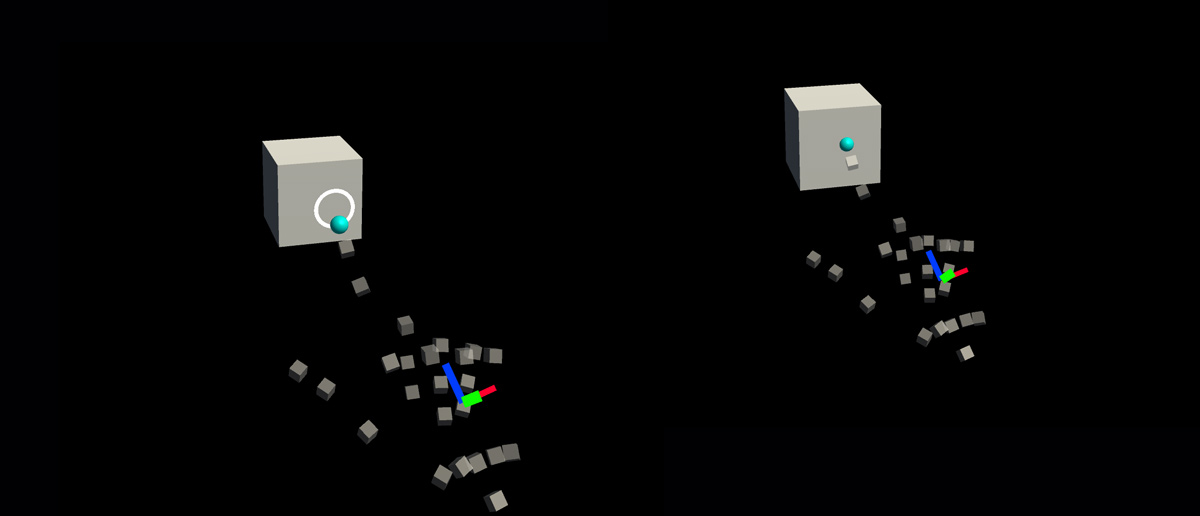

When you press the button, it will move and generate proper events exposed in the PressableButton.cs script such as TouchBegin(), TouchEnd(), ButtonPressed(), ButtonReleased().

Pressable button cube run 1

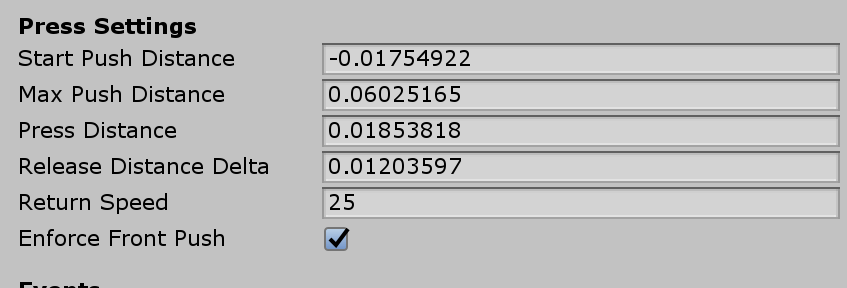

If your button is executing a double press, make sure the Enforce Front Push property is active and the Start Push Distance plane is placed in front of the Near Interaction Touchable plane. The Near Interaction Touchable plane is indicated by the blue plane placed in front of the origin of the white arrow in the gif below:

Pressable button script component with Enforce Front Push property highlighted

Animated example of moving the start push distance in front of the near interaction touchable plane

2. Adding visual feedback to the basic cube button

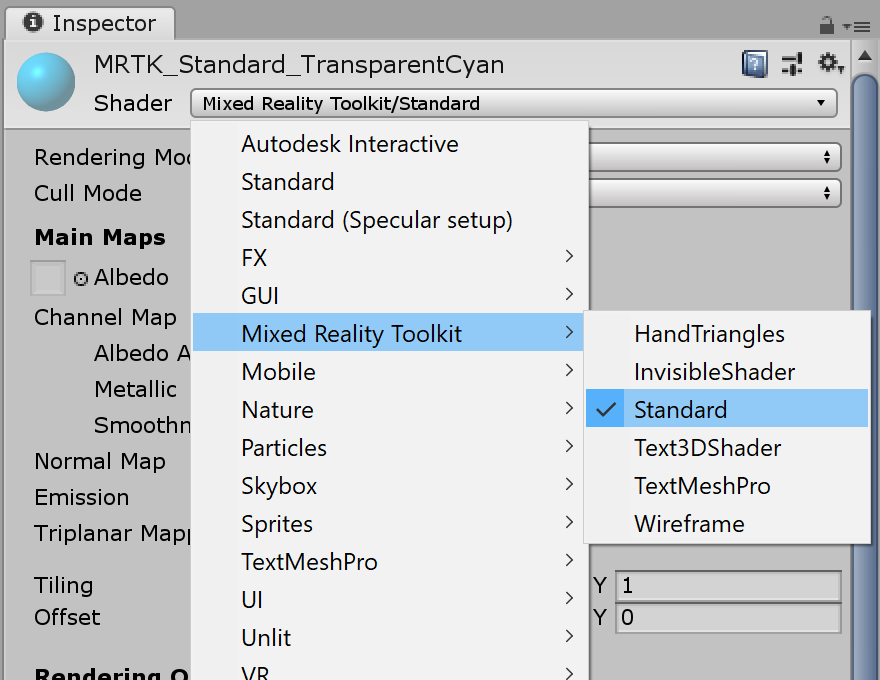

MRTK Standard Shader provides various features that makes it easy to add visual feedback. Create a material and select shader Mixed Reality Toolkit/Standard. Or you can use or duplicate one of the existing materials under /SDK/StandardAssets/Materials/ that uses MRTK Standard Shader.

Pressable button cube 4

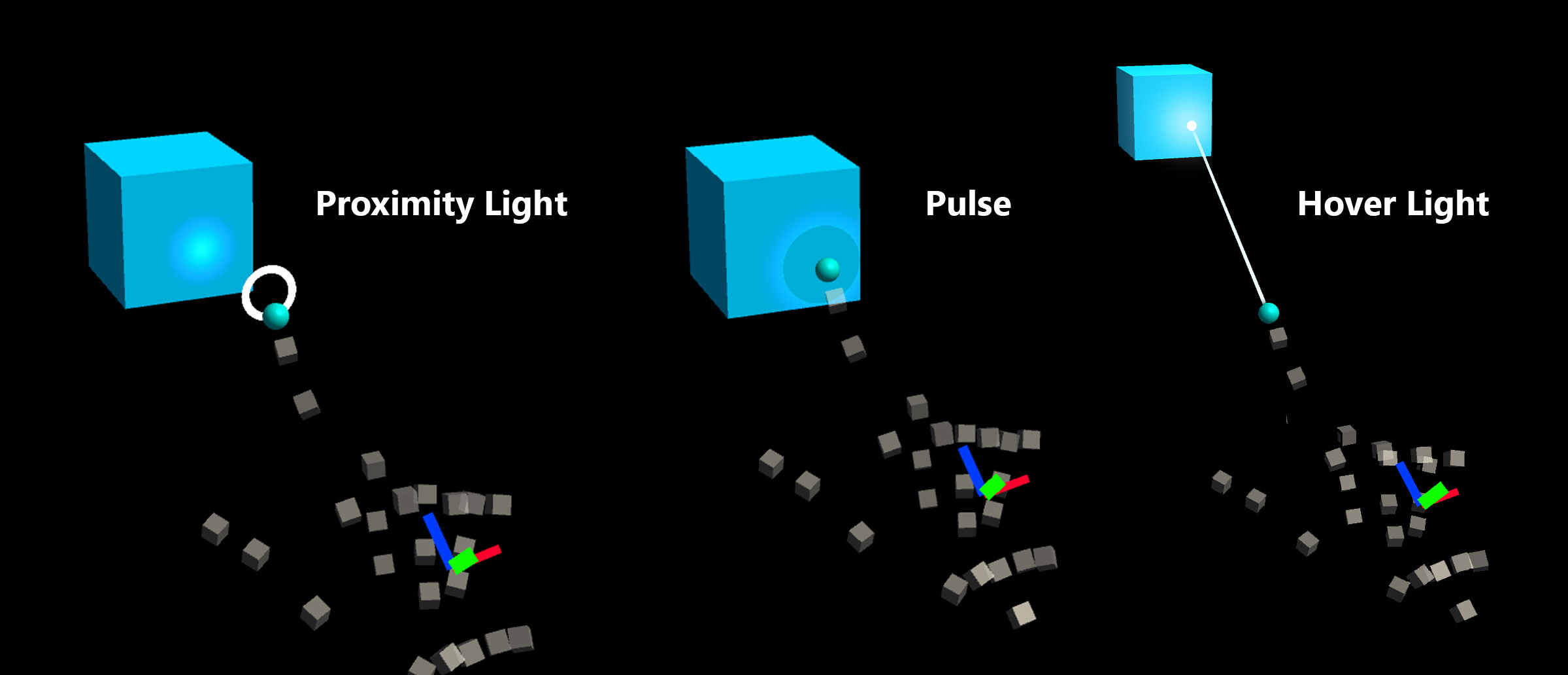

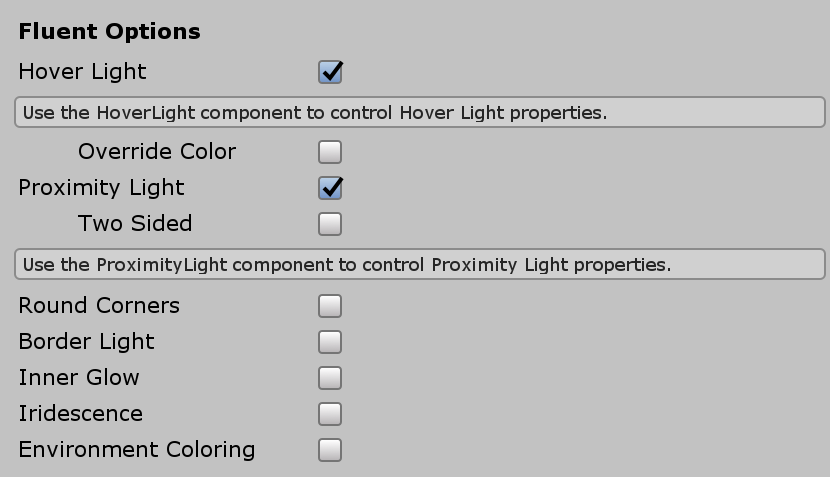

Check Hover Light and Proximity Light under Fluent Options. This enables visual feedback for both near hand(Proximity Light) and far pointer(Hover Light) interactions.

pressable button cube 5 pressable button cube run 2

3. Adding audio feedback to the basic cube button

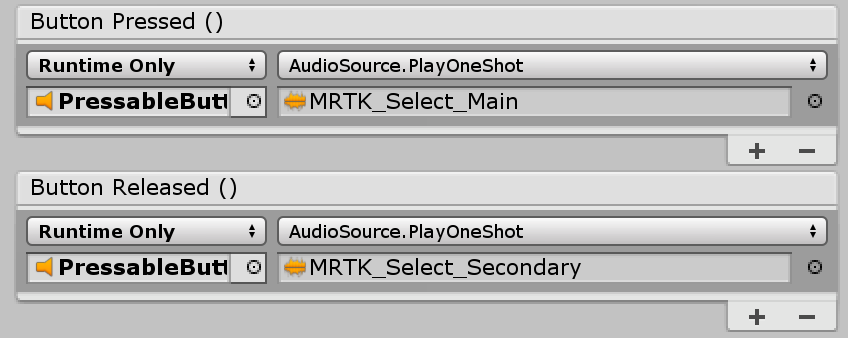

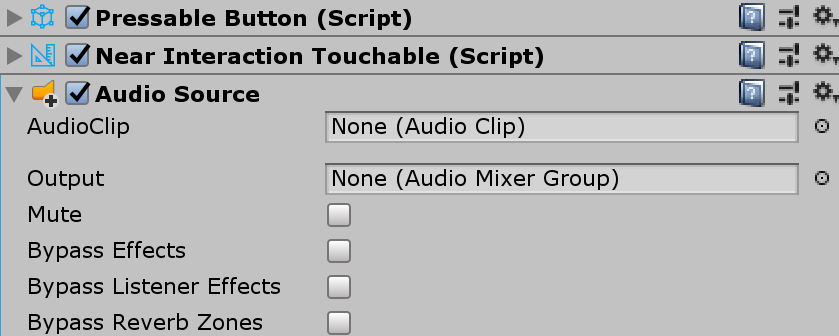

Since PressableButton.cs script exposes events such as TouchBegin(), TouchEnd(), ButtonPressed(), ButtonReleased(), we can easily assign audio feedback. Simply add Unity's Audio Source to the cube object then assign audio clips by selecting AudioSource.PlayOneShot(). You can use MRTK_Select_Main and MRTK_Select_Secondary audio clips under /SDK/StandardAssets/Audio/ folder.

pressable button cube 7 Pressable Button Cube 6

4. Adding visual states and handle far interaction events

Interactable is a script that makes it easy to create a visual state for the various types of input interactions. It also handles far interaction events. Add Interactable.cs and drag and drop the cube object onto the Target field under Profiles. Then, create a new Theme with a type ScaleOffsetColorTheme. Under this theme, you can specify the color of the object for the specific interaction states, such as Focus and Pressed. You can also control Scale and Offset, as well. Check Easing and set duration to make the visual transition smooth.

Select profile theme

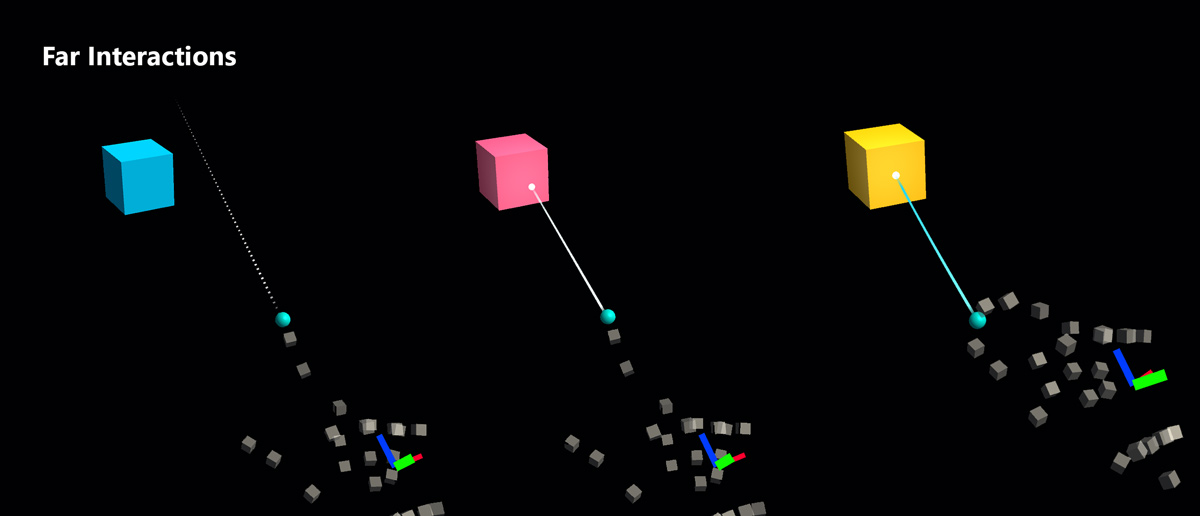

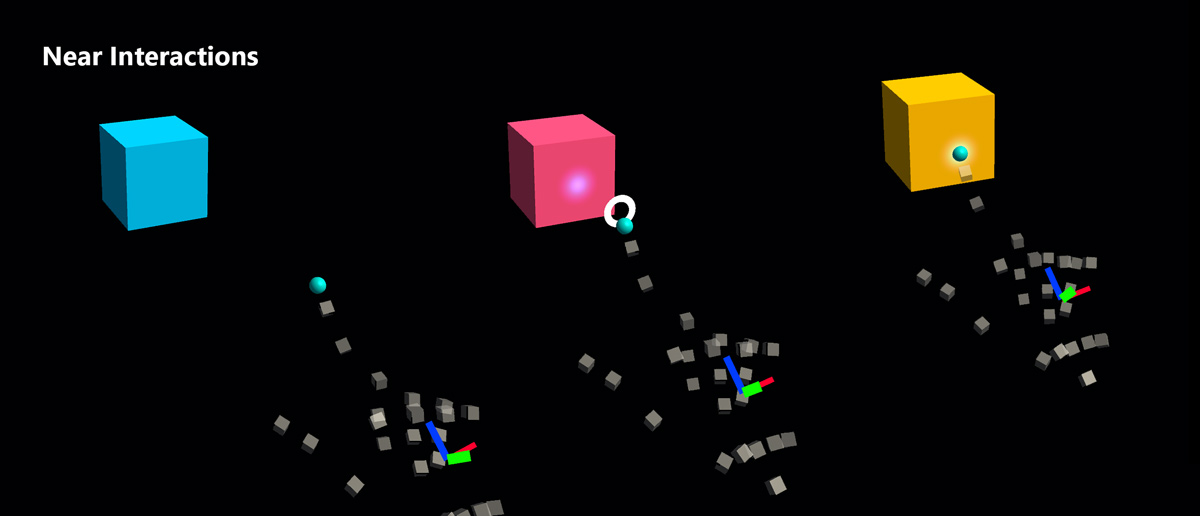

You will see the object respond to both far (hand ray or gaze cursor) and near(hand) interactions.

Pressable Button Cube Run 3 Pressable Button Cube Run 4

Custom button examples

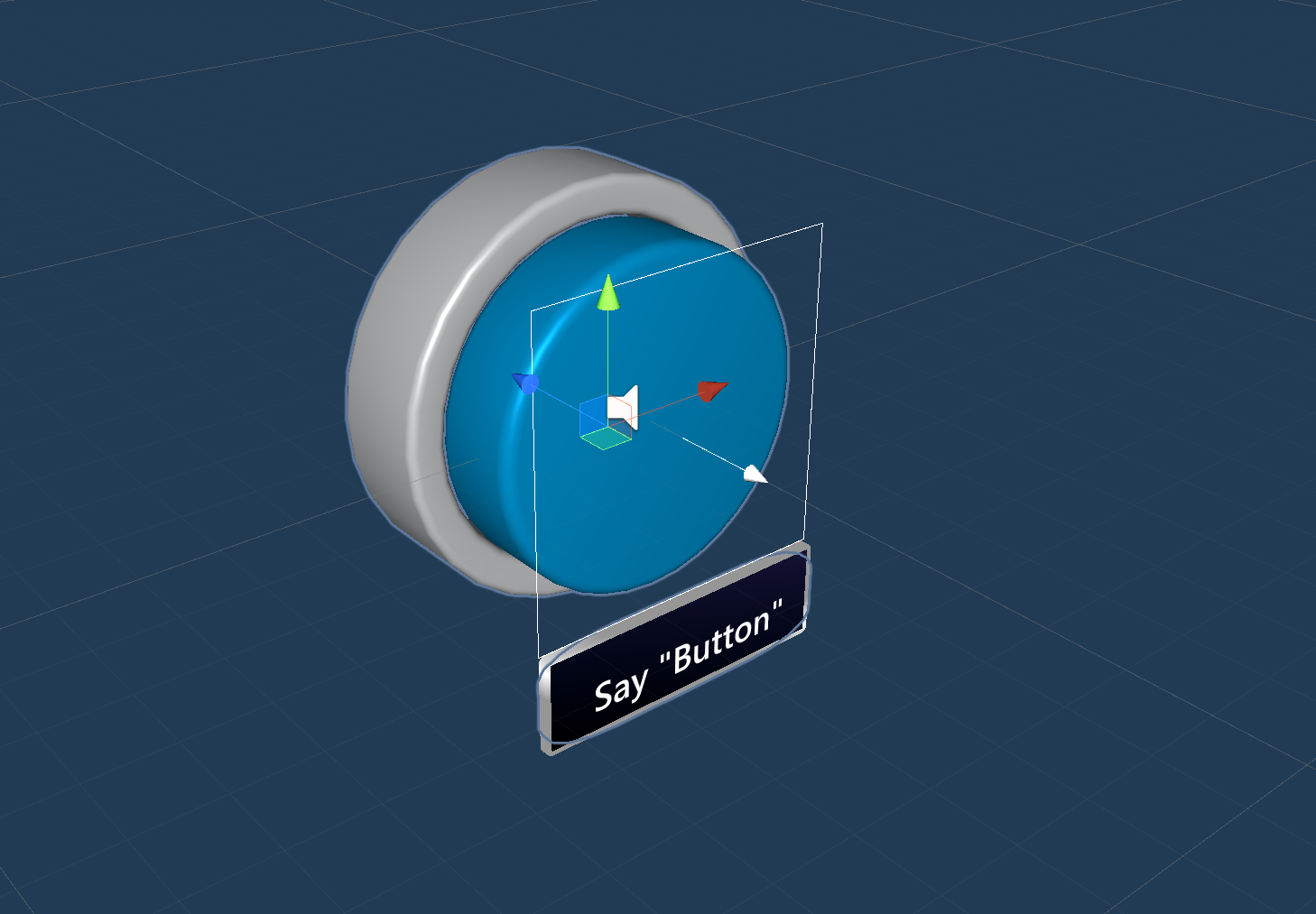

In the HandInteractionExample scene, see the piano and round button examples which are both using PressableButton.

Pressable Custom1 Pressable Custom2

Each piano key has a PressableButton and a NearInteractionTouchable script assigned. It is important to verify that the Local Forward direction of NearInteractionTouchable is correct. It is represented by a white arrow in the editor. Make sure the arrow points away from the button's front face:

Pressable Custom3
