Enterprise certificate pinning overview

Enterprise certificate pinning is a Windows feature for remembering (pinning), a root issuing certificate authority, or end-entity certificate, to a domain name.
The feature helps to reduce man-in-the-middle attacks by protecting internal domain names from chaining to unwanted or fraudulently issued certificates.

Note

External domain names, where the certificate issued to these domains is issued by a public certificate authority, are not ideal for enterprise certificate pinning.

Windows Certificate APIs (CertVerifyCertificateChainPolicy and WinVerifyTrust) are updated to check if the site's chain that authenticates servers matches a restricted set of certificates.
The restrictions are encapsulated in a Pin Rules Certificate Trust List (CTL) that is configured and deployed to Windows devices.
Any site certificates that trigger a name mismatch causes Windows to write an event to the CAPI2 event log, and prevents the user from browsing the web site.

Note

Enterprise Certificate Pinning feature triggering doesn't cause clients other than Microsoft Edge to block the connection.

Deployment

To deploy enterprise certificate pinning, you need to:

  • Create a well-formatted certificate pinning rule XML file
  • Create a pin rules certificate trust list file from the XML file
  • Apply the pin rules certificate trust list file to a reference administrative computer
  • Deploy the registry configuration on the reference computer via group policy

Create a pin rules XML file

The XML-based pin rules file consists of a sequence of PinRule elements. Each PinRule element contains a sequence of one or more Site elements and a sequence of zero or more Certificate elements.

<PinRules ListIdentifier="PinRulesExample" Duration="P28D">

  <PinRule Name="AllCertificateAttributes" Error="None" Log="true">
    <Certificate File="Single.cer"/>
    <Certificate File="Multiple.p7b"/>
    <Certificate File="Multiple.sst"/>
    <Certificate Directory="Multiple"/>
    <Certificate Base64="MIIBy … QFzuM"/>
    <Certificate File="WillExpire.cer" EndDate="2015-05-12T00:00:00Z"/>
    <Site Domain="xyz.com"/>
  </PinRule>

  <PinRule Name="MultipleSites" Log="false">
    <Certificate File="Root.cer"/>
    <Site Domain="xyz.com"/>
    <Site Domain=".xyz.com"/>
    <Site Domain="*.abc.xyz.com" AllSubdomains="true"/>
    <Site Domain="WillNormalize.com"/>
  </PinRule>

</PinRules>

PinRules element

The PinRules element can have the following attributes. For help with formatting Pin Rules, see Represent a date in XML or Represent a duration in XML.

Attribute Description Required
Duration or NextUpdate Specifies when the Pin Rules expires. Either is required. NextUpdate takes precedence if both are specified.
Duration, represented as an XML TimeSpan data type, doesn't allow years and months. You represent the NextUpdate attribute as an XML DateTime data type in UTC.		 Required? Yes. At least one is required.
LogDuration or LogEndDate Configures auditing only to extend beyond the expiration of enforcing the Pin Rules.
LogEndDate, represented as an XML DateTime data type in UTC, takes precedence if both are specified.
You represent LogDuration as an XML TimeSpan data type, which doesn't allow years and months.
If `none of the attributes are specified, auditing expiration uses Duration or NextUpdate attributes.		 No.
ListIdentifier Provides a friendly name for the list of pin rules. Windows doesn't use this attribute for certificate pinning enforcement; however, it's included when the pin rules are converted to a certificate trust list (CTL). No.

PinRule element

The PinRule element can have the following attributes.

Attribute Description Required
Name Uniquely identifies the PinRule. Windows uses the attribute to identify the element for a parsing error or for verbose output. The attribute isn't included in the generated certificate trust list (CTL). Yes.
Error Describes the action Windows performs when it encounters a PIN mismatch. You can choose from the following string values:
- Revoked - Windows reports the certificate protecting the site as if it was revoked. This typically prevents the user from accessing the site.
- InvalidName - Windows reports the certificate protecting the site as if the name on the certificate doesn't match the name of the site. This typically results in prompting the user before accessing the site.
- None - The default value. No error is returned. You can use the setting to audit the pin rules without introducing any user friction.		 No.
Log A Boolean value represents a string that equals true or false. By default, logging is enabled (true). No.

Certificate element

The Certificate element can have the following attributes.

Attribute Description Required
File Path to a file containing one or more certificates. Where the certificate(s) can be encoded as:
- single certificate
- p7b
- sst
These files can also be Base64 formatted. All Site elements included in the same PinRule element can match any of these certificates.		 Yes (File, Directory, or Base64 must be present).
Directory Path to a directory containing one or more of the above certificate files. Skips any files not containing any certificates. Yes (File, Directory, or Base64 must be present).
Base64 Base64 encoded certificate(s). Where the certificate(s) can be encoded as:
- single certificate
- p7b
- sst
This allows the certificates to be included in the XML file without a file directory dependency.
Note:
You can use certutil -encode to convert a .cer file into base64. You can then use Notepad to copy and paste the base64 encoded certificate into the pin rule.		 Yes (File, Directory, or Base64 must be present).
EndDate Enables you to configure an expiration date for when the certificate is no longer valid in the pin rule.
If you are in the process of switching to a new root or CA, you can set the EndDate to allow matching of this element's certificates.
If the current time is past the EndDate, when creating the certificate trust list (CTL) the parser outputs a warning message and excludes the certificate(s) from the Pin Rule in the generated CTL.
For help with formatting Pin Rules, see Represent a date in XML.		 No.

Site element

The Site element can have the following attributes.

Attribute Description Required
Domain Contains the DNS name to be matched for this pin rule. When you create the certificate trust list, the parser normalizes the input name string value as follows:
- If the DNS name has a leading "*", it's removed.
- Non-ASCII DNS name is converted to ASCII Puny Code.
- Upper case ASCII characters are converted to lower case.
If the normalized name has a leading ".", then wildcard left-hand label matching is enabled. For example, ".xyz.com" would match "abc.xyz.com".		 Yes.
AllSubdomains By default, wildcard left-hand label matching is restricted to a single left-hand label. This attribute can be set to "true" to enable wildcard matching of all of the left-hand labels.
For example, setting this attribute would also match "123.abc.xyz.com" for the ".xyz.com" domain value.		 No.

Create a pin rules certificate trust list

The Certutil.exe command includes the generatePinRulesCTL argument. The argument parses the XML file and generates the encoded certificate trust list (CTL) that you add to your reference Windows device and then deploy. The syntax is:

CertUtil [Options] -generatePinRulesCTL XMLFile CTLFile [SSTFile]
  Generate Pin Rules CTL
    XMLFile -- input XML file to be parsed.
    CTLFile -- output CTL file to be generated.
    SSTFile -- optional .sst file to be created.
         The .sst file contains all of the certificates
         used for pinning.

Options:
  -f                -- Force overwrite
  -v                -- Verbose operation
  • The same certificate(s) can occur in multiple PinRule elements
  • The same domain can occur in multiple PinRule elements
  • Certutil coalesces these in the resultant pin rules certificate trust list
  • Certutil.exe doesn't strictly enforce the XML schema definition

Certutil performs the following to enable other tools to add/consume their own specific elements and attributes:

  • Skips elements before and after the PinRules element
  • Skips any element not matching Certificate or Site within the PinRules element
  • Skips any attributes not matching the above names for each element type

Use the certutil command with the generatePinRulesCTL argument along with your XML file that contains your certificate pinning rules. Lastly, provide the name of an output file that will include your certificate pinning rules in the form of a certificate trust list.

certutil -generatePinRulesCTL certPinRules.xml pinrules.stl

Apply certificate pinning rules to a reference computer

Now that your certificate pinning rules are in the certificate trust list format, you need to apply the settings to a reference computer as a prerequisite to deploying the setting to your enterprise. To simplify the deployment configuration, it's best to apply your certificate pinning rules to a computer that has the Group Policy Management Console (GPMC) included in the Remote Server Administration Tools (RSAT).

Use certutil.exe to apply your certificate pinning rules to your reference computer using the setreg argument.
The setreg argument takes a secondary argument that determines the location of where certutil writes the certificate pining rules.
The secondary argument is chain\PinRules.
The last argument you provide is the name of file that contains your certificate pinning rules in certificate trust list format (.stl).
You pass the name of the file as the last argument. You must prefix the file name with the @ symbol as in the following example:

Certutil -setreg chain\PinRules @pinrules.stl

Note

You must execute the command from an elevated command prompt.

Certutil writes the binary information to the following registration location:

Name Value
Key HKLM\SOFTWARE\Microsoft\Cryptography\OID\EncodingType0\CertDllCreateCertificateChainEngine\Config
Name PinRules
Value Binary contents from the certificate pin rules certificate trust list file
Data type REG_BINARY

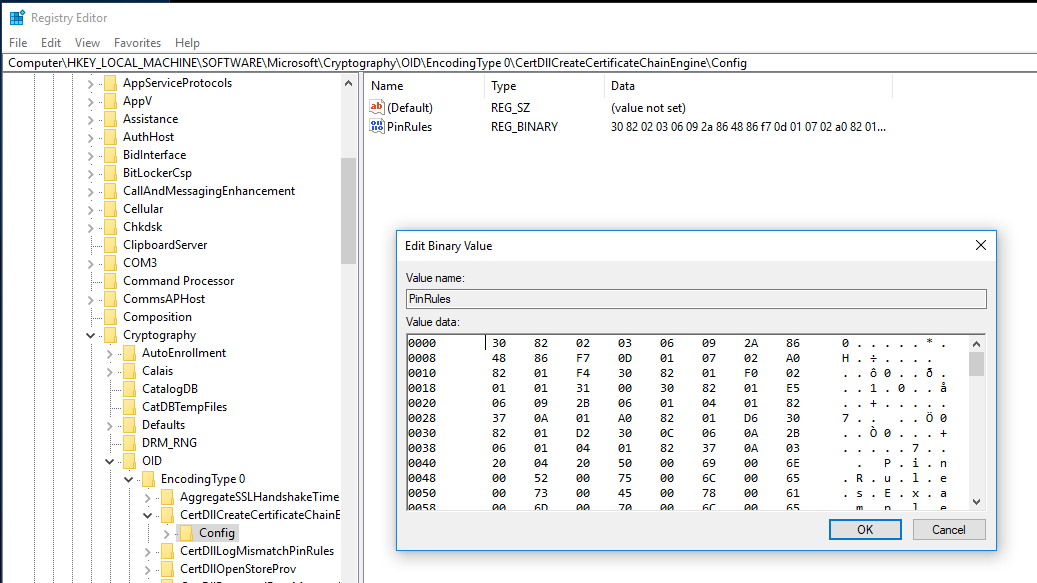

Registry binary information.

Deploy enterprise pin rule settings using group policy

From the XML file, you've created a certificate pinning trust list file. Then, you've applied the content of the file to your reference device from which you can run the Group Policy Management Console.

The next step consists of configuring a group policy object that includes the applied certificate pin rule settings, and deploy it in your environment.

Sign-in to the reference computer using domain administrator equivalent credentials.

  1. Start the Group Policy Management Console (gpmc.msc)
  2. In the navigation pane, expand the forest node and then expand the domain node
  3. Expand the node that contains your Active Directory's domain name
  4. Select the Group Policy objects node. Right-click the Group Policy objects node and select New
  5. In the New GPO dialog box, type Enterprise Certificate Pinning Rules in the Name text box and select OK
  6. In the content pane, right-click the Enterprise Certificate Pinning Rules Group Policy object and select Edit
  7. In the Group Policy Management Editor, in the navigation pane, expand the Preferences node under Computer Configuration. Expand Windows Settings
  8. Right-click the Registry node and select New
  9. In the New Registry Properties dialog box, select Update from the Action list. Select HKEY_LOCAL_MACHINE from the Hive list
  10. For the Key Path, select … to launch the Registry Item Browser. Navigate to the following registry key and select the PinRules registry value name:

HKLM\SOFTWARE\Microsoft\Cryptography\OID\EncodingType0\CertDllCreateCertificateChainEngine\Config

Select Select to close the Registry Item Browser

  1. The Key Path should contain the selected registry key. The Value name configuration should contain the registry value name PinRules. Value type should read REG_BINARY and Value data should contain a long series of numbers from 0-9 and letters ranging from A-F (hexadecimal). Select OK to save your settings and close the dialog box

PinRules Properties.

  1. Close the Group Policy Management Editor to save your settings
  2. Link the Enterprise Certificate Pinning Rules GPO to the OU containing the devices that you want to configure

Additional pin rules logging

To help constructing certificate pinning rules, you can configure the PinRulesLogDir setting under the certificate chain configuration registry key to include a parent directory to log pin rules.

Name Value
Key HKLM\SOFTWARE\Microsoft\Cryptography\OID\EncodingType0\CertDllCreateCertificateChainEngine\Config
Name PinRulesLogDir
Value The Parent directory where Windows should write the additional pin rule logs
Data type REG_SZ

Permission for the pin rule log folder

The folder in which Windows writes the additional pin rule logs must have permissions so that all users and applications have full access. You can run the following commands from an elevated command prompt to achieve the proper permissions.

set PinRulesLogDir=c:\PinRulesLog
mkdir %PinRulesLogDir%
icacls %PinRulesLogDir% /grant *S-1-15-2-1:(OI)(CI)(F)
icacls %PinRulesLogDir% /grant *S-1-1-0:(OI)(CI)(F)
icacls %PinRulesLogDir% /grant *S-1-5-12:(OI)(CI)(F)
icacls %PinRulesLogDir% /inheritance:e /setintegritylevel (OI)(CI)L

When an application verifies a TLS/SSL certificate chain that contains a server name matching a DNS name in the server certificate, Windows writes a .p7b file consisting of all the certificates in the server's chain to one of three child folders:

  • AdminPinRules: Matched a site in the enterprise certificate pinning rules
  • AutoUpdatePinRules: Matched a site in the certificate pinning rules managed by Microsoft
  • NoPinRules: Didn't match any site in the certificate pin rules

The output file name consists of the leading eight ASCII hex digits of the root's SHA1 thumbprint followed by the server name. For example:

  • D4DE20D0_xsi.outlook.com.p7b
  • DE28F4A4_www.yammer.com.p7b

If there's either an enterprise certificate pin rule or a Microsoft certificate pin rule mismatch, then Windows writes the .p7b file to the MismatchPinRules child folder. If the pin rules have expired, then Windows writes the .p7b to the ExpiredPinRules child folder.

Represent a date in XML

Many attributes within the pin rules xml file are dates.
These dates must be properly formatted and represented in UTC.
You can use Windows PowerShell to format these dates.
You can then copy and paste the output of the cmdlet into the XML file.

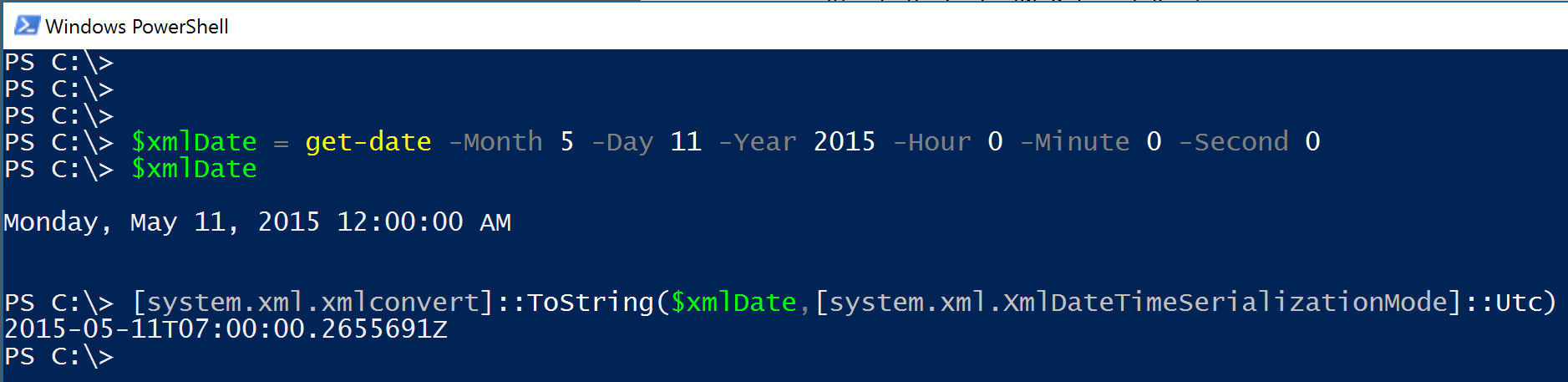

Representing a date.

For simplicity, you can truncate decimal point (.) and the numbers after it. However, be certain to append the uppercase "Z" to the end of the XML date string.

2015-05-11T07:00:00.2655691Z
2015-05-11T07:00:00Z

Convert an XML date

You can also use Windows PowerShell to validate and convert an XML date into a human readable date to validate it's the correct date.

Converting an XML date.

Represent a duration in XML

Some elements may be configured to use a duration rather than a date. You must represent the duration as an XML timespan data type. You can use Windows PowerShell to properly format and validate durations (timespans) and copy and paste them into your XML file.

Representing a duration.

Convert an XML duration

You can convert an XML formatted timespan into a timespan variable that you can read.

Converting an XML duration.

Certificate trust list XML schema definition (XSD)

<xs:schema attributeFormDefault="unqualified" elementFormDefault="qualified" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="PinRules">
    <xs:complexType>
      <xs:sequence>
        <xs:element name="PinRule" maxOccurs="unbounded" minOccurs="1">
          <xs:complexType>
            <xs:sequence>
              <xs:element name="Certificate" maxOccurs="unbounded" minOccurs="0">
                <xs:complexType>
                  <xs:simpleContent>
                    <xs:extension base="xs:string">
                      <xs:attribute type="xs:dateTime" name="EndDate" use="optional"/>
                      <xs:attribute type="xs:string" name="File" use="optional"/>
                      <xs:attribute type="xs:string" name="Directory" use="optional"/>
                      <xs:attribute type="xs:base64Binary" name="Base64" use="optional"/>
                    </xs:extension>
                  </xs:simpleContent>
                </xs:complexType>
              </xs:element>
              <xs:element name="Site" maxOccurs="unbounded" minOccurs="1">
                <xs:complexType>
                  <xs:simpleContent>
                    <xs:extension base="xs:string">
                      <xs:attribute type="xs:string" name="Domain"/>
                      <xs:attribute type="xs:boolean" name="AllSubdomains" use="optional" default="false"/>
                    </xs:extension>
                  </xs:simpleContent>
                </xs:complexType>
              </xs:element>
            </xs:sequence>
            <xs:attribute type="xs:string" name="Name"/>
            <xs:attribute name="Error" use="optional" default="None">
              <xs:simpleType>
                <xs:restriction base="xs:string">
                  <xs:enumeration value ="Revoked"/>
                  <xs:enumeration value ="InvalidName"/>
                  <xs:enumeration value ="None"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute type="xs:boolean" name="Log" use="optional" default="true"/>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
      <xs:attribute type="xs:duration" name="Duration" use="optional"/>
      <xs:attribute type="xs:duration" name="LogDuration" use="optional"/>
      <xs:attribute type="xs:dateTime" name="NextUpdate" use="optional"/>
      <xs:attribute type="xs:dateTime" name="LogEndDate" use="optional"/>
      <xs:attribute type="xs:string" name="ListIdentifier" use="optional"/>
    </xs:complexType>
  </xs:element>
</xs:schema>
