Morphology effect

Use the morphology effect to thin or thicken edge boundaries in an image. This effect creates a kernel that is 2 times the Width and Height values you specify. This effect centers the kernel on the pixel it is calculating and returns the maximum value in the kernel (if dilating) or minimum value in the kernel (if eroding).

The CLSID for this effect is CLSID_D2D1Morphology.

Example images

This example shows the output of the effect when using the erode mode.

Before

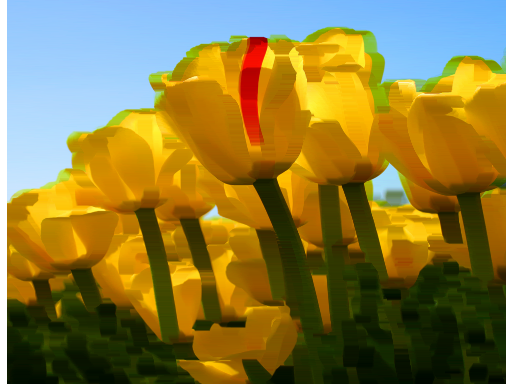

After

ComPtr<ID2D1Effect> morphologyEffect;
m_d2dContext->CreateEffect(CLSID_D2D1Morphology, &morphologyEffect);

morphologyEffect->SetInput(0, bitmap);

morphologyEffect->SetValue(D2D1_MORPHOLOGY_PROP_MODE, D2D1_MORPHOLOGY_MODE_ERODE);
morphologyEffect->SetValue(D2D1_MORPHOLOGY_PROP_WIDTH, 14);

m_d2dContext->BeginDraw();
m_d2dContext->DrawImage(morphologyEffect.Get());
m_d2dContext->EndDraw();

Effect properties

Display name and index enumeration	Type and default value	Description
Mode D2D1_MORPHOLOGY_PROP_MODE	D2D1_MORPHOLOGY_MODE D2D1_MORPHOLOGY_MODE_ERODE	The morphology mode. The available modes are erode (flatten) and dilate (thicken). See Morphology modes for more info.
Width D2D1_MORPHOLOGY_PROP_WIDTH	UINT 1	Size of the kernel in the X direction. The units are in DIPs. Values must be between 1 and 100 inclusive.
Height D2D1_MORPHOLOGY_PROP_HEIGHT	UINT 1	Size of the kernel in the Y direction. The units are in DIPs. Values must be between 1 and 100 inclusive.

Morphology modes

Name	Description
D2D1_MORPHOLOGY_MODE_ERODE	The minimum value from each RGB channel in the kernel is used.
D2D1_MORPHOLOGY_MODE_DILATE	The maximum value from each RGB channel in the kernel is used.

Output bitmap

For DILATE mode, the Output Bitmap size grows:

Requirement	Value
Output Bitmap Growth X =	INT(FLOAT(Width) * ((User DPI) / 96))
Output Bitmap Growth Y =	INT(FLOAT(Height) * ((User DPI) / 96))

For ERODE mode, the Output Bitmap size shrinks:

Requirement	Value
Output Bitmap Growth X =	INT(FLOAT(-Width) * ((User DPI) / 96))
Output Bitmap Growth Y =	INT(FLOAT(-Height) * ((User DPI) / 96))

Requirements

Requirement	Value
Minimum supported client	Windows 8 and Platform Update for Windows 7 [desktop apps | Windows Store apps]
Minimum supported server	Windows 8 and Platform Update for Windows 7 [desktop apps | Windows Store apps]
Header	d2d1effects.h
Library	d2d1.lib, dxguid.lib
