Custom texture/mesh visualizers in PIX

  • Article

Custom visualizers allow you to do mainly two things:

  1. Extend the pipeline view texture viewer to run a custom compute shader, which can read any resource bound to any stage of the pipeline, and output a 2D texture displayed in the viewer.

  2. Extend the pipeline view buffer viewer to run a custom compute shader, which can read any resource bound to any stage of the pipeline, and output both an index buffer and a vertex buffer to be displayed in the mesh viewer.

PIX extensibility settings

By using the Extensibility Paths setting, you can specify any number of folders for PIX to search for visualizers (*.hlsl files).

If your visualizer shaders #include any file that's not sitting next to the main HLSL visualizer files, then you can use the Extensibility Include Search Paths setting to add search paths for those files.

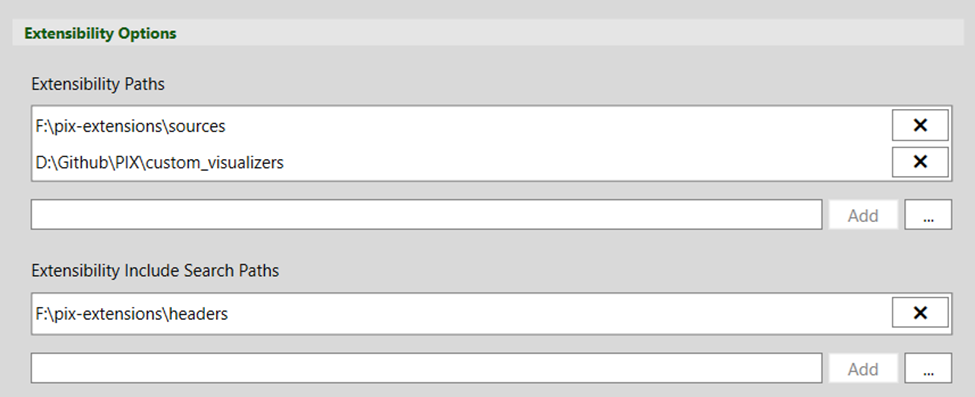

Where to modify the extensions paths in PIX

Custom texture visualizer

Assuming that you've configured paths to your visualizer shaders in the settings, you can now see your visualizers listed in the Visualization panel.

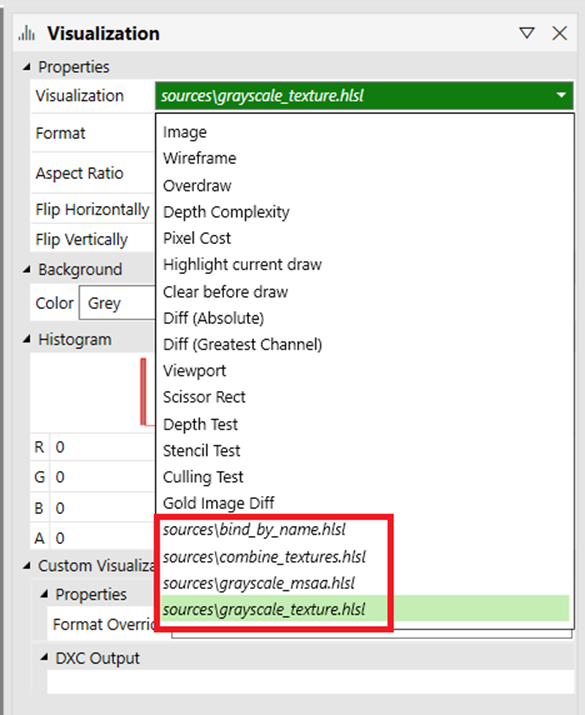

Example of some visualizers in the dropdown menu

Visualization panel

Once you've selected a custom visualizer from the list in the Visualization panel, the Custom Visualization section appears. From there, you can select to override the default texture format for your visualizer output. By default, the selected output format will be compatible with the pipeline view's currently selected texture. That's also where any shader compilation warnings/errors will be displayed.

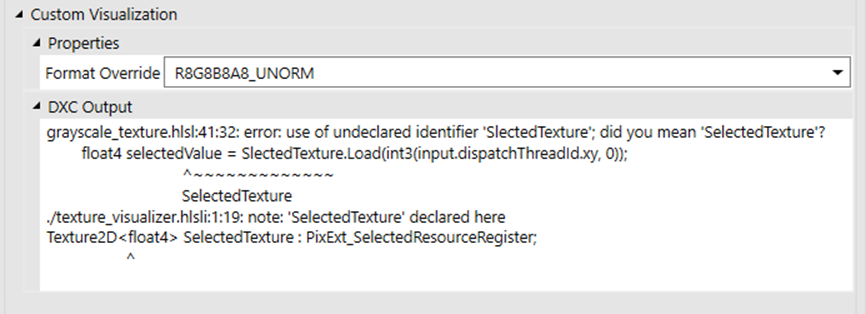

Example of a custom extension compiler error

Creating a custom texture visualizer

A visualizer is a compute shader running against the selected event (that is, draw, dispatch, dispatch mesh) and which output will be displayed in the texture viewer in place of the currently selected texture/render target. In order to be successfully recognized by PIX, your entry point must be named main.

You can select the thread group size of your compute shader the same way you do with any compute shader by specifying it as an attribute (for example, [numthreads(8, 8, 1)]). PIX will invoke your compute shader so that one thread can execute per pixel.

For instance, if you have a texture of size 512x512 pixels, and your compute shader uses a threadgroup size of (8, 8, 1), then the resulting invocation done internally by the PIX engine would be Dispatch(64, 64, 1). If the texture size isn't a multiple of the threadgroup size, then more threads than pixels are invoked to cover all of them.

The output texture generated by your compute shader will reflect the largest coordinates that it outputs through the HLSL API (for example, PixExt_StorePixel_Float(uint2 offset, float4 pixel)).

When your shader code is compiled in the PIX engine, the root signature used is a modified version of the one bound at the selected event. That means that (through the PIX HLSL API) you get access to all resources as they are available to that event plus all resources bound to the IA and OM stages.

If you have errors in your shader (displayed in the Visualization panel > Custom Visualization section in the DXC Output text box), then you can simply edit the file to correct the errors, and use the refresh button in the texture viewer to rebuild and re-execute your visualizer.

Example

Here's a basic example of a visualizer shader.

Texture2D<float4> SelectedTexture : PixExt_SelectedResourceRegister;

// For the custom PSO to successfully build, the root signature
// of the selected event must have a valid binding for t0.
Texture2D<float4> SRV0 : register(t0);

[numthreads(8, 8, 1)]
void main(PixExt_ComputeInput input)
{
    uint2 selSize, srvSize;
    SelectedTexture.GetDimensions(selSize.x, selSize.y);
    SRV0.GetDimensions(srvSize.x, srvSize.y);

    float2 uvs = input.dispatchThreadId.xy / (float2)selSize;
    int2 srvCoords = (int2)(srvSize * uvs);

    float4 selectedValue = SelectedTexture.Load(int3(input.dispatchThreadId.xy, 0));
    float4 srv0Value = SRV0.Load(int3(srvCoords, 0));
    float4 finalValue = selectedValue * srv0Value.yzxw;

    PixExt_StorePixel_Float(input.dispatchThreadId.xy, finalValue);
}

In the example above, we declare SelectedTexture to point to the pipeline view's currently selected texture by using the PIX HLSL API special register PixExt_SelectedResourceRegister. We also declare SRV0 at t0, knowing it will be present in the root signature of the GPU capture we're working against. You can always make your extension as generic or specific as your use case dictates. Finally, we output to the texture viewer using the PixExt_StorePixel_Float function, which takes a pixel position and a value as arguments.

To get more information on the API, refer to the HLSL API section.

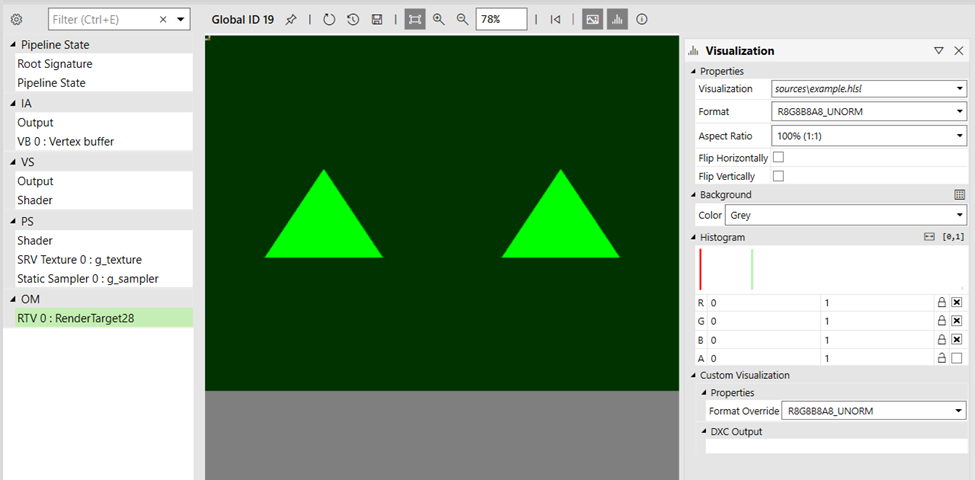

Example output from the texture visualizer above

Custom buffer visualizer

Assuming you've set up paths to your visualizer shaders in the settings, you can now see your visualizers listed in the Custom Visualization panel, which you can open using the following buffer viewer toolbar icon: {}.

Custom visualization panel

From that panel, you can select any available custom visualizer, and see any warning/error messages from the shader compiler.

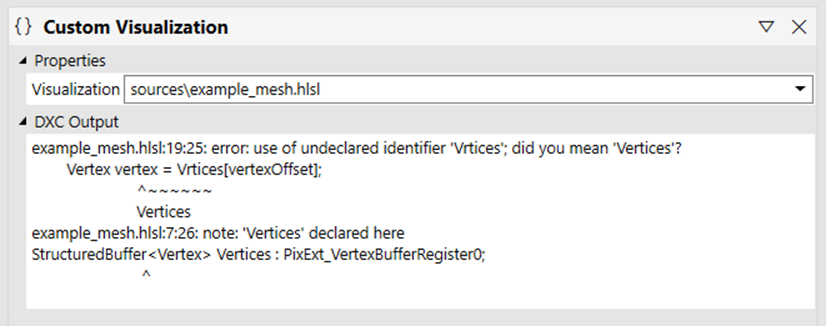

Example error from a buffer visualizer

Creating a custom buffer visualizer

A visualizer is a compute shader running against the selected event, and whose output will be displayed in the mesh viewer in place of the buffer viewer showing the currently selected buffer data. To be successfully recognized by PIX, your entry point must be named main.

You can select the thread group size of your compute shader as you do for any compute shader by specifying it as an attribute (for example, [numthreads(32, 1, 1)]). PIX will invoke your compute shader so that one thread can execute per buffer element.

For instance, if you have a buffer of 100 elements, and your compute shader uses a threadgroup size of (32, 1, 1), then the resulting invocation done internally by the PIX engine would be Dispatch(4, 1, 1). If the buffer size is not a multiple of the threadgroup size, then more threads than buffer elements are invoked to cover all of them.

The output index and vertex buffers allocated to your compute shader dynamically grow to fit all the data you output. You can output as much data as you need. Indices are 32-bit, and vertices are allowed to be only float4 positions.

When your shader code is compiled in the PIX engine, the root signature used is a modified version of the one bound at the selected event. That means that (through the PIX HLSL API) you get access to all resources as they are available to that event plus all resources bound to the IA and OM stages.

If you have errors in your shader (displayed in the Custom Visualization panel > DXC Output text box), then you can simply edit the file to correct the errors, and hit the refresh button in the mesh viewer to rebuild and re-execute your visualizer.

Example

Here's a basic example of a visualizer shader

struct Vertex
{
    float3 position;
    float2 uv;
};

StructuredBuffer<Vertex> Vertices : PixExt_VertexBufferRegister0;

[numthreads(32, 1, 1)]
void main(PixExt_ComputeInput input)
{
    const uint vertexCount = PixExt_GetVertexCountPerInstance();

    if (input.dispatchThreadId.x < vertexCount)
    {
        const uint vertexStart = PixExt_GetStartVertexLocation();

        uint vertexOffset = input.dispatchThreadId.x + vertexStart;
        Vertex vertex = Vertices[vertexOffset];
        float4 newPosition = float4(vertex.position, 1.f);
        PixExt_StoreIndex(input.dispatchThreadId.x, input.dispatchThreadId.x);
        PixExt_StoreVertex(input.dispatchThreadId.x, newPosition);
    }
}

In the example above, we access vertices declaring Vertices to point to the pipeline view currently bound vertex buffer 0 using the PIX HLSL API special register PixExt_VertexBufferRegister0. We then output to the mesh viewer using the PixExt_StoreIndex and PixExt_StoreVertex functions, which take buffer offsets and respectively index and vertex values as arguments.

To get more information on the API, refer to the HLSL API section.

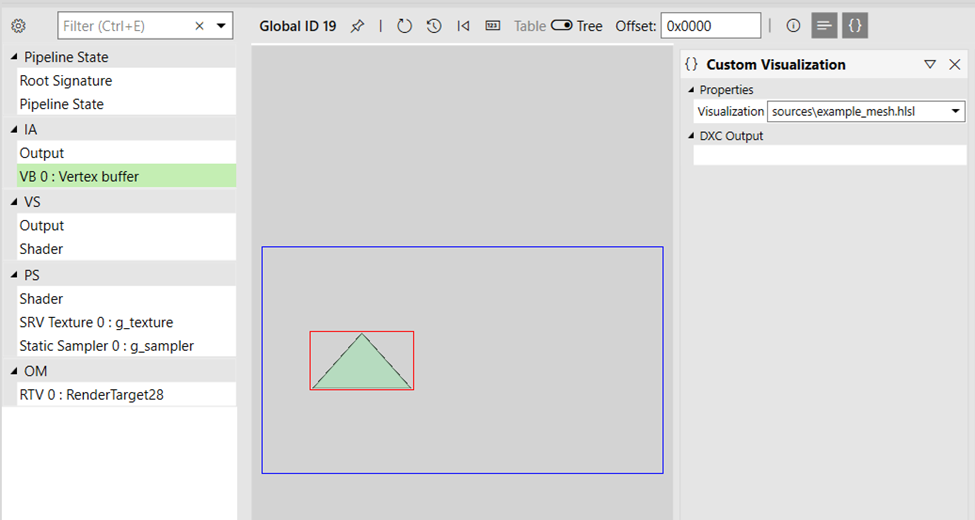

Example output from the buffer visualizer above

Visualize a buffer as a texture

It is also possible to select a buffer and a custom visualizer outputting to a texture. In that case, the texture viewer will be displayed in place of the regular buffer viewer to display the result.

User constants

It is possible to add constants whose values can be set from the UI for every visualizer invocation. They are supported for all custom visualizer types.

HLSL example

PixExt_Declare_UserConstants_Start
    PixExt_UserConstant_Int(int_constant_name);
    PixExt_UserConstant_Uint(uint_constant_name);
    PixExt_UserConstant_Float(float_constant_name);
PixExt_Declare_UserConstants_End

You are allowed to have a single user constant block (PixExt_Declare_UserConstants_Start / PixExt_Declare_UserConstants_End pair) in your visualizer. You can add any number of constants of 3 different types, namely int, uint, float. For each one declared, a new entry will appear in the visualization panel to enter the desired value. 0 is the default for all constants.

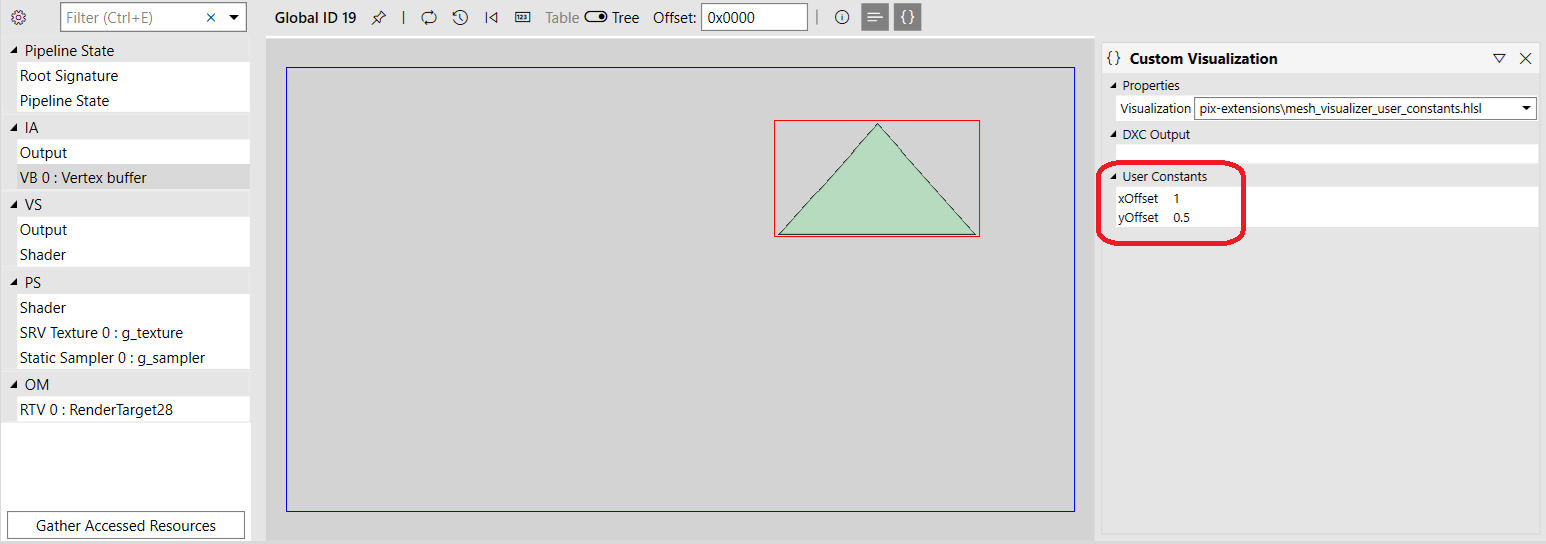

User constants example

PIX HLSL API

To give you access to all resources, and to have a standard mean of outputting data to the viewers, PIX will inject internal implementation code when compiling your shader. The implementation is always subject to change, but the following documented API is stable across PIX versions.

Resource access

The API defines a set of special registers that you can use to get access to resources of different pipeline stages that are not inherently accessible.

Selected resource

PixExt_SelectedResourceRegister: Gives access to the resource currently selected in the pipeline view.

Render targets

PixExt_RenderTargetRegister0
PixExt_RenderTargetRegister1
PixExt_RenderTargetRegister2
PixExt_RenderTargetRegister3
PixExt_RenderTargetRegister4
PixExt_RenderTargetRegister5
PixExt_RenderTargetRegister6
PixExt_RenderTargetRegister7

Depth/stencil

PixExt_DepthRegister
PixExt_StencilRegister

Input assembly stage resources

PixExt_IndexBufferRegister
PixExt_VertexBufferRegister0
PixExt_VertexBufferRegister1
PixExt_VertexBufferRegister2
PixExt_VertexBufferRegister3
PixExt_VertexBufferRegister4
PixExt_VertexBufferRegister5
PixExt_VertexBufferRegister6
PixExt_VertexBufferRegister7
PixExt_VertexBufferRegister8
PixExt_VertexBufferRegister9
PixExt_VertexBufferRegister10
PixExt_VertexBufferRegister11
PixExt_VertexBufferRegister12
PixExt_VertexBufferRegister13
PixExt_VertexBufferRegister14
PixExt_VertexBufferRegister15
PixExt_VertexBufferRegister16
PixExt_VertexBufferRegister17
PixExt_VertexBufferRegister18
PixExt_VertexBufferRegister19
PixExt_VertexBufferRegister20
PixExt_VertexBufferRegister21
PixExt_VertexBufferRegister22
PixExt_VertexBufferRegister23
PixExt_VertexBufferRegister24
PixExt_VertexBufferRegister25
PixExt_VertexBufferRegister26
PixExt_VertexBufferRegister27
PixExt_VertexBufferRegister28
PixExt_VertexBufferRegister29
PixExt_VertexBufferRegister30
PixExt_VertexBufferRegister31

Variable-rate shading

PixExt_ShadingRateImageRegister

Shader inputs

You can use the PixExt_ComputeInput structure as an input to your main shader function. This is a helper, and isn't mandatory.

struct PixExt_ComputeInput
{
    uint3 dispatchThreadId : SV_DispatchThreadID;
    uint3 groupId : SV_GroupID;
    uint3 groupThreadId : SV_GroupThreadID;
    uint groupIndex : SV_GroupIndex;
};

Selected texture information

// Returns the currently selected sample.
uint PixExt_GetSelectedSample();

// Returns the currently selected mip.
uint PixExt_GetSelectedMip();

// Returns the currently selected slice.
uint PixExt_GetSelectedSlice();

Selected event arguments

// For a DrawIndexedInstanced event,
// returns the IndexCountPerInstance.
uint PixExt_GetIndexCountPerInstance();

// For a DrawIndexedInstanced event,
// returns the StartIndexLocation
uint PixExt_GetStartIndexLocation();

// For a DrawInstanced event,
// returns the VertexCountPerInstance.
uint PixExt_GetVertexCountPerInstance();

// For a DrawInstanced event,
// returns the StartVertexLocation.
uint PixExt_GetStartVertexLocation();

// For a DrawInstanced or DrawIndexedInstanced event,
// returns the InstanceCount.
uint PixExt_GetInstanceCount();

// For a DrawInstanced or DrawIndexedInstanced event,
// returns the StartInstanceLocation.
uint PixExt_GetStartInstanceLocation();

// For a Dispatch or DispatchMesh event,
// returns the ThreadGroupCountX.
uint PixExt_GetThreadGroupCountX();

// For a Dispatch or DispatchMesh event,
// returns the ThreadGroupCountY.
uint PixExt_GetThreadGroupCountY();

// For a Dispatch or DispatchMesh event,
// returns the ThreadGroupCountZ.
uint PixExt_GetThreadGroupCountZ();

Variable-rate shading

// Returns the screen-space VRS image pixel tile size.
uint PixExt_GetShadingRateImageTileSize();

Bind by resource name

You can explicitly bind to a resource by name using the PixExt_BindByName special register. When used on a custom visualizer resource declaration, it instructs PIX to find a resource of the same name in the selected event to bind to. For instance, using the following code in a custom visualizer would result in a binding to a resource named g_texture found in the selected event shaders.

Texture2D<float4> g_texture : PixExt_BindByName;

Shader outputs

You output data to the viewers using the following functions.

Texture

// Stores the given INT pixel data for texture viewer display.
//
// offset: Pixel position to write to.
// pixel: Pixel data to write.
void PixExt_StorePixel_Int(uint2 offset, int4 pixel);

// Stores the given UINT pixel data for texture viewer display.
//
// offset: Pixel position to write to.
// pixel: Pixel data to write.
void PixExt_StorePixel_Uint(uint2 offset, uint4 pixel);

// Stores the given FLOAT pixel data for texture viewer display.
//
// offset: Pixel position to write to.
// pixel: Pixel data to write.
void PixExt_StorePixel_Float(uint2 offset, float4 pixel);

Mesh

// Stores the given index for mesh viewer display.
//
// offset: Offset into the index buffer to write to.
// index: Index to write.
void PixExt_StoreIndex(uint offset, uint index);

// Stores the given vertex position for mesh viewer display.
//
// offset: Offset into the vertex buffer to write to.
// vertex: Vertex position to write.
void PixExt_StoreVertex(uint offset, float4 vertex);

Requirements

Custom visualizer shaders will be compiled using Shader Model 6.6 (namely cs_6_6) and HLSL version 2021. We plan to support newer shader models and relax the restriction on HLSL 2021 in a future release.
