CTransInPlaceInputPin class

[The feature associated with this page, DirectShow, is a legacy feature. It has been superseded by MediaPlayer, IMFMediaEngine, and Audio/Video Capture in Media Foundation. Those features have been optimized for Windows 10 and Windows 11. Microsoft strongly recommends that new code use MediaPlayer, IMFMediaEngine and Audio/Video Capture in Media Foundation instead of DirectShow, when possible. Microsoft suggests that existing code that uses the legacy APIs be rewritten to use the new APIs if possible.]

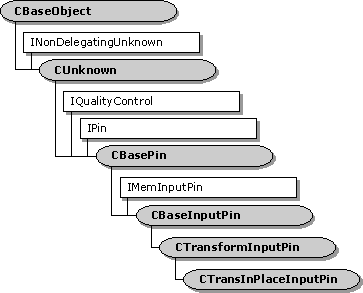

The CTransInPlaceInputPin class implements an input pin that is used by the CTransInPlaceFilter class.

Typically, you do not need to derive from this class. If you do, you must override the filter's CTransInPlaceFilter::GetPin method to create instances of your derived class.

Protected Member Variables	Description
m_bReadOnly	Flag that specifies whether the input stream is read-only.
m_pTIPFilter	Pointer to the filter that created this pin.
Public Methods	Description
CTransInPlaceInputPin	Constructor method.
CheckMediaType	Determines if the pin accepts a specific media type.
PeekAllocator	Retrieves a pointer to the pin's allocator.
ReadOnly	Indicates whether the input stream is read-only.
IPin Methods	Description
EnumMediaTypes	Enumerates the pin's preferred media types.
IMemInputPin Methods	Description
GetAllocator	Retrieves the memory allocator proposed by this pin.
NotifyAllocator	Specifies an allocator for the connection.
GetAllocatorRequirements	Retrieves the allocator properties requested by the pin.

Requirements

Requirement	Value
Header	Transip.h (include Streams.h)
Library	Strmbase.lib (retail builds); Strmbasd.lib (debug builds)
