Keyboard Input Overview

Applications should accept user input from the keyboard as well as from the mouse. An application receives keyboard input in the form of messages posted to its windows.

Keyboard Input Model

The system provides device-independent keyboard support for applications by installing a keyboard device driver appropriate for the current keyboard. The system provides language-independent keyboard support by using the language-specific keyboard layout currently selected by the user or the application. The keyboard device driver receives scan codes from the keyboard, which are sent to the keyboard layout where they are translated into messages and posted to the appropriate windows in your application.

Assigned to each key on a keyboard is a unique value called a scan code, a device-dependent identifier for the key on the keyboard. A keyboard generates two scan codes when the user types a key—one when the user presses the key and another when the user releases the key.

The keyboard device driver interprets a scan code and translates (maps) it to a virtual-key code, a device-independent value defined by the system that identifies the purpose of a key. After translating a scan code, the keyboard layout creates a message that includes the scan code, the virtual-key code, and other information about the keystroke, and then places the message in the system message queue. The system removes the message from the system message queue and posts it to the message queue of the appropriate thread. Eventually, the thread's message loop removes the message and passes it to the appropriate window procedure for processing. The following figure illustrates the keyboard input model.

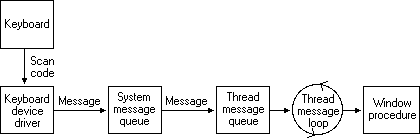

keyboard input processing model

Keyboard Focus and Activation

The system posts keyboard messages to the message queue of the foreground thread that created the window with the keyboard focus. The keyboard focus is a temporary property of a window. The system shares the keyboard among all windows on the display by shifting the keyboard focus, at the user's direction, from one window to another. The window that has the keyboard focus receives (from the message queue of the thread that created it) all keyboard messages until the focus changes to a different window.

A thread can call the GetFocus function to determine which of its windows (if any) currently has the keyboard focus. A thread can give the keyboard focus to one of its windows by calling the SetFocus function. When the keyboard focus changes from one window to another, the system sends a WM_KILLFOCUS message to the window that has lost the focus, and then sends a WM_SETFOCUS message to the window that has gained the focus.

The concept of keyboard focus is related to that of the active window. The active window is the top-level window the user is currently working with. The window with the keyboard focus is either the active window, or a child window of the active window. To help the user identify the active window, the system places it at the top of the Z order and highlights its title bar (if it has one) and border.

The user can activate a top-level window by clicking it, selecting it using the ALT+TAB or ALT+ESC key combination, or selecting it from the Task List. A thread can activate a top-level window by using the SetActiveWindow function. It can determine whether a top-level window it created is active by using the GetActiveWindow function.

When one window is deactivated and another activated, the system sends the WM_ACTIVATE message. The low-order word of the wParam parameter is zero if the window is being deactivated and nonzero if it is being activated. When the default window procedure receives the WM_ACTIVATE message, it sets the keyboard focus to the active window.

To block keyboard and mouse input events from reaching applications, use BlockInput. Note, the BlockInput function will not interfere with the asynchronous keyboard input-state table. This means that calling the SendInput function while input is blocked will change the asynchronous keyboard input-state table.

Keystroke Messages

Pressing a key causes a WM_KEYDOWN or WM_SYSKEYDOWN message to be placed in the thread message queue attached to the window that has the keyboard focus. Releasing a key causes a WM_KEYUP or WM_SYSKEYUP message to be placed in the queue.

Key-up and key-down messages typically occur in pairs, but if the user holds down a key long enough to start the keyboard's automatic repeat feature, the system generates a number of WM_KEYDOWN or WM_SYSKEYDOWN messages in a row. It then generates a single WM_KEYUP or WM_SYSKEYUP message when the user releases the key.

This section covers the following topics:

System and Nonsystem Keystrokes

The system makes a distinction between system keystrokes and nonsystem keystrokes. System keystrokes produce system keystroke messages, WM_SYSKEYDOWN and WM_SYSKEYUP. Nonsystem keystrokes produce nonsystem keystroke messages, WM_KEYDOWN and WM_KEYUP.

If your window procedure must process a system keystroke message, make sure that after processing the message the procedure passes it to the DefWindowProc function. Otherwise, all system operations involving the ALT key will be disabled whenever the window has the keyboard focus. That is, the user won't be able to access the window's menus or System menu, or use the ALT+ESC or ALT+TAB key combination to activate a different window.

System keystroke messages are primarily for use by the system rather than by an application. The system uses them to provide its built-in keyboard interface to menus and to allow the user to control which window is active. System keystroke messages are generated when the user types a key in combination with the ALT key, or when the user types and no window has the keyboard focus (for example, when the active application is minimized). In this case, the messages are posted to the message queue attached to the active window.

Nonsystem keystroke messages are for use by application windows; the DefWindowProc function does nothing with them. A window procedure can discard any nonsystem keystroke messages that it does not need.

Virtual-Key Codes Described

The wParam parameter of a keystroke message contains the virtual-key code of the key that was pressed or released. A window procedure processes or ignores a keystroke message, depending on the value of the virtual-key code.

A typical window procedure processes only a small subset of the keystroke messages that it receives and ignores the rest. For example, a window procedure might process only WM_KEYDOWN keystroke messages, and only those that contain virtual-key codes for the cursor movement keys, shift keys (also called control keys), and function keys. A typical window procedure does not process keystroke messages from character keys. Instead, it uses the TranslateMessage function to convert the message into character messages. For more information about TranslateMessage and character messages, see Character Messages.

Keystroke Message Flags

The lParam parameter of a keystroke message contains additional information about the keystroke that generated the message. This information includes the repeat count, the scan code, the extended-key flag, the context code, the previous key-state flag, and the transition-state flag. The following illustration shows the locations of these flags and values in the lParam parameter.

the locations of the flags and values in the lparam parameter of a keystroke message

An application can use the following values to get the keystroke flags from high-order word of the lParam.

Value Description
KF_EXTENDED
0x0100
Manipulates the extended key flag.
KF_DLGMODE
0x0800
Manipulates the dialog mode flag, which indicates whether a dialog box is active.
KF_MENUMODE
0x1000
Manipulates the menu mode flag, which indicates whether a menu is active.
KF_ALTDOWN
0x2000
Manipulates the context code flag.
KF_REPEAT
0x4000
Manipulates the previous key state flag.
KF_UP
0x8000
Manipulates the transition state flag.

Example code:

case WM_KEYDOWN:
case WM_KEYUP:
case WM_SYSKEYDOWN:
case WM_SYSKEYUP:
{
    WORD vkCode = LOWORD(wParam);                                 // virtual-key code

    WORD keyFlags = HIWORD(lParam);

    WORD scanCode = LOBYTE(keyFlags);                             // scan code
    BOOL isExtendedKey = (keyFlags & KF_EXTENDED) == KF_EXTENDED; // extended-key flag, 1 if scancode has 0xE0 prefix

    if (isExtendedKey)
        scanCode = MAKEWORD(scanCode, 0xE0);

    BOOL wasKeyDown = (keyFlags & KF_REPEAT) == KF_REPEAT;        // previous key-state flag, 1 on autorepeat
    WORD repeatCount = LOWORD(lParam);                            // repeat count, > 0 if several keydown messages was combined into one message

    BOOL isKeyReleased = (keyFlags & KF_UP) == KF_UP;             // transition-state flag, 1 on keyup

    // if we want to distinguish these keys:
    switch (vkCode)
    {
    case VK_SHIFT:   // converts to VK_LSHIFT or VK_RSHIFT
    case VK_CONTROL: // converts to VK_LCONTROL or VK_RCONTROL
    case VK_MENU:    // converts to VK_LMENU or VK_RMENU
        vkCode = LOWORD(MapVirtualKeyW(scanCode, MAPVK_VSC_TO_VK_EX));
        break;
    }

    // ...
}
break;

Repeat Count

You can check the repeat count to determine whether a keystroke message represents more than one keystroke. The system increments the count when the keyboard generates WM_KEYDOWN or WM_SYSKEYDOWN messages faster than an application can process them. This often occurs when the user holds down a key long enough to start the keyboard's automatic repeat feature. Instead of filling the system message queue with the resulting key-down messages, the system combines the messages into a single key down message and increments the repeat count. Releasing a key cannot start the automatic repeat feature, so the repeat count for WM_KEYUP and WM_SYSKEYUP messages is always set to 1.

Scan Codes

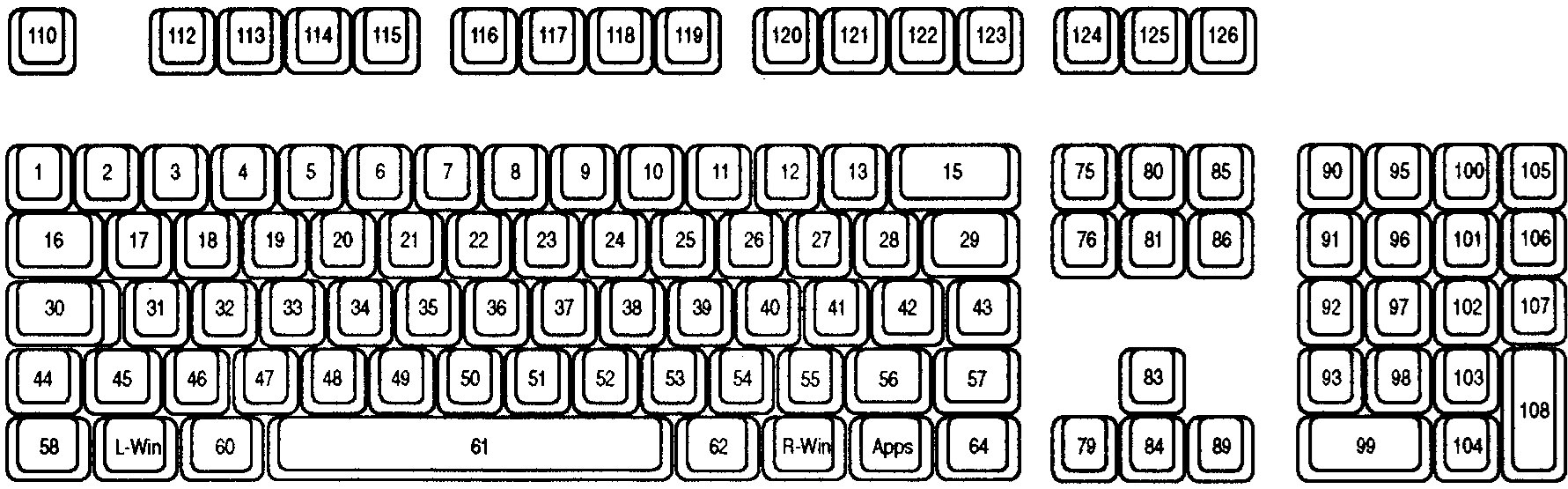

Diagram of a keyboard with the Scan Code specification for each key.

The scan code is the value that the keyboard hardware generates when the user presses a key. It is a device-dependent value that identifies the key pressed, as opposed to the character represented by the key. An application typically ignores scan codes. Instead, it uses the device-independent virtual-key codes to interpret keystroke messages.

Note

While virtual key codes are typically more useful, scan codes might be required in specific cases. For example, the WASD (W is up, A is left, S is down, and D is right) key bindings for games, which ensure a consistent key formation across keyboard layouts.

The following table lists the full set of Scan Codes as presently recognized by Windows. The US Key assignments are for reference to a type 101/102 Enhanced keyboard as supported by the Type 4 Keyboard layout. If there is no entry in the 101/102 Enhanced keyboard column, this scan code is currently not recognized by the operating system. The Key location values reference the preceding keyboard image.

The "Scan 1 make" code is delivered in WM_KEYDOWN/WM_SYSKEYDOWN messages, while the "Scan 1 break" code is delivered in WM_KEYUP/WM_SYSKEYUP messages.

Key location 101/102 Enhanced keyboard Scan 1 make Scan 1 break
DO NOT USE 00 80
DO NOT USE E0_00 E0_80
1 ~ ` 29 A9
E0_29 E0_A9
2 ! 1 02 82
E0_02 E0_82
3 @ 2 03 83
E0_03 E0_83
4 # 3 04 84
E0_04 E0_84
5 $ 4 05 85
E0_05 E0_85
6 % 5 06 86
E0_06 E0_86
7 ^ 6 07 87
E0_07 E0_87
8 & 7 08 88
E0_08 E0_88
9 * 8 09 89
E0_09 E0_89
10 ( 9 0A 8A
E0_0A E0_8A
11 ) 0 0B 8B
E0_0B E0_8B
12 _ - 0C 8C
E0_0C E0_8C
13 + = 0D 8D
E0_0D E0_8D
15 Backspace 0E 8E
E0_0E E0_8E
16 Tab 0F 8F
E0_0F E0_8F
17 Q 10 90
E0_10 E0_90
18 W 11 91
E0_11 E0_91
19 E 12 92
E0_12 E0_92
20 R 13 93
E0_13 E0_93
21 T 14 94
E0_14 E0_94
22 Y 15 95
E0_15 E0_95
23 U 16 96
E0_16 E0_96
24 I 17 97
E0_17 E0_97
25 O 18 98
E0_18 E0_98
26 P 19 99
E0_19 E0_99
27 { [ 1A 9A
E0_1A E0_9A
28 } ] 1B 9B
E0_1B E0_9B
29
(Available on the US and not on the International Keyboard.)
| \ 2B AB
E0_2B E0_AB
30 Caps Lock 3A BA
E0_3A E0_BA
31 A 1E 9E
E0_1E E0_9E
32 S 1F 9F
E0_1F E0_9F
33 D 20 A0
E0_20 E0_A0
34 F 21 A1
E0_21 E0_A1
35 G 22 A2
E0_22 E0_A2
36 H 23 A3
E0_23 E0_A3
37 J 24 A4
E0_24 E0_A4
38 K 25 A5
E0_25 E0_A5
39 L 26 A6
E0_26 E0_A6
40 : ; 27 A7
E0_27 E0_A7
41 “ ‘ 28 A8
E0_28 E0_A8
42
(Available on the International Keyboard and not on the US Keyboard.)
2B AB
E0_2B E0_AB
43 Enter 1C 9C
44 L SHIFT 2A AA
E0_2A E0_AA
45
(Available on the International Keyboard and not on the US Keyboard.)
56 D6
E0_56 E0_D6
46 Z 2C AC
E0_2C E0_AC
47 X 2D AD
E0_2D E0_AD
48 C 2E AE
E0_2E E0_AE
49 V 2F AF
E0_2F E0_AF
50 B 30 B0
E0_30 E0_B0
51 N 31 B1
E0_31 E0_B1
52 M 32 B2
E0_32 E0_B2
53 < , 33 B3
E0_33 E0_B3
54 > . 34 B4
E0_34 E0_B4
55 ? / 35 B5
E0_35 E0_B5
56
(Used on Brazilian and some Far East keyboards. Not available on US Keyboards.)
73 F3
E0_73 E0_F3
57 R SHIFT 36 B6
E0_36 E0_B6
58 L CTRL 1D 9D
60 L ALT 38 B8
E0_38 E0_B8
61 Space Bar 39 B9
E0_39 E0_B9
62 R ALT E0 38 E0 B8
64 R CTRL E0 1D E0 9D
75 Insert Note 1 Note 1
76 Delete Note 1 Note 1
79 L Arrow Note 1 Note 1
80 Home Note 1 Note 1
81 End Note 1 Note 1
83 Up Arrow Note 1 Note 1
84 Dn Arrow Note 1 Note 1
85 Page Up Note 1 Note 1
86 Page Down Note 1 Note 1
89 R Arrow Note 1 Note 1
90 Num Lock 45 C5
E0_45 E0_C5
91 Numeric 7 47 C7
92 Numeric 4 4B CB
93 Numeric 1 4F CF
95 Numeric / Note 3 Note 3
96 Numeric 8 48 C8
97 Numeric 5 4C CC
98 Numeric 2 50 D0
99 Numeric 0 52 D2
100 Numeric * 37 B7
E0_37 E0_B7
101 Numeric 9 49 C9
102 Numeric 6 4D CD
103 Numeric 3 51 D1
104 Numeric . 53 D3
105 Numeric - 4A CA
106 Numeric + 4E CE
107
(Used on Brazilian and some Far East keyboards. Not available on US Keyboards.)
7E FE
DO NOT USE E0_7E E0_FE
108 Numeric Enter E0 1C E0 9C
110 Esc 01 81
E0_01 E0_81
112 F1 3B BB
E0_3B E0_BB
113 F2 3C BC
E0_3C E0_BC
114 F3 3D BD
E0_3D E0_BD
115 F4 3E BE
E0_3E E0_BE
116 F5 3F BF
E0_3F E0_BF
117 F6 40 C0
E0_40 E0_C0
118 F7 41 C1
E0_41 E0_C1
119 F8 42 C2
E0_42 E0_C2
120 F9 43 C3
E0_43 E0_C3
121 F10 44 C4
E0_44 E0_C4
122 F11 57 D7
123 F12 58 D8
124 Print Screen Note 4 Note 4
125 Scroll Lock 46 C6
E0_46 E0_C6
126 Pause Note 5 Note 5
59 D9
E0_59 E0_D9
5B DB
Left Win E0_5B E0_DB
5C DC
Right Win E0_5C E0_DC
5D DD
Application E0_5D E0_DD
5E DE
ACPI Power E0_5E E0_DE
5F DF
ACPI Sleep E0_5F E0_DF
DO NOT USE 60 E0
DO NOT USE E0_60 E0_E0
DO NOT USE 61 E1
DO NOT USE E0_61 E0_E1
62 E2
E0_62 E0_E2
63 E3
ACPI Wake E0_63 E0_E3
64 E4
E0_64 E0_E4
65 E5
E0_65 E0_E5
66 E6
E0_66 E0_E6
67 E7
E0_67 E0_E7
68 E8
E0_68 E0_E8
69 E9
E0_69 E0_E9
6A EA
E0_6A E0_EA
6B EB
E0_6B E0_EB
6C EC
E0_6C E0_EC
6D ED
E0_6D E0_ED
6E EE
E0_6E E0_EE
6F EF
E0_6F E0_EF
DBE_KATAKANA
(Used for Far East keyboards.)
70 F0
E0_70 E0_F0
71 F1
E0_71 E0_F1
72 F2
E0_72 E0_F2
74 F4
E0_74 E0_F4
75 F5
E0_75 E0_F5
76 F6
E0_76 E0_F6
DBE_SBCSCHAR
(Used for Far East keyboards.)
77 F7
E0_77 E0_F7
78 F8
E0_78 E0_F8
CONVERT
(Used for Far East keyboards.)
79 F9
E0_79 E0_F9
DO NOT USE 7A FA
DO NOT USE E0_7A E0_FA
NONCONVERT
(Used for Far East keyboards.)
7B FB
DO NOT USE E0_7B E0_FB
DO NOT USE 7C FC
DO NOT USE E0_7C E0_FC
DO NOT USE 7D FD
DO NOT USE E0_7D E0_FD
DO NOT USE 7F FF
DO NOT USE E0_7F E0_FF

Extended-Key Flag

The extended-key flag indicates whether the keystroke message originated from one of the additional keys on the Enhanced 101/102-key keyboard. The extended keys consist of the ALT and CTRL keys on the right-hand side of the keyboard; the INS, DEL, HOME, END, PAGE UP, PAGE DOWN, and arrow keys in the clusters to the left of the numeric keypad; the NUM LOCK key; the BREAK (CTRL+PAUSE) key; the PRINT SCRN key; and the divide (/) and ENTER keys in the numeric keypad. The right-hand SHIFT key is not considered an extended-key, it has a separate scan code instead.

If specified, the scan code consists of a sequence of two bytes, where the first byte has a value of 0xE0.

Context Code

The context code indicates whether the ALT key was down when the keystroke message was generated. The code is 1 if the ALT key was down and 0 if it was up.

Previous Key-State Flag

The previous key-state flag indicates whether the key that generated the keystroke message was previously up or down. It is 1 if the key was previously down and 0 if the key was previously up. You can use this flag to identify keystroke messages generated by the keyboard's automatic repeat feature. This flag is set to 1 for WM_KEYDOWN and WM_SYSKEYDOWN keystroke messages generated by the automatic repeat feature. It is always set to 1 for WM_KEYUP and WM_SYSKEYUP messages.

Transition-State Flag

The transition-state flag indicates whether pressing a key or releasing a key generated the keystroke message. This flag is always set to 0 for WM_KEYDOWN and WM_SYSKEYDOWN messages; it is always set to 1 for WM_KEYUP and WM_SYSKEYUP messages.

Character Messages

Keystroke messages provide a lot of information about keystrokes, but they do not provide character codes for character keystrokes. To retrieve character codes, an application must include the TranslateMessage function in its thread message loop. TranslateMessage passes a WM_KEYDOWN or WM_SYSKEYDOWN message to the keyboard layout. The layout examines the message's virtual-key code and, if it corresponds to a character key, provides the character code equivalent (taking into account the state of the SHIFT and CAPS LOCK keys). It then generates a character message that includes the character code and places the message at the top of the message queue. The next iteration of the message loop removes the character message from the queue and dispatches the message to the appropriate window procedure.

This section covers the following topics:

Nonsystem Character Messages

A window procedure can receive the following character messages: WM_CHAR, WM_DEADCHAR, WM_SYSCHAR, WM_SYSDEADCHAR, and WM_UNICHAR. The TranslateMessage function generates a WM_CHAR or WM_DEADCHAR message when it processes a WM_KEYDOWN message. Similarly, it generates a WM_SYSCHAR or WM_SYSDEADCHAR message when it processes a WM_SYSKEYDOWN message.

An application that processes keyboard input typically ignores all but the WM_CHAR and WM_UNICHAR messages, passing any other messages to the DefWindowProc function. Note that WM_CHAR uses UTF-16 (16-bit Unicode Transformation Format) or ANSI character set while WM_UNICHAR always uses UTF-32 (32-bit Unicode Transformation Format). The system uses the WM_SYSCHAR and WM_SYSDEADCHAR messages to implement menu mnemonics.

The wParam parameter of all character messages contains the character code of the character key that was pressed. The value of the character code depends on the window class of the window receiving the message. If the Unicode version of the RegisterClass function was used to register the window class, the system provides Unicode characters to all windows of that class. Otherwise, the system provides ANSI character codes. For more information, see Registering Window Classes and Use UTF-8 code pages in Windows apps.

The contents of the lParam parameter of a character message are identical to the contents of the lParam parameter of the key-down message that was translated to produce the character message. For information, see Keystroke Message Flags.

Dead-Character Messages

Some non-English keyboards contain character keys that are not expected to produce characters by themselves. Instead, they are used to add a diacritic to the character produced by the subsequent keystroke. These keys are called dead keys. The circumflex key on a German keyboard is an example of a dead key. To enter the character consisting of an "o" with a circumflex, a German user would type the circumflex key followed by the "o" key. The window with the keyboard focus would receive the following sequence of messages:

  1. WM_KEYDOWN
  2. WM_DEADCHAR
  3. WM_KEYUP
  4. WM_KEYDOWN
  5. WM_CHAR
  6. WM_KEYUP

TranslateMessage generates the WM_DEADCHAR message when it processes the WM_KEYDOWN message from a dead key. Although the wParam parameter of the WM_DEADCHAR message contains the character code of the diacritic for the dead key, an application typically ignores the message. Instead, it processes the WM_CHAR message generated by the subsequent keystroke. The wParam parameter of the WM_CHAR message contains the character code of the letter with the diacritic. If the subsequent keystroke generates a character that cannot be combined with a diacritic, the system generates two WM_CHAR messages. The wParam parameter of the first contains the character code of the diacritic; the wParam parameter of the second contains the character code of the subsequent character key.

The TranslateMessage function generates the WM_SYSDEADCHAR message when it processes the WM_SYSKEYDOWN message from a system dead key (a dead key that is pressed in combination with the ALT key). An application typically ignores the WM_SYSDEADCHAR message.

Key Status

While processing a keyboard message, an application may need to determine the status of another key besides the one that generated the current message. For example, a word-processing application that allows the user to press SHIFT+END to select a block of text must check the status of the SHIFT key whenever it receives a keystroke message from the END key. The application can use the GetKeyState function to determine the status of a virtual key at the time the current message was generated; it can use the GetAsyncKeyState function to retrieve the current status of a virtual key.

The keyboard layout maintains a list of names. The name of a key that produces a single character is the same as the character produced by the key. The name of a noncharacter key such as TAB and ENTER is stored as a character string. An application can retrieve the name of any key from the device driver by calling the GetKeyNameText function.

Keystroke and Character Translations

The system includes several special purpose functions that translate scan codes, character codes, and virtual-key codes provided by various keystroke messages. These functions include MapVirtualKey, ToAscii, ToUnicode, and VkKeyScan.

In addition, Microsoft Rich Edit 3.0 supports the HexToUnicode IME, which allows a user to convert between hexadecimal and Unicode characters by using hot keys. This means that when Microsoft Rich Edit 3.0 is incorporated into an application, the application will inherit the features of the HexToUnicode IME.

Hot-Key Support

A hot key is a key combination that generates a WM_HOTKEY message, a message the system places at the top of a thread's message queue, bypassing any existing messages in the queue. Applications use hot keys to obtain high-priority keyboard input from the user. For example, by defining a hot key consisting of the CTRL+C key combination, an application can allow the user to cancel a lengthy operation.

To define a hot key, an application calls the RegisterHotKey function, specifying the combination of keys that generates the WM_HOTKEY message, the handle to the window to receive the message, and the identifier of the hot key. When the user presses the hot key, a WM_HOTKEY message is placed in the message queue of the thread that created the window. The wParam parameter of the message contains the identifier of the hot key. The application can define multiple hot keys for a thread, but each hot key in the thread must have a unique identifier. Before the application terminates, it should use the UnregisterHotKey function to destroy the hot key.

Applications can use a hot key control to make it easy for the user to choose a hot key. Hot key controls are typically used to define a hot key that activates a window; they do not use the RegisterHotKey and UnregisterHotKey functions. Instead, an application that uses a hot key control typically sends the WM_SETHOTKEY message to set the hot key. Whenever the user presses the hot key, the system sends a WM_SYSCOMMAND message specifying SC_HOTKEY. For more information about hot key controls, see "Using Hot Key Controls" in Hot Key Controls.

Keyboard Keys for Browsing and Other Functions

Windows provides support for keyboards with special keys for browser functions, media functions, application launching, and power management. The WM_APPCOMMAND supports the extra keyboard keys. In addition, the ShellProc function is modified to support the extra keyboard keys.

It is unlikely that a child window in a component application will be able to directly implement commands for these extra keyboard keys. So when one of these keys is pressed, DefWindowProc will send a WM_APPCOMMAND message to a window. DefWindowProc will also bubble the WM_APPCOMMAND message to its parent window. This is similar to the way context menus are invoked with the right mouse button, which is that DefWindowProc sends a WM_CONTEXTMENU message on a right button click, and bubbles it to its parent. Additionally, if DefWindowProc receives a WM_APPCOMMAND message for a top-level window, it will call a shell hook with code HSHELL_APPCOMMAND.

Windows also supports the Microsoft IntelliMouse Explorer, which is a mouse with five buttons. The two extra buttons support forward and backward browser navigation. For more information, see XBUTTONs.

Simulating Input

To simulate an uninterrupted series of user input events, use the SendInput function. The function accepts three parameters. The first parameter, cInputs, indicates the number of input events that will be simulated. The second parameter, rgInputs, is an array of INPUT structures, each describing a type of input event and additional information about that event. The last parameter, cbSize, accepts the size of the INPUT structure, in bytes.

The SendInput function works by injecting a series of simulated input events into a device's input stream. The effect is similar to calling the keybd_event or mouse_event function repeatedly, except that the system ensures that no other input events intermingle with the simulated events. When the call completes, the return value indicates the number of input events successfully played. If this value is zero, then input was blocked.

The SendInput function does not reset the keyboard's current state. Therefore, if the user has any keys pressed when you call this function, they might interfere with the events that this function generates. If you are concerned about possible interference, check the keyboard's state with the GetAsyncKeyState function and correct as necessary.

Languages, Locales, and Keyboard Layouts

A language is a natural language, such as English, French, and Japanese. A sublanguage is a variant of a natural language that is spoken in a specific geographical region, such as the English sublanguages spoken in the United Kingdom and the United States. Applications use values, called language identifiers, to uniquely identify languages and sublanguages.

Applications typically use locales to set the language in which input and output is processed. Setting the locale for the keyboard, for example, affects the character values generated by the keyboard. Setting the locale for the display or printer affects the glyphs displayed or printed. Applications set the locale for a keyboard by loading and using keyboard layouts. They set the locale for a display or printer by selecting a font that supports the specified locale.

A keyboard layout not only specifies the physical position of the keys on the keyboard but also determines the character values generated by pressing those keys. Each layout identifies the current input language and determines which character values are generated by which keys and key combinations.

Every keyboard layout has a corresponding handle that identifies the layout and language. The low word of the handle is a language identifier. The high word is a device handle, specifying the physical layout, or is zero, indicating a default physical layout. The user can associate any input language with a physical layout. For example, an English-speaking user who very occasionally works in French can set the input language of the keyboard to French without changing the physical layout of the keyboard. This means the user can enter text in French using the familiar English layout.

Applications are generally not expected to manipulate input languages directly. Instead, the user sets up language and layout combinations, then switches among them. When the user clicks into text marked with a different language, the application calls the ActivateKeyboardLayout function to activate the user's default layout for that language. If the user edits text in a language which is not in the active list, the application can call the LoadKeyboardLayout function with the language to get a layout based on that language.

The ActivateKeyboardLayout function sets the input language for the current task. The hkl parameter can be either the handle to the keyboard layout or a zero-extended language identifier. Keyboard layout handles can be obtained from the LoadKeyboardLayout or GetKeyboardLayoutList function. The HKL_NEXT and HKL_PREV values can also be used to select the next or previous keyboard.

The GetKeyboardLayoutName function retrieves the name of the active keyboard layout for the calling thread. If an application creates the active layout using the LoadKeyboardLayout function, GetKeyboardLayoutName retrieves the same string used to create the layout. Otherwise, the string is the primary language identifier corresponding to the locale of the active layout. This means the function may not necessarily differentiate among different layouts with the same primary language, so cannot return specific information about the input language. The GetKeyboardLayout function, however, can be used to determine the input language.

The LoadKeyboardLayout function loads a keyboard layout and makes the layout available to the user. Applications can make the layout immediately active for the current thread by using the KLF_ACTIVATE value. An application can use the KLF_REORDER value to reorder the layouts without also specifying the KLF_ACTIVATE value. Applications should always use the KLF_SUBSTITUTE_OK value when loading keyboard layouts to ensure that the user's preference, if any, is selected.

For multilingual support, the LoadKeyboardLayout function provides the KLF_REPLACELANG and KLF_NOTELLSHELL flags. The KLF_REPLACELANG flag directs the function to replace an existing keyboard layout without changing the language. Attempting to replace an existing layout using the same language identifier but without specifying KLF_REPLACELANG is an error. The KLF_NOTELLSHELL flag prevents the function from notifying the shell when a keyboard layout is added or replaced. This is useful for applications that add multiple layouts in a consecutive series of calls. This flag should be used in all but the last call.

The UnloadKeyboardLayout function is restricted in that it cannot unload the system default input language. This ensures that the user always has one layout available for enter text using the same character set as used by the shell and file system.
