Control Flow Guard for platform security
What is Control Flow Guard?
Control Flow Guard (CFG) is a highly-optimized platform security feature that was created to combat memory corruption vulnerabilities. By placing tight restrictions on where an application can execute code from, it makes it much harder for exploits to execute arbitrary code through vulnerabilities such as buffer overflows. CFG extends previous exploit mitigation technologies such as /GS (Buffer Security Check), Data Execution Prevention (DEP), and Address Space Layout Randomization (ASLR).
Using CFG can help to:
- Prevent memory corruption and ransomware attacks.
- Restrict the capabilities of the server to only what is needed at a particular point in time to reduce attack surface.
- Make it harder to exploit arbitrary code through vulnerabilities such as buffer overflows.
This feature is available in Microsoft Visual Studio and runs on CFG-Aware versions of Windows; Windows 10 and Windows 11 on the client and Windows Server 2019 and later on the server-side.
Developers are strongly encouraged to enable CFG for their applications. You don't have to enable CFG for every part of your code, as a mixture of CFG enabled and non-CFG enabled code will execute fine. However, failing to enable CFG for all code can open gaps in the protection. Furthermore, CFG enabled code works fine on CFG-Unaware versions of Windows and is therefore fully compatible with them.
How Can I Enable CFG?
In most cases, there's no need to change source code. All you have to do is add an option to your Visual Studio project, and the compiler and linker will enable CFG.

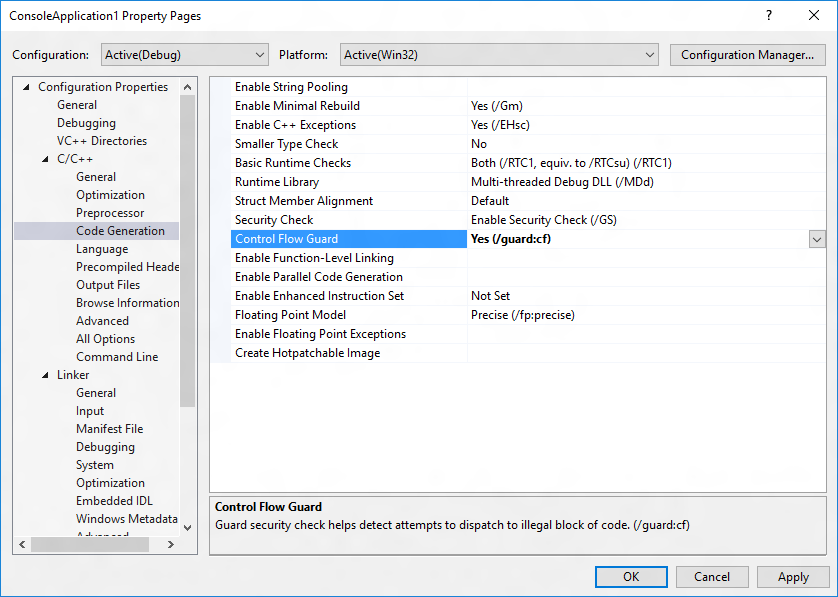

The simplest method is to navigate to Project | Properties | Configuration Properties | C/C++ | Code Generation and choose Yes (/guard:cf) for Control Flow Guard.

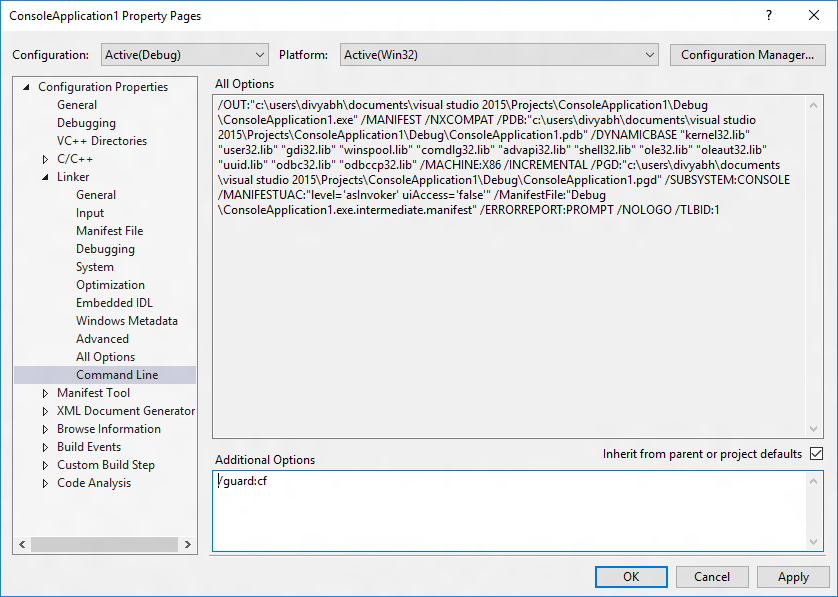

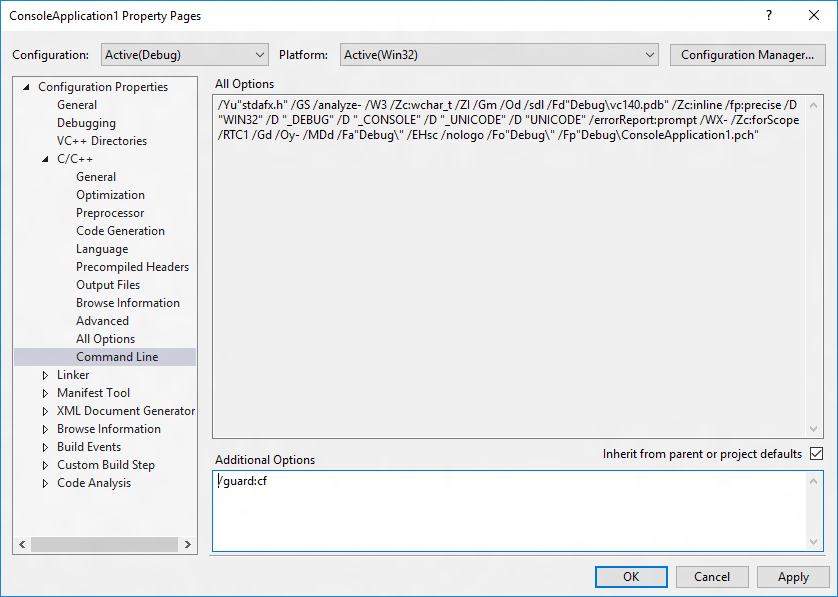

Alternatively, add /guard:cf to Project | Properties | Configuration Properties | C/C++ | Command Line | Additional Options (for the compiler) and /guard:cf to Project | Properties | Configuration Properties | Linker | Command Line | Additional Options (for the linker).
See /guard (Enable Control Flow Guard) for additional info.
If you're building your project from the command line, you can add the same options. For example, if you're compiling a project called test.cpp, use cl /guard:cf test.cpp /link /guard:cf.
You also have the option of dynamically controlling the set of icall target addresses that are considered valid by CFG using the SetProcessValidCallTargets from the Memory Management API. The same API can be used to specify whether pages are invalid or valid targets for CFG. The VirtualProtect and VirtualAlloc functions will by default treat a specified region of executable and committed pages as valid indirect call targets. It's possible to override this behavior, such as when implementing a Just-in-Time compiler, by specifying PAGE_TARGETS_INVALID when calling VirtualAlloc or PAGE_TARGETS_NO_UPDATE when calling VirtualProtect as detailed under Memory Protection Constants.
How Do I Tell That a Binary is under Control Flow Guard?

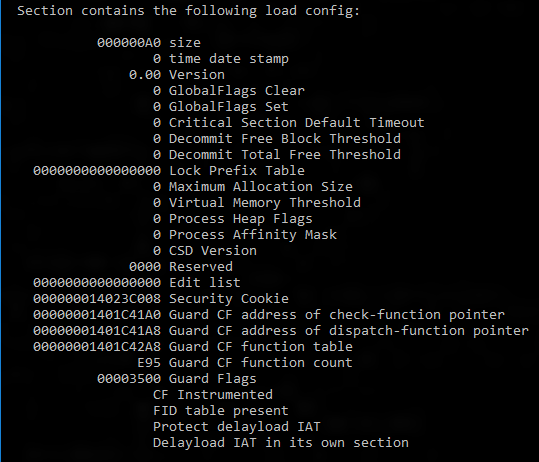

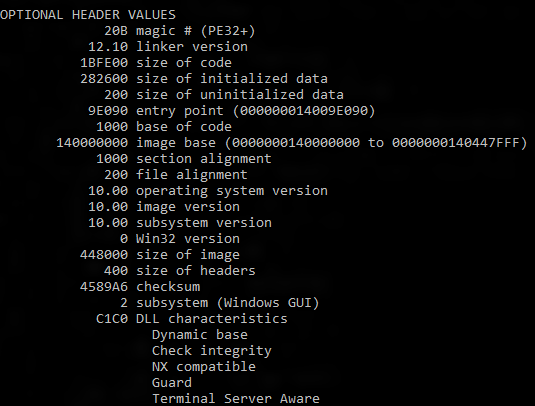

Run the dumpbin tool (included in the Visual Studio installation) from the Visual Studio command prompt with the /headers and /loadconfig options: dumpbin /headers /loadconfig test.exe. The output for a binary under CFG should show that the header values include "Guard", and that the load config values include "CF Instrumented" and "FID table present".
How Does CFG Really Work?
Software vulnerabilities are often exploited by providing unlikely, unusual, or extreme data to a running program. For example, an attacker can exploit a buffer overflow vulnerability by providing more input to a program than expected, thereby over-running the area reserved by the program to hold a response. This could corrupt adjacent memory that may hold a function pointer. When the program calls through this function it may then jump to an unintended location specified by the attacker.
However, a potent combination of compile and run-time support from CFG implements control flow integrity that tightly restricts where indirect call instructions can execute.
The compiler does the following:
- Adds lightweight security checks to the compiled code.
- Identifies the set of functions in the application that are valid targets for indirect calls.
The runtime support, provided by the Windows kernel:
- Efficiently maintains state that identifies valid indirect call targets.
- Implements the logic that verifies that an indirect call target is valid.

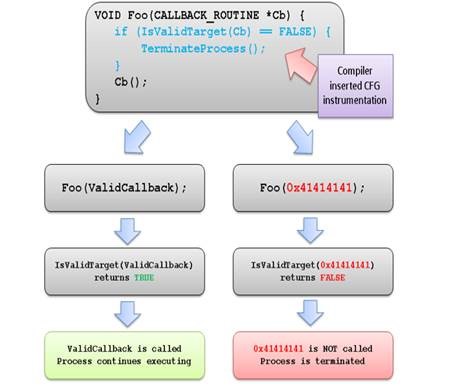

To illustrate:
When a CFG check fails at runtime, Windows immediately terminates the program, thus breaking any exploit that attempts to indirectly call an invalid address.
