Azure Custom Resource Providers Overview

Article
09/25/2022

Azure Custom Resource Providers is an extensibility platform to Azure. It allows you to define custom APIs that can be used to enrich the default Azure experience. This documentation describes:

How to build and deploy an Azure Custom Resource Provider.
How to utilize Azure Custom Resource Providers to extend existing workflows.
Where to find guides and code samples to get started.

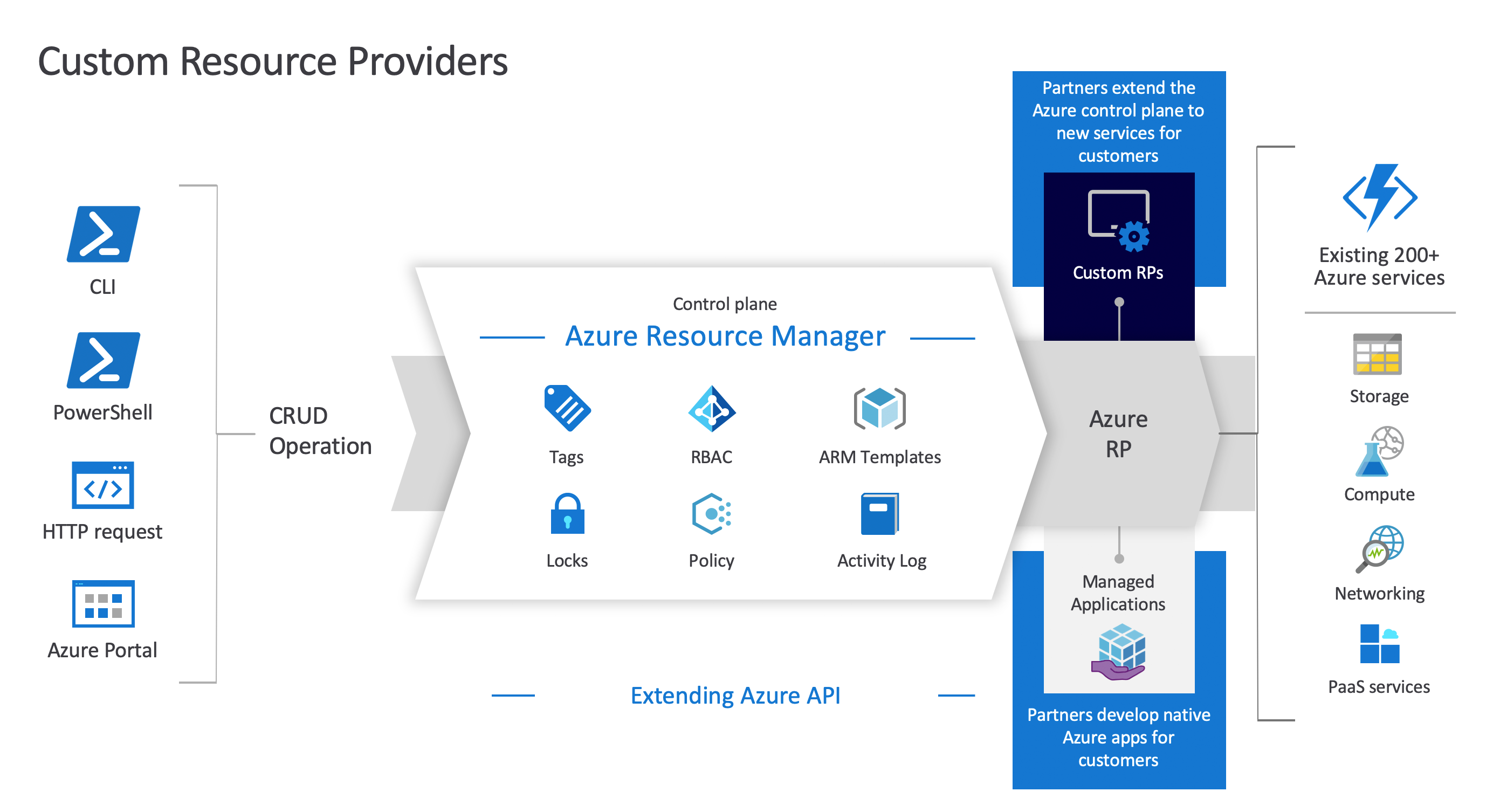

Diagram of Azure Custom Resource Providers, displaying the relationship between Azure Resource Manager, custom resource providers, and resources.

Important

Custom Resource Providers is currently in public preview. This preview version is provided without a service level agreement, and it's not recommended for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

What can custom resource providers do

Here are some examples of what you can achieve with Azure Custom Resource Providers:

Extend Azure Resource Manager REST API to include internal and external services.
Enable custom scenarios on top of existing Azure workflows.
Customize Azure Resource Manager Templates control and effect.

What is a custom resource provider

Azure Custom Resource Providers are made by creating a contract between Azure and an endpoint. This contract defines a list of new resources and actions through a new resource, Microsoft.CustomProviders/resourceProviders. The custom resource provider will then expose these new APIs in Azure. Azure Custom Resource Providers are composed of three parts: custom resource provider, endpoints, and custom resources.

How to build custom resource providers

Custom resource providers are a list of contracts between Azure and endpoints. These contracts describe how Azure should interact with their endpoints. The resource providers act like a proxy and will forward requests and responses to and from their specified endpoint. A resource provider can specify two types of contracts: resourceTypes and actions. These are enabled through endpoint definitions. An endpoint definition is comprised of three fields: name, routingType, and endpoint.

Sample Endpoint:

{
  "name": "{endpointDefinitionName}",
  "routingType": "Proxy",
  "endpoint": "https://{endpointURL}/"
}

Property	Required	Description
name	yes	The name of the endpoint definition. Azure will expose this name through its API under '/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.CustomProviders/ resourceProviders/{resourceProviderName}/{endpointDefinitionName}'
routingType	no	Determines the contract type with the endpoint. If not specified, it will default to "Proxy".
endpoint	yes	The endpoint to route the requests to. This will handle the response as well as any side effects of the request.

Building custom resources

ResourceTypes describe new custom resources that are added to Azure. These expose basic RESTful CRUD methods. See more about creating custom resources

Sample Custom Resource Provider with resourceTypes:

{
  "properties": {
    "resourceTypes": [
      {
        "name": "myCustomResources",
        "routingType": "Proxy",
        "endpoint": "https://{endpointURL}/"
      }
    ]
  },
  "location": "eastus"
}

APIs added to Azure for the above sample:

HttpMethod	Sample URI	Description
PUT	/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/ providers/Microsoft.CustomProviders/resourceProviders/{resourceProviderName}/ myCustomResources/{customResourceName}?api-version=2018-09-01-preview	The Azure REST API call to create a new resource.
DELETE	/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/ providers/Microsoft.CustomProviders/resourceProviders/{resourceProviderName}/ myCustomResources/{customResourceName}?api-version=2018-09-01-preview	The Azure REST API call to delete an existing resource.
GET	/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/ providers/Microsoft.CustomProviders/resourceProviders/{resourceProviderName}/ myCustomResources/{customResourceName}?api-version=2018-09-01-preview	The Azure REST API call to retrieve an existing resource.
GET	/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/ providers/Microsoft.CustomProviders/resourceProviders/{resourceProviderName}/ myCustomResources?api-version=2018-09-01-preview	The Azure REST API call to retrieve the list of existing resources.

Building custom actions

Actions describe new actions that are added to Azure. These can be exposed on top of the resource provider or nested under a resourceType. See more about creating custom actions

Sample Custom Resource Provider with actions:

{
  "properties": {
    "actions": [
      {
        "name": "myCustomAction",
        "routingType": "Proxy",
        "endpoint": "https://{endpointURL}/"
      }
    ]
  },
  "location": "eastus"
}

APIs added to Azure for the above sample:

HttpMethod	Sample URI	Description
POST	/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/ providers/Microsoft.CustomProviders/resourceProviders/{resourceProviderName}/ myCustomAction?api-version=2018-09-01-preview	The Azure REST API call to activate the action.

Looking for help

If you have questions for Azure Custom Resource Provider development, try asking on Stack Overflow. A similar question may have already been asked and answered, so check first before posting. Add the tag azure-custom-providers to get a fast response!

Next steps

In this article, you learned about custom resource providers. Go to the next article to create a custom resource provider.
