Copy data from PostgreSQL using Azure Data Factory or Synapse Analytics
APPLIES TO:
Azure Data Factory
Azure Synapse Analytics
Tip
Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!
This article outlines how to use the Copy Activity in Azure Data Factory and Synapse Analytics pipelines to copy data from a PostgreSQL database. It builds on the copy activity overview article that presents a general overview of copy activity.
Important
The new PostgreSQL connector provides improved native PostgreSQL support. If you are using the legacy PostgreSQL connector in your solution, please upgrade your PostgreSQL connector before October 31, 2024. Refer to this section for details on the difference between the legacy and latest version.
Supported capabilities
This PostgreSQL connector is supported for the following capabilities:
Supported capabilities | IR |
---|---|
Copy activity (source/-) | ① ② |
Lookup activity | ① ② |
① Azure integration runtime ② Self-hosted integration runtime
For a list of data stores that are supported as sources/sinks by the copy activity, see the Supported data stores table.
Specifically, this PostgreSQL connector supports PostgreSQL version 7.4 and above.
Prerequisites
If your data store is located inside an on-premises network, an Azure virtual network, or Amazon Virtual Private Cloud, you need to configure a self-hosted integration runtime to connect to it.
If your data store is a managed cloud data service, you can use the Azure Integration Runtime. If the access is restricted to IPs that are approved in the firewall rules, you can add Azure Integration Runtime IPs to the allow list.
You can also use the managed virtual network integration runtime feature in Azure Data Factory to access the on-premises network without installing and configuring a self-hosted integration runtime.
For more information about the network security mechanisms and options supported by Data Factory, see Data access strategies.
The Integration Runtime provides a built-in PostgreSQL driver starting from version 3.7, therefore you don't need to manually install any driver.
Getting started
To perform the Copy activity with a pipeline, you can use one of the following tools or SDKs:
- The Copy Data tool
- The Azure portal
- The .NET SDK
- The Python SDK
- Azure PowerShell
- The REST API
- The Azure Resource Manager template
Create a linked service to PostgreSQL using UI
Use the following steps to create a linked service to PostgreSQL in the Azure portal UI.
Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:

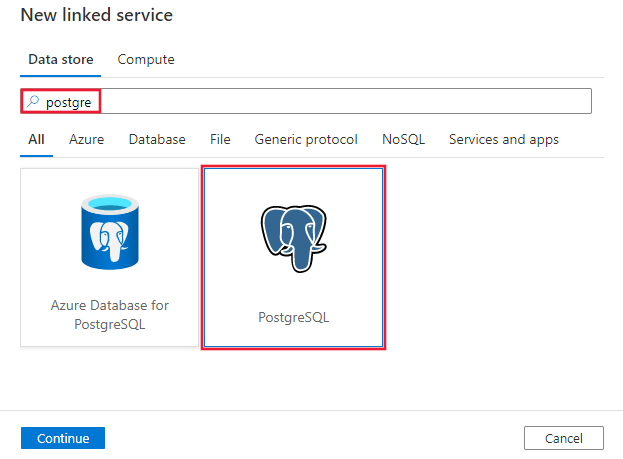

Search for Postgre and select the PostgreSQL connector.

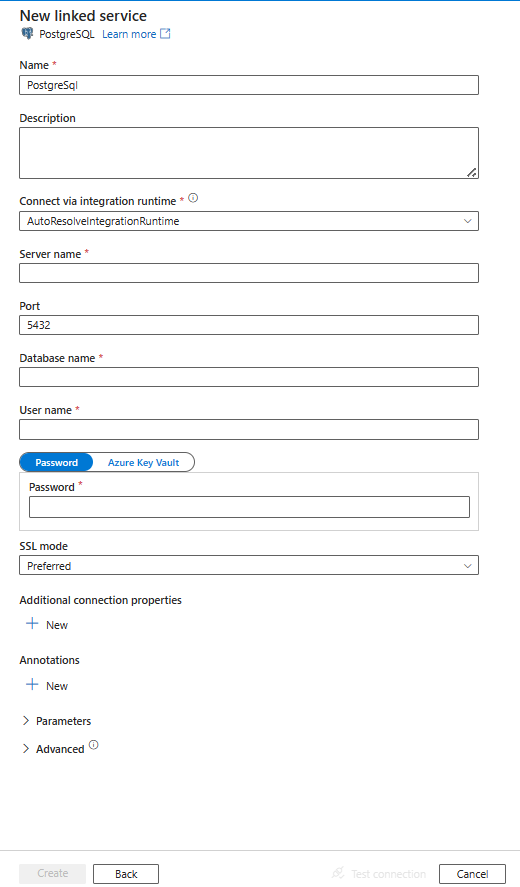

Configure the service details, test the connection, and create the new linked service.
Connector configuration details
The following sections provide details about properties that are used to define Data Factory entities specific to PostgreSQL connector.
Linked service properties
The following properties are supported for PostgreSQL linked service:
Property | Description | Required |
---|---|---|
type | The type property must be set to: PostgreSqlV2 | Yes |
server | Specifies the host name - and optionally port - on which PostgreSQL is running. | Yes |
port | The TCP port of the PostgreSQL server. | No |
database | The PostgreSQL database to connect to. | Yes |
username | The username to connect with. Not required if using IntegratedSecurity. | Yes |
password | The password to connect with. Not required if using IntegratedSecurity. | Yes |
sslMode | Controls whether SSL is used, depending on server support. - Disable: SSL is disabled. If the server requires SSL, the connection will fail. - Allow: Prefer non-SSL connections if the server allows them, but allow SSL connections. - Prefer: Prefer SSL connections if the server allows them, but allow connections without SSL. - Require: Fail the connection if the server doesn't support SSL. - Verify-ca: Fail the connection if the server doesn't support SSL. Also verifies server certificate. - Verify-full: Fail the connection if the server doesn't support SSL. Also verifies server certificate with host's name. Options: Disable (0) / Allow (1) / Prefer (2) (Default) / Require (3) / Verify-ca (4) / Verify-full (5) |
No |
authenticationType | Authentication type for connecting to the database. Only supports Basic. | Yes |
connectVia | The Integration Runtime to be used to connect to the data store. Learn more from Prerequisites section. If not specified, it uses the default Azure Integration Runtime. | No |
Additional connection properties: | ||
schema | Sets the schema search path. | No |
pooling | Whether connection pooling should be used. | No |
connectionTimeout | The time to wait (in seconds) while trying to establish a connection before terminating the attempt and generating an error. | No |
commandTimeout | The time to wait (in seconds) while trying to execute a command before terminating the attempt and generating an error. Set to zero for infinity. | No |
trustServerCertificate | Whether to trust the server certificate without validating it. | No |
sslCertificate | Location of a client certificate to be sent to the server. | No |
sslKey | Location of a client key for a client certificate to be sent to the server. | No |
sslPassword | Password for a key for a client certificate. | No |
readBufferSize | Determines the size of the internal buffer Npgsql uses when reading. Increasing may improve performance if transferring large values from the database. | No |
logParameters | When enabled, parameter values are logged when commands are executed. | No |
timezone | Gets or sets the session timezone. | No |
encoding | Gets or sets the .NET encoding that will be used to encode/decode PostgreSQL string data. | No |
Note
In order to have full SSL verification via the ODBC connection when using the Self Hosted Integration Runtime you must use an ODBC type connection instead of the PostgreSQL connector explicitly, and complete the following configuration:
- Set up the DSN on any SHIR servers.
- Put the proper certificate for PostgreSQL in C:\Windows\ServiceProfiles\DIAHostService\AppData\Roaming\postgresql\root.crt on the SHIR servers. This is where the ODBC driver looks > for the SSL cert to verify when it connects to the database.
- In your data factory connection, use an ODBC type connection, with your connection string pointing to the DSN you created on your SHIR servers.
Example:
{
"name": "PostgreSqlLinkedService",
"properties": {
"type": "PostgreSqlV2",
"typeProperties": {
"server": "<server>",
"port": 5432,
"database": "<database>",
"username": "<username>",
"password": {
"type": "SecureString",
"value": "<password>"
},
"sslmode": <sslmode>,
"authenticationType": "Basic"
},
"connectVia": {
"referenceName": "<name of Integration Runtime>",
"type": "IntegrationRuntimeReference"
}
}
}
Example: store password in Azure Key Vault
{
"name": "PostgreSqlLinkedService",
"properties": {
"type": "PostgreSqlV2",
"typeProperties": {
"server": "<server>",
"port": 5432,
"database": "<database>",
"username": "<username>",
"password": {
"type": "AzureKeyVaultSecret",
"store": {
"referenceName": "<Azure Key Vault linked service name>",
"type": "LinkedServiceReference"
},
"secretName": "<secretName>"
}
"sslmode": <sslmode>,
"authenticationType": "Basic"
},
"connectVia": {
"referenceName": "<name of Integration Runtime>",
"type": "IntegrationRuntimeReference"
}
}
}
Dataset properties
For a full list of sections and properties available for defining datasets, see the datasets article. This section provides a list of properties supported by PostgreSQL dataset.
To copy data from PostgreSQL, the following properties are supported:
Property | Description | Required |
---|---|---|
type | The type property of the dataset must be set to: PostgreSqlV2Table | Yes |
schema | Name of the schema. | No (if "query" in activity source is specified) |
table | Name of the table. | No (if "query" in activity source is specified) |
Example
{
"name": "PostgreSQLDataset",
"properties":
{
"type": "PostgreSqlV2Table",
"linkedServiceName": {
"referenceName": "<PostgreSQL linked service name>",
"type": "LinkedServiceReference"
},
"annotations": [],
"schema": [],
"typeProperties": {
"schema": "<schema name>",
"table": "<table name>"
}
}
}
If you were using RelationalTable
typed dataset, it's still supported as-is, while you are suggested to use the new one going forward.
Copy activity properties
For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by PostgreSQL source.
PostgreSQL as source
To copy data from PostgreSQL, the following properties are supported in the copy activity source section:
Property | Description | Required |
---|---|---|
type | The type property of the copy activity source must be set to: PostgreSqlV2Source | Yes |
query | Use the custom SQL query to read data. For example: "query": "SELECT * FROM \"MySchema\".\"MyTable\"" . |
No (if "tableName" in dataset is specified) |
Note
Schema and table names are case-sensitive. Enclose them in ""
(double quotes) in the query.
Example:
"activities":[
{
"name": "CopyFromPostgreSQL",
"type": "Copy",
"inputs": [
{
"referenceName": "<PostgreSQL input dataset name>",
"type": "DatasetReference"
}
],
"outputs": [
{
"referenceName": "<output dataset name>",
"type": "DatasetReference"
}
],
"typeProperties": {
"source": {
"type": "PostgreSqlV2Source",
"query": "SELECT * FROM \"MySchema\".\"MyTable\""
},
"sink": {
"type": "<sink type>"
}
}
}
]
If you were using RelationalSource
typed source, it is still supported as-is, while you are suggested to use the new one going forward.
Data type mapping for PostgreSQL
When copying data from PostgreSQL, the following mappings are used from PostgreSQL data types to interim data types used by the service internally. See Schema and data type mappings to learn about how copy activity maps the source schema and data type to the sink.
PostgreSql data type | Interim service data type | Interim service data type for PostgreSQL (legacy) |
---|---|---|
SmallInt |
Int16 |
Int16 |
Integer |
Int32 |
Int32 |
BigInt |
Int64 |
Int64 |
Decimal (Precision <= 28) |
Decimal |
Decimal |
Decimal (Precision > 28) |
Unsupport | String |
Numeric |
Decimal |
Decimal |
Real |
Single |
Single |
Double |
Double |
Double |
SmallSerial |
Int16 |
Int16 |
Serial |
Int32 |
Int32 |
BigSerial |
Int64 |
Int64 |
Money |
Decimal |
String |
Char |
String |
String |
Varchar |
String |
String |
Text |
String |
String |
Bytea |
Byte[] |
Byte[] |
Timestamp |
DateTime |
DateTime |
Timestamp with time zone |
DateTime |
String |
Date |
DateTime |
DateTime |
Time |
TimeSpan |
TimeSpan |
Time with time zone |
DateTimeOffset |
String |
Interval |
TimeSpan |
String |
Boolean |
Boolean |
Boolean |
Point |
String |
String |
Line |
String |
String |
Iseg |
String |
String |
Box |
String |
String |
Path |
String |
String |
Polygon |
String |
String |
Circle |
String |
String |
Cidr |
String |
String |
Inet |
String |
String |
Macaddr |
String |
String |
Macaddr8 |
String |
String |
Tsvector |
String |
String |
Tsquery |
String |
String |
UUID |
Guid |
Guid |
Json |
String |
String |
Jsonb |
String |
String |
Array |
String |
String |
Bit |
Byte[] |
Byte[] |
Bit varying |
Byte[] |
Byte[] |
XML |
String |
String |
IntArray |
String |
String |
TextArray |
String |
String |
NumbericArray |
String |
String |
DateArray |
String |
String |
Range |
String |
String |
Bpchar |
String |
String |
Lookup activity properties
To learn details about the properties, check Lookup activity.
Upgrade the PostgreSQL linked service
Here are steps that help you upgrade your PostgreSQL linked service:
Create a new PostgreSQL linked service and configure it by referring to Linked service properties.
The data type mapping for the latest PostgreSQL linked service is different from that for the legacy version. To learn the latest data type mapping, see Data type mapping for PostgreSQL.
Differences between PostgreSQL and PostgreSQL (legacy)
The table below shows the data type mapping differences between PostgreSQL and PostgreSQL (legacy).
PostgreSQL data type | Interim service data type for PostgreSQL | Interim service data type for PostgreSQL (legacy) |
---|---|---|
Money | Decimal | String |
Timestamp with time zone | DateTime | String |
Time with time zone | DateTimeOffset | String |
Interval | TimeSpan | String |
BigDecimal | Not supported. As an alternative, utilize to_char() function to convert BigDecimal to String. |
String |
Related content
For a list of data stores supported as sources and sinks by the copy activity, see supported data stores.
