Display custom icons alongside values in list views
Power Apps environment administrators and customizers can add graphics to a view and establish the logic used to select a graphic based on the column value using JavaScript. The capability lets you customize list views that display icons alongside text or numerical values.
This example displays custom icons in a view for the opportunity table, which is available with certain apps, such as Dynamics 365 Sales. You can display custom icons in views with other standard tables, such as the account or contact table, as well as custom tables.
Custom icons in list views can display in Unified Interface, legacy web client, mobile app, and App for Outlook.
Note
Custom icons aren't available when the app is in mobile offline mode.
Add custom graphics and JavaScript as web resources
Create the new graphic files needed for your customization. We recommend an icon size of 16x16 pixels (larger images will be scaled down).
Write one or more JavaScript functions that establish which icons to show for which values (you'll typically need one function for each column you want to customize). Each function must accept a row data object and a language (LCID) code as input and return an array containing an image name and tooltip text. For an example function, see Sample JavaScript function, later in this article.
Sign into your environment as an administrator and open solution explorer.
The Default Solution pop-up window opens. Navigate to Components > Web Resources here.
Now, you'll upload your custom graphics, one at a time, as web resources. Select the New button in the toolbar to create a new web resource. Another pop-up window opens to help you create the resource. Follow these steps:
Give the new resource a meaningful Name. This is the name that you'll use to refer to each graphic from your JavaScript code.
Set the Type to the graphic format you've used to save your graphic file (PNG, JPEG, or GIF).
Select Choose File to open a file browser window. Use it to find and select your graphic file.
Add a Display Name and/or Description if you wish.
Select Save and then close the Web Resource window.
Repeat the previous step for each graphic file that you have.
Now, you'll add your JavaScript as the final web resource. Select New on the toolbar to create a new web resource. Another pop-up window opens to help you create the resource. Do the following:
Give the new resource a meaningful Name.
Set the Type to Script (JScript).
Select Text Editor (next to the Type setting) to open a text-editor window. Paste your Javascript code here and select OK to save it.
Add a Display Name and/or Description if you wish.
Select Save and then close the Web Resource window.
With the Default Solution pop-up window still open, expand the Components > Tables tree and locate the table that you want to customize.
Expand your table and select its Views icon.
You now see a list of views for your selected table. Select a view from the list. Then open the More Actions drop-down list in the toolbar and select Edit.
A pop-up window opens with controls for editing your selected view. It shows each column that is part of the view. Select the target column and then select the Change Properties in the Common Tasks box. The Change Column Properties dialog opens; make the following settings here:
Web Resource: Specify the name of the web resource that you created to hold your Javascript functions (select Browse to choose from a list).
Function Name: Type the name of the function that you wrote to modify the selected column and view.
Select OK to close the Change Column Properties dialog.
Select Save and Close to save your view.
Repeat these steps for each table, view, and column as needed.
When you're ready, select Publish All Customizations to publish your changes. Then, close the Default Solution window.
Sample JavaScript function
The JavaScript function for displaying custom icons and tooltips expects the following two arguments: the entire row object specified in layoutxml and the calling user’s Locale ID (LCID). The LCID parameter enables you to specify tooltip text in multiple languages. For more information about the languages supported by the environment, see Enable languages and Install or upgrade language packs. For a list of locale ID (LCID) values that you can use in your code, see Locale IDs assigned by Microsoft.
Assuming you will be adding custom icons for an option-set type of attribute, which has a limited set of predefined options, make sure you use the integer value of the options instead of label to avoid localization issues.
Note: If it is necessary to retrieve data to determine the icon, Unified Interface supports returning a JavaScript Promise object which resolves to a boolean (similar to ribbon rules). Do not use a synchronous XMLHttpRequest (XHR) in your custom function.
The following sample code displays icons and tooltips based on one of three values (1: Hot, 2: Warm, 3: Cold) in the opportunityratingcode (Rating) attribute. The sample code also shows how to display localized tooltip text. For this sample to work, you must create three image web resources with 16x16 images with the following names: new_Hot, new_Warm, and new_Cold.
Important
This sample requires the opportunity table, which is available with Dynamics 365 Sales app.
function displayIconTooltip(rowData, userLCID) {
var str = JSON.parse(rowData);
var coldata = str.opportunityratingcode_Value;
var imgName = "";
var tooltip = "";
switch (parseInt(coldata,10)) {
case 1:
imgName = "new_Hot";
switch (userLCID) {
case 1036:
tooltip = "French: Opportunity is Hot";
break;
default:
tooltip = "Opportunity is Hot";
break;
}
break;
case 2:
imgName = "new_Warm";
switch (userLCID) {
case 1036:
tooltip = "French: Opportunity is Warm";
break;
default:
tooltip = "Opportunity is Warm";
break;
}
break;
case 3:
imgName = "new_Cold";
switch (userLCID) {
case 1036:
tooltip = "French: Opportunity is Cold";
break;
default:
tooltip = "Opportunity is Cold";
break;
}
break;
default:
imgName = "";
tooltip = "";
break;
}
var resultarray = [imgName, tooltip];
return resultarray;
}
Custom icon view display behavior
Primary columns
In the grid list view, custom icons applied to the table primary column replace the default system-generated icon.

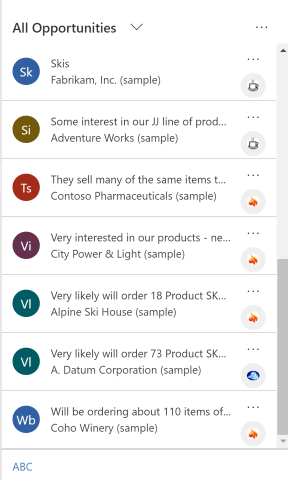

Other columns
In the grid list view, custom icons applied to a column that isn't the table primary column display as a secondary icon in addition to the default system-generated icon.
Card forms
Custom icons replace the default system-generated icon when the view is configured to use a card form.
