Securing data stored in Azure Data Lake Storage Gen1

Article
03/26/2018

Securing data in Azure Data Lake Storage Gen1 is a three-step approach. Both Azure role-based access control (Azure RBAC) and access control lists (ACLs) must be set to fully enable access to data for users and security groups.

Start by creating security groups in Microsoft Entra ID. These security groups are used to implement Azure role-based access control (Azure RBAC) in the Azure portal.
Assign the Microsoft Entra security groups to the Data Lake Storage Gen1 account. This controls access to the Data Lake Storage Gen1 account from the portal and management operations from the portal or APIs.
Assign the Microsoft Entra security groups as access control lists (ACLs) on the Data Lake Storage Gen1 file system.
Additionally, you can also set an IP address range for clients that can access the data in Data Lake Storage Gen1.

This article provides instructions on how to use the Azure portal to perform the above tasks. For in-depth information on how Data Lake Storage Gen1 implements security at the account and data level, see Security in Azure Data Lake Storage Gen1. For deep-dive information on how ACLs are implemented in Data Lake Storage Gen1, see Overview of Access Control in Data Lake Storage Gen1.

Prerequisites

Before you begin this tutorial, you must have the following:

An Azure subscription. See Get Azure free trial.
A Data Lake Storage Gen1 account. For instructions on how to create one, see Get started with Azure Data Lake Storage Gen1

Create security groups in Microsoft Entra ID

For instructions on how to create Microsoft Entra security groups and how to add users to the group, see Managing security groups in Microsoft Entra ID.

Note

You can add both users and other groups to a group in Microsoft Entra ID using the Azure portal. However, in order to add a service principal to a group, use Microsoft Entra ID’s PowerShell module.

# Get the desired group and service principal and identify the correct object IDs
Get-AzureADGroup -SearchString "<group name>"
Get-AzureADServicePrincipal -SearchString "<SPI name>"

# Add the service principal to the group
Add-AzureADGroupMember -ObjectId <Group object ID> -RefObjectId <SPI object ID>

Assign users or security groups to Data Lake Storage Gen1 accounts

When you assign users or security groups to Data Lake Storage Gen1 accounts, you control access to the management operations on the account using the Azure portal and Azure Resource Manager APIs.

Open a Data Lake Storage Gen1 account. From the left pane, click All resources, and then from the All resources blade, click the account name to which you want to assign a user or security group.
In your Data Lake Storage Gen1 account blade, click Access Control (IAM). The blade by default lists the subscription owners as the owner.

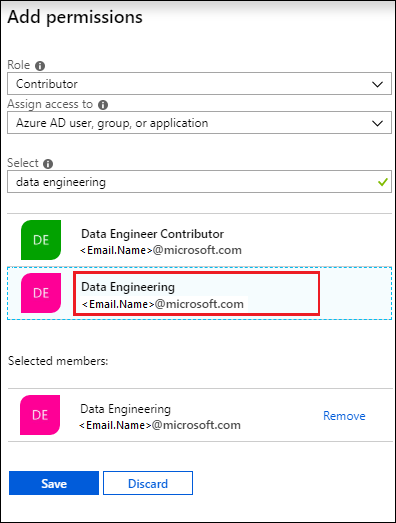

In the Access Control (IAM) blade, click Add to open the Add permissions blade. In the Add permissions blade, select a Role for the user/group. Look for the security group you created earlier in Microsoft Entra ID and select it. If you have a lot of users and groups to search from, use the Select text box to filter on the group name.

The Owner and Contributor role provide access to a variety of administration functions on the data lake account. For users who will interact with data in the data lake but still need to view account management information, you can add them to the Reader role. The scope of these roles is limited to the management operations related to the Data Lake Storage Gen1 account.

For data operations, individual file system permissions define what the users can do. Therefore, a user having a Reader role can only view administrative settings associated with the account but can potentially read and write data based on file system permissions assigned to them. Data Lake Storage Gen1 file system permissions are described at Assign security group as ACLs to the Azure Data Lake Storage Gen1 file system.

Important

Only the Owner role automatically enables file system access. The Contributor, Reader, and all other roles require ACLs to enable any level of access to folders and files. The Owner role provides super-user file and folder permissions that cannot be overridden via ACLs. For more information on how Azure RBAC policies map to data access, see Azure RBAC for account management.

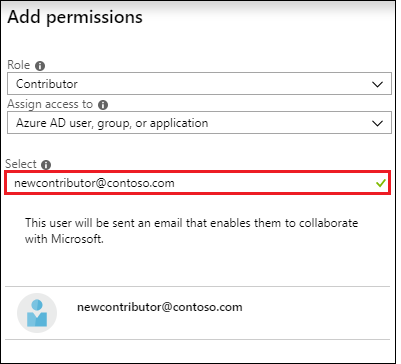

If you want to add a group/user that is not listed in the Add permissions blade, you can invite them by typing their email address in the Select text box and then selecting them from the list.

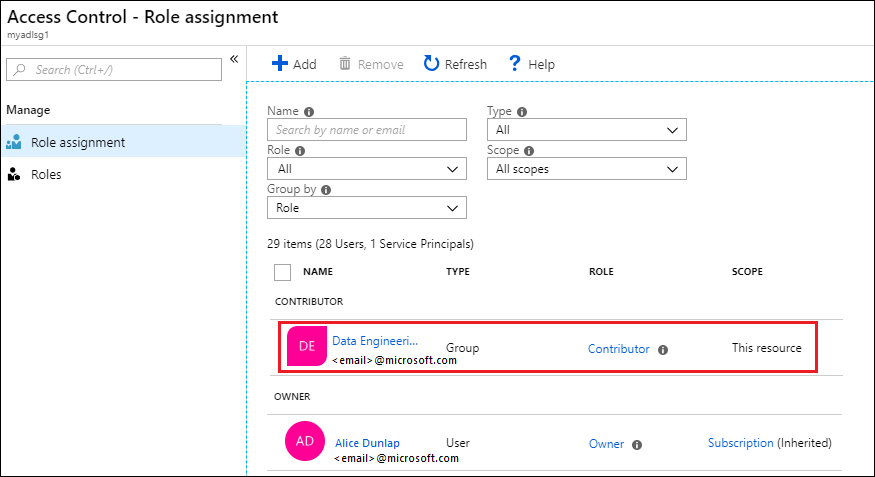

Click Save. You should see the security group added as shown below.
Your user/security group now has access to the Data Lake Storage Gen1 account. If you want to provide access to specific users, you can add them to the security group. Similarly, if you want to revoke access for a user, you can remove them from the security group. You can also assign multiple security groups to an account.

Assign users or security groups as ACLs to the Data Lake Storage Gen1 file system

By assigning user/security groups to the Data Lake Storage Gen1 file system, you set access control on the data stored in Data Lake Storage Gen1.

In your Data Lake Storage Gen1 account blade, click Data Explorer.
In the Data Explorer blade, click the folder for which you want to configure the ACL, and then click Access. To assign ACLs to a file, you must first click the file to preview it and then click Access from the File Preview blade.

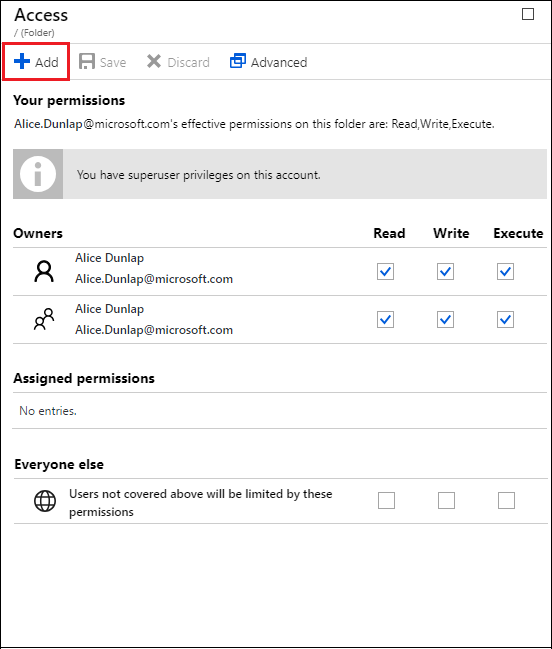

The Access blade lists the owners and assigned permissions already assigned to the root. Click the Add icon to add additional Access ACLs.

Important

Setting access permissions for a single file does not necessarily grant a user/group access to that file. The path to the file must be accessible to the assigned user/group. For more information and examples, see Common scenarios related to permissions.
- The Owners and Everyone else provide UNIX-style access, where you specify read, write, execute (rwx) to three distinct user classes: owner, group, and others.
- Assigned permissions corresponds to the POSIX ACLs that enable you to set permissions for specific named users or groups beyond the file's owner or group.

  For more information, see HDFS ACLs. For more information on how ACLs are implemented in Data Lake Storage Gen1, see Access Control in Data Lake Storage Gen1.

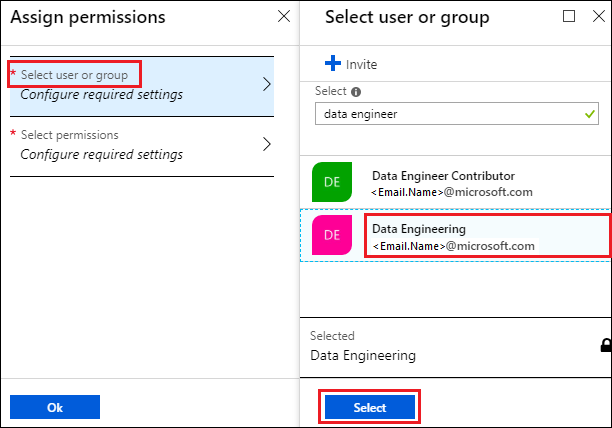

Click the Add icon to open the Assign permissions blade. In this blade, click Select user or group, and then in Select user or group blade, look for the security group you created earlier in Microsoft Entra ID. If you have a lot of groups to search from, use the text box at the top to filter on the group name. Click the group you want to add and then click Select.

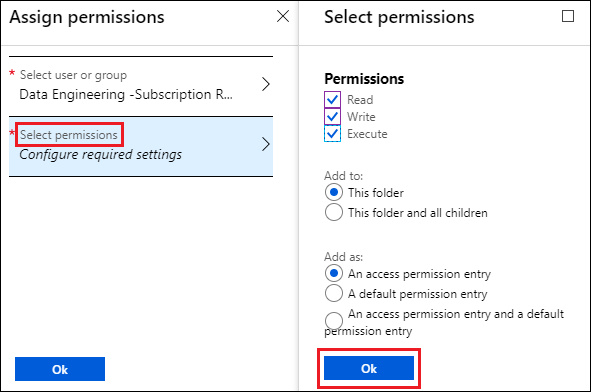

Click Select permissions, select the permissions, whether the permissions should be applied to recursively, and whether you want to assign the permissions as an access ACL, default ACL, or both. Click OK.

For more information about permissions in Data Lake Storage Gen1, and Default/Access ACLs, see Access Control in Data Lake Storage Gen1.

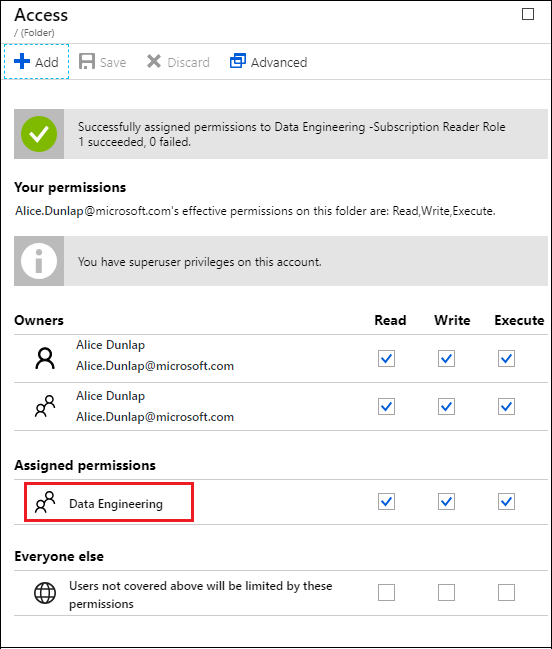

After clicking Ok in the Select permissions blade, the newly added group and associated permissions will now be listed in the Access blade.

Important

In the current release, you can have up to 28 entries under Assigned permissions. If you want to add more than 28 users, you should create security groups, add users to security groups, add provide access to those security groups for the Data Lake Storage Gen1 account.
If required, you can also modify the access permissions after you have added the group. Clear or select the check box for each permission type (Read, Write, Execute) based on whether you want to remove or assign that permission to the security group. Click Save to save the changes, or Discard to undo the changes.

Set IP address range for data access

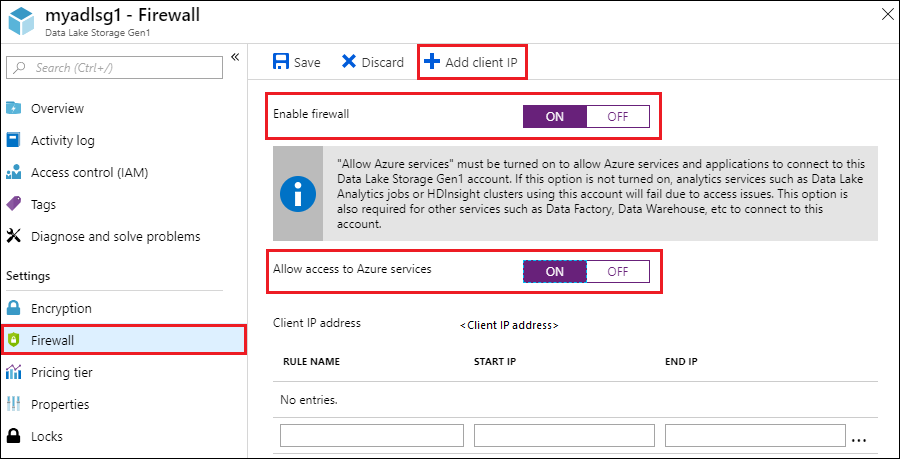

Data Lake Storage Gen1 enables you to further lock down access to your data store at network level. You can enable firewall, specify an IP address, or define an IP address range for your trusted clients. Once enabled, only clients that have the IP addresses within defined range can connect to the store.

Firewall settings and IP access

Remove security groups for a Data Lake Storage Gen1 account

When you remove security groups from Data Lake Storage Gen1 accounts, you are only changing access to the management operations on the account using the Azure portal and Azure Resource Manager APIs.

Access to data is unchanged and is still managed by the access ACLs. The exception to this are users/groups in the Owners role. Users/groups removed from the Owners role are no longer super users and their access falls back to access ACL settings.

In your Data Lake Storage Gen1 account blade, click Access Control (IAM).

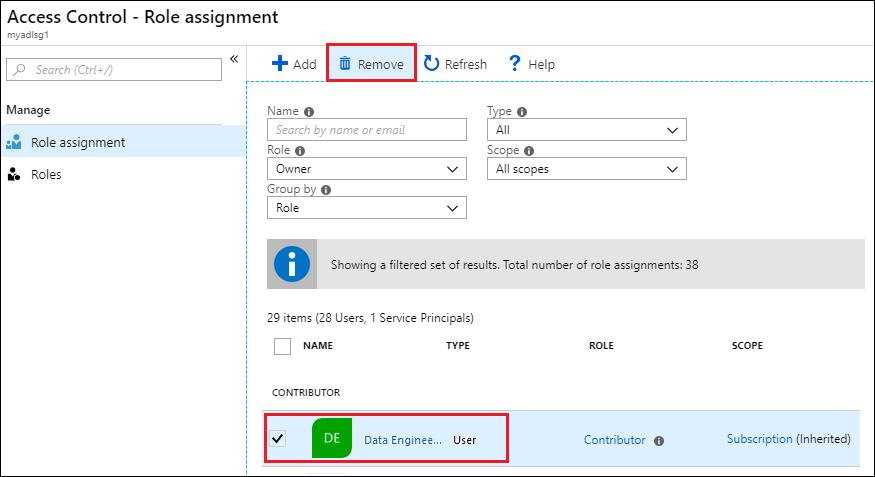

In the Access Control (IAM) blade, click the security group(s) you want to remove. Click Remove.

Remove security group ACLs from a Data Lake Storage Gen1 file system

When you remove security group ACLs from a Data Lake Storage Gen1 file system, you change access to the data in the Data Lake Storage Gen1 account.

In your Data Lake Storage Gen1 account blade, click Data Explorer.
In the Data Explorer blade, click the folder for which you want to remove the ACL, and then click Access. To remove ACLs for a file, you must first click the file to preview it and then click Access from the File Preview blade.

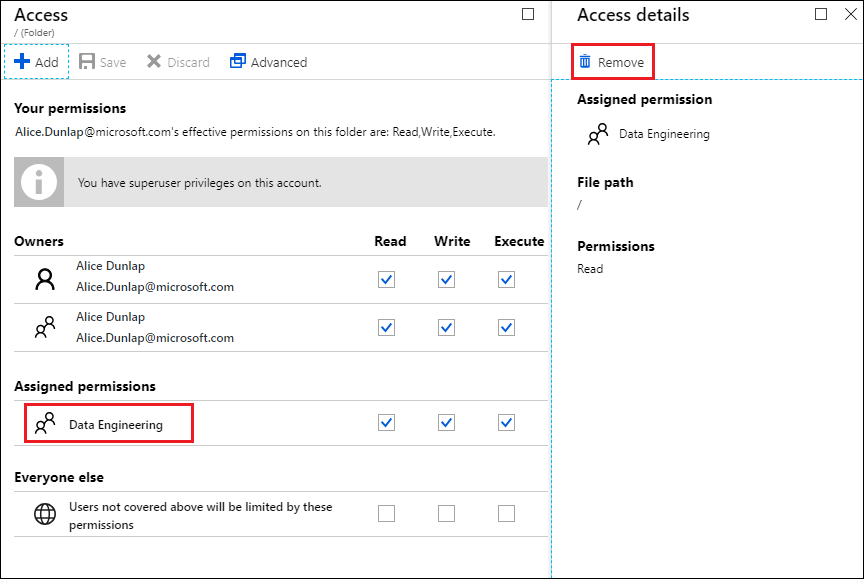

In the Access blade, click the security group you want to remove. In the Access details blade, click Remove.
