Tutorial: Microsoft Entra SSO integration with SAP Business Technology Platform

  • Artículo

In this tutorial, you'll learn how to integrate SAP Business Technology Platform with Microsoft Entra ID. When you integrate SAP Business Technology Platform with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to SAP Business Technology Platform.
  • Enable your users to be automatically signed-in to SAP Business Technology Platform with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • SAP Business Technology Platform single sign-on (SSO) enabled subscription.

Important

You need to deploy your own application or subscribe to an application on your SAP Business Technology Platform account to test single sign on. In this tutorial, an application is deployed in the account.

Scenario description

In this tutorial, you configure and test Microsoft Entra single sign-on in a test environment.

  • SAP Business Technology Platform supports SP initiated SSO.

To configure the integration of SAP Business Technology Platform into Microsoft Entra ID, you need to add SAP Business Technology Platform from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type SAP Business Technology Platform in the search box.
  4. Select SAP Business Technology Platform from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for SAP Business Technology Platform

Configure and test Microsoft Entra SSO with SAP Business Technology Platform using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in SAP Business Technology Platform.

To configure and test Microsoft Entra SSO with SAP Business Technology Platform, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with Britta Simon.
    2. Assign the Microsoft Entra test user - to enable Britta Simon to use Microsoft Entra single sign-on.
  2. Configure SAP Business Technology Platform SSO - to configure the Single Sign-On settings on application side.
    1. Create SAP Business Technology Platform test user - to have a counterpart of Britta Simon in SAP Business Technology Platform that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > SAP Business Technology Platform > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, enter the values for the following fields:

    a. In the Identifier textbox you will provide your SAP Business Technology Platform's type a URL using one of the following patterns:

    Identifier
    https://hanatrial.ondemand.com/<instancename>
    https://hana.ondemand.com/<instancename>
    https://us1.hana.ondemand.com/<instancename>
    https://ap1.hana.ondemand.com/<instancename>

    b. In the Reply URL textbox, type a URL using one of the following patterns:

    Reply URL
    https://<subdomain>.hanatrial.ondemand.com/<instancename>
    https://<subdomain>.hana.ondemand.com/<instancename>
    https://<subdomain>.us1.hana.ondemand.com/<instancename>
    https://<subdomain>.dispatcher.us1.hana.ondemand.com/<instancename>
    https://<subdomain>.ap1.hana.ondemand.com/<instancename>
    https://<subdomain>.dispatcher.ap1.hana.ondemand.com/<instancename>
    https://<subdomain>.dispatcher.hana.ondemand.com/<instancename>

    c. In the Sign On URL textbox, type the URL used by your users to sign into your SAP Business Technology Platform application. This is the account-specific URL of a protected resource in your SAP Business Technology Platform application. The URL is based on the following pattern: https://<applicationName><accountName>.<landscape host>.ondemand.com/<path_to_protected_resource>

    Note

    This is the URL in your SAP Business Technology Platform application that requires the user to authenticate.

    Sign On URL
    https://<subdomain>.hanatrial.ondemand.com/<instancename>
    https://<subdomain>.hana.ondemand.com/<instancename>

    Note

    These values are not real. Update these values with the actual Identifier,Reply URL and Sign on URL. Contact SAP Business Technology Platform Client support team to get Sign-On URL and Identifier. Reply URL you can get from trust management section which is explained later in the tutorial.

  6. On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Federation Metadata XML from the given options as per your requirement and save it on your computer.

    The Certificate download link

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to SAP Business Technology Platform.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > SAP Business Technology Platform.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure SAP Business Technology Platform SSO

  1. In a different web browser window, sign on to the SAP Business Technology Platform Cockpit at https://account.<landscape host>.ondemand.com/cockpit(for example: https://account.hanatrial.ondemand.com/cockpit).

  2. Click the Trust tab.

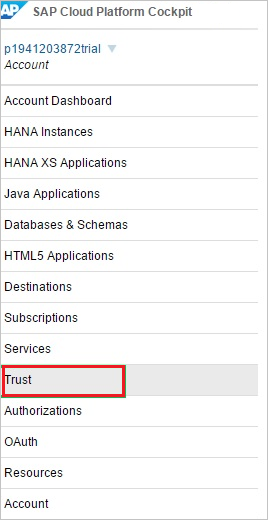

    Trust

  3. In the Trust Management section, under Local Service Provider, perform the following steps:

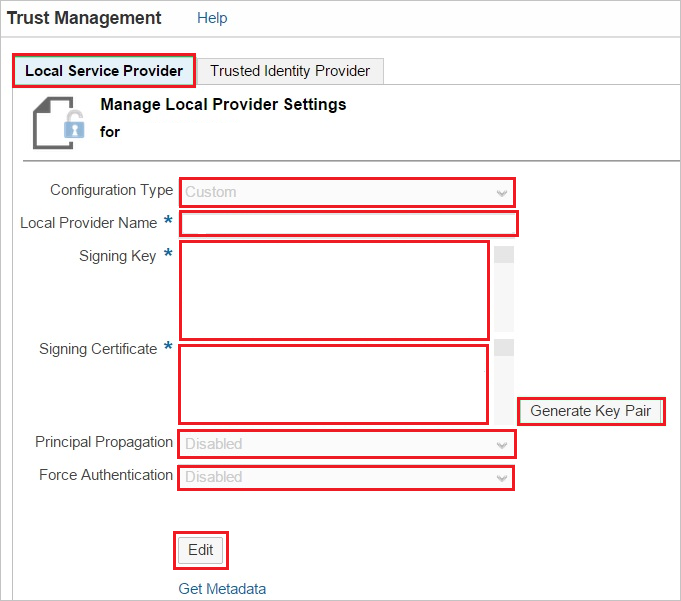

    Screenshot that shows the "Trust Management" section with the "Local Service Provider" tab selected and all text boxes highlighted.

    a. Click Edit.

    b. As Configuration Type, select Custom.

    c. As Local Provider Name, leave the default value. Copy this value and paste it into the Identifier field in the Microsoft Entra configuration for SAP Business Technology Platform.

    d. To generate a Signing Key and a Signing Certificate key pair, click Generate Key Pair.

    e. As Principal Propagation, select Disabled.

    f. As Force Authentication, select Disabled.

    g. Click Save.

  4. After saving the Local Service Provider settings, perform the following to obtain the Reply URL:

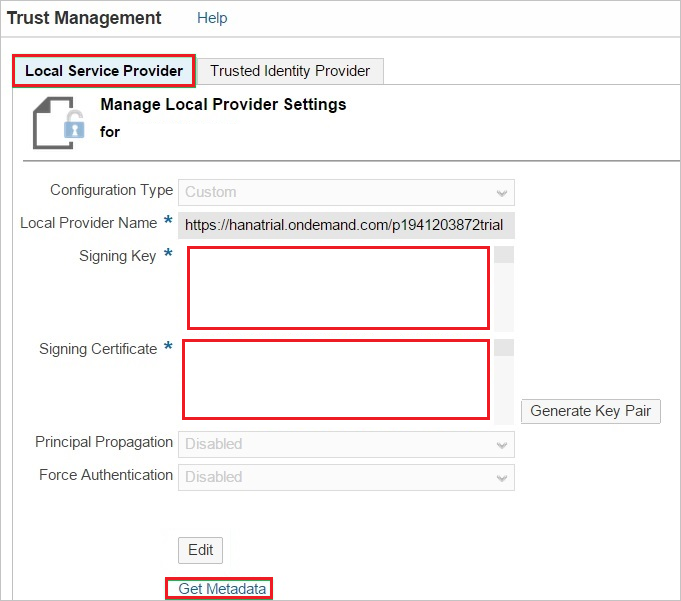

    Get Metadata

    a. Download the SAP Business Technology Platform metadata file by clicking Get Metadata.

    b. Open the downloaded SAP Business Technology Platform metadata XML file, and then locate the ns3:AssertionConsumerService tag.

    c. Copy the value of the Location attribute, and then paste it into the Reply URL field in the Microsoft Entra configuration for SAP Business Technology Platform.

  5. Click the Trusted Identity Provider tab, and then click Add Trusted Identity Provider.

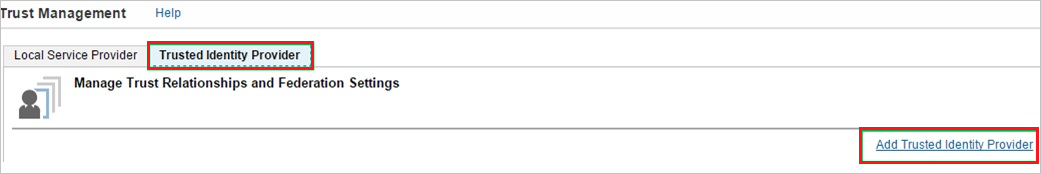

    Screenshot that shows the "Trust Management" page with the "Trusted Identity Provider" tab selected.

    Note

    To manage the list of trusted identity providers, you need to have chosen the Custom configuration type in the Local Service Provider section. For Default configuration type, you have a non-editable and implicit trust to the SAP ID Service. For None, you don't have any trust settings.

  6. Click the General tab, and then click Browse to upload the downloaded metadata file.

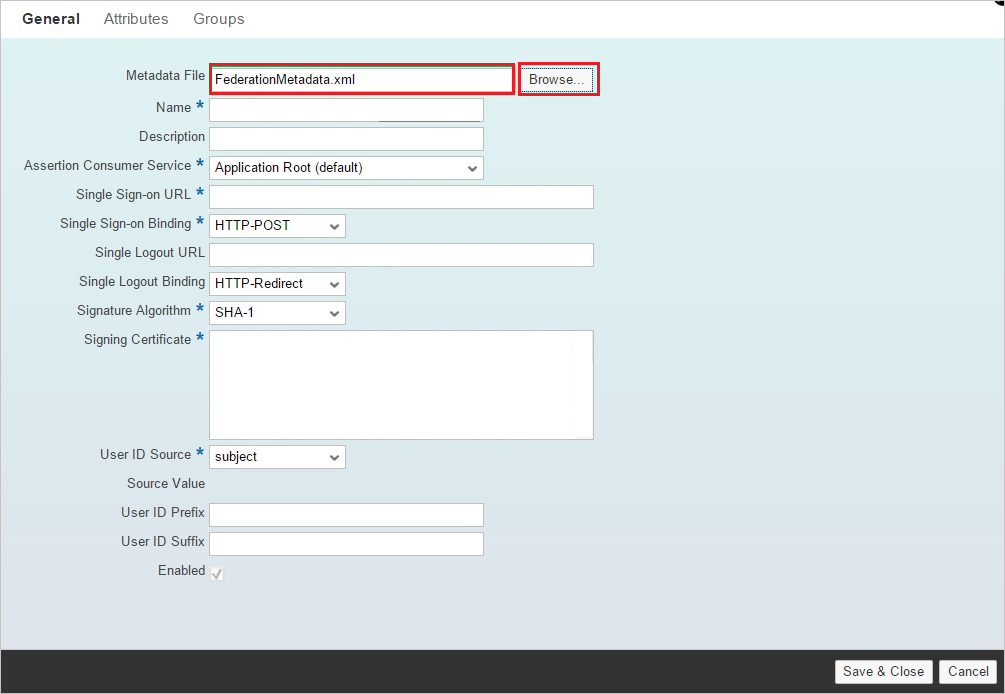

    Trust Management

    Note

    After uploading the metadata file, the values for Single Sign-on URL, Single Logout URL, and Signing Certificate are populated automatically.

  7. Click the Attributes tab.

  8. On the Attributes tab, perform the following step:

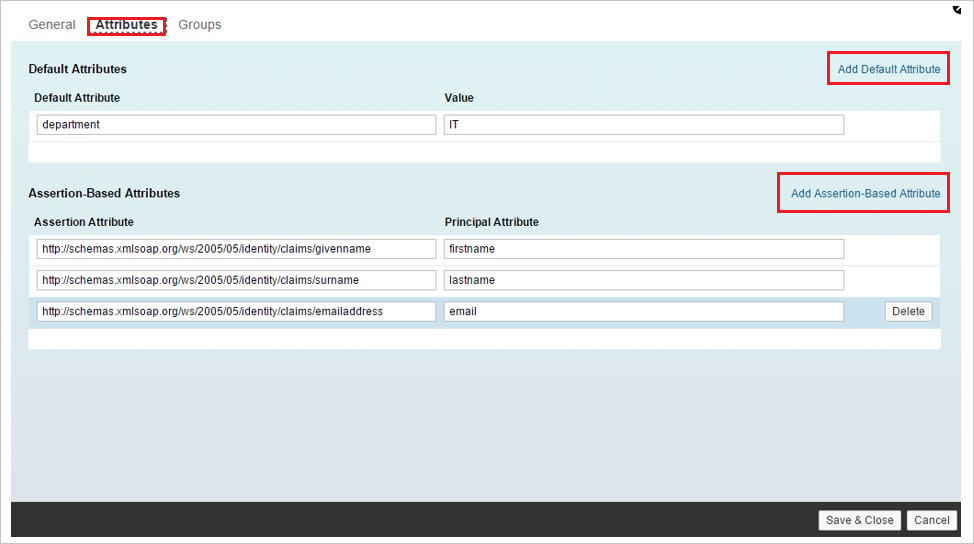

    Attributes

    a. Click Add Assertion-Based Attribute, and then add the following assertion-based attributes:

    Assertion Attribute Principal Attribute
    http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname firstname
    http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname lastname
    http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress email

    Note

    The configuration of the Attributes depends on how the application(s) on SCP are developed, that is, which attribute(s) they expect in the SAML response and under which name (Principal Attribute) they access this attribute in the code.

    b. The Default Attribute in the screenshot is just for illustration purposes. It is not required to make the scenario work.

    c. The names and values for Principal Attribute shown in the screenshot depend on how the application is developed. It is possible that your application requires different mappings.

Assertion-based groups

As an optional step, you can configure assertion-based groups for your Microsoft Entra identity Provider.

Using groups on SAP Business Technology Platform allows you to dynamically assign one or more users to one or more roles in your SAP Business Technology Platform applications, determined by values of attributes in the SAML 2.0 assertion.

For example, if the assertion contains the attribute "contract=temporary", you may want all affected users to be added to the group "TEMPORARY". The group "TEMPORARY" may contain one or more roles from one or more applications deployed in your SAP Business Technology Platform account.

Use assertion-based groups when you want to simultaneously assign many users to one or more roles of applications in your SAP Business Technology Platform account. If you want to assign only a single or small number of users to specific roles, we recommend assigning them directly in the “Authorizations” tab of the SAP Business Technology Platform cockpit.

Create SAP Business Technology Platform test user

In order to enable Microsoft Entra users to log in to SAP Business Technology Platform, you must assign roles in the SAP Business Technology Platform to them.

To assign a role to a user, perform the following steps:

  1. Log in to your SAP Business Technology Platform cockpit.

  2. Perform the following:

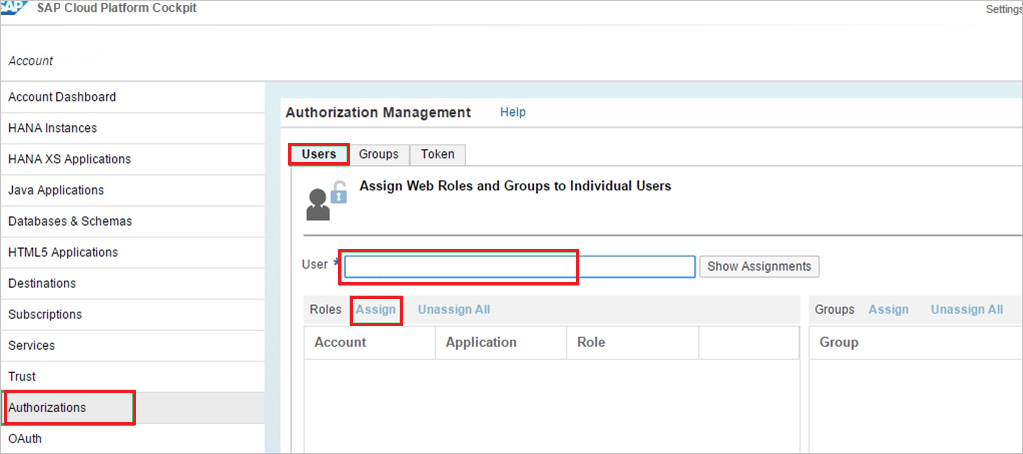

    Authorizations

    a. Click Authorization.

    b. Click the Users tab.

    c. In the User textbox, type the user’s email address.

    d. Click Assign to assign the user to a role.

    e. Click Save.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, this will redirect to SAP Business Technology Platform Sign-on URL where you can initiate the login flow.

  • Go to SAP Business Technology Platform Sign-on URL directly and initiate the login flow from there.

  • You can use Microsoft My Apps. When you click the SAP Business Technology Platform tile in the My Apps, you should be automatically signed in to the SAP Business Technology Platform for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure SAP Business Technology Platform you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
