Ejemplos de cargas de alerta

El esquema de alerta común normaliza la experiencia de consumo de notificaciones de alerta en Azure. Históricamente, el registro de actividad, la métrica y las alertas de búsqueda de registros tenían sus propias plantillas de correo electrónico y esquemas de webhook. El esquema de alerta común proporciona un esquema estandarizado para todas las notificaciones de alerta.

Un esquema estandarizado puede ayudarle a minimizar el número de integraciones, lo que simplifica el proceso de administración y mantenimiento de las integraciones.

El esquema común incluye información sobre el recurso afectado y la causa de la alerta en estas secciones:

  • Essentials: campos normalizados, utilizados por todos los tipos de alerta que describen el recurso afectado por la alerta y los metadatos comunes de alerta, como la gravedad o la descripción.

    Si desea enrutar instancias de alertas a equipos específicos basados en criterios como un grupo de recursos, puede usar los campos de la sección Essentials para proporcionar lógica de enrutamiento para todos los tipos de alertas. Los equipos que reciben la notificación de alerta pueden usar los campos de contexto para su investigación.

  • Contexto de alerta: campos que varían según el tipo de alerta. Los campos de contexto de alerta describen la causa de la alerta. Por ejemplo, una alerta de métrica tendría campos como el nombre de la métrica y el valor de la métrica en el contexto de la alerta. Una alerta del registro de actividad tendría información sobre el evento que generó la alerta.

  • Propiedades personalizadas: puede agregar más información a la carga de alerta al agregar propiedades personalizadas si ha configurado grupos de acciones para una regla de alertas de métricas.

    Nota:

    Actualmente, las alertas de métricas solo admiten las propiedades personalizadas. Para todos los demás tipos de alertas, el campo propiedades personalizadas es nulo.

Carga de alerta de ejemplo

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/<subscription ID>/providers/Microsoft.AlertsManagement/alerts/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e",
      "alertRule": "WCUS-R2-Gen2",
      "severity": "Sev3",
      "signalType": "Metric",
      "monitorCondition": "Resolved",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/<subscription ID>/resourcegroups/pipelinealertrg/providers/microsoft.compute/virtualmachines/wcus-r2-gen2"
      ],
      "configurationItems": [
        "wcus-r2-gen2"
      ],
      "originAlertId": "3f2d4487-b0fc-4125-8bd5-7ad17384221e_PipeLineAlertRG_microsoft.insights_metricAlerts_WCUS-R2-Gen2_-117781227",
      "firedDateTime": "2019-03-22T13:58:24.3713213Z",
      "resolvedDateTime": "2019-03-22T14:03:16.2246313Z",
      "description": "",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": null,
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Percentage CPU",
            "metricNamespace": "Microsoft.Compute/virtualMachines",
            "operator": "GreaterThan",
            "threshold": "25",
            "timeAggregation": "Average",
            "dimensions": [
              {
                "name": "ResourceId",
                "value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
              }
            ],
            "metricValue": 7.727
          }
        ]
      }
    }
  }
}

Ejemplos de alertas de métricas

A continuación se muestran los ejemplos de cargas de alertas de métricas.

Alerta de métrica con un umbral estático y el valor monitoringService = Platform

{
  "alertContext": {
      "properties": null,
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Percentage CPU",
            "metricNamespace": "Microsoft.Compute/virtualMachines",
            "operator": "GreaterThan",
            "threshold": "25",
            "timeAggregation": "Average",
            "dimensions": [
              {
                "name": "ResourceId",
                "value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
              }
            ],
            "metricValue": 31.1105
          }
        ],
        "windowStartTime": "2019-03-22T13:40:03.064Z",
        "windowEndTime": "2019-03-22T13:45:03.064Z"
      }
    }
}

Alerta métrica con un umbral dinámico y el valor monitoringService = Plataforma

{
  "alertContext": {
      "properties": null,
      "conditionType": "DynamicThresholdCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "alertSensitivity": "High",
            "failingPeriods": {
              "numberOfEvaluationPeriods": 1,
              "minFailingPeriodsToAlert": 1
            },
            "ignoreDataBefore": null,
            "metricName": "Egress",
            "metricNamespace": "microsoft.storage/storageaccounts",
            "operator": "GreaterThan",
            "threshold": "47658",
            "timeAggregation": "Total",
            "dimensions": [],
            "metricValue": 50101
          }
        ],
        "windowStartTime": "2021-07-20T05:07:26.363Z",
        "windowEndTime": "2021-07-20T05:12:26.363Z"
      }
    }
}

Alerta métrica para las pruebas de disponibilidad y el valor monitoringService = Plataforma

{
  "alertContext": {
      "properties": null,
      "conditionType": "WebtestLocationAvailabilityCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Failed Location",
            "metricNamespace": null,
            "operator": "GreaterThan",
            "threshold": "2",
            "timeAggregation": "Sum",
            "dimensions": [],
            "metricValue": 5,
            "webTestName": "myAvailabilityTest-myApplication"
          }
        ],
        "windowStartTime": "2019-03-22T13:40:03.064Z",
        "windowEndTime": "2019-03-22T13:45:03.064Z"
      }
    }
}

Alertas de búsqueda de registros de ejemplo

Nota:

Al habilitar el esquema común, los campos de la carga se restablecen en los campos de esquema comunes. Por lo tanto, las alertas de búsqueda de registros tienen estas limitaciones con respecto al esquema común:

  • El esquema común no se admite para las alertas de búsqueda de registros mediante webhooks con un asunto de correo electrónico personalizado o carga JSON, ya que el esquema común sobrescribe las configuraciones personalizadas.
  • Las alertas que utilizan el esquema común tienen un límite de tamaño superior de 256 KB por alerta. Si la carga de alertas de búsqueda de registros incluye resultados de la búsqueda que hacen que la alerta supere el tamaño máximo, los resultados de la búsqueda no se incrustan en la carga de alertas de búsqueda de registros. Puede comprobar si la carga incluye los resultados de búsqueda con la marca IncludedSearchResults. Use LinkToFilteredSearchResultsAPI o LinkToSearchResultsAPI para acceder a los resultados de la consulta con la API Log Analytics si no se incluyen los resultados de la búsqueda.

Alerta de búsqueda de registros con monitoringService = Plataforma

{
  "alertContext": {
    "SearchQuery": "Perf | where ObjectName == \"Processor\" and CounterName == \"% Processor Time\" | summarize AggregatedValue = avg(CounterValue) by bin(TimeGenerated, 5m), Computer",
    "SearchIntervalStartTimeUtc": "3/22/2019 1:36:31 PM",
    "SearchIntervalEndtimeUtc": "3/22/2019 1:51:31 PM",
    "ResultCount": 2,
    "LinkToSearchResults": "https://portal.azure.com/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToFilteredSearchResultsUI": "https://portal.azure.com/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat&timespan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
    "LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat&timespan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
    "SeverityDescription": "Warning",
    "WorkspaceId": "a0a0a0a0-bbbb-cccc-dddd-e1e1e1e1e1e1",
    "SearchIntervalDurationMin": "15",
    "AffectedConfigurationItems": [
      "INC-Gen2Alert"
    ],
    "SearchIntervalInMinutes": "15",
    "Threshold": 10000,
    "Operator": "Less Than",
    "Dimensions": [
      {
        "name": "Computer",
        "value": "INC-Gen2Alert"
      }
    ],
    "SearchResults": {
      "tables": [
        {
          "name": "PrimaryResult",
          "columns": [
            {
              "name": "$table",
              "type": "string"
            },
            {
              "name": "Computer",
              "type": "string"
            },
            {
              "name": "TimeGenerated",
              "type": "datetime"
            }
          ],
          "rows": [
            [
              "Fabrikam",
              "33446677a",
              "2018-02-02T15:03:12.18Z"
            ],
            [
              "Contoso",
              "33445566b",
              "2018-02-02T15:16:53.932Z"
            ]
          ]
        }
      ],
      "dataSources": [
        {
          "resourceId": "/subscriptions/bbbb1b1b-cc2c-dd3d-ee4e-ffffff5f5f5f/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
          "tables": [
            "Heartbeat"
          ]
        }
      ]
    },
    "IncludedSearchResults": "True",
    "AlertType": "Metric measurement"
  }
}

Alerta de búsqueda de registros con monitoringService = Application Insights

{
  "alertContext": {
    "SearchQuery": "requests | where resultCode == \"500\" | summarize AggregatedValue = Count by bin(Timestamp, 5m), IP",
    "SearchIntervalStartTimeUtc": "3/22/2019 1:36:33 PM",
    "SearchIntervalEndtimeUtc": "3/22/2019 1:51:33 PM",
    "ResultCount": 2,
    "LinkToSearchResults": "https://portal.azure.com/AnalyticsBlade/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToFilteredSearchResultsUI": "https://portal.azure.com/AnalyticsBlade/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
    "LinkToFilteredSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
    "SearchIntervalDurationMin": "15",
    "SearchIntervalInMinutes": "15",
    "Threshold": 10000.0,
    "Operator": "Less Than",
    "ApplicationId": "00001111-aaaa-2222-bbbb-3333cccc4444",
    "Dimensions": [
      {
        "name": "IP",
        "value": "1.1.1.1"
      }
    ],
    "SearchResults": {
      "tables": [
        {
          "name": "PrimaryResult",
          "columns": [
            {
              "name": "$table",
              "type": "string"
            },
            {
              "name": "Id",
              "type": "string"
            },
            {
              "name": "Timestamp",
              "type": "datetime"
            }
          ],
          "rows": [
            [
              "Fabrikam",
              "33446677a",
              "2018-02-02T15:03:12.18Z"
            ],
            [
              "Contoso",
              "33445566b",
              "2018-02-02T15:16:53.932Z"
            ]
          ]
        }
      ],
      "dataSources": [
        {
          "resourceId": "/subscriptions/cccc2c2c-dd3d-ee4e-ff5f-aaaaaa6a6a6a/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
          "tables": [
            "Heartbeat"
          ]
        }
      ]
    },
    "IncludedSearchResults": "True",
    "AlertType": "Metric measurement"
  }
}

Alerta de búsqueda de registros con monitoringService = Alertas de registro V2

Nota:

Las reglas de alertas de búsqueda de registros de la versión de API 2020-05-01 usan este tipo de carga, que solo admite un esquema común. Los resultados de la búsqueda no se insertan en la carga de las alertas de búsqueda de registros cuando se usa esta versión. Use dimensiones para proporcionar contexto a las alertas desencadenadas. También puede usar LinkToFilteredSearchResultsAPI o LinkToSearchResultsAPI para acceder a los resultados de la consulta con la API de Log Analytics. Si necesita insertar los resultados, use una aplicación lógica con los vínculos proporcionados para generar una carga personalizada.

{
  "alertContext": {
    "properties": {
      "name1": "value1",
      "name2": "value2"
    },
    "conditionType": "LogQueryCriteria",
    "condition": {
      "windowSize": "PT10M",
      "allOf": [
        {
          "searchQuery": "Heartbeat",
          "metricMeasureColumn": "CounterValue",
          "targetResourceTypes": "['Microsoft.Compute/virtualMachines']",
          "operator": "LowerThan",
          "threshold": "1",
          "timeAggregation": "Count",
          "dimensions": [
            {
              "name": "Computer",
              "value": "TestComputer"
            }
          ],
          "metricValue": 0.0,
          "failingPeriods": {
            "numberOfEvaluationPeriods": 1,
            "minFailingPeriodsToAlert": 1
          },
          "linkToSearchResultsUI": "https://portal.azure.com#@aaaabbbb-0000-cccc-1111-dddd2222eeee/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToFilteredSearchResultsUI": "https://portal.azure.com#@aaaabbbb-0000-cccc-1111-dddd2222eeee/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29&timespan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29&timespan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z"
        }
      ],
      "windowStartTime": "2020-07-07T13:54:34Z",
      "windowEndTime": "2020-07-09T13:54:34Z"
    }
  }
}

Ejemplo de alertas de registro de actividad

Alerta de registro de actividad con el valor monitoringService = Activity Log - Administrative

{
  "alertContext": {
      "authorization": {
        "action": "Microsoft.Compute/virtualMachines/restart/action",
        "scope": "/subscriptions/<subscription ID>/resourceGroups/PipeLineAlertRG/providers/Microsoft.Compute/virtualMachines/WCUS-R2-ActLog"
      },
      "channels": "Operation",
      "claims": "{\"aud\":\"https://management.core.windows.net/\",\"iss\":\"https://sts.windows.net/aaaabbbb-0000-cccc-1111-dddd2222eeee/\",\"iat\":\"1553260826\",\"nbf\":\"1553260826\",\"exp\":\"1553264726\",\"aio\":\"42JgYNjdt+rr+3j/dx68v018XhuFAwA=\",\"appid\":\"11112222-bbbb-3333-cccc-4444dddd5555\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.windows.net/aaaabbbb-0000-cccc-1111-dddd2222eeee/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"22223333-cccc-4444-dddd-5555eeee6666\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"22223333-cccc-4444-dddd-5555eeee6666\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"aaaabbbb-0000-cccc-1111-dddd2222eeee\",\"uti\":\"v5wYC9t9ekuA2rkZSVZbAA\",\"ver\":\"1.0\"}",
      "caller": "22223333-cccc-4444-dddd-5555eeee6666",
      "correlationId": "aaaa0000-bb11-2222-33cc-444444dddddd",
      "eventSource": "Administrative",
      "eventTimestamp": "2019-03-22T13:56:31.2917159+00:00",
      "eventDataId": "161fda7e-1cb4-4bc5-9c90-857c55a8f57b",
      "level": "Informational",
      "operationName": "Microsoft.Compute/virtualMachines/restart/action",
      "operationId": "310db69b-690f-436b-b740-6103ab6b0cba",
      "status": "Succeeded",
      "subStatus": "",
      "submissionTimestamp": "2019-03-22T13:56:54.067593+00:00"
    }
}

Alerta de registro de actividad con el valor monitoringService = Activity Log - Policy

{
  "alertContext": {
    "authorization": {
      "action": "Microsoft.Resources/checkPolicyCompliance/read",
      "scope": "/subscriptions/<GUID>"
    },
    "channels": "Operation",
    "claims": "{\"aud\":\"https://management.azure.com/\",\"iss\":\"https://sts.windows.net/<GUID>/\",\"iat\":\"1566711059\",\"nbf\":\"1566711059\",\"exp\":\"1566740159\",\"aio\":\"42FgYOhynHNw0scy3T/bL71+xLyqEwA=\",\"appid\":\"<GUID>\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.windows.net/<GUID>/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"<GUID>\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"<GUID>\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"<GUID>\",\"uti\":\"Miy1GzoAG0Scu_l3m1aIAA\",\"ver\":\"1.0\"}",
    "caller": "<GUID>",
    "correlationId": "<GUID>",
    "eventSource": "Policy",
    "eventTimestamp": "2019-08-25T11:11:34.2269098+00:00",
    "eventDataId": "<GUID>",
    "level": "Warning",
    "operationName": "Microsoft.Authorization/policies/audit/action",
    "operationId": "<GUID>",
    "properties": {
      "isComplianceCheck": "True",
      "resourceLocation": "eastus2",
      "ancestors": "<GUID>",
      "policies": "[{\"policyDefinitionId\":\"/providers/Microsoft.Authorization/policyDefinitions/<GUID>/\",\"policySetDefinitionId\":\"/providers/Microsoft.Authorization/policySetDefinitions/<GUID>/\",\"policyDefinitionReferenceId\":\"vulnerabilityAssessmentMonitoring\",\"policySetDefinitionName\":\"<GUID>\",\"policyDefinitionName\":\"<GUID>\",\"policyDefinitionEffect\":\"AuditIfNotExists\",\"policyAssignmentId\":\"/subscriptions/<GUID>/providers/Microsoft.Authorization/policyAssignments/SecurityCenterBuiltIn/\",\"policyAssignmentName\":\"SecurityCenterBuiltIn\",\"policyAssignmentScope\":\"/subscriptions/<GUID>\",\"policyAssignmentSku\":{\"name\":\"A1\",\"tier\":\"Standard\"},\"policyAssignmentParameters\":{}}]"
    },
    "status": "Succeeded",
    "subStatus": "",
    "submissionTimestamp": "2019-08-25T11:12:46.1557298+00:00"
  }
}

Alerta de registro de actividad con el valor monitoringService = Activity Log - Autoscale

{
  "alertContext": {
    "channels": "Admin, Operation",
    "claims": "{\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/spn\":\"Microsoft.Insights/autoscaleSettings\"}",
    "caller": "Microsoft.Insights/autoscaleSettings",
    "correlationId": "<GUID>",
    "eventSource": "Autoscale",
    "eventTimestamp": "2019-08-21T16:17:47.1551167+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Insights/AutoscaleSettings/Scaleup/Action",
    "operationId": "<GUID>",
    "properties": {
      "description": "The autoscale engine attempting to scale resource '/subscriptions/d<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS' from 9 instances count to 10 instances count.",
      "resourceName": "/subscriptions/<GUID>/resourceGroups/voiceassistancedemo/providers/Microsoft.Compute/virtualMachineScaleSets/alexademo",
      "oldInstancesCount": "9",
      "newInstancesCount": "10",
      "activeAutoscaleProfile": "{\r\n  \"Name\": \"Auto created scale condition\",\r\n  \"Capacity\": {\r\n    \"Minimum\": \"1\",\r\n    \"Maximum\": \"10\",\r\n    \"Default\": \"1\"\r\n  },\r\n  \"Rules\": [\r\n    {\r\n      \"MetricTrigger\": {\r\n        \"Name\": \"Percentage CPU\",\r\n        \"Namespace\": \"microsoft.compute/virtualmachinescalesets\",\r\n        \"Resource\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n        \"ResourceLocation\": \"eastus\",\r\n        \"TimeGrain\": \"PT1M\",\r\n        \"Statistic\": \"Average\",\r\n        \"TimeWindow\": \"PT5M\",\r\n        \"TimeAggregation\": \"Average\",\r\n        \"Operator\": \"GreaterThan\",\r\n        \"Threshold\": 0.0,\r\n        \"Source\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n        \"MetricType\": \"MDM\",\r\n        \"Dimensions\": [],\r\n        \"DividePerInstance\": false\r\n      },\r\n      \"ScaleAction\": {\r\n        \"Direction\": \"Increase\",\r\n        \"Type\": \"ChangeCount\",\r\n        \"Value\": \"1\",\r\n        \"Cooldown\": \"PT1M\"\r\n      }\r\n    }\r\n  ]\r\n}",
      "lastScaleActionTime": "Wed, 21 Aug 2019 16:17:47 GMT"
    },
    "status": "Succeeded",
    "submissionTimestamp": "2019-08-21T16:17:47.2410185+00:00"
  }
}

Alerta de registro de actividad con el valor monitoringService = Activity Log - Security

{
  "alertContext": {
    "channels": "Operation",
    "correlationId": "<GUID>",
    "eventSource": "Security",
    "eventTimestamp": "2019-08-26T08:34:14+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Security/locations/alerts/activate/action",
    "operationId": "<GUID>",
    "properties": {
      "threatStatus": "Quarantined",
      "category": "Virus",
      "threatID": "2147519003",
      "filePath": "C:\\AlertGeneration\\test.eicar",
      "protectionType": "Windows Defender",
      "actionTaken": "Blocked",
      "resourceType": "Virtual Machine",
      "severity": "Low",
      "compromisedEntity": "testVM",
      "remediationSteps": "[\"No user action is necessary\"]",
      "attackedResourceType": "Virtual Machine"
    },
    "status": "Active",
    "submissionTimestamp": "2019-08-26T09:28:58.3019107+00:00"
  }
}

Alertas del registro de actividad con monitoringService = ServiceHealth

{
  "alertContext": {
    "authorization": null,
    "channels": 1,
    "claims": null,
    "caller": null,
    "correlationId": "bbbb1111-cc22-3333-44dd-555555eeeeee",
    "eventSource": 2,
    "eventTimestamp": "2019-06-24T11:31:19.0312699+00:00",
    "httpRequest": null,
    "eventDataId": "<GUID>",
    "level": 3,
    "operationName": "Microsoft.ServiceHealth/maintenance/action",
    "operationId": "<GUID>",
    "properties": {
      "title": "Azure Synapse Analytics Scheduled Maintenance Pending",
      "service": "Azure Synapse Analytics",
      "region": "East US",
      "communication": "<MESSAGE>",
      "incidentType": "Maintenance",
      "trackingId": "<GUID>",
      "impactStartTime": "2019-06-26T04:00:00Z",
      "impactMitigationTime": "2019-06-26T12:00:00Z",
      "impactedServices": "[{\"ImpactedRegions\":[{\"RegionName\":\"East US\"}],\"ServiceName\":\"Azure Synapse Analytics\"}]",
      "impactedServicesTableRows": "<tr>\r\n<td align='center' style='padding: 5px 10px; border-right:1px solid black; border-bottom:1px solid black'>Azure Synapse Analytics</td>\r\n<td align='center' style='padding: 5px 10px; border-bottom:1px solid black'>East US<br></td>\r\n</tr>\r\n",
      "defaultLanguageTitle": "Azure Synapse Analytics Scheduled Maintenance Pending",
      "defaultLanguageContent": "<MESSAGE>",
      "stage": "Planned",
      "communicationId": "<GUID>",
      "maintenanceId": "<GUID>",
      "isHIR": "false",
      "version": "0.1.1"
    },
    "status": "Active",
    "subStatus": null,
    "submissionTimestamp": "2019-06-24T11:31:31.7147357+00:00",
    "ResourceType": null
  }
}

Alerta de registro de actividad con el valor monitoringService = ResourceHealth

{
  "alertContext": {
    "channels": "Admin, Operation",
    "correlationId": "<GUID>",
    "eventSource": "ResourceHealth",
    "eventTimestamp": "2019-06-24T15:42:54.074+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Resourcehealth/healthevent/Activated/action",
    "operationId": "<GUID>",
    "properties": {
      "title": "This virtual machine is stopping and deallocating as requested by an authorized user or process",
      "details": null,
      "currentHealthStatus": "Unavailable",
      "previousHealthStatus": "Available",
      "type": "Downtime",
      "cause": "UserInitiated"
    },
    "status": "Active",
    "submissionTimestamp": "2019-06-24T15:45:20.4488186+00:00"
  }
}

Alerta de ejemplo de Prometheus

{
  "alertContext": {
    "interval": "PT1M",
    "expression": "sql_up > 0",
    "expressionValue": "0",
    "for": "PT2M",
    "labels": {
      "Environment": "Prod",
      "cluster": "myCluster1"
    },
    "annotations": {
      "summary": "alert on SQL availability"
    },
    "ruleGroup": "/subscriptions/<subscription ID>/resourceGroups/myResourceGroup/providers/Microsoft.AlertsManagement/prometheusRuleGroups/myRuleGroup"
  }
}

Ejemplos de cargas para las acciones de prueba

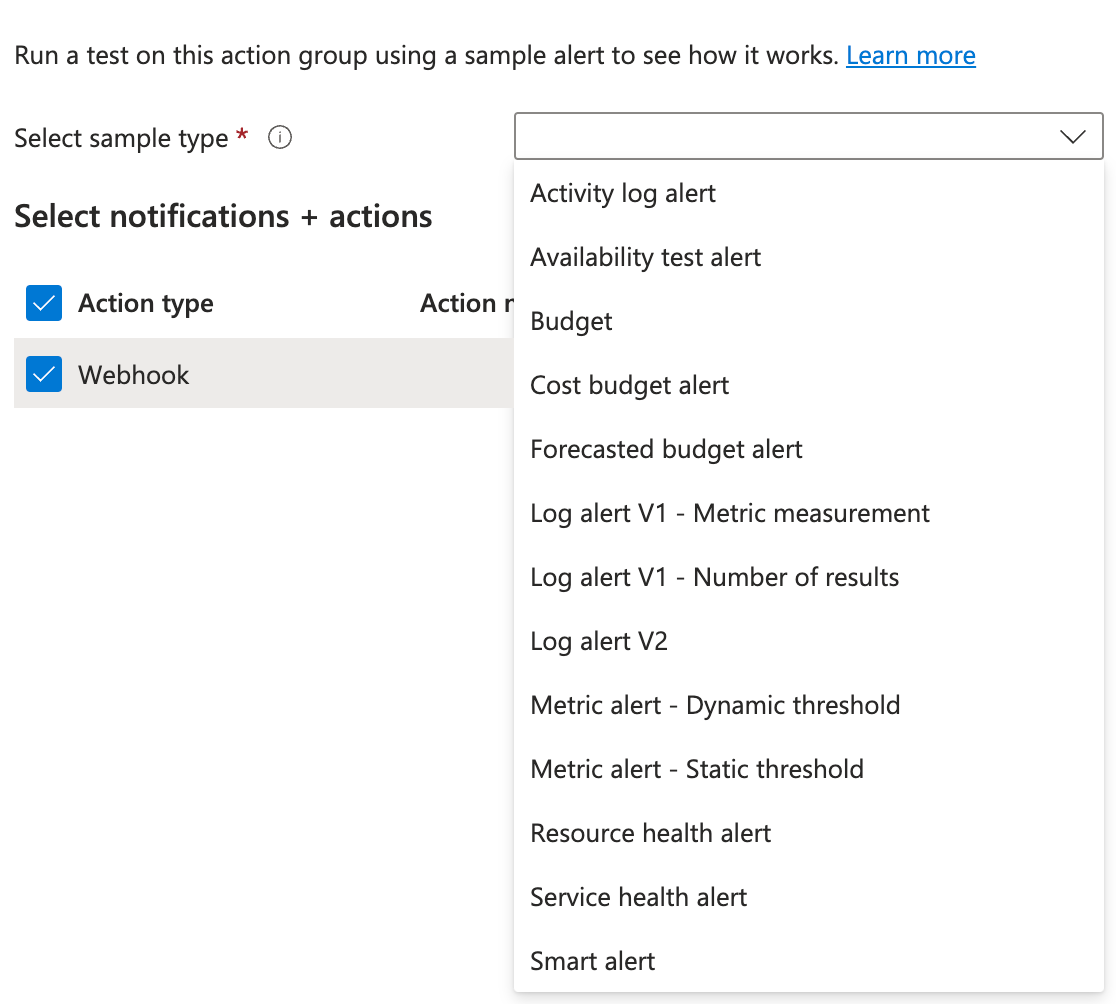

Captura de pantalla que muestra los tipos de alerta disponibles al probar un grupo de acciones de Azure.

Al configurar un grupo de acciones de Azure para enrutar las notificaciones de alerta (por ejemplo, a través de webhook, aplicación lógica, función de Azure o centro de eventos), es importante comprobar que el punto de conexión receptor puede controlar la estructura de carga del esquema de alerta común .

Azure proporciona una característica de "Acción de prueba" para simular una alerta y enviar una carga de ejemplo a los puntos de conexión configurados. Esto ayuda a validar la integración sin necesidad de desencadenar una condición de recurso real.

En esta sección se describe la estructura y el contenido de la carga de prueba enviada al usar la característica "Grupo de acciones de prueba" con el esquema de alerta común habilitado.

Nota:

La carga de prueba imita una alerta real, pero contiene metadatos ficticios y no representa ningún recurso o condición específicos.

Acción de prueba de ejemplo Activity log alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/test-RG/providers/microsoft.insights/activityLogAlerts/Test_Alert",
      "alertRule": "test-activityLogAlertRule",
      "severity": "Sev4",
      "signalType": "Activity Log",
      "monitorCondition": "Fired",
      "monitoringService": "Activity Log - Administrative",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
      ],
      "configurationItems": [
        "test-VM"
      ],
      "originAlertId": "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb_123456789012345678901234567890ab",
      "firedDateTime": "2025-04-15T11:26:21.386Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "authorization": {
        "action": "Microsoft.Compute/virtualMachines/restart/action",
        "scope": "/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM"
      },
      "channels": "Operation",
      "claims": "{}",
      "caller": "user-email@domain.com",
      "correlationId": "aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
      "eventSource": "Administrative",
      "eventTimestamp": "2025-04-15T11:26:21.386Z",
      "eventDataId": "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
      "level": "Informational",
      "operationName": "Microsoft.Compute/virtualMachines/restart/action",
      "operationId": "cccccccc-cccc-cccc-cccc-cccccccccccc",
      "properties": {
        "eventCategory": "Administrative",
        "entity": "/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM",
        "message": "Microsoft.Compute/virtualMachines/restart/action",
        "hierarchy": "22222222-2222-2222-2222-222222222222/CnAIOrchestrationServicePublicCorpprod/33333333-3333-3333-3333-3333333333333/44444444-4444-4444-4444-444444444444/55555555-5555-5555-5555-555555555555/11111111-1111-1111-1111-111111111111"
      },
      "status": "Succeeded",
      "subStatus": "",
      "submissionTimestamp": "2025-04-15T11:26:21.386Z",
      "Activity Log Event Description": ""
    }
  }
}

Acción de prueba de ejemplo Availability test alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-availabilityTest-test-applicationInsights",
      "severity": "Sev4",
      "signalType": "Metric",
      "monitorCondition": "Fired",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.insights/components/test-applicationInsights"
      ],
      "configurationItems": [
        "test-applicationInsights"
      ],
      "originAlertId": "11111111-1111-1111-1111-111111111111_test-RG_microsoft.insights_metricalerts_test-availabilityTest-test-applicationInsights_1234567890",
      "firedDateTime": "2025-04-15T17:42:34.824Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": null,
      "conditionType": "WebtestLocationAvailabilityCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "FailedLocation",
            "metricNamespace": null,
            "operator": "GreaterThan",
            "threshold": "2",
            "timeAggregation": "Sum",
            "dimensions": [],
            "metricValue": 5.0,
            "webTestName": "test-availabilityTest-test-applicationInsights"
          }
        ],
        "windowStartTime": "2025-04-15T17:42:34.824Z",
        "windowEndTime": "2025-04-15T17:42:34.824Z"
      }
    },
    "customProperties": {
      "customKey1": "value1",
      "customKey2": "value2"
    }
  }
}

Acción de prueba de ejemplo Budget alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "monitoringService": "CostAlerts",
      "firedDateTime": "2025-04-15T17:49:34.022Z",
      "description": "Delivery Confirmation: This is a sample budget alert from Azure Monitor Action Groups.",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0",
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.CostManagement/alerts/Test_Alert",
      "alertRule": null,
      "severity": null,
      "signalType": null,
      "monitorCondition": "Fired",
      "alertTargetIDs": null,
      "configurationItems": [
        "budgets"
      ],
      "originAlertId": null
    },
    "alertContext": {
      "AlertCategory": "budgets",
      "AlertData": {
        "Scope": "/subscriptions/11111111-1111-1111-1111-111111111111/",
        "ThresholdType": "Forecasted",
        "BudgetType": "Cost",
        "BudgetThreshold": "$50.00",
        "NotificationThresholdAmount": "$50.00",
        "BudgetName": "Test_forcasted_budget",
        "BudgetId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Consumption/budgets/Test_forcasted_budget",
        "BudgetStartDate": "2022-11-01",
        "BudgetCreator": "test@sample.test",
        "Unit": "USD",
        "SpentAmount": "$999.99",
        "ForecastedTotalForPeriod": "$1111.11"
      }
    }
  }
}

Acción de prueba de ejemplo Cost budget alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "monitoringService": "CostAlerts",
      "firedDateTime": "2025-04-15T17:53:32.996Z",
      "description": "YourspendforbudgetTest_actual_cost_budgetisnow$11,111.00exceedingyourspecifiedthreshold$25.00.",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0",
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.CostManagement/alerts/Test_Alert",
      "alertRule": null,
      "severity": null,
      "signalType": null,
      "monitorCondition": "Fired",
      "alertTargetIDs": null,
      "configurationItems": [
        "budgets"
      ],
      "originAlertId": null
    },
    "alertContext": {
      "AlertCategory": "budgets",
      "AlertData": {
        "Scope": "/subscriptions/11111111-1111-1111-1111-111111111111/",
        "ThresholdType": "Actual",
        "BudgetType": "Cost",
        "BudgetThreshold": "$50.00",
        "NotificationThresholdAmount": "$25.00",
        "BudgetName": "Test_actual_cost_budget",
        "BudgetId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Consumption/budgets/Test_actual_cost_budget",
        "BudgetStartDate": "2022-11-01",
        "BudgetCreator": "test@sample.test",
        "Unit": "USD",
        "SpentAmount": "$11,111.00"
      }
    }
  }
}

Acción de prueba de ejemplo Forecasted budget alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "monitoringService": "CostAlerts",
      "firedDateTime": "2025-04-15T17:55:39.04Z",
      "description": "Thetotalspendforyourbudget,Test_forcasted_budget,isforecastedtoreach$1111.11beforetheendoftheperiod.Thisamountexceedsyourspecifiedbudgetthresholdof$50.00.",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0",
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.CostManagement/alerts/Test_Alert",
      "alertRule": null,
      "severity": null,
      "signalType": null,
      "monitorCondition": "Fired",
      "alertTargetIDs": null,
      "configurationItems": [
        "budgets"
      ],
      "originAlertId": null
    },
    "alertContext": {
      "AlertCategory": "budgets",
      "AlertData": {
        "Scope": "/subscriptions/11111111-1111-1111-1111-111111111111/",
        "ThresholdType": "Forecasted",
        "BudgetType": "Cost",
        "BudgetThreshold": "$50.00",
        "NotificationThresholdAmount": "$50.00",
        "BudgetName": "Test_forcasted_budget",
        "BudgetId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Consumption/budgets/Test_forcasted_budget",
        "BudgetStartDate": "2022-11-01",
        "BudgetCreator": "test@sample.test",
        "Unit": "USD",
        "SpentAmount": "$999.99",
        "ForecastedTotalForPeriod": "$1111.11"
      }
    }
  }
}

Alertas de registro heredadas V1 en pruebas de grupo de acciones

Azure todavía admite alertas de registro V1 en determinados escenarios , incluido cuando se usa la característica "Grupo de acciones de prueba ". Las alertas de registro V1 representan una generación anterior de alertas sobre los datos de registro en Azure Monitor, que precede a la API unificada de reglas de consulta programadas (v2) y la adopción más amplia del esquema de alerta común.

Al seleccionar Alertas de registro V1 como tipo de alerta durante una prueba, la estructura de carga y el esquema difieren significativamente de los formatos modernos del esquema de alertas comunes. Esta prueba es principalmente relevante para los sistemas heredados que se integraron originalmente mediante las notificaciones de alertas de registro V1.

Nota:

Microsoft recomienda migrar a alertas de registro V2 para aprovechar la coherencia de esquema mejorada.

Solo debe probar las alertas de registro V1 si el punto de conexión receptor o la automatización se compila explícitamente para el esquema anterior.

Acción de prueba de ejemplo Log alert V1 - Metric measurement

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-logAlertRule-v1-metricMeasurement",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "Log Analytics",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
      ],
      "configurationItems": [],
      "originAlertId": "12345678-4444-4444-4444-1234567890ab",
      "firedDateTime": "2025-04-15T17:57:27.967Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.1"
    },
    "alertContext": {
      "SearchQuery": "Heartbeat | summarize AggregatedValue=count() by bin(TimeGenerated, 5m)",
      "SearchIntervalStartTimeUtc": "2025-04-15T17:57:27.967Z",
      "SearchIntervalEndtimeUtc": "2025-04-15T17:57:27.967Z",
      "ResultCount": 2,
      "LinkToSearchResults": "https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2BWqUSguzc1NLMqsSlVwTE8vSk1PLElNCUvMKU21Tc4vzSvRaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHi/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "LinkToFilteredSearchResultsUI": "https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHidp%2BOPOhDKsHR%2FFeJXsTgzGJRmVui3KF3RpLyEJCX9A2iMl6jgxMn6jRevng3JmIHLdYtKP4DRI9mhc%3D/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29&timespan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29%7C%20where%20todouble%28AggregatedValue%29%20%3E%200&timespan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "SeverityDescription": "Informational",
      "WorkspaceId": "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
      "SearchIntervalDurationMin": "1440",
      "AffectedConfigurationItems": [],
      "AlertType": "Metric measurement",
      "IncludeSearchResults": true,
      "Dimensions": [],
      "SearchIntervalInMinutes": "1440",
      "SearchResults": {
        "tables": [
          {
            "name": "PrimaryResult",
            "columns": [
              {
                "name": "TimeGenerated",
                "type": "datetime"
              },
              {
                "name": "AggregatedValue",
                "type": "long"
              }
            ],
            "rows": [
              [
                "2025-04-15T17:57:27.967Z",
                11
              ],
              [
                "2025-04-15T17:57:27.967Z",
                11
              ]
            ]
          }
        ],
        "dataSources": [
          {
            "resourceId": "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
            "region": "eastus",
            "tables": [
              "Heartbeat"
            ]
          }
        ]
      },
      "Threshold": 0,
      "Operator": "Greater Than",
      "IncludedSearchResults": "True"
    }
  }
}

Acción de prueba de ejemplo Log alert V1 - Number of results

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-logAlertRule-v1-numResults",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "Log Analytics",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
      ],
      "configurationItems": [
        "test-computer"
      ],
      "originAlertId": "22222222-2222-2222-2222-222222222222",
      "firedDateTime": "2025-04-15T18:04:40.852Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.1"
    },
    "alertContext": {
      "SearchQuery": "Heartbeat",
      "SearchIntervalStartTimeUtc": "2025-04-15T18:04:40.852Z",
      "SearchIntervalEndtimeUtc": "2025-04-15T18:04:40.852Z",
      "ResultCount": 1,
      "LinkToSearchResults": "https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "LinkToFilteredSearchResultsUI": "https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%0A&timespan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%0A&timespan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "SeverityDescription": "Informational",
      "WorkspaceId": "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
      "SearchIntervalDurationMin": "1440",
      "AffectedConfigurationItems": [
        "test-computer"
      ],
      "AlertType": "Number of results",
      "IncludeSearchResults": true,
      "SearchIntervalInMinutes": "1440",
      "SearchResults": {
        "tables": [
          {
            "name": "PrimaryResult",
            "columns": [
              {
                "name": "TenantId",
                "type": "string"
              },
              {
                "name": "Computer",
                "type": "string"
              },
              {
                "name": "TimeGenerated",
                "type": "datetime"
              }
            ],
            "rows": [
              [
                "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
                "test-computer",
                "2025-04-15T18:04:40.852Z"
              ]
            ]
          }
        ],
        "dataSources": [
          {
            "resourceId": "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
            "region": "eastus",
            "tables": [
              "Heartbeat"
            ]
          }
        ]
      },
      "Threshold": 0,
      "Operator": "Greater Than",
      "IncludedSearchResults": "True"
    }
  }
}

Acción de prueba de ejemplo Log alert V2

Nota:

Las reglas de alertas de búsqueda de registros de la versión de API 2020-05-01 usan este tipo de carga, que solo admite el esquema común. Los resultados de la búsqueda no se insertan en la carga de las alertas de búsqueda de registros cuando se usa esta versión. Use dimensiones para proporcionar contexto a las alertas desencadenadas.

También puede usar LinkToFilteredSearchResultsAPI o LinkToSearchResultsAPI para acceder a los resultados de la consulta con la API de Log Analytics. Si necesita insertar los resultados, use una aplicación lógica con los vínculos proporcionados para generar una carga personalizada.

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-logAlertRule-v2",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "Log Alerts V2",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
      ],
      "configurationItems": [
        "test-computer"
      ],
      "originAlertId": "22222222-2222-2222-2222-222222222222",
      "firedDateTime": "2025-04-15T18:08:03.626Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": {
        "customKey1": "value1",
        "customKey2": "value2"
      },
      "conditionType": "LogQueryCriteria",
      "condition": {
        "windowSize": "PT1H",
        "allOf": [
          {
            "searchQuery": "Heartbeat",
            "metricMeasureColumn": null,
            "targetResourceTypes": "['Microsoft.OperationalInsights/workspaces']",
            "operator": "GreaterThan",
            "threshold": "0",
            "timeAggregation": "Count",
            "dimensions": [
              {
                "name": "Computer",
                "value": "test-computer"
              }
            ],
            "metricValue": 3.0,
            "failingPeriods": {
              "numberOfEvaluationPeriods": 1,
              "minFailingPeriodsToAlert": 1
            },
            "linkToSearchResultsUI": "https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmN1234567890ZAZBZiaGBlaG5lbKlnAAFRmnp6WNUZoqvTBAA%3D/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
            "linkToFilteredSearchResultsUI": "https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmN%2Fl35oOTZoKioEOouaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN7HHgOCZTR0Ak%2FaBcDeFgHiJkLmN1234567890Ltcw%2FOqZS%2FuX0L5d%2Bx3iMHNzQiu3Y%2BzsjpFSWlOzgA87vAxeHW2MoAtQxe6OUvVrZR3XYZPXrd%2FIE/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
            "linkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29&timespan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
            "linkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29%7C%20where%20tostring%28Computer%29%20%3D%3D%20%27test-computer%27&timespan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z"
          }
        ],
        "windowStartTime": "2025-04-15T18:08:03.626Z",
        "windowEndTime": "2025-04-15T18:08:03.626Z"
      }
    }
  }
}

Acción de prueba de ejemplo Metric alert - Dynamic threshold

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-dynamicMetricAlertRule",
      "severity": "Sev4",
      "signalType": "Metric",
      "monitorCondition": "Fired",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/Microsoft.Storage/storageAccounts/test-storageAccount"
      ],
      "configurationItems": [
        "test-storageAccount"
      ],
      "originAlertId": "11111111-1111-1111-1111-111111111111_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
      "firedDateTime": "2025-04-15T18:15:16.104Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": {
        "customKey1": "value1",
        "customKey2": "value2"
      },
      "conditionType": "DynamicThresholdCriteria",
      "condition": {
        "windowSize": "PT15M",
        "allOf": [
          {
            "alertSensitivity": "Low",
            "failingPeriods": {
              "numberOfEvaluationPeriods": 3,
              "minFailingPeriodsToAlert": 3
            },
            "ignoreDataBefore": null,
            "metricName": "Transactions",
            "metricNamespace": "Microsoft.Storage/storageAccounts",
            "operator": "GreaterThan",
            "threshold": "0.3",
            "timeAggregation": "Average",
            "dimensions": [],
            "metricValue": 78.09,
            "webTestName": null
          }
        ],
        "windowStartTime": "2025-04-15T18:15:16.104Z",
        "windowEndTime": "2025-04-15T18:15:16.104Z"
      }
    },
    "customProperties": {
      "customKey1": "value1",
      "customKey2": "value2"
    }
  }
}

Acción de prueba de ejemplo Metric alert - Static threshold

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-metricAlertRule",
      "severity": "Sev4",
      "signalType": "Metric",
      "monitorCondition": "Fired",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.storage/storageaccounts/test-storageAccount"
      ],
      "configurationItems": [
        "test-storageAccount"
      ],
      "originAlertId": "11111111-1111-1111-1111-111111111111_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
      "firedDateTime": "2025-04-15T18:17:12.851Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": {
        "customKey1": "value1",
        "customKey2": "value2"
      },
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Transactions",
            "metricNamespace": "Microsoft.Storage/storageAccounts",
            "operator": "GreaterThan",
            "threshold": "0",
            "timeAggregation": "Total",
            "dimensions": [
              {
                "name": "ApiName",
                "value": "GetBlob"
              }
            ],
            "metricValue": 100,
            "webTestName": null
          }
        ],
        "windowStartTime": "2025-04-15T18:17:12.851Z",
        "windowEndTime": "2025-04-15T18:17:12.851Z"
      }
    },
    "customProperties": {
      "customKey1": "value1",
      "customKey2": "value2"
    }
  }
}

Acción de prueba de ejemplo Resource health alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-ResourceHealthAlertRule",
      "severity": "Sev4",
      "signalType": "Activity Log",
      "monitorCondition": "Fired",
      "monitoringService": "Resource Health",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
      ],
      "configurationItems": [
        "test-VM"
      ],
      "originAlertId": "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb_123456789012345678901234567890ab",
      "firedDateTime": "2025-04-15T18:19:45.304Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "channels": "Admin, Operation",
      "correlationId": "aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
      "eventSource": "ResourceHealth",
      "eventTimestamp": "2025-04-15T18:19:45.304Z",
      "eventDataId": "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
      "level": "Informational",
      "operationName": "Microsoft.Resourcehealth/healthevent/Activated/action",
      "operationId": "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
      "properties": {
        "title": "Rebooted by user",
        "details": null,
        "currentHealthStatus": "Unavailable",
        "previousHealthStatus": "Available",
        "type": "Downtime",
        "cause": "UserInitiated"
      },
      "status": "Active",
      "submissionTimestamp": "2025-04-15T18:19:45.304Z",
      "Activity Log Event Description": null
    }
  }
}

Acción de prueba de ejemplo Service health alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
      "alertRule": "test-ServiceHealthAlertRule",
      "severity": "Sev4",
      "signalType": "ActivityLog",
      "monitorCondition": "Fired",
      "monitoringService": "ServiceHealth",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111"
      ],
      "originAlertId": "12345678-1234-1234-1234-1234567890ab",
      "firedDateTime": "2025-04-15T18:20:36.256Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "authorization": null,
      "channels": 1,
      "claims": null,
      "caller": null,
      "correlationId": "12345678-abcd-efgh-ijkl-abcd12345678",
      "eventSource": 2,
      "eventTimestamp": "2025-04-15T18:20:36.256Z",
      "httpRequest": null,
      "eventDataId": "12345678-1234-1234-1234-1234567890ab",
      "level": 3,
      "operationName": "Microsoft.ServiceHealth/incident/action",
      "operationId": "12345678-abcd-efgh-ijkl-abcd12345678",
      "properties": {
        "title": "TestActionGroup-TestServiceHealthAlert",
        "service": "AzureServiceName",
        "region": "Global",
        "communication": "<p>ThisisatestfromServiceHealthAlert</p>",
        "incidentType": "Incident",
        "trackingId": "TEST-TTT",
        "impactStartTime": "2025-04-15T18:20:36.256Z",
        "impactMitigationTime": "2025-04-15T18:20:36.256Z",
        "impactedServices": [
          {
            "ImpactedRegions": [
              {
                "RegionName": "Global"
              }
            ],
            "ServiceName": "AzureServiceName"
          }
        ],
        "impactedServicesTableRows": "<tr><td>Thisisatestfromservicehealthalert</<td>/<tr>",
        "defaultLanguageTitle": "TestActionGroup-TestServiceHealthAlert",
        "defaultLanguageContent": "<p>ThisisatestfromServiceHealthAlert</p>",
        "stage": "Resolved",
        "communicationId": "11223344556677",
        "isHIR": "false",
        "IsSynthetic": "True",
        "impactType": "SubscriptionList",
        "version": "0.1.1"
      },
      "status": "Resolved",
      "subStatus": null,
      "submissionTimestamp": "2025-04-15T18:20:36.256Z",
      "ResourceType": null
    }
  }
}

Acción de prueba de ejemplo Smart alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
      "alertRule": "test-SmartAlertRule",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "SmartDetector",
      "alertTargetIDs": [
        "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.insights/components/test-applicationInsights"
      ],
      "configurationItems": [
        "test-applicationInsights"
      ],
      "originAlertId": "1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
      "firedDateTime": "2021-10-28T19:09:09.1115084Z",
      "description": "Dependency Latency Degradation notifies you of an unusual increase in response by a dependency your app is calling (e.g. REST API or database)",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "DetectionSummary": "A degradation in the dependency duration over the last 24 hours",
      "FormattedOccurrenceTime": "2025-04-15T18:23:16.577Z",
      "DetectedValue": "0.45 sec",
      "NormalValue": "0.27 sec (over the last 7 days)",
      "PresentationInsightEventRequest": "/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/test-RG/providers/microsoft.insights/components/test-applicationInsights/query?query=systemEvents%0d%0a++++++++++++++++%7c+where+timestamp+%3e%3d+datetime(%272021-10-27T23%3a29%3a59.0000000Z%27)+%0d%0a++++++++++++++++%7c+where+itemType+%3d%3d+%27systemEvent%27+and+name+%3d%3d+%27ProactiveDetectionInsight%27+%0d%0a++++++++++++++++%7c+where+dimensions.InsightType+%3d%3d+3+%0d%0a++++++++++++++++%7c+where+dimensions.InsightVersion+%3d%3d+%27SmartAlert%27%0d%0a++++++++++++++++%7c+where+dimensions.InsightDocumentId+%3d%3d+%2712345678-abcd-1234-5678-abcd12345678%27+%0d%0a++++++++++++++++%7c+project+dimensions.InsightPropertiesTable%2cdimensions.InsightDegradationChart%2cdimensions.InsightCountChart%2cdimensions.InsightLinksTable%0d%0a++++++++++++++++&api-version=2018-04-20",
      "SmartDetectorId": "DependencyPerformanceDegradationDetector",
      "SmartDetectorName": "Dependency Performance Degradation Detector",
      "AnalysisTimestamp": "2025-04-15T18:23:16.577Z"
    }
  }
}

Pasos siguientes
