Monitorización de los costos de los trabajos y rendimiento con tablas del sistema

2025-06-11

En este artículo se proporcionan ejemplos de cómo usar tablas del sistema para supervisar el costo y el rendimiento de los trabajos de Lakeflow en su cuenta.

Estas consultas solo calculan los costes de los trabajos que se ejecutan en proceso de trabajos y proceso sin servidor. Los trabajos que se ejecutan en almacenes de SQL y el proceso multiuso no se facturan como trabajos y, por tanto, se excluyen de la atribución de costes.

Nota:

Estas consultas no devolverán registros de áreas de trabajo fuera de la región de nube del área de trabajo actual. Para supervisar los costos de trabajos desde áreas de trabajo fuera de la región actual, ejecute estas consultas en un área de trabajo implementada en esa región.

Requisitos

Un administrador de cuenta debe habilitar el system.lakeflow esquema. Consulte Acceso a las tablas del sistema.
Para acceder a estas tablas del sistema, los usuarios deben:
- Ser un administrador de metastore y un administrador de cuenta, o
- Tener permisos USE y SELECT en los esquemas del sistema. Consulte Conceder acceso a las tablas del sistema.

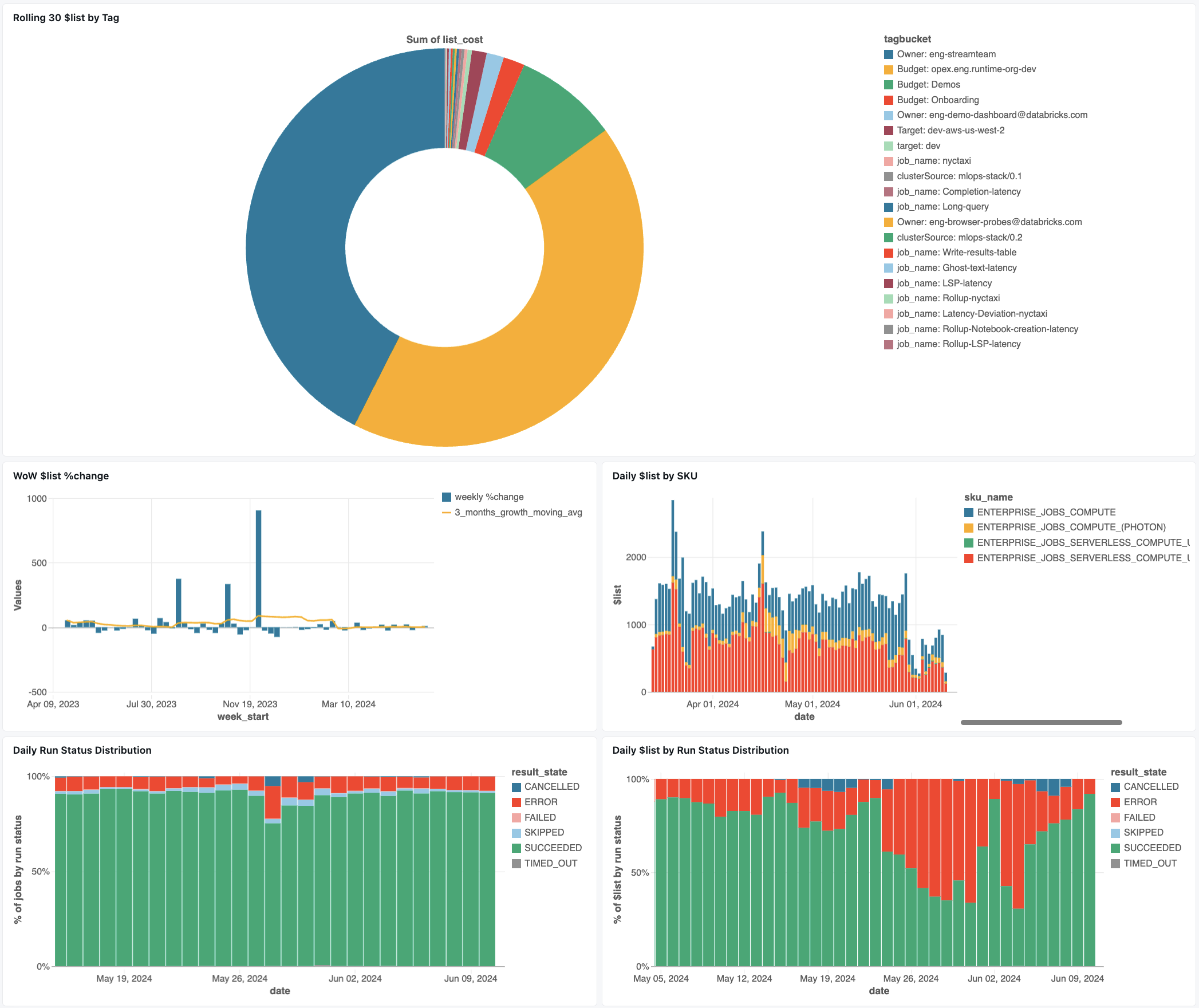

Panel de supervisión de trabajos

En el panel siguiente se usan tablas del sistema para proporcionarle una supervisión completa de los trabajos de Lakeflow y el estado operativo. Incluye casos de uso comunes, como el seguimiento del rendimiento del trabajo, la supervisión de errores y el uso de recursos.

Panel de observabilidad de costos de trabajos

Importar el panel

Descargue el archivo JSON del panel desde el repositorio de GitHub de Databricks.
Importe el panel en el área de trabajo. Para obtener instrucciones sobre cómo importar paneles, consulte Importar un archivo de panel.

Consultas de observabilidad de costos

Las siguientes consultas del panel muestran las funcionalidades de supervisión de costos del trabajo.

Trabajos más caros (últimos 30 días)

Esta consulta identifica los trabajos con el gasto más alto de los últimos 30 días.

with list_cost_per_job as (
  SELECT
    t1.workspace_id,
    t1.usage_metadata.job_id,
    COUNT(DISTINCT t1.usage_metadata.job_run_id) as runs,
    SUM(t1.usage_quantity * list_prices.pricing.default) as list_cost,
    first(identity_metadata.run_as, true) as run_as,
    first(t1.custom_tags, true) as custom_tags,
    MAX(t1.usage_end_time) as last_seen_date
  FROM system.billing.usage t1
  INNER JOIN system.billing.list_prices list_prices on
    t1.cloud = list_prices.cloud and
    t1.sku_name = list_prices.sku_name and
    t1.usage_start_time >= list_prices.price_start_time and
    (t1.usage_end_time <= list_prices.price_end_time or list_prices.price_end_time is null)
  WHERE
    t1.billing_origin_product = "JOBS"
    AND t1.usage_date >= CURRENT_DATE() - INTERVAL 30 DAY
  GROUP BY ALL
),
most_recent_jobs as (
  SELECT
    *,
    ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
  FROM
    system.lakeflow.jobs QUALIFY rn=1
)
SELECT
    t2.name,
    t1.job_id,
    t1.workspace_id,
    t1.runs,
    t1.run_as,
    SUM(list_cost) as list_cost,
    t1.last_seen_date
FROM list_cost_per_job t1
  LEFT JOIN most_recent_jobs t2 USING (workspace_id, job_id)
GROUP BY ALL
ORDER BY list_cost DESC

Ejecuciones de trabajos más costosas (últimos 30 días)

Esta consulta identifica las ejecuciones del trabajo con el gasto más alto de los últimos 30 días.

with list_cost_per_job_run as (
  SELECT
    t1.workspace_id,
    t1.usage_metadata.job_id,
    t1.usage_metadata.job_run_id as run_id,
    SUM(t1.usage_quantity * list_prices.pricing.default) as list_cost,
    first(identity_metadata.run_as, true) as run_as,
    first(t1.custom_tags, true) as custom_tags,
    MAX(t1.usage_end_time) as last_seen_date
  FROM system.billing.usage t1
  INNER JOIN system.billing.list_prices list_prices on
    t1.cloud = list_prices.cloud and
    t1.sku_name = list_prices.sku_name and
    t1.usage_start_time >= list_prices.price_start_time and
    (t1.usage_end_time <= list_prices.price_end_time or list_prices.price_end_time is null)
  WHERE
    t1.billing_origin_product = 'JOBS'
    AND t1.usage_date >= CURRENT_DATE() - INTERVAL 30 DAY
  GROUP BY ALL
),
most_recent_jobs as (
  SELECT
    *,
    ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
  FROM
    system.lakeflow.jobs QUALIFY rn=1
)
SELECT
    t1.workspace_id,
    t2.name,
    t1.job_id,
    t1.run_id,
     t1.run_as,
    SUM(list_cost) as list_cost,
    t1.last_seen_date
FROM list_cost_per_job_run t1
  LEFT JOIN most_recent_jobs t2 USING (workspace_id, job_id)
GROUP BY ALL
ORDER BY list_cost DESC

Análisis de tendencias de gasto (7-14 días)

Esta consulta identifica qué trabajos tuvieron el mayor aumento en el gasto de costos de lista en las últimas 2 semanas.

with job_run_timeline_with_cost as (
  SELECT
    t1.*,
    t1.usage_metadata.job_id as job_id,
    t1.identity_metadata.run_as as run_as,
    t1.usage_quantity * list_prices.pricing.default AS list_cost
  FROM system.billing.usage t1
    INNER JOIN system.billing.list_prices list_prices
      ON
        t1.cloud = list_prices.cloud AND
        t1.sku_name = list_prices.sku_name AND
        t1.usage_start_time >= list_prices.price_start_time AND
        (t1.usage_end_time <= list_prices.price_end_time or list_prices.price_end_time is NULL)
  WHERE
    t1.billing_origin_product = 'JOBS' AND
    t1.usage_date >= CURRENT_DATE() - INTERVAL 14 DAY
),
most_recent_jobs as (
  SELECT
    *,
    ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
  FROM
    system.lakeflow.jobs QUALIFY rn=1
)
SELECT
    t2.name
    ,t1.workspace_id
    ,t1.job_id
    ,t1.sku_name
    ,t1.run_as
    ,Last7DaySpend
    ,Last14DaySpend
    ,last7DaySpend - last14DaySpend as Last7DayGrowth
    ,try_divide( (last7DaySpend - last14DaySpend) , last14DaySpend) * 100 AS Last7DayGrowthPct
FROM
  (
    SELECT
      workspace_id,
      job_id,
      run_as,
      sku_name,
      SUM(list_cost) AS spend
      ,SUM(CASE WHEN usage_end_time BETWEEN date_add(current_date(), -8) AND date_add(current_date(), -1) THEN list_cost ELSE 0 END) AS Last7DaySpend
      ,SUM(CASE WHEN usage_end_time BETWEEN date_add(current_date(), -15) AND date_add(current_date(), -8) THEN list_cost ELSE 0 END) AS Last14DaySpend
    FROM job_run_timeline_with_cost
    GROUP BY ALL
  ) t1
  LEFT JOIN most_recent_jobs t2 USING (workspace_id, job_id)
ORDER BY
  Last7DayGrowth DESC
LIMIT 100

Consultas sobre la salud operacional

Estas son algunas de las formas en que este panel le ayuda a realizar un seguimiento del rendimiento y la confiabilidad del trabajo.

Análisis de trabajos fallidos

Esta consulta devuelve información sobre los trabajos con un gran número de ejecuciones con error durante los últimos 30 días. Puede ver el número de ejecuciones, el número de errores, el ratio de éxito y el costo de las ejecuciones fallidas del trabajo.

with job_run_timeline_with_cost as (
  SELECT
    t1.*,
    t1.identity_metadata.run_as as run_as,
    t2.job_id,
    t2.run_id,
    t2.result_state,
    t1.usage_quantity * list_prices.pricing.default as list_cost
  FROM system.billing.usage t1
    INNER JOIN system.lakeflow.job_run_timeline t2
      ON
        t1.workspace_id=t2.workspace_id
        AND t1.usage_metadata.job_id = t2.job_id
        AND t1.usage_metadata.job_run_id = t2.run_id
        AND t1.usage_start_time >= date_trunc("Hour", t2.period_start_time)
        AND t1.usage_start_time < date_trunc("Hour", t2.period_end_time) + INTERVAL 1 HOUR
    INNER JOIN system.billing.list_prices list_prices on
      t1.cloud = list_prices.cloud and
      t1.sku_name = list_prices.sku_name and
      t1.usage_start_time >= list_prices.price_start_time and
      (t1.usage_end_time <= list_prices.price_end_time or list_prices.price_end_time is null)
  WHERE
    t1.billing_origin_product = 'JOBS' AND
    t1.usage_date >= CURRENT_DATE() - INTERVAL 30 DAYS
),
cumulative_run_status_cost as (
  SELECT
    workspace_id,
    job_id,
    run_id,
    run_as,
    result_state,
    usage_end_time,
    SUM(list_cost) OVER (ORDER BY workspace_id, job_id, run_id, usage_end_time ROWS BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW) AS cumulative_cost
  FROM job_run_timeline_with_cost
  ORDER BY workspace_id, job_id, run_id, usage_end_time
),
cost_per_status as (
  SELECT
      workspace_id,
      job_id,
      run_id,
      run_as,
      result_state,
      usage_end_time,
      cumulative_cost - COALESCE(LAG(cumulative_cost) OVER (ORDER BY workspace_id, job_id, run_id, usage_end_time), 0) AS result_state_cost
  FROM cumulative_run_status_cost
  WHERE result_state IS NOT NULL
  ORDER BY workspace_id, job_id, run_id, usage_end_time),
cost_per_status_agg as (
  SELECT
    workspace_id,
    job_id,
    FIRST(run_as, TRUE) as run_as,
    SUM(result_state_cost) as list_cost
  FROM cost_per_status
  WHERE
    result_state IN ('ERROR', 'FAILED', 'TIMED_OUT')
  GROUP BY ALL
),
terminal_statues as (
  SELECT
    workspace_id,
    job_id,
    CASE WHEN result_state IN ('ERROR', 'FAILED', 'TIMED_OUT') THEN 1 ELSE 0 END as is_failure,
    period_end_time as last_seen_date
  FROM system.lakeflow.job_run_timeline
  WHERE
    result_state IS NOT NULL AND
    period_end_time >= CURRENT_DATE() - INTERVAL 30 DAYS
),
most_recent_jobs as (
  SELECT
    *,
    ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
  FROM
    system.lakeflow.jobs QUALIFY rn=1
)
SELECT
  first(t2.name) as name,
  t1.workspace_id,
  t1.job_id,
  COUNT(*) as runs,
  t3.run_as,
  SUM(is_failure) as failures,
  (1 - COALESCE(try_divide(SUM(is_failure), COUNT(*)), 0)) * 100 as success_ratio,
  first(t3.list_cost) as failure_list_cost,
  MAX(t1.last_seen_date) as last_seen_date
FROM terminal_statues t1
  LEFT JOIN most_recent_jobs t2 USING (workspace_id, job_id)
  LEFT JOIN cost_per_status_agg t3 USING (workspace_id, job_id)
GROUP BY ALL
ORDER BY failures DESC

Patrones de reintentos

Esta consulta devuelve información sobre los trabajos que han tenido reparaciones frecuentes en los últimos 30 días, incluido el número de reparaciones, el costo de las ejecuciones de reparación y la duración acumulativa de las ejecuciones de reparación.

with job_run_timeline_with_cost as (
 SELECT
   t1.*,
   t2.job_id,
   t2.run_id,
   t1.identity_metadata.run_as as run_as,
   t2.result_state,
   t1.usage_quantity * list_prices.pricing.default as list_cost
 FROM system.billing.usage t1
   INNER JOIN system.lakeflow.job_run_timeline t2
     ON
       t1.workspace_id=t2.workspace_id
       AND t1.usage_metadata.job_id = t2.job_id
       AND t1.usage_metadata.job_run_id = t2.run_id
       AND t1.usage_start_time >= date_trunc("Hour", t2.period_start_time)
       AND t1.usage_start_time < date_trunc("Hour", t2.period_end_time) + INTERVAL 1 HOUR
   INNER JOIN system.billing.list_prices list_prices on
     t1.cloud = list_prices.cloud and
     t1.sku_name = list_prices.sku_name and
     t1.usage_start_time >= list_prices.price_start_time and
     (t1.usage_end_time <= list_prices.price_end_time or list_prices.price_end_time is null)
 WHERE
   t1.billing_origin_product = 'JOBS' AND
   t1.usage_date >= CURRENT_DATE() - INTERVAL 30 DAYS
),
cumulative_run_status_cost as (
 SELECT
   workspace_id,
   job_id,
   run_id,
   run_as,
   result_state,
   usage_end_time,
   SUM(list_cost) OVER (ORDER BY workspace_id, job_id, run_id, usage_end_time ROWS BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW) AS cumulative_cost
 FROM job_run_timeline_with_cost
 ORDER BY workspace_id, job_id, run_id, usage_end_time
),
cost_per_status as (
 SELECT
     workspace_id,
     job_id,
     run_id,
     run_as,
     result_state,
     usage_end_time,
     cumulative_cost - COALESCE(LAG(cumulative_cost) OVER (ORDER BY workspace_id, job_id, run_id, usage_end_time), 0) AS result_state_cost
 FROM cumulative_run_status_cost
 WHERE result_state IS NOT NULL
 ORDER BY workspace_id, job_id, run_id, usage_end_time),
cost_per_unsuccesful_status_agg as (
 SELECT
   workspace_id,
   job_id,
   run_id,
   first(run_as, TRUE) as run_as,
   SUM(result_state_cost) as list_cost
 FROM cost_per_status
 WHERE
   result_state != "SUCCEEDED"
 GROUP BY ALL
),
repaired_runs as (
 SELECT
   workspace_id, job_id, run_id, COUNT(*) as cnt
 FROM system.lakeflow.job_run_timeline
 WHERE result_state IS NOT NULL
 GROUP BY ALL
 HAVING cnt > 1
),
successful_repairs as (
 SELECT t1.workspace_id, t1.job_id, t1.run_id, MAX(t1.period_end_time) as period_end_time
 FROM system.lakeflow.job_run_timeline t1
 JOIN repaired_runs t2
 ON t1.workspace_id=t2.workspace_id AND t1.job_id=t2.job_id AND t1.run_id=t2.run_id
 WHERE t1.result_state="SUCCEEDED"
 GROUP BY ALL
),
combined_repairs as (
 SELECT
   t1.*,
   t2.period_end_time,
   t1.cnt as repairs
 FROM repaired_runs t1
   LEFT JOIN successful_repairs t2 USING (workspace_id, job_id, run_id)
),
most_recent_jobs as (
 SELECT
   *,
   ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
 FROM
   system.lakeflow.jobs QUALIFY rn=1
)
SELECT
 last(t3.name) as name,
 t1.workspace_id,
 t1.job_id,
 t1.run_id,
 first(t4.run_as, TRUE) as run_as,
 first(t1.repairs) - 1 as repairs,
 first(t4.list_cost) as repair_list_cost,
 CASE WHEN t1.period_end_time IS NOT NULL THEN CAST(t1.period_end_time - MIN(t2.period_end_time) as LONG) ELSE NULL END AS repair_time_seconds
FROM combined_repairs t1
 JOIN system.lakeflow.job_run_timeline t2 USING (workspace_id, job_id, run_id)
 LEFT JOIN most_recent_jobs t3 USING (workspace_id, job_id)
 LEFT JOIN cost_per_unsuccesful_status_agg t4 USING (workspace_id, job_id, run_id)
WHERE
 t2.result_state IS NOT NULL
GROUP BY t1.workspace_id, t1.job_id, t1.run_id, t1.period_end_time
ORDER BY repairs DESC
