BaselineAlignment Enum
Important
Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.
Describes how the baseline for a text-based element is positioned on the vertical axis, relative to the established baseline for text.
public enum class BaselineAlignment
public enum BaselineAlignment
type BaselineAlignment =
Public Enum BaselineAlignment
- Inheritance
Name | Value | Description |
---|---|---|
Top | 0 | A baseline that is aligned to the upper edge of the containing box. |
Center | 1 | A baseline that is aligned to the center of the containing box. |
Bottom | 2 | A baseline that is aligned at the lower edge of the containing box. |
Baseline | 3 | A baseline that is aligned at the actual baseline of the containing box. |
TextTop | 4 | A baseline that is aligned at the upper edge of the text baseline. |
TextBottom | 5 | A baseline that is aligned at the lower edge of the text baseline. |
Subscript | 6 | A baseline that is aligned at the subscript position of the containing box. |
Superscript | 7 | A baseline that is aligned at the superscript position of the containing box. |
The following example shows how to use the BaselineAlignment property to align text within a containing box (in this case, a Paragraph).
<Page xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
<FlowDocumentReader>
<FlowDocument ColumnWidth="800">
<Paragraph Background="Blue">
<!-- The large text forces a large containing box size for the paragraph.
The smaller text fragments align themselves vertically within this
box according to their BaselineAlignment values. -->
<Span FontSize="40">Baseline:</Span>
<Span BaselineAlignment="Baseline">Baseline</Span>
<Span BaselineAlignment="Top">Top</Span>
<Span BaselineAlignment="Bottom">Bottom</Span>
<Span BaselineAlignment="Center">Center</Span>
</Paragraph>
<Paragraph Background="Green">
<!-- The BaselineAlignment values of Subscript and Superscript below
force the containing box to be larger then it normally would be. -->
<Span FontSize="40">Baseline:</Span>
<Span BaselineAlignment="Subscript">Subscript</Span>
<Span BaselineAlignment="Baseline">Baseline</Span>
<Span BaselineAlignment="Superscript">Superscript</Span>
</Paragraph>
<Paragraph Background="Yellow" LineHeight="60" LineStackingStrategy="BlockLineHeight">
<!-- A deliberate BlockLineHeight stacking strategy change, to show the difference between Top/TextTop
and Bottom/TextBottom-->
<Span FontSize="40" BaselineAlignment="Baseline">Baseline:</Span>
<Span BaselineAlignment="Top">Top</Span>
<Span BaselineAlignment="TextTop">TextTop</Span>
<Span BaselineAlignment="Bottom">Bottom</Span>
<Span BaselineAlignment="TextBottom">TextBottom</Span>
</Paragraph>
</FlowDocument>
</FlowDocumentReader>
</Page>

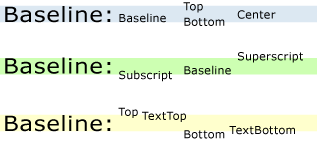

The following illustration shows the result of the code above.
Producto | Versiones |
---|---|
.NET Framework | 3.0, 3.5, 4.0, 4.5, 4.5.1, 4.5.2, 4.6, 4.6.1, 4.6.2, 4.7, 4.7.1, 4.7.2, 4.8, 4.8.1 |
Windows Desktop | 3.0, 3.1, 5, 6, 7, 8, 9 |
