Usar el control ReportViewer de WinForms
Para ver los informes implementados en un servidor de informes o informes que existen en el sistema de archivos local, use el control ReportViewer de WinForms para representarlos en una aplicación windows.
Agregar el control ReportViewer a una aplicación Windows
Cree una nueva aplicación de Windows con Microsoft C# o Microsoft Visual Basic.
O bien
Abra un proyecto de aplicación Windows existente y agregue un nuevo formulario.

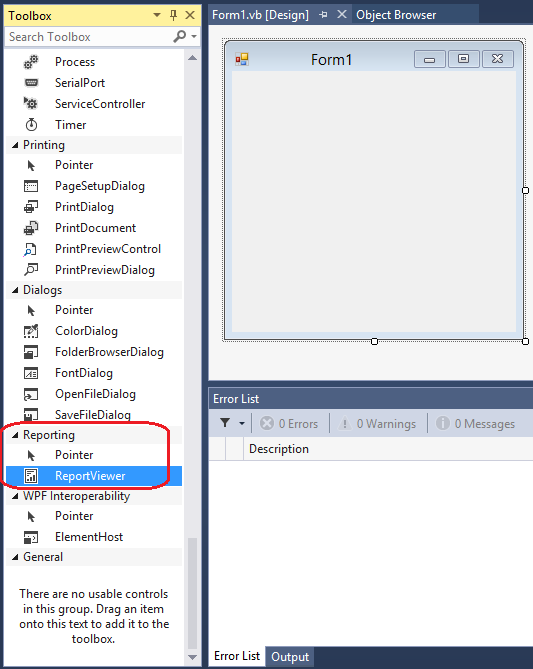

Busque el control ReportViewer en Cuadro de herramientas. Si el cuadro de herramientas no está visible, puede acceder a él desde el menú Ver seleccionando Cuadro de herramientas.
Arrastre el control ReportViewer a la superficie de diseño de Windows Form.
Se agrega al formulario un control ReportViewer denominado reportViewer1.
Una vez agregado el control al formulario, aparecerá la etiqueta inteligente ReportViewer Tasks y le solicitará que seleccione un informe.

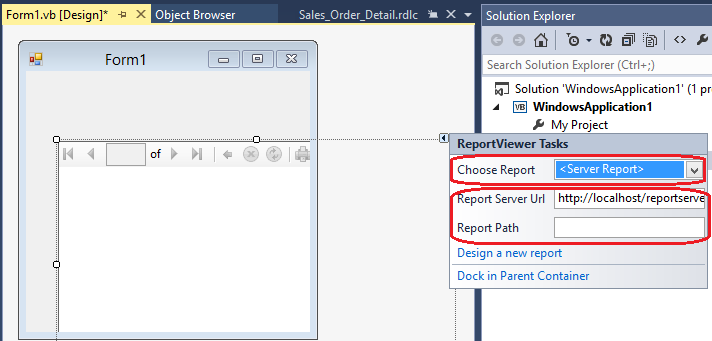

Si el informe que desea ver se implementa en un servidor de informes, seleccione la opción Informe> del servidor en la lista desplegable Elegir informe.< Una vez seleccionada la opción Informe> del< servidor, aparecerán dos propiedades más: Dirección URL del servidor de informes y Ruta de acceso del informe. Dirección URL del servidor de informes es la dirección del servidor de informes y Ruta de acceso del informe es la ruta de acceso completa al informe que quiere representar.

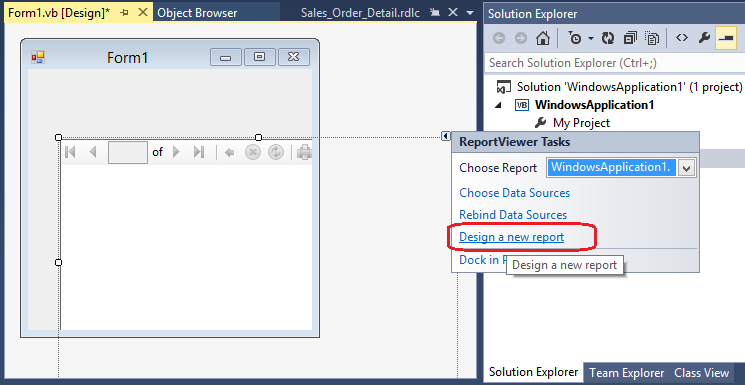

Si quiere ver un informe en modo local, seleccione la opción Diseñar nuevo informe para iniciar el diseñador de informes o seleccione un informe que ya forme parte del proyecto existente.
Visualización de informes en modo de procesamiento remoto
En el ejemplo siguiente se muestra cómo representar un informe implementado en un servidor de informes mediante el control ReportViewer de WinForms. En este ejemplo se utiliza el informe Sales Order Detail que se incluye con el proyecto de informes de ejemplo AdventureWorks2022
.
C#
public partial class Form1 : Form
{
private void Form1_Load(object sender, EventArgs e)
{
// Set the processing mode for the ReportViewer to Remote
reportViewer1.ProcessingMode = ProcessingMode.Remote;
ServerReport serverReport = reportViewer1.ServerReport;
// Get a reference to the default credentials
System.Net.ICredentials credentials =
System.Net.CredentialCache.DefaultCredentials;
// Get a reference to the report server credentials
ReportServerCredentials rsCredentials =
serverReport.ReportServerCredentials;
// Set the credentials for the server report
rsCredentials.NetworkCredentials = credentials;
// Set the report server URL and report path
serverReport.ReportServerUrl =
new Uri("https:// <Server Name>/reportserver");
serverReport.ReportPath =
"/AdventureWorks Sample Reports/Sales Order Detail";
// Create the sales order number report parameter
ReportParameter salesOrderNumber = new ReportParameter();
salesOrderNumber.Name = "SalesOrderNumber";
salesOrderNumber.Values.Add("SO43661");
// Set the report parameters for the report
reportViewer1.ServerReport.SetParameters(
new ReportParameter[] { salesOrderNumber });
// Refresh the report
reportViewer1.RefreshReport();
}
}
VB.NET
Imports Microsoft.Reporting.WinForms
Public Class Form1
Private Sub Form1_Load(ByVal sender As System.Object, _
ByVal e As System.EventArgs) _
Handles MyBase.Load
'Set the processing mode for the ReportViewer to Remote
reportViewer1.ProcessingMode = ProcessingMode.Remote
Dim serverReport As ServerReport
serverReport = reportViewer1.ServerReport
'Get a reference to the default credentials
Dim credentials As System.Net.ICredentials
credentials = System.Net.CredentialCache.DefaultCredentials
'Get a reference to the report server credentials
Dim rsCredentials As ReportServerCredentials
rsCredentials = serverReport.ReportServerCredentials
'Set the credentials for the server report
rsCredentials.NetworkCredentials = credentials
'Set the report server URL and report path
serverReport.ReportServerUrl = _
New Uri("https://<Server Name>/reportserver")
serverReport.ReportPath = _
"/AdventureWorks Sample Reports/Sales Order Detail"
'Create the sales order number report parameter
Dim salesOrderNumber As New ReportParameter()
salesOrderNumber.Name = "SalesOrderNumber"
salesOrderNumber.Values.Add("SO43661")
'Set the report parameters for the report
Dim parameters() As ReportParameter = {salesOrderNumber}
serverReport.SetParameters(parameters)
'Refresh the report
reportViewer1.RefreshReport()
End Sub
End Class
Visualización de informes en modo de procesamiento local
En el ejemplo siguiente se muestra cómo representar un informe que forma parte de la aplicación Windows y no se implementa en un servidor de informes.
Para agregar el informe Sales Order Detail a una aplicación Windows
Abra el proyecto Windows al que se agregará el informe.
En el menú Proyecto, seleccione Agregar elemento existente.
Vaya a la ubicación donde instaló el proyecto
AdventureWorks2022
Report Samples.Para descargar los ejemplos de informe, vaya a Ejemplos de informes de AdventureWorks
Seleccione el archivo Sales Order Detail.rdl y seleccione el botón Agregar .

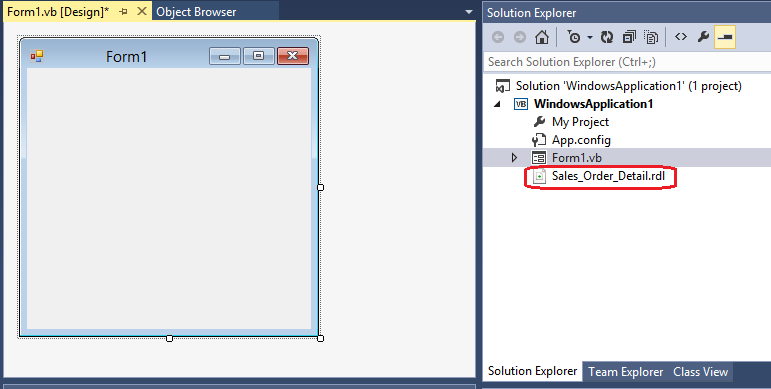

El archivo Sales Order Detail.rdl debe formar parte del proyecto.
Haga clic con el botón derecho en el archivo Sales Order Detail.rdl en el Explorador de soluciones y seleccione Cambiar nombre. Cambie el nombre del informe a Sales Order Detail.rdlc y presione ENTRAR.
Si Explorador de soluciones no está visible, puede abrirlo en el menú Ver seleccionando Explorador de soluciones.
Nota:
El cambio del nombre de la extensión de archivo de rdl a rdlc le permitirá editar el informe con el Diseñador de informes de Microsoft Visual Studio 2005.

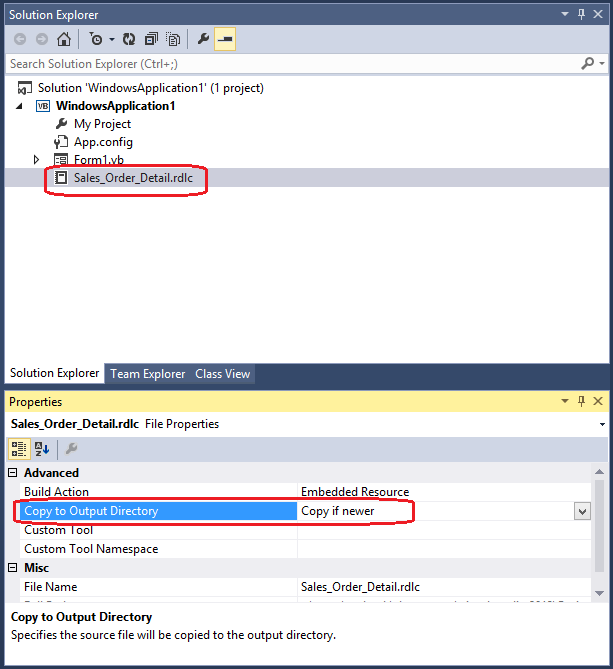

Después de cambiar el nombre del informe, seleccione el archivo y busque el ventana Propiedades. Cambie la propiedad Copiar en el directorio de salida a Copiar si es posterior.
Si la ventana Propiedades no está visible, puede abrirla en el menú Ver seleccionando Ventana Propiedades.
En el ejemplo de código siguiente se crea un conjunto de datos para los datos del pedido de venta y, a continuación, se representa el informe Sales Order Detail en modo local.
C#
public partial class Form1 : Form
{
private void Form1_Load(object sender, EventArgs e)
{
// Set the processing mode for the ReportViewer to Local
reportViewer1.ProcessingMode = ProcessingMode.Local;
LocalReport localReport = reportViewer1.LocalReport;
localReport.ReportPath = "Sales Order Detail.rdlc";
DataSet dataset = new DataSet("Sales Order Detail");
string salesOrderNumber = "SO43661";
// Get the sales order data
GetSalesOrderData(salesOrderNumber, ref dataset);
// Create a report data source for the sales order data
ReportDataSource dsSalesOrder = new ReportDataSource();
dsSalesOrder.Name = "SalesOrder";
dsSalesOrder.Value = dataset.Tables["SalesOrder"];
localReport.DataSources.Add(dsSalesOrder);
// Get the sales order detail data
GetSalesOrderDetailData(salesOrderNumber, ref dataset);
// Create a report data source for the sales order detail
// data
ReportDataSource dsSalesOrderDetail =
new ReportDataSource();
dsSalesOrderDetail.Name = "SalesOrderDetail";
dsSalesOrderDetail.Value =
dataset.Tables["SalesOrderDetail"];
localReport.DataSources.Add(dsSalesOrderDetail);
// Create a report parameter for the sales order number
ReportParameter rpSalesOrderNumber = new ReportParameter();
rpSalesOrderNumber.Name = "SalesOrderNumber";
rpSalesOrderNumber.Values.Add("SO43661");
// Set the report parameters for the report
localReport.SetParameters(
new ReportParameter[] { rpSalesOrderNumber });
// Refresh the report
reportViewer1.RefreshReport();
}
private void GetSalesOrderData(string salesOrderNumber,
ref DataSet dsSalesOrder)
{
string sqlSalesOrder =
"SELECT SOH.SalesOrderNumber, S.Name AS Store, " +
" SOH.OrderDate, C.FirstName AS SalesFirstName, " +
" C.LastName AS SalesLastName, E.Title AS " +
" SalesTitle, SOH.PurchaseOrderNumber, " +
" SM.Name AS ShipMethod, BA.AddressLine1 " +
" AS BillAddress1, BA.AddressLine2 AS " +
" BillAddress2, BA.City AS BillCity, " +
" BA.PostalCode AS BillPostalCode, BSP.Name " +
" AS BillStateProvince, BCR.Name AS " +
" BillCountryRegion, SA.AddressLine1 AS " +
" ShipAddress1, SA.AddressLine2 AS " +
" ShipAddress2, SA.City AS ShipCity, " +
" SA.PostalCode AS ShipPostalCode, SSP.Name " +
" AS ShipStateProvince, SCR.Name AS " +
" ShipCountryRegion, CC.Phone AS CustPhone, " +
" CC.FirstName AS CustFirstName, CC.LastName " +
" AS CustLastName " +
"FROM Person.Address SA INNER JOIN " +
" Person.StateProvince SSP ON " +
" SA.StateProvinceID = SSP.StateProvinceID " +
" INNER JOIN Person.CountryRegion SCR ON " +
" SSP.CountryRegionCode = SCR.CountryRegionCode " +
" RIGHT OUTER JOIN Sales.SalesOrderHeader SOH " +
" LEFT OUTER JOIN Person.Contact CC ON " +
" SOH.ContactID = CC.ContactID LEFT OUTER JOIN" +
" Person.Address BA INNER JOIN " +
" Person.StateProvince BSP ON " +
" BA.StateProvinceID = BSP.StateProvinceID " +
" INNER JOIN Person.CountryRegion BCR ON " +
" BSP.CountryRegionCode = " +
" BCR.CountryRegionCode ON SOH.BillToAddressID " +
" = BA.AddressID ON SA.AddressID = " +
" SOH.ShipToAddressID LEFT OUTER JOIN " +
" Person.Contact C RIGHT OUTER JOIN " +
" HumanResources.Employee E ON C.ContactID = " +
" E.ContactID ON SOH.SalesPersonID = " +
" E.EmployeeID LEFT OUTER JOIN " +
" Purchasing.ShipMethod SM ON SOH.ShipMethodID " +
" = SM.ShipMethodID LEFT OUTER JOIN Sales.Store" +
" S ON SOH.CustomerID = S.CustomerID " +
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber)";
SqlConnection connection = new
SqlConnection("Data Source=(local); " +
"Initial Catalog=AdventureWorks; " +
"Integrated Security=SSPI");
SqlCommand command =
new SqlCommand(sqlSalesOrder, connection);
command.Parameters.Add(
new SqlParameter("SalesOrderNumber",
salesOrderNumber));
SqlDataAdapter salesOrderAdapter = new
SqlDataAdapter(command);
salesOrderAdapter.Fill(dsSalesOrder, "SalesOrder");
}
private void GetSalesOrderDetailData(string salesOrderNumber,
ref DataSet dsSalesOrder)
{
string sqlSalesOrderDetail =
"SELECT SOD.SalesOrderDetailID, SOD.OrderQty, " +
" SOD.UnitPrice, CASE WHEN " +
" SOD.UnitPriceDiscount IS NULL THEN 0 " +
" ELSE SOD.UnitPriceDiscount END AS " +
" UnitPriceDiscount, SOD.LineTotal, " +
" SOD.CarrierTrackingNumber, " +
" SOD.SalesOrderID, P.Name, P.ProductNumber " +
"FROM Sales.SalesOrderDetail SOD INNER JOIN " +
" Production.Product P ON SOD.ProductID = " +
" P.ProductID INNER JOIN " +
" Sales.SalesOrderHeader SOH ON " +
" SOD.SalesOrderID = SOH.SalesOrderID " +
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber) " +
"ORDER BY SOD.SalesOrderDetailID";
using (SqlConnection connection = new
SqlConnection("Data Source=(local); " +
"Initial Catalog=AdventureWorks; " +
"Integrated Security=SSPI"))
{
SqlCommand command =
new SqlCommand(sqlSalesOrderDetail, connection);
command.Parameters.Add(
new SqlParameter("SalesOrderNumber",
salesOrderNumber));
SqlDataAdapter salesOrderDetailAdapter = new
SqlDataAdapter(command);
salesOrderDetailAdapter.Fill(dsSalesOrder,
"SalesOrderDetail");
}
}
}
VB.NET
Imports System.Data.SqlClient
Imports Microsoft.Reporting.WinForms
Public Class Form1
Private Sub Form1_Load(ByVal sender As System.Object, _
ByVal e As System.EventArgs) _
Handles MyBase.Load
'Set the processing mode for the ReportViewer to Local
reportViewer1.ProcessingMode = ProcessingMode.Local
Dim localReport As LocalReport
localReport = reportViewer1.LocalReport
localReport.ReportEmbeddedResource = _
"ReportViewerIntro.Sales Order Detail.rdlc"
Dim dataset As New DataSet("Sales Order Detail")
Dim salesOrderNumber As String = "SO43661"
'Get the sales order data
GetSalesOrderData(salesOrderNumber, dataset)
'Create a report data source for the sales order data
Dim dsSalesOrder As New ReportDataSource()
dsSalesOrder.Name = "SalesOrder"
dsSalesOrder.Value = dataset.Tables("SalesOrder")
localReport.DataSources.Add(dsSalesOrder)
'Get the sales order detail data
GetSalesOrderDetailData(salesOrderNumber, dataset)
'Create a report data source for the sales
'order detail data
Dim dsSalesOrderDetail As New ReportDataSource()
dsSalesOrderDetail.Name = "SalesOrderDetail"
dsSalesOrderDetail.Value = _
dataset.Tables("SalesOrderDetail")
localReport.DataSources.Add(dsSalesOrderDetail)
'Create a report parameter for the sales order number
Dim rpSalesOrderNumber As New ReportParameter()
rpSalesOrderNumber.Name = "SalesOrderNumber"
rpSalesOrderNumber.Values.Add("SO43661")
'Set the report parameters for the report
Dim parameters() As ReportParameter = {rpSalesOrderNumber}
localReport.SetParameters(parameters)
'Refresh the report
reportViewer1.RefreshReport()
End Sub
Private Sub GetSalesOrderData(ByVal salesOrderNumber As String, _
ByRef dsSalesOrder As DataSet)
Dim sqlSalesOrder As String = _
"SELECT SOH.SalesOrderNumber, S.Name AS Store, " & _
" SOH.OrderDate, C.FirstName AS SalesFirstName, " & _
" C.LastName AS SalesLastName, E.Title AS " & _
" SalesTitle, SOH.PurchaseOrderNumber, " & _
" SM.Name AS ShipMethod, BA.AddressLine1 " & _
" AS BillAddress1, BA.AddressLine2 AS " & _
" BillAddress2, BA.City AS BillCity, " & _
" BA.PostalCode AS BillPostalCode, BSP.Name " & _
" AS BillStateProvince, BCR.Name AS " & _
" BillCountryRegion, SA.AddressLine1 AS " & _
" ShipAddress1, SA.AddressLine2 AS " & _
" ShipAddress2, SA.City AS ShipCity, " & _
" SA.PostalCode AS ShipPostalCode, SSP.Name " & _
" AS ShipStateProvince, SCR.Name AS " & _
" ShipCountryRegion, CC.Phone AS CustPhone, " & _
" CC.FirstName AS CustFirstName, CC.LastName " & _
" AS CustLastName " & _
"FROM Person.Address SA INNER JOIN " & _
" Person.StateProvince SSP ON " & _
" SA.StateProvinceID = SSP.StateProvinceID " & _
" INNER JOIN Person.CountryRegion SCR ON " & _
" SSP.CountryRegionCode = SCR.CountryRegionCode " & _
" RIGHT OUTER JOIN Sales.SalesOrderHeader SOH " & _
" LEFT OUTER JOIN Person.Contact CC ON " & _
" SOH.ContactID = CC.ContactID LEFT OUTER JOIN" & _
" Person.Address BA INNER JOIN " & _
" Person.StateProvince BSP ON " & _
" BA.StateProvinceID = BSP.StateProvinceID " & _
" INNER JOIN Person.CountryRegion BCR ON " & _
" BSP.CountryRegionCode = " & _
" BCR.CountryRegionCode ON SOH.BillToAddressID " & _
" = BA.AddressID ON SA.AddressID = " & _
" SOH.ShipToAddressID LEFT OUTER JOIN " & _
" Person.Contact C RIGHT OUTER JOIN " & _
" HumanResources.Employee E ON C.ContactID = " & _
" E.ContactID ON SOH.SalesPersonID = " & _
" E.EmployeeID LEFT OUTER JOIN " & _
" Purchasing.ShipMethod SM ON SOH.ShipMethodID " & _
" = SM.ShipMethodID LEFT OUTER JOIN Sales.Store" & _
" S ON SOH.CustomerID = S.CustomerID " & _
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber)"
Using connection As New SqlConnection( _
"Data Source=(local); " & _
"Initial Catalog=AdventureWorks; " & _
"Integrated Security=SSPI")
Dim command As New SqlCommand(sqlSalesOrder, connection)
Dim parameter As New SqlParameter("SalesOrderNumber", _
salesOrderNumber)
command.Parameters.Add(parameter)
Dim salesOrderAdapter As New SqlDataAdapter(command)
salesOrderAdapter.Fill(dsSalesOrder, "SalesOrder")
End Using
End Sub
Private Sub GetSalesOrderDetailData( _
ByVal salesOrderNumber As String, _
ByRef dsSalesOrder As DataSet)
Dim sqlSalesOrderDetail As String = _
"SELECT SOD.SalesOrderDetailID, SOD.OrderQty, " & _
" SOD.UnitPrice, CASE WHEN " & _
" SOD.UnitPriceDiscount IS NULL THEN 0 " & _
" ELSE SOD.UnitPriceDiscount END AS " & _
" UnitPriceDiscount, SOD.LineTotal, " & _
" SOD.CarrierTrackingNumber, " & _
" SOD.SalesOrderID, P.Name, P.ProductNumber " & _
"FROM Sales.SalesOrderDetail SOD INNER JOIN " & _
" Production.Product P ON SOD.ProductID = " & _
" P.ProductID INNER JOIN " & _
" Sales.SalesOrderHeader SOH ON " & _
" SOD.SalesOrderID = SOH.SalesOrderID " & _
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber) " & _
"ORDER BY SOD.SalesOrderDetailID"
Using connection As New SqlConnection( _
"Data Source=(local); " & _
"Initial Catalog=AdventureWorks; " & _
"Integrated Security=SSPI")
Dim command As New SqlCommand(sqlSalesOrderDetail, _
connection)
Dim parameter As New SqlParameter("SalesOrderNumber", _
salesOrderNumber)
command.Parameters.Add(parameter)
Dim salesOrderDetailAdapter As New SqlDataAdapter(command)
salesOrderDetailAdapter.Fill(dsSalesOrder, _
"SalesOrderDetail")
End Using
End Sub
End Class
Contenido relacionado
Integración de Reporting Services mediante los controles ReportViewer
