Sample alert payloads
The common alert schema standardizes the consumption experience for alert notifications in Azure. Historically, activity log, metric, and log search alerts each had their own email templates and webhook schemas. The common alert schema provides one standardized schema for all alert notifications.
A standardized schema can help you minimize the number of integrations, which simplifies the process of managing and maintaining your integrations.
The common schema includes information about the affected resource and the cause of the alert in these sections:
Essentials: Standardized fields, used by all alert types that describe the resource affected by the alert and common alert metadata, such as severity or description.
If you want to route alert instances to specific teams based on criteria such as a resource group, you can use the fields in the Essentials section to provide routing logic for all alert types. The teams that receive the alert notification can then use the context fields for their investigation.
Alert context: Fields that vary depending on the type of the alert. The alert context fields describe the cause of the alert. For example, a metric alert would have fields like the metric name and metric value in the alert context. An activity log alert would have information about the event that generated the alert.
Custom properties: You can add more information to the alert payload by adding custom properties if you've configured action groups for a metric alert rule.
Note
Custom properties are currently only supported by metric alerts. For all other alert types, the custom properties field is null.
Sample alert payload
{
"schemaId": "azureMonitorCommonAlertSchema",
"data": {
"essentials": {
"alertId": "/subscriptions/<subscription ID>/providers/Microsoft.AlertsManagement/alerts/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e",
"alertRule": "WCUS-R2-Gen2",
"severity": "Sev3",
"signalType": "Metric",
"monitorCondition": "Resolved",
"monitoringService": "Platform",
"alertTargetIDs": [
"/subscriptions/<subscription ID>/resourcegroups/pipelinealertrg/providers/microsoft.compute/virtualmachines/wcus-r2-gen2"
],
"configurationItems": [
"wcus-r2-gen2"
],
"originAlertId": "3f2d4487-b0fc-4125-8bd5-7ad17384221e_PipeLineAlertRG_microsoft.insights_metricAlerts_WCUS-R2-Gen2_-117781227",
"firedDateTime": "2019-03-22T13:58:24.3713213Z",
"resolvedDateTime": "2019-03-22T14:03:16.2246313Z",
"description": "",
"essentialsVersion": "1.0",
"alertContextVersion": "1.0"
},
"alertContext": {
"properties": null,
"conditionType": "SingleResourceMultipleMetricCriteria",
"condition": {
"windowSize": "PT5M",
"allOf": [
{
"metricName": "Percentage CPU",
"metricNamespace": "Microsoft.Compute/virtualMachines",
"operator": "GreaterThan",
"threshold": "25",
"timeAggregation": "Average",
"dimensions": [
{
"name": "ResourceId",
"value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
}
],
"metricValue": 7.727
}
]
}
}
}
}
Sample metric alerts
The following are sample metric alert payloads.
Metric alert with a static threshold and the monitoringService = Platform
{
"alertContext": {
"properties": null,
"conditionType": "SingleResourceMultipleMetricCriteria",
"condition": {
"windowSize": "PT5M",
"allOf": [
{
"metricName": "Percentage CPU",
"metricNamespace": "Microsoft.Compute/virtualMachines",
"operator": "GreaterThan",
"threshold": "25",
"timeAggregation": "Average",
"dimensions": [
{
"name": "ResourceId",
"value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
}
],
"metricValue": 31.1105
}
],
"windowStartTime": "2019-03-22T13:40:03.064Z",
"windowEndTime": "2019-03-22T13:45:03.064Z"
}
}
}
Metric alert with a dynamic threshold and the monitoringService = Platform
{
"alertContext": {
"properties": null,
"conditionType": "DynamicThresholdCriteria",
"condition": {
"windowSize": "PT5M",
"allOf": [
{
"alertSensitivity": "High",
"failingPeriods": {
"numberOfEvaluationPeriods": 1,
"minFailingPeriodsToAlert": 1
},
"ignoreDataBefore": null,
"metricName": "Egress",
"metricNamespace": "microsoft.storage/storageaccounts",
"operator": "GreaterThan",
"threshold": "47658",
"timeAggregation": "Total",
"dimensions": [],
"metricValue": 50101
}
],
"windowStartTime": "2021-07-20T05:07:26.363Z",
"windowEndTime": "2021-07-20T05:12:26.363Z"
}
}
}
Metric alert for availability tests and the monitoringService = Platform
{
"alertContext": {
"properties": null,
"conditionType": "WebtestLocationAvailabilityCriteria",
"condition": {
"windowSize": "PT5M",
"allOf": [
{
"metricName": "Failed Location",
"metricNamespace": null,
"operator": "GreaterThan",
"threshold": "2",
"timeAggregation": "Sum",
"dimensions": [],
"metricValue": 5,
"webTestName": "myAvailabilityTest-myApplication"
}
],
"windowStartTime": "2019-03-22T13:40:03.064Z",
"windowEndTime": "2019-03-22T13:45:03.064Z"
}
}
}
Sample log search alerts
Note
When you enable the common schema, the fields in the payload are reset to the common schema fields. Therefore, log search alerts have these limitations regarding the common schema:
- The common schema is not supported for log search alerts using webhooks with a custom email subject and/or JSON payload, since the common schema overwrites the custom configurations.
- Alerts using the common schema have an upper size limit of 256 KB per alert. If the log search alerts payload includes search results that cause the alert to exceed the maximum size, the search results aren't embedded in the log search alerts payload. You can check if the payload includes the search results with the
IncludedSearchResultsflag. UseLinkToFilteredSearchResultsAPIorLinkToSearchResultsAPIto access query results with the Log Analytics API if the search results are not included.
Log search alert with monitoringService = Platform
{
"alertContext": {
"SearchQuery": "Perf | where ObjectName == \"Processor\" and CounterName == \"% Processor Time\" | summarize AggregatedValue = avg(CounterValue) by bin(TimeGenerated, 5m), Computer",
"SearchIntervalStartTimeUtc": "3/22/2019 1:36:31 PM",
"SearchIntervalEndtimeUtc": "3/22/2019 1:51:31 PM",
"ResultCount": 2,
"LinkToSearchResults": "https://portal.azure.com/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
"LinkToFilteredSearchResultsUI": "https://portal.azure.com/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
"LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat×pan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
"LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat×pan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
"SeverityDescription": "Warning",
"WorkspaceId": "12345a-1234b-123c-123d-12345678e",
"SearchIntervalDurationMin": "15",
"AffectedConfigurationItems": [
"INC-Gen2Alert"
],
"SearchIntervalInMinutes": "15",
"Threshold": 10000,
"Operator": "Less Than",
"Dimensions": [
{
"name": "Computer",
"value": "INC-Gen2Alert"
}
],
"SearchResults": {
"tables": [
{
"name": "PrimaryResult",
"columns": [
{
"name": "$table",
"type": "string"
},
{
"name": "Computer",
"type": "string"
},
{
"name": "TimeGenerated",
"type": "datetime"
}
],
"rows": [
[
"Fabrikam",
"33446677a",
"2018-02-02T15:03:12.18Z"
],
[
"Contoso",
"33445566b",
"2018-02-02T15:16:53.932Z"
]
]
}
],
"dataSources": [
{
"resourceId": "/subscriptions/bbbb1b1b-cc2c-dd3d-ee4e-ffffff5f5f5f/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
"tables": [
"Heartbeat"
]
}
]
},
"IncludedSearchResults": "True",
"AlertType": "Metric measurement"
}
}
Log search alert with monitoringService = Application Insights
{
"alertContext": {
"SearchQuery": "requests | where resultCode == \"500\" | summarize AggregatedValue = Count by bin(Timestamp, 5m), IP",
"SearchIntervalStartTimeUtc": "3/22/2019 1:36:33 PM",
"SearchIntervalEndtimeUtc": "3/22/2019 1:51:33 PM",
"ResultCount": 2,
"LinkToSearchResults": "https://portal.azure.com/AnalyticsBlade/subscriptions/12345a-1234b-123c-123d-12345678e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
"LinkToFilteredSearchResultsUI": "https://portal.azure.com/AnalyticsBlade/subscriptions/12345a-1234b-123c-123d-12345678e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
"LinkToSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
"LinkToFilteredSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
"SearchIntervalDurationMin": "15",
"SearchIntervalInMinutes": "15",
"Threshold": 10000.0,
"Operator": "Less Than",
"ApplicationId": "00001111-aaaa-2222-bbbb-3333cccc4444",
"Dimensions": [
{
"name": "IP",
"value": "1.1.1.1"
}
],
"SearchResults": {
"tables": [
{
"name": "PrimaryResult",
"columns": [
{
"name": "$table",
"type": "string"
},
{
"name": "Id",
"type": "string"
},
{
"name": "Timestamp",
"type": "datetime"
}
],
"rows": [
[
"Fabrikam",
"33446677a",
"2018-02-02T15:03:12.18Z"
],
[
"Contoso",
"33445566b",
"2018-02-02T15:16:53.932Z"
]
]
}
],
"dataSources": [
{
"resourceId": "/subscriptions/cccc2c2c-dd3d-ee4e-ff5f-aaaaaa6a6a6a/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
"tables": [
"Heartbeat"
]
}
]
},
"IncludedSearchResults": "True",
"AlertType": "Metric measurement"
}
}
Log search alert with monitoringService = Log Alerts V2
Note
Log search alert rules from API version 2020-05-01 use this payload type, which only supports common schema. Search results aren't embedded in the log search alerts payload when you use this version. Use dimensions to provide context to fired alerts. You can also use LinkToFilteredSearchResultsAPI or LinkToSearchResultsAPI to access query results with the Log Analytics API. If you must embed the results, use a logic app with the provided links to generate a custom payload.
{
"alertContext": {
"properties": {
"name1": "value1",
"name2": "value2"
},
"conditionType": "LogQueryCriteria",
"condition": {
"windowSize": "PT10M",
"allOf": [
{
"searchQuery": "Heartbeat",
"metricMeasureColumn": "CounterValue",
"targetResourceTypes": "['Microsoft.Compute/virtualMachines']",
"operator": "LowerThan",
"threshold": "1",
"timeAggregation": "Count",
"dimensions": [
{
"name": "Computer",
"value": "TestComputer"
}
],
"metricValue": 0.0,
"failingPeriods": {
"numberOfEvaluationPeriods": 1,
"minFailingPeriodsToAlert": 1
},
"linkToSearchResultsUI": "https://portal.azure.com#@12345a-1234b-123c-123d-12345678e/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%212345a-1234b-123c-123d-12345678e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
"linkToFilteredSearchResultsUI": "https://portal.azure.com#@12345a-1234b-123c-123d-12345678e/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%212345a-1234b-123c-123d-12345678e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
"linkToSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/12345a-1234b-123c-123d-12345678e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29×pan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
"linkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/12345a-1234b-123c-123d-12345678e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29×pan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z"
}
],
"windowStartTime": "2020-07-07T13:54:34Z",
"windowEndTime": "2020-07-09T13:54:34Z"
}
}
}
Sample activity log alerts
Activity log alert with monitoringService = Activity Log - Administrative
{
"alertContext": {
"authorization": {
"action": "Microsoft.Compute/virtualMachines/restart/action",
"scope": "/subscriptions/<subscription ID>/resourceGroups/PipeLineAlertRG/providers/Microsoft.Compute/virtualMachines/WCUS-R2-ActLog"
},
"channels": "Operation",
"claims": "{\"aud\":\"https://management.core.windows.net/\",\"iss\":\"https://sts.windows.net/12345a-1234b-123c-123d-12345678e/\",\"iat\":\"1553260826\",\"nbf\":\"1553260826\",\"exp\":\"1553264726\",\"aio\":\"42JgYNjdt+rr+3j/dx68v018XhuFAwA=\",\"appid\":\"11112222-bbbb-3333-cccc-4444dddd5555\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.windows.net/12345a-1234b-123c-123d-12345678e/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"22223333-cccc-4444-dddd-5555eeee6666\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"22223333-cccc-4444-dddd-5555eeee6666\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"12345a-1234b-123c-123d-12345678e\",\"uti\":\"v5wYC9t9ekuA2rkZSVZbAA\",\"ver\":\"1.0\"}",
"caller": "22223333-cccc-4444-dddd-5555eeee6666",
"correlationId": "aaaa0000-bb11-2222-33cc-444444dddddd",
"eventSource": "Administrative",
"eventTimestamp": "2019-03-22T13:56:31.2917159+00:00",
"eventDataId": "161fda7e-1cb4-4bc5-9c90-857c55a8f57b",
"level": "Informational",
"operationName": "Microsoft.Compute/virtualMachines/restart/action",
"operationId": "310db69b-690f-436b-b740-6103ab6b0cba",
"status": "Succeeded",
"subStatus": "",
"submissionTimestamp": "2019-03-22T13:56:54.067593+00:00"
}
}
Activity log alert with monitoringService = Activity Log - Policy
{
"alertContext": {
"authorization": {
"action": "Microsoft.Resources/checkPolicyCompliance/read",
"scope": "/subscriptions/<GUID>"
},
"channels": "Operation",
"claims": "{\"aud\":\"https://management.azure.com/\",\"iss\":\"https://sts.windows.net/<GUID>/\",\"iat\":\"1566711059\",\"nbf\":\"1566711059\",\"exp\":\"1566740159\",\"aio\":\"42FgYOhynHNw0scy3T/bL71+xLyqEwA=\",\"appid\":\"<GUID>\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.windows.net/<GUID>/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"<GUID>\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"<GUID>\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"<GUID>\",\"uti\":\"Miy1GzoAG0Scu_l3m1aIAA\",\"ver\":\"1.0\"}",
"caller": "<GUID>",
"correlationId": "<GUID>",
"eventSource": "Policy",
"eventTimestamp": "2019-08-25T11:11:34.2269098+00:00",
"eventDataId": "<GUID>",
"level": "Warning",
"operationName": "Microsoft.Authorization/policies/audit/action",
"operationId": "<GUID>",
"properties": {
"isComplianceCheck": "True",
"resourceLocation": "eastus2",
"ancestors": "<GUID>",
"policies": "[{\"policyDefinitionId\":\"/providers/Microsoft.Authorization/policyDefinitions/<GUID>/\",\"policySetDefinitionId\":\"/providers/Microsoft.Authorization/policySetDefinitions/<GUID>/\",\"policyDefinitionReferenceId\":\"vulnerabilityAssessmentMonitoring\",\"policySetDefinitionName\":\"<GUID>\",\"policyDefinitionName\":\"<GUID>\",\"policyDefinitionEffect\":\"AuditIfNotExists\",\"policyAssignmentId\":\"/subscriptions/<GUID>/providers/Microsoft.Authorization/policyAssignments/SecurityCenterBuiltIn/\",\"policyAssignmentName\":\"SecurityCenterBuiltIn\",\"policyAssignmentScope\":\"/subscriptions/<GUID>\",\"policyAssignmentSku\":{\"name\":\"A1\",\"tier\":\"Standard\"},\"policyAssignmentParameters\":{}}]"
},
"status": "Succeeded",
"subStatus": "",
"submissionTimestamp": "2019-08-25T11:12:46.1557298+00:00"
}
}
Activity log alert with monitoringService = Activity Log - Autoscale
{
"alertContext": {
"channels": "Admin, Operation",
"claims": "{\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/spn\":\"Microsoft.Insights/autoscaleSettings\"}",
"caller": "Microsoft.Insights/autoscaleSettings",
"correlationId": "<GUID>",
"eventSource": "Autoscale",
"eventTimestamp": "2019-08-21T16:17:47.1551167+00:00",
"eventDataId": "<GUID>",
"level": "Informational",
"operationName": "Microsoft.Insights/AutoscaleSettings/Scaleup/Action",
"operationId": "<GUID>",
"properties": {
"description": "The autoscale engine attempting to scale resource '/subscriptions/d<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS' from 9 instances count to 10 instances count.",
"resourceName": "/subscriptions/<GUID>/resourceGroups/voiceassistancedemo/providers/Microsoft.Compute/virtualMachineScaleSets/alexademo",
"oldInstancesCount": "9",
"newInstancesCount": "10",
"activeAutoscaleProfile": "{\r\n \"Name\": \"Auto created scale condition\",\r\n \"Capacity\": {\r\n \"Minimum\": \"1\",\r\n \"Maximum\": \"10\",\r\n \"Default\": \"1\"\r\n },\r\n \"Rules\": [\r\n {\r\n \"MetricTrigger\": {\r\n \"Name\": \"Percentage CPU\",\r\n \"Namespace\": \"microsoft.compute/virtualmachinescalesets\",\r\n \"Resource\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n \"ResourceLocation\": \"eastus\",\r\n \"TimeGrain\": \"PT1M\",\r\n \"Statistic\": \"Average\",\r\n \"TimeWindow\": \"PT5M\",\r\n \"TimeAggregation\": \"Average\",\r\n \"Operator\": \"GreaterThan\",\r\n \"Threshold\": 0.0,\r\n \"Source\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n \"MetricType\": \"MDM\",\r\n \"Dimensions\": [],\r\n \"DividePerInstance\": false\r\n },\r\n \"ScaleAction\": {\r\n \"Direction\": \"Increase\",\r\n \"Type\": \"ChangeCount\",\r\n \"Value\": \"1\",\r\n \"Cooldown\": \"PT1M\"\r\n }\r\n }\r\n ]\r\n}",
"lastScaleActionTime": "Wed, 21 Aug 2019 16:17:47 GMT"
},
"status": "Succeeded",
"submissionTimestamp": "2019-08-21T16:17:47.2410185+00:00"
}
}
Activity log alert with monitoringService = Activity Log - Security
{
"alertContext": {
"channels": "Operation",
"correlationId": "<GUID>",
"eventSource": "Security",
"eventTimestamp": "2019-08-26T08:34:14+00:00",
"eventDataId": "<GUID>",
"level": "Informational",
"operationName": "Microsoft.Security/locations/alerts/activate/action",
"operationId": "<GUID>",
"properties": {
"threatStatus": "Quarantined",
"category": "Virus",
"threatID": "2147519003",
"filePath": "C:\\AlertGeneration\\test.eicar",
"protectionType": "Windows Defender",
"actionTaken": "Blocked",
"resourceType": "Virtual Machine",
"severity": "Low",
"compromisedEntity": "testVM",
"remediationSteps": "[\"No user action is necessary\"]",
"attackedResourceType": "Virtual Machine"
},
"status": "Active",
"submissionTimestamp": "2019-08-26T09:28:58.3019107+00:00"
}
}
Activity log alert with monitoringService = ServiceHealth
{
"alertContext": {
"authorization": null,
"channels": 1,
"claims": null,
"caller": null,
"correlationId": "bbbb1111-cc22-3333-44dd-555555eeeeee",
"eventSource": 2,
"eventTimestamp": "2019-06-24T11:31:19.0312699+00:00",
"httpRequest": null,
"eventDataId": "<GUID>",
"level": 3,
"operationName": "Microsoft.ServiceHealth/maintenance/action",
"operationId": "<GUID>",
"properties": {
"title": "Azure Synapse Analytics Scheduled Maintenance Pending",
"service": "Azure Synapse Analytics",
"region": "East US",
"communication": "<MESSAGE>",
"incidentType": "Maintenance",
"trackingId": "<GUID>",
"impactStartTime": "2019-06-26T04:00:00Z",
"impactMitigationTime": "2019-06-26T12:00:00Z",
"impactedServices": "[{\"ImpactedRegions\":[{\"RegionName\":\"East US\"}],\"ServiceName\":\"Azure Synapse Analytics\"}]",
"impactedServicesTableRows": "<tr>\r\n<td align='center' style='padding: 5px 10px; border-right:1px solid black; border-bottom:1px solid black'>Azure Synapse Analytics</td>\r\n<td align='center' style='padding: 5px 10px; border-bottom:1px solid black'>East US<br></td>\r\n</tr>\r\n",
"defaultLanguageTitle": "Azure Synapse Analytics Scheduled Maintenance Pending",
"defaultLanguageContent": "<MESSAGE>",
"stage": "Planned",
"communicationId": "<GUID>",
"maintenanceId": "<GUID>",
"isHIR": "false",
"version": "0.1.1"
},
"status": "Active",
"subStatus": null,
"submissionTimestamp": "2019-06-24T11:31:31.7147357+00:00",
"ResourceType": null
}
}
Activity log alert with monitoringService = ResourceHealth
{
"alertContext": {
"channels": "Admin, Operation",
"correlationId": "<GUID>",
"eventSource": "ResourceHealth",
"eventTimestamp": "2019-06-24T15:42:54.074+00:00",
"eventDataId": "<GUID>",
"level": "Informational",
"operationName": "Microsoft.Resourcehealth/healthevent/Activated/action",
"operationId": "<GUID>",
"properties": {
"title": "This virtual machine is stopping and deallocating as requested by an authorized user or process",
"details": null,
"currentHealthStatus": "Unavailable",
"previousHealthStatus": "Available",
"type": "Downtime",
"cause": "UserInitiated"
},
"status": "Active",
"submissionTimestamp": "2019-06-24T15:45:20.4488186+00:00"
}
}
Sample Prometheus alert
{
"alertContext": {
"interval": "PT1M",
"expression": "sql_up > 0",
"expressionValue": "0",
"for": "PT2M",
"labels": {
"Environment": "Prod",
"cluster": "myCluster1"
},
"annotations": {
"summary": "alert on SQL availability"
},
"ruleGroup": "/subscriptions/<subscription ID>/resourceGroups/myResourceGroup/providers/Microsoft.AlertsManagement/prometheusRuleGroups/myRuleGroup"
}
}

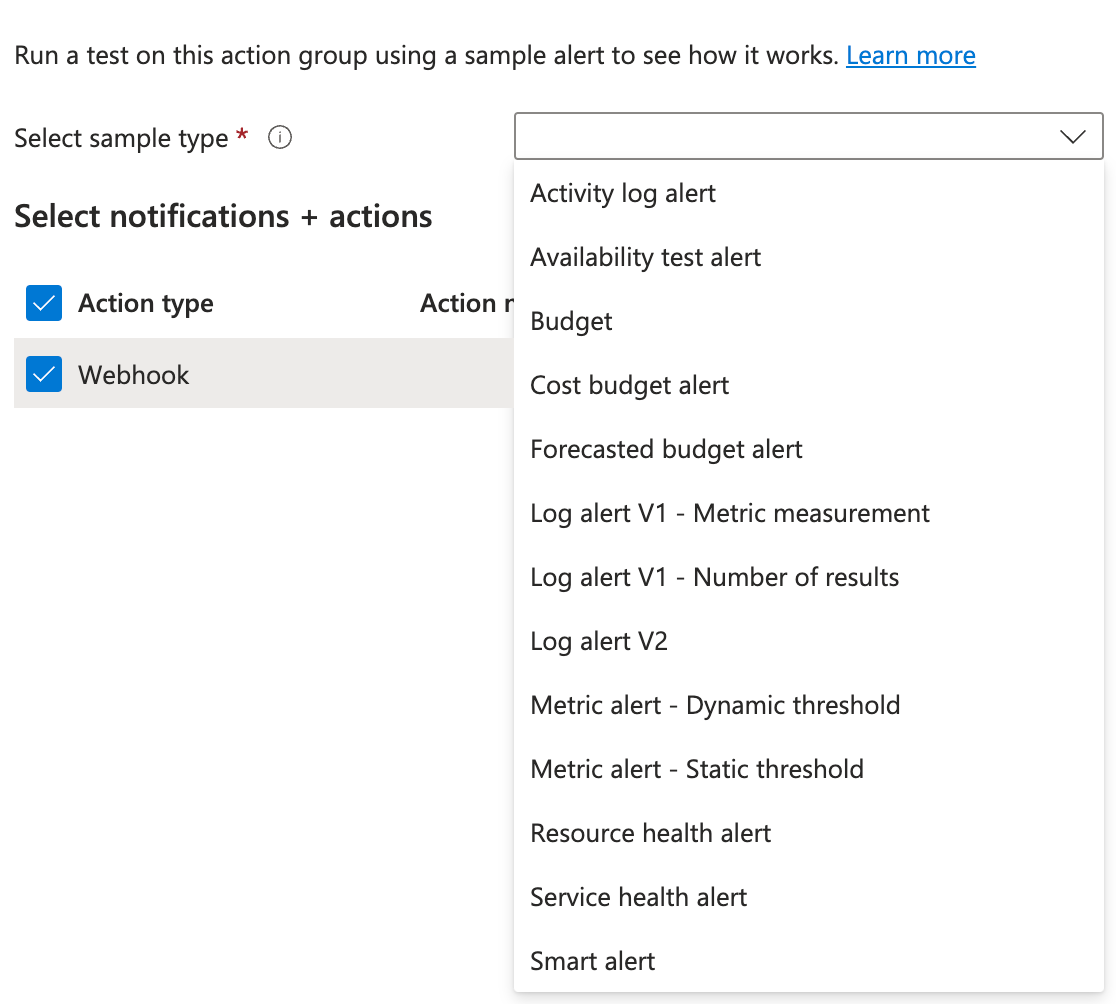

Sample payloads for test actions
Sample test action alert
{
"schemaId": "azureMonitorCommonAlertSchema",
"data": {
"essentials": {
"alertId": "/subscriptions/<subscription ID>/providers/Microsoft.AlertsManagement/alerts/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e",
"alertRule": "WCUS-R2-Gen2",
"severity": "Sev3",
"signalType": "Metric",
"monitorCondition": "Resolved",
"monitoringService": "Platform",
"alertTargetIDs": [
"/subscriptions/<subscription ID>/resourcegroups/pipelinealertrg/providers/microsoft.compute/virtualmachines/wcus-r2-gen2"
],
"configurationItems": [
"wcus-r2-gen2"
],
"originAlertId": "3f2d4487-b0fc-4125-8bd5-7ad17384221e_PipeLineAlertRG_microsoft.insights_metricAlerts_WCUS-R2-Gen2_-117781227",
"firedDateTime": "2019-03-22T13:58:24.3713213Z",
"resolvedDateTime": "2019-03-22T14:03:16.2246313Z",
"description": "",
"essentialsVersion": "1.0",
"alertContextVersion": "1.0"
},
"alertContext": {
"properties": null,
"conditionType": "SingleResourceMultipleMetricCriteria",
"condition": {
"windowSize": "PT5M",
"allOf": [
{
"metricName": "Percentage CPU",
"metricNamespace": "Microsoft.Compute/virtualMachines",
"operator": "GreaterThan",
"threshold": "25",
"timeAggregation": "Average",
"dimensions": [
{
"name": "ResourceId",
"value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
}
],
"metricValue": 7.727
}
]
}
}
}
}
Sample test action metric alerts
Test action metric alert with a static threshold and the monitoringService = Platform
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"test-metricAlertRule",
"severity":"Sev3",
"signalType":"Metric",
"monitorCondition":"Fired",
"monitoringService":"Platform",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/Microsoft.Storage/storageAccounts/test-storageAccount"
],
"configurationItems":[
"test-storageAccount"
],
"originAlertId":"11111111-1111-1111-1111-111111111111_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
"firedDateTime":"2021-11-15T09:35:24.3468506Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.0"
},
"alertContext":{
"properties":{
"customKey1":"value1",
"customKey2":"value2"
},
"conditionType":"DynamicThresholdCriteria",
"condition":{
"windowSize":"PT15M",
"allOf":[
{
"alertSensitivity":"Low",
"failingPeriods":{
"numberOfEvaluationPeriods":3,
"minFailingPeriodsToAlert":3
},
"ignoreDataBefore":null,
"metricName":"Transactions",
"metricNamespace":"Microsoft.Storage/storageAccounts",
"operator":"GreaterThan",
"threshold":"0.3",
"timeAggregation":"Average",
"dimensions":[
],
"metricValue":78.09,
"webTestName":null
}
],
"windowStartTime":"2021-12-15T01:04:11.719Z",
"windowEndTime":"2021-12-15T01:19:11.719Z"
}
},
"customProperties":{
"customKey1":"value1",
"customKey2":"value2"
}
}
}
Test action metric alert with dynamic threshold and monitoringService = Platform
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"test-metricAlertRule",
"severity":"Sev3",
"signalType":"Metric",
"monitorCondition":"Fired",
"monitoringService":"Platform",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/Microsoft.Storage/storageAccounts/test-storageAccount"
],
"configurationItems":[
"test-storageAccount"
],
"originAlertId":"11111111-1111-1111-1111-111111111111_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
"firedDateTime":"2021-11-15T09:35:24.3468506Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.0"
},
"alertContext":{
"properties":{
"customKey1":"value1",
"customKey2":"value2"
},
"conditionType":"DynamicThresholdCriteria",
"condition":{
"windowSize":"PT15M",
"allOf":[
{
"alertSensitivity":"Low",
"failingPeriods":{
"numberOfEvaluationPeriods":3,
"minFailingPeriodsToAlert":3
},
"ignoreDataBefore":null,
"metricName":"Transactions",
"metricNamespace":"Microsoft.Storage/storageAccounts",
"operator":"GreaterThan",
"threshold":"0.3",
"timeAggregation":"Average",
"dimensions":[
],
"metricValue":78.09,
"webTestName":null
}
],
"windowStartTime":"2021-12-15T01:04:11.719Z",
"windowEndTime":"2021-12-15T01:19:11.719Z"
}
},
"customProperties":{
"customKey1":"value1",
"customKey2":"value2"
}
}
}
Sample test action log search alerts
Test action log search alert V1 – Metric
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"test-logAlertRule-v1-metricMeasurement",
"severity":"Sev3",
"signalType":"Log",
"monitorCondition":"Fired",
"monitoringService":"Log Analytics",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
],
"configurationItems":[
],
"originAlertId":"12345678-4444-4444-4444-1234567890ab",
"firedDateTime":"2021-11-16T15:17:21.9232467Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.1"
},
"alertContext":{
"SearchQuery":"Heartbeat | summarize AggregatedValue=count() by bin(TimeGenerated, 5m)",
"SearchIntervalStartTimeUtc":"2021-11-15T15:16:49Z",
"SearchIntervalEndtimeUtc":"2021-11-16T15:16:49Z",
"ResultCount":2,
"LinkToSearchResults":"https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2BWqUSguzc1NLMqsSlVwTE8vSk1PLElNCUvMKU21Tc4vzSvRaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHi/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
"LinkToFilteredSearchResultsUI":"https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHidp%2BOPOhDKsHR%2FFeJXsTgzGJRmVui3KF3RpLyEJCX9A2iMl6jgxMn6jRevng3JmIHLdYtKP4DRI9mhc%3D/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
"LinkToSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29×pan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
"LinkToFilteredSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29%7C%20where%20todouble%28AggregatedValue%29%20%3E%200×pan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
"SeverityDescription":"Informational",
"WorkspaceId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
"SearchIntervalDurationMin":"1440",
"AffectedConfigurationItems":[
],
"AlertType":"Metric measurement",
"IncludeSearchResults":true,
"Dimensions":[
],
"SearchIntervalInMinutes":"1440",
"SearchResults":{
"tables":[
{
"name":"PrimaryResult",
"columns":[
{
"name":"TimeGenerated",
"type":"datetime"
},
{
"name":"AggregatedValue",
"type":"long"
}
],
"rows":[
[
"2021-11-16T10:56:49Z",
11
],
[
"2021-11-16T11:56:49Z",
11
]
]
}
],
"dataSources":[
{
"resourceId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
"region":"eastus",
"tables":[
"Heartbeat"
]
}
]
},
"Threshold":0,
"Operator":"Greater Than",
"IncludedSearchResults":"True"
}
}
}
Test action log search alert V1 - Numresults
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"test-logAlertRule-v1-numResults",
"severity":"Sev3",
"signalType":"Log",
"monitorCondition":"Fired",
"monitoringService":"Log Analytics",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
],
"configurationItems":[
"test-computer"
],
"originAlertId":"22222222-2222-2222-2222-222222222222",
"firedDateTime":"2021-11-16T15:15:58.3302205Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.1"
},
"alertContext":{
"SearchQuery":"Heartbeat",
"SearchIntervalStartTimeUtc":"2021-11-15T15:15:24Z",
"SearchIntervalEndtimeUtc":"2021-11-16T15:15:24Z",
"ResultCount":1,
"LinkToSearchResults":"https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
"LinkToFilteredSearchResultsUI":"https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
"LinkToSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%0A×pan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
"LinkToFilteredSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%0A×pan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
"SeverityDescription":"Informational",
"WorkspaceId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
"SearchIntervalDurationMin":"1440",
"AffectedConfigurationItems":[
"test-computer"
],
"AlertType":"Number of results",
"IncludeSearchResults":true,
"SearchIntervalInMinutes":"1440",
"SearchResults":{
"tables":[
{
"name":"PrimaryResult",
"columns":[
{
"name":"TenantId",
"type":"string"
},
{
"name":"Computer",
"type":"string"
},
{
"name":"TimeGenerated",
"type":"datetime"
}
],
"rows":[
[
"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
"test-computer",
"2021-11-16T12:00:00Z"
]
]
}
],
"dataSources":[
{
"resourceId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
"region":"eastus",
"tables":[
"Heartbeat"
]
}
]
},
"Threshold":0,
"Operator":"Greater Than",
"IncludedSearchResults":"True"
}
}
}
Test action log search alert V2
Note
Log search alerts rules from API version 2020-05-01 use this payload type, which only supports common schema. Search results aren't embedded in the log search alerts payload when you use this version. Use dimensions to provide context to fired alerts.
You can also use LinkToFilteredSearchResultsAPI or LinkToSearchResultsAPI to access query results with the Log Analytics API. If you must embed the results, use a logic app with the provided links to generate a custom payload.
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"test-logAlertRule-v2",
"severity":"Sev3",
"signalType":"Log",
"monitorCondition":"Fired",
"monitoringService":"Log Alerts V2",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
],
"configurationItems":[
"test-computer"
],
"originAlertId":"22222222-2222-2222-2222-222222222222",
"firedDateTime":"2021-11-16T11:47:41.4728231Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.0"
},
"alertContext":{
"properties":{
"customKey1":"value1",
"customKey2":"value2"
},
"conditionType":"LogQueryCriteria",
"condition":{
"windowSize":"PT1H",
"allOf":[
{
"searchQuery":"Heartbeat",
"metricMeasureColumn":null,
"targetResourceTypes":"['Microsoft.OperationalInsights/workspaces']",
"operator":"GreaterThan",
"threshold":"0",
"timeAggregation":"Count",
"dimensions":[
{
"name":"Computer",
"value":"test-computer"
}
],
"metricValue":3.0,
"failingPeriods":{
"numberOfEvaluationPeriods":1,
"minFailingPeriodsToAlert":1
},
"linkToSearchResultsUI":"https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmN1234567890ZAZBZiaGBlaG5lbKlnAAFRmnp6WNUZoqvTBAA%3D/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
"linkToFilteredSearchResultsUI":"https://portal.azure.com#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmN%2Fl35oOTZoKioEOouaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN7HHgOCZTR0Ak%2FaBcDeFgHiJkLmN1234567890Ltcw%2FOqZS%2FuX0L5d%2Bx3iMHNzQiu3Y%2BzsjpFSWlOzgA87vAxeHW2MoAtQxe6OUvVrZR3XYZPXrd%2FIE/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
"linkToSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29×pan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
"linkToFilteredSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29%7C%20where%20tostring%28Computer%29%20%3D%3D%20%27test-computer%27×pan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z"
}
],
"windowStartTime":"2021-11-16T10:17:39Z",
"windowEndTime":"2021-11-16T11:17:39Z"
}
}
}
}
Sample test action activity log alerts
Test action activity log alert with MonitoringService = Administrative
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"test-activityLogAlertRule",
"severity":"Sev4",
"signalType":"Activity Log",
"monitorCondition":"Fired",
"monitoringService":"Activity Log - Administrative",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
],
"configurationItems":[
"test-VM"
],
"originAlertId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb_123456789012345678901234567890ab",
"firedDateTime":"2021-11-16T08:29:01.2932462Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.0"
},
"alertContext":{
"authorization":{
"action":"Microsoft.Compute/virtualMachines/restart/action",
"scope":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM"
},
"channels":"Operation",
"claims":"{}",
"caller":"user-email@domain.com",
"correlationId":"aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
"eventSource":"Administrative",
"eventTimestamp":"2021-11-16T08:27:36.1836909+00:00",
"eventDataId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
"level":"Informational",
"operationName":"Microsoft.Compute/virtualMachines/restart/action",
"operationId":"cccccccc-cccc-cccc-cccc-cccccccccccc",
"properties":{
"eventCategory":"Administrative",
"entity":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM",
"message":"Microsoft.Compute/virtualMachines/restart/action",
"hierarchy":"22222222-2222-2222-2222-222222222222/CnAIOrchestrationServicePublicCorpprod/33333333-3333-3333-3333-3333333333333/44444444-4444-4444-4444-444444444444/55555555-5555-5555-5555-555555555555/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b"
},
"status":"Succeeded",
"subStatus":"",
"submissionTimestamp":"2021-11-16T08:29:00.141807+00:00",
"Activity Log Event Description":""
}
}
}
Test action activity log alert with MonitoringService = ServiceHealth
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
"alertRule":"test-ServiceHealthAlertRule",
"severity":"Sev4",
"signalType":"Activity Log",
"monitorCondition":"Fired",
"monitoringService":"ServiceHealth",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b"
],
"originAlertId":"eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"firedDateTime":"2021-11-17T05:34:48.0623172Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.0"
},
"alertContext":{
"authorization":null,
"channels":1,
"claims":null,
"caller":null,
"correlationId":"cccc2222-dd33-4444-55ee-666666ffffff",
"eventSource":2,
"eventTimestamp":"2021-11-17T05:34:44.5778226+00:00",
"httpRequest":null,
"eventDataId":"eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"level":3,
"operationName":"Microsoft.ServiceHealth/incident/action",
"operationId":"cccc2222-dd33-4444-55ee-666666ffffff",
"properties":{
"title":"Test Action Group - Test Service Health Alert",
"service":"Azure Service Name",
"region":"Global",
"communication":"<p><strong>Summary of impact</strong>: This is the impact summary.</p>\n<p><br></p>\n<p><strong>Preliminary Root Cause</strong>: This is the preliminary root cause.</p>\n<p><br></p>\n<p><strong>Mitigation</strong>: Mitigation description.</p>\n<p><br></p>\n<p><strong>Next steps</strong>: These are the next steps. </p>\n<p><br></p>\n<p>Stay informed about Azure service issues by creating custom service health alerts: <a href=\"https://aka.ms/ash-videos\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-videos</a> for video tutorials and <a href=\"https://aka.ms/ash-alerts%20for%20how-to%20documentation\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-alerts for how-to documentation</a>.</p>\n<p><br></p>",
"incidentType":"Incident",
"trackingId":"ABC1-DEF",
"impactStartTime":"2021-11-16T20:00:00Z",
"impactMitigationTime":"2021-11-17T01:00:00Z",
"impactedServices":"[{\"ImpactedRegions\":[{\"RegionName\":\"Global\"}],\"ServiceName\":\"Azure Service Name\"}]",
"impactedServicesTableRows":"<tr>\r\n<td align='center' style='padding: 5px 10px; border-right:1px solid black; border-bottom:1px solid black'>Azure Service Name</td>\r\n<td align='center' style='padding: 5px 10px; border-bottom:1px solid black'>Global<br></td>\r\n</tr>\r\n",
"defaultLanguageTitle":"Test Action Group - Test Service Health Alert",
"defaultLanguageContent":"<p><strong>Summary of impact</strong>: This is the impact summary.</p>\n<p><br></p>\n<p><strong>Preliminary Root Cause</strong>: This is the preliminary root cause.</p>\n<p><br></p>\n<p><strong>Mitigation</strong>: Mitigation description.</p>\n<p><br></p>\n<p><strong>Next steps</strong>: These are the next steps. </p>\n<p><br></p>\n<p>Stay informed about Azure service issues by creating custom service health alerts: <a href=\"https://aka.ms/ash-videos\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-videos</a> for video tutorials and <a href=\"https://aka.ms/ash-alerts%20for%20how-to%20documentation\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-alerts for how-to documentation</a>.</p>\n<p><br></p>",
"stage":"Resolved",
"communicationId":"11223344556677",
"isHIR":"false",
"IsSynthetic":"True",
"impactType":"SubscriptionList",
"version":"0.1.1"
},
"status":"Resolved",
"subStatus":null,
"submissionTimestamp":"2021-11-17T01:23:45.0623172+00:00",
"ResourceType":null
}
}
}
Test action activity log alert with MonitoringService = Resource Health
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"test-ResourceHealthAlertRule",
"severity":"Sev4",
"signalType":"Activity Log",
"monitorCondition":"Fired",
"monitoringService":"Resource Health",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
],
"configurationItems":[
"test-VM"
],
"originAlertId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb_123456789012345678901234567890ab",
"firedDateTime":"2021-11-16T09:54:08.9938123Z",
"description":"Alert rule description",
"essentialsVersion":"1.0",
"alertContextVersion":"1.0"
},
"alertContext":{
"channels":"Admin, Operation",
"correlationId":"aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
"eventSource":"ResourceHealth",
"eventTimestamp":"2021-11-16T09:50:20.406+00:00",
"eventDataId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
"level":"Informational",
"operationName":"Microsoft.Resourcehealth/healthevent/Activated/action",
"operationId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
"properties":{
"title":"Rebooted by user",
"details":null,
"currentHealthStatus":"Unavailable",
"previousHealthStatus":"Available",
"type":"Downtime",
"cause":"UserInitiated"
},
"status":"Active",
"submissionTimestamp":"2021-11-16T09:54:08.5303319+00:00",
"Activity Log Event Description":null
}
}
}
Test action activity log alert with MonitoringService = Budget
{
"schemaId":"AIP Budget Notification",
"data":{
"SubscriptionName":"test-subscription",
"SubscriptionId":"dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b",
"EnrollmentNumber":"",
"DepartmentName":"test-budgetDepartmentName",
"AccountName":"test-budgetAccountName",
"BillingAccountId":"",
"BillingProfileId":"",
"InvoiceSectionId":"",
"ResourceGroup":"test-RG",
"SpendingAmount":"1111.32",
"BudgetStartDate":"11/17/2021 5:40:29 PM -08:00",
"Budget":"10000",
"Unit":"USD",
"BudgetCreator":"email@domain.com",
"BudgetName":"test-budgetName",
"BudgetType":"Cost",
"NotificationThresholdAmount":"8000.0"
}
}
Test action activity log alert with MonitoringService = Actual Cost Budget
{
"schemaId": "azureMonitorCommonAlertSchema",
"data": {
"essentials": {
"monitoringService": "CostAlerts",
"firedDateTime": "2022-12-07T21:13:20.645Z",
"description": "Your spend for budget Test_actual_cost_budget is now $11,111.00 exceeding your specified threshold $25.00.",
"essentialsVersion": "1.0",
"alertContextVersion": "1.0",
"alertId": "/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.CostManagement/alerts/Test_Alert",
"alertRule": null,
"severity": null,
"signalType": null,
"monitorCondition": null,
"alertTargetIDs": null,
"configurationItems": [
"budgets"
],
"originAlertId": null
},
"alertContext": {
"AlertCategory": "budgets",
"AlertData": {
"Scope": "/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/",
"ThresholdType": "Actual",
"BudgetType": "Cost",
"BudgetThreshold": "$50.00",
"NotificationThresholdAmount": "$25.00",
"BudgetName": "Test_actual_cost_budget",
"BudgetId": "/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.Consumption/budgets/Test_actual_cost_budget",
"BudgetStartDate": "2022-11-01",
"BudgetCreator": "test@sample.test",
"Unit": "USD",
"SpentAmount": "$11,111.00"
}
}
}
}
Test action activity log alerts with MonitoringService = Forecasted Budget
{
"schemaId": "azureMonitorCommonAlertSchema",
"data": {
"essentials": {
"monitoringService": "CostAlerts",
"firedDateTime": "2022-12-07T21:13:29.576Z",
"description": "The total spend for your budget, Test_forcasted_budget, is forecasted to reach $1111.11 before the end of the period. This amount exceeds your specified budget threshold of $50.00.",
"essentialsVersion": "1.0",
"alertContextVersion": "1.0",
"alertId": "/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.CostManagement/alerts/Test_Alert",
"alertRule": null,
"severity": null,
"signalType": null,
"monitorCondition": null,
"alertTargetIDs": null,
"configurationItems": [
"budgets"
],
"originAlertId": null
},
"alertContext": {
"AlertCategory": "budgets",
"AlertData": {
"Scope": "/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/",
"ThresholdType": "Forecasted",
"BudgetType": "Cost",
"BudgetThreshold": "$50.00",
"NotificationThresholdAmount": "$50.00",
"BudgetName": "Test_forcasted_budget",
"BudgetId": "/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.Consumption/budgets/Test_forcasted_budget",
"BudgetStartDate": "2022-11-01",
"BudgetCreator": "test@sample.test",
"Unit": "USD",
"SpentAmount": "$999.99",
"ForecastedTotalForPeriod": "$1111.11"
}
}
}
}
Test action activity log alerts with MonitoringService = Smart Alert
{
"schemaId":"azureMonitorCommonAlertSchema",
"data":{
"essentials":{
"alertId":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/providers/Microsoft.AlertsManagement/alerts/eeee4efe-ff5f-aa6a-bb7b-cccccc8c8c8c",
"alertRule":"Dependency Latency Degradation - test-applicationInsights",
"severity":"Sev3",
"signalType":"Log",
"monitorCondition":"Fired",
"monitoringService":"SmartDetector",
"alertTargetIDs":[
"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourcegroups/test-RG/providers/microsoft.insights/components/test-applicationInsights"
],
"configurationItems":[
"test-applicationInsights"
],
"originAlertId":"1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
"firedDateTime":"2021-10-28T19:09:09.1115084Z",
"description":"Dependency Latency Degradation notifies you of an unusual increase in response by a dependency your app is calling (e.g. REST API or database)",
"essentialsVersion":"1.0",
"alertContextVersion":"1.0"
},
"alertContext":{
"DetectionSummary":"A degradation in the dependency duration over the last 24 hours",
"FormattedOccurrenceTime":"2021-10-27T23:59:59Z",
"DetectedValue":"0.45 sec",
"NormalValue":"0.27 sec (over the last 7 days)",
"PresentationInsightEventRequest":"/subscriptions/dddd3d3d-ee4e-ff5f-aa6a-bbbbbb7b7b7b/resourceGroups/test-RG/providers/microsoft.insights/components/test-applicationInsights/query?query=systemEvents%0d%0a++++++++++++++++%7c+where+timestamp+%3e%3d+datetime(%272021-10-27T23%3a29%3a59.0000000Z%27)+%0d%0a++++++++++++++++%7c+where+itemType+%3d%3d+%27systemEvent%27+and+name+%3d%3d+%27ProactiveDetectionInsight%27+%0d%0a++++++++++++++++%7c+where+dimensions.InsightType+%3d%3d+3+%0d%0a++++++++++++++++%7c+where+dimensions.InsightVersion+%3d%3d+%27SmartAlert%27%0d%0a++++++++++++++++%7c+where+dimensions.InsightDocumentId+%3d%3d+%2712345678-abcd-1234-5678-abcd12345678%27+%0d%0a++++++++++++++++%7c+project+dimensions.InsightPropertiesTable%2cdimensions.InsightDegradationChart%2cdimensions.InsightCountChart%2cdimensions.InsightLinksTable%0d%0a++++++++++++++++&api-version=2018-04-20",
"SmartDetectorId":"DependencyPerformanceDegradationDetector",
"SmartDetectorName":"Dependency Performance Degradation Detector",
"AnalysisTimestamp":"2021-10-28T19:09:09.1115084Z"
}
}
}
