Quickstart: Create an Azure Database for MariaDB server using PowerShell

Article
06/24/2022

Important

Azure Database for MariaDB is on the retirement path. We strongly recommend that you migrate to Azure Database for MySQL. For more information about migrating to Azure Database for MySQL, see What's happening to Azure Database for MariaDB?.

This quickstart describes how to use PowerShell to create an Azure Database for MariaDB server in an Azure resource group. You can use PowerShell to create and manage Azure resources interactively or in scripts.

Prerequisites

If you don't have an Azure subscription, create a free account before you begin.

If you choose to use PowerShell locally, this article requires that you install the Az PowerShell module and connect to your Azure account using the Connect-AzAccount cmdlet. For more information about installing the Az PowerShell module, see Install Azure PowerShell.

Important

While the Az.MariaDb PowerShell module is in preview, you must install it separately from the Az PowerShell module using the following command: Install-Module -Name Az.MariaDb -AllowPrerelease. Once the Az.MariaDb PowerShell module is generally available, it becomes part of future Az PowerShell module releases and available natively from within Azure Cloud Shell.

If this is your first time using the Azure Database for MariaDB service, you must register the Microsoft.DBforMariaDB resource provider.

Register-AzResourceProvider -ProviderNamespace Microsoft.DBforMariaDB

Azure Cloud Shell

Azure hosts Azure Cloud Shell, an interactive shell environment that you can use through your browser. You can use either Bash or PowerShell with Cloud Shell to work with Azure services. You can use the Cloud Shell preinstalled commands to run the code in this article, without having to install anything on your local environment.

To start Azure Cloud Shell:

Option	Example/Link
Select Try It in the upper-right corner of a code or command block. Selecting Try It doesn't automatically copy the code or command to Cloud Shell.
Go to https://shell.azure.com, or select the Launch Cloud Shell button to open Cloud Shell in your browser.
Select the Cloud Shell button on the menu bar at the upper right in the Azure portal.

To use Azure Cloud Shell:

Start Cloud Shell.
Select the Copy button on a code block (or command block) to copy the code or command.
Paste the code or command into the Cloud Shell session by selecting Ctrl+Shift+V on Windows and Linux, or by selecting Cmd+Shift+V on macOS.
Select Enter to run the code or command.

If you have multiple Azure subscriptions, choose the appropriate subscription in which the resources should be billed. Select a specific subscription ID using the Set-AzContext cmdlet.

Set-AzContext -SubscriptionId aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e

Create a resource group

Create an Azure resource group using the New-AzResourceGroup cmdlet. A resource group is a logical container in which Azure resources are deployed and managed as a group.

The following example creates a resource group named myresourcegroup in the West US region.

New-AzResourceGroup -Name myresourcegroup -Location westus

Create an Azure Database for MariaDB server

Create an Azure Database for MariaDB server with the New-AzMariaDbServer cmdlet. A server can manage multiple databases. Typically, a separate database is used for each project or for each user.

The following table contains a list of commonly used parameters and sample values for the New-AzMariaDbServer cmdlet.

Setting	Sample value	Description
Name	mydemoserver	Choose a globally unique name in Azure that identifies your Azure Database for MariaDB server. The server name can only contain letters, numbers, and the hyphen (-) character. Any uppercase characters that are specified are automatically converted to lowercase during the creation process. It must contain from 3 to 63 characters.
ResourceGroupName	myresourcegroup	Provide the name of the Azure resource group.
Sku	GP_Gen5_2	The name of the SKU. Follows the convention pricing-tier_compute-generation_vCores in shorthand. For more information about the Sku parameter, see the information following this table.
BackupRetentionDay	7	How long a backup should be retained. Unit is days. Range is 7-35.
GeoRedundantBackup	Enabled	Whether geo-redundant backups should be enabled for this server or not. This value cannot be enabled for servers in the basic pricing tier and it cannot be changed after the server is created. Allowed values: Enabled, Disabled.
Location	westus	The Azure region for the server.
SslEnforcement	Enabled	Whether SSL should be enabled or not for this server. Allowed values: Enabled, Disabled.
StorageInMb	51200	The storage capacity of the server (unit is megabytes). Valid StorageInMb is a minimum of 5120 MB and increases in 1024 MB increments. For more information about storage size limits, see Azure Database for MariaDB pricing tiers.
Version	5.7	The MariaDB major version.
AdministratorUserName	myadmin	The username for the administrator login. It cannot be azure_superuser, admin, administrator, root, guest, or public.
AdministratorLoginPassword	`<securestring>`	The password of the administrator user in the form of a secure string. It must contain between 8 and 128 characters. Your password must contain characters from three of the following categories: English uppercase letters, English lowercase letters, numbers, and non-alphanumeric characters.

The Sku parameter value follows the convention pricing-tier_compute-generation_vCores as shown in the following examples.

-Sku B_Gen5_1 maps to Basic, Gen 5, and 1 vCore. This option is the smallest SKU available.
-Sku GP_Gen5_32 maps to General Purpose, Gen 5, and 32 vCores.
-Sku MO_Gen5_2 maps to Memory Optimized, Gen 5, and 2 vCores.

For information about valid Sku values by region and for tiers, see Azure Database for MariaDB pricing tiers.

The following example creates a MariaDB server in the West US region named mydemoserver in the myresourcegroup resource group with a server admin login of myadmin. It is a Gen 5 server in the general-purpose pricing tier with 2 vCores and geo-redundant backups enabled. Document the password used in the first line of the example as this is the password for the MariaDB server admin account.

Tip

A server name maps to a DNS name and must be globally unique in Azure.

$Password = Read-Host -Prompt 'Please enter your password' -AsSecureString
New-AzMariaDbServer -Name mydemoserver -ResourceGroupName myresourcegroup -Sku GP_Gen5_2 -GeoRedundantBackup Enabled -Location westus -AdministratorUsername myadmin -AdministratorLoginPassword $Password

Consider using the basic pricing tier if light compute and I/O are adequate for your workload.

Important

Servers created in the basic pricing tier cannot be later scaled to general-purpose or memory- optimized and cannot be geo-replicated.

Configure a firewall rule

Create an Azure Database for MariaDB server-level firewall rule using the New-AzMariaDbFirewallRule cmdlet. A server-level firewall rule allows an external application, such as the mysql command-line tool or MariaDB Workbench to connect to your server through the Azure Database for MariaDB service firewall.

The following example creates a firewall rule named AllowMyIP that allows connections from a specific IP address, 192.168.0.1. Substitute an IP address or range of IP addresses that correspond to the location that you are connecting from.

New-AzMariaDbFirewallRule -Name AllowMyIP -ResourceGroupName myresourcegroup -ServerName mydemoserver -StartIPAddress 192.168.0.1 -EndIPAddress 192.168.0.1

Note

Connections to Azure Database for MariaDB communicate over port 3306. If you try to connect from within a corporate network, outbound traffic over port 3306 might not be allowed. In this scenario, you can only connect to the server if your IT department opens port 3306.

Configure SSL settings

By default, SSL connections between your server and client applications are enforced. This default ensures the security of in-motion data by encrypting the data stream over the Internet. For this quickstart, disable SSL connections for your server. For more information, see Configure SSL connectivity in your application to securely connect to Azure Database for MariaDB.

Warning

Disabling SSL is not recommended for production servers.

The following example disables SSL on your Azure Database for MariaDB server.

Update-AzMariaDbServer -Name mydemoserver -ResourceGroupName myresourcegroup -SslEnforcement Disabled

Get the connection information

To connect to your server, you need to provide host information and access credentials. Use the following example to determine the connection information. Make a note of the values for FullyQualifiedDomainName and AdministratorLogin.

Get-AzMariaDbServer -Name mydemoserver -ResourceGroupName myresourcegroup |
  Select-Object -Property FullyQualifiedDomainName, AdministratorLogin

FullyQualifiedDomainName                    AdministratorLogin
------------------------                    ------------------
mydemoserver.mariadb.database.azure.com       myadmin

Connect to the server using the mysql command-line tool

Connect to your server using the mysql command-line tool. To download and install the command-line tool, see MySQL Community Downloads. You can also access a pre-installed version of the mysql command-line tool in Azure Cloud Shell by selecting the Try It button on a code sample in this article. Other ways to access Azure Cloud Shell are to select the >_ button on the upper-right toolbar in the Azure portal or by visiting shell.azure.com.

Connect to the server using the mysql command-line tool.

mysql -h <servername>.mariadb.database.azure.com -u myadmin@<servername> -p

View server status.

mysql> status

C:\Users\>mysql -h mydemoserver.mariadb.database.azure.com -u myadmin@mydemoserver -p
Enter password: *************
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 64793
Server version: 5.6.42.0 MariaDB Server

Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> status
--------------
/usr/bin/mysql  Ver 14.14 Distrib 5.7.29, for Linux (x86_64) using  EditLine wrapper

Connection id:          64793
Current database:
Current user:           myadmin@myipaddress
SSL:                    Cipher in use is ECDHE-RSA-AES256-GCM-SHA384
Current pager:          stdout
Using outfile:          ''
Using delimiter:        ;
Server version:         5.6.42.0 MariaDB Server
Protocol version:       10
Connection:             mydemoserver.mariadb.database.azure.com via TCP/IP
Server characterset:    latin1
Db     characterset:    latin1
Client characterset:    utf8
Conn.  characterset:    utf8
TCP port:               3306
Uptime:                 17 min 4 sec

Threads: 19  Questions: 482  Slow queries: 0  Opens: 50  Flush tables: 3  Open tables: 12  Queries per second avg: 0.470
--------------

mysql>

For additional commands, see MySQL 5.7 Reference Manual - Chapter 4.5.1.

Connect to the server using MariaDB Workbench

Launch the MySQL Workbench application on your client computer. To download and install MySQL Workbench, see Download MySQL Workbench.

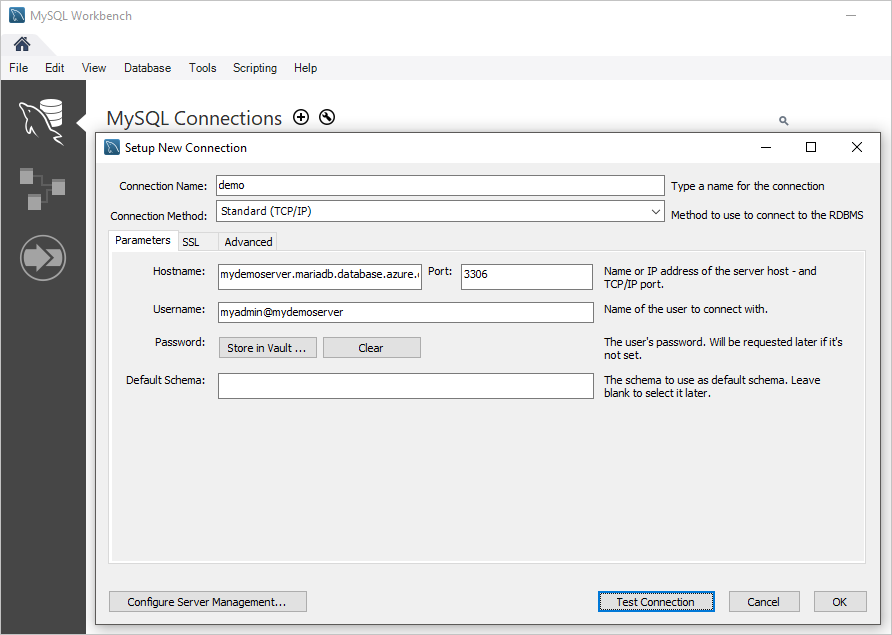

In the Setup New Connection dialog box, enter the following information on the Parameters tab:

setup new connection

Setting	Suggested Value	Description
Connection Name	My Connection	Specify a label for this connection
Connection Method	Standard (TCP/IP)	Use TCP/IP protocol to connect to Azure Database for MariaDB
Hostname	`mydemoserver.mariadb.database.azure.com`	Server name you previously noted
Port	3306	The default port for MariaDB
Username	myadmin@mydemoserver	The server admin login you previously noted
Password	*************	Use the admin account password you configured earlier

To test if the parameters are configured correctly, select the Test Connection button.
Select the connection to connect to the server.

Clean up resources

If the resources created in this quickstart aren't needed for another quickstart or tutorial, you can delete them by running the following example.

Caution

The following example deletes the specified resource group and all resources contained within it. If resources outside the scope of this quickstart exist in the specified resource group, they will also be deleted.

Remove-AzResourceGroup -Name myresourcegroup

To delete only the server created in this quickstart without deleting the resource group, use the Remove-AzMariaDbServer cmdlet.

Remove-AzMariaDbServer -Name mydemoserver -ResourceGroupName myresourcegroup

Next steps

Design an Azure Database for MariaDB using PowerShell
