RadialProgressBar

  • Article

Warning

This control has been deprecated in the Windows Community Toolkit. Please use the ProgressRing control from WinUI instead with IsIndeterminate set to false.

The Radial Progress Bar control displays a value in a certain range using a cicular sector that grows clockwise until it becomes a full ring.

The control uses the same dependency properties as the standard Progress Bar, with the addition of:

  • A Thickness parameter, which sets the thickness of the circular sector and the outline it's drawn on
  • An Outline property, which sets the brush of the circular outline

Try it in the sample app

Syntax

<Page ...
     xmlns:controls="using:Microsoft.Toolkit.Uwp.UI.Controls"/>

<controls:RadialProgressBar x:Name="RadialProgressBarControl"
    Value="70" Minimum="0" Maximum="180"
    Thickness="4" Outline="Gray" Foreground="Red">
</controls:RadialProgressBar>

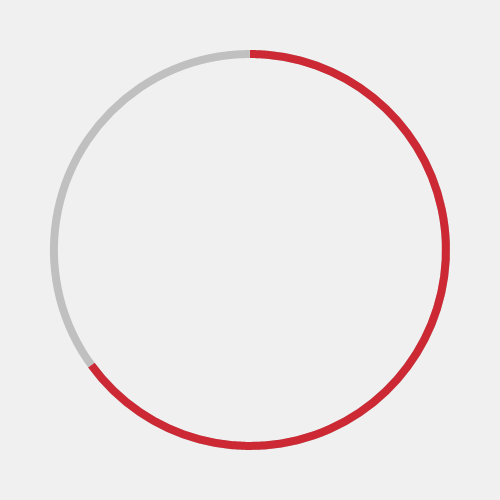

Sample Output

RadialProgressBar image

Properties

Property Type Description
Outline Brush Gets or sets the color of the circular ouline on which the segment is drawn
Thickness double Gets or sets the thickness of the circular ouline and segment

Sample Project

RadialProgressBar Sample Page Source. You can see this in action in the Windows Community Toolkit Sample App.

Default Template

RadialProgressBar XAML File is the XAML template used in the toolkit for the default styling.

Requirements

Device family Universal, 10.0.16299.0 or higher
Namespace Microsoft.Toolkit.Uwp.UI.Controls
NuGet package Microsoft.Toolkit.Uwp.UI.Controls

API
