Runtime

Configuration settings that determine runtime behavior.

Pagination settings

Property Default Description
runtime.pagination.max-page-size Defines maximum records per page
runtime.pagination.default-page-size Sets default records per response

REST settings

Property Default Description
runtime.rest.path "/api" Base path for REST endpoints
runtime.rest.enabled true Allows enabling or disabling REST requests for all entities
runtime.rest.request-body-strict true Disallows extraneous fields in request body when true

GraphQL settings

Property Default Description
runtime.graphql.allow-introspection true Allows querying of underlying GraphQL schema
runtime.graphql.path "/graphql" Base path for the GraphQL endpoint
runtime.graphql.enabled true Allows enabling or disabling GraphQL requests for all entities
runtime.graphql.depth-limit null Maximum allowed depth of a GraphQL query
runtime.graphql.multiple-mutations.create.enabled false Allows multiple-create mutations for all entities

Host settings

Property Default Description
runtime.host.max-response-size-mb 158 Maximum size (MB) of database response allowed in a single result
runtime.host.mode "production" Running mode; "production" or "development"

CORS settings

Property Default Description
runtime.host.cors.origins [] Allowed CORS origins
runtime.host.cors.allow-credentials false Sets value for Access-Control-Allow-Credentials header

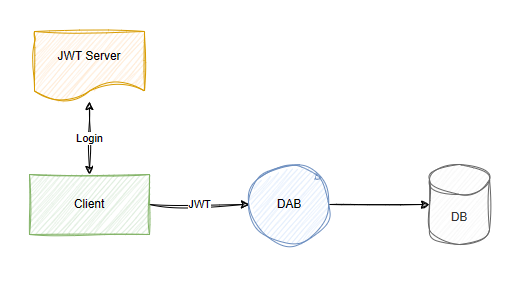

Authentication settings

Property Default Description
runtime.host.authentication.provider Unauthenticated Authentication provider
runtime.host.authentication.jwt.audience null JWT audience
runtime.host.authentication.jwt.issuer null JWT issuer

Cache settings

Property Default Description
runtime.cache.enabled false Enables caching of responses globally
runtime.cache.ttl-seconds 5 Time to live (seconds) for global cache
runtime.cache.level-2.enabled false Enables distributed level 2 cache globally
runtime.cache.level-2.provider "redis" Distributed cache provider for level 2 cache
runtime.cache.level-2.connection-string null Connection string for the level 2 cache provider
runtime.cache.level-2.partition null Optional partition name for isolating distributed cache space

Compression settings

Property Default Description
runtime.compression.level optimal HTTP response compression level (optimal, fastest, or none)

Telemetry settings

Property Default Description
runtime.telemetry.application-insights.connection-string null Application Insights connection string
runtime.telemetry.application-insights.enabled true Enables or disables Application Insights telemetry
runtime.telemetry.open-telemetry.endpoint null OpenTelemetry collector URL
runtime.telemetry.open-telemetry.headers {} OpenTelemetry export headers
runtime.telemetry.open-telemetry.service-name "dab" OpenTelemetry service name
runtime.telemetry.open-telemetry.exporter-protocol "grpc" OpenTelemetry protocol ("grpc" or "httpprotobuf")
runtime.telemetry.open-telemetry.enabled true Enables or disables OpenTelemetry
runtime.telemetry.open-telemetry.enabled true Enables or disables OpenTelemetry
runtime.telemetry.azure-log-analytics.enabled false Enables or disables Azure Log Analytics
runtime.telemetry.azure-log-analytics.dab-identifier "DabLogs" Identifier for DAB in Azure Log Analytics
runtime.telemetry.azure-log-analytics.flush-interval-seconds 5 Interval between log batch pushes (seconds)
runtime.telemetry.azure-log-analytics.auth.custom-table-name null Custom table name for Azure Log Analytics
runtime.telemetry.azure-log-analytics.auth.dcr-immutable-id null Data collection rule immutable ID
runtime.telemetry.azure-log-analytics.auth.dce-endpoint null Data collection endpoint URL
runtime.telemetry.file.enabled false Enables or disables file sink logging
runtime.telemetry.file.path "/logs/dab-log.txt" File path for telemetry logs
runtime.telemetry.file.rolling-interval "Day" Rolling interval for log files
runtime.telemetry.file.retained-file-count-limit 1 Maximum number of retained log files
runtime.telemetry.file.file-size-limit-bytes 1048576 Maximum file size in bytes before rolling
runtime.telemetry.log-level.namespace null Namespace-specific log level override
runtime.health.enabled true Enables or disables the health check endpoint globally
runtime.health.roles null Allowed roles for the comprehensive health endpoint
runtime.health.cache-ttl-seconds 5 Time to live (seconds) for the health check report cache entry
runtime.health.max-query-parallelism 4 Maximum concurrent health check queries (range: 1-8)

MCP settings

Property Default Description
runtime.mcp.enabled true Enables or disables the MCP endpoint globally
runtime.mcp.path "/mcp" Base path for the MCP endpoint
runtime.mcp.description null Server description sent to MCP clients during initialization
runtime.mcp.dml-tools true Enables or disables all DML tools, or an object for per-tool control
runtime.mcp.dml-tools.describe-entities true Enables the describe_entities tool
runtime.mcp.dml-tools.create-record true Enables the create_record tool
runtime.mcp.dml-tools.read-records true Enables the read_records tool
runtime.mcp.dml-tools.update-record true Enables the update_record tool
runtime.mcp.dml-tools.delete-record true Enables the delete_record tool
runtime.mcp.dml-tools.execute-entity true Enables the execute_entity tool
runtime.mcp.dml-tools.aggregate-records true Enables the aggregate_records tool (boolean or object with query-timeout)

Format overview

{
  "runtime": {
    "pagination": {
      "max-page-size": <integer|null> (default: `100000`),
      "default-page-size": <integer|null> (default: `100`)
    },
    "rest": {
      "path": <string> (default: "/api"),
      "enabled": <true>|<false>,
      "request-body-strict": <true>|<false> (default: `true`)
    },
    "graphql": {
      "path": <string> (default: "/graphql"),
      "enabled": <true>|<false>,
      "allow-introspection": <true>|<false>,
      "depth-limit": <integer|null> (default: `null`),
      "multiple-mutations": {
        "create": {
          "enabled": <true>|<false> (default: `false`)
        }
      }
    },
    "host": {
      "mode": <"production"> (default) | <"development">,
      "max-response-size-mb": <integer|null> (default: `158`),
      "cors": {
        "origins": [ "<string>" ],
        "allow-credentials": <true>|<false> (default: `false`)
      },
      "authentication": {
        "provider": <string> (default: "Unauthenticated"),
        "jwt": {
          "audience": "<string>",
          "issuer": "<string>"
        }
      }
    }
  },
    "compression": {
      "level": <"optimal"> (default) | <"fastest"> | <"none">
    },
    "cache": {
      "enabled": <true>|<false> (default: `false`),
      "ttl-seconds": <integer> (default: `5`),
      "level-2": {
        "enabled": <true>|<false> (default: `false`),
        "provider": <"redis">,
        "connection-string": <string>,
        "partition": <string>
      }
    },
    "telemetry": {
      "application-insights": {
        "connection-string": "<string>",
        "enabled": <true>|<false> (default: `true`)
      },
      "open-telemetry": {
        "endpoint": "<string>",
        "headers": "<string>",
        "service-name": <string> (default: "dab"),
        "exporter-protocol": <"grpc"> (default) | <"httpprotobuf">,
        "enabled": <true>|<false> (default: `true`)
      },
      "azure-log-analytics": {
        "enabled": <true>|<false> (default: `false`),
        "dab-identifier": <string> (default: "DabLogs"),
        "flush-interval-seconds": <integer> (default: `5`),
        "auth": {
          "custom-table-name": <string>,
          "dcr-immutable-id": <string>,
          "dce-endpoint": <string>
        }
      },
      "file": {
        "enabled": <true>|<false> (default: `false`),
        "path": <string> (default: "/logs/dab-log.txt"),
        "rolling-interval": <string> (default: "Day"),
        "retained-file-count-limit": <integer> (default: `1`),
        "file-size-limit-bytes": <integer> (default: `1048576`)
      },
      "log-level": {
        // namespace keys
        "<namespace>": <"trace"|"debug"|"information"|"warning"|"error"|"critical"|"none"|null>
      }
    },
    "health": {
      "enabled": <true>|<false> (default: `true`),
      "roles": [ "<string>" ],
      "cache-ttl-seconds": <integer> (default: `5`),
      "max-query-parallelism": <integer> (default: `4`)
    },
    "mcp": {
      "enabled": <true>|<false> (default: `true`),
      "path": <string> (default: `"/mcp"`),
      "description": <string>,
      "dml-tools": <true>|<false> | {
        "describe-entities": <true>|<false> (default: `true`),
        "create-record": <true>|<false> (default: `true`),
        "read-records": <true>|<false> (default: `true`),
        "update-record": <true>|<false> (default: `true`),
        "delete-record": <true>|<false> (default: `true`),
        "execute-entity": <true>|<false> (default: `true`),
        "aggregate-records": <true>|<false> | {
          "enabled": <true>|<false> (default: `true`),
          "query-timeout": <integer> (default: `30`)
        }
      }
    }
  }
}

Mode (Host runtime)

Parent Property Type Required Default
runtime host enum (production | development) ❌ No production

Development behavior

  • Enabled Nitro (formerly Banana Cake Pop) for GraphQL testing
  • Enabled Swagger UI for REST testing
  • Enabled anonymous health checks
  • Increased logging verbosity (Debug)

Format

{
  "runtime": {
    "host": {
      "mode": "production" (default) | "development"
    }
  }
}

Maximum response size (Host runtime)

Parent Property Type Required Default
runtime.host max-response-size-mb integer ❌ No 158

Sets the maximum size (in megabytes) for any given result. As large responses can strain the system, max-response-size-mb caps the total size (different from row count) to prevent overload, which is especially with large columns like text or JSON.

Value Result
not set Use default
null Use default
integer Any positive 32-bit integer
<= 0 Not supported

Format

{
  "runtime": {
    "host": {
      "max-response-size-mb": <integer; default: 158>
    }
  }
}

GraphQL (runtime)

Parent Property Type Required Default
runtime graphql object ❌ No -

Global GraphQL configuration.

Nested properties

Parent Property Type Required Default
runtime.graphql enabled boolean ❌ No None
runtime.graphql path string ❌ No "/graphql"
runtime.graphql depth-limit integer ❌ No None (unlimited)
runtime.graphql allow-introspection boolean ❌ No True
runtime.graphql multiple-mutations.create.enabled boolean ❌ No False

Property notes

  • Subpaths aren't allowed for the path property.
  • Use depth-limit to constrain nested queries.
  • Set allow-introspection to false to hide the GraphQL schema.
  • Use multiple-mutations to insert multiple entities in a single mutation.

Format

{
  "runtime": {
    "graphql": {
      "enabled": <true> (default) | <false>
      "depth-limit": <integer|null> (default: `null`),
      "path": <string> (default: /graphql),
      "allow-introspection": <true> (default) | <false>,
      "multiple-mutations": {
        "create": {
          "enabled": <true> | <false> (default)
        }
      }
    }
  }
}

Example: multiple mutations

Configuration

{
  "runtime": {
    "graphql": {
      "multiple-mutations": {
        "create": {
          "enabled": true
        }
      }
    }
  },
  "entities": {
    "User": {
      "source": "dbo.Users",
      "permissions": [
        {
          "role": "anonymous",
          "actions": ["create"] // entity permissions are required
        }
      ]
    }
  }
}

GraphQL mutation

mutation {
  createUsers(input: [
    { name: "Alice", age: 30, isAdmin: true },
    { name: "Bob", age: 25, isAdmin: false },
    { name: "Charlie", age: 35, isAdmin: true }
  ]) {
    id
    name
    age
    isAdmin
  }
}

REST (runtime)

Parent Property Type Required Default
runtime rest object ❌ No -

Global REST configuration.

Nested properties

Parent Property Type Required Default
runtime.rest enabled boolean ❌ No None
runtime.rest path string ❌ No "/api"
runtime.rest request-body-strict boolean ❌ No True

Property notes

  • If global enabled is false, individual entity-level enabled doesn't matter.
  • The path property doesn't support subpath values like /api/data.
  • request-body-strict was introduced to help simplify .NET POCO objects.
request-body-strict Behavior
true Extra fields in the request body cause a BadRequest exception.
false Extra fields in the request body are ignored.

Format

{
  "runtime": {
    "rest": {
      "enabled": <true> (default) | <false>,
      "path": <string> (default: /api),
      "request-body-strict": <true> (default) | <false>
    }
  }
}

Example: request-body-strict

  • Columns with a default() value are ignored during INSERT only when their value in the payload is null. As a consequence, INSERT operations into default() columns, when request-body-strict is true, can't result in explicit null values. To accomplish this behavior, an UPDATE operation is required.
  • Columns with a default() aren't ignored during UPDATE regardless of payload value.
  • Computed columns are always ignored.
  • Autogenerated columns are always ignored.

Sample table

CREATE TABLE Users (
    Id INT PRIMARY KEY IDENTITY, -- auto-generated column
    Name NVARCHAR(50) NOT NULL,
    Age INT DEFAULT 18, -- column with default
    IsAdmin BIT DEFAULT 0, -- column with default
    IsMinor AS IIF(Age <= 18, 1, 0) -- computed column
);

Request payload

{
  "Id": 999,
  "Name": "Alice",
  "Age": null,
  "IsAdmin": null,
  "IsMinor": false,
  "ExtraField": "ignored"
}

Insert behavior when request-body-strict = false

INSERT INTO Users (Name) VALUES ('Alice');
-- Default values for Age (18) and IsAdmin (0) are applied by the database.
-- IsMinor is ignored because it’s a computed column.
-- ExtraField is ignored.
-- The database generates the Id value.

Response payload

{
  "Id": 1,          // Auto-generated by the database
  "Name": "Alice",
  "Age": 18,        // Default applied
  "IsAdmin": false, // Default applied
  "IsMinor": true   // Computed
}

Update behavior when request-body-strict = false

UPDATE Users
SET Name = 'Alice Updated', Age = NULL
WHERE Id = 1;
-- IsMinor and ExtraField are ignored.

Response payload

{
  "Id": 1,
  "Name": "Alice Updated",
  "Age": null,
  "IsAdmin": false,
  "IsMinor": false // Recomputed by the database (false when age is `null`)
}

CORS (host runtime)

Parent Property Type Required Default
runtime.host cors object ❌ No -

Global CORS configuration.

Tip

CORS stands for "Cross-Origin Resource Sharing." It's a browser security feature that controls whether web pages can make requests to a different domain than the one that served them.

Nested properties

Parent Property Type Required Default
runtime.host.cors allow-credentials boolean ❌ No False
runtime.host.cors origins string array ❌ No None

Note

The allow-credentials property sets the Access-Control-Allow-Credentials CORS header.

Format

{
  "runtime": {
    "host": {
      "cors": {
        "allow-credentials": <true> | <false> (default),
        "origins": ["<array-of-strings>"]
      }
    }
  }
}

Note

The wildcard * is valid as a value for origins.

Provider (Authentication host runtime)

Parent Property Type Required Default
runtime.host.authentication provider enum (Unauthenticated | StaticWebApps | AppService | EntraId | Custom | Simulator) ❌ No Unauthenticated

Selects the authentication method. Each provider validates identity differently. For step-by-step setup, see the how-to guides in the following table.

Note

The Data API builder 2.0 functionality described in this section is currently in preview and might change before general availability. For more information, see What's new in version 2.0.

Provider summary

Provider Use case Identity source How-to guide
Unauthenticated DAB sits behind a trusted front end (default) None—all requests run as anonymous Configure the Unauthenticated provider
AppService Azure-hosted apps (EasyAuth) X-MS-CLIENT-PRINCIPAL header Configure App Service authentication
EntraID Microsoft Entra ID (Azure AD) JWT bearer token Configure Entra ID authentication
Custom Third-party IdPs (Okta, Auth0) JWT bearer token Configure custom JWT authentication
Simulator Local testing only Simulated Configure Simulator authentication

Note

The EntraId provider was previously named AzureAd. The old name still works for compatibility.

Unauthenticated (default)

When Unauthenticated is set (or no provider is specified), DAB doesn't inspect or validate any JWT. All requests run as the anonymous role. A front-end service such as Azure API Management or an application gateway can still handle authentication or access policy before requests reach DAB, but DAB continues to authorize only as anonymous.

Important

When Unauthenticated is active, authenticated and custom roles defined in entity permissions are never activated. If your config contains those roles, DAB emits a warning at startup.

{
  "host": {
    "authentication": {
      "provider": "Unauthenticated"
    }
  }
}

AppService

Trusts identity headers injected by Azure App Service EasyAuth.

{
  "host": {
    "authentication": {
      "provider": "AppService"
    }
  }
}

EntraID

Validates JWT tokens issued by Microsoft Entra ID.

{
  "host": {
    "authentication": {
      "provider": "EntraId",
      "jwt": {
        "audience": "<application-id>",
        "issuer": "https://login.microsoftonline.com/<tenant-id>/v2.0"
      }
    }
  }
}

Custom

Validates JWT tokens from third-party identity providers.

{
  "host": {
    "authentication": {
      "provider": "Custom",
      "jwt": {
        "audience": "<api-audience>",
        "issuer": "https://<your-idp-domain>/"
      }
    }
  }
}

Simulator

Simulates authentication for local development and testing.

{
  "host": {
    "authentication": {
      "provider": "Simulator"
    }
  }
}

Important

The Simulator provider only works when runtime.host.mode is development. DAB fails to start if Simulator is configured in production mode.

Role selection

For all providers except Simulator, the X-MS-API-ROLE header selects which role to use from the authenticated user's claims. If omitted, the request uses the Authenticated system role. For details on role evaluation, see Authorization overview.

JWT (Authentication host runtime)

Parent Property Type Required Default
runtime.host.authentication jwt object ❌ No -

Global JSON Web Token (JWT) configuration.

Diagram of JSON web tokens support in Data API builder.

Nested properties

Parent Property Type Required Default
runtime.host.authentication.jwt audience string ✔️ Yes* None
runtime.host.authentication.jwt issuer string ✔️ Yes* None

* Both audience and issuer are required when the jwt object is present. The jwt object itself is required when the provider is EntraID, AzureAD, or Custom.

Format

{
  "runtime": {
    "host": {
      "authentication": {
        "jwt": {
          "audience": "<client-id>",
          "issuer": "<issuer-url>"
        }
      }
    }
  }
}

Pagination (Runtime)

Parent Property Type Required Default
runtime pagination object ❌ No -

Global pagination limits for REST and GraphQL endpoints.

Nested properties

Parent Property Type Required Default
runtime.pagination max-page-size int ❌ No 100,000
runtime.pagination default-page-size int ❌ No 100
runtime.pagination next-link-relative boolean ❌ No false

Max-page-size supported values

Value Result
integer Any positive 32-bit integer is supported.
0 Not supported.
-1 Defaults to the maximum supported value.
< -1 Not supported.

Default-page-size supported values

Value Result
integer Any positive integer less than the current max-page-size.
0 Not supported.
-1 Defaults to the current max-page-size setting.
< -1 Not supported.

When next-link-relative is true, pagination nextLink values use relative URLs instead of absolute URLs.

Value Example
false (default) "nextLink": "https://localhost:5001/api/users?$after=..."
true "nextLink": "/api/users?$after=..."

Format

{
  "runtime": {
    "pagination": {
      "max-page-size": <integer; default: 100000>,
      "default-page-size": <integer; default: 100>,
      "next-link-relative": <boolean; default: false>
    }
  }
}

Note

When the value is greater than max-page-size, the results are capped at max-page-size.

Example: Paging in REST

Request

GET https://localhost:5001/api/users

Response payload

{
  "value": [
    {
      "Id": 1,
      "Name": "Alice",
      "Age": 30,
      "IsAdmin": true,
      "IsMinor": false
    },
    {
      "Id": 2,
      "Name": "Bob",
      "Age": 17,
      "IsAdmin": false,
      "IsMinor": true
    }
  ],
  "nextLink": "https://localhost:5001/api/users?$after=W3siRW50aXR5TmFtZSI6InVzZXJzIiwiRmllbGROYW1lI=="
}

Request Next Page

GET https://localhost:5001/api/users?$after=W3siRW50aXR5TmFtZSI6InVzZXJzIiwiRmllbGROYW1lI==

Example: Paging in GraphQL

Request payload (Query)

query {
  users {
    items {
      Id
      Name
      Age
      IsAdmin
      IsMinor
    }
    hasNextPage
    endCursor
  }
}

Response payload

{
  "data": {
    "users": {
      "items": [
        {
          "Id": 1,
          "Name": "Alice",
          "Age": 30,
          "IsAdmin": true,
          "IsMinor": false
        },
        {
          "Id": 2,
          "Name": "Bob",
          "Age": 17,
          "IsAdmin": false,
          "IsMinor": true
        }
      ],
      "hasNextPage": true,
      "endCursor": "W3siRW50aXR5TmFtZSI6InVzZXJzIiwiRmllbGROYW1lI=="
    }
  }
}

Request Next Page

query {
  users(after: "W3siRW50aXR5TmFtZSI6InVzZXJzIiwiRmllbGROYW1lI==") {
    items {
      Id
      Name
      Age
      IsAdmin
      IsMinor
    }
    hasNextPage
    endCursor
  }
}

Example: Accessing max-page-size in Requests

Use the max-page-size value by setting $limit (REST) or first (GraphQL) to -1.

REST

GET https://localhost:5001/api/users?$limit=-1

GraphQL

query {
  users(first: -1) {
    items {
      ...
    }
  }
}

Compression (runtime)

Note

The Data API builder 2.0 functionality described in this section is currently in preview and might change before general availability. For more information, see What's new in version 2.0.

Parent Property Type Required Default
runtime compression object ❌ No -

HTTP response compression configuration. When enabled, DAB compresses response bodies to reduce payload sizes and improve transfer speeds.

Nested properties

Parent Property Type Required Default
runtime.compression level string ❌ No "optimal"

Supported values for level

Value Description Compression savings Performance impact
optimal Balances ratio and speed (default) Gzip: 90.5% / Brotli: 92.2% Moderate CPU usage, slight latency increase
fastest Prioritizes speed over ratio Gzip: 89.8% / Brotli: 91.1% Low CPU usage, minimal latency
none No compression 0% (baseline: 12,673 bytes) None

Client HTTP headers

Compression is invoked by the client's Accept-Encoding header. Supported algorithms are Gzip and Brotli. The level setting configures the compression strategy when both the client and server support multiple algorithms.

Supported headers

HTTP Header Algorithm Used
Accept-Encoding: gzip Gzip
Accept-Encoding: br Brotli

Format

{
  "runtime": {
    "compression": {
      "level": <"optimal"> (default) | <"fastest"> | <"none">
    }
  }
}

Example

{
  "runtime": {
    "compression": {
      "level": "optimal"
    }
  }
}

Cache (runtime)

Parent Property Type Required Default
runtime cache object ❌ No -

Global Cache configuration.

Nested properties

Parent Property Type Required Default
runtime.cache enabled boolean ❌ No False
runtime.cache ttl-seconds integer ❌ No 5
runtime.cache level-2 object ❌ No -
Parent Property Type Required Default
runtime.cache.level-2 enabled boolean ❌ No False
runtime.cache.level-2 provider string ❌ No redis
runtime.cache.level-2 connection-string string ❌ No None
runtime.cache.level-2 partition string ❌ No None

Tip

The entity-level cache.ttl-seconds property defaults to this global value.

Tip

For end-to-end setup, cache-level behavior, and Redis examples, see Implement level 2 cache.

Format

{
  "runtime": {
    "cache":  {
      "enabled": <boolean>,
      "ttl-seconds": <integer>,
      "level-2": {
        "enabled": <boolean>,
        "provider": "redis",
        "connection-string": <string>,
        "partition": <string>
      }
    }
  }
}

Important

If global enabled is false, individual entity-level enabled doesn't matter.

When level-2.enabled is true, DAB uses the configured distributed cache provider in addition to local in-memory cache. An entity configured with cache level L1L2 checks local cache first, then distributed cache, before going to the database.

Telemetry (runtime)

Parent Property Type Required Default
runtime telemetry object ❌ No -

Global telemetry configuration.

Nested properties

Parent Property Type Required Default
runtime.telemetry log-level dictionary ❌ No None
runtime.telemetry application-insights object ❌ No -
runtime.telemetry open-telemetry object ❌ No -
runtime.telemetry azure-log-analytics object ❌ No -
runtime.telemetry file object ❌ No -

Configures logging verbosity per namespace. This configuration follows standard .NET logging conventions and allows granular control, though it assumes some familiarity with Data API builder internals. Data API builder is open source: https://aka.ms/dab

Format

{
  "runtime": {
    "telemetry": {
      "log-level": {
        "namespace": "log-level",
        "namespace": "log-level"
      }
    }
  }
}

Tip

log-level can be hot-reloaded in both development and production. It's currently the only property that supports hot reload in production.

Example

{
  "runtime": {
    "telemetry": {
      "log-level": {
        "Azure.DataApiBuilder.Core.Configurations.RuntimeConfigValidator": "debug",
        "Azure.DataApiBuilder.Core": "information",
        "default": "warning"
      }
    }
  }
}

Application Insights (telemetry)

Parent Property Type Required Default
runtime.telemetry application-insights object ❌ No -

Configures logging to Application Insights.

Nested properties

Parent Property Type Required Default
runtime.telemetry.application-insights enabled boolean ❌ No true
runtime.telemetry.application-insights connection-string string ✔️ Yes None

Format

{
  "runtime": {
    "telemetry": {
      "application-insights": {
        "enabled": <true; default: true> | <false>
        "connection-string": <string>
      }
    }
  }
}

OpenTelemetry (telemetry)

Parent Property Type Required Default
runtime.telemetry open-telemetry object ❌ No -

Configures logging to Open Telemetry.

Nested properties

Parent Property Type Required Default
runtime.telemetry.open-telemetry enabled boolean ❌ No true
runtime.telemetry.open-telemetry endpoint string ✔️ Yes None
runtime.telemetry.open-telemetry headers string ❌ No None
runtime.telemetry.open-telemetry service-name string ❌ No "dab"
runtime.telemetry.open-telemetry exporter-protocol enum (grpc | httpprotobuf) ❌ No grpc

Multiple headers are , (comma) separated.

Format

{
  "runtime": {
    "telemetry": {
      "open-telemetry": {
        "enabled": <true> (default) | <false>,
        "endpoint": <string>,
        "headers": <string>,
        "service-name": <string> (default: "dab"),
        "exporter-protocol": <"grpc" (default) | "httpprotobuf">
      }
    }
  }
}

Example

{
  "runtime": {
    "telemetry": {
      "open-telemetry": {
        "enabled": true,
        // a gRPC endpoint example
        "endpoint": "http://localhost:4317",
        // an HTTP/protobuf endpoint example
        "endpoint": "http://localhost:4318/v1/metrics",
        "headers": "api-key=key,other-config-value=value",
        "service-name": "dab",
      }
    }
  }
}

Learn more about OTEL_EXPORTER_OTLP_HEADERS.

Note

gRPC (4317) is faster and supports streaming but requires more setup steps. HTTP/protobuf (4318) is simpler and easier to debug but less efficient.

Azure Log Analytics (telemetry)

Parent Property Type Required Default
runtime.telemetry azure-log-analytics object ❌ No -

Configures logging to Azure Log Analytics via a data collection endpoint. When enabled, DAB sends telemetry data in batches at a configurable interval.

Note

The Data API builder 2.0 functionality described in this section is currently in preview and might change before general availability. For more information, see What's new in version 2.0.

Nested properties

Parent Property Type Required Default
runtime.telemetry.azure-log-analytics enabled boolean ❌ No false
runtime.telemetry.azure-log-analytics dab-identifier string ❌ No "DabLogs"
runtime.telemetry.azure-log-analytics flush-interval-seconds integer ❌ No 5
runtime.telemetry.azure-log-analytics auth object ✔️ Yes* -

* auth is required when enabled is true.

Parent Property Type Required Default
runtime.telemetry.azure-log-analytics.auth custom-table-name string ✔️ Yes* null
runtime.telemetry.azure-log-analytics.auth dcr-immutable-id string ✔️ Yes* null
runtime.telemetry.azure-log-analytics.auth dce-endpoint string ✔️ Yes* null

* Required when enabled is true.

  • dab-identifier—a label passed to Log Analytics to help differentiate which logs come from Data API builder.
  • flush-interval-seconds—the time interval (in seconds) between sending batches of telemetry data.
  • custom-table-name—the name of the custom table in Azure Log Analytics where data is stored.
  • dcr-immutable-id—the immutable ID of the data collection rule that defines how data is collected.
  • dce-endpoint—the data collection endpoint URL used to send telemetry data.

Format

{
  "runtime": {
    "telemetry": {
      "azure-log-analytics": {
        "enabled": <true> | <false> (default),
        "dab-identifier": <string> (default: "DabLogs"),
        "flush-interval-seconds": <integer> (default: 5),
        "auth": {
          "custom-table-name": "<string>",
          "dcr-immutable-id": "<string>",
          "dce-endpoint": "<string>"
        }
      }
    }
  }
}

Example

{
  "runtime": {
    "telemetry": {
      "azure-log-analytics": {
        "enabled": true,
        "dab-identifier": "MyDabInstance",
        "flush-interval-seconds": 10,
        "auth": {
          "custom-table-name": "DabTelemetry_CL",
          "dcr-immutable-id": "dcr-abc123def456",
          "dce-endpoint": "https://my-dce.eastus-1.ingest.monitor.azure.com"
        }
      }
    }
  }
}

File (telemetry)

Parent Property Type Required Default
runtime.telemetry file object ❌ No -

Configures writing telemetry logs to a local file. When enabled, DAB writes structured log output to the specified file path with configurable rolling intervals and size limits.

Note

The Data API builder 2.0 functionality described in this section is currently in preview and might change before general availability. For more information, see What's new in version 2.0.

Nested properties

Parent Property Type Required Default
runtime.telemetry.file enabled boolean ❌ No false
runtime.telemetry.file path string ✔️ Yes* "/logs/dab-log.txt"
runtime.telemetry.file rolling-interval enum ❌ No "Day"
runtime.telemetry.file retained-file-count-limit integer ❌ No 1
runtime.telemetry.file file-size-limit-bytes integer ❌ No 1048576

* path is required when enabled is true.

Rolling interval values

Value Description
Minute New log file every minute
Hour New log file every hour
Day New log file every day (default)
Month New log file every month
Year New log file every year
Infinite Never roll to a new file

Format

{
  "runtime": {
    "telemetry": {
      "file": {
        "enabled": <true> | <false> (default),
        "path": <string> (default: "/logs/dab-log.txt"),
        "rolling-interval": <"Day"> (default) | <"Minute"> | <"Hour"> | <"Month"> | <"Year"> | <"Infinite">,
        "retained-file-count-limit": <integer> (default: 1),
        "file-size-limit-bytes": <integer> (default: 1048576)
      }
    }
  }
}

Example

{
  "runtime": {
    "telemetry": {
      "file": {
        "enabled": true,
        "path": "/var/log/dab/dab-telemetry.txt",
        "rolling-interval": "Hour",
        "retained-file-count-limit": 24,
        "file-size-limit-bytes": 5242880
      }
    }
  }
}

MCP (runtime)

Parent Property Type Required Default
runtime mcp object ❌ No -

Configures the SQL Model Context Protocol (MCP) Server, which exposes database entities as MCP tools for AI agents.

Note

The Data API builder 2.0 functionality described in this section is currently in preview and might change before general availability. For more information, see What's new in version 2.0.

Nested properties

Parent Property Type Required Default
runtime.mcp enabled boolean ❌ No true
runtime.mcp path string ❌ No "/mcp"
runtime.mcp description string ❌ No null
runtime.mcp dml-tools boolean or object ❌ No true

The dml-tools property accepts a boolean to enable or disable all tools, or an object to control individual tools:

Parent Property Type Required Default
runtime.mcp.dml-tools describe-entities boolean ❌ No true
runtime.mcp.dml-tools create-record boolean ❌ No true
runtime.mcp.dml-tools read-records boolean ❌ No true
runtime.mcp.dml-tools update-record boolean ❌ No true
runtime.mcp.dml-tools delete-record boolean ❌ No true
runtime.mcp.dml-tools execute-entity boolean ❌ No true
runtime.mcp.dml-tools aggregate-records boolean or object ❌ No true

The aggregate-records tool accepts a boolean or an object with more settings:

Parent Property Type Required Default Range
runtime.mcp.dml-tools.aggregate-records enabled boolean ❌ No true
runtime.mcp.dml-tools.aggregate-records query-timeout integer ❌ No 30 1–600 seconds

Format

{
  "runtime": {
    "mcp": {
      "enabled": <true> (default) | <false>,
      "path": <string> (default: "/mcp"),
      "description": <string>,
      "dml-tools": {
        "describe-entities": <true> | <false>,
        "create-record": <true> | <false>,
        "read-records": <true> | <false>,
        "update-record": <true> | <false>,
        "delete-record": <true> | <false>,
        "execute-entity": <true> | <false>,
        "aggregate-records": {
          "enabled": <true> | <false>,
          "query-timeout": <integer; default: 30>
        }
      }
    }
  }
}

Example

{
  "runtime": {
    "mcp": {
      "enabled": true,
      "dml-tools": {
        "describe-entities": true,
        "create-record": true,
        "read-records": true,
        "update-record": true,
        "delete-record": true,
        "execute-entity": true,
        "aggregate-records": {
          "enabled": true,
          "query-timeout": 30
        }
      }
    }
  }
}

To enable or disable all DML tools at once, set "dml-tools" to true or false.

When you disable a tool at the runtime level, the tool never appears in the MCP tools/list response and can't be invoked, regardless of entity-level permissions. For more information on individual DML tools, see Data manipulation language (DML) tools.

Using the CLI

dab configure --runtime.mcp.enabled true
dab configure --runtime.mcp.path "/mcp"
dab configure --runtime.mcp.dml-tools.describe-entities true
dab configure --runtime.mcp.dml-tools.create-record true
dab configure --runtime.mcp.dml-tools.read-records true
dab configure --runtime.mcp.dml-tools.update-record true
dab configure --runtime.mcp.dml-tools.delete-record true
dab configure --runtime.mcp.dml-tools.execute-entity true
dab configure --runtime.mcp.dml-tools.aggregate-records.enabled true

Health (runtime)

Parent Property Type Required Default
runtime health object ❌ No -

Global health check endpoint (/health) configuration.

Nested properties

Parent Property Type Required Default Range/Notes
runtime.health enabled boolean ❌ No true
runtime.health roles string array ✔️ Yes* null *Required in production mode
runtime.health cache-ttl-seconds integer ❌ No 5 Min: 0
runtime.health max-query-parallelism integer ❌ No 4 Min: One, Max: Eight (clamped)

Behavior in development vs. production

Condition Development Behavior Production Behavior
health.enabled = false 403 status 403 status
health.enabled = true Depends on role Depends on role
roles omitted or null Health displayed 403 status
current role not in roles 403 status 403 status
current role in roles Health displayed Health displayed
roles includes anonymous Health displayed Health displayed

Format

{
  "health": {
    "enabled": <true> (default) | <false>,
    "roles": [ <string> ], // required in production
    "cache-ttl-seconds": <integer; default: 5>,
    "max-query-parallelism": <integer; default: 4>
  }
}

Note

If global enabled is false, individual entity-level enabled doesn't matter.

Example

{
  "health": {
    "enabled": true,
    "roles": ["admin", "support"],
    "cache-ttl-seconds": 10,
    "max-query-parallelism": 6
  }
}
  • Last updated on
