Tutorial: Microsoft Entra integration with BitaBIZ

  • Alt

In this tutorial, you'll learn how to integrate BitaBIZ with Microsoft Entra ID. When you integrate BitaBIZ with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to BitaBIZ.
  • Enable your users to be automatically signed-in to BitaBIZ with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To configure Microsoft Entra integration with BitaBIZ, you need the following items:

  • A Microsoft Entra subscription. If you don't have a Microsoft Entra environment, you can get a free account.
  • BitaBIZ single sign-on enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra single sign-on in a test environment.

To configure the integration of BitaBIZ into Microsoft Entra ID, you need to add BitaBIZ from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type BitaBIZ in the search box.
  4. Select BitaBIZ from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for BitaBIZ

Configure and test Microsoft Entra SSO with BitaBIZ using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in BitaBIZ.

To configure and test Microsoft Entra SSO with BitaBIZ, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with Britta Simon.
    2. Assign the Microsoft Entra test user - to enable Britta Simon to use Microsoft Entra single sign-on.
  2. Configure BitaBIZ SSO - to configure the Single Sign-On settings on application side.
    1. Create BitaBIZ test user - to have a counterpart of Britta Simon in BitaBIZ that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > BitaBIZ > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode perform the following steps:

    In the Identifier text box, type a URL using the following pattern: https://www.bitabiz.com/<INSTANCE_ID>

    Note

    The value in the above URL is for demonstration only. Update the value with the actual identifier, which is explained later in the tutorial.

  6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://www.bitabiz.com/dashboard

  7. On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Certificate (Base64) from the given options as per your requirement and save it on your computer.

    The Certificate download link

  8. On the Set up BitaBIZ section, copy the appropriate URL(s) as per your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to BitaBIZ.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > BitaBIZ.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure BitaBIZ SSO

  1. In a different web browser window, sign-on to your BitaBIZ tenant as an administrator.

  2. Click on SETUP ADMIN.

    Screenshot shows part of a browser window with Setup Admin selected.

  3. Click on Microsoft integrations under Add value section.

  4. Scroll down to the section Microsoft Entra ID (Enable single sign on) and enter the appropriate values in the provided fields:

    a. Copy the value from the Entity ID (”Identifier” in Microsoft Entra ID) textbox and paste it into the Identifier textbox on the Basic SAML Configuration section in Azure portal.

    b. In the Microsoft Entra Single Sign-On Service URL textbox, paste Login URL.

    c. In the Microsoft Entra SAML Entity ID textbox, paste Microsoft Entra Identifier.

    d. Open your downloaded Certificate(Base64) file in notepad, copy the content of it into your clipboard, and then paste it to the Microsoft Entra ID Signing Certificate (Base64 encoded) textbox.

    e. Add your business e-mail domain name that is, mycompany.com in Domain name textbox to assign SSO to the users in your company with this email domain (NOT MANDATORY).

    f. Mark SSO enabled the BitaBIZ account.

    g. Click Save Microsoft Entra configuration to save and activate the SSO configuration.

Create BitaBIZ test user

To enable Microsoft Entra users to log in to BitaBIZ, they must be provisioned into BitaBIZ.
In the case of BitaBIZ, provisioning is a manual task.

To provision a user account, perform the following steps:

  1. Log in to your BitaBIZ company site as an administrator.

  2. Click on SETUP ADMIN.

    Screenshot shows part of your browser window with Setup Admin selected.

  3. Click on Add users under Organization section.

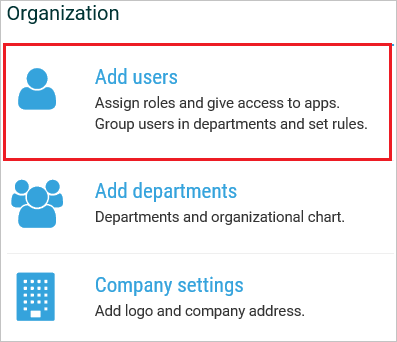

    Screenshot shows the Organization section with Add users selected.

  4. Click Add new employee.

    Screenshot shows Add users with Add new employee selected.

  5. On the Add new employee dialog page, perform the following steps:

    Screenshot shows the page where you enter the information described in this step.

    a. In the First Name textbox, type the first name of user like Britta.

    b. In the Last Name textbox, type the last name of user like Simon.

    c. In the Email textbox, type the email address of user like Brittasimon@contoso.com.

    d. Select a date in Date of employment.

    e. There are other non-mandatory user attributes which can be set up for the user. Please refer the Employee Setup Doc for more details.

    f. Click Save employee.

    Note

    The Microsoft Entra account holder receives an email and follows a link to confirm their account before it becomes active.

Note

BitaBIZ also supports automatic user provisioning, you can find more details here on how to configure automatic user provisioning.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to BitaBIZ Sign on URL where you can initiate the login flow.

  • Go to BitaBIZ Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the BitaBIZ for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the BitaBIZ tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the BitaBIZ for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure BitaBIZ you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
