Add scale unit nodes in Azure Stack Hub
You can increase the overall capacity of an existing scale unit by adding another physical computer. The physical computer is also referred to as a scale unit node. Each new node must have the same CPU type, memory, disk number, and size as the nodes already present in the scale unit. Azure Stack Hub doesn't support removing scale unit nodes for scaling down because of architectural limitations. It's only possible to expand capacity by adding nodes. The maximum size of a scale unit is 4-16 nodes.
Overview
To add a scale unit node, you'll need administrator privileges to access to your Azure Stack Hub instance, and tools from your hardware equipment manufacturer (OEM). The OEM tool runs on the hardware lifecycle host (HLH) to make sure the new physical computer matches the same firmware level as existing nodes.
Warning
Azure Stack Hub requires that the configuration of all servers in the solution have the same configuration, including for example CPU (model, cores), memory quantity, NIC and link speeds, and storage devices. Azure Stack Hub does not support a change in CPU models during hardware replacement or when adding a scale unit node. A change in CPU, such as an upgrade, will require uniform CPUs in each scale unit node and a redeployment of Azure Stack Hub.
The following flow diagram shows the general process to add a scale unit node:
Whether your OEM hardware vendor enacts the physical server rack placement and updates the firmware varies based on your support contract.
Consider the following limitations when you add a new node:
- The operation to add another scale unit node includes two distinct phases: compute and storage.
- During the compute expansion phase, your Azure Stack Hub shows an Expanding state. After the compute expansion completes, and the storage expansion is running, the stamp shows a state of Configuring Storage.
Let your Azure Stack Hub return to the Running state before adding another node. This means when adding multiple nodes you must add a node and wait for the state to return to Running before adding the next node.
Important
The storage expansion phase can run up to multiple days before completion, as spaces are rebalanced in a pool to disks with capacity. There isn't an impact to running workloads on the system while another scale unit node is added.
Warning
Do not attempt any of the following operations while an add scale unit node operation is already in progress:
- Update Azure Stack Hub
- Rotate certificates
- Stop Azure Stack Hub
- Repair scale unit node
- Add another node (the previous add-node action failure is also considered in progress)
Add scale unit nodes
The following steps are a high-level overview of how to add a node. Don't follow these steps without first referring to your OEM-provided capacity expansion documentation:
Make sure the new node is configured with the baseboard management controller (BMC) credentials that are already configured within Azure Stack Hub. For instructions on updating the BMC credentials in Azure Stack Hub, refer to Update the BMC credential.
Place the new physical server in the rack and cable it appropriately.
Enable physical switch ports and adjust access control lists (ACLs) if applicable.
Configure the correct IP address in the BMC and apply all BIOS settings per your OEM-provided documentation.
Apply the current firmware baseline to all components by using the tools that are provided by the hardware manufacturer that run on the HLH.
Run the add node operation. You can use the Administrator portal or PowerShell to add new nodes. The add node operation first adds the new scale unit node as available compute capacity and then automatically extends the storage capacity. The capacity expands automatically because Azure Stack Hub is a hyperconverged system where compute and storage scale together.
- Sign in to the Azure Stack Hub administrator portal as an Azure Stack Hub operator.

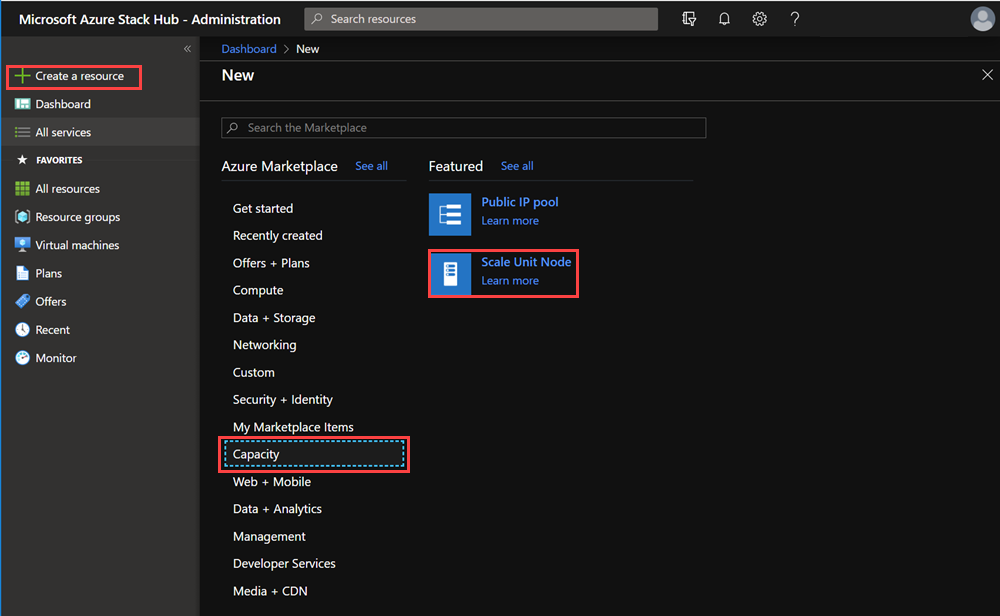

- Navigate to + Create a resource > Capacity > Scale Unit Node.

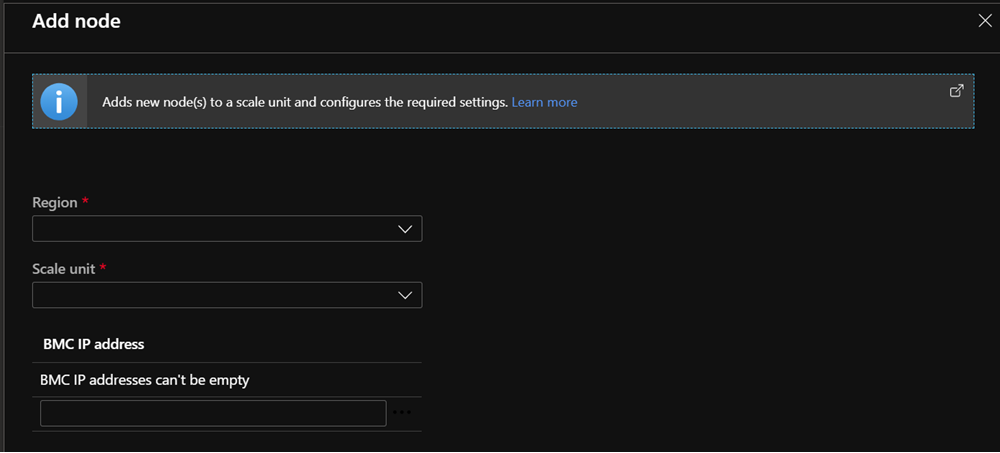

- On the Add node pane, select the Region, and then select the Scale unit that you want to add the node to. Also specify the BMC IP ADDRESS for the scale unit node you're adding. You can only add one node at a time.
- Verify whether the add node operation succeeded by checking the status, which should be Running. See the following Status for the add node operation section for more details.
Monitor add node operations
Use the administrator portal or PowerShell to get the status of the add node operation. Add node operations can take several hours to days to complete.
Use the administrator portal
To monitor the addition of a new node, review the scale unit or scale unit node objects in the administrator portal. To do so, go to Region management > Scale units. Next, select the scale unit or scale unit node you want to review.
Use PowerShell
You can retrieve the status for scale unit and scale unit nodes using PowerShell, as follows:
#Retrieve Status for the scale unit
Get-AzsScaleUnit|select name,state
#Retrieve Status for each scale unit node
Get-AzsScaleUnitNode |Select Name, ScaleUnitNodeStatus
Status for the add node operation
To validate that the add node operation succeeded, check the Status of the Scale Unit.
For a scale unit:
| Status | Description |
|---|---|
| Running | All nodes are actively participating in the scale unit. |
| Stopped | The scale unit node is either down or unreachable. |
| Expanding | One or more scale unit nodes are currently being added as compute capacity. |
| Configuring Storage | The compute capacity has been expanded and the storage configuration is running. |
| Requires Remediation | An error has been detected that requires one or more scale unit nodes to be repaired. |
For a scale unit node:
| Status | Description |
|---|---|
| Running | The node is actively participating in the scale unit. |
| Stopped | The node is unavailable. |
| Adding | The node is actively being added to the scale unit. |
| Repairing | The node is actively being repaired. |
| Maintenance | The node is paused, and no active user workload is running. |
| Requires Remediation | An error has been detected that requires the node to be repaired. |
Troubleshooting
The following section describes common issues that can occur when adding a node.
Scenario 1: the add scale unit node operation fails but one or more of the nodes are listed with a status of Stopped
Remediation: Use the regular operation to repair one or more nodes. Only a single repair operation can be run at one time.
Scenario 2: one or more scale unit nodes were added but the storage expansion failed
In this scenario, the scale unit node object reports a status of Running but the Configuring Storage task isn't started.
Remediation: Use the privileged endpoint to review the storage health by running the following PowerShell cmdlet:
Get-VirtualDisk -CimSession s-Cluster | Get-StorageJob
Scenario 3: you received an alert that indicates the storage scale-out job failed
Remediation: In this case, the storage configuration task failed. This problem requires you to contact support.
