Configure VPN on your Azure Stack Edge Mini R device via Azure PowerShell

  • आलेख

The VPN option provides a second layer of encryption for the data-in-motion over TLS from your Azure Stack Edge Mini R or Azure Stack Edge Pro R device to Azure. You can configure VPN on your Azure Stack Edge Mini R device via the Azure portal or via the Azure PowerShell.

This article describes the steps required to configure a Point-to-Site (P2S) VPN on your Azure Stack Edge Mini R device using an Azure PowerShell script to create the configuration in the cloud. The configuration on the Azure Stack Edge device is done via the local UI.

About VPN setup

A P2S VPN gateway connection lets you create a secure connection to your virtual network from an individual client computer or your Azure Stack Edge Mini R device. You start the P2S connection from the client computer or the device. The P2S connection in this case uses IKEv2 VPN, a standards-based IPsec VPN solution.

The typical work flow includes the following steps:

  1. Configure prerequisites.
  2. Set up necessary resources on Azure.
    1. Create and configure a virtual network and required subnets.
    2. Create and configure an Azure VPN gateway (virtual network gateway).
    3. Set up Azure Firewall and add network and app rules.
    4. Create Azure Routing Tables and add routes.
    5. Enable Point-to-site in VPN gateway.
      1. Add the client address pool.
      2. Configure tunnel type.
      3. Configure authentication type.
      4. Create certificate.
      5. Upload certificate.
    6. Download phone book.
  3. Set up VPN in the local web UI of the device.
    1. Provide phone book.
    2. Provide Service tags (json) file.

The detailed steps are provided in the following sections.

Configure prerequisites

  • You should have access to an Azure Stack Edge Mini R device that is installed as per the instructions in Install your Azure Stack Edge Mini R device. This device will be establishing a P2S connection with Azure.

  • You should have access to a valid Azure Subscription that is enabled for Azure Stack Edge service in Azure. Use this subscription to create a corresponding resource in Azure to manage your Azure Stack Edge Mini R device.

  • You have access to a Windows client that you'll use to access your Azure Stack Edge Mini R device. You'll use this client to programmatically create the configuration in the cloud.

    1. To install the required version of PowerShell on your Windows client, run the following commands:

      Install-Module -Name Az -AllowClobber -Scope CurrentUser
Import-Module Az.Accounts

    2. To connect to your Azure account and subscription, run the following commands:

      Connect-AzAccount
Set-AzContext -Subscription "<Your subscription name>"

      Provide the Azure subscription name you are using with your Azure Stack Edge Mini R device to configure VPN.

    3. Download the script required to create configuration in the cloud. The script will:

      • Create an Azure Virtual network and the following subnets: GatewaySubnet, and AzureFirewallSubnet.
      • Create and configure an Azure VPN gateway.
      • Create and configure an Azure local network gateway.
      • Create and configure an Azure VPN connection between the Azure VPN gateway and the local network gateway.
      • Create an Azure Firewall and add network rules, app rules.
      • Create an Azure Routing table and add routes to it.

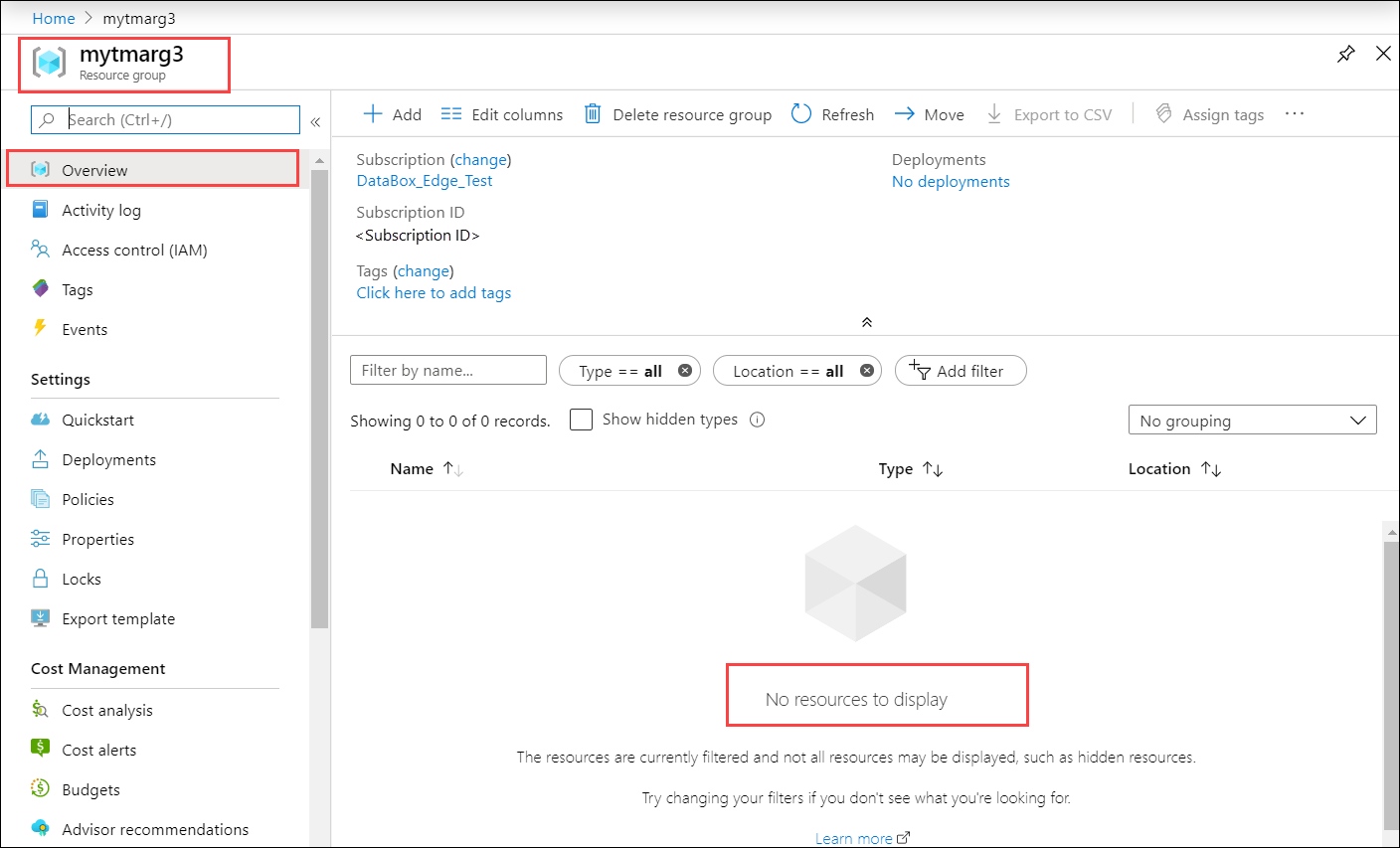

    4. Create the resource group in the Azure portal under which you want the Azure resources to be created. Go to the list of services in Azure portal, select Resource group and then select + Add. Provide the subscription information and the name for your resource group and then select Create. If you go to this resource group, it should not have any resources under it at this time.

      Azure resource group

    5. You will need to have a Base 64 encoded certificate in .cer format for your Azure Stack Edge Mini R device. This certificate should be uploaded to your Azure Stack Edge device as pfx with a private key. This certificate also needs to be installed in the trusted root of the store on the client that is trying to establish the P2S connection.

Use the script

First you modify the parameters-p2s.json file to input your parameters. Next, you run the script using the modified json file.

Each of these steps is discussed in the following sections.

Download service tags file

You may already have a ServiceTags.json file in the folder where you downloaded the script. If not, you can download the service tags file.

Download the service tags from the Azure to your local client and save as a json file in the same folder that contains the scripts: https://www.microsoft.com/download/details.aspx?id=56519.

This file is uploaded in the local web UI at a later step.

Modify parameters file

The first step would be to modify the parameters-p2s.json file and save the changes.

For the Azure resources that you create, you'll provide the following names:

Parameter name Description
virtualNetworks_vnet_name Azure Virtual Network name
azureFirewalls_firewall_name Azure Firewall name
routeTables_routetable_name Azure Route table name
publicIPAddresses_VNGW_public_ip_name Public IP address name for your Virtual network gateway
virtualNetworkGateways_VNGW_name Azure VPN gateway (virtual network gateway) name
publicIPAddresses_firewall_public_ip_name Public IP address name for your Azure Firewall
location This is the region in which you want to create your virtual network. Select the same region as the one associated with your device.
RouteTables_routetable_onprem_name This is the name of the additional route table to help the firewall route packets back to Azure Stack Edge device. The script creates two additional routes and associates default and FirewallSubnet with this route table.

Provide the following IP addresses and address spaces for the Azure resources that are created including the virtual network and associated subnets (default, firewall, GatewaySubnet).

Parameter name Description
VnetIPv4AddressSpace This is the address space associated with your virtual network. Provide Vnet IP range as private IP range (https://en.wikipedia.org/wiki/Private_network#Private_IPv4_addresses).
DefaultSubnetIPv4AddressSpace This is the address space associated with the Default subnet for your virtual network.
FirewallSubnetIPv4AddressSpace This is the address space associated with the Firewall subnet for your virtual network.
GatewaySubnetIPv4AddressSpace This is the address space associated with the GatewaySubnet for your virtual network.
GatewaySubnetIPv4bgpPeeringAddress This is the IP address that is reserved for BGP communication and is based off the address space associated with the GatewaySubnet for your virtual network.
ClientAddressPool This IP address is used for the address pool in the P2S configuration in Azure portal.
PublicCertData Public certificate data is used by the VPN Gateway to authenticate P2S clients connecting to it. To get the certificate data, install the root certificate. Make sure the certificate is Base-64 encoded with a .cer extension. Open this certificate and copy the text in the certificate between ==BEGIN CERTIFICATE== and ==END CERTIFICATE== in one continuous line.

Run the script

Follow these steps to use the modified parameters-p2s.json and run the script to create Azure resources.

  1. Run PowerShell. Switch to the directory where the script is located.

  2. Run the script.

    .\AzDeployVpn.ps1 -Location <Location> -AzureAppRuleFilePath "appRule.json" -AzureIPRangesFilePath "<Service tag json file>" -ResourceGroupName "<Resource group name>" -AzureDeploymentName "<Deployment name>" -NetworkRuleCollectionName "<Name for collection of network rules>" -Priority 115 -AppRuleCollectionName "<Name for collection of app rules>"

    Note

    In this release, the script works in East US location only.

    You will need to input the following information when you run the script:

    Parameter Description
    Location This is the region in which the Azure resources must be created.
    AzureAppRuleFilePath This is the file path for appRule.json.
    AzureIPRangesFilePath This is the Service Tag json file that you downloaded in the earlier step.
    ResourceGroupName This is the name of the resource group under which all the Azure resources are created.
    AzureDeploymentName This is the name for your Azure deployment.
    NetworkRuleCollectionName This is the name for the collection of all the network rules that are created and add to your Azure Firewall.
    Priority This is the priority assigned to all the network and application rules that are created.
    AppRuleCollectionName This is the name for the collection of all the application rules that are created and added to your Azure Firewall.

    A sample output is shown below.

    PS C:\Offline docs\AzureVpnConfigurationScripts> .\AzDeployVpn.ps1 -Location eastus -AzureAppRuleFilePath "appRule.json" -AzureIPRangesFilePath ".\ServiceTags_Public_20200203.json" -ResourceGroupName "mytmarg3" -AzureDeploymentName "tmap2stestdeploy1" -NetworkRuleCollectionName "testnrc1" -Priority 115 -AppRuleCollectionName "testarc2"
    validating vpn deployment parameters
    Starting vpn deployment
    C:\Offline docs\AzureVpnConfigurationScripts\parameters-p2s.json
    C:\Offline docs\AzureVpnConfigurationScripts\template-p2s.json
    vpn deployment: tmap2stestdeploy1 started and status: Running
    Waiting for vpn deployment completion....
    ==== CUT ==================== CUT ==============
    Adding route 191.236.0.0/18 for AzureCloud.eastus
    Adding route 191.237.0.0/17 for AzureCloud.eastus
    Adding route 191.238.0.0/18 for AzureCloud.eastus
    Total Routes:294, Existing Routes: 74, New Routes Added: 220
    Additional routes getting added

    Important

    • The script takes approximately 90 minutes to run. Make sure to sign into your network right before the script starts.
    • If for any reason there is a failed session with the script, make sure to delete the resource group to delete all the resources created under it.

    After the script is complete, a deployment log is generated in the same folder where the script resides.

Verify the Azure resources

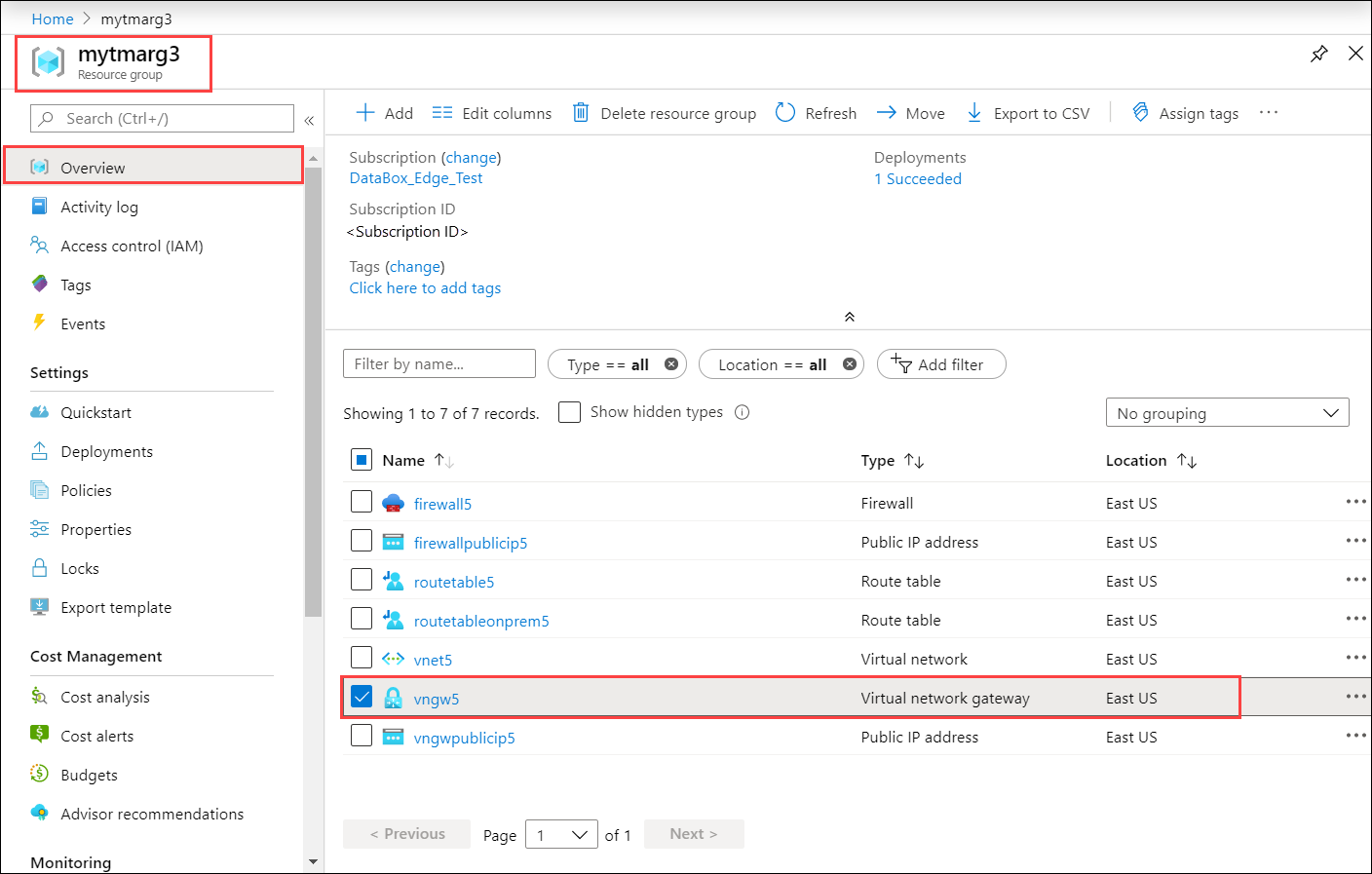

After you've successfully run the script, verify that all the resources were created in Azure. Go to the resource group that you created. You should see the following resources:

Azure resources

Download phone book for VPN profile

In this step, you will download the VPN profile for your device.

  1. In the Azure portal, go to the resource group and then select the virtual network gateway that you created in the earlier step.

    Azure virtual network gateway

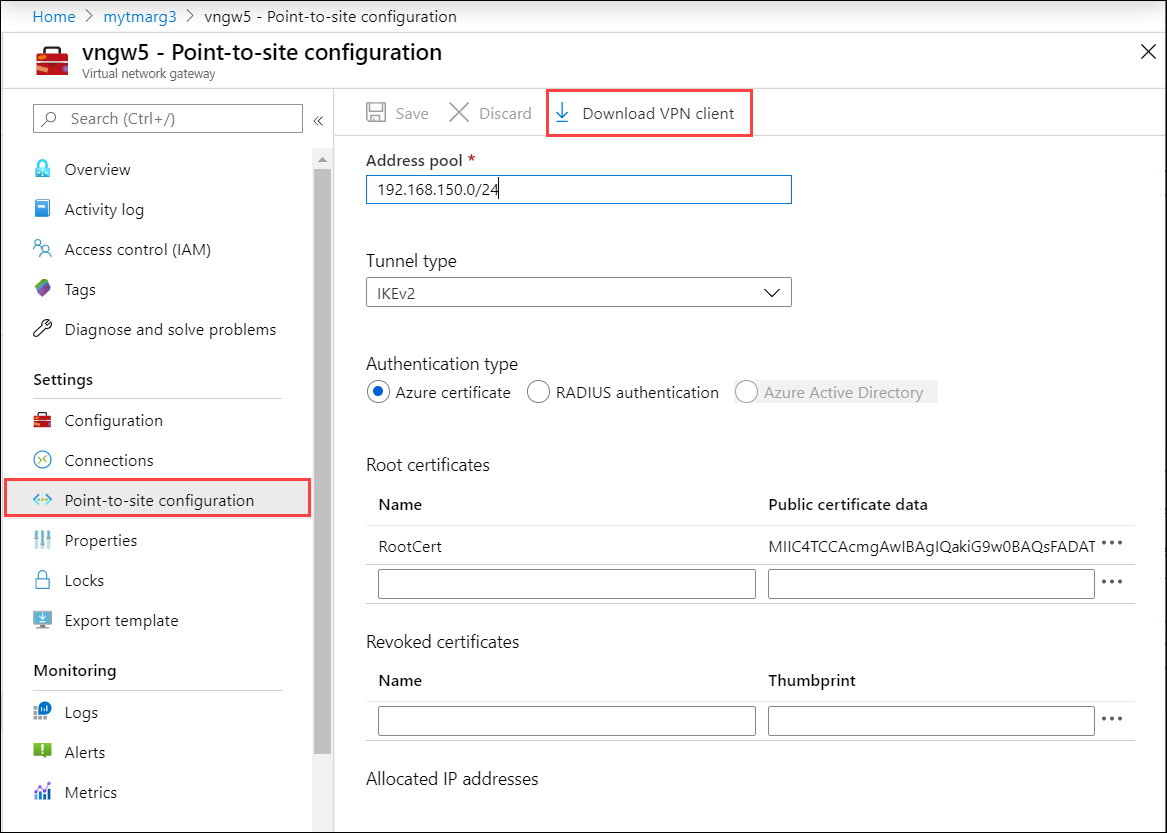

  2. Go to Settings > Point-to-site configuration. Select Download VPN client.

    Enable P2S configuration 1

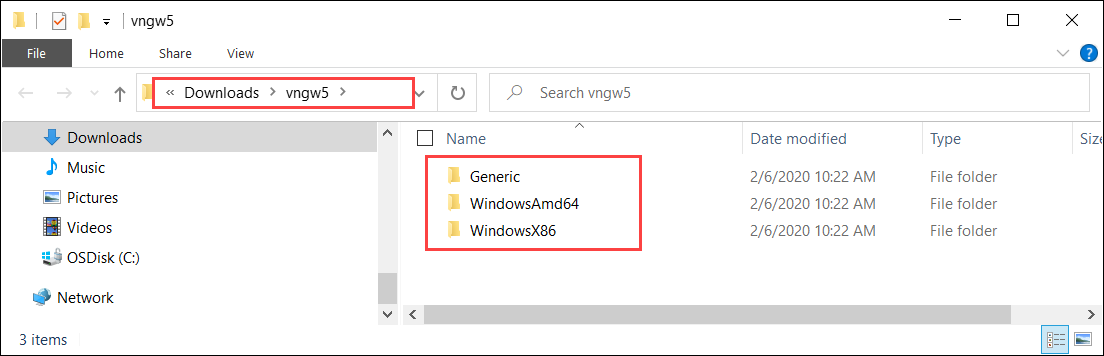

  3. Save the zipped profile and extract on your Windows client.

    Enable P2S configuration 2

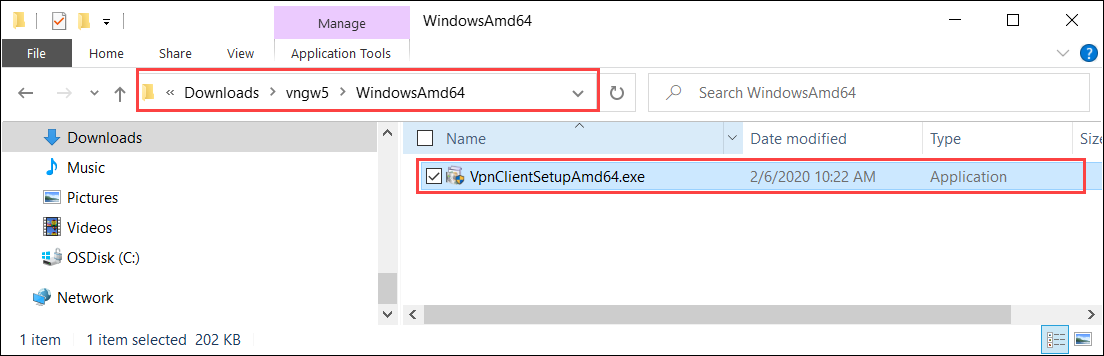

  4. Go to WindowsAmd64 folder and then extract the .exe: VpnClientSetupAmd64.exe.

    Enable P2S configuration 3

  5. Create a temporary path. For example:

    C:\NewTemp\vnet\tmp

  6. Run PowerShell and go to the directory where the .exe is located. To execute the .exe, type:

    .\VpnClientSetupAmd64.exe /Q /C /T:"C:\NewTemp\vnet\tmp"

  7. The temporary path will have new files. Here is a sample output:


PS C:\windows\system32> cd "C:\Users\Ase\Downloads\vngw5\WindowsAmd64"
PS C:\Users\Ase\Downloads\vngw5\WindowsAmd64> .\VpnClientSetupAmd64.exe /Q /C /T:"C:\NewTemp\vnet\tmp"
PS C:\Users\Ase\Downloads\vngw5\WindowsAmd64> cd "C:\NewTemp\vnet"
PS C:\NewTemp\vnet> ls .\tmp

    Directory: C:\NewTemp\vnet\tmp

Mode                LastWriteTime         Length Name
----                -------------         ------ ----
-a----         2/6/2020   6:18 PM            947 8c670077-470b-421a-8dd8-8cedb4f2f08a.cer
-a----         2/6/2020   6:18 PM            155 8c670077-470b-421a-8dd8-8cedb4f2f08a.cmp
-a----         2/6/2020   6:18 PM           3564 8c670077-470b-421a-8dd8-8cedb4f2f08a.cms
-a----         2/6/2020   6:18 PM          11535 8c670077-470b-421a-8dd8-8cedb4f2f08a.inf
-a----         2/6/2020   6:18 PM           2285 8c670077-470b-421a-8dd8-8cedb4f2f08a.pbk
-a----         2/6/2020   6:18 PM           5430 azurebox16.ico
-a----         2/6/2020   6:18 PM           4286 azurebox32.ico
-a----         2/6/2020   6:18 PM         138934 azurevpnbanner.bmp
-a----         2/6/2020   6:18 PM          46064 cmroute.dll
-a----         2/6/2020   6:18 PM            196 routes.txt

PS C:\NewTemp\vnet>

  8. The .pbk file is the phone book for the VPN profile. You will use this in the local UI.

VPN configuration on the device

Follow these steps on the local UI of your Azure Stack Edge device.

  1. In the local UI, go to VPN page. Under VPN state, select Configure.

    Configure VPN 1

  2. In the Configure VPN blade:

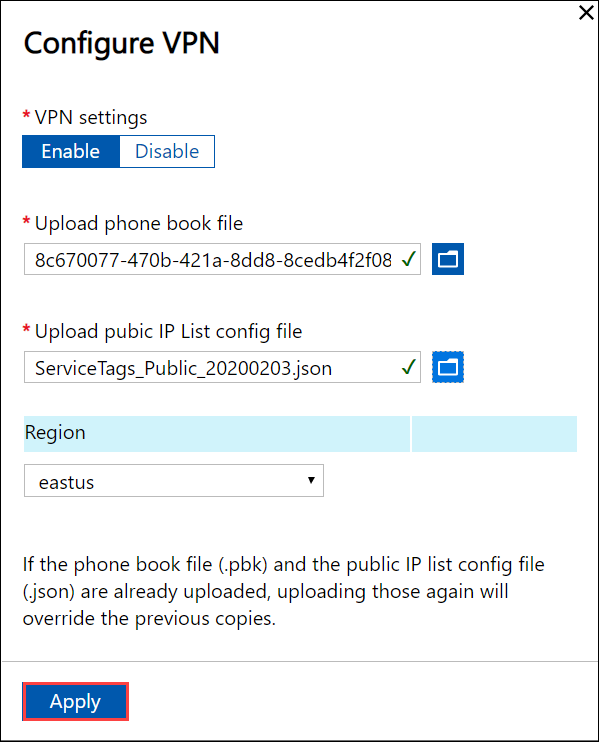

    1. In the Upload phone book file, point to the .pbk file that you created in the earlier step.
    2. In the Upload public IP list config file, provide Azure Data Center IP range JSON file as input. You downloaded this file in an earlier step from: https://www.microsoft.com/download/details.aspx?id=56519.
    3. Select eastus as the region and select Apply.

    Configure VPN 2

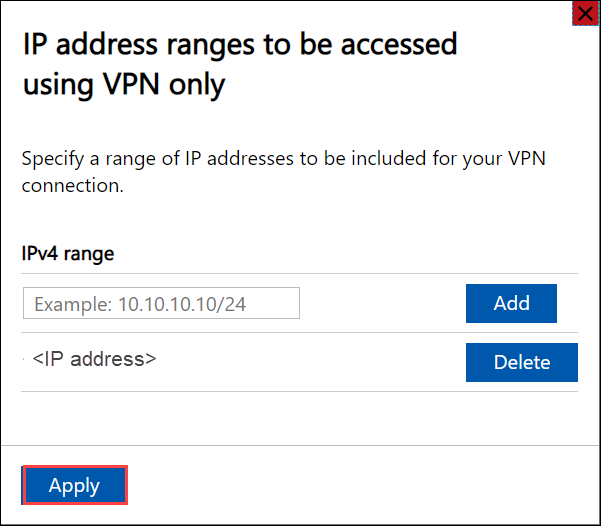

  3. In the IP address ranges to be accessed using VPN only section, enter the Vnet IPv4 range that you had chosen for your Azure Virtual Network.

    Configure VPN 3

Verify client connection

  1. In the Azure portal, go to the VPN gateway.
  2. Go to Settings > Point-to-site configuration. Under Allocated IP addresses, the IP address of your Azure Stack Edge device should show up.

Validate data transfer through VPN

To confirm that VPN is working, copy data to an SMB share. Follow the steps in Add a share on your Azure Stack Edge device.

  1. Copy a file, for example \data\pictures\waterfall.jpg to the SMB share that you mounted on your client system.

  2. To validate that the data is going through VPN, while the data is being copied:

    1. Go to the VPN gateway in the Azure portal.

    2. Go to Monitoring > Metrics.

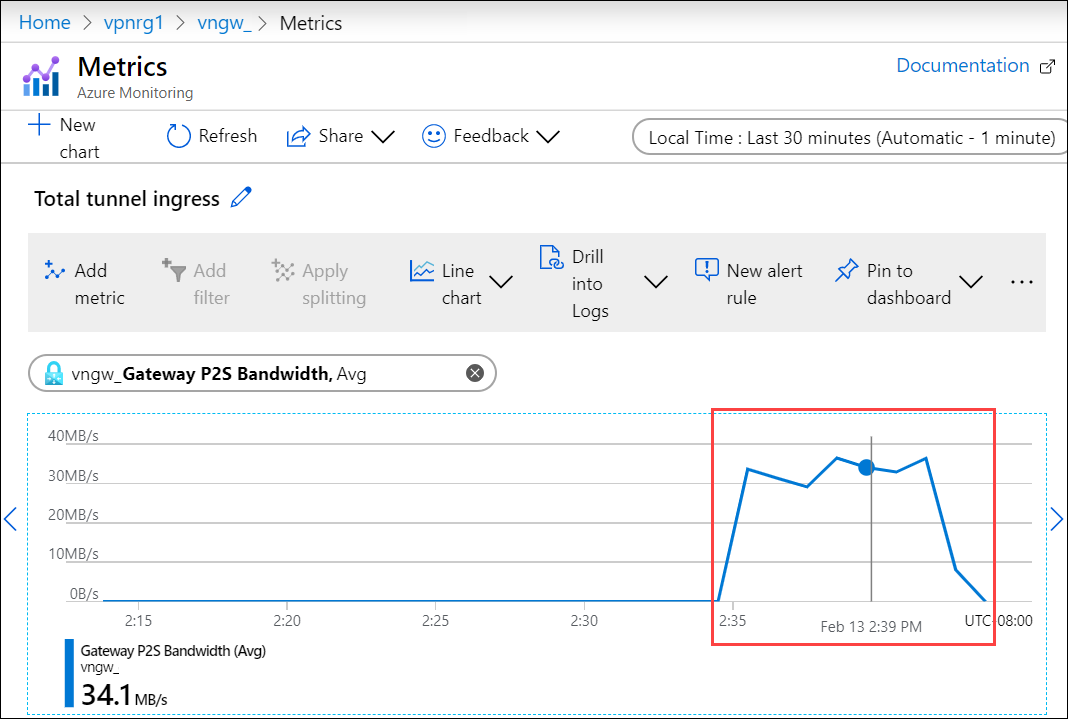

    3. In the right-pane, choose the Scope as your VPN gateway, Metric as Gateway P2S bandwidth, and Aggregation as Avg.

    4. As the data is being copied, you will see an increase in the bandwidth utilization and when the data copy is complete, the bandwidth utilization will drop.

      Azure vpn metrics

  3. Verify that this file shows up in your storage account on the cloud.

Debug issues

To debug any issues, use the following commands:

Get-AzResourceGroupDeployment -DeploymentName $deploymentName -ResourceGroupName $ResourceGroupName

The sample output is shown below:

PS C:\Projects\TZL\VPN\Azure-VpnDeployment> Get-AzResourceGroupDeployment -DeploymentName "tznvpnrg14_deployment" -ResourceGroupName "tznvpnrg14"


DeploymentName          : tznvpnrg14_deployment
ResourceGroupName       : tznvpnrg14
ProvisioningState       : Succeeded
Timestamp               : 1/21/2020 6:23:13 PM
Mode                    : Incremental
TemplateLink            :
Parameters              :
                          Name                                         Type                       Value
                          ===========================================  =========================  ==========
                          virtualNetworks_vnet_name                    String                     tznvpnrg14_vnet
                          azureFirewalls_firewall_name                 String                     tznvpnrg14_firewall
                          routeTables_routetable_name                  String                     tznvpnrg14_routetable
                          publicIPAddresses_VNGW_public_ip_name        String                     tznvpnrg14_vngwpublicip
                          virtualNetworkGateways_VNGW_name             String                     tznvpnrg14_vngw
                          publicIPAddresses_firewall_public_ip_name    String                     tznvpnrg14_fwpip
                          localNetworkGateways_LNGW_name               String                     tznvpnrg14_lngw
                          connections_vngw_lngw_name                   String                     tznvpnrg14_connection
                          location                                     String                     East US
                          vnetIPv4AddressSpace                         String                     172.24.0.0/16
                          defaultSubnetIPv4AddressSpace                String                     172.24.0.0/24
                          firewallSubnetIPv4AddressSpace               String                     172.24.1.0/24
                          gatewaySubnetIPv4AddressSpace                String                     172.24.2.0/24
                          gatewaySubnetIPv4bgpPeeringAddress           String                     172.24.2.254
                          customerNetworkAddressSpace                  String                     10.0.0.0/18
                          customerPublicNetworkAddressSpace            String                     207.68.128.0/24
                          dbeIOTNetworkAddressSpace                    String                     10.139.218.0/24
                          azureVPNsharedKey                            String                     1234567890
                          dbE-Gateway-ipaddress                        String                     207.68.128.113

Outputs                 :
                          Name                     Type                       Value
                          =======================  =========================  ==========
                          virtualNetwork           Object                     {
                            "provisioningState": "Succeeded",
                            "resourceGuid": "dcf673d3-5c73-4764-b077-77125eda1303",
                            "addressSpace": {
                              "addressPrefixes": [
                                "172.24.0.0/16"
                              ]
================= CUT ============================= CUT ===========================

Get-AzResourceGroupDeploymentOperation -ResourceGroupName $ResourceGroupName -DeploymentName $AzureDeploymentName

Next steps

Configure VPN via the local UI on your Azure Stack Edge device.
