TickBarPlacement Enum

Reference

Definition

Namespace:: System.Windows.Controls.Primitives

Assembly:: PresentationFramework.dll

Important

Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.

Specifies the placement of a TickBar with respect to the Track of a Slider control.

public enum class TickBarPlacement

public enum TickBarPlacement

type TickBarPlacement =

Public Enum TickBarPlacement

Inheritance: Object

ValueType

Enum
TickBarPlacement

Fields

Name	Value	Description
Left	0	The tick bar is positioned to the left of the Track of the Slider.
Top	1	The tick bar is positioned above the Track of the Slider.
Right	2	The tick bar is positioned to the right of the Track of the Slider.
Bottom	3	The tick bar is positioned below the Track of the Slider.

Examples

For an example of a TickBarPlacement that is included in the Style of a Slider, see Slider Styles and Templates.

Remarks

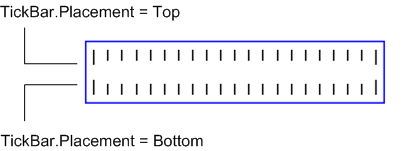

The TickBarPlacement enumeration is used to set the TickBar.Placement property. The actual position of a TickBar is defined by the ControlTemplate of a Slider control. The Placement property identifies this position so that the ticks of a TickBar are drawn correctly. The following illustration shows how TickBar controls are drawn when the Placement property is set to Top and Bottom.

TickBar placement

Applies to
