Add Markdown to a dashboard

Azure DevOps Services | Azure DevOps Server 2022 - Azure DevOps Server 2019

Use the Markdown widget to support your team and stakeholders by adding information such as:

• Team goals.
• Links to:
  • Team backlogs or boards.
  • Metrics.
  • Other items located in a network share such as a OneNote, SharePoint site, or wiki pages.
• Important dates or target deadlines.

Here's an example:

Prerequisites

• Access:
  • Anyone with access to a project, including Stakeholders, can view dashboards.
  • Be a member of the project and have at least Basic access or have specific dashboard permissions granted to you.
• Permissions:
  • Team dashboards: To add, edit, or manage a team dashboard, meet the following requirements:
    • Be a member of the team.
    • Be a member of the Project Administrators group.

Note

Data displayed within a chart or widget is subject to the permissions granted to the signed-in user. For example, if a user doesn't have permissions to view work items under a specific area path, those items don't display in a query results widget on the dashboard. For more information, see FAQs about using dashboards.

Supported Markdown syntax

The Markdown widget supports CommonMark standard features, such as:

• Headings
• Paragraphs and line breaks
• Blockquotes
• Horizontal rule
• Emphasis (bold, italics, strikethrough)
• Tables
• Lists, both ordered and unordered
• Links
• Images
• Escaping characters

For details on usage, see Syntax guidance for basic Markdown usage.

For performance reasons, the Markdown widget doesn't add support for many extended features, many of which are supported in the wiki. Extended capabilities would impede widget load time. For example, the following extended Markdown features aren't supported in the Markdown widget:

• Embedded HTML syntax
• Code highlighting (wiki/others support language-syntax aware color coding, CommonMark just renders code as plain preformatted text)
• Checklists
• Emoji characters
• Attachments
• Math formulas

Connect to your project

To add the Markdown widget to a dashboard, you connect to your project using a supported web browser.

Open a web browser, connect to your project, and select Overview>Dashboards.

If you need to switch to a different project, select the Azure DevOps logo to browse all projects.

Add the Markdown widget

If you need to add a dashboard, see Add, rename, and delete dashboards.

To add the Markdown widget to the dashboard, select Edit. The widget catalog will automatically open.

1. Add or drag the Markdown widget onto the dashboard where you want it located.



2. Select Done Editing to exit dashboard editing. This will dismiss the widget catalog. You can then configure the Markdown widget as needed.

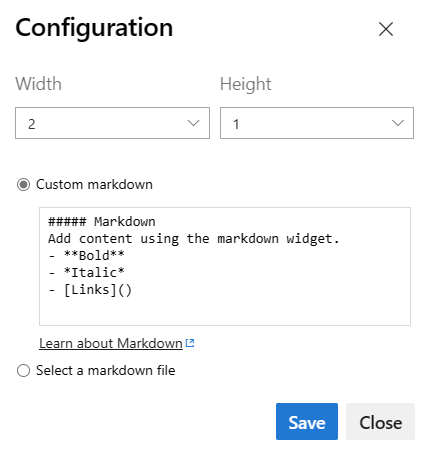

3. Select the gear icon to open the configuration dialog for the widget.

   To edit a Markdown widget, you may need to be a team admin, a member of the Project Administrators group, or be granted permissions. For more information, see Set dashboard permissions.

4. Adjust the widget size as needed to fit the contents of the Markdown you'll enter. The largest size is 10 tiles wide by 10 tiles tall. You can always adjust this later.



5. Enter the text and Markdown syntax into the configuration the configuration dialog. For supported syntax, see Syntax guidance for Markdown files, widgets, wikis, and pull request comments.

   Here we show some simple text with a bulleted list of four links



   Tip

   To link to a wiki page,use the following syntax:
   /ProjectName/_wiki/wikis/WikiRepositoryName?pagePath=/FileName

   To link to a repository file, page, or image within the project, rich-click the file and use the full URL.

   This renders the following widget:



   Note

   Links to documents on file shares using file:// are not supported. This restriction has been implemented for security purposes.

6. Optionally, you can select to point to a file in your repository.
