Input and output HTML on OneNote pages

  • 아티클

The HTML that defines the page content and structure when you create or update a OneNote page is called input HTML.

The HTML that's returned when you get page content is called output HTML. Output HTML won't be the same as input HTML.

The OneNote APIs in Microsoft Graph preserve the semantic content and basic structure of the input HTML, but convert it to a set of supported HTML elements and CSS properties. The APIs also add custom attributes that support OneNote features.

This article describes the principal elements and attributes of input and output HTML. It can be helpful to understand input HTML when you're creating or updating page content, and output HTML when you're parsing returned page content.

body element

The HTML content in the page body represents the page content and structure, including image and file resources. The body element can contain the following attributes in the input and output HTML.

Input attributes

Input attribute Description
data-absolute-enabled Indicates whether the input body supports absolute positioned elements.
style

The CSS style properties of the body. In the output HTML, input settings might be returned inline on appropriate child elements.

Background color is not currently supported for the body element.

Output attributes

Output attribute Description
data-absolute-enabled Indicates whether the body supports absolute positioned elements. Always true in output HTML.
style The font-family and font-size properties of the body.

div elements

Div elements contain text, images, and other content. A div element can contain the following attributes in the input and output HTML.

Input attributes

Input attribute Description
data-id A reference for the element.

Used to update page content.
data-render-fallback The fallback action if the extraction fails: render (default) or none
data-render-method The extraction method to perform, for example:
extract.businesscard or extract.recipe
data-render-src The content source for the extraction.
style The position, size, font, and color properties for the div:
  • position (absolute only), left, top, and width (height is auto-configured for divs)

    Used to create an absolute positioned div, only if the div is a direct child of the body when the body sets data-absolute-enabled="true".

    Example: <div style="position:absolute;width:360px;top:350px;left:300px" ... />
  • The CSS style properties of the element. In the output HTML, these values are returned inline on appropriate child elements.

The OneNote APIs in Microsoft Graph wrap all body content in at least one div. The API creates a default div (attributed with data-id="_default") to contain the body content if:

  • The input body element's data-absolute-enabled attribute is omitted or set to false. In this case, all body content is put in the default div.

  • The input body element's data-absolute-enabled attribute is true, but the input HTML contains direct children that aren't absolute positioned div, img, or object elements. In this case, direct children that aren't absolute positioned div, img, or object elements are put in the default div.

Output attributes

Output attribute Description
data-id A reference for the element.

Used to update page content.
id A unique, generated ID for the element. Returned by GET requests to a page's content endpoint when the includeIDs=true query option is used.

Used to update page content.
style The position and size properties of the div.

Non-contributing divs

When a div element in the input HTML does not contribute to the page structure or carry information that OneNote uses, the API moves the div's content into the parent or default div. This is illustrated in the following examples.

Input HTML

Contains a non-contributing, nested div.

<html>
    <head>
        <title>Page Title</title>
    </head>
    <body>
        <div>
            <p>Some text</p>
            <div>
                <p>More text inside a div that doesn't define page structure</p>
            </div>
        </div>
    </body>
</html>

Output HTML

Note

The div's content was moved to the parent div and the nested <div> tags have been removed. The div would have been preserved if it defined any semantic information, such as a data-id (example: <div data-id="keep-me">).

<html htmlns="https://www.w3.org/1999/xhtml" lang="en-US">
    <head>
        <title>Page Title</title>
    </head>
    <body data-absolute-enabled="true" style="font-family:Calibri;font-size:11px">
        <div data-id="_default" style="position:absolute;left:48px;top:120px;width:624px">
            <p>Some text</p>
            <p>More text inside a nested div</p>
        </div>
    </body>
</html>

img elements

Images on OneNote pages are represented by img elements. An img element can contain the following attributes in the input and output HTML.

Input attributes

Input attribute Description
alt The supplied alt text for the image.
data-id A reference for the element.

Used to update page content.
data-render-src Either data-render-src or src is required.

The webpage to render as a bit-mapped image on the OneNote page:

- data-render-src="https://..." for a public URL.

- data-render-src="name:BlockName" for an image part in the "Presentation" block of a multipart request.

This method is useful when the webpage is more complex than the OneNote page can faithfully render, or when the page requires login credentials.
data-tag A note tag on the element.
style The position and size properties for the image: position (absolute only), left, top, width, and height.

Size can be set on any image.

Position properties are used to create an absolute positioned image, only if the image is a direct child of the body when the body sets data-absolute-enabled="true".

Example: <img style="position:absolute;width:360px;top:350px;left:300px" ... />

In the output HTML, the image size is returned separately in width and height attributes.
src Either src or data-render-src is required.

The image to render on the OneNote page:

- src="https://..." for a URL to a publicly available image on the Internet.

- src="name:BlockName" for a named part in a multipart request that represents the image.
width, height The width or height of the image, in pixels but without the px. Example: width="400"

Note

The OneNote APIs automatically detect the input image type, and return it as the data-fullres-src-type in the output HTML. The API also returns the image type of the optimized image in data-src-type.

Output attributes

Output attribute Description
alt The supplied alt text for the image.
data-id A reference for the element.

Used to update page content.
data-index The position of the image. For split image support.
data-fullres-src The endpoint for the version of the image resource that was originally embedded in the page.
data-fullres-src-type The media type of the data-fullres-src resource, for example: image/png or image/jpeg.
data-options The source type: printout for PDF files or splitimage for all others. Applies only to split images created with the data-render-src attribute.
data-render-original-src The original source URL of the image, if the source image is from the public internet and was created with the data-render-src attribute.
data-src-type The media type of the src resource, for example: image/png or image/jpeg.
data-tag A note tag on the element.
id A unique, generated ID for the element. Returned by GET requests to a page's content endpoint when the includeIDs=true query option is used.

Used to update page content.
src The endpoint for the version of the image resource that has been optimized for web browsers and mobile and tablet form factors.
style The position properties of the image.
width, height The width or height of the image, in pixels.

Output HTML examples for images

Output img elements contain endpoints for image file resources and the image type, as shown below. You can make separate GET requests to image resource endpoints to retrieve their binary contents.

<img
    src="https://graph.microsoft.com/v1.0/me/onenote/resources/{image-id}/$value"
    data-src-type="image/png"
    data-fullres-src="https://graph.microsoft.com/v1.0/me/onenote/resources/{image-id}/$value"
    data-fullres-src-type="image/png" ... />

The following examples show the information an img element might contain in the output HTML.

Image with web-ready and high resolution resources

<img
    src="{web-ready-image-resource-url}/$value"
    data-src-type="image/{type}"
    data-fullres-src="{high-resolution-image-resource-url}/$value"
    data-fullres-src-type="image/{type}"
    [data-render-original-src="{original-source-url-or-named-part}"]
    [data-id="{image-id}"]
    [alt="supplied alt text"]
    [width="345"] [height="180"]
    [style="..."] />

Image created by using the data-render-src attribute

<img
    src="{web-ready-image-resource-url}/$value"
    data-src-type="image/{type}"
    data-fullres-src="{high-resolution-image-resource-url}/$value"
    data-fullres-src-type="image/{type}"
    data-render-original-src="{original-source-url-or-named-part}"
    [data-id="{image-id}"]
    [data-index="{index-of-split-image}"]
    [data-options="{printout-or-splitimage}"]
    [alt="supplied alt text"]
    [width="1024"] [height="1900"]
    [style="..."] />

Split images

Images that are created using the data-render-src attribute (from a webpage URL or a named part) might be split into multiple component images for performance and rendering reasons. Component images are all assigned the same data-id value. Each component image has a zero-based data-index attribute that defines the original vertical layout.

Split image with three component images

<div data-id="multi-component-image" style="position:absolute;left:48px;top:120px;width:624px">
    <img
        src="{image-resource0-url}/$value"
        data-src-type="image/{type}"
        data-fullres-src="{image-resource0-url}/$value"
        data-fullres-src-type="image/{type}"
        data-index="0"
        data-render-original-src="{original-source-url-or-named-part}"
        data-id="{same-image-id}" ... />
    <img
        src="{image-resource1-url}/$value"
        data-src-type="image/{type}"
        data-fullres-src="{image-resource1-url}/$value"
        data-fullres-src-type="image/{type}"
        data-index="1"
        data-render-original-src="{original-source-url-or-named-part}"
        data-id="{same-image-id}" ... />
    <img
        src="{image-resource2-url}/$value"
        data-src-type="image/{type}"
        data-fullres-src="{image-resource2-url}/$value"
        data-fullres-src-type="image/{type}"
        data-index="2"
        data-render-original-src=""{original-source-url-or-named-part}"
        data-id="{same-image-id}" ... />
</div>

Because users can move the images on the page, the returned indexes might be out of order. Ordering should be in top to bottom y-order, and then left to right x-order if there are y-order conflicts.

iframe elements

OneNote pages can contain embedded videos represented by iframe elements.

Note

You can also attach a video file using an object element.

Input attributes

Input attribute Description
data-original-src Required. The URL of the video source. See the list of supported video sources.

Example: data-original-src="https://www.youtube.com/watch?v=3Ztr44aKmQ8"
width, height The width or height of the iframe, in pixels. Example: width=300

Output attributes

Output attribute Description
data-original-src The URL of the video source.
src A link to the video that is embedded in the OneNote page.
width, height The width or height of the iframe, in pixels.

Example: width=300

Output HTML example for videos

Output iframe elements contain endpoints that link to the source page and video, as shown.

<iframe
    width="340" height="280"
    data-original-src="https://www.youtube.com/watch?v=3Ztr44aKmQ8"
    src="https://www.youtube.com/embed/3Ztr44aKmQ8?feature=oembed&autoplay=true" />

object elements

OneNote pages can contain file attachments represented by object elements. An object element can contain the following attributes in the input and output HTML.

Note

The OneNote APIs can also render file content as images in a page when the file is sent as an image and uses the data-render-src attribute. Example: <img data-render-src="name:part-name" ... />

Input attributes

Input attribute Description
data Required. The name of the part that represents the file in the multipart request.
data-attachment Required. The file name.
data-id A reference for the element.

Used to update page content.
style The position and size properties for the object: position (absolute only), left, top, and width.

Used to create an absolute positioned object, only if the object is a direct child of the body when the body sets data-absolute-enabled="true".

Example: <object style="position:absolute;top:350px;left:300px" ... />
type Required.

The standard media file type. Known file types display the icon associated with the file type on the OneNote page. Unknown file types display a generic file icon.

Output attributes

Output attribute Description
data The endpoint for the file resource.
data-attachment The file name.
data-id A reference for the element.

Used to update page content.
id A unique, generated ID for the element. Returned by GET requests to a page's content endpoint when the includeIDs=true query option is used.

Used to update page content.
style The position properties of the object.
type The standard media file type.

Output HTML example for objects

Output object elements contain endpoints that link to the file resources in the page, as shown. You can make separate GET requests to file resource endpoints to retrieve their binary contents.

<object
    data="https://graph.microsoft.com/v1.0/me/onenote/resources/{file-id}/$value"
    data-attachment="fileName.pdf"
    type="application/pdf"
    [style="..."] />

Paragraphs and headings

Paragraphs, headings, and other text containers can contain the following attributes in the input and output HTML.

Input attributes

Input attribute Description
data-id A reference for the element.

Used to update page content.
data-tag A note tag on a p or h1 - h6 element.
style The CSS style properties of the element.

Output attributes

Output attribute Description
data-id A reference for the element.

Used to update page content.
data-tag A note tag on a p or h1 - h6 element.
id A unique, generated ID for the element. Returned by GET requests to a page's content endpoint when the includeIDs=true query option is used.

Used to update page content.
style The CSS style properties of the element. In the output HTML, these values may be returned inline on appropriate child elements or on span elements.

The following examples show input HTML that uses different ways to define styles on text containers and the output HTML that's returned.

Input HTML with styles defined using inline character styles, in the start tag, and within a span element.

<h1>Heading <i>One</i> text</h1>
<p style="font-size:8pt;color:green;font-family:Courier;text-align:center">Some text</p>
<p>Some <span  style="font-size:16px;color:#ff0000;font-family:Segoe UI Black">more</span> text</p>

Output HTML with the <i> character style and the font settings in the <p> start tag returned as inline CSS styles on span elements.

<h1 style="font-size:16pt;color:#1e4e79;margin-top:11pt;margin-bottom:11pt">Heading <span style="font-style:italic">One</span> text</h1>
<p style="text-align:center"><span style="font-family:Courier;font-size:8pt;color:green">Some text</span></p>
<p>Some <span style="font-family:Segoe UI Black;font-size:12pt;color:red">more</span> text</p>

Lists

Lists are represented as ol or ul elements that contain list items represented as li elements.

Lists and list items can contain the following attributes in the input and output HTML.

Input attributes

Input attribute Description
data-id A reference for the element.

Used to update page content.
data-tag A note tag on a ul, ol, or li element.
style The list-style-type and the CSS style properties for the list or list item.

Output attributes

Output attribute Description
data-id A reference for the element.

Used to update page content.
data-tag A note tag on a span in an li element.
id A unique, generated ID for the element. Returned by GET requests to a page's content endpoint when the includeIDs=true query option is used.

Used to update page content.
style The list-style-type and CSS style properties of the element. In the output HTML, list-level settings are returned on list items. Default properties are not returned.

List styles

The OneNote APIs in Microsoft Graph support the following list styles:

Ordered list Unordered list
none none
decimal (default) disc (default)
lower-alpha circle
lower-roman square
upper-alpha
upper-roman

You can apply global styles for a list on the ol or ul element in the input HTML, but styles are returned on the li elements.

Homogenous list style

This example shows input HTML that sets the list style type on the ol element and CSS styles on individual list items.

<ol style="list-style-type:upper-roman;color:blue">
    <li style="font-weight:bold">Jacksonville</li>
    <li style="text-decoration:line-through">Orlando</li>
    <li style="font-family:Courier">Naples</li>
</ol>

This is the output HTML. Notice that styles are returned inline on the individual li or span elements.

<ol>
    <li style="list-style-type:upper-roman"><span style="color:blue;font-weight:bold">Jacksonville</span></li>
    <li style="list-style-type:upper-roman"><span style="color:blue;text-decoration:line-through">Orlando</span></li>
    <li style="list-style-type:upper-roman"><span style="font-family:Courier;color:blue">Naples</span></li>
</ol>

Variable list styles

This example shows input HTML that sets different list style types on the li elements.

<ul style="font-style:italic">
    <li style="list-style-type:square">square style</li>
    <li style="list-style-type:circle">circle style</li>
    <li style="list-style-type:disc">disc style (default)</li>
</ul>

This is the output HTML. Notice that styles are returned inline on the individual li or span elements.

<ul>
    <li style="list-style-type:square"><span style="font-style:italic">square style</span></li>
    <li style="list-style-type:circle"><span style="font-style:italic">circle style</span></li>
    <li><span style="font-style:italic">disc style (default)</span></li>
</ul>

Tables

Tables are represented as table elements that can contain tr and td elements. Nested tables are supported.

Tables can contain the following attributes in the input and output HTML. The OneNote APIs do not support rowspan or colspan attributes.

Input attributes

Input attribute Description
data-id A reference for the element.

Used to update page content.
style The CSS style properties of the element, and also:
- width. Supported by table and td as pixels or percentage of page width.

Example: width="100px" or width="60%"
border Adds border to table with specified width
width Width of the table
bgcolor The background color of the table

Note

The use of the border property in the style attribute of a table is not supported in input html.

Output attributes

Output attribute Description
data-id A reference for the element.

Used to update page content.
id A unique, generated ID for the element. Returned by GET requests to a page's content endpoint when the includeIDs=true query option is used.

Used to update page content.
style The CSS style properties of the element.

The following examples show input HTML that uses different ways to define styles on tables and the output HTML that's returned.

Input HTML with optional settings at different levels

<table border="1"; Width="500"; bgcolor = "green">
    <tr>
        <td>Cell 1</td>
        <td>Cell 2</td>
        <td>Cell 3</td>
    </tr>
    <tr style="background-color:blue">
        <td style="text-align:right;background-color:red">Left</td>
        <td style="text-align:center">Middle</td>
        <td>Right</td>
    </tr>
</table>

Output HTML with CSS styles returned inline on the td elements

<table style="border:0px">
    <tr>
        <td style="background-color:green;width:166;border:0px">Cell 1</td>
        <td style="background-color:green;width:166;border:0px">Cell 2</td>
        <td style="background-color:green;width:166;border:0px">Cell 3</td>
    </tr>
    <tr>
        <td style="background-color:red;width:166;border:0px;text-align:right">Left</td>
        <td style="background-color:blue;width:166;border:0px;text-align:center">Middle</td>
        <td style="background-color:blue;width:166;border:0px">Right</td>
    </tr>
</table>

Styles

OneNote APIs in Microsoft Graph support the following inline CSS style properties for elements in the page body, such as body, div, p, li, and span.

Property Example
background-color style="background-color:#66cc66" (defaults to white)

Both hexadecimal format and named colors are supported.
color style="color:#ffffff" (defaults to black)
font-family style="font-family:Courier" (defaults to Calibri)
font-size style="font-size:10pt" (defaults to 11pt)

The APIs accept font size in pt or px, but converts px to pt. Decimal values are rounded to the nearest n.0pt or n.5pt.
font-style style="font-style:italic" (normal or italic only)
font-weight style="font-weight:bold" (normal or bold only)
strike-through style="text-decoration:line-through"
text-align style="text-align:center" (for block elements only)
text-decoration style="text-decoration:underline" (none or underline only)

The following inline character styles are also supported:

<b> <i> <u>
<em> <strong> <strike>
<sup> <sub> <del>
<cite>

Input and output HTML example

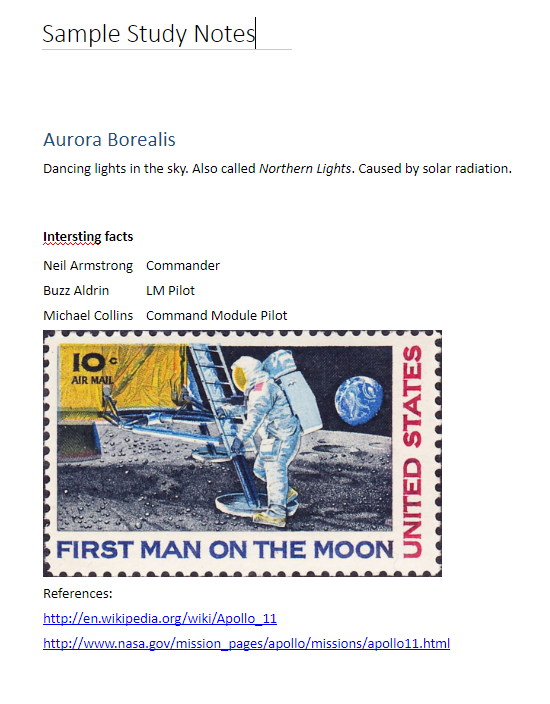

The following image shows a simple page that was created with Microsoft Graph.

Image of a OneNote page with study notes of content from Wikipedia

This is the input HTML sent in the message body to create the page.

<html lang="en-US">
    <head>
        <title>Sample Study Notes</title>
        <meta name="created" content="2015-01-01T01:01"/>
    </head>
    <body>
        <h1>Aurora Borealis</h1>
        <p>Dancing lights in the sky. Also called <i>Northern Lights</i>. Caused by solar radiation.</p>
        <br />
        <p><b>Intersting facts</b></p>
        <table>
            <tr>
                <td>Neil Armstrong</td>
                <td>Commander</td>
            </tr>
            <tr>
                <td>Buzz Aldrin</td>
                <td>LM Pilot</td>
            </tr>
            <tr>
                <td>Michael Collins</td>
                <td>Command Module Pilot</td>
            </tr>
        </table>
        <img alt="Apollo 11 commemorative stamp." src="https://upload.wikimedia.org/wikipedia/commons/a/a4/First_Man_on_Moon_1969_Issue-10c.jpg"  width="400"/>
        <p>References:</p>
        <p><a href="https://en.wikipedia.org/wiki/Apollo_11">https://en.wikipedia.org/wiki/Apollo_11</a></p>
        <p><a href="https://www.nasa.gov/mission_pages/apollo/missions/apollo11.html">https://www.nasa.gov/mission_pages/apollo/missions/apollo11.html</a></p>
    </body>
</html>

This is the output HTML that Microsoft Graph returns when you get page content.

Note

When you create a page or get page metadata, the API returns the content endpoint URL of the page in the contentUrl property.

<html htmlns="https://www.w3.org/1999/xhtml" lang="en-US">
    <head>
        <title>Sample Study Notes</title>
    </head>
    <body data-absolute-enabled="true" style="font-family:Calibri;font-size:11pt">
        <div data-id="_default" style="position:absolute;left:48px;top:120px;width:624px">
            <h1 style="font-size:16pt;color:#1e4e79;margin-top:11pt;margin-bottom:11pt">American History 101: Moon Landing</h1>
            <p>First moon landing - July 20, 1969 with Apollo 11 (Eagle)</p>
            <br />
            <p><span style="font-weight:bold">Apollo 11 Astronauts</span></p>
            <table style="border:0px">
                <tr>
                    <td style="border:0px">Neil Armstrong</td>
                    <td style="border:0px">Commander</td>
                </tr>
                <tr>
                    <td style="border:0px">Buzz Aldrin</td>
                    <td style="border:0px">LM Pilot</td>
                </tr>
                <tr>
                    <td style="border:0px">Michael Collins</td>
                    <td style="border:0px">Command Module Pilot</td>
                </tr>
            </table>
            <br />
            <img alt="Apollo 11 commemorative stamp." width="400" height="248" src="https://graph.microsoft.com/v1.0/me/onenote/resources/0-f717b5fa5eaa454da7ecdf72a8c137fe!1-73DBAF9B7E5C4B4C!10456/$value"
                 data-src-type="image/jpeg" data-fullres-src="https://graph.microsoft.com/v1.0/me/onenote/resources/0-f717b5fa5eaa454da7ecdf72a8c137fe!1-73DBAF9B7E5C4B4C!10456/$value" data-fullres-src-type="image/jpeg" />
            <p>References:</p>
            <p><a href="https://en.wikipedia.org/wiki/Apollo_11">https://en.wikipedia.org/wiki/Apollo_11</a></p>
            <p><a href="https://www.nasa.gov/mission_pages/apollo/missions/apollo11.html">https://www.nasa.gov/mission_pages/apollo/missions/apollo11.html</a></p>
        </div>
    </body>
</html>

Related content
