Azure: Managing Multiple Environments with Visual Studio Online Builds

Preface

Basics: Multiple Azure Cloud Environments

Introduction

If we want to manage the progression of a solution through the development, staging, and production environment.

Staging in this context indicates an environment and not the staging deployment of a cloud service.

In hindsight, we probably should have named it "Test" to avoid confusion but the word Test could have been perceived as temporary.  UAT is another popular term for the environment before production.  Please post a comment for the terms that our organization(s) uses.

A possible approach is to use Visual Studio Online to manage the build process due to its tight integration with Visual Studio and Azure.  The image below illustrates this process:

The development team develops and tests locally before checking in their changes. When a check-in occurs, the Visual Studio Online server then gets the latest changes, builds and then deploys to the Development cloud service.  Then once the changes have been reviewed, another build and deployment are then made to the Staging and production environments.

This post will illustrate this approach by using the SpikeCloud solution created in the earlier post.

Add to Visual Studio Online

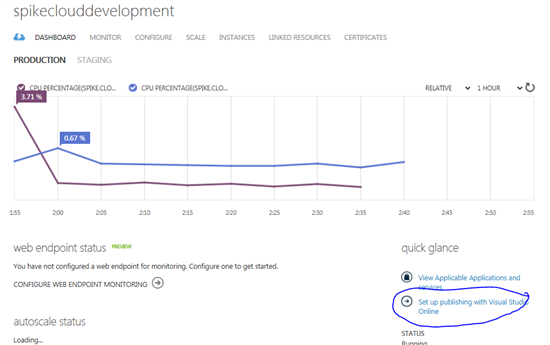

The first step is to add the solution to Visual Studio Online:

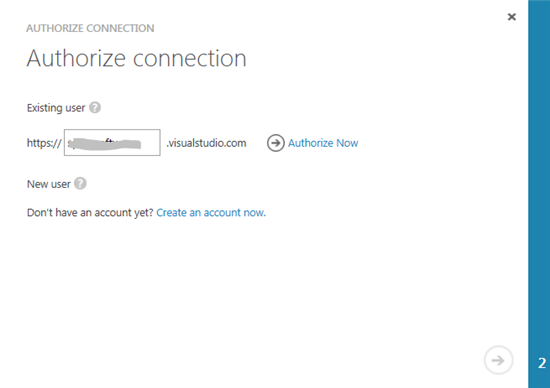

We will then be asked to authorize the connection:

This step links our cloud service to Visual Studio Online

Add solution to source control

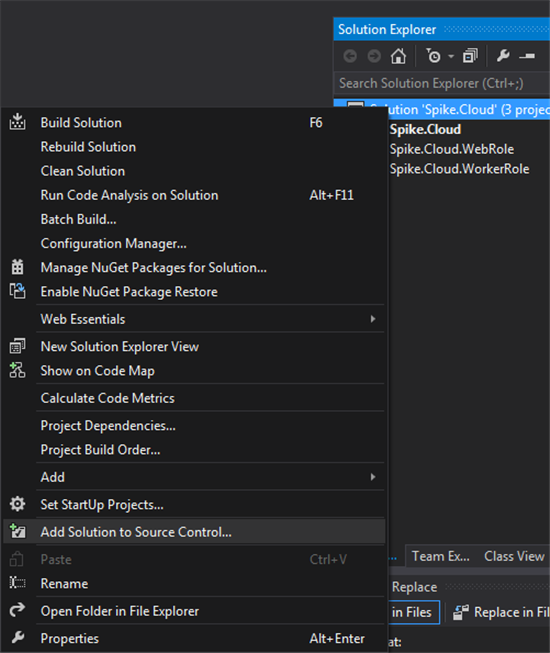

Now that the link is complete, the solution needs to be added to Visual Studio Online.  From within our solution, this can be done by adding the solution to source control:

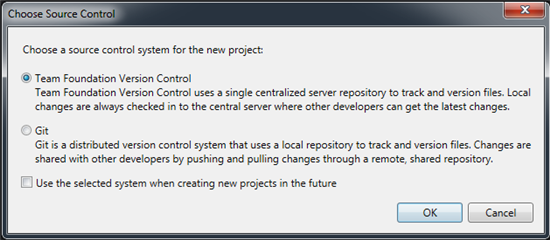

We will be prompted for the type of source control system:

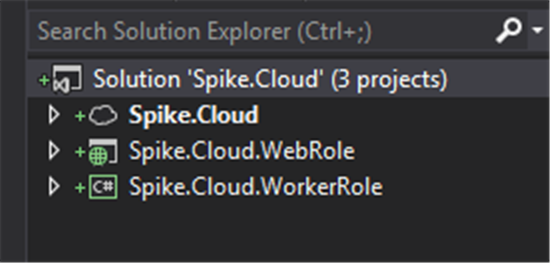

Once the solution has been added, Visual Studio will indicate this:

If we were only supporting a single environment, we could check-in and the solution would then be deployed to Azure using continuous integration.  Because of the multiple environments, we have a bit more configuration to do.

Go ahead and check-in the changes now as the build is disabled by default.

Supporting Multiple Environments

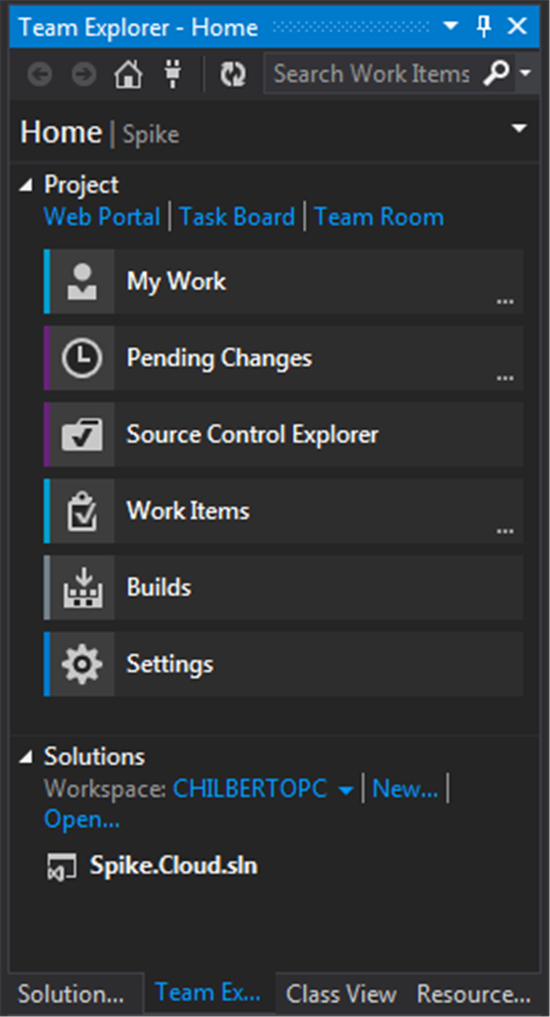

In the Team Explorer, select Builds.  If we do not see the Team Explorer, we can open it under the View menu.

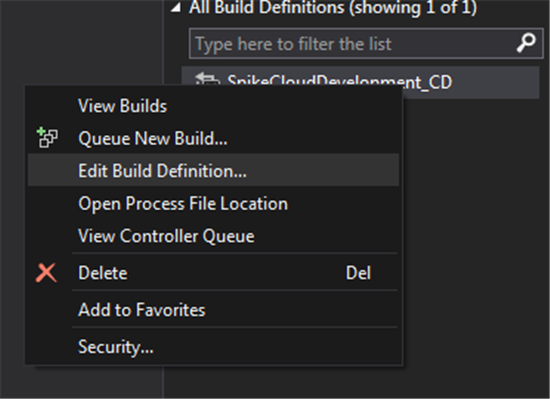

Edit the Build definition.

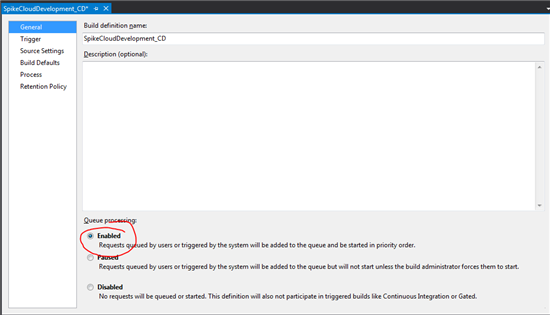

The first page of properties allows us the name and set the queue processing status.  Go ahead and enable the build:

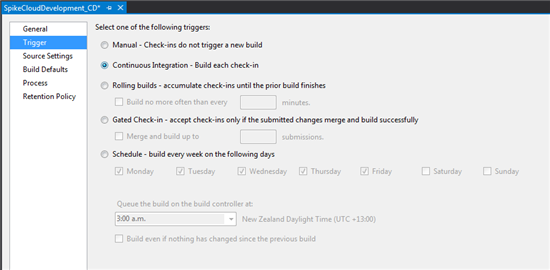

For the development environment, leave the Trigger set to continue as we want to run a build each time someone checks in

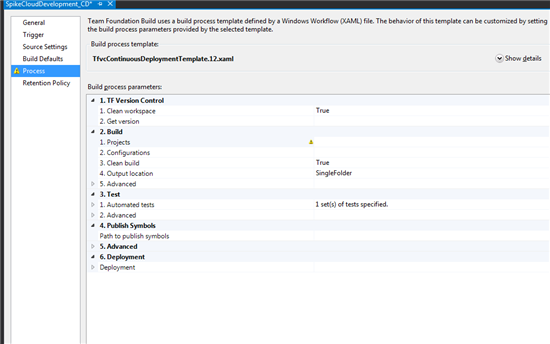

For the purpose of this post, we will leave the Source Settings, Build Defaults and Retention Policy as the defaults.  In the Process tab, we need to set some information about our solution.  First of all the solution to build needs to be specified by clicking the elipse in the Projects field:

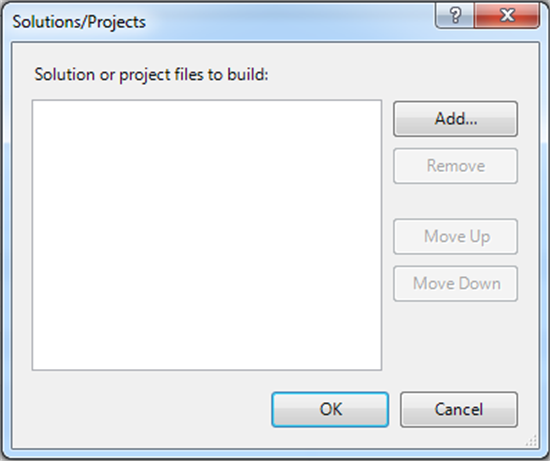

The solution file needs to be added by first clicking the add button:

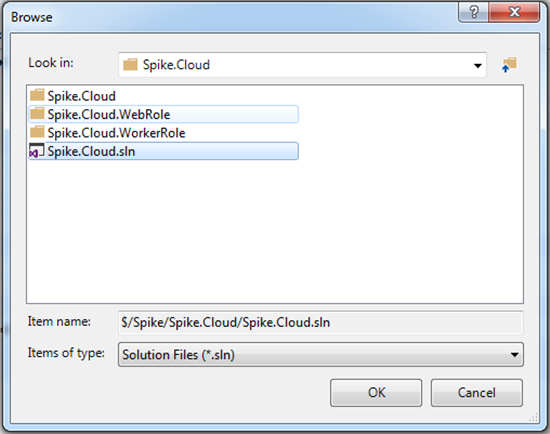

And then navigating to the solution file:

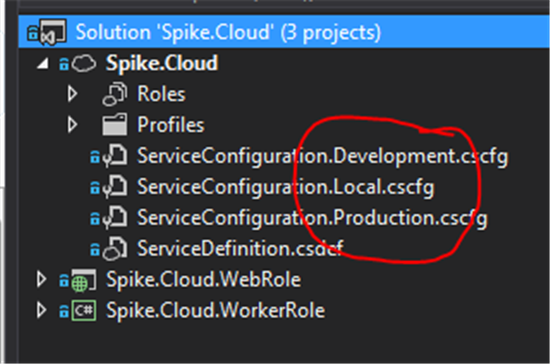

In order to specify the Azure configuration we require, we need to indicate this as a msbuild parameter.  This is pretty straightforward as the target profile matches the service configuration we created in the previous post:

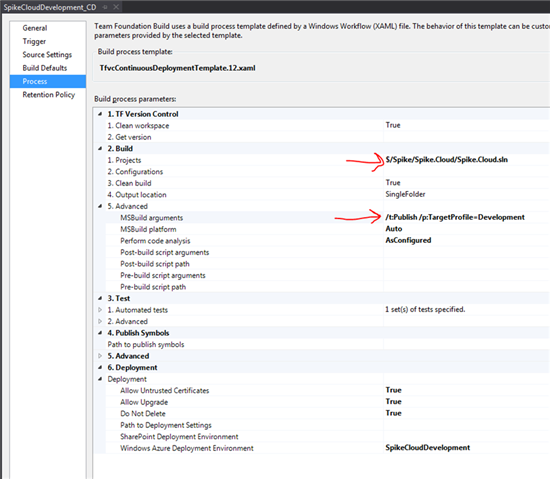

The following shows our completed build settings with the fields we were required to set indicated:

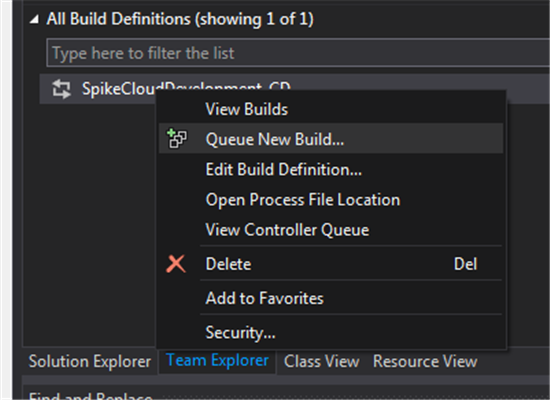

In order to test the changes, check-in a change or manually start a build by selecting Queue New Build:

Conclusion

By combining source control and build automation, linking your Azure cloud services to Visual Studio Online provides a number of benefits.  Besides providing a robust and feature-rich collaboration tool, managed builds provides a team with a simple and efficient mechanism for deploying to Azure.

Based on experience, deployment time can be reduced up to 5 times by deploying from VSO instead of local workstations.

---
