ASP.NET Core : How to show a loading panel in a page

  • 아티클

1 Introduction

This article is going to describe how to show a loading panel until an action completes. This article shows step by step procedures how to add a loading panel using a div tag. Sample application has implemented using MVC and Jquery on top of ASP.NET Core 2.0

↑ Return to Top

2 Background

↑ Return to Top

3 Create a Web application

3.1 Create the basic web application

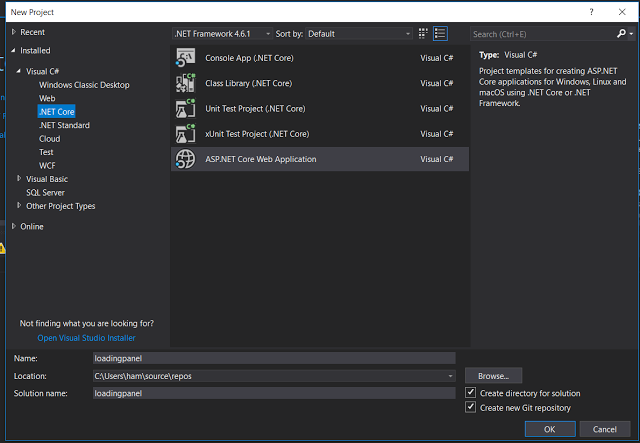

Create a ASP.NET Core web application as shown below

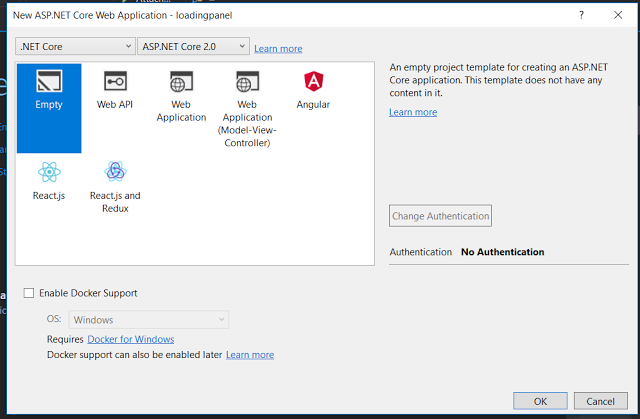

Select Empty project in ASP.NET Core 2.0 project templates and click on OK

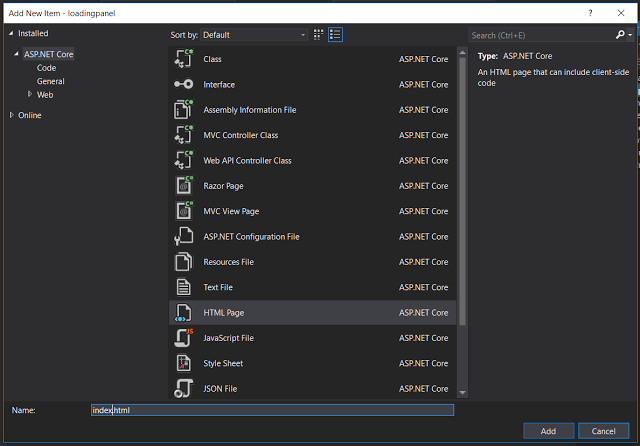

From ASP.NET Core template, select HTML Page,

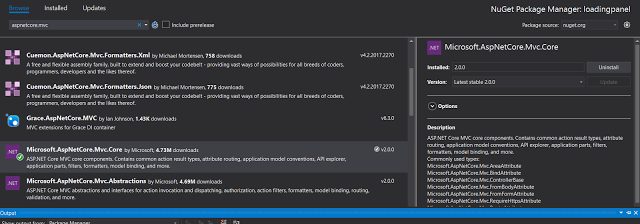

Install Microsoft.AspNetCore.MVC.Core libraries from *Nuget Package Manager


*

Open Startup class and fill ConfigureServices & Configure methods to add MVC into the request pipeline


public void  ConfigureServices(IServiceCollection services)
{
   services.AddMvc();
}

public void  Configure(IApplicationBuilder app, IHostingEnvironment env)
{
  if (env.IsDevelopment())
  {
    app.UseDeveloperExceptionPage();
  }

 app.UseMvc(routes =>
 {
   routes.MapRoute(
     name: "default",
     template: "{controller=Home}/{action=Index}/{id?}");
 });
}

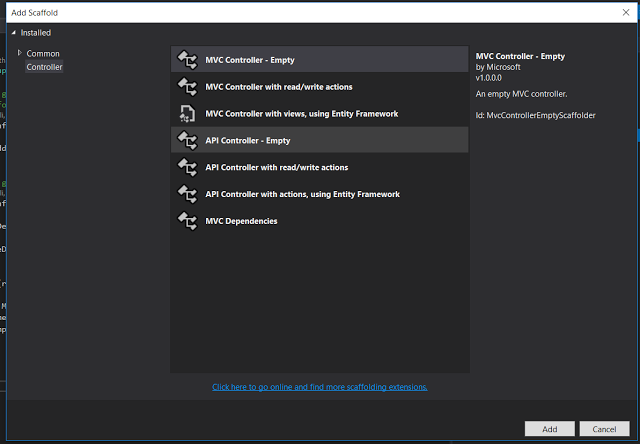

Let's try to add a controller to our project, select MVC Controller - Empty and add it

We can see the HomeController as below

↑ Return to Top

3.2 Create & Run the basic view

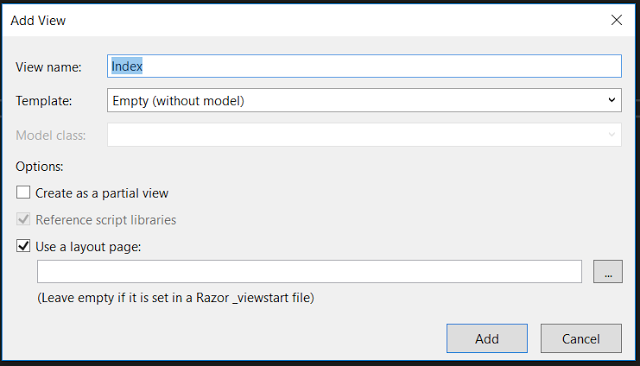

Let's add Index view without a model

We can see Index view as follows

Run the solution and it shows as below

↑ Return to Top

3.3 Load data from the server

Let's create a button element in the page as below.


 <input  type="button" value="Load Data" id="loaddata"/>

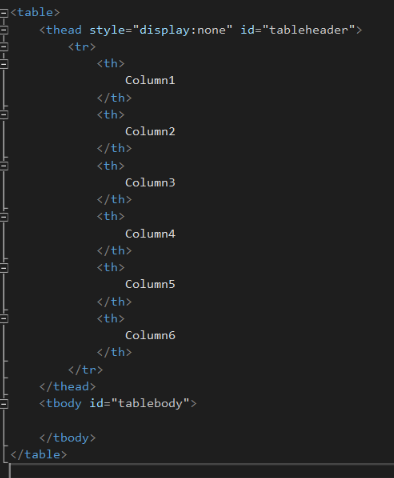

Let's create a table with few columns as below, In this demo, when a button clicks, it's going to load some amount of data into this table, Let's see how we can do that


 <table>
    <thead style="display:none" id="tableheader">
        <tr>
            <th>
                Column1
            </th>
            <th>
                Column2
            </th>
            <th>
                Column3
            </th>
            <th>
                Column4
            </th>
            <th>
                Column5
            </th>
            <th>
                Column6
            </th>
        </tr>
    </thead>
    <tbody id="tablebody">

    </tbody>
 </table>

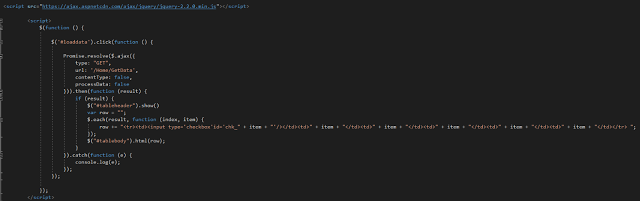

Let's implement the button click event in Jquery, Add Jquery reference into the page and load data from GetData method. Once data loads iterate through the result and create a data row and add that into the table body


 <script src="https://ajax.aspnetcdn.com/ajax/jquery/jquery-2.2.0.min.js"></script>

        <script>
            $(function () {

                $('#loaddata').click(function () {

                    Promise.resolve($.ajax({
                        type: "GET",
                        url: '/Home/GetData',
                        contentType: false,
                        processData: false
                    })).then(function (result) {
                        if (result) {
                            $("#tableheader").show()
                            var row = "";
                            $.each(result, function  (index, item) {
                                row += "<tr><td>
                                     <input type='checkbox'id='chk_"
                                     + item + "'/></td><td>"  + item
                                     + "</td><td>" + item + "</td><td>"
                                     + item + "</td><td>" + item
                                     + "</td><td>" + item + "</td></tr> ";
                            });
                            $("#tablebody").html(row);
                        }
                    }).catch(function (e) {
                        console.log(e);
                    });
                });

            });
        </script>

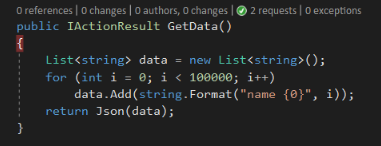

Let's see how we can fill data list from server side,


 public IActionResult GetData()
  {
       List<string> data = new  List<string>();
       for (int i = 0; i < 100000; i++)
           data.Add(string.Format("name {0}", i));
       return Json(data);
   }

Let's run the application and click on data load button, it's calling server side method and returns data, If you can see the below picture, it shows method call returns 1.2MB of data and it takes 183 ms to complete its action

↑ Return to Top

3.4 Show loading panel until data loads

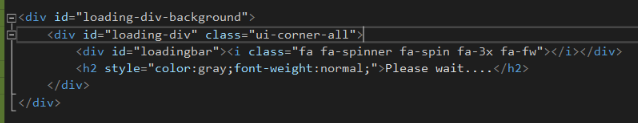

Since it takes considerable amount of time to load data, its better to add a loading panel until action completes, Let's see how we can do that


 <div  id="loading-div-background">
    <div id="loading-div" class="ui-corner-all">
        <div id="loadingbar"><i class="fa fa-spinner fa-spin fa-3x fa-fw"></i></div>
        <h2 style="color:gray;font-weight:normal;">Please wait....</h2>
    </div>
</div>

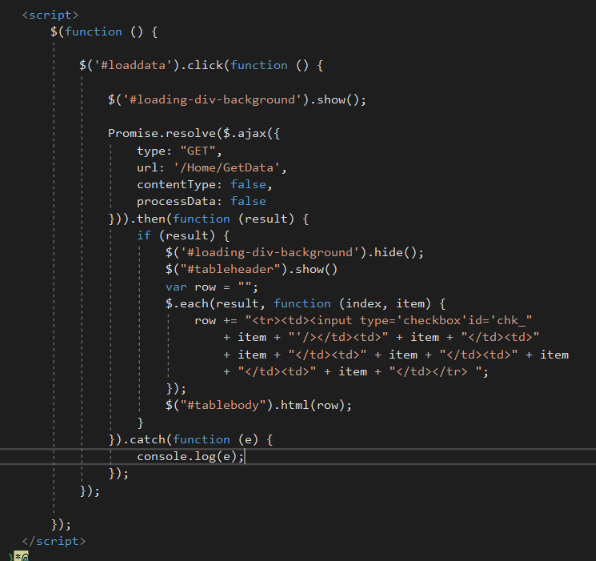

Let's change the data load method to show loading panel until action completes, When click on the button it shows the loading panel, when action completes, loading panel is going to be hidden


 $('#loaddata').click(function () {

    $('#loading-div-background').show();

    Promise.resolve($.ajax({
        type: "GET",
        url: '/Home/GetData',
        contentType: false,
        processData: false
     })).then(function (result) {
              if (result) {
                  $('#loading-div-background').hide();
                  $("#tableheader").show()
                  var row = "";
                  $.each(result, function  (index, item) {
                      row += "<tr><td><input type='checkbox'id='chk_"
                             + item + "'/></td><td>"  + item + "</td><td>"
                             + item + "</td><td>" + item + "</td><td>" + item
                             + "</td><td>" + item + "</td></tr> ";
                       });
                  $("#tablebody").html(row);
               }
        }).catch(function (e) {
             console.log(e);
        });
    });

When click on the button, it shows loading panel like this, This is a very simple loading panel, If we want to align and change the styling, we can add bootstrap and make necessary changes

↑ Return to Top

4 Download

You can download the source code from Tech Net Gallery, https://gallery.technet.microsoft.com/ASPNET-Core-show-a-loading-aaac744d

↑ Return to Top

4.2 GitHub

You can clone this source code from git repository, https://github.com/hansamaligamage/loadingpanel

↑ Return to Top

5 Conclusion

This article explains how to show a simple loading panel using Jquery. It has used a div tag as a loading panel. When action method starts, it shows the loading panel and after it completes successfully it hides the loading panel. This sample project has used a MVC action method to load data and return it to the screen
