Debug WebView2 apps with Visual Studio Code

아티클
07/30/2024

Use Microsoft Visual Studio Code to debug scripts that run in WebView2 controls. Visual Studio Code has a built-in debugger for browser debugging. See Browser debugging in VS Code.

Create a launch.json file

To debug your code, your project is required to have a launch.json file. A launch.json file is a debugger configuration file to configure and customize the Visual Studio Code debugger. One of the properties that's needed to configure the debugger is the request property. There are two request types, launch and attach.

The following code demonstrates launching the app from Visual Studio Code (rather than attaching the debugger to a running instance of the app). To do this, the app must have been built previously. If your project doesn't have a launch.json file, create a new launch.json file in the .vscode subfolder in your current project and paste the following code into it:

"name": "Hello debug world",
"type": "msedge",
"port": 9222, // The port value is optional, and the default value is 9222.
"request": "launch",
"runtimeExecutable": "C:/path/to/your/webview2/app.exe",
"env": {
   // Customize for your app location if needed
   "Path": "%path%;e:/path/to/your/app/location; "
},
"useWebView": true,
// The following two lines set up source path mapping, where `url` is the start page
// of your app, and `webRoot` is the top level directory with all your code files.
"url": "file:///${workspaceFolder}/path/to/your/toplevel/foo.html",
"webRoot": "${workspaceFolder}/path/to/your/assets"

Command-line URL parameter passed in

Visual Studio Code source path mapping now requires an URL, so your app now receives a url command-line parameter when it starts. You can safely ignore the url parameter, if needed.

Debug your code

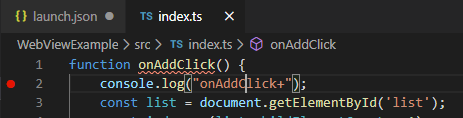

To set a breakpoint in your source code, click a line of code and then press F9:
On the Run tab, select the launch configuration from the dropdown menu.
Click Start Debugging, which is the green triangle next to the launch configuration dropdown list:

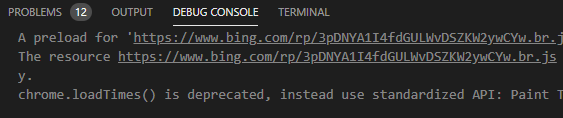

To view the debug output and errors, open Debug Console:

Targeted WebView2 debugging

In some WebView2 apps, you might use more than one WebView2 control. To pick which WebView2 control to debug in this situation, you can use targeted WebView2 debugging.

Open launch.json and complete the following actions to use targeted WebView2 debugging.

Confirm that the useWebview parameter is set to true.
Add the urlFilter parameter. When the WebView2 control navigates to a URL, the urlFilter parameter value is used to compare strings that appear in the URL.

"useWebview": "true",
"urlFilter": "*index.ts",

// Options for "urlFilter":
// Match any url that ends with "index.ts":
"urlFilter": "*index.ts",
// Match any url that contains "index" anywhere in the URL:
"urlFilter": "*index*",
// Explicitly match a file named "index.ts":
"urlFilter": "file://C:/path/to/my/index.ts",

When debugging your app, you might need to step through the code from the beginning of the rendering process. If you are rendering webpages on sites and you don't have access to the source code, you can use the ?=value option, because webpages ignore unrecognized parameters.

Cannot debug two WebView2 controls at the same time

After the first match is found in the URL, the debugger stops. You cannot debug two WebView2 controls at the same time, because the CDP port is shared by all WebView2 controls, and uses a single port number.

Debug running processes

You might need to attach the debugger to running WebView2 processes. To do that, in launch.json, update the request parameter, changing its value to attach:

"name": "Hello debugging world",
"type": "msedge",
"port": 9222,
"request": "attach",
"runtimeExecutable": "C:/path/to/your/webview2/myApp.exe",
"env": {
   "Path": "%path%;e:/path/to/your/build/location; "
},
"useWebView": true

Your WebView2 control must open the Chrome Developer Protocol (CDP) port to allow debugging of the WebView2 control. Your code must be built to ensure that only one WebView2 control has a CDP port open, before starting the debugger.

You also need to add a new REGKEY <myApp.exe> = --remote-debugging-port=9222 under Computer\HKEY_CURRENT_USER\Software\Policies\Microsoft\Edge\WebView2\AdditionalBrowserArguments, so that the debugger can find the proper port. To add this registry key:

Press the Windows logo key and then search for registry editor. Open the Registry Editor app, and then click Yes to allow editing.
In the folder tree on the left, try to expand HKEY_CURRENT_USER\Software\Policies\Microsoft\Edge\WebView2\AdditionalBrowserArguments.
If the \Edge\WebView2\AdditionalBrowserArguments part of that path doesn't exist, create those three nested subfolders, as follows:
1. To create the \Edge subfolder: In the folder tree, right-click the HKEY_CURRENT_USER\Software\Policies\Microsoft folder, hover over New, and then select Key. A folder is added as a child of the Microsoft folder, initially named New Key #1. Right-click the New Key #1 folder, and then select Rename. Enter Edge for the name of the new key.
2. Create the \WebView2 subfolder, as in the previous step.
3. Create the \AdditionalBrowserArguments subfolder, as in the previous step.

  The tree is now expanded to HKEY_CURRENT_USER\Software\Policies\Microsoft\Edge\WebView2\AdditionalBrowserArguments.
Right-click the AdditionalBrowserArguments folder, hover over New, and then select String Value. In the Name column, right-click New Value #1, select Rename, and then enter the file name of your app executable, such as myApp.exe.
In the Name column, right-click your executable file name, such as myApp.exe, and then select Modify. The Edit String dialog opens.

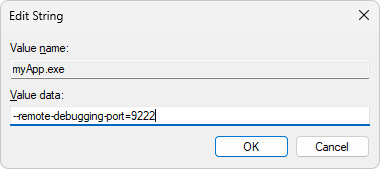

In the Value data text box, enter --remote-debugging-port=9222:

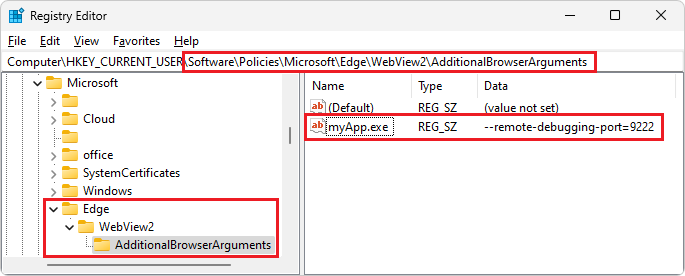

Click the OK button, and then verify that the registry key matches the following (with the file name of your .exe file in the Name column):

Debug tracing options

To enable debug tracing, add the trace parameter to launch.json , as follows:

Add the trace parameter:

"name": "Hello debugging world",
"type": "msedge",
"port": 9222,
"request": "attach",
"runtimeExecutable": "C:/path/to/your/webview2/app.exe",
"env": {
"Path": "%path%;e:/path/to/your/build/location; "
},
"useWebView": true
,"trace": true  // Turn on debug tracing, and save the output to a log file.

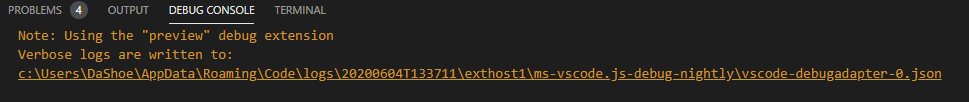

Saving debug output to a log file:

Save debug output to a log file

,"trace": "verbose"  // Turn on verbose tracing in the Debug Output pane.

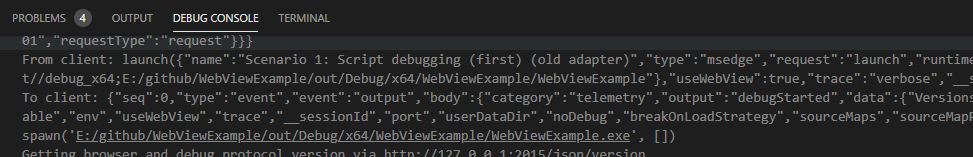

Visual Studio Code Debug Output with verbose tracing turned on:

Visual Studio Code Debug Output with verbose tracing turned on

Debug Office Add-ins

If you're debugging Office Add-ins, open the add-in source code in a separate instance of Visual Studio Code. Open launch.json in your WebView2 app. Add the following code into launch.json, to attach the debugger to the Office add-in:

,"debugServer": 4711

Debug WebView2 WinUI 2 (UWP) apps

Install a WebView2 Runtime version past 106.0.1370.34.
Open the Registry Editor by pressing the Windows logo key and then searching for registry editor. Open the Registry Editor application and select Yes to allow editing.
Set the registry key HKEY_CURRENT_USER\Software\Policies\Microsoft\Edge\WebView2\AdditionalBrowserArguments equal to --remote-debugging-pipe. To do this, follow the steps outlined in the Debug running processes section above.

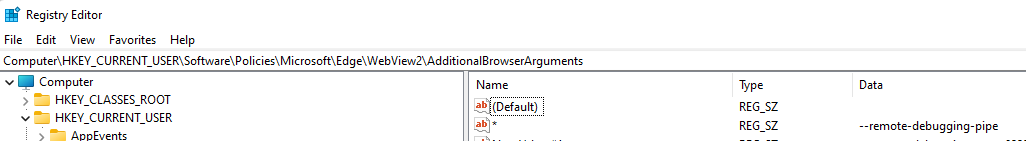

Verify that the registry key is set in the editor and matches the following:

Add a new configuration to your launch.json file. Open launch.json and add the following code:

"name": "Attach to UWP App",
"useWebView":{
   "pipeName":"JSDebugPipe"
}
"request": "attach",
"type": "msedge",
"webRoot":"${workspaceFolder}"

Launch your app.
Click the Start Debugging button to attach to the process and begin debugging.

Troubleshoot the debugger

You might encounter these scenarios when using the debugger.

Doesn't stop at breakpoint

If the debugger doesn't stop at the breakpoint, and you have debug output:

To solve the issue, confirm that the file with the breakpoint is the same file that's used by the WebView2 control. The debugger doesn't perform source path mapping.

Can't attach to running process

If you can't attach to a running process, and you get a timeout error:

To solve the issue, confirm that the WebView2 control opened the CDP port. Make sure your additionalBrowserArguments value in the registry is correct, or the options are correct. See additionalBrowserArguments for dotnet and additionalBrowserArguments for Win32.
