Set up CI/CD pipelines

  • 아티클

You can set up a Continuous Integration and Continuous Deployment (CI/CD) pipeline for Microsoft Teams apps created with Teams Toolkit. A Teams app CI/CD pipeline consists of three parts:

  1. Build the project.

  2. Deploy the project to cloud resources.

  3. Generate Teams app package.

Note

To create a pipeline for a Teams app, it's required to prepare the necessary cloud resources, such as Azure Web App, Azure Functions, or Azure Static Web App, and configure the app settings.

To build the project, you must compile the source code and create the required deployment artifacts. There are two methods to deploy the artifacts:

Set up CI/CD pipelines with Teams Toolkit CLI

Note

Use Teams Toolkit version 5.6.0 or a later.

You can use Teams Toolkit command line interface (CLI) to set up CI/CD pipeline for your Teams app.

Prerequisites

Item Description
Set up required resources for your Teams app, such as Teams app ID, bot ID, and so on. • Manually extract the resources from the manifest.json file under the appPackage folder.
• Automatically generate to run the Provision command in Teams Toolkit.
Configure Azure resources • Manually prepare the resources by examining the bicep files under the infra folder.
• Automatically prepare the resources using the Provision command in Teams Toolkit.
Ensure you've a properly configured service principal with appropriate access policies on resources. The Teamsapp command-line interface (CLI) supports Azure login through certificate-based authentication or password-based authentication (application secret). You can either create a service principal with certificate-based authentication and save the generated certificate, appId (client ID) and tenant (tenant ID) or create a secret and save the client ID, client secret, and tenant ID of the service principal.
Screenshot shows the service principal secret.
For more information about service principal, see:
• Create service principal using Entra portal.
• Create service principal using Azure CLI.

After you've completed the prerequisites, let's set up a pipeline:

Set up pipeline with GitHub

To set up the pipeline with GitHub, follow these steps:

  1. Open Visual Studio Code.

  2. Create a cd.yml file in your project under .github/workflows folder and add the following code in the file:

    on:
  push:
    branches:
      - main
jobs:
  build:
    runs-on: ubuntu-latest
    env:
      TEAMSAPP_CLI_VERSION: "3.0.4"
      # Add extra environment variables here so that teamsapp cli can use them.

    steps:
      - name: "Checkout GitHub Action"
        uses: actions/checkout@v4

      - name: Setup Node 20.x
        uses: actions/setup-node@v1
        with:
          node-version: "20.x"

      - name: install cli
        run: |
          npm install @microsoft/teamsapp-cli@${{env.TEAMSAPP_CLI_VERSION}}

      - name: Retrieve the secret and decode it to a file
        env:
          CERTIFICATE_BASE64: ${{ secrets.AZURE_SERVICE_PRINCIPAL_CERTIFICATE_BASE64 }}
        run: |
          echo $CERTIFICATE_BASE64 | base64 --decode > cert.pem

      - name: Login Azure by service principal
        run: |
          npx teamsapp auth login azure --username ${{vars.AZURE_SERVICE_PRINCIPAL_CLIENT_ID}}  \
          --service-principal true \
          --tenant ${{vars.AZURE_TENANT_ID}} \
          --password cert.pem \
          --interactive false

      - name: Deploy to hosting environment
        run: |
          npx teamsapp deploy --ignore-env-file true \
          --interactive false

      - name: Package app
        run: |
          npx teamsapp package

      - name: upload appPackage
        uses: actions/upload-artifact@v4
        with:
          name: artifact
          path: appPackage/build/appPackage.zip

  3. Go to GitHub.

  4. Update the following variables and secrets you created during the prerequisites:

    • AZURE_SERVICE_PRINCIPAL_CLIENT_ID, AZURE_TENANT_ID, and AZURE_SERVICE_PRINCIPAL_CERTIFICATE_BASE64. AZURE_SERVICE_PRINCIPAL_CERTIFICATE_BASE64 is the Base64 string encoded content of the certificate that you've generated.

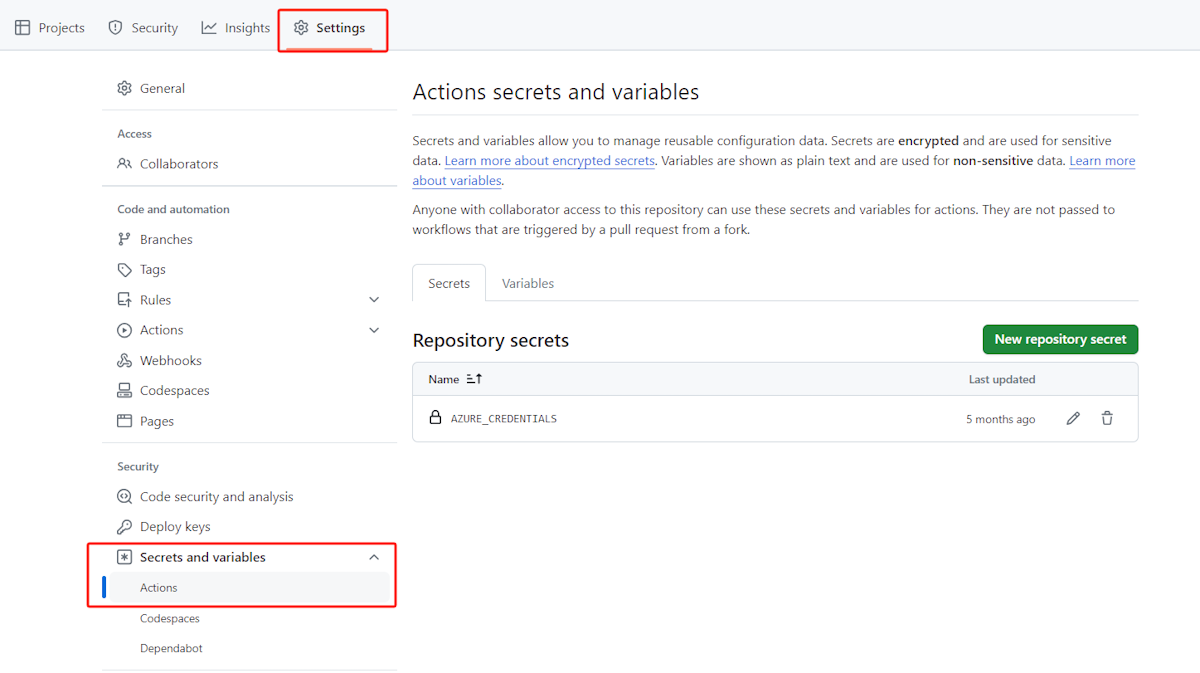

      Screenshot shows the repo settings.

      Note

      The AZURE_SERVICE_PRINCIPAL_CERTIFICATE_BASE64 variable must be set as secret. Use the GitHub environment for different variable sets.

    • Go to the teamsapp.yml file. In the deploy stage, the values enclosed in ${{}} are the required variable keys. If you've used the provision command from Teams Toolkit, you can locate the values in the environment files in the .env folder.

      Set the BOT_AZURE_APP_SERVICE_RESOURCE_ID as a repository variable:

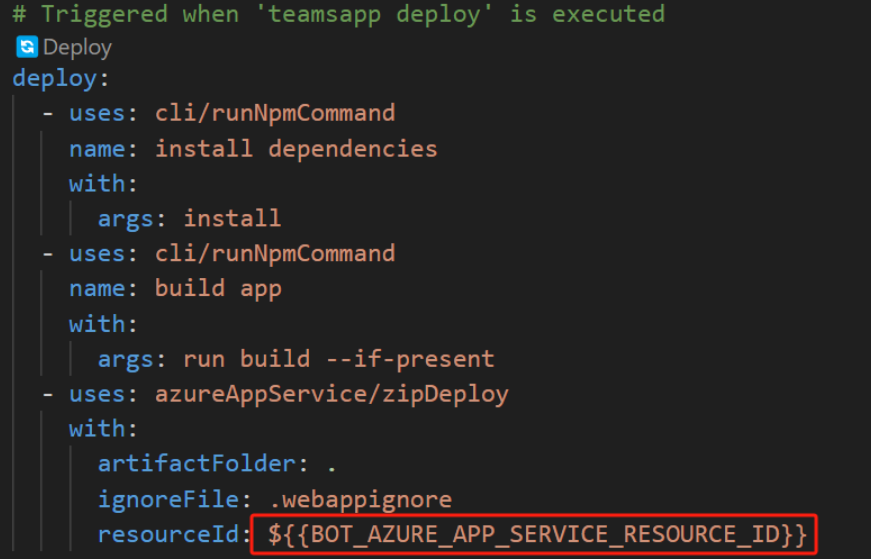

      Screenshot shows the bot Azure app service resource ID in teamsapp.yml file.

    • Go to the appPackage/manifest.json file. The values enclosed in ${{}} are the required variable keys. If you've used the provision command from Teams Toolkit, you can locate the values in the environment files in the .env folder.

      Set the TEAMS_APP_ID as a repository variable:

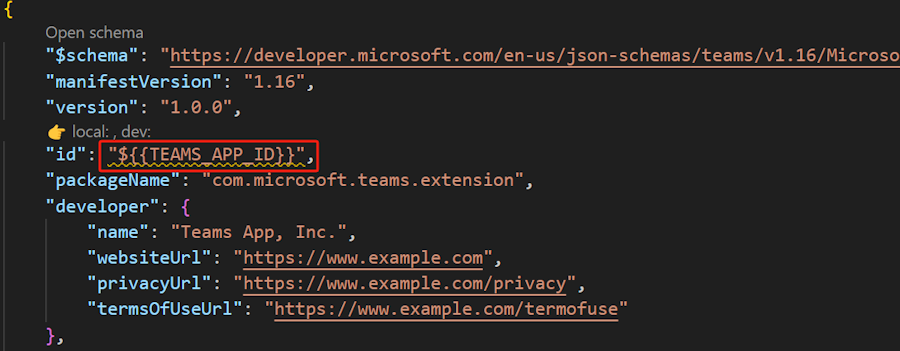

      Screenshot shows the Teams app ID in manifest file.

  5. In the GitHub, navigate to your repository’s Settings and select Secrets and variables > Actions.

    Update the variable keys that you've gathered for the following variables:

    • AZURE_SERVICE_PRINCIPAL_CLIENT_ID
    • AZURE_TENANT_ID
    • AZURE_SERVICE_PRINCIPAL_CLIENT_SECRET or AZURE_SERVICE_PRINCIPAL_CERTIFICATE_BASE64
    • BOT_AZURE_APP_SERVICE_RESOURCE_ID
    • TEAMS_APP_ID

    Add the variables defined in your repo directly into your yml file, excluding the following three variables:

    • AZURE_SERVICE_PRINCIPAL_CLIENT_ID

    • AZURE_TENANT_ID

    • AZURE_SERVICE_PRINCIPAL_CLIENT_SECRET or AZURE_SERVICE_PRINCIPAL_CERTIFICATE_BASE64

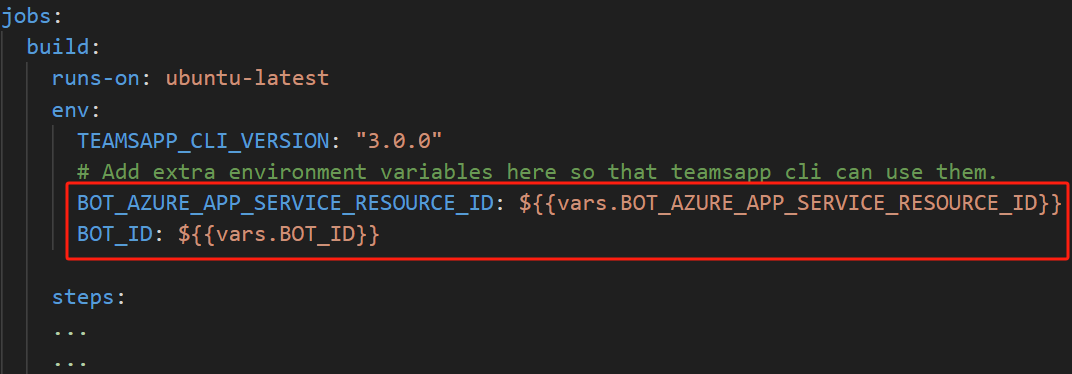

      Screenshot shows the modified pipeline yml.

  6. Run the pipeline.

    Push code to the repo to trigger pipeline.

    Note

    You don't need to commit env files under env folder to the repo. The env variables required for executing the CI/CD pipeline are already set in the repo variables.

    After the pipeline executes successfully, the log displays that the code is deployed to Azure and the appPackage is generated in the artifacts.

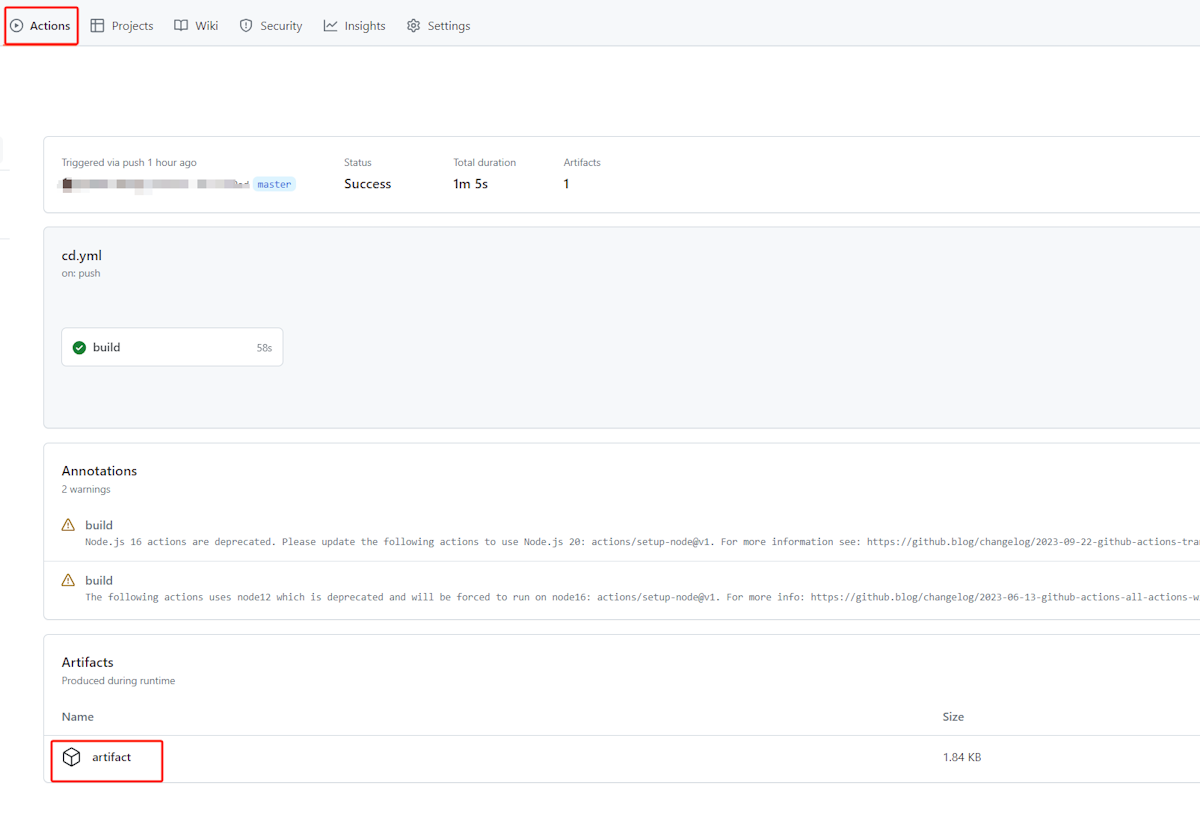

    Screenshot shows the `appPackage` is generated in the artifacts.

Set up pipeline with Azure DevOps

To set up the pipeline with Azure DevOps, follow these steps:

  1. Open Visual Studio Code.

  2. Create a cd.yml file in your project and add the following code in the file:

    trigger:
  - main

pool:
  vmImage: ubuntu-latest

variables:
  TEAMSAPP_CLI_VERSION: 3.0.4

steps:
  - task: NodeTool@0
    inputs:
      versionSpec: "20"
      checkLatest: true

  - script: |
      npm install @microsoft/teamsapp-cli@$(TEAMSAPP_CLI_VERSION)
    displayName: "Install CLI"

  - task: DownloadSecureFile@1
    name: certFile
    displayName: 'Download Certificate File'
    inputs:
      secureFile: 'azure_sp_cert.pem'

  - script: |
      npx teamsapp auth login azure --username $(AZURE_SERVICE_PRINCIPAL_CLIENT_ID) --service-principal true --tenant $(AZURE_TENANT_ID) --password $(certFile.secureFilePath) --interactive false
    displayName: "Login Azure by service principal"

  - script: |
      npx teamsapp deploy --ignore-env-file true --interactive false
    displayName: "Deploy to Azure"
    workingDirectory: $(System.DefaultWorkingDirectory)

  - script: |
      npx teamsapp package
    displayName: "Package app"
    workingDirectory: $(System.DefaultWorkingDirectory)

  - publish: $(System.DefaultWorkingDirectory)/appPackage/build/appPackage.zip
    artifact: artifact

  3. Push the code to the repo.

  4. Setup Azure pipeline.

    After you push your code to the repo, navigate to Pipelines and select New pipeline. Select your repo and the existing yml file to configure your pipeline.

  5. Update the following variables and set the certificate that you've created during the prerequisites:

    • AZURE_SERVICE_PRINCIPAL_CLIENT_ID, AZURE_TENANT_ID

    • Go to the teamsapp.yml file. In the deploy stage, the values enclosed in ${{}} are the required variable keys. If you've used the provision command from Teams Toolkit, you can locate the values in the environment files in the .env folder.

      Set the BOT_AZURE_APP_SERVICE_RESOURCE_ID as a repository variable:

      Screenshot shows the bot Azure app service resource ID in teamsapp.yml file.

    • Go to the appPackage/manifest.json file. The values enclosed in ${{}} are the required variable keys. If you've used the provision command from Teams Toolkit, you can locate the values in the environment files in the .env folder.

      Set the TEAMS_APP_ID as a repository variable:

      Screenshot shows the Teams app ID in manifest file.

    You need to set the following key name variables in the repo:

    • AZURE_SERVICE_PRINCIPAL_CLIENT_ID
    • AZURE_TENANT_ID
    • BOT_AZURE_APP_SERVICE_RESOURCE_ID
    • TEAMS_APP_ID

    To set variables in your pipeline, go to your pipeline and select Edit > Variables.

    In your Azure DevOps project, navigate to Pipelines > Library and add a new secure file. Upload the certificate (.pem) file and name the file as azure_sp_cert.pem.

  6. Run the pipeline.

    Push code to the repo to trigger pipeline.

    Note

    There's no need to commit env files under env/ folder to the repo. The env variables required for executing the CI/CD pipeline are already established in the pipeline variables.

    After the pipeline executes successfully, the log displays that the code is deployed to Azure and the appPackage is generated in the artifacts.

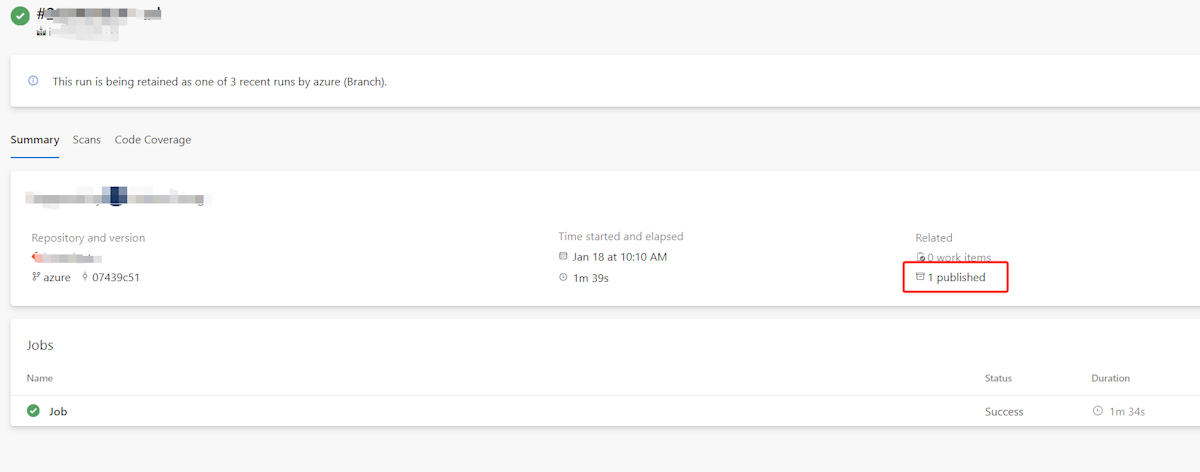

    Screenshot shows the pipeline runs successfully.

Set up CI/CD pipelines using your own workflow

If the Teams App CLI doesn't meet your pipeline requirements, you can develop a custom deployment process that suits your needs. This section provides guidance on deploying to Azure with custom methods.

Note

If you already have a complete CI/CD pipeline for deploying to your Azure resource, and your Teams app needs to read environment variables during runtime, configure these environment variables in the settings of your Azure resource. For post-deployment testing, see generate Teams app package.

The teamsapp deploy command executes the actions defined in the deploy stage of the teamsapp.yml file. The deploy stage consists of build and deploy actions. To create a custom deployment method, rewrite these actions based on your specific requirements and preferences.

As an example, a basic bot TypeScript project has the following deploy stage in its teamsapp.yml:

deploy:
  # Run npm command
  - uses: cli/runNpmCommand
    name: install dependencies
    with:
      args: install
  - uses: cli/runNpmCommand
    name: build app
    with:
      args: run build --if-present
  # Deploy your application to Azure App Service using the zip deploy feature.
  # For additional details, refer to this link.
  - uses: azureAppService/zipDeploy
    with:
      # Deploy base folder
      artifactFolder: .
      # Ignore file location, leave blank will ignore nothing
      ignoreFile: .webappignore
      # The resource id of the cloud resource to be deployed to.
      # This key will be generated by arm/deploy action automatically.
      # You can replace it with your existing Azure Resource id
      # or add it to your environment variable file.
      resourceId: ${{BOT_AZURE_APP_SERVICE_RESOURCE_ID}}

These actions perform the following tasks:

  • Run npm install and npm build to build the project.
  • Deploy code to Azure app service.

You can customize these actions in your CI/CD pipeline. Here's an example that utilizes GitHub's actions:

# build
- name: Setup Node 20.x
  uses: actions/setup-node@v1
  with:
    node-version: '20.x'
- name: 'npm install, build'
  run: |
    npm install
    npm run build --if-present

- name: 'zip artifact for deployment'
  run: |
    zip -r deploy.zip . --include 'node_modules/*' 'lib/*' 'web.config'

# deploy
- name: 'Login via Azure CLI'
  uses: azure/login@v1
  with:
    client-id: ${{ vars.CLIENT_ID }}
    tenant-id: ${{ vars.TENANT_ID }}
    subscription-id: ${{ vars.SUBSCRIPTION_ID }}

- name: 'Run Azure webapp deploy action using azure RBAC'
  uses: azure/webapps-deploy@v2
  with:
    app-name: ${{ vars.AZURE_WEBAPP_NAME }}
    package: deploy.zip

The Teams Toolkit supports Teams app projects, written in various programming languages and designed for hosting on different Azure services. The following actions for building and deploying. Use these actions when setting CI/CD deployment pipelines.

Build:

Language GitHub Azure Pipeline
JS or TS actions/setup-node NodeTool@0
C# actions/setup-dotnet DotNetCoreCLI@2

Deploy:

Resource GitHub Azure Pipeline
Azure App Service azure/webapps-deploy AzureWebApp@1
Azure Functions Azure/functions-action AzureFunctionApp@2
Azure Static Web Apps Azure/static-web-apps-deploy AzureStaticWebApp@0

Credential needed for login to Azure

When you deploy app code to Azure App Service, Azure Functions, or Azure Container App through CI/CD, you need a service principal for Azure login. You can log in to Azure using a service principal in two ways:

Generate Teams app package

To distribute your Teams app, the appPackage is required. You can automatically create the appPackage.zip using the teamsapp package command in Teamsapp CLI. If you're unable to use Teamsapp CLI, follow these steps to manually create the appPackage:

  1. Prepare a appPackage folder.
  2. Place the manifest.json file in the appPackage folder. The default manifest.json file in the Teams Toolkit project contains placeholders, denoted by ${{}}. Replace these placeholders with the correct values.
  3. Place your app icons in the appPackage folder. To prepare your app icon, see app icons.
  4. Zip the files in the appPackage folder.
