Exercise - Add advanced client-side functionality

Completed

The purpose of this hands-on lab is to demonstrate how to add JavaScript code to a page to render data from Microsoft Dataverse as a chart by using an external charting library with the data that's retrieved from Dataverse by using portals Web API.

The exercises work best when you have sample data to work with. Depending on the environment that you're working with, you might want to install some sample data to assist with the exercises. Microsoft Power Platform provides you with the ability to add sample data as needed. If the environment that you're working in doesn't have sample data installed, follow the steps in the Add or remove sample data documentation to install the sample data into your environment.

Learning objectives

The objective of these exercises is to help you learn how to:

  • Set up site settings and table permissions to enable portals Web API requests.

  • Add inline code to a content webpage to retrieve and transform the data by using the portals Web API.

  • Use an external JavaScript library to plot the transformed data.

Prerequisites

For this exercise, make sure that the following parameters are set up in your environment:

  • A provisioned Power Pages website. If you don't have a Power Pages website available, follow the instructions in the Create a site with Power Pages documentation to create one.

  • Access to the Power Pages maker home page.

High-level steps

To finish the exercise, complete the following tasks:

  1. Create site settings and table permissions that allow portals Web API read requests to the accounts table.

  2. Create a content page and add JavaScript code that retrieves and transforms the data.

  3. Add a charting library to the page and JavaScript code by using the library to build a graph with the retrieved data.

Detailed steps

Follow the detailed steps to complete this lab.

Enable portals Web API requests

This section will show you how to enable portals Web API requests to the accounts table.

Create site settings

To create site settings, follow these steps.

  1. Sign in to Power Pages home.

  2. Select the correct environment in the upper-right corner.

  3. Select the ellipsis (...) menu and then select Power Pages Management.

    The Power Pages Management App will open in a new tab.

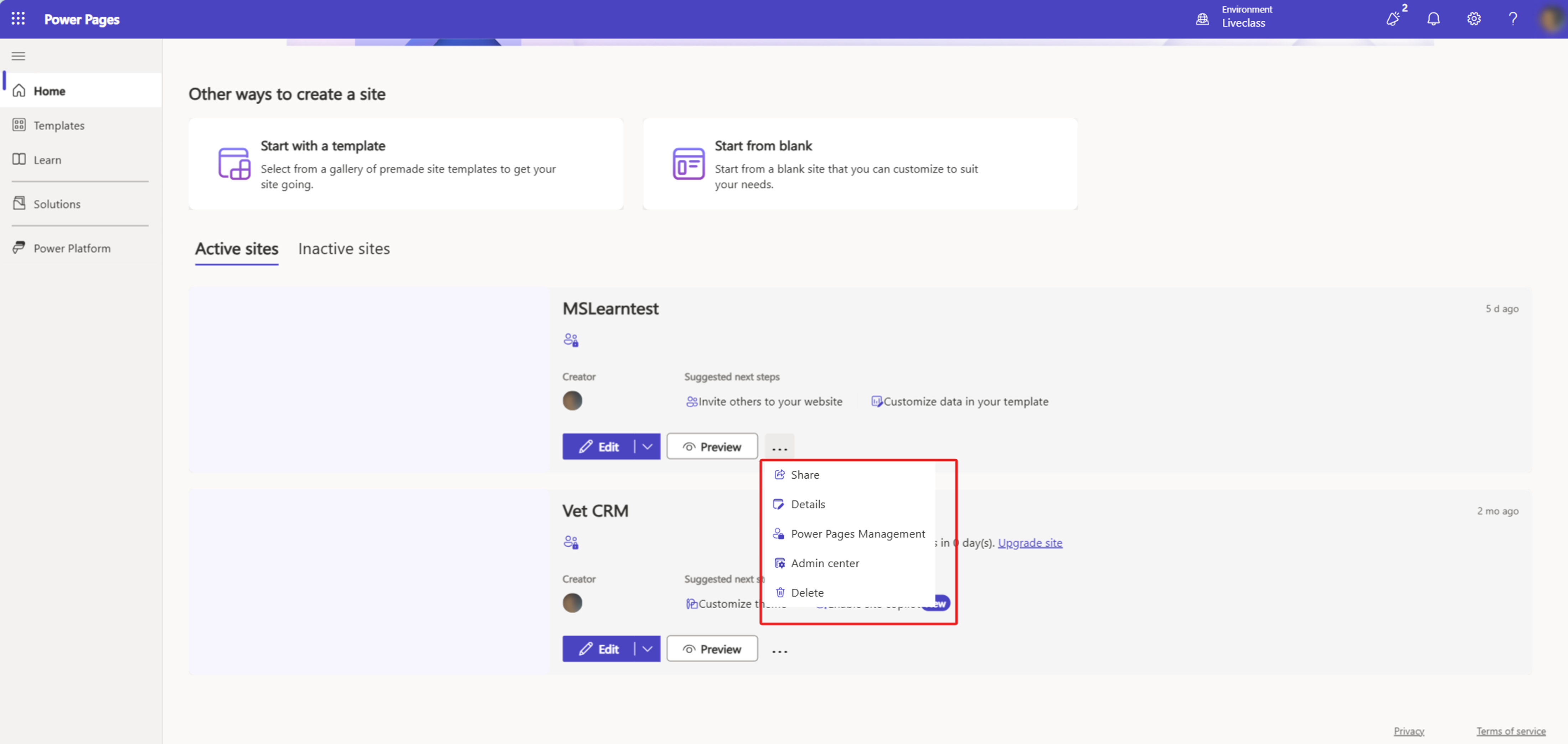

    Screenshot of the Power Pages maker environment with the extension menu expanded and the Power Pages Management menu item selected.

  4. Select Site Settings.

  5. Select + New and then enter the following information:

    • Name - Webapi/account/enabled

    • Website - Select your website

    • Value - true

  6. Select Save.

    Screenshot of the steps to create Web API site settings.

  7. Select + New and then enter the following information:

    • Name - Webapi/account/fields

    • Website - Select your website

    • Value - name,numberofemployees,revenue

  8. Select Save & Close.

Create table permissions

To create table permissions, follow these steps.

  1. Switch to Power Pages home.

  2. Select Edit for the target website to open Power Pages design studio.

  3. Select the *Security workspace and then select Table permissions.

    Screenshot of the table permissions in Power Pages design studio.

  4. Select + New permission and then fill in the following information:

    • Name - Account

    • Table - Account (account)

    • Access type - Global

    • Permission to - Read

  5. Select Add roles and then add Anonymous Users and Authenticated Users.

  6. Select Save.

    Screenshot of the global read table permission on accounts.

Test the Web API

To test the Web API, open the following URL: https://yourwebsite.powerappsportals.com/_api/accounts?$select=name,numberofemployees,revenue

Your output should resemble the following image.

Screenshot of the sample portal Web A P I output.

Create a content page and retrieve data

To create a content page and add JavaScript code that retrieves and transforms the data, follow these steps:

  1. In design studio, select the Pages workspace then select + Page.

  2. Enter Chart as the Page name.

  3. Confirm selection of the option to Add page to main navigation.

  4. Select the Start from blank layout.

  5. Select Add.

  6. Select Edit code.

    Screenshot of the new blank chart page in design studio with a red box over the Edit code button.

  7. In the pop-up dialog, select Open Visual Studio Code.

  8. In the Visual Studio Code editor, select the Chart.en-US.customjs.js file.

  9. Append the following script:

    function makeChart(rawData) {
      // transform raw data into plotting array
      var rData = rawData.value.map(({
        name,
        revenue,
        numberofemployees
      }) => ({
        "x": numberofemployees,
        "y": revenue,
        "z": (!revenue) ? 1 : numberofemployees / revenue,
        "name": name
      }));
      console.log(rData);
    }
    // retrieve accounts data using portals Web API
    $(document).ready(function() {
      $.get('/_api/accounts?$select=name,numberofemployees,revenue', makeChart, 'json');
    });

  10. Press the Ctrl + S keyboard shortcut (⌘ + S on Mac) to save the file.

    Screenshot of the Visual Studio Code editor with JavaScript to retrieve accounts data by using portals Web A P I.

  11. Close the Visual Studio Code tab. Select Sync when prompted to synchronize the changes.

  12. Select Preview > Desktop.

  13. When the page is displayed, press the F12 key to display browser developer tools.

  14. Verify that the console output contains the same data as previously retrieved, except that it's now showing as transformed.

    Screenshot of the console output with transformed data.

  15. The data structure is now prepared for plotting. Assign the appropriate labels to data points:

    • name - Company name

    • x - Number of employees

    • y - Company revenue in thousands

    • z - Revenue for each employee (calculated)

Add external library functionality

This exercise uses Highcharts.js library (free for personal or non-profit use) to create a bubble chart based on the data.

  1. Switch to design studio.

  2. Select the page footer and then select Edit code.

  3. In the pop-up dialog, select Open Visual Studio Code.

    Screenshot of a page opened in Power Pages design studio with the page footer selected and a pop-up window prompting the user to Open Visual Studio Code.

  4. Append the following code at the end of the file.

      <script src="https://code.highcharts.com/highcharts.js"></script>
      <script src="https://code.highcharts.com/highcharts-more.js"></script>

  5. Press the Ctrl + S keyboard shortcut (⌘ + S on Mac) to save the file.

  6. Close the Visual Studio Code tab.

  7. Select Edit code on the toolbar to open Visual Studio Code for the page.

  8. Select the Chart.en-US.customjs.js file.

  9. Modify the file to change the makeChart function as follows:

    function makeChart(data) {
      console.log(data);
      var rData = data.value.map(({
        name,
        revenue,
        numberofemployees
      }) => ({
        "x": numberofemployees,
        "y": revenue,
        "z": (!revenue) ? 1 : numberofemployees / revenue,
        "name": name
      }));
      console.log(rData);

      // new code to plot the data
      Highcharts.chart($('.mychart')[0], {
        title: {
          text: "Customers efficiency"
        },
        legend: {
          enabled: false
        },
        xAxis: {
          title: {
            text: "Number of employees"
          }
        },
        yAxis: {
          title: {
            text: "Turnover ($K)"
          }
        },
        tooltip: {
          pointFormat: '<strong>{point.name}</strong><br/>Employed: {point.x}<br>Turnover ($K): ${point.y}',
          headerFormat: ''
        },
        series: [{
          type: 'bubble',
          data: rData
        }]
      });
    }

    // retrieve accounts data using portals Web API
    $(document).ready(function() {
      $.get('/_api/accounts?$select=name,numberofemployees,revenue', makeChart, 'json');
    });

  10. Press the Ctrl + S keyboard shortcut (⌘ + S on Mac) to save the file.

  11. Select the Chart.en-US.webpage.copy.html file.

  12. Insert the following code into the inner <div> element:

      <figure>
        <div class="mychart"></div>
      </figure>

  13. Press the Ctrl + S keyboard shortcut (⌘ + S on Mac) to save the file.

    Screenshot of the content area of the page in Visul Studio Code editor.

  14. Close the Visual Studio Code tab then select Sync to synchronize the changes.

  15. Select Preview > Desktop.

  16. The output should now include the bubble chart. Hover your cursor over the bubbles to verify the data.

Screenshot of the page output with the bubble chart now included.
