MB eSIM 작업

eSIM 아키텍처

Windows 운영 체제의 LPA(로컬 프로필 Assitant) 구성 요소는 LPA 서비스이며, 낮은 수준의 UICC 액세스는 WWAN 서비스를 통해 노출됩니다. LPA 서비스는 프로필 검색, 프로필 다운로드 및 프로필 관리를 처리합니다.

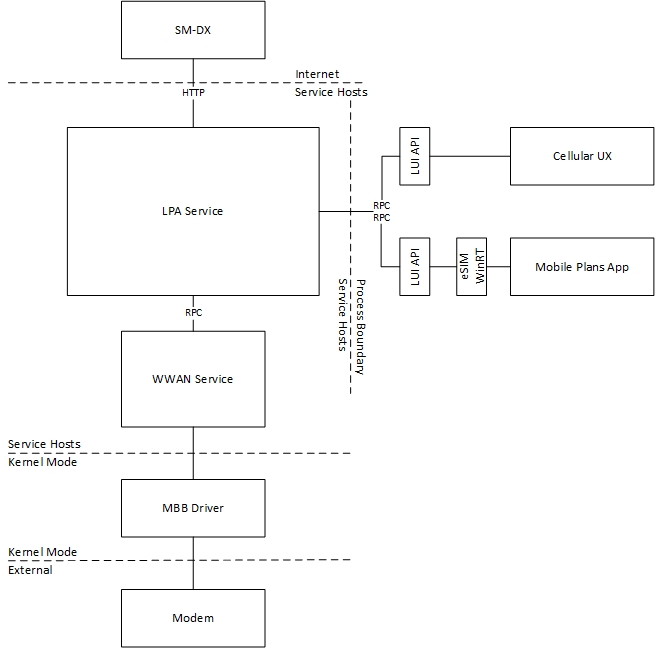

LPA 서비스 및 WWAN 서비스 구성 요소가 있는 eSIM 아키텍처를 보여 주는 다이어그램

eSIM 작업에 대한 MB 인터페이스 업데이트

모뎀은 eSIM 기능에 대해 다음 MB 하위 수준 UICC 액세스 CID를 지원해야 합니다.

 MBIM_CID_MS_UICC_ATR
 MBIM_CID_MS_UICC_OPEN_CHANNEL
 MBIM_CID_MS_UICC_CLOSE_CHANNEL
 MBIM_CID_MS_UICC_APDU
 MBIM_CID_MS_UICC_TERMINAL_CAPABILITY
 MBIM_CID_MS_UICC_RESET

eSIM 서비스 초기화

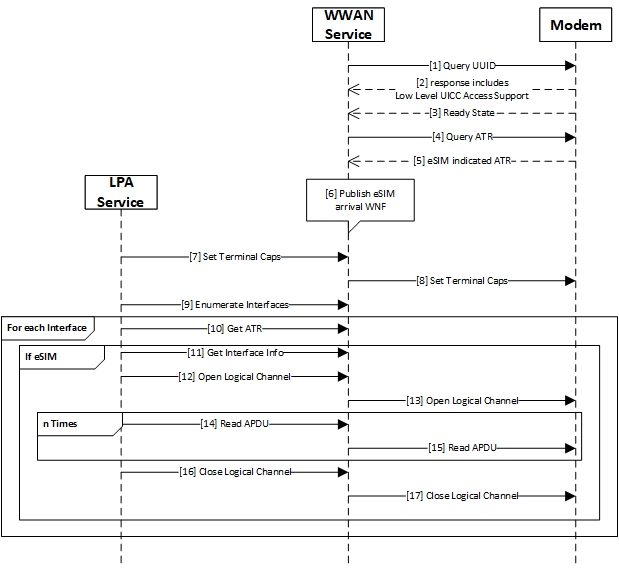

eSIM 서비스 초기화 프로세스를 보여 주는 순서도입니다.

eSIM 프로필 다운로드 및 설치

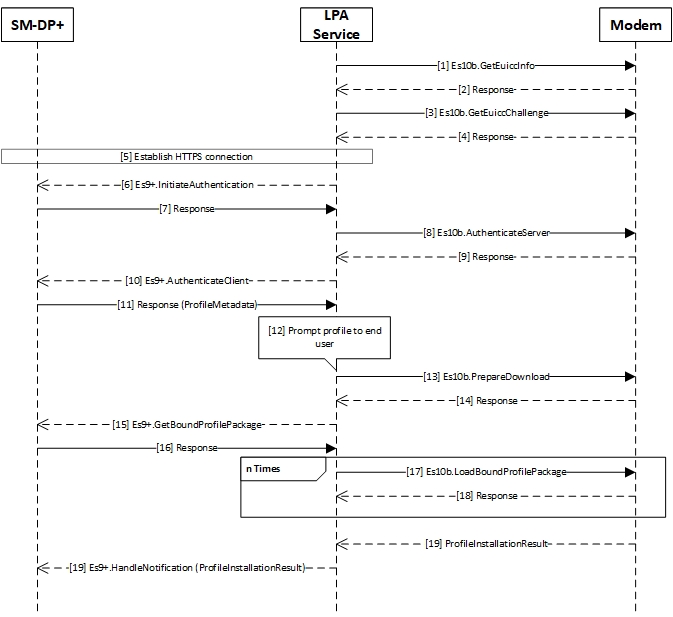

eSIM 프로필 다운로드 및 설치 프로세스를 보여 주는 순서도입니다.

eSIM 프로필 작업

eSIM 프로필 작업에는 다음이 포함됩니다.

Enable Profile
Disable Profile
Delete Profile
Wipe eSIM
Update NickName

다음은 프로필 사용 작업에 대한 샘플 흐름입니다. 다른 프로필 작업은 MBIM_CID_MS_UICC_APDU 해당 작업에 대한 Es10c 명령을 포함한다는 점을 제외하고 비슷한 흐름을 따릅니다.

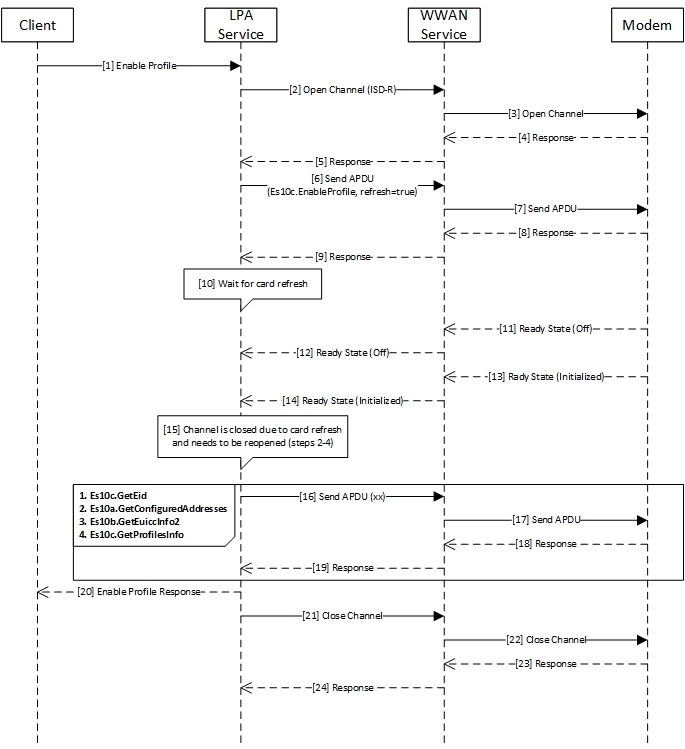

샘플 명령을 사용하여 eSIM 사용 프로필 작업을 보여주는 순서도입니다.

카드 새로 고침

eSIM 프로필 작업은 카드 새로 고침이 수행된 후 MB eSIM MBIM 준비 상태 지침에 따라 준비 상태 변경이 수행될 것으로 예상합니다.

HLK(하드웨어 랩 키트) 테스트

HLK에서 다음 테스트를 사용하여 eSIM 기능을 확인할 수 있습니다.

TestLowLevelUiccAccess

TestReadyInfo

TestResetPassthrough

netsh를 통해 TestLowLevelUiccAccess HLK 테스트 목록을 실행할 수 있습니다. netsh 도구 사용에 대한 자세한 내용은 netsh-mbn 및 netsh-mbn-test-installation을 참조하세요.

netsh mbn test feature=esim testpath="C:\data\test\bin" taefpath="C:\data\test\bin" param="AccessString=internet"

HLK 테스트 결과를 보여 주는 파일은 'netsh mbn test' 명령이 에서 실행된 디렉터리에서 TestLowLevelUiccAccess.htm생성되어야 합니다.

수동 테스트

eSIM 프로필 관리 테스트

  1. 필수 리소스: 프로필 다운로드를 위한 eSIM 및 활성화 코드 또는 QR 코드입니다. 프로필을 다운로드하려면 확인 코드가 필요합니다.
  2. 설정->네트워크 & 인터넷 -> 셀룰러를 엽니다.
  3. eSIM 프로필 관리를 클릭합니다.
  4. 새 프로필 추가를 클릭합니다.
  5. 통신사에서 가지고 있는 활성화 코드를 입력하도록 허용을 선택하고 다음을 클릭합니다.
  6. QR 코드를 검사하거나 활성화 코드를 입력합니다.
  7. 확인 페이지가 표시될 때까지 기다립니다. 확인 코드를 입력하고 다음을 클릭합니다.
  8. 대화 상자를 해제한 다음 프로필을 사용하도록 설정합니다.
  9. 프로필 이름을 변경합니다. 프로필에 대한 새 이름이 표시되어야 합니다.
  10. 프로필을 삭제합니다.
  11. 프로필을 다시 설치합니다(4-7단계 반복). 이번에는 잘못된 확인 코드가 있습니다. 예를 들어 QR 코드를 검사할 때 서버에 연결하기 전에 코드 해시가 1초 동안 표시됩니다. 매우 빠르게 내부 아무 곳이나 클릭하고 백 키를 눌러 서버와 대화하기 전에 단일 문자를 삭제합니다.
  12. 오류 메시지가 표시되고 결국 확인 페이지에 다시 도착합니다. 이번에는 올바른 확인 코드를 입력하고 다음을 클릭합니다.
  13. 대화 상자를 해제하고 프로필을 삭제합니다.

다시 부팅 후 자동 연결 테스트

  1. 이더넷이 분리되어 있고 Wi-Fi 꺼져 있는지 확인합니다. 디바이스의 물리적 eSIM에 알려진 양수 eSIM 프로필이 있는 상태에서 설정 -> 네트워크 & 인터넷 - 셀룰러 ->> eSIM 프로필 관리 -> eSIM 프로필로 이동하여 프로필을 선택하고 사용을 클릭합니다. 인터넷 검색이 정상적으로 작동하는지 확인합니다.
  2. 컴퓨터를 다시 부팅하고, 로그인하고, 설정 -> 네트워크 & 인터넷 - 셀룰러 ->> eSIM 프로필 관리 -> eSIM 프로필로 이동합니다. 프로필은 활성으로 표시되고, Systray는 셀룰러 연결 막대를 표시해야 하며, 인터넷 검색이 정상적으로 작동해야 합니다.
  3. eSIM 프로필 관리로 돌아가서 프로필을 선택하고 사용 중지를 클릭합니다. 프로필은 데이터의 연결을 끊어야 합니다.

MB eSIM 문제 해결 가이드

이 가이드에 따라 eSIM 문제를 디버그합니다.

프로필 다운로드 및 설치 실패

  1. MB 로그 수집의 지침을 사용하여 로그 수집 및 디코딩
  2. TextAnalysisTool에서 생성된 .txt 파일 열기
  3. eSIM 다운로드 및 설치 필터 로드

프로필 다운로드 및 설치에 대한 샘플 성공 로그는 다음과 같습니다.

 37 24515    None    2020-03-04T08:54:48.6922406    0.0000922    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForLpaNotifications,ulTransactionId=1
 47 25637    None    2020-03-04T08:54:48.7058023    0.0000081    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForEsimNotifications,ulTransactionId=2
 48 25638    None    2020-03-04T08:54:48.7058116    0.0000093    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForAllProfileNotifications,ulTransactionId=3
 87 42955    None    2020-03-04T08:54:50.8459033    0.0000357    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForLpaNotifications,ulTransactionId=1
 96 43009    None    2020-03-04T08:54:50.8470189    0.0000401    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForEsimNotifications,ulTransactionId=2
104 43039    None    2020-03-04T08:54:50.8473061    0.0000092    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForAllProfileNotifications,ulTransactionId=3
110 43856    None    2020-03-04T08:55:10.1453397    19.2978242    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    RpcDownloadProfile: Component=LuiApiServer,esimId=89033023**********************06,hr=0,Location=LuiApiProcessActivationCode,luicontext=2,strActivation=1$*******************************,ulTransactionId=4
113 43861    None    2020-03-04T08:55:10.1459912    0.0000161    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnInitiateCommonMutualAuthentication,fsmevent=3,Location=LPA::Lpd::DownloadInstance::InitiateCommonMutualAuthentication,task=2,taskId=6
115 43863    None    2020-03-04T08:55:10.1461554    0.0000022    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=ProcessActivation,fsmevent=1,Location=LPA::Lpd::DownloadInstance::ProcessActivationCode,task=3,taskId=6
130 44745    None    2020-03-04T08:55:10.1901431    0.0000464    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetEuiccChallenge,fsmevent=4,Location=LPA::Lpd::DownloadInstance::OnEs10bGetChallengeComplete,task=2,taskId=6
134 45589    None    2020-03-04T08:55:10.2226549    0.0000204    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetUiccInfo1,fsmevent=5,Location=LPA::Lpd::DownloadInstance::OnEs10bGetUiccInfo1Complete,task=2,taskId=6
146 46509    None    2020-03-04T08:55:11.7773024    0.0002176    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9OrEs11InitiateAuthentication,fsmevent=6,Location=LPA::Lpd::DownloadInstance::OnEs9OrEs11InitiateAuthentication,task=2,taskId=6
153 50421    None    2020-03-04T08:55:12.9320399    0.0008653    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bAuthenticateServer,fsmevent=7,Location=LPA::Lpd::DownloadInstance::OnEs10bAuthenticateServerComplete,task=2,taskId=6
164 51032    None    2020-03-04T08:55:13.3763368    0.0001906    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9AuthenticateClient,fsmevent=8,Location=LPA::Lpd::DownloadInstance::OnEs9AuthenticateClient,task=2,taskId=6
176 51183    None    2020-03-04T08:55:14.9352658    0.0000603    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnInstallProfile,fsmevent=11,Location=LPA::Lpd::DownloadInstance::DownloadAndInstallProfile,task=4,taskId=6
190 54213    None    2020-03-04T08:55:18.1904783    0.0000651    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bPrepareDownload,fsmevent=14,Location=LPA::Lpd::DownloadInstance::OnEs10bPrepareDownloadComplete,task=4,taskId=11
197 54784    None    2020-03-04T08:55:19.5200686    0.0013163    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9BoundProfileDownloaded,fsmevent=15,Location=LPA::Lpd::DownloadInstance::OnEs9BoundProfileDownloaded,task=4,taskId=11
407 257461    None    2020-03-04T08:55:36.3645723    0.0001640    8820    7812    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bLoadBoundProfilePackage,fsmevent=16,Location=LPA::Lpd::DownloadInstance::OnEs10bLoadBoundProfilePackageComplete,task=4,taskId=11
412 258044    None    2020-03-04T08:55:36.6932923    0.3206194    8820    7812    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9HandleNotification,fsmevent=17,Location=LPA::Lpd::DownloadInstance::OnEs9HandleNotification,task=4,taskId=11
416 258628    None    2020-03-04T08:55:37.6234007    0.0000315    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bRemoveNotificationFromListComplete,fsmevent=18,Location=LPA::Lpd::DownloadInstance::OnEs10bRemoveNotificationFromListComplete,task=4,taskId=11
426 258790    None    2020-03-04T08:55:37.6239355    0.0000168    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=4
449 261202    None    2020-03-04T08:55:37.6883598    0.0000121    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=5
509 326884    None    2020-03-04T08:55:45.5722501    0.0000155    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=6
522 329627    None    2020-03-04T08:55:45.8306288    0.0000257    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetUiccInfo1,fsmevent=5,Location=LPA::Lpd::DownloadInstance::OnEs10bGetUiccInfo1Complete,task=2,taskId=27
524 330152    None    2020-03-04T08:55:46.6963292    0.8655163    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9HandleNotification,fsmevent=17,Location=LPA::Lpd::DownloadInstance::OnEs9HandleNotification,task=4,taskId=27
528 330865    None    2020-03-04T08:55:46.7211677    0.0000375    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bRemoveNotificationFromListComplete,fsmevent=18,Location=LPA::Lpd::DownloadInstance::OnEs10bRemoveNotificationFromListComplete,task=4,taskId=27

프로필 작업 실패

  1. MB 로그 수집의 지침을 사용하여 로그 수집 및 디코딩
  2. TextAnalysisTool에서 생성된 .txt 파일 열기
  3. eSIM 프로필 작업 필터 로드

프로필 사용 작업에 대한 샘플 성공 로그는 다음과 같습니다.

 2 39    None    2020-03-04T09:06:12.6782819        11720    2720    Microsoft_Windows_Cellcore_LPA_Service    RpcEnableProfile: Component=LuiApiServer,esimId=89033023**********************06,hr=0,Location=LuiApiEnableProfile,luicontext=2,profileId=8935401************6,ulTransactionId=5
12 209    None    2020-03-04T09:06:12.6937921    0.0152614    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    OpenChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OpenChannelOperation::Execute
17 1003    None    2020-03-04T09:06:12.7248172    0.0309320    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    ChannelOpened: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationOpenChannelComplete,ulChannel=1
18 1343    None    2020-03-04T09:06:12.7271141    0.0022969    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,20,191,49,17,160,12,90,10,152,83,4,1,0,0,0,0,85,101,129,1,255,0],vCommandApdu.data().Count=26
19 2067    None    2020-03-04T09:06:12.7489842    0.0218701    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,49,3,128,1,0],pApduCompleteInfo->ApduInfo.Response.Count=6
20 2445    None    2020-03-04T09:06:12.7505212    0.0015370    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,16,191,45,13,92,11,90,79,159,112,144,145,146,147,148,149,153,0],vCommandApdu.data().Count=22
23 4341    None    2020-03-04T09:06:12.7651848    0.0000718    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=0
24 6343    None    2020-03-04T09:06:12.7870313    0.0218465    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    WwapiAsyncResponseFailure: Component=LpaApduHelper,hr=-1073479677,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete
27 11067    None    2020-03-04T09:06:13.1843659    0.0000080    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
28 11070    None    2020-03-04T09:06:13.1843928    0.0000269    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    CardResetComplete: Component=LpaServiceEsimManager,count=0,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,hr=0,Location=LPA::EsimManager::ProcessWwapiSimUpdate,midoperation=True,readyState=6
29 13752    None    2020-03-04T09:06:13.2040341    0.0196413    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    OpenChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OpenChannelOperation::Execute
31 17057    None    2020-03-04T09:06:13.2232087    0.0133736    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
33 33469    None    2020-03-04T09:06:13.3307557    0.0000034    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
34 36738    None    2020-03-04T09:06:13.3658938    0.0351381    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    ChannelOpened: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationOpenChannelComplete,ulChannel=1
35 37169    None    2020-03-04T09:06:13.3699437    0.0040499    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,6,191,62,3,92,1,90,0],vCommandApdu.data().Count=12
36 41856    None    2020-03-04T09:06:13.4055017    0.0355580    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,62,18,90,16,137,3,48,35,66,67,32,0,0,0,0,4,86,35,54,6],pApduCompleteInfo->ApduInfo.Response.Count=21
37 42027    None    2020-03-04T09:06:13.4073896    0.0018879    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,60,0,0],vCommandApdu.data().Count=9
38 44071    None    2020-03-04T09:06:13.4249377    0.0175481    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,60,17,129,15,108,112,97,46,100,115,46,103,115,109,97,46,99,111,109],pApduCompleteInfo->ApduInfo.Response.Count=20
39 44341    None    2020-03-04T09:06:13.4353474    0.0104097    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,34,0,0],vCommandApdu.data().Count=9
40 45644    None    2020-03-04T09:06:13.4574746    0.0221272    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,34,129,134,129,3,2,1,0,130,3,2,2,0,131,3,3,2,0,132,15,129,1,0,130,4,0,13,186,0,131,4,0,0,105,233,133,4,5,127,50,224,134,3,9,2,0,135,3,2,3,0,136,2,4,208,169,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,170,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,139,1,2,153,2,6,64,4,3,0,0,2,12,20,71,79,45,80,65,45,48,52,49,57,32,32,32,32,32,32,32,32,32,32],pApduCompleteInfo->ApduInfo.Response.Count=138
41 45763    None    2020-03-04T09:06:13.4628539    0.0053793    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,16,191,45,13,92,11,90,79,159,112,144,145,146,147,148,149,153,0],vCommandApdu.data().Count=22
42 47274    None    2020-03-04T09:06:13.5033394    0.0404855    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,45,130,1,143,160,130,1,139,227,73,90,10,152,16,66,7,0,0,0,0,0,249,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,0,16,0,159,112,1,0,145,9,83,80,71,116,111,69,122,67,120,146,23,69,90,32,67,111,110,110,101,99,116,32,80,114,111,118,105,115,105,111,110,105,110,103,149,1,1,227,78,90,10,152,16,0,0,0,0,0,0,0,6,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,0,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,28,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,77,105,108,101,110,97,103,101,149,1,0,227,76,90,10,152,16,0,0,0,0,0,0,0,135,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,1,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,26,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,88,79,82,32,54,52,149,1,0,227,77,90,10,152,16,0,0,0,0,0,0,0,104,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,2,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,27,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,88,79,82,32,49,50,56,149,1,0,227,81,90,10,152,83,4,1,0,0,0,0,85,101,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,0,17,0,159,112,1,1,145,4,101,67,84,67,146,36,101,67,84,67,32,80,114,111,102,105,108,101,32,102,111,114,32,68,117,109,109,121,32,83,117,98,115,99,114,105,112,116,105,111,110,115,149,1,2],pApduCompleteInfo->ApduInfo.Response.Count=404
57 47329    None    2020-03-04T09:06:13.5038992    0.0000179    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=5
58 47419    None    2020-03-04T09:06:13.5057078    0.0018086    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,43,0,0],vCommandApdu.data().Count=9
74 50078    None    2020-03-04T09:06:13.7457319    0.2395537    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,43,130,5,15,160,130,5,11,48,130,5,7,191,47,63,128,1,53,129,2,6,64,12,42,101,99,116,99,45,108,105,118,101,108,97,98,46,112,114,111,100,46,111,110,100,101,109,97,110,100,99,111,110,110,101,99,116,105,118,105,116,121,46,99,111,109,90,10,152,83,4,1,0,0,0,0,85,101,95,55,64,42,56,96,255,201,144,175,106,113,19,175,113,18,210,3,109,79,148,57,237,59,174,37,216,33,105,134,155,220,172,95,224,174,24,219,51,85,61,97,207,2,255,147,95,163,16,82,210,218,197,4,207,189,214,187,212,199,133,250,29,52,5,42,72,48,130,1,221,48,130,1,132,160,3,2,1,2,2,17,0,128,80,86,187,39,45,44,80,66,120,232,145,219,50,27,96,48,10,6,8,42,134,72,206,61,4,3,2,48,50,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,27,48,25,6,3,85,4,3,12,18,71,69,77,65,76,84,79,32,69,85,77,32,67,69,32,80,65,85,48,32,23,13,49,57,48,51,50,53,48,48,48,48,48,48,90,24,15,57,57,57,57,49,50,51,49,50,51,53,57,53,57,90,48,64,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,41,48,39,6,3,85,4,5,19,32,56,57,48,51,51,48,50,51,52,50,52,51,50,48,48,48,48,48,48,48,48,48,48,52,53,54,50,51,51,54,48,54,48,89,48,19,6,7,42,134,72,206,61,2,1,6,8,42,134,72,206,61,3,1,7,3,66,0,4,220,59,239,236,155,254,120,18,18,152,140,158,193,12,233,47,93,241,4,164,84,133,39,169,12,11,226,18,112,94,39,144,174,227,237,242,37,73,25,64,210,4,184,60,17,114,103,226,235,246,229,229,226,54,4,208,245,174,180,198,239,7,98,176,163,107,48,105,48,31,6,3,85,29,35,4,24,48,22,128,20,220,222,26,105,31,233,175,117,221,161,187,146,153,49,139,41,177,212,22,178,48,29,6,3,85,29,14,4,22,4,20,200,220,224,111,237,248,116,35,250,198,112,246,190,164,149,129,214,2,198,159,48,14,6,3,85,29,15,1,1,255,4,4,3,2,0,128,48,23,6,3,85,29,32,1,1,255,4,13,48,11,48,9,6,7,103,129,18,1,2,1,1,48,10,6,8,42,134,72,206,61,4,3,2,3,71,0,48,68,2,32,63,48,8,73,147,118,41,144,127,5,77,200,133,217,208,20,34,133,6,19,182,144,58,15,70,229,67,72,111,167,73,240,2,32,37,234,11,51,98,141,182,118,16,21,38,167,115,14,72,111,47,143,45,213,157,184,236,156,11,34,63,177,207,73,42,251,48,130,2,157,48,130,2,67,160,3,2,1,2,2,16,38,116,211,243,157,55,39,121,8,126,27,89,53,236,251,82,48,10,6,8,42,134,72,206,61,4,3,2,48,68,49,24,48,22,6,3,85,4,10,19,15,71,83,77,32,65,115,115,111,99,105,97,116,105,111,110,49,40,48,38,6,3,85,4,3,19,31,71,83,77,32,65,115,115,111,99,105,97,116,105,111,110,32,45,32,82,83,80,50,32,82,111,111,116,32,67,73,49,48,30,23,13,49,55,48,53,50,53,48,48,48,48,48,48,90,23,13,52,55,48,53,50,52,50,51,53,57,53,57,90,48,50,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,27,48,25,6,3,85,4,3,12,18,71,69,77,65,76,84,79,32,69,85,77,32,67,69,32,80,65,85,48,89,48,19,6,7,42,134,72,206,61,2,1,6,8,42,134,72,206,61,3,1,7,3,66,0,4,178,83,182,218,149,17,229,225,138,112,30,182,68,55,158,224,64,192,174,31,121,186,38,129,24,66,117,75,251,252,97,44,56,126,103,229,223,178,243,184,125,24,62,148,245,200,21,56,225,114,221,60,21,125,154,123,136,205,30,47,187,198,82,182,163,130,1,39,48,130,1,35,48,18,6,3,85,29,19,1,1,255,4,8,48,6,1,1,255,2,1,0,48,23,6,3,85,29,32,1,1,255,4,13,48,11,48,9,6,7,103,129,18,1,2,1,2,48,77,6,3,85,29,31,4,70,48,68,48,66,160,64,160,62,134,60,104,116,116,112,58,47,47,103,115,109,97,45,99,114,108,46,115,121,109,97,117,116,104,46,99,111,109,47,111,102,102,108,105,110,101,99,97,47,103,115,109,97,45,114,115,112,50,45,114,111,111,116,45,99,105,49,46,99,114,108,48,14,6,3,85,29,15,1,1,255,4,4,3,2,1,6,48,60,6,3,85,29,30,1,1,255,4,50,48,48,160,46,48,44,164,42,48,40,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,17,48,15,6,3,85,4,5,19,8,56,57,48,51,51,48,50,51,48,23,6,3,85,29,17,4,16,48,14,136,12,43,6,1,4,1,129,248,2,135,106,4,3,48,29,6,3,85,29,14,4,22,4,20,220,222,26,105,31,233,175,117,221,161,187,146,153,49,139,41,177,212,22,178,48,31,6,3,85,29,35,4,24,48,22,128,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,48,10,6,8,42,134,72,206,61,4,3,2,3,72,0,48,69,2,32,66,41,14,233,224,150,13,19,243,91,225,69,204,238,251,34,51,242,209,112,206,71,158,159,79,106,47,210,84,210,156,187,2,33,0,205,238,69,205,202,163,47,35,70,41,24,250,125,165,233,16,22,196,115,13,165,10,153,178,254,108,220,88,138,37,17,163],pApduCompleteInfo->ApduInfo.Response.Count=1300
76 50290    None    2020-03-04T09:06:13.7503562    0.0032197    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,32,0,0],vCommandApdu.data().Count=9
77 51346    None    2020-03-04T09:06:13.7754287    0.0250725    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,32,53,130,3,2,2,0,169,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,170,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251],pApduCompleteInfo->ApduInfo.Response.Count=56
82 51796    None    2020-03-04T09:06:14.9911183    0.0020754    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,6,191,48,3,128,1,53,0],vCommandApdu.data().Count=12
83 52474    None    2020-03-04T09:06:15.0374406    0.0463223    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,48,3,128,1,0],pApduCompleteInfo->ApduInfo.Response.Count=6
86 52736    None    2020-03-04T09:06:15.0451263    0.0076479    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,43,0,0],vCommandApdu.data().Count=9
87 53507    None    2020-03-04T09:06:15.0622867    0.0171604    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,43,2,160,0],pApduCompleteInfo->ApduInfo.Response.Count=5
90 54169    None    2020-03-04T09:06:45.0792254    0.0166565    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    CloseChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::CloseChannelOperation::Execute,ulChannel=1
91 54435    None    2020-03-04T09:06:45.0965610    0.0173356    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    ChannelClosed: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationCloseChannelComplete
