Quickstart: Build an end-to-end streaming application for clickstream analysis

Analyzing clickstream data is an effective way for businesses to optimize website traffic and gain insights into user behavior. This quickstart outlines how you can build a streaming application for analyzing website clickstream data.

The method outlined in this guide uses a PowerShell script to deploy Azure resources with autogenerated sample data streams. The autogenerated data enables exploring various stream analytic scenarios and helps you deploy Azure resources effortlessly.

Here are the typical scenarios for processing and analyzing clickstream:

• Filter clickstream requests
• Join clickstream with a file

Prerequisites

• Azure subscription. If you don't have an Azure subscription, create a free account.
• Install Git.
• Azure PowerShell module. Visit here to install or upgrade.

Filter clickstream requests

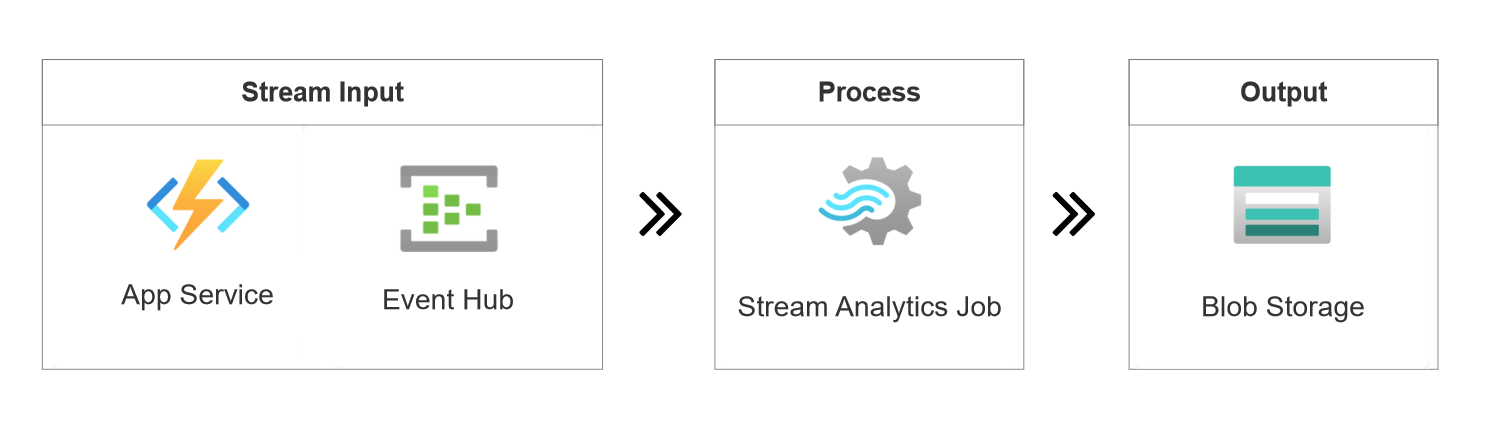

In this example, you learn to extract GET and POST requests from a website clickstream and store the output results to an Azure Blob Storage. Here's the architecture for this example:

Sample of a website clickstream:

{
    "EventTime": "2022-09-09 08:58:59 UTC",
    "UserID": 465,
    "IP": "203.0.113.170",
    "Request": {
    "Method": "GET",
    "URI": "/index.html",
    "Protocol": "HTTP/1.1"
    },
    "Response": {
    "Code": 200,
    "Bytes": 42682
    },
    "Browser": "Chrome"
}

Use the scripts available in the GitHub repository to deploy the required resources:

1. Open PowerShell from the Start menu and clone this GitHub repository to your working directory.

   git clone https://github.com/Azure/azure-stream-analytics.git


2. Go to the BuildApplications folder.

   cd .\azure-stream-analytics\BuildApplications\


3. Sign in to Azure and enter your Azure credentials in the pop-up browser.

   Connect-AzAccount


4. Replace $subscriptionId with your Azure subscription ID and run the following command to deploy Azure resources. This process might take a few minutes to complete.

   .\CreateJob.ps1 -job ClickStream-Filter -eventsPerMinute 11 -subscriptionid $subscriptionId


   • eventsPerMinute is the input rate for generated data. In this case, the input source generates 11 events per minute.
   • You can find your subscription ID in Azure portal > Subscriptions.

5. After the deployment finishes, it opens your browser automatically. You can see a resource group named ClickStream-Filter-rg-* in the Azure portal. The resource group contains the following five resources:

   Resource Type	Name	Description
   Azure Function	clickstream*	Generate clickstream data
   Event Hubs	clickstream*	Ingest clickstream data for consuming
   Stream Analytics Job	ClickStream-Filter	Define a query to extract GET requests from the clickstream input
   Blob Storage	clickstream*	Output destination for the Stream Analytics job
   App Service Plan	clickstream*	A necessity for Azure Function

6. You deployed a streaming application to extract requests from a website clickstream.

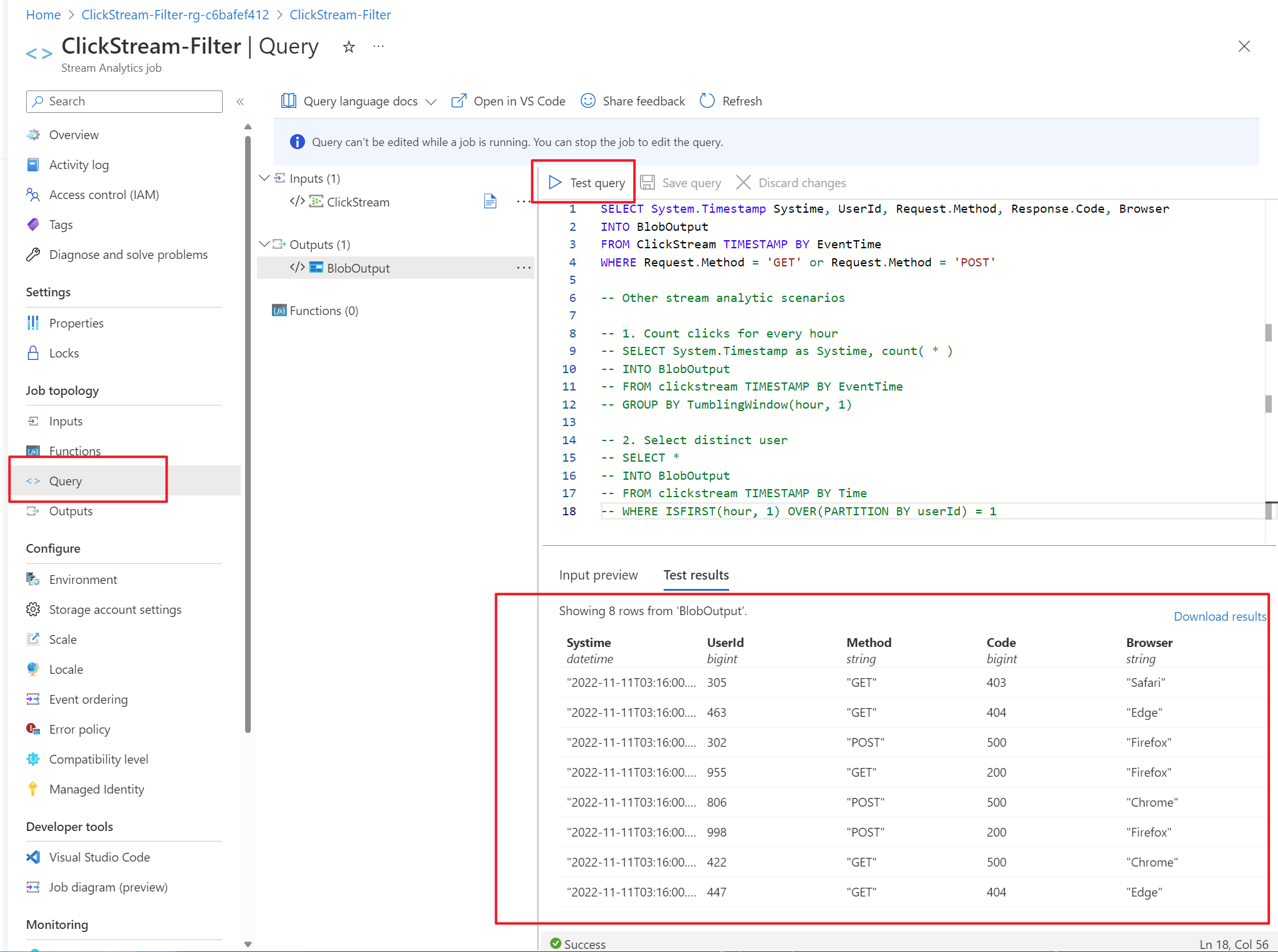

7. The Stream Analytics job ClickStream-Filter uses the following query to extract HTTP requests from the clickstream. Select Test query in the query editor to preview the output results.

   SELECT System.Timestamp Systime, UserId, Request.Method, Response.Code, Browser
   INTO BlobOutput
   FROM ClickStream TIMESTAMP BY Timestamp
   WHERE Request.Method = 'GET' or Request.Method = 'POST'




8. The following sample queries in the query comments are available for other stream analytic scenarios with one stream input.

   • Count clicks for every hour

     select System.Timestamp as Systime, count( * )
     FROM clickstream
     TIMESTAMP BY EventTime
     GROUP BY TumblingWindow(hour, 1)


   • Select distinct user

     SELECT *
     FROM clickstream
     TIMESTAMP BY Time
     WHERE ISFIRST(hour, 1) OVER(PARTITION BY userId) = 1

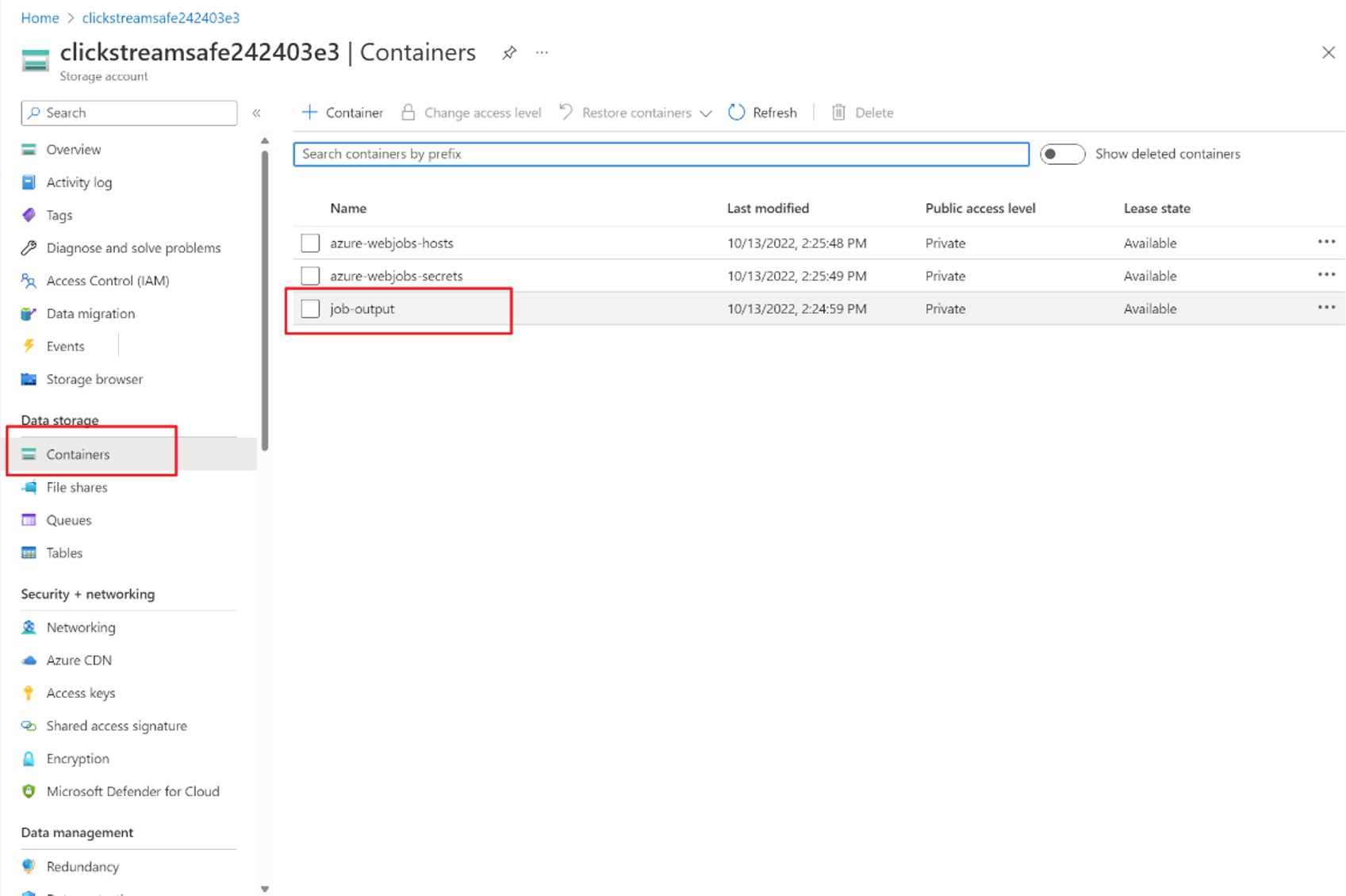

9. All output results are stored as a JSON file in Azure Blob Storage. You can find it via Blob Storage > Containers > job-output.

Join clickstream with a reference file

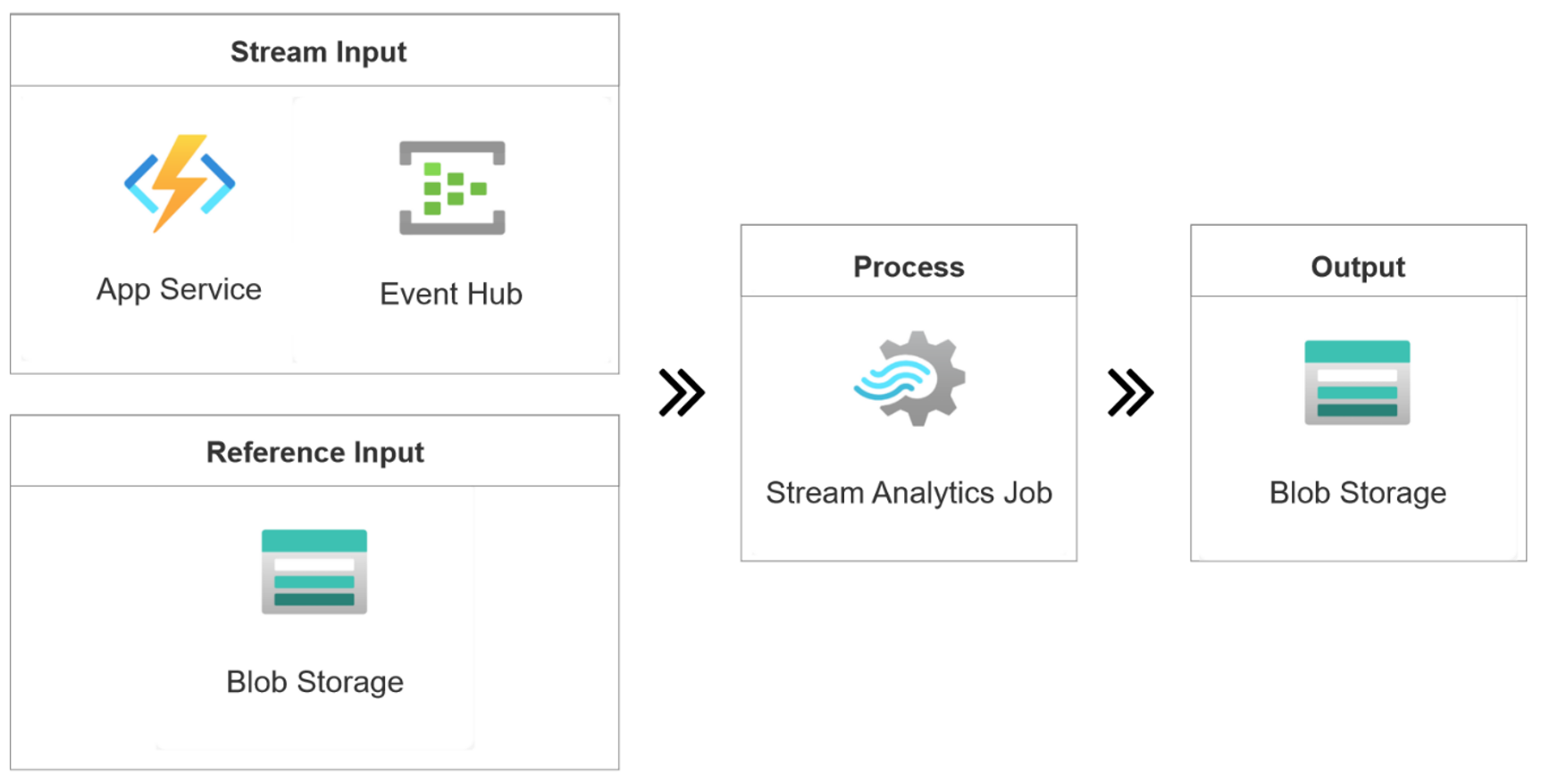

To find out the username for the clickstream by using a user file in storage, you can join the clickstream with a reference input as shown in the following architecture:

This section builds on the resources deployed in Filter clickstream requests. Run the following commands to create a new resource group:

1. Replace $subscriptionId with your Azure subscription ID and run the following command to deploy Azure resources. This process might take a few minutes to complete.

   .\CreateJob.ps1 -job ClickStream-RefJoin -eventsPerMinute 11 -subscriptionid $subscriptionId


2. After the deployment finishes, it opens your browser automatically. You can see a resource group named ClickStream-RefJoin-rg-* in the Azure portal. The resource group contains five resources.

3. The Stream Analytics job ClickStream-RefJoin uses the following query to join the clickstream with reference SQL input.

   CREATE TABLE UserInfo(
     UserId bigint,
     UserName nvarchar(max),
     Gender nvarchar(max)
   );
   SELECT System.Timestamp Systime, ClickStream.UserId, ClickStream.Response.Code, UserInfo.UserName, UserInfo.Gender
   INTO BlobOutput
   FROM ClickStream TIMESTAMP BY EventTime
   LEFT JOIN UserInfo ON ClickStream.UserId = UserInfo.UserId


4. You deployed a streaming application to join your user file with a website clickstream.

Clean up resources

If you no longer need the resource group, run this command in PowerShell to delete it.

Remove-AzResourceGroup -Name $resourceGroup

If you plan to use this project in the future, you can skip deleting the resource group and stop the job instead.
