Create and provision an IoT Edge device on Windows using X.509 certificates

Applies to: IoT Edge 1.1

Important

IoT Edge 1.1 end of support date was December 13, 2022. Check the Microsoft Product Lifecycle for information about how this product, service, technology, or API is supported. For more information about updating to the latest version of IoT Edge, see Update IoT Edge.

This article provides end-to-end instructions for registering and provisioning a Windows IoT Edge device.

Note

Azure IoT Edge with Windows containers will not be supported starting with version 1.2 of Azure IoT Edge.

Consider using the new method for running IoT Edge on Windows devices, Azure IoT Edge for Linux on Windows.

If you want to use Azure IoT Edge for Linux on Windows, you can follow the steps in the equivalent how-to guide.

Every device that connects to an IoT hub has a device ID that's used to track cloud-to-device or device-to-cloud communications. You configure a device with its connection information, which includes the IoT hub hostname, the device ID, and the information the device uses to authenticate to IoT Hub.

The steps in this article walk through a process called manual provisioning, where you connect a single device to its IoT hub. For manual provisioning, you have two options for authenticating IoT Edge devices:

• Symmetric keys: When you create a new device identity in IoT Hub, the service creates two keys. You place one of the keys on the device, and it presents the key to IoT Hub when authenticating.

  This authentication method is faster to get started, but not as secure.

• X.509 self-signed: You create two X.509 identity certificates and place them on the device. When you create a new device identity in IoT Hub, you provide thumbprints from both certificates. When the device authenticates to IoT Hub, it presents one certificate and IoT Hub verifies that the certificate matches its thumbprint.

  This authentication method is more secure and recommended for production scenarios.

This article covers using X.509 certificates as your authentication method. If you want to use symmetric keys, see Create and provision an IoT Edge device on Windows using symmetric keys.

Note

If you have many devices to set up and don't want to manually provision each one, use one of the following articles to learn how IoT Edge works with the IoT Hub device provisioning service:

• Create and provision IoT Edge devices at scale using X.509 certificates
• Create and provision IoT Edge devices at scale with a TPM
• Create and provision IoT Edge devices at scale using symmetric keys

Prerequisites

This article covers registering your IoT Edge device and installing IoT Edge on it. These tasks have different prerequisites and utilities used to accomplish them. Make sure you have all the prerequisites covered before proceeding.

Device management tools

You can use the Azure portal, Visual Studio Code, or Azure CLI for the steps to register your device. Each utility has its own prerequisites:

Portal

A free or standard IoT hub in your Azure subscription.

Visual Studio Code

• A free or standard IoT hub in your Azure subscription
• Visual Studio Code
• Azure IoT Hub extension
• Azure IoT Edge for Visual Studio Code

Azure CLI

• A free or standard IoT hub in your Azure subscription

• Azure CLI in your environment

  At a minimum, your Azure CLI version must be 2.0.70 or newer. Use az --version to validate. This version supports az extension commands and introduces the Knack command framework.

Device requirements

A Windows device.

IoT Edge with Windows containers requires Windows version 1809/build 17763, which is the latest Windows long term support build. Be sure to review the supported systems list for a list of supported SKUs.

Generate device identity certificates

Manual provisioning with X.509 certificates requires IoT Edge version 1.0.10 or newer.

When you provision an IoT Edge device with X.509 certificates, you use what is called a device identity certificate. This certificate is only used for provisioning an IoT Edge device and authenticating the device with Azure IoT Hub. It is a leaf certificate that doesn't sign other certificates. The device identity certificate is separate from the certificate authority (CA) certificates that the IoT Edge device presents to modules or downstream devices for verification.

For X.509 certificate authentication, each device's authentication information is provided in the form of thumbprints taken from your device identity certificates. These thumbprints are given to IoT Hub at the time of device registration so that the service can recognize the device when it connects.

For more information about how the CA certificates are used in IoT Edge devices, see Understand how Azure IoT Edge uses certificates.

You need the following files for manual provisioning with X.509:

• Two of device identity certificates with their matching private key certificates in .cer or .pem formats.

  One set of certificate/key files is provided to the IoT Edge runtime. When you create device identity certificates, set the certificate common name (CN) with the device ID that you want the device to have in your IoT hub.

• Thumbprints taken from both device identity certificates.

  Thumbprint values are 40-hex characters for SHA-1 hashes or 64-hex characters for SHA-256 hashes. Both thumbprints are provided to IoT Hub at the time of device registration.

If you don't have certificates available, you can Create demo certificates to test IoT Edge device features. Follow the instructions in that article to set up certificate creation scripts, create a root CA certificate, and then create two IoT Edge device identity certificates.

One way to retrieve the thumbprint from a certificate is with the following openssl command:

openssl x509 -in <certificate filename>.pem -text -fingerprint

Register your device

You can use the Azure portal, Visual Studio Code, or Azure CLI to register your device, depending on your preference.

Portal

In your IoT hub in the Azure portal, IoT Edge devices are created and managed separately from IoT devices that are not edge enabled.

1. Sign in to the Azure portal and navigate to your IoT hub.

2. In the left pane, select Devices from the menu, then select Add Device.

3. On the Create a device page, provide the following information:

   • Create a descriptive device ID. Make a note of this device ID, as you'll use it later.
   • Check the IoT Edge Device checkbox.
   • Select X.509 Self-Signed as the authentication type.
   • Provide the primary and secondary identity certificate thumbprints. Thumbprint values are 40-hex characters for SHA-1 hashes or 64-hex characters for SHA-256 hashes.

4. Select Save.

Visual Studio Code

Currently, the Azure IoT extension for Visual Studio Code doesn't support device registration with X.509 certificates.

Azure CLI

Use the az iot hub device-identity create command to create a new device identity in your IoT hub. For example:

az iot hub device-identity create --device-id device_id_here --hub-name hub_name_here --edge-enabled --auth-method x509_thumbprint --primary-thumbprint primary_SHA_thumbprint_here --secondary-thumbprint secdonary_SHA_thumbprint_here

This command includes several parameters:

• --device-id or -d: Provide a descriptive name that's unique to your IoT hub. Make a note of this device ID, as you'll use it in the next section.
• hub-name or -n: Provide the name of your IoT hub.
• --edge-enabled or --ee: Declare that the device is an IoT Edge device.
• --auth-method or --am: Declare the authorization type the device is going to use. In this case, we're using X.509 certificate thumbprints.
• --primary-thumbprint or --ptp: Provide an X.509 certificate thumbprint to use as a primary key.
• --secondary-thumbprint or --stp: Provide an X.509 certificate thumbprint to use as a secondary key.

Now that you have a device registered in IoT Hub, retrieve the information that you use to complete installation and provisioning of the IoT Edge runtime.

View registered devices and retrieve provisioning information

Devices that use X.509 certificate authentication need their IoT hub name, their device name, and their certificate files to complete installation and provisioning of the IoT Edge runtime.

Portal

The edge-enabled devices that connect to your IoT hub are listed on the Devices page. You can filter the list by type Iot Edge Device.

Visual Studio Code

While there is no support for device registration with X.509 certificates through Visual Studio Code, you can still view your IoT Edge devices if you need to.

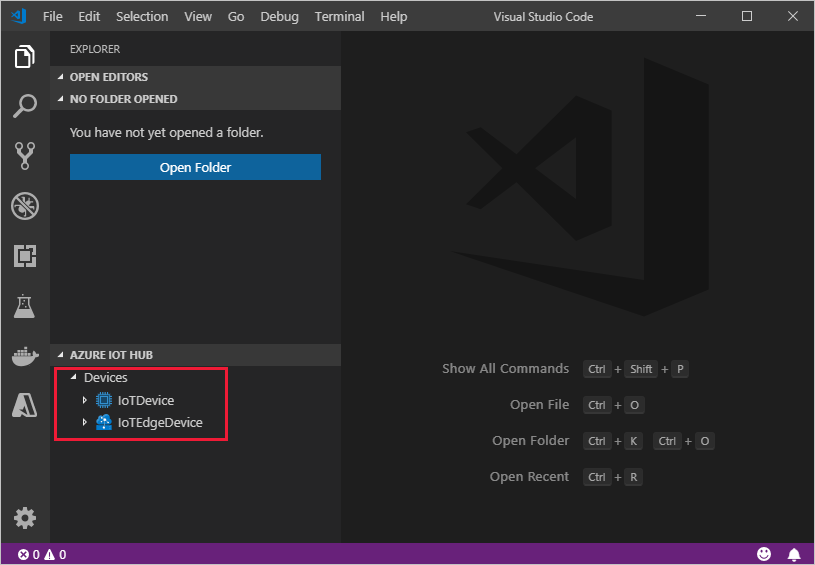

All the devices that connect to your IoT hub are listed in the Azure IoT Hub section of the Visual Studio Code Explorer. IoT Edge devices are distinguishable from non-Edge devices with a different icon, and the fact that the $edgeAgent and $edgeHub modules are deployed to each IoT Edge device.

Azure CLI

Use the az iot hub device-identity list command to view all devices in your IoT hub. For example:

az iot hub device-identity list --hub-name hub_name_here

Any device that is registered as an IoT Edge device will have the property capabilities.iotEdge set to true.

Install IoT Edge

In this section, you prepare your Windows VM or physical device for IoT Edge. Then, you install IoT Edge.

Azure IoT Edge relies on an OCI-compatible container runtime. Moby, a Moby-based engine, is included in the installation script, which means there are no additional steps to install the engine.

To install the IoT Edge runtime:

1. Run PowerShell as an administrator.

   Use an AMD64 session of PowerShell, not PowerShell(x86). If you're unsure which session type you're using, run the following command:

   (Get-Process -Id $PID).StartInfo.EnvironmentVariables["PROCESSOR_ARCHITECTURE"]


2. Run the Deploy-IoTEdge command, which performs the following tasks:

   • Checks that your Windows machine is on a supported version
   • Turns on the containers feature
   • Downloads the moby engine and the IoT Edge runtime

   . {Invoke-WebRequest -useb https://aka.ms/iotedge-win} | Invoke-Expression; `
   Deploy-IoTEdge


3. Restart your device if prompted.

When you install IoT Edge on a device, you can use additional parameters to modify the process including:

• Direct traffic to go through a proxy server
• Point the installer to a local directory for offline installation

For more information about these additional parameters, see PowerShell scripts for IoT Edge with Windows containers.

Provision the device with its cloud identity

Now that the container engine and the IoT Edge runtime are installed on your device, you're ready for the next step, which is to set up the device with its cloud identity and authentication information.

1. On the IoT Edge device, run PowerShell as an administrator.

2. Use the Initialize-IoTEdge command to configure the IoT Edge runtime on your machine.

   . {Invoke-WebRequest -useb https://aka.ms/iotedge-win} | Invoke-Expression; `
   Initialize-IoTEdge -ManualX509


   • If you downloaded the IoTEdgeSecurityDaemon.ps1 script onto your device for offline or specific version installation, be sure to reference the local copy of the script.

     . <path>/IoTEdgeSecurityDaemon.ps1
     Initialize-IoTEdge -ManualX509


3. When prompted, provide the following information:

   • IotHubHostName: Hostname of the IoT hub the device will connect to. For example, {IoT_hub_name}.azure-devices.net.
   • DeviceId: The ID that you provided when you registered the device.
   • X509IdentityCertificate: Absolute path to an identity certificate on the device. For example, C:\path\identity_certificate.pem.
   • X509IdentityPrivateKey: Absolute path to the private key file for the provided identity certificate. For example, C:\path\identity_key.pem.

When you provision a device manually, you can use additional parameters to modify the process including:

• Direct traffic to go through a proxy server
• Declare a specific edgeAgent container image, and provide credentials if it's in a private registry

For more information about these additional parameters, see PowerShell scripts for IoT Edge with Windows containers.

---

Verify successful configuration

Verify that the runtime was successfully installed and configured on your IoT Edge device.

Check the status of the IoT Edge service.

Get-Service iotedge

Examine service logs.

. {Invoke-WebRequest -useb aka.ms/iotedge-win} | Invoke-Expression; Get-IoTEdgeLog

List running modules.

iotedge list

Offline or specific version installation (optional)

The steps in this section are for scenarios not covered by the standard installation steps. This may include:

• Install IoT Edge while offline
• Install a release candidate version
• Install a version other than the latest

During installation three files are downloaded:

• A PowerShell script, which contains the installation instructions
• Microsoft Azure IoT Edge cab, which contains the IoT Edge security daemon (iotedged), Moby container engine, and Moby CLI
• Visual C++ redistributable package (VC runtime) installer

If your device will be offline during installation, or if you want to install a specific version of IoT Edge, you can download these files ahead of time to the device. When it's time to install, point the installation script at the directory that contains the downloaded files. The installer checks that directory first, and then only downloads components that aren't found. If all the files are available offline, you can install with no internet connection.

1. For the latest IoT Edge installation files along with previous versions, see Azure IoT Edge releases.

2. Find the version that you want to install, and download the following files from the Assets section of the release notes onto your IoT device:

   • IoTEdgeSecurityDaemon.ps1
   • Microsoft-Azure-IoTEdge-amd64.cab from 1.1 release channel.

   It's important to use the PowerShell script from the same release as the .cab file that you use because the functionality changes to support the features in each release.

3. If the .cab file you downloaded has an architecture suffix on it, rename the file to just Microsoft-Azure-IoTEdge.cab.

4. Optionally, download an installer for Visual C++ redistributable. For example, the PowerShell script uses this version: vc_redist.x64.exe. Save the installer in the same folder on your IoT device as the IoT Edge files.

5. To install with offline components, dot source the local copy of the PowerShell script.

6. Run the Deploy-IoTEdge command with the -OfflineInstallationPath parameter. Provide the absolute path to the file directory. For example,

   . path_to_powershell_module_here\IoTEdgeSecurityDaemon.ps1
   Deploy-IoTEdge -OfflineInstallationPath path_to_file_directory_here


   The deployment command will use any components found in the local file directory provided. If either the .cab file or the Visual C++ installer is missing, it will attempt to download them.

Uninstall IoT Edge

If you want to remove the IoT Edge installation from your Windows device, use the Uninstall-IoTEdge command from an administrative PowerShell window. This command removes the IoT Edge runtime, along with your existing configuration and the Moby engine data.

. {Invoke-WebRequest -useb aka.ms/iotedge-win} | Invoke-Expression; `
Uninstall-IoTEdge

For more information about uninstallation options, use the command Get-Help Uninstall-IoTEdge -full.

Next steps

Continue to deploy IoT Edge modules to learn how to deploy modules onto your device.
