Format Transact-SQL in the MSSQL extension for Visual Studio Code

Consistent formatting makes Transact-SQL (T-SQL) easier to read, review, and maintain, especially when multiple people contribute to the same codebase. The MSSQL extension for Visual Studio Code includes a built-in SQL formatter (Preview) that you can run on demand, configure for automatic formatting on save, and customize through Visual Studio Code settings.

The T-SQL formatting functionality in the MSSQL extension is built on ScriptDOM, an open-source .NET library that parses T-SQL and generates scripts based on abstract syntax trees.

Format on demand

You can format T-SQL in any editor window. The formatter works on the whole document or only on the text that you select.

To format T-SQL on demand, use one of the following methods:

  • Context menu: Right-click in a T-SQL editor window and select Format Document or Format Selection.

  • Command Palette: Run Format Document or Format Selection.

  • Keyboard shortcut: For Format Document, press Shift+Alt+F on Windows and Linux, or Shift+Option+F on macOS. For Format Selection, press Ctrl+K, Ctrl+F on Windows and Linux, or Cmd+K, Cmd+F on macOS.

Format on save

In Visual Studio Code, the standard editor setting controls format on save, rather than a dedicated MSSQL formatter setting.

Use the following settings in your Visual Studio Code settings.json file to format T-SQL automatically whenever you save a file:

{
  "[sql]": {
    "editor.formatOnSave": true
  }
}

Configure formatting options

Configure formatting in the Visual Studio Code Settings UI or in user or workspace settings.json.

In the Settings editor, search for Mssql > Format to view the available options. In settings.json, use the corresponding mssql.format.* settings.

  • The preview formatter is enabled by default. Its options use the mssql.format.options.* namespace.

  • The five existing formatter settings remain available when the preview formatter is enabled. The preview formatter adds the mssql.format.options.* settings.

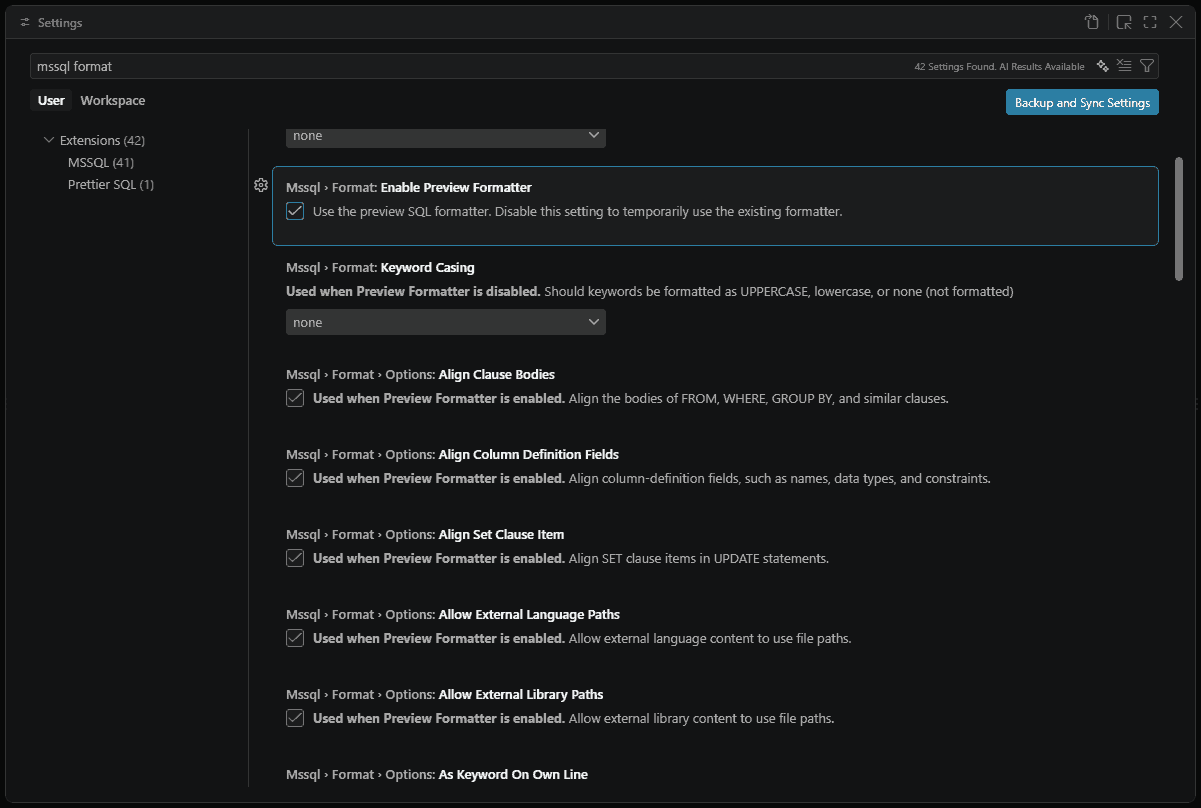

Screenshot of the SQL formatter settings in the Visual Studio Code Settings editor.

Supported settings

The tables list existing formatter settings followed by preview formatter settings.

Existing formatter settings

Setting Type Default Description
mssql.format.alignColumnDefinitionsInColumns bool false Align column definitions in columns.
mssql.format.datatypeCasing enum none Format data types as uppercase, lowercase, or none (not formatted).
mssql.format.keywordCasing enum none Format keywords as uppercase, lowercase, or none (not formatted).
mssql.format.placeCommasBeforeNextStatement bool false Place commas at the beginning of each item in a list, for example , mycolumn2, instead of at the end, for example mycolumn1,.
mssql.format.placeSelectStatementReferencesOnNewLine bool false Place references in a SELECT statement on separate lines. For SELECT C1, C2 FROM T1, both C1 and C2 are on separate lines.

Preview formatter settings

These mssql.format.options.* settings add on top of the existing formatter settings when you enable the preview formatter.

General

Setting Type Default Description
mssql.format.enablePreviewFormatter bool true Use the SQL formatter (Preview).
mssql.format.showParseErrorNotification bool true Show a notification when the formatter can't fully parse the T-SQL.
mssql.format.options.sqlVersion enum sql170 T-SQL version used to parse and generate formatted scripts.
mssql.format.options.sqlEngineType enum all Database Engine type used to parse and generate formatted scripts. Valid values are all, standalone, and sqlAzure.

Alignment

Setting Type Default Description
mssql.format.options.alignClauseBodies bool true Align bodies of FROM, WHERE, GROUP BY, and similar clauses.
mssql.format.options.alignColumnDefinitionFields bool true Align column-definition fields, such as name, type, and constraints.
mssql.format.options.alignSetClauseItem bool true Align SET clause items in UPDATE statements.

Paths

Setting Type Default Description
mssql.format.options.allowExternalLanguagePaths bool true Allow external language content to use file paths.
mssql.format.options.allowExternalLibraryPaths bool true Allow external library content to use file paths.

Formatting

Setting Type Default Description
mssql.format.options.asKeywordOnOwnLine bool true Place AS on its own line.
mssql.format.options.keywordCasing enum uppercase Keyword casing style. Valid values are uppercase, lowercase, and pascalCase.
mssql.format.options.preserveComments bool true Preserve comments during formatting.
mssql.format.options.numNewlinesAfterStatement int 1 Number of line breaks after each statement, from 0 through 5.

Indentation

Setting Type Default Description
mssql.format.options.indentSetClause bool false Indent SET clause in UPDATE statements.
mssql.format.options.indentViewBody bool false Indent VIEW body.

Multiline

Setting Type Default Description
mssql.format.options.multilineInsertSourcesList bool true INSERT sources as multiline.
mssql.format.options.multilineInsertTargetsList bool true INSERT columns as multiline.
mssql.format.options.multilineSelectElementsList bool true SELECT columns as multiline.
mssql.format.options.multilineSetClauseItems bool true SET items as multiline.
mssql.format.options.multilineViewColumnsList bool true VIEW columns as multiline.
mssql.format.options.multilineWherePredicatesList bool true WHERE predicates as multiline.

New line

Setting Type Default Description
mssql.format.options.newLineBeforeCloseParenthesisInMultilineList bool true New line before close parenthesis in multiline list.
mssql.format.options.newLineBeforeFromClause bool true New line before FROM clause.
mssql.format.options.newLineBeforeGroupByClause bool true New line before GROUP BY clause.
mssql.format.options.newLineBeforeHavingClause bool true New line before HAVING clause.
mssql.format.options.newLineBeforeJoinClause bool true New line before JOIN clause.
mssql.format.options.newLineBeforeOffsetClause bool true New line before OFFSET clause.
mssql.format.options.newLineBeforeOpenParenthesisInMultilineList bool false New line before open parenthesis in multiline list.
mssql.format.options.newLineBeforeOrderByClause bool true New line before ORDER BY clause.
mssql.format.options.newLineBeforeOutputClause bool true New line before OUTPUT clause.
mssql.format.options.newLineBeforeWhereClause bool true New line before WHERE clause.
mssql.format.options.newLineBeforeWindowClause bool true New line before WINDOW clause.
mssql.format.options.newlineFormattedCheckConstraint bool false Newline formatted CHECK constraint.
mssql.format.options.newLineFormattedIndexDefinition bool false Newline formatted index definition.

Spacing

Setting Type Default Description
mssql.format.options.spaceBetweenDataTypeAndParameters bool true Space between data type and parentheses, for example VARCHAR (255).
mssql.format.options.spaceBetweenParametersInDataType bool true Space between parameters in data types.

Example settings file

{
  "mssql.format.options.keywordCasing": "lowercase",
  "mssql.format.options.alignClauseBodies": false,
  "mssql.format.options.numNewlinesAfterStatement": 2,
  "[sql]": {
    "editor.formatOnSave": true
  }
}

Set the default formatter

To set the MSSQL extension as the default, select Configure Default Formatter... > SQL Server (mssql), or add the following configuration to settings.json:

{
  "[sql]": {
    "editor.defaultFormatter": "ms-mssql.mssql"
  }
}
