Create and publish a custom Azure Stack Hub Marketplace item

  • Artikkel

Every item published to the Azure Stack Hub Marketplace uses the Azure Gallery Package (.azpkg) format. The Azure Gallery Packager tool enables you to create a custom Azure Gallery package that you can upload to the Azure Stack Hub Marketplace, which can then be downloaded by users. The deployment process uses an Azure Resource Manager template.

Marketplace items

The examples in this article show how to create a single VM Marketplace offer, of type Windows or Linux.

Prerequisites

Before creating the VM marketplace item, do the following:

  1. Upload the custom VM image to the Azure Stack Hub portal, following the instructions in Add a VM image to Azure Stack Hub.
  2. Follow the instructions in this article to package the image (create an .azpkg) and upload it to the Azure Stack Hub Marketplace.

Create a Marketplace item

To create a custom marketplace item, do the following:

  1. Download the Azure Gallery Packager tool:

    Gallery packager

  2. The tool includes sample packages that are in the .azpkg format, and must be extracted first. You can rename the file extensions from ".azpkg" to ".zip," or use an archiver tool of your choice:

    Samples packages

  3. Once extracted, the .zip file contains the Linux or Windows Azure Resource Manager templates that are available. You can reuse the pre-made Resource Manager templates, and modify the respective parameters with the product details of the item that you will show on your Azure Stack Hub portal. Or, you can reuse the .azpkg file and skip the following steps to customize your own gallery package.

  4. Create an Azure Resource Manager template or use our sample templates for Windows/Linux. These sample templates are provided in the packager tool .zip file you downloaded in step 1. You can either use the template and change the text fields, or you can download a pre-configured template from GitHub. For more information about Azure Resource Manager templates, see Azure Resource Manager templates.

  5. The Gallery package should contain the following structure:

    Screenshot of the Gallery package structure

  6. Replace the following highlighted values (those with numbers) in the Manifest.json template with the value that you provided when uploading your custom image.

    Note

    Never hard code any secrets such as product keys, password, or any customer identifiable information in the Azure Resource Manager template. Template JSON files are accessible without the need for authentication once published in the gallery. Store all secrets in Key Vault and call them from within the template.

    It's recommended that before publishing your own custom template, you try to publish the sample as-is and make sure it works in your environment. Once you've verified this step works, then delete the sample from gallery and make iterative changes until you are satisfied with the result.

    The following template is a sample of the Manifest.json file:

    {
   "$schema": "https://gallery.azure.com/schemas/2015-10-01/manifest.json#",
   "name": "Test", (1)
   "publisher": "<Publisher name>", (2)
   "version": "<Version number>", (3)
   "displayName": "ms-resource:displayName", (4)
   "publisherDisplayName": "ms-resource:publisherDisplayName", (5)
   "publisherLegalName": "ms-resource:publisherDisplayName", (6)
   "summary": "ms-resource:summary",
   "longSummary": "ms-resource:longSummary",
   "description": "ms-resource:description",
   "longDescription": "ms-resource:description",
   "links": [
    { "displayName": "ms-resource:documentationLink", "uri": "http://go.microsoft.com/fwlink/?LinkId=532898" }
    ],
   "artifacts": [
      {
         "isDefault": true
      }
   ],
   "images": [{
      "context": "ibiza",
      "items": [{
         "id": "small",
         "path": "icons\\Small.png", (7)
         "type": "icon"
         },
         {
            "id": "medium",
            "path": "icons\\Medium.png",
            "type": "icon"
         },
         {
            "id": "large",
            "path": "icons\\Large.png",
            "type": "icon"
         },
         {
            "id": "wide",
            "path": "icons\\Wide.png",
            "type": "icon"
         }]
    }]
}

    The following list explains the preceding numbered values in the example template:

    • (1) - The name of the offer.
    • (2) - The name of the publisher, without a space.
    • (3) - The version of your template, without a space.
    • (4) - The name that customers see.
    • (5) - The publisher name that customers see.
    • (6) - The publisher legal name.
    • (7) - The path and name for each icon.

  7. For all fields referring to ms-resource, you must change the appropriate values inside the strings/resources.json file:

    {
"displayName": "<OfferName.PublisherName.Version>",
"publisherDisplayName": "<Publisher name>",
"summary": "Create a simple VM",
"longSummary": "Create a simple VM and use it",
"description": "<p>This is just a sample of the type of description you could create for your gallery item!</p><p>This is a second paragraph.</p>",
"documentationLink": "Documentation"
}

  8. The deployment templates file structure appears as follows:

    Deployment templates

    Replace the values for the image in the createuidefinition.json file with the value you provided when uploading your custom image.

  9. To ensure that the resource can be deployed successfully, test the template with the Azure Stack Hub APIs.

  10. If your template relies on a virtual machine (VM) image, follow the instructions to add a VM image to Azure Stack Hub.

  11. Save your Azure Resource Manager template in the /Contoso.TodoList/DeploymentTemplates/ folder.

  12. Choose the icons and text for your Marketplace item. Add icons to the Icons folder, and add text to the resources file in the Strings folder. Use the small, medium, large, and wide naming convention for icons. See the Marketplace item UI reference for a detailed description of these sizes.

    Note

    All four icon sizes (small, medium, large, wide) are required for building the Marketplace item correctly.

  13. For any further edits to Manifest.json, see Reference: Marketplace item manifest.json.

  14. When you finish modifying your files, convert it to an .azpkg file. You perform the conversion using the AzureGallery.exe tool and the sample gallery package you downloaded previously. Run the following command:

    .\AzureStackHubGallery.exe package -m c:\<path>\<gallery package name>\manifest.json -o c:\Temp

    Note

    The output path can be any path you choose, and does not have to be under the C: drive. However, the full path to both the manifest.json file, and the output package, must exist. For example, if the output path is C:\<path>\galleryPackageName.azpkg, the folder C:\<path> must exist.

Publish a Marketplace item

  1. Use PowerShell or Azure Storage Explorer to upload your Marketplace item (.azpkg) to Azure Blob storage. You can upload to local Azure Stack Hub storage or upload to Azure Storage, which is a temporary location for the package. Make sure that the blob is publicly accessible.

  2. To import the gallery package into Azure Stack Hub, the first step is to remotely connect (RDP) to the client VM, in order to copy the file you just created to your Azure Stack Hub.

  3. Add a context:

    $ArmEndpoint = "https://adminmanagement.local.azurestack.external"
Add-AzEnvironment -Name "AzureStackAdmin" -ArmEndpoint $ArmEndpoint
Connect-AzAccount -EnvironmentName "AzureStackAdmin"

  4. Run the following script to import the resource into your gallery:

    Add-AzsGalleryItem -GalleryItemUri `
https://sample.blob.core.windows.net/<temporary blob name>/<offerName.publisherName.version>.azpkg -Verbose

    If you run into an error when running Add-AzsGalleryItem, you may have two versions of the gallery.admin module installed. Remove all versions of the module, and install the latest version. For steps on uninstalling your PowerShell modules, see Uninstall existing versions of the Azure Stack Hub PowerShell modules.

  5. Verify that you have a valid Storage account that is available to store your item. You can get the GalleryItemURI value from the Azure Stack Hub administrator portal. Select Storage account -> Blob Properties -> URL, with the extension .azpkg. The storage account is only for temporary use, in order to publish to the marketplace.

    After completing your gallery package and uploading it using Add-AzsGalleryItem, your custom VM should now appear on the Marketplace as well as in the Create a resource view. Note that the custom gallery package is not visible in Marketplace Management.

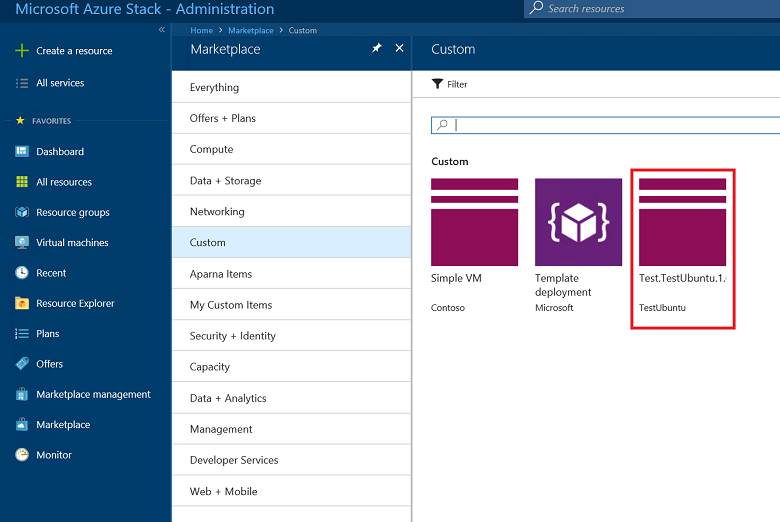

    Custom marketplace item uploaded

  6. Once your item has been successfully published to the marketplace, you can delete the content from the storage account.

    All default gallery artifacts and your custom gallery artifacts are now accessible without authentication under the following URLs:

    • https://galleryartifacts.adminhosting.[Region].[externalFQDN]/artifact/20161101/[TemplateName]/DeploymentTemplates/Template.json
    • https://galleryartifacts.hosting.[Region].[externalFQDN]/artifact/20161101/[TemplateName]/DeploymentTemplates/Template.json

  7. You can remove a Marketplace item by using the Remove-AzGalleryItem cmdlet. For example:

    Remove-AzsGalleryItem -Name <Gallery package name> -Verbose

Note

The Marketplace UI may show an error after you remove an item. To fix the error, click Settings in the portal. Then, select Discard modifications under Portal customization.

Reference: Marketplace item manifest.json

Identity information

Name Required Type Constraints Description
Name X String [A-Za-z0-9]+
Publisher X String [A-Za-z0-9]+
Version X String SemVer v2

Metadata

Name Required Type Constraints Description
DisplayName X String Recommendation of 80 characters The portal might not display your item name correctly if it's longer than 80 characters.
PublisherDisplayName X String Recommendation of 30 characters The portal might not display your publisher name correctly if it's longer than 30 characters.
PublisherLegalName X String Maximum of 256 characters
Summary X String 60 to 100 characters
LongSummary X String 140 to 256 characters Not yet applicable in Azure Stack Hub.
Description X HTML 500 to 5,000 characters

Images

The Marketplace uses the following icons:

Name Width Height Notes
Wide 255 px 115 px Always required
Large 115 px 115 px Always required
Medium 90 px 90 px Always required
Small 40 px 40 px Always required
Screenshot 533 px 324 px Optional

Categories

Each Marketplace item should be tagged with a category that identifies where the item appears on the portal UI. You can choose one of the existing categories in Azure Stack Hub (Compute, Data + Storage, and so on) or choose a new one.

Each Marketplace item can include various links to additional content. The links are specified as a list of names and URIs:

Name Required Type Constraints Description
DisplayName X String Maximum of 64 characters.
Uri X URI

Additional properties

In addition to the preceding metadata, Marketplace authors can provide custom key/value pair data in the following form:

Name Required Type Constraints Description
DisplayName X String Maximum of 25 characters.
Value X String Maximum of 30 characters.

HTML sanitization

For any field that allows HTML, the following elements and attributes are allowed:

h1, h2, h3, h4, h5, p, ol, ul, li, a[target|href], br, strong, em, b, i

Reference: Marketplace item UI

Icons and text for Marketplace items as seen in the Azure Stack Hub portal are as follows.

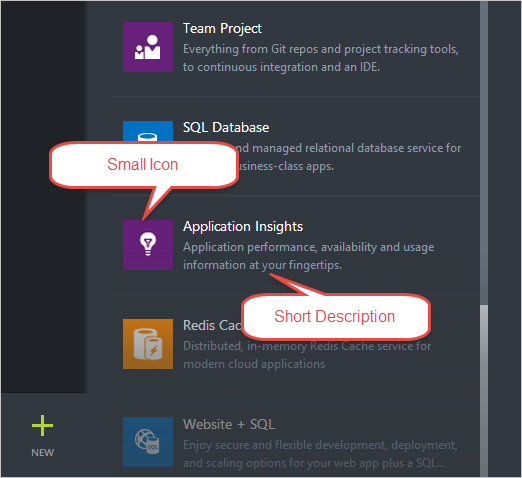

Create blade

Create blade--Azure Stack Hub Marketplace items

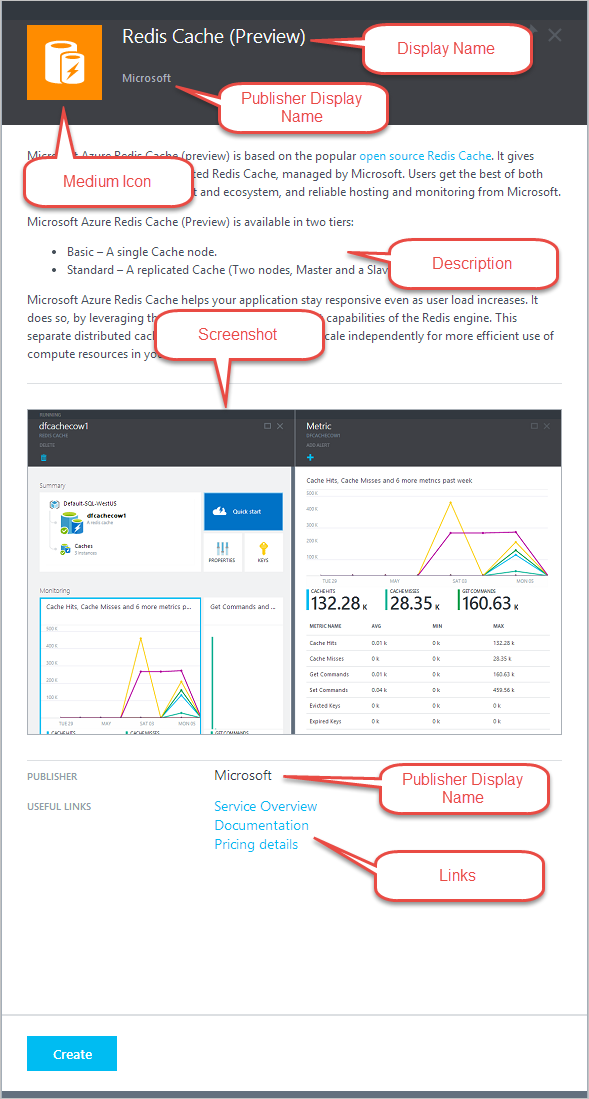

Marketplace item details blade

Azure Stack Hub Marketplace item details blade
