Manage model lifecycle in Unity Catalog

Important

This article describes how to use Models in Unity Catalog as part of your machine learning workflow to manage the full lifecycle of ML models. Databricks provides a hosted version of MLflow Model Registry in Unity Catalog. Models in Unity Catalog extends the benefits of Unity Catalog to ML models, including centralized access control, auditing, lineage, and model discovery across workspaces. Models in Unity Catalog is compatible with the open-source MLflow Python client.

For an overview of Model Registry concepts, see ML lifecycle management using MLflow.

Requirements

  1. Unity Catalog must be enabled in your workspace. See Get started using Unity Catalog to create a Unity Catalog Metastore, enable it in a workspace, and create a catalog. If Unity Catalog is not enabled, use the workspace model registry.

  2. You must use a compute resource that has access to Unity Catalog. For ML workloads, this means that the access mode for the compute must be Single user. For more information, see Access modes.

  3. To create new registered models, you need the following privileges:

    • USE SCHEMA and USE CATALOG privileges on the schema and its enclosing catalog.
    • CREATE_MODEL privilege on the schema. To grant this privilege, use the Catalog Explorer UI or the following SQL GRANT command:
    GRANT CREATE_MODEL ON SCHEMA <schema-name> TO <principal>


Note

Your workspace must be attached to a Unity Catalog metastore that supports privilege inheritance. This is true for all metastores created after August 25, 2022. If running on an older metastore, follow docs to upgrade.

Install and configure MLflow client for Unity Catalog

This section includes instructions for installing and configuring the MLflow client for Unity Catalog.

Install MLflow Python client

Support for models in Unity Catalog is included in Databricks Runtime 13.2 ML and above (Databricks Runtime 15.0 ML and above in Azure China).

You can also use models in Unity Catalog on Databricks Runtime 11.3 LTS and above by installing the latest version of the MLflow Python client in your notebook, using the following code.

%pip install --upgrade "mlflow-skinny[databricks]"
dbutils.library.restartPython()

Configure MLflow client to access models in Unity Catalog

If your workspace’s default catalog is in Unity Catalog (rather than hive_metastore) and you are running a cluster using Databricks Runtime 13.3 LTS or above (Databricks Runtime 15.0 or above in Azure China regions), models are automatically created in and loaded from the default catalog. You do not have to perform this step.

For other workspaces, the MLflow Python client creates models in the Databricks workspace model registry. To upgrade to models in Unity Catalog, use the following code in your notebooks to configure the MLflow client:

import mlflow
mlflow.set_registry_uri("databricks-uc")

For a small number of workspaces where both the default catalog was configured to a catalog in Unity Catalog prior to January 2024 and the workspace model registry was used prior to January 2024, you must manually set the default catalog to Unity Catalog using the command shown above.

Train and register Unity Catalog-compatible models

Permissions required: To create a new registered model, you need the CREATE_MODEL and USE SCHEMA privileges on the enclosing schema, and USE CATALOG privilege on the enclosing catalog. To create new model versions under a registered model, you must be the owner of the registered model and have USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model.

ML model versions in UC must have a model signature. If you’re not already logging MLflow models with signatures in your model training workloads, you can either:

  • Use Databricks autologging, which automatically logs models with signatures for many popular ML frameworks. See supported frameworks in the MLflow docs.
  • With MLflow 2.5.0 and above, you can specify an input example in your mlflow.<flavor>.log_model call, and the model signature is automatically inferred. For further information, refer to the MLflow documentation.

Then, pass the three-level name of the model to MLflow APIs, in the form <catalog>.<schema>.<model>.

The examples in this section create and access models in the ml_team schema under the prod catalog.

The model training examples in this section create a new model version and register it in the prod catalog. Using the prod catalog doesn’t necessarily mean that the model version serves production traffic. The model version’s enclosing catalog, schema, and registered model reflect its environment (prod) and associated governance rules (for example, privileges can be set up so that only admins can delete from the prod catalog), but not its deployment status. To manage the deployment status, use model aliases.

Register a model to Unity Catalog using autologging

To register a model, use MLflow Client API register_model() method. See mlflow.register_model.

from sklearn import datasets
from sklearn.ensemble import RandomForestClassifier

# Train a sklearn model on the iris dataset
X, y = datasets.load_iris(return_X_y=True, as_frame=True)
clf = RandomForestClassifier(max_depth=7)
clf.fit(X, y)

# Note that the UC model name follows the pattern
# <catalog_name>.<schema_name>.<model_name>, corresponding to
# the catalog, schema, and registered model name
# in Unity Catalog under which to create the version
# The registered model will be created if it doesn't already exist
autolog_run = mlflow.last_active_run()
model_uri = "runs:/{}/model".format(autolog_run.info.run_id)
mlflow.register_model(model_uri, "prod.ml_team.iris_model")

Register a model using the API

mlflow.register_model(
  "runs:/<run_uuid>/model", "prod.ml_team.iris_model"
)

Register a model to Unity Catalog with automatically inferred signature

Support for automatically inferred signatures is available in MLflow version 2.5.0 and above, and is supported in Databricks Runtime 11.3 LTS ML and above. To use automatically inferred signatures, use the following code to install the latest MLflow Python client in your notebook:

%pip install --upgrade "mlflow-skinny[databricks]"
dbutils.library.restartPython()

The following code shows an example of an automatically inferred signature.

from sklearn import datasets
from sklearn.ensemble import RandomForestClassifier

with mlflow.start_run():
    # Train a sklearn model on the iris dataset
    X, y = datasets.load_iris(return_X_y=True, as_frame=True)
    clf = RandomForestClassifier(max_depth=7)
    clf.fit(X, y)
    # Take the first row of the training dataset as the model input example.
    input_example = X.iloc[[0]]
    # Log the model and register it as a new version in UC.
    mlflow.sklearn.log_model(
        sk_model=clf,
        artifact_path="model",
        # The signature is automatically inferred from the input example and its predicted output.
        input_example=input_example,
        registered_model_name="prod.ml_team.iris_model",
    )

Register a model using the UI

Follow these steps:

  1. From the experiment run page, click Register model in the upper-right corner of the UI.

  2. In the dialog, select Unity Catalog, and select a destination model from the drop down list.

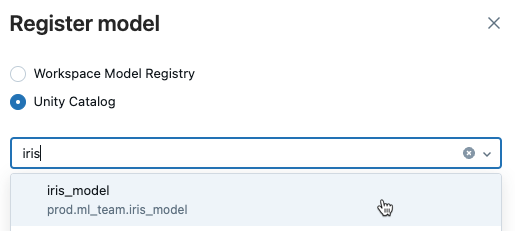

    Register model version dialog with dropdown menu

  3. Click Register.

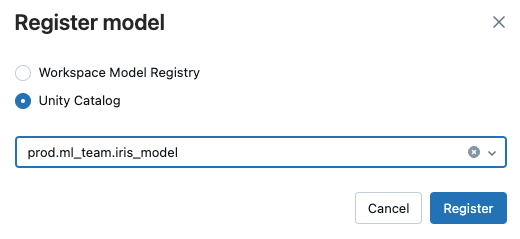

    Register model version dialog with button

Registering a model can take time. To monitor progress, navigate to the destination model in Unity Catalog and refresh periodically.

Deploy models using aliases

Model aliases allow you to assign a mutable, named reference to a particular version of a registered model. You can use aliases to indicate the deployment status of a model version. For example, you could allocate a “Champion” alias to the model version currently in production and target this alias in workloads that use the production model. You can then update the production model by reassigning the “Champion” alias to a different model version.

Set and delete aliases on models

Permissions required: Owner of the registered model, plus USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model.

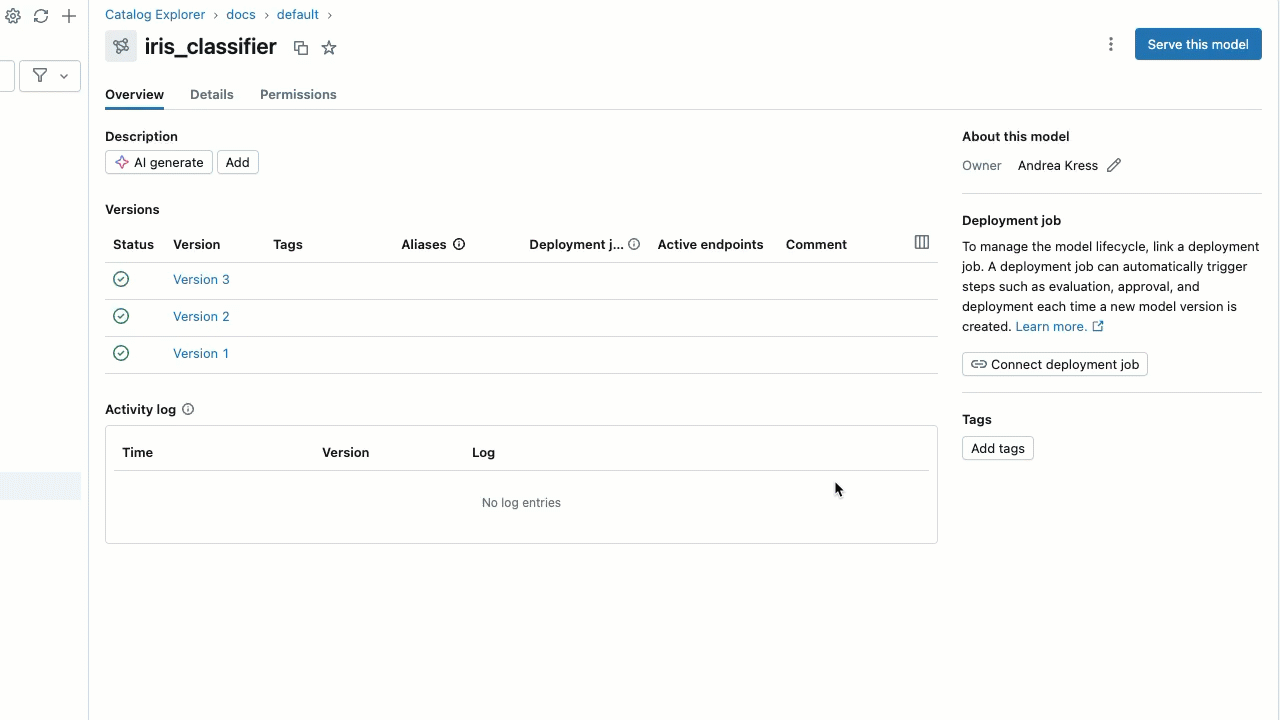

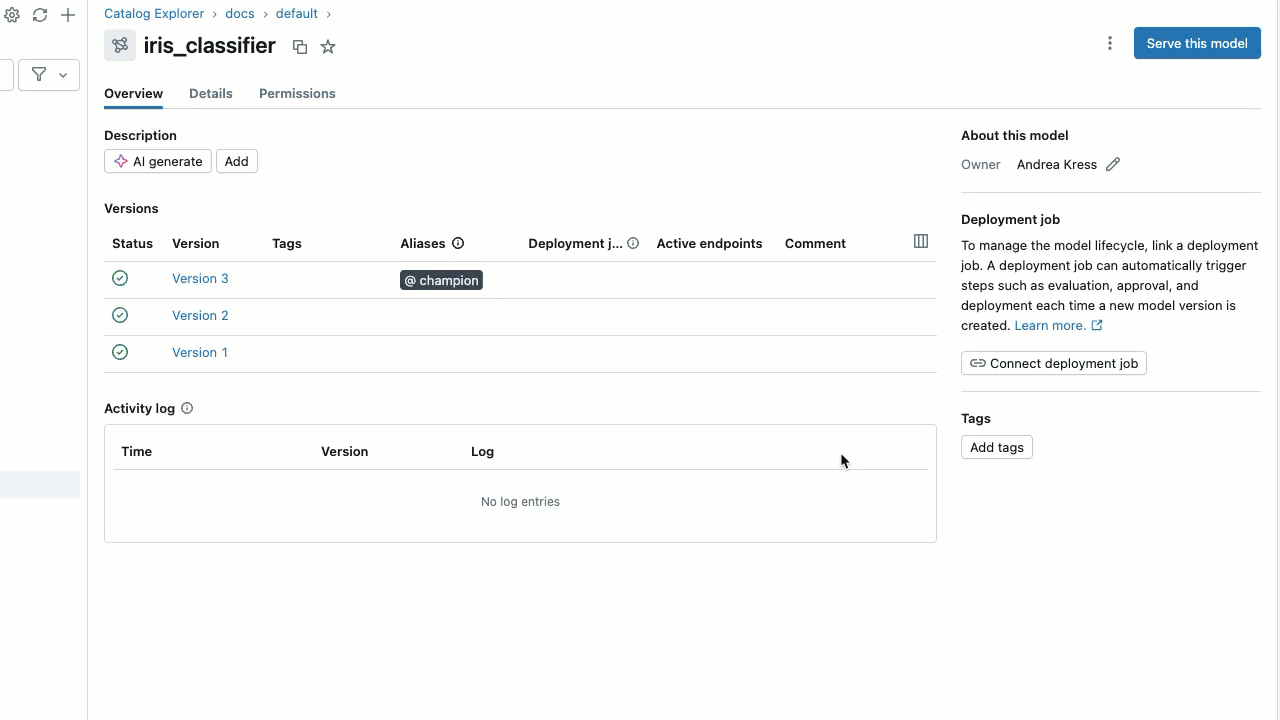

You can set, update, and remove aliases for models in Unity Catalog by using Catalog Explorer. You can manage aliases across a registered model in the model details page and configure aliases for a specific model version in the model version details page.

To set, update, and delete aliases using the MLflow Client API, see the examples below:

from mlflow import MlflowClient
client = MlflowClient()

# create "Champion" alias for version 1 of model "prod.ml_team.iris_model"
client.set_registered_model_alias("prod.ml_team.iris_model", "Champion", 1)

# reassign the "Champion" alias to version 2
client.set_registered_model_alias("prod.ml_team.iris_model", "Champion", 2)

# get a model version by alias
client.get_model_version_by_alias("prod.ml_team.iris_model", "Champion")

# delete the alias
client.delete_registered_model_alias("prod.ml_team.iris_model", "Champion")

For more details on alias client APIs, see the MLflow API documentation.

Load model version by alias for inference workloads

Permissions required: EXECUTE privilege on the registered model, plus USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model.

Batch inference workloads can reference a model version by alias. The snippet below loads and applies the “Champion” model version for batch inference. If the “Champion” version is updated to reference a new model version, the batch inference workload automatically picks it up on its next execution. This allows you to decouple model deployments from your batch inference workloads.

import mlflow.pyfunc
model_version_uri = "models:/prod.ml_team.iris_model@Champion"
champion_version = mlflow.pyfunc.load_model(model_version_uri)
champion_version.predict(test_x)

Model serving endpoints can also reference a model version by alias. You can write deployment workflows to get a model version by alias and update a model serving endpoint to serve that version, using the model serving REST API. For example:

import mlflow
import requests
client = mlflow.tracking.MlflowClient()
champion_version = client.get_model_version_by_alias("prod.ml_team.iris_model", "Champion")
# Invoke the model serving REST API to update endpoint to serve the current "Champion" version
model_name = champion_version.name
model_version = champion_version.version
requests.request(...)

Load model version by version number for inference workloads

You can also load model versions by version number:

import mlflow.pyfunc
# Load version 1 of the model "prod.ml_team.iris_model"
model_version_uri = "models:/prod.ml_team.iris_model/1"
first_version = mlflow.pyfunc.load_model(model_version_uri)
first_version.predict(test_x)

Share models across workspaces

Share models with users in the same region

As long as you have the appropriate privileges, you can access models in Unity Catalog from any workspace that is attached to the metastore containing the model. For example, you can access models from the prod catalog in a dev workspace, to facilitate comparing newly-developed models to the production baseline.

To collaborate with other users (share write privileges) on a registered model you created, you must grant ownership of the model to a group containing yourself and the users you’d like to collaborate with. Collaborators must also have the USE CATALOG and USE SCHEMA privileges on the catalog and schema containing the model. See Unity Catalog privileges and securable objects for details.

Share models with users in another region or account

To share models with users in other regions or accounts, use the Delta Sharing Databricks-to-Databricks sharing flow. See Add models to a share (for providers) and Get access in the Databricks-to-Databricks model (for recipients). As a recipient, after you create a catalog from a share, you access models in that shared catalog the same way as any other model in Unity Catalog.

Track the data lineage of a model in Unity Catalog

Note

Support for table to model lineage in Unity Catalog is available in MLflow 2.11.0 and above.

When you train a model on a table in Unity Catalog, you can track the lineage of the model to the upstream dataset(s) it was trained and evaluated on. To do this, use mlflow.log_input. This saves the input table information with the MLflow run that generated the model. Data lineage is also automatically captured for models logged using feature store APIs. See Feature governance and lineage.

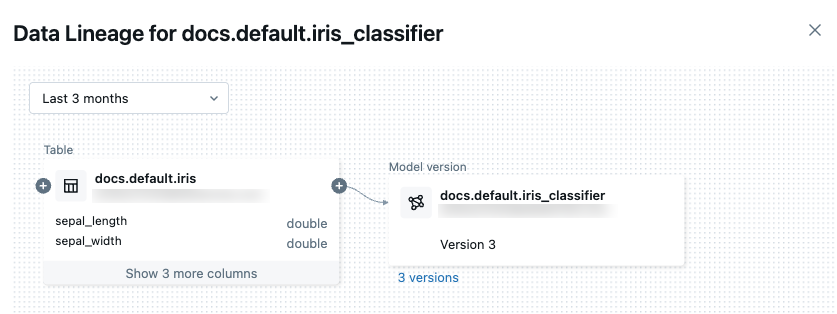

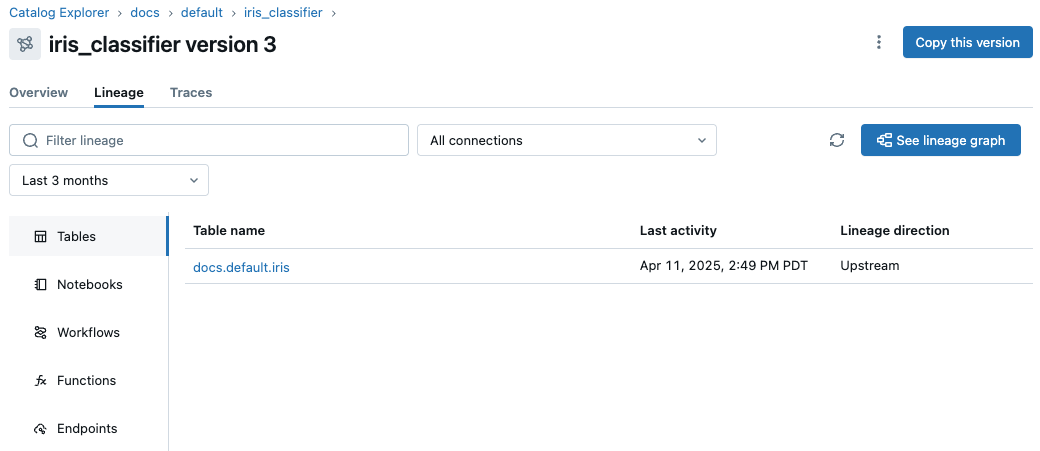

When you register the model to Unity Catalog, lineage information is automatically saved and is visible in the Lineage tab of the model version UI in Catalog Explorer.

The following code shows an example.

import mlflow
import pandas as pd
import pyspark.pandas as ps
from sklearn.datasets import load_iris
from sklearn.ensemble import RandomForestRegressor

# Write a table to Unity Catalog
iris = load_iris()
iris_df = pd.DataFrame(iris.data, columns=iris.feature_names)
iris_df.rename(
  columns = {
    'sepal length (cm)':'sepal_length',
    'sepal width (cm)':'sepal_width',
    'petal length (cm)':'petal_length',
    'petal width (cm)':'petal_width'},
  inplace = True
)
iris_df['species'] = iris.target
ps.from_pandas(iris_df).to_table("prod.ml_team.iris", mode="overwrite")

# Load a Unity Catalog table, train a model, and log the input table
dataset = mlflow.data.load_delta(table_name="prod.ml_team.iris", version="0")
pd_df = dataset.df.toPandas()
X = pd_df.drop("species", axis=1)
y = pd_df["species"]
with mlflow.start_run():
    clf = RandomForestRegressor(n_estimators=100)
    clf.fit(X, y)
    mlflow.log_input(dataset, "training")
    # Take the first row of the training dataset as the model input example.
    input_example = X.iloc[[0]]
    # Log the model and register it as a new version in UC.
    mlflow.sklearn.log_model(
        sk_model=clf,
        artifact_path="model",
        # The signature is automatically inferred from the input example and its predicted output.
        input_example=input_example,
        registered_model_name="prod.ml_team.iris_classifier",
    )

Control access to models

In Unity Catalog, registered models are a subtype of the FUNCTION securable object. To grant access to a model registered in Unity Catalog, you use GRANT ON FUNCTION. For details, see Unity Catalog privileges and securable objects. For best practices on organizing models across catalogs and schemas, see Organize your data.

You can configure model permissions programmatically using the Grants REST API. When you configure model permissions, set securable_type to "FUNCTION" in REST API requests. For example, use PATCH /api/2.1/unity-catalog/permissions/function/{full_name} to update registered model permissions.

View models in the UI

Permissions required: To view a registered model and its model versions in the UI, you need EXECUTE privilege on the registered model, plus USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model

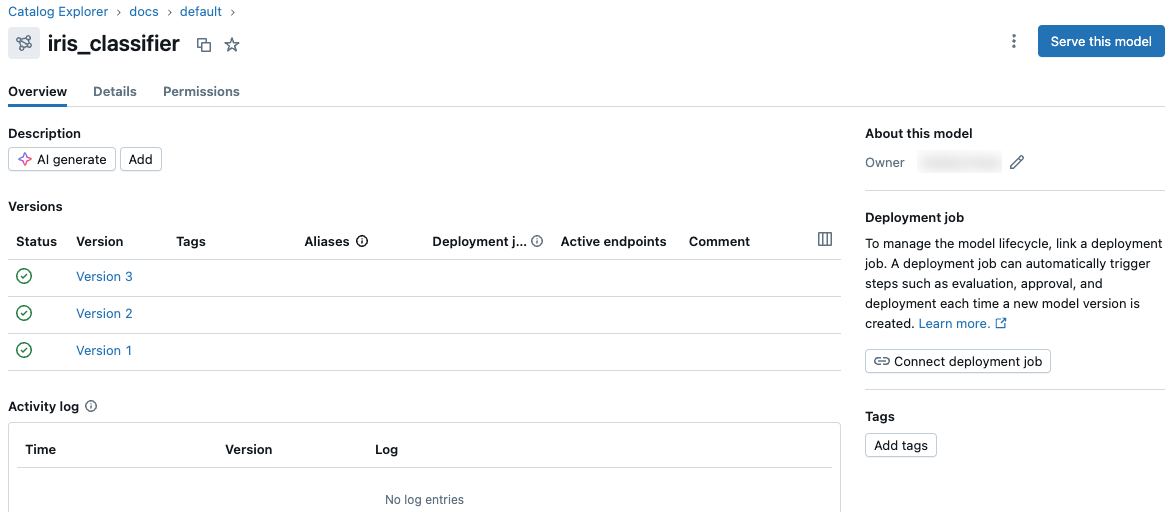

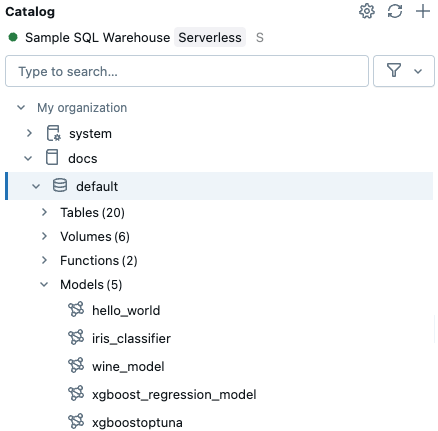

You can view and manage registered models and model versions in Unity Catalog using the Catalog Explorer.

Rename a model

Permissions required: Owner of the registered model, CREATE_MODEL privilege on the schema containing the registered model, and USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model.

To rename a registered model, use the MLflow Client API rename_registered_model() method:

client=MlflowClient()
client.rename_registered_model("<full-model-name>", "<new-model-name>")

Copy a model version

You can copy a model version from one model to another in Unity Catalog.

Copy a model version using the UI

Follow these steps:

  1. From the model version page, click Copy this version in the upper-right corner of the UI.

  2. Select a destination model from the drop down list and click Copy.

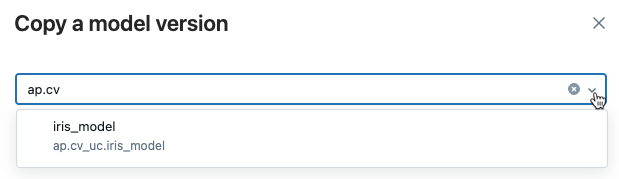

    Copy model version dialog

Copying a model can take time. To monitor progress, navigate to the destination model in Unity Catalog and refresh periodically.

Copy a model version using the API

To copy a model version, use the MLflow’s copy_model_version() Python API:

client = MlflowClient()
client.copy_model_version(
  "models:/<source-model-name>/<source-model-version>",
  "<destination-model-name>",
)

Delete a model or model version

Permissions required: Owner of the registered model, plus USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model.

You can delete a registered model or a model version within a registered model using the Catalog Explorer UI or the API.

Warning

You cannot undo this action. When you delete a model, all model artifacts stored by Unity Catalog and all the metadata associated with the registered model are deleted.

Delete a model version or model using the UI

To delete a model or model version in Unity Catalog, follow these steps.

  1. On the model page or model version page, click the kebab menu Kebab menu in the upper-right corner.

    From the model page:

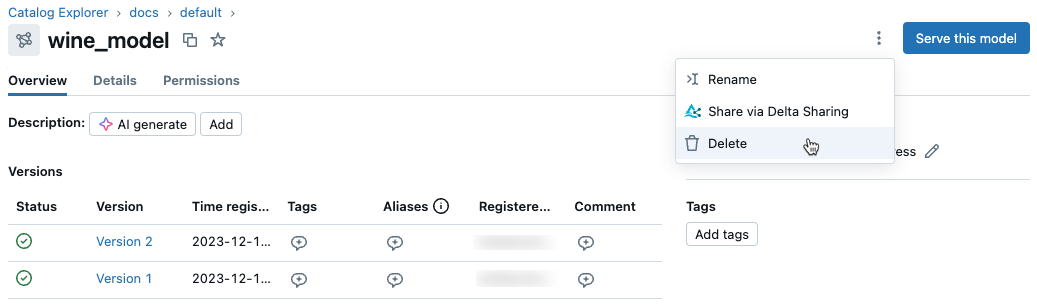

    model page kebab menu with delete

    From the model version page:

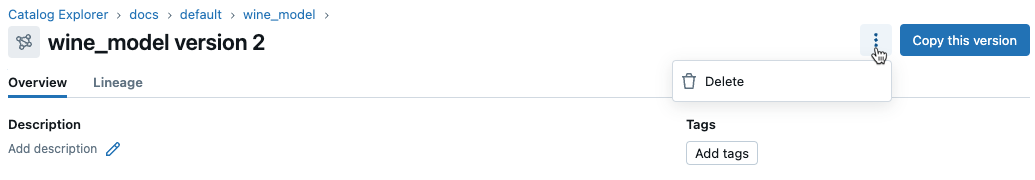

    model version page kebab menu with delete

  2. Select Delete.

  3. A confirmation dialog appears. Click Delete to confirm.

Delete a model version or model using the API

To delete a model version, use the MLflow Client API delete_model_version() method:

# Delete versions 1,2, and 3 of the model
client = MlflowClient()
versions=[1, 2, 3]
for version in versions:
  client.delete_model_version(name="<model-name>", version=version)

To delete a model, use the MLflow Client API delete_registered_model() method:

client = MlflowClient()
client.delete_registered_model(name="<model-name>")

Use tags on models

Tags are key-value pairs that you associate with registered models and model versions, allowing you to label and categorize them by function or status. For example, you could apply a tag with key "task" and value "question-answering" (displayed in the UI as task:question-answering) to registered models intended for question answering tasks. At the model version level, you could tag versions undergoing pre-deployment validation with validation_status:pending and those cleared for deployment with validation_status:approved.

Permissions required: Owner of or have APPLY_TAG privilege on the registered model, plus USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model.

See Add and update tags using Catalog Explorer on how to set and delete tags using the UI.

To set and delete tags using the MLflow Client API, see the examples below:

from mlflow import MlflowClient
client = MlflowClient()

# Set registered model tag
client.set_registered_model_tag("prod.ml_team.iris_model", "task", "classification")

# Delete registered model tag
client.delete_registered_model_tag("prod.ml_team.iris_model", "task")

# Set model version tag
client.set_model_version_tag("prod.ml_team.iris_model", "1", "validation_status", "approved")

# Delete model version tag
client.delete_model_version_tag("prod.ml_team.iris_model", "1", "validation_status")

Both registered model and model version tags must meet the platform-wide constraints.

For more details on tag client APIs, see the MLflow API documentation.

Add a description (comments) to a model or model version

Permissions required: Owner of the registered model, plus USE SCHEMA and USE CATALOG privileges on the schema and catalog containing the model.

You can include a text description for any model or model version in Unity Catalog. For example, you can provide an overview of the problem or information about the methodology and algorithm used.

For models, you also have the option of using AI-generated comments. See Add AI-generated comments to Unity Catalog objects.

Add a description to a model using the UI

To add a description for a model, you can use AI-generated comments, or you can enter your own comments. You can edit AI-generated comments as necessary.

  • To add automatically generated comments, click the AI generate button.
  • To add your own comments, click Add. Enter your comments in the dialog, and click Save.

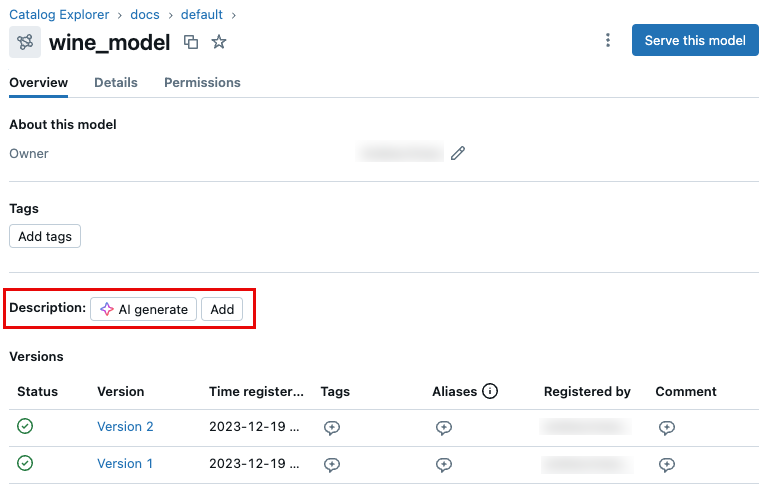

uc model description buttons

Add a description to a model version using the UI

To add a description to a model version in Unity Catalog, follow these steps:

  1. On the model version page, click the pencil icon under Description.

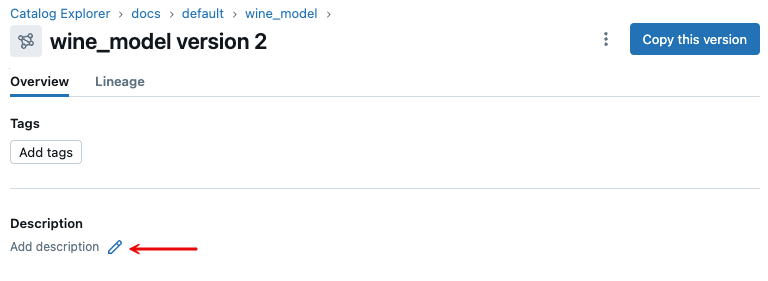

    pencil icon to add comments to a model version

  2. Enter your comments in the dialog, and click Save.

Add a description to a model or model version using the API

To update a registered model description, use the MLflow Client API update_registered_model() method:

client = MlflowClient()
client.update_registered_model(
  name="<model-name>",
  description="<description>"
)

To update a model version description, use the MLflow Client API update_model_version() method:

client = MlflowClient()
client.update_model_version(
  name="<model-name>",
  version=<model-version>,
  description="<description>"
)

List and search models

To get a list of registered models in Unity Catalog, use MLflow’s search_registered_models() Python API:

client=MlflowClient()
client.search_registered_models()

To search for a specific model name and get information about that model’s versions, use search_model_versions():

from pprint import pprint

client=MlflowClient()
[pprint(mv) for mv in client.search_model_versions("name='<model-name>'")]

Note

Not all search API fields and operators are supported for models in Unity Catalog. See Limitations for details.

Download model files (advanced use case)

In most cases, to load models, you should use MLflow APIs like mlflow.pyfunc.load_model or mlflow.<flavor>.load_model (for example, mlflow.transformers.load_model for HuggingFace models).

In some cases you may need to download model files to debug model behavior or model loading issues. You can download model files using mlflow.artifacts.download_artifacts, as follows:

import mlflow
mlflow.set_registry_uri("databricks-uc")
model_uri = f"models:/{model_name}/{version}" # reference model by version or alias
destination_path = "/local_disk0/model"
mlflow.artifacts.download_artifacts(artifact_uri=model_uri, dst_path=destination_path)

Promote a model across environments

Databricks recommends that you deploy ML pipelines as code. This eliminates the need to promote models across environments, as all production models can be produced through automated training workflows in a production environment.

However, in some cases, it may be too expensive to retrain models across environments. Instead, you can copy model versions across registered models in Unity Catalog to promote them across environments.

You need the following privileges to execute the example code below:

  • USE CATALOG on the staging and prod catalogs.
  • USE SCHEMA on the staging.ml_team and prod.ml_team schemas.
  • EXECUTE on staging.ml_team.fraud_detection.

In addition, you must be the owner of the registered model prod.ml_team.fraud_detection.

The following code snippet uses the copy_model_version MLflow Client API, available in MLflow version 2.8.0 and above.

import mlflow
mlflow.set_registry_uri("databricks-uc")

client = mlflow.tracking.MlflowClient()
src_model_name = "staging.ml_team.fraud_detection"
src_model_version = "1"
src_model_uri = f"models:/{src_model_name}/{src_model_version}"
dst_model_name = "prod.ml_team.fraud_detection"
copied_model_version = client.copy_model_version(src_model_uri, dst_model_name)

After the model version is in the production environment, you can perform any necessary pre-deployment validation. Then, you can mark the model version for deployment using aliases.

client = mlflow.tracking.MlflowClient()
client.set_registered_model_alias(name="prod.ml_team.fraud_detection", alias="Champion", version=copied_model_version.version)

In the example above, only users who can read from the staging.ml_team.fraud_detection registered model and write to the prod.ml_team.fraud_detection registered model can promote staging models to the production environment. The same users can also use aliases to manage which model versions are deployed within the production environment. You don’t need to configure any other rules or policies to govern model promotion and deployment.

You can customize this flow to promote the model version across multiple environments that match your setup, such as dev, qa, and prod. Access control is enforced as configured in each environment.

Example

This example illustrates how to use Models in Unity Catalog to build a machine learning application.

Models in Unity Catalog example

Migrate workflows and models to Unity Catalog

Databricks recommends using Models in Unity Catalog for improved governance, easy sharing across workspaces and environments, and more flexible MLOps workflows. The table compares the capabilities of the Workspace Model Registry and Unity Catalog.

Capability Workspace Model Registry (legacy) Models in Unity Catalog (recommended)
Reference model versions by named aliases Model Registry Stages: Move model versions into one of four fixed stages to reference them by that stage. Cannot rename or add stages. Model Registry Aliases: Create up to 10 custom and reassignable named references to model versions for each registered model.
Create access-controlled environments for models Model Registry Stages: Use stages within one registered model to denote the environment of its model versions, with access controls for only two of the four fixed stages (Staging and Production). Registered Models: Create a registered model for each environment in your MLOps workflow, utilizing three-level namespaces and permissions of Unity Catalog to express governance.
Promote models across environments (deploy model) Use the transition_model_version_stage() MLflow Client API to move a model version to a different stage, potentially breaking workflows that reference the previous stage. Use the copy_model_version() MLflow Client API to copy a model version from one registered model to another.
Access and share models across workspaces Manually export and import models across workspaces, or configure connections to remote model registries using personal access tokens and workspace secret scopes. Out of the box access to models across workspaces in the same account. No configuration required.
Configure permissions Set permissions at the workspace-level. Set permissions at the account-level, which applies consistent governance across workspaces.
Access models in the Databricks markplace Unavailable. Load models from the Databricks marketplace into your Unity Catalog metastore and access them across workspaces.

The articles linked below describe how to migrate workflows (model training and batch inference jobs) and models from the Workspace Model Registry to Unity Catalog.

Limitations

  • Stages are not supported for models in Unity Catalog. Databricks recommends using the three-level namespace in Unity Catalog to express the environment a model is in, and using aliases to promote models for deployment. See Promote a model across environments for details.
  • Webhooks are not supported for models in Unity Catalog. See suggested alternatives in the upgrade guide.
  • Some search API fields and operators are not supported for models in Unity Catalog. This can be mitigated by calling the search APIs using supported filters and scanning the results. Following are some examples:
    • The order_by parameter is not supported in the search_model_versions or search_registered_models client APIs.
    • Tag-based filters (tags.mykey = 'myvalue') are not supported for search_model_versions or search_registered_models.
    • Operators other than exact equality (for example, LIKE, ILIKE, !=) are not supported for search_model_versions or search_registered_models.
    • Searching registered models by name (for example, MlflowClient().search_registered_models(filter_string="name='main.default.mymodel'") is not supported. To fetch a particular registered model by name, use get_registered_model.
  • Email notifications and comment discussion threads on registered models and model versions are not supported in Unity Catalog.
  • The activity log is not supported for models in Unity Catalog. To track activity on models in Unity Catalog, use audit logs.
  • search_registered_models might return stale results for models shared through Delta Sharing. To ensure the most recent results, use the Databricks CLI or SDK to list the models in a schema.
