How to submit a circuit with Qiskit to Azure Quantum

  • Artikkel

Learn how to submit a Qiskit quantum circuit using the azure-quantum Python package. You can submit Qiskit circuits to Azure Quantum using an Azure Quantum notebook, which has a built-in azure-quantum Python package, or from your local machine. You can also test your circuits using the local sparse simulator.

For more information, see Quantum circuits.

Prerequisites

For installation details, see Installing the QDK on VS Code.

Create a new Jupyter Notebook

  1. In VS Code, select View > Command palette and select Create: New Jupyter Notebook.
  2. In the top-right, VS Code will detect and display the version of Python and the virtual Python environment that was selected for the notebook. If you have multiple Python environments, you may need to select a kernel using the kernel picker in the top right. If no environment was detected, see Jupyter Notebooks in VS Code for setup information.

Load the required imports

In the first cell of your notebook, run the following code to load the required imports:

import azure.quantum
from azure.quantum import Workspace
from qiskit import QuantumCircuit
from qiskit.visualization import plot_histogram
from azure.quantum.qiskit import AzureQuantumProvider

Connect to the Azure Quantum service

To connect to the Azure Quantum service, your need the resource ID and the location of your Azure Quantum workspace.

  1. Log in to your Azure account, https://portal.azure.com,

  2. Select your Azure Quantum workspace, and navigate to Overview.

  3. Copy the parameters in the fields.

    Screenshot of Visual Studio Code showing how to expand the overview pane of your Quantum Workspace.

Add a new cell in your notebook and use your account information to create Workspace and AzureQuantumProvider objects to connect to your Azure Quantum workspace.

workspace = Workspace(
    resource_id = "", # Add the resourceID of your workspace
    location = "" # Add the location of your workspace (for example "westus")
    )

provider = AzureQuantumProvider(workspace)

List all backends

You can now print all of the quantum computing backends that are available on your workspace:

print("This workspace's targets:")
for backend in provider.backends():
    print("- " + backend.name())

This workspace's targets:
- ionq.qpu
- ionq.qpu.aria-1
- ionq.simulator
- microsoft.estimator
- quantinuum.hqs-lt-s1
- quantinuum.hqs-lt-s1-apival
- quantinuum.hqs-lt-s2
- quantinuum.hqs-lt-s2-apival
- quantinuum.hqs-lt-s1-sim
- quantinuum.hqs-lt-s2-sim
- quantinuum.qpu.h1-1
- quantinuum.sim.h1-1sc
- quantinuum.sim.h1-1e
- rigetti.sim.qvm

Run a simple circuit

First, create a simple Qiskit circuit to run.

# Create a Quantum Circuit acting on the q register
circuit = QuantumCircuit(3, 3)
circuit.name = "Qiskit Sample - 3-qubit GHZ circuit"
circuit.h(0)
circuit.cx(0, 1)
circuit.cx(1, 2)
circuit.measure([0,1,2], [0, 1, 2])

# Print out the circuit
circuit.draw()

     ┌───┐          ┌─┐
q_0: ┤ H ├──■───────┤M├──────
     └───┘┌─┴─┐     └╥┘┌─┐
q_1: ─────┤ X ├──■───╫─┤M├───
          └───┘┌─┴─┐ ║ └╥┘┌─┐
q_2: ──────────┤ X ├─╫──╫─┤M├
               └───┘ ║  ║ └╥┘
c: 3/════════════════╩══╩══╩═
                     0  1  2

Select a target to run your program

Run on the IonQ simulator

Before running on real hardware, let's test the circuit in the simulator. Use get_backend to create a Backend object to connect to the IonQ Simulator backend:

simulator_backend = provider.get_backend("ionq.simulator")

IonQ backends support gates from a defined gateset, which are compiled to run optimally on the hardware. If your circuit contains gates that aren't in this list, you need to transpile into the supported gateset using the transpile function provided by Qiskit:

from qiskit import transpile
circuit = transpile(circuit, simulator_backend)

The transpile function returns a new circuit object where gates are decomposed into gates that are supported on the specified backend.

You can now run the program via the Azure Quantum service and get the result. The following cell submits a job that runs the circuit with 100 shots:

job = simulator_backend.run(circuit, shots=8)
job_id = job.id()
print("Job id", job_id)

Job id 00000000-0000-0000-0000-000000000000

To wait until the job is complete and return the results, run:

result = job.result()
print(result)

Result(backend_name='ionq.simulator', backend_version='1', qobj_id='Qiskit Sample - 3-qubit GHZ circuit', job_id='00000000-0000-0000-0000-000000000000', success=True, results=[ExperimentResult(shots=8, success=True, meas_level=2, data=ExperimentResultData(counts={'000': 4, '111': 4}, memory=['000', '000', '000', '000', '111', '111', '111', '111'], probabilities={'000': 0.5, '111': 0.5}), header=QobjExperimentHeader(name='Qiskit Sample - 3-qubit GHZ circuit', num_qubits=3, metadata={}), status=JobStatus.DONE, name='Qiskit Sample - 3-qubit GHZ circuit')], date=None, status=None, header=None, error_data=None)

Because the result is an object native to the Qiskit package, you can use Qiskit's result.get_counts and plot_histogram to visualize the results. To make sure that all possible bitstring labels are represented, add them to counts.

counts = {format(n, "03b"): 0 for n in range(8)}
counts.update(result.get_counts(circuit))
print(counts)
plot_histogram(counts)

{'000': 4, '001': 0, '010': 0, '011': 0, '100': 0, '101': 0, '110': 0, '111': 4}

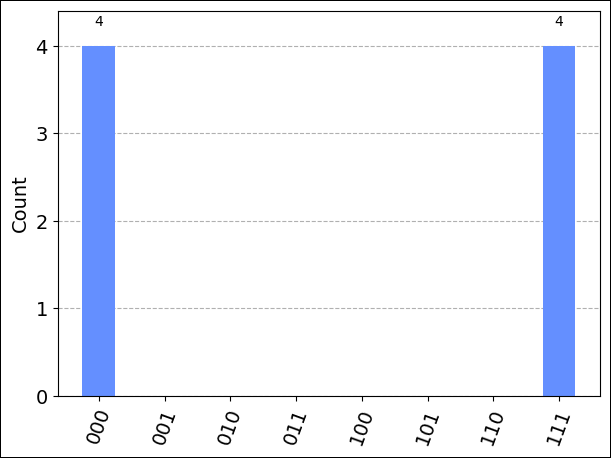

Qiskit circuit result on IonQ Simulator

You can also use the get_memory() function to display individual shot data from the job

result.get_memory(circuit)

['000', '000', '000', '000', '111', '111', '111', '111']

Note

On IonQ targets, if you submit a job with an odd number of shots, the results will be rounded down to the next even number. For example, if you specify 9 shots, the results will display data for 8 shots.

Estimate job cost

Before running a job on the QPU, you should estimate how much it costs to run.

For the most current pricing details, see IonQ Pricing, or find your workspace and view pricing options in the "Provider" tab of your workspace via: aka.ms/aq/myworkspaces.

Run on IonQ QPU

To connect to real hardware (a Quantum Processor Unit (QPU)), simply provide the name of the target "ionq.qpu.aria-1" to the get_backend method:

qpu_backend = provider.get_backend("ionq.qpu.aria-1")

Submit the circuit to run on Azure Quantum, get the results, and run plot_histogram to plot the results.

Note

The time required to run a circuit on the QPU may vary depending on current queue times.

# Submit the circuit to run on Azure Quantum
job = qpu_backend.run(circuit, shots=100)
job_id = job.id()
print("Job id", job_id)

# Get the job results (this method waits for the Job to complete):
result = job.result()
print(result)
counts = {format(n, "03b"): 0 for n in range(8)}
counts.update(result.get_counts(circuit))
print(counts)
plot_histogram(counts)

Job id 00000000-0000-0000-0000-000000000000
Job Status: job has successfully run
Result(backend_name='ionq.qpu.aria-1', backend_version='1', qobj_id='Qiskit Sample - 3-qubit GHZ circuit', job_id='00000000-0000-0000-0000-000000000000', success=True, results=[ExperimentResult(shots=1024, success=True, meas_level=2, data=ExperimentResultData(counts={'0': 505, '1': 6, '2': 1, '3': 1, '4': 1, '5': 10, '6': 11, '7': 488}, probabilities={'0': 0.4932, '1': 0.0059, '2': 0.001, '3': 0.001, '4': 0.001, '5': 0.0098, '6': 0.0117, '7': 0.4766}), header=QobjExperimentHeader(name='Qiskit Sample - 3-qubit GHZ circuit', num_qubits='3', qiskit='True'))])
{'000': 505, '001': 6, '010': 1, '011': 1, '100': 1, '101': 10, '110': 11, '111': 488}

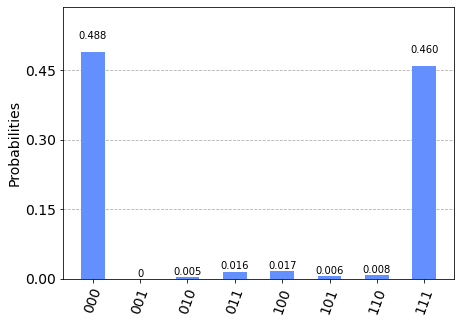

Qiskit circuit result on IonQ QPU

Important

Submitting multiple circuits on a single job is currently not supported. As a workaround you can call the backend.run method to submit each circuit asynchronously, then fetch the results of each job. For example:

jobs = []
for circuit in circuits:
    jobs.append(backend.run(circuit, shots=N))

results = []
for job in jobs:
    results.append(job.result())

Prerequisites

Create a new notebook in your workspace

  1. Log in to the Azure portal and select the workspace you created in the previous step.
  2. In the left blade, select Notebooks.
  3. Click My Notebooks and click Add New.
  4. Type a name for the file, for example Qiskit.ipynb, and click Create file.

When your new notebook opens, it automatically creates the code for the first cell, based on your subscription and workspace information.

from azure.quantum import Workspace
workspace = Workspace (
    resource_id = "", # Add your resource_id
    location = ""  # Add your workspace location (for example, "westus")
)

Note

Unless otherwise noted, you should run each cell in order as you create it to avoid any compilation issues.

Click the triangular "play" icon to the left of the cell to run the code.

Load the required imports

First, you'll need to import some additional modules.

Click + Code to add a new cell, then add and run the following code:

from qiskit import QuantumCircuit
from qiskit.visualization import plot_histogram
from azure.quantum.qiskit import AzureQuantumProvider

Connect to the Azure Quantum service

Next, create an AzureQuantumProvider object using the Workspace object from the previous cell to connect to your Azure Quantum workspace. Add a new cell with the following code:

provider = AzureQuantumProvider(workspace)

Define a simple circuit

In a new cell, create a circuit object. This example is a simple quantum random bit generator. Add the following code to define and display the circuit:

# Create a Quantum Circuit acting on the q register
circuit = QuantumCircuit(3, 3)
circuit.name = "Qiskit Sample - 3-qubit GHZ circuit"
circuit.h(0)
circuit.cx(0, 1)
circuit.cx(1, 2)
circuit.measure([0, 1, 2], [0, 1, 2])

# Print out the circuit
circuit.draw()

     ┌───┐          ┌─┐
q_0: ┤ H ├──■───────┤M├──────
     └───┘┌─┴─┐     └╥┘┌─┐
q_1: ─────┤ X ├──■───╫─┤M├───
          └───┘┌─┴─┐ ║ └╥┘┌─┐
q_2: ──────────┤ X ├─╫──╫─┤M├
               └───┘ ║  ║ └╥┘
c: 3/════════════════╩══╩══╩═
                     0  1  2

List all targets

You can now display all of the quantum computing targets, or backends, that are available in your workspace. Add a new cell and run the following line:

print("This workspace's targets:")
for backend in provider.backends():
    print("- " + backend.name())

This workspace's targets:
- ionq.simulator
- ionq.qpu.aria-1
- microsoft.estimator
- quantinuum.qpu.h1-1
- quantinuum.sim.h1-1sc
- quantinuum.sim.h1-1e
- rigetti.sim.qvm

Select a target to run your program

To check your code before running it on actual quantum hardware, you can use the IonQ quantum simulator, ionq.simulator.

Add a new cell and create an object to represent the IonQ quantum simulator target:

# Get IonQ quantum simulator target:
simulator_backend = provider.get_backend("ionq.simulator")

Run on the IonQ simulator

To run your circuit on the simulator, add the following code. This example use the run method of the target to submit your job, and then monitors the job status.

# Submit the circuit to run on Azure Quantum
job = simulator_backend.run(circuit, shots=8)
job_id = job.id()
print("Job id", job_id)

When the job successfully runs, get the job results and display them:

# Get the job results:
result = job.result()
print(result)

Result(backend_name='ionq.simulator', backend_version='1', qobj_id='Qiskit Sample - 3-qubit GHZ circuit', job_id='00000000-0000-0000-0000-000000000000', success=True, results=[ExperimentResult(shots=8, success=True, meas_level=2, data=ExperimentResultData(counts={'000': 4, '111': 4}, memory=['000', '000', '000', '000', '111', '111', '111', '111'], probabilities={'000': 0.5, '111': 0.5}), header=QobjExperimentHeader(name='Qiskit Sample - 3-qubit GHZ circuit', num_qubits=3, metadata={}), status=JobStatus.DONE, name='Qiskit Sample - 3-qubit GHZ circuit')], date=None, status=None, header=None, error_data=None)

Because this result type is an object native to the Qiskit package, you can use Qiskit's result.get_counts and plot_histogram to visualize the results. To make sure that all possible bitstring labels are represented, add them to counts.

counts = {format(n, "03b"): 0 for n in range(8)}
counts.update(result.get_counts(circuit))
print(counts)
plot_histogram(counts)

{'000': 4, '001': 0, '010': 0, '011': 0, '100': 0, '101': 0, '110': 0, '111': 4}

Qiskit circuit result on IonQ Simulator

You can also use the get_memory() function to display individual shot data from the job

result.get_memory(circuit)

['000', '000', '000', '000', '111', '111', '111', '111']

Note

On IonQ targets, if you submit a job with an odd number of shots, the results will be rounded down to the next even number. For example, if you specify 9 shots, the results will display data for 8 shots.

Estimate job cost

Before running a job on actual quantum hardware, or a quantum processing unit (QPU), you should estimate how much it costs to run.

For the most current pricing details, see IonQ Pricing, or find your workspace and view pricing options in the Providers blade of your workspace.

Run on IonQ QPU

After you run your job successfully on the IonQ simulator and estimate the QPU cost, it's time to run your circuit on the hardware.

Note

The time required to run a circuit on the QPU varies depending on current queue times. You can view the average queue time for a target by selecting the Providers blade of your workspace.

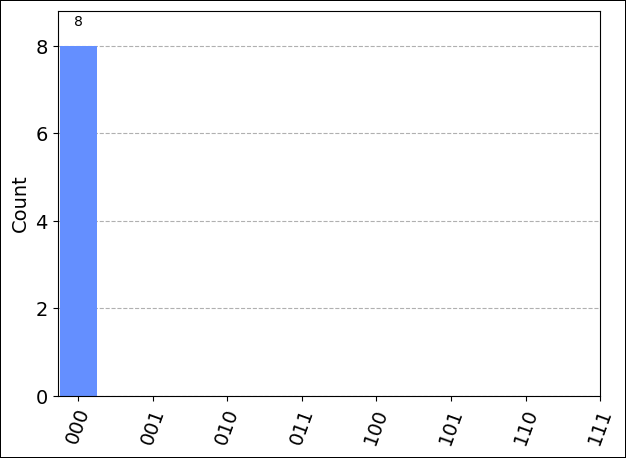

Use the same run method and operations that you used previously with the API Validator to submit and monitor your job:

# Submit the circuit to run on Azure Quantum
job = qpu_backend.run(circuit, shots=100)
job_id = job.id()
print("Job id", job_id)

When the job finishes, get the job results as before and display them in a chart:

result = job.result()
print(result)
counts = {format(n, "03b"): 0 for n in range(8)}
counts.update(result.get_counts(circuit))
print(counts)
plot_histogram(counts)

Job id 910b5ac8-98cd-11ec-b3ba-00155d5528cf
Job Status: job has successfully run
Result(backend_name='ionq.simulator', backend_version='1', qobj_id='Qiskit Sample - 3-qubit GHZ circuit', job_id='Job id 54e8c740-98d9-11ec-b382-00155d957f5d', success=True, results=[ExperimentResult(shots=1024, success=True, meas_level=2, data=ExperimentResultData(counts={'0': 505, '1': 6, '2': 1, '3': 1, '4': 1, '5': 10, '6': 11, '7': 488}, probabilities={'0': 0.4932, '1': 0.0059, '2': 0.001, '3': 0.001, '4': 0.001, '5': 0.0098, '6': 0.0117, '7': 0.4766}), header=QobjExperimentHeader(name='Qiskit Sample - 3-qubit GHZ circuit', num_qubits='3', qiskit='True'))])
{'000': 505, '001': 6, '010': 1, '011': 1, '100': 1, '101': 10, '110': 11, '111': 488}

Qiskit circuit result on IonQ QPU

Important

Submitting multiple circuits on a single job is currently not supported. As a workaround you can call the backend.run method to submit each circuit asynchronously, then fetch the results of each job. For example:

jobs = []
for circuit in circuits:
    jobs.append(backend.run(circuit, shots=N))

results = []
for job in jobs:
    results.append(job.result())

Prerequisites

For installation details, see Installing the Quantum Development Kit on VS Code.

Run a basic circuit

In VS Code, open a new Python file to define and run a basic circuit using the built-in sparse simulator in the Qsharp package.

# load the required imports
from qiskit.circuit.random import random_circuit
from qsharp.interop.qiskit import QSharpBackend

# define and display the circuit
circuit = random_circuit(2, 2, measure=True)
print(circuit)

# run the circuit using the built-in sparse simulator
backend = QSharpBackend()
job = backend.run(circuit)
counts = job.result().get_counts()

print(counts)

To run the program, select the Run icon in the upper right, and select Run Python file. The output displays in a new terminal window.

                  ┌─────────────────────────┐┌─┐
q_0: ─■───────────┤0                        ├┤M├───
      │P(0.79983) │  (XX-YY)(1.9337,1.7385) │└╥┘┌─┐
q_1: ─■───────────┤1                        ├─╫─┤M├
                  └─────────────────────────┘ ║ └╥┘
c: 2/═════════════════════════════════════════╩══╩═
                                              0  1
{'11': 680, '00': 344}
