Microsoft Entra Connect and Microsoft Entra Connect Health installation roadmap

Artikkel
03/26/2024

Install Microsoft Entra Connect

Important

Microsoft doesn't support modifying or operating Microsoft Entra Connect Sync outside of the actions that are formally documented. Any of these actions might result in an inconsistent or unsupported state of Microsoft Entra Connect Sync. As a result, Microsoft can't provide technical support for such deployments.

You can find the download for Microsoft Entra Connect on Microsoft Download Center.

Solution	Scenario
Before you start - Hardware and prerequisites	Steps to complete before you start to install Microsoft Entra Connect.
Express settings	If you have a single forest AD then this is the recommended option to use. User sign in with the same password using password synchronization.
Customized settings	Used when you have multiple forests. Supports many on-premises topologies. Customize your sign-in option, such as pass-through authentication, ADFS for federation or use a 3rd party identity provider. Customize synchronization features, such as filtering and writeback.
Upgrade from DirSync	Used when you have an existing DirSync server already running.
Upgrade from Azure AD Sync or Microsoft Entra Connect	There are several different methods depending on your preference.

After installation you should verify it is working as expected and assign licenses to the users.

Next steps to Install Microsoft Entra Connect

Topic	Link
Download Microsoft Entra Connect	Download Microsoft Entra Connect
Install using Express settings	Express installation of Microsoft Entra Connect
Install using Customized settings	Custom installation of Microsoft Entra Connect
Upgrade from DirSync	Upgrade from Azure AD Sync tool (DirSync)
After installation	Verify the installation and assign licenses

Learn more about Install Microsoft Entra Connect

You also want to prepare for operational concerns. You might want to have a stand-by server so you easily can fail over if there is a disaster. If you plan to make frequent configuration changes, you should plan for a staging mode server.

Topic	Link
Supported topologies	Topologies for Microsoft Entra Connect
Design concepts	Microsoft Entra Connect design concepts
Accounts used for installation	More about Microsoft Entra Connect credentials and permissions
Operational planning	Microsoft Entra Connect Sync: Operational tasks and considerations
User sign-in options	Microsoft Entra Connect User sign-in options

Configure sync features

Microsoft Entra Connect comes with several features you can optionally turn on or are enabled by default. Some features might sometimes require more configuration in certain scenarios and topologies.

Filtering is used when you want to limit which objects are synchronized to Microsoft Entra ID. By default all users, contacts, groups, and Windows 10 computers are synchronized. You can change the filtering based on domains, OUs, or attributes.

Password hash synchronization synchronizes the password hash in Active Directory to Microsoft Entra ID. The end-user can use the same password on-premises and in the cloud but only manage it in one location. Since it uses your on-premises Active Directory as the authority, you can also use your own password policy.

Password writeback will allow your users to change and reset their passwords in the cloud and have your on-premises password policy applied.

Device writeback will allow a device registered in Microsoft Entra ID to be written back to on-premises Active Directory so it can be used for Conditional Access.

The prevent accidental deletes feature is turned on by default and protects your cloud directory from numerous deletes at the same time. By default it allows 500 deletes per run. You can change this setting depending on your organization size.

Automatic upgrade is enabled by default for express settings installations and ensures your Microsoft Entra Connect is always up to date with the latest release.

Next steps to configure sync features

Topic	Link
Configure filtering	Microsoft Entra Connect Sync: Configure filtering
Password hash synchronization	Password hash synchronization
Pass-through Authentication	Pass-through authentication
Password writeback	Getting started with password management
Device writeback	Enabling device writeback in Microsoft Entra Connect
Prevent accidental deletes	Microsoft Entra Connect Sync: Prevent accidental deletes
Automatic upgrade	Microsoft Entra Connect: Automatic upgrade

Customize Microsoft Entra Connect Sync

Microsoft Entra Connect Sync comes with a default configuration that is intended to work for most customers and topologies. But there are always situations where the default configuration does not work and must be adjusted. It is supported to make changes as documented in this section and linked topics.

If you have not worked with a synchronization topology before you want to start to understand the basics and the terms used as described in the technical concepts. Even if some things are similar, a lot has changed as well.

The default configuration assumes there might be more than one forest in the configuration. In those topologies a user object might be represented as a contact in another forest. The user might also have a linked mailbox in another resource forest. The behavior of the default configuration is described in users and contacts.

The configuration model in sync is called declarative provisioning. The advanced attribute flows are using functions to express attribute transformations. You can see and examine the entire configuration using tools which comes with Microsoft Entra Connect. If you need to make configuration changes, make sure you follow the best practices so it is easier to adopt new releases.

Next steps to customize Microsoft Entra Connect Sync

Topic	Link
All Microsoft Entra Connect Sync articles	Microsoft Entra Connect Sync
Technical concepts	Microsoft Entra Connect Sync: Technical Concepts
Understanding the default configuration	Microsoft Entra Connect Sync: Understanding the default configuration
Understanding users and contacts	Microsoft Entra Connect Sync: Understanding Users and Contacts
Declarative provisioning	Microsoft Entra Connect Sync: Understanding Declarative Provisioning Expressions
Change the default configuration	Best practices for changing the default configuration

Configure federation features

Microsoft Entra Connect provides several features that simplify federating with Microsoft Entra ID using AD FS and managing your federation trust. Microsoft Entra Connect supports AD FS on Windows Server 2012R2 or later.

Update TLS/SSL certificate of AD FS farm even if you are not using Microsoft Entra Connect to manage your federation trust.

Add an AD FS server to your farm to expand the farm as required.

Repair the trust with Microsoft Entra ID in a few simple clicks.

ADFS can be configured to support multiple domains. For example you might have multiple top domains you need to use for federation.

If your ADFS server has not been configured to automatically update certificates from Microsoft Entra ID or if you use a non-ADFS solution, then you will be notified when you have to update certificates.

Next steps to configure federation features

Topic	Link
All AD FS articles	Microsoft Entra Connect and federation
Configure ADFS with subdomains	Multiple Domain Support for Federating with Microsoft Entra ID
Manage AD FS farm	AD FS management and customization with Microsoft Entra Connect
Manually updating federation certificates	Renewing Federation Certificates for Microsoft 365 and Microsoft Entra ID

Get started with Microsoft Entra Connect Health

To get started with Microsoft Entra Connect Health, use the following steps:

Get Microsoft Entra ID P1 or P2 or start a trial.
Download and install Microsoft Entra Connect Health Agents on your identity servers.
View the Microsoft Entra Connect Health dashboard at https://aka.ms/aadconnecthealth.

Note

Remember that before you see data in your Microsoft Entra Connect Health dashboard, you need to install the Microsoft Entra Connect Health Agents on your targeted servers.

Download and install Microsoft Entra Connect Health Agent

Make sure that you satisfy the requirements for Microsoft Entra Connect Health.
Get started using Microsoft Entra Connect Health for AD FS
- Download Microsoft Entra Connect Health Agent for AD FS.
- See the installation instructions.
Get started using Microsoft Entra Connect Health for sync
- Download and install the latest version of Microsoft Entra Connect. The Health Agent for sync will be installed as part of the Microsoft Entra Connect installation (version 1.0.9125.0 or higher).
Get started using Microsoft Entra Connect Health for AD DS
- Download Microsoft Entra Connect Health Agent for AD DS.
- See the installation instructions.

Microsoft Entra Connect Health portal

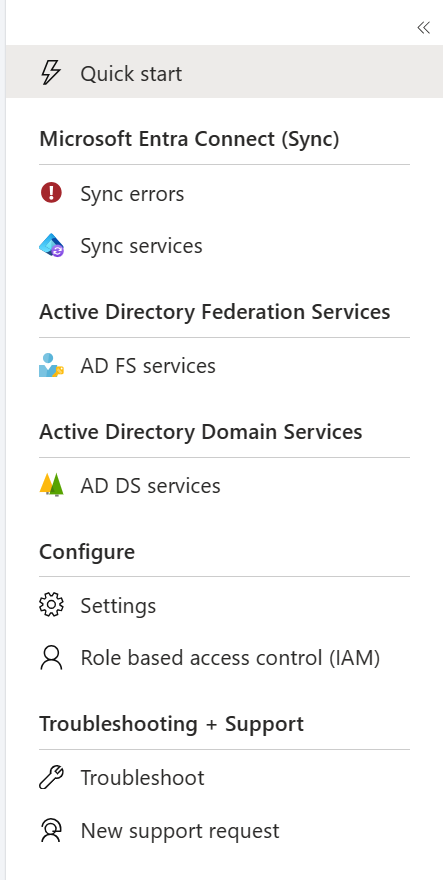

The Microsoft Entra Connect Health portal shows views of alerts, performance monitoring, and usage analytics. The https://aka.ms/aadconnecthealth URL takes you to the main blade of Microsoft Entra Connect Health. You can think of a blade as a window. On The main blade, you see Quick Start, services within Microsoft Entra Connect Health, and additional configuration options. See the following screenshot and brief explanations that follow the screenshot. After you deploy the agents, the health service automatically identifies the services that Microsoft Entra Connect Health is monitoring.
