Tutorial: Microsoft Entra SSO integration with Kion (formerly cloudtamer.io)

  • Artikkel

In this tutorial, you'll learn how to integrate Kion with Microsoft Entra ID. When you integrate Kion with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Kion.
  • Enable your users to be automatically signed-in to Kion with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Kion single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Kion supports IDP initiated SSO.
  • Kion supports Just In Time user provisioning.

To configure the integration of Kion into Microsoft Entra ID, you need to add Kion from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Kion in the search box.
  4. Select Kion from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Kion (formerly cloudtamer.io)

Configure and test Microsoft Entra SSO with Kion using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Kion.

To configure and test Microsoft Entra SSO with Kion, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Kion SSO - to configure the single sign-on settings on application side.
    1. Create Kion test user - to have a counterpart of B.Simon in Kion that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.
  4. Group assertions - to set group assertions for Microsoft Entra ID and Kion.

Begin Kion SSO Configuration

  1. Log in to Kion website as an administrator.

  2. Click on + plus icon at the top right corner and select IDMS.

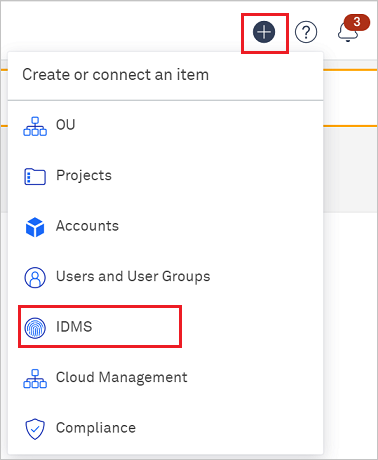

    Screenshot for IDMS create.

  3. Select SAML 2.0 as the IDMS Type.

  4. Leave this screen open and copy values from this screen into the Microsoft Entra configuration.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Kion > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Identifier text box, paste the SERVICE PROVIDER ISSUER (ENTITY ID) from Kion into this box.

    b. In the Reply URL text box, paste the SERVICE PROVIDER ACS URL from Kion into this box.

  6. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  7. On the Set up Kion section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Kion.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Kion.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Kion SSO

  1. Perform the following steps in the Add IDMS page:

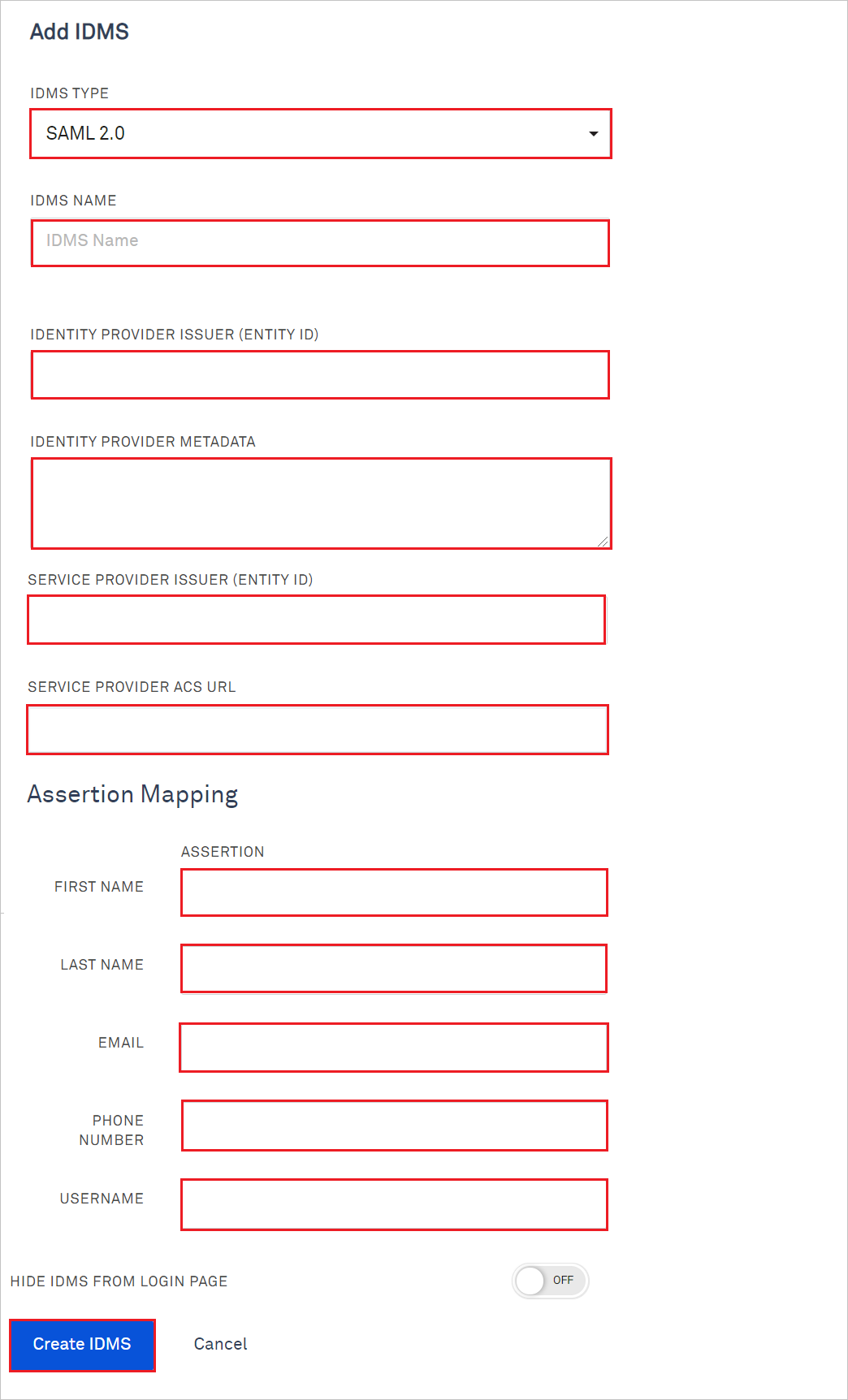

    Screenshot for IDMS adding.

    a. In the IDMS Name give a name that the users will recognize from the Login screen.

    b. In the IDENTITY PROVIDER ISSUER (ENTITY ID) textbox, paste the Identifier value which you copied previously.

    c. Open the downloaded Federation Metadata XML into Notepad and paste the content into the IDENTITY PROVIDER METADATA textbox.

    d. Copy SERVICE PROVIDER ISSUER (ENTITY ID) value, paste this value into the Identifier text box in the Basic SAML Configuration section.

    e. Copy SERVICE PROVIDER ACS URL value, paste this value into the Reply URL text box in the Basic SAML Configuration section.

    f. Under Assertion Mapping, enter the following values:

    Field Value
    First Name http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname
    Last Name http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname
    Email http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name
    Username http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name

  2. Click Create IDMS.

Create Kion test user

In this section, a user called Britta Simon is created in Kion. Kion supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Kion, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, and you should be automatically signed in to the Kion for which you set up the SSO.

  • You can use Microsoft My Apps. When you click the Kion tile in the My Apps, you should be automatically signed in to the Kion for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Group assertions

To easily manage Kion user permissions by using existing Microsoft Entra groups, complete these steps:

Microsoft Entra configuration

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications.
  3. In the list, select the enterprise application for Kion.
  4. On Overview, in the left menu, select Single sign-on.
  5. On Single Sign-On, under User Attributes & Claims, select Edit.
  6. Select Add a group claim.

    Note

    You can have only one group claim. If this option is disabled, you might already have a group claim defined.

  7. On Group Claims, select the groups that should be returned in the claim:
    • If you will always have every group you intend to use in Kion assigned to this enterprise application, select Groups assigned to the application.
    • If you want all groups to appear (this selection can cause a large number of group assertions and might be subject to limits), select Groups assigned to the application.
  8. For Source attribute, leave the default Group ID.
  9. Select the Customize the name of the group claim checkbox.
  10. For Name, enter memberOf.
  11. Select Save to complete the configuration with Microsoft Entra ID.

Kion configuration

  1. In Kion, go to Users > Identity Management Systems.
  2. Select the IDMS that you've created for Microsoft Entra ID.
  3. On the overview page, select the User Group Associations tab.
  4. For each user group mapping that you want, complete these steps:
    1. Select Add > Add New.
    2. In the dialog that appears:
      1. For Name, enter memberOf.
      2. For Regex, enter the object ID (from Microsoft Entra ID) of the group you want to match.
      3. For User Group, select the Kion internal group you want to map to the group in Regex.
      4. Select the Update on Login checkbox.
    3. Select Add to add the group association.

Next steps

Once you configure Kion you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Cloud App Security.
