Domain-Based Attributes (Master Data Services)

Applies to: SQL Server - Windows only Azure SQL Managed Instance

In Master Data Services, a domain-based attribute is an attribute with values that are populated by members from another entity. You can think of a domain-based attribute as a constrained list; domain-based attributes prevent users from entering attribute values that are not valid. To select an attribute value, the user must pick from a list.

Domain-Based Attribute Example

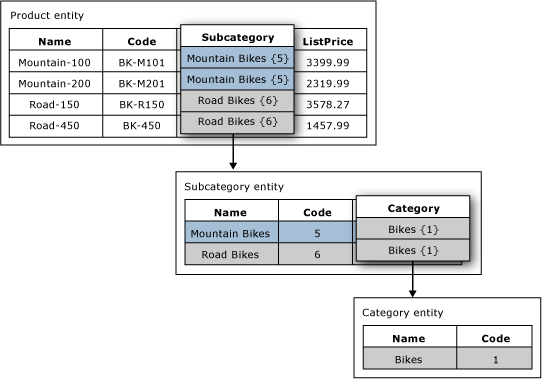

In the following image, the Product entity has a domain-based attribute called Subcategory. The Subcategory attribute is populated by values from the Subcategory entity.

The Subcategory entity has a domain-based attribute called Category. The Category attribute is populated by values from the Category entity.

Domain-Based Attributes in an Entity

Use Same Entity for Multiple Domain-Based Attributes

You can use the same entity as a domain-based attribute of multiple entities. For example, you can create an entity called YesNoIndicator with the members: Yes, No, and Maybe. You can create a domain-based attribute named InStock and use the YesNoIndicator entity as the source. You can also create another domain-based attribute named Approved and use the YesNoIndicator entity as a source. Any time you want users to choose from a list of the YesNoIndicator entity's members, you can use the entity as a domain-based attribute.

Domain-Based Attributes Form Derived Hierarchies

Domain-based attribute relationships are the basis for derived hierarchies. For more information, see Derived Hierarchies (Master Data Services).

Task Description Topic
Create a new domain-based attribute that is sourced from an existing entity. Create a Domain-Based Attribute (Master Data Services)
Create a new entity. Create an Entity (Master Data Services)
