Using Visual Studio or MSBuild to build a driver

  • Artikkel

This topic provides instructions on how to build a driver using the Visual Studio development environment, or from the command line using the Visual Studio Command Prompt window and the Microsoft Build Engine (MSBuild).

To develop drivers for Windows, you'll need to install the SDK and WDK in Visual Studio and configure the driver settings. Ensure the SDK and WDK versions on your computer match.

Build a driver using Visual Studio

You build a driver the same way you build any project or solution in Visual Studio. When you create a new driver project using a driver template, the template defines a default (active) project configuration and a default (active) solution build configuration.

For information about managing and editing build configurations, see Building in Visual Studio.

KMDF driver settings

To configure driver settings in VS 2022, right click on the driver project, select properties, and navigate to Properties -> Configuration Properties -> Driver Settings.

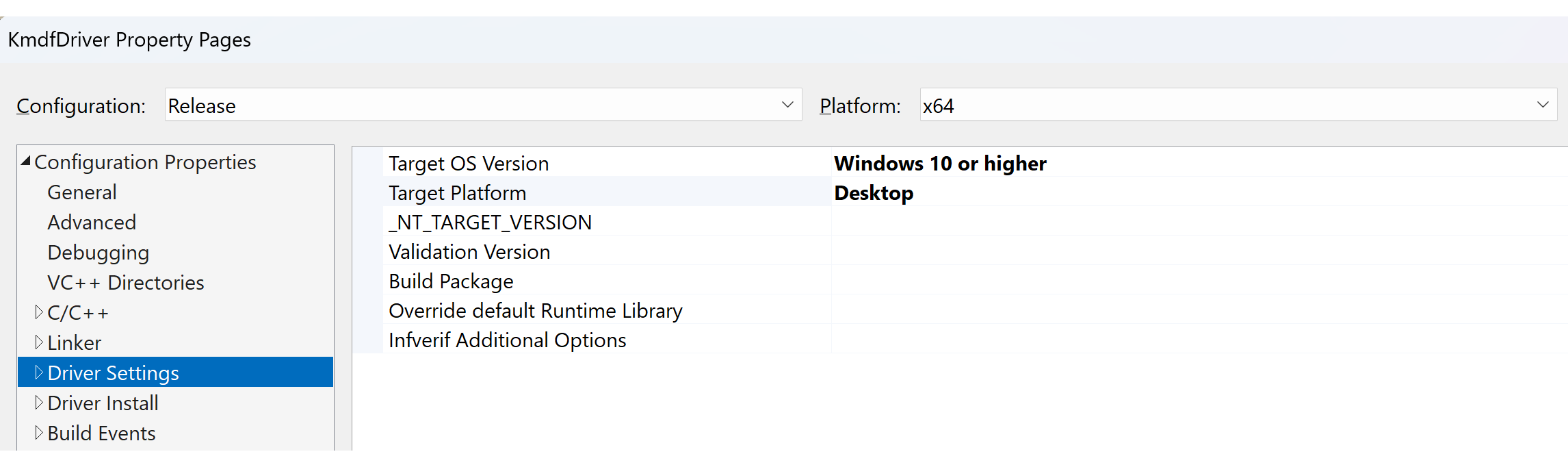

Visual Studio KMDF Driver Settings.

Target OS Version

The Target OS Version refers to the Windows version that the driver is being developed for. Set the Target OS version to the lowest version your driver supports. For example, a driver for Windows 10 should support Windows 10 and all later versions.

Follow the guidance in these topics to ensure your driver package is properly written to support multiple versions of Windows.

Target Platform

There are 3 classifications for the Windows target platform, Universal Drivers, Desktop Drivers and Windows Drivers.

  1. Universal Drivers must:

  2. Desktop Drivers must:

    Drivers that meet the Desktop Driver criteria are Windows Logo Certified and can be added to the Windows Update program.

  3. Windows Drivers must:

    • Meet all Desktop Drivers requirements.
    • Be fully compliant with Driver Package Isolation requirements.
    • Pass InfVerif /w
    • Windows Drivers is the most restrictive target platform selection and meets all reliability and serviceability requirements.

The following table summarizes the driver classifications.

Feature Universal Drivers Desktop Drivers Windows Drivers
Infverif Switch InfVerif /u InfVerif /h InfVerif /w
Current WHCP Requirement No Yes No
Supports all variants of Windows OS No No Yes
X64/ARM64 Support Yes Yes Yes
APIVALIDATOR Compliance Required No No Yes
Desktop OS Support (Target OS Version) Yes Yes Yes
GitHub Driver Samples Support Yes Yes No

Driver configuration

When building drivers, ensure that the Platform Architecture and NT_TARGET_VERSION are properly set in Visual Studio with WDK or EWDK. The default Solution build configuration for development is Debug and Win64.

  1. Select and hold (or right-click) the solution in the Solutions Explorer and select Configuration Manager.
  2. From the Configuration Manager, select the Active solution configuration (for example, Debug or Release) and the Active solution platform (for example, Win64) that correspond to the type of build you are interested in.
  3. Select and hold (or right-click) the project and select Properties. Navigate to Driver Settings -> General, and set Target OS Version and Target Platform.
  4. Configure the project properties for your driver or driver package. You can set properties for deployment, driver signing, or other tasks. For more information, see Configuring project properties for your driver and driver package.

To build a driver

  1. Open the driver project or solution in Visual Studio.
  2. From the Build menu, select Build Solution (Ctrl+Shift+B).
  3. View any compile time errors in the build output window.

Building a Driver Using the Command Line (MSBuild)

You can build a driver from the command line using the Visual Studio Command Prompt window and the Microsoft Build Engine (MSBuild)

To build a driver using the Visual Studio Command Prompt window

  1. Open a Developer Command Prompt for VS2022 window.

    From this window you can use MSBuild.exe to build any Visual Studio project by specifying the project (.vcxproj) or solutions (.sln) file.

  2. Navigate to the project directory and enter the MSBuild command for your target.

    For example, to perform a clean build of a Visual Studio driver project called MyDriver.vcxproj using the default Platform and Configuration, navigate to the project directory and enter the following MSBuild command:

    msbuild /t:clean /t:build .\MyDriver.vcxproj

    To specify a specific configuration and platform, use:

    msbuild /t:clean /t:build ProjectFile /p:Configuration=<Debug|Release> /p:Platform=architecture /p:TargetPlatformVersion=a.b.c.d /p:TargetVersion=OS

    The following command builds a driver for the "Debug" configuration, "Win32" platform, and for Windows 10.

    msbuild /t:clean /t:build .\MyDriver.vcxproj /p:Configuration="Debug" /p:Platform=Win32 /p:TargetVersion="Windows10" /p:TargetPlatformVersion="10.0.10010.0"

    The TargetPlatformVersion setting is optional and specifies the kit version to build with. The default is the latest kit version.

Configuring project properties for your driver and driver package

Use property pages to configure and set options for your driver and driver package. You can choose to configure your driver so that it is automatically signed when you build your solution, or automatically deployed to a remote test computer.

You can set properties for an individual driver or for an entire driver package. The following section shows some of the available properties that you can configure specifically for drivers and driver packages.

Driver Project Properties

Driver Package Properties

WDK command line tool project integration

The WDK provides a number of command-line tools, such as Stampinf and WPP Preprocessor (WPP Tracing), that are commonly included in the build process. These tools are not distributed with Visual Studio. To combine these tools with the Visual Studio build environment they are wrapped as WDK tasks for MSBuild. If you use one of the driver templates or have an existing driver that you have converted, these property pages might already exist for your project. If not, the property pages are automatically added to your project as you add the related file types to the project or solution (for example, .mc or .man files for the message compiler). For more information, see WDK and the Visual Studio build environment.

Troubleshooting tip for building a driver

To help troubleshoot build issues, you can increase the verbosity of the build output in Visual Studio:

  1. Select Tools -> Options.
  2. Select the Project and Solutions folder and select Build and Run.
  3. Change the options for the MSBuild project build output verbosity and MSBuild project build log file verbosity. By default, these are set to Minimal.

Updating Windows 8 drivers

You can convert projects and solutions that you created with WDK 8 or Windows Driver Kit (WDK) 8.1 to work with Windows Driver Kit (WDK) 10 and Visual Studio. Before you open the projects or solutions, run the ProjectUpgradeTool. The ProjectUpgradeTool converts the projects and solutions so that they can be built using WDK 10.

Starting in Windows Driver Kit (WDK) 8, MSBuild replaced the Windows Build Utility (Build.exe). The WDK uses the same compiler and build tools that you use to build Visual Studio projects. Driver projects that were built with previous versions of the WDK must be converted to work in the Visual Studio environment. You can run a conversion utility from the command line, or you can convert an existing driver by creating a new Visual Studio project from existing sources. For more info, see Creating a Driver From Existing Source Files and WDK and the Visual Studio build environment.
