NavigationView

The NavigationView control provides top-level navigation for your app. It adapts to a variety of screen sizes and supports both top and left navigation styles.

NavigationView supports both top and left navigation pane or menu

Is this the right control?

NavigationView is an adaptive navigation control that works well for:

• Providing a consistent navigational experience throughout your app.
• Preserving screen real estate on smaller windows.
• Organizing access to many navigation categories.

For other navigation patterns, see Navigation design basics.

UWP and WinUI 2

Important

The information and examples in this article are optimized for apps that use the Windows App SDK and WinUI 3, but are generally applicable to UWP apps that use WinUI 2. See the UWP API reference for platform specific information and examples.

This section contains information you need to use the control in a UWP or WinUI 2 app.

The NavigationView control for UWP apps is included as part of WinUI 2. For more info, including installation instructions, see WinUI 2. APIs for this control exist in both the Windows.UI.Xaml.Controls and Microsoft.UI.Xaml.Controls namespaces.

• UWP APIs: Windows.UI.Xaml.Controls.NavigationView class
• WinUI 2 Apis: Microsoft.UI.Xaml.Controls.NavigationView class
• Open the WinUI 2 Gallery app and see the NavigationView in action. The WinUI 2 Gallery app includes interactive examples of most WinUI 2 controls, features, and functionality. Get the app from the Microsoft Store or get the source code on GitHub.

We recommend using the latest WinUI 2 to get the most current styles, templates, and features for all controls. Some features of NavigationView, such as top and hierarchical navigation, require Windows 10, version 1809 (SDK 17763) or later, or WinUI 2.

To use the code in this article with WinUI 2, use an alias in XAML (we use muxc) to represent the Windows UI Library APIs that are included in your project. See Get Started with WinUI 2 for more info.

xmlns:muxc="using:Microsoft.UI.Xaml.Controls"

<muxc:NavigationView />

Create a navigation view

• Important APIs: NavigationView class

Open the WinUI 3 Gallery app and see the NavigationView in action.

The WinUI 3 Gallery app includes interactive examples of most WinUI 3 controls, features, and functionality. Get the app from the Microsoft Store or get the source code on GitHub

This example shows how to create a simple navigation view in XAML.

<NavigationView>
    <NavigationView.MenuItems>
        <NavigationViewItem Content="Nav Item A"/>
        <NavigationViewItem Content="Nav Item B"/>
        <NavigationViewItem Content="Nav Item C"/>
    </NavigationView.MenuItems>

    <Frame x:Name="ContentFrame"/>
</NavigationView>

Display modes

You can use the PaneDisplayMode property to configure different navigation styles, or display modes, for the NavigationView.

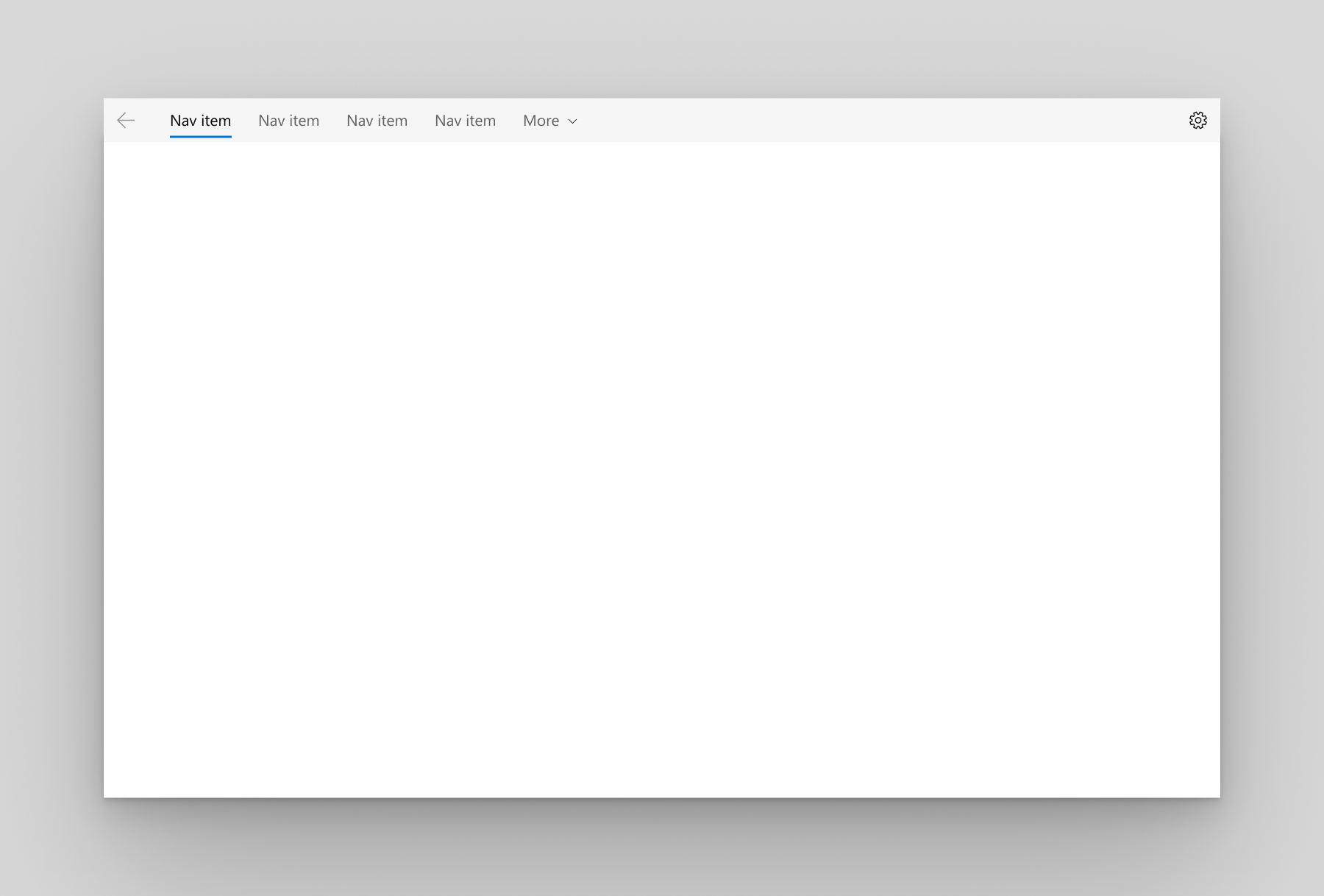

Top

The pane is positioned above the content.
PaneDisplayMode="Top"

We recommend top navigation when:

• You have 5 or fewer top-level navigation categories that are equally important, and any additional top-level navigation categories that end up in the dropdown overflow menu are considered less important.
• You need to show all navigation options on screen.
• You want more space for your app content.
• Icons cannot clearly describe your app's navigation categories.

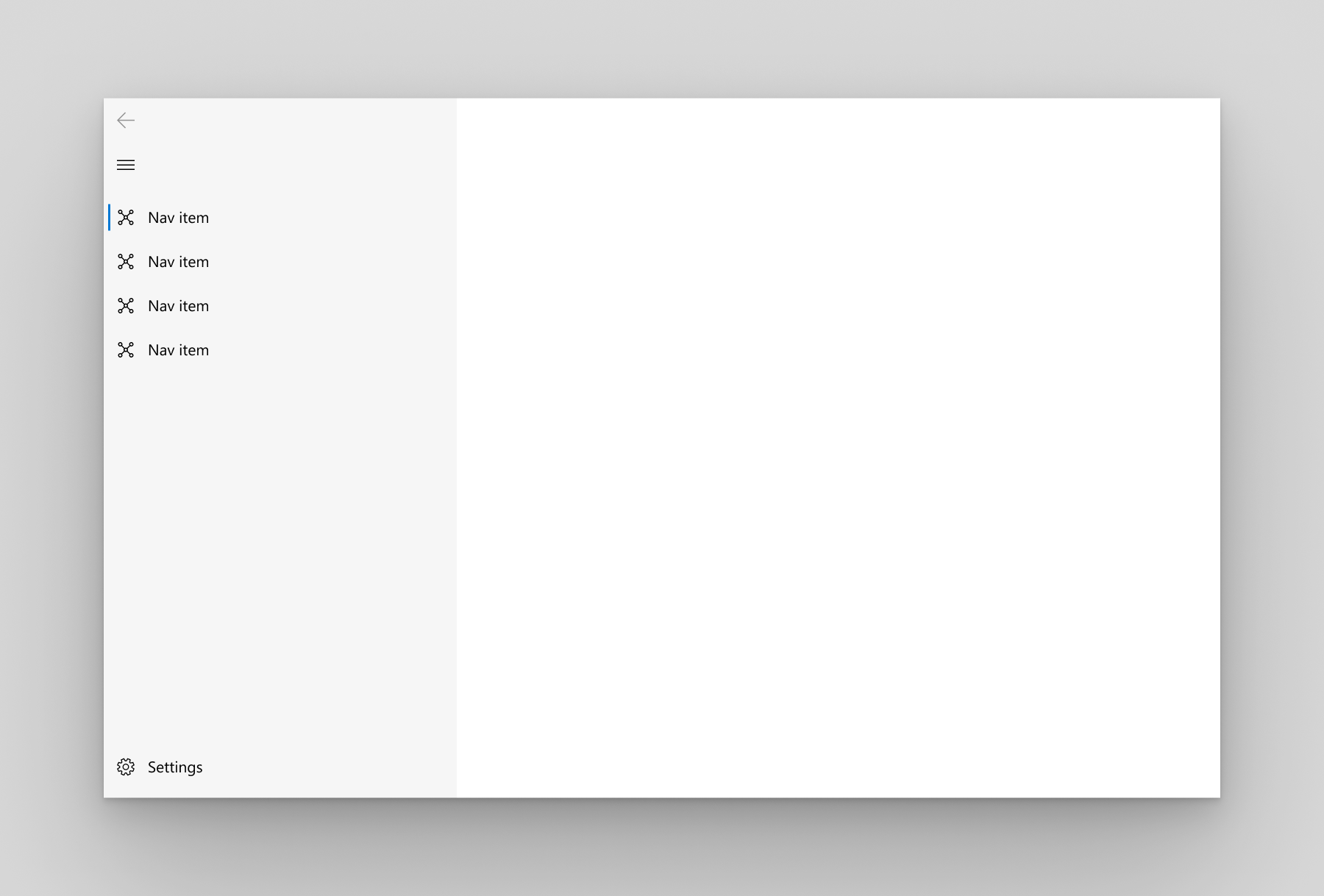

Left

The pane is expanded and positioned to the left of the content.
PaneDisplayMode="Left"

We recommend left navigation when:

• You have 5-10 equally important top-level navigation categories.
• You want navigation categories to be very prominent, with less space for other app content.

LeftCompact

The pane shows only icons until opened and is positioned to the left of the content. When opened, the pane overlays the content.
PaneDisplayMode="LeftCompact"

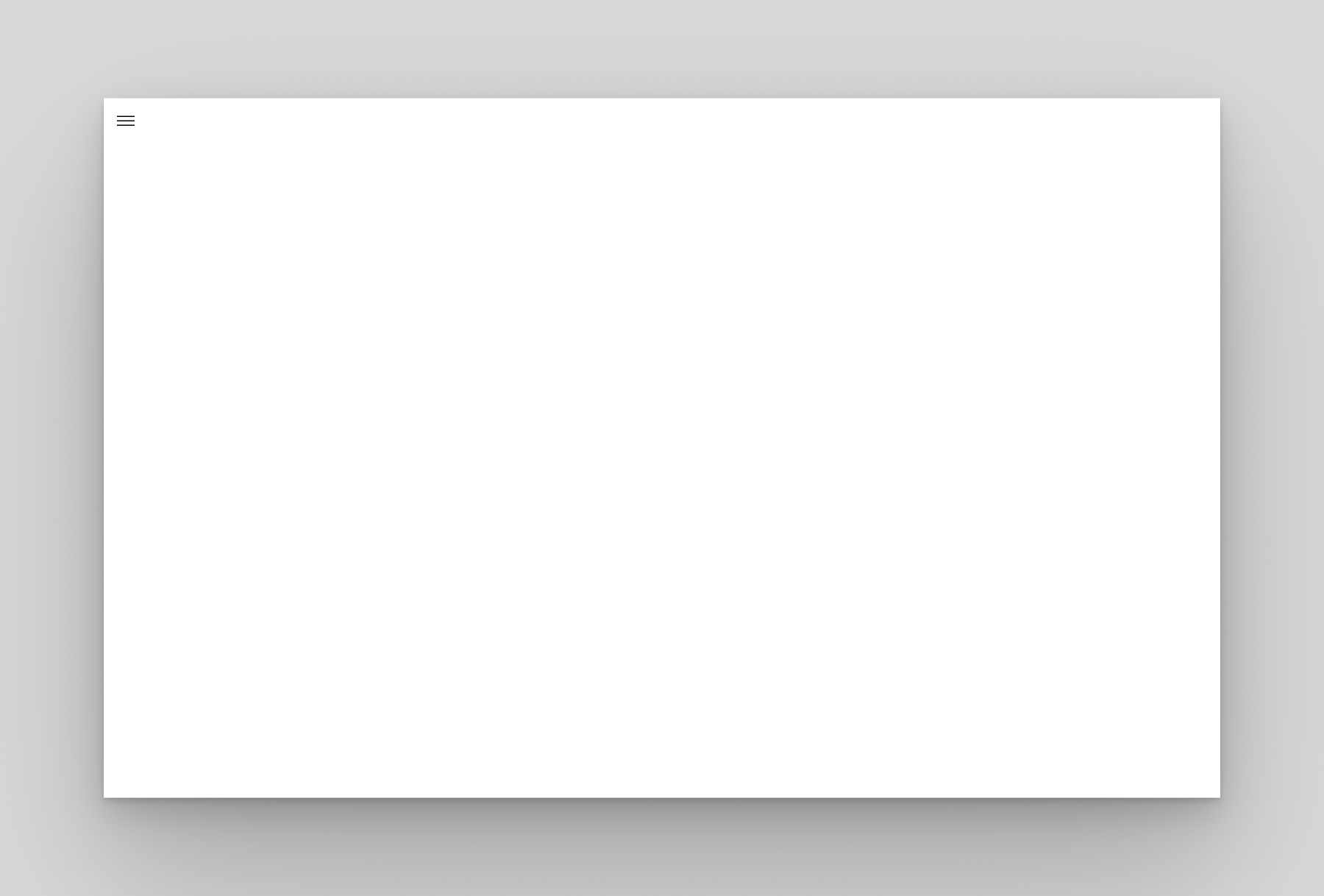

LeftMinimal

Only the menu button is shown until the pane is opened. When opened, the pane overlays the left side of the content.
PaneDisplayMode="LeftMinimal"

Auto

By default, PaneDisplayMode is set to Auto. In Auto mode, the NavigationView adapts between LeftMinimal when the window is narrow, to LeftCompact, and then Left as the window gets wider. For more info, see the adaptive behavior section.

NavigationView default adaptive behavior

Anatomy

These images show the layout of the pane, header, and content areas of the control when configured for top or left navigation.

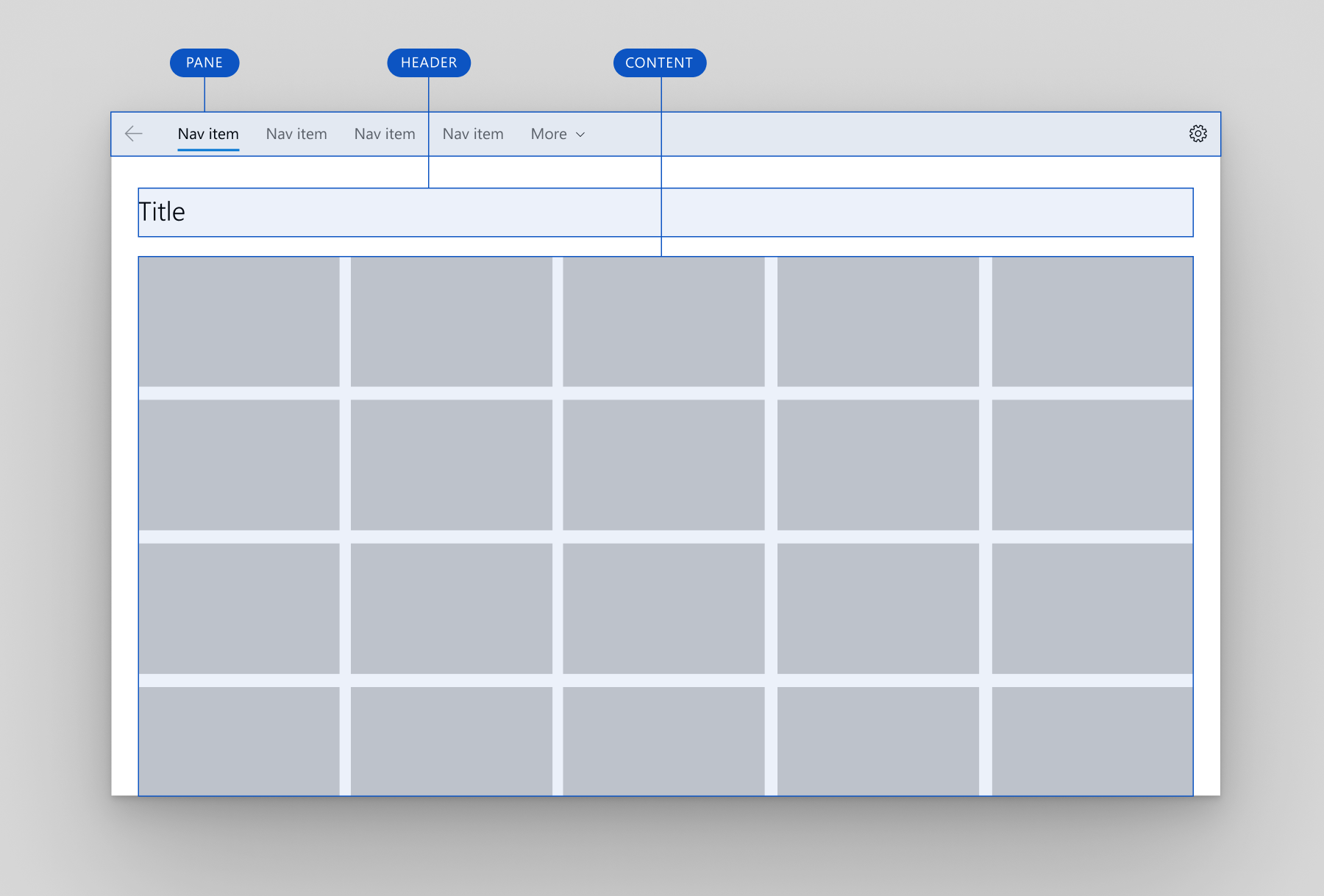

Top navigation layout

Left navigation layout

Pane

You can use the PaneDisplayMode property to position the pane above the content or to the left of the content.

The NavigationView pane can contain:

• NavigationViewItem objects. Navigation items for navigating to specific pages.
• NavigationViewItemSeparator objects. Separators for grouping navigation items. Set the Opacity property to 0 to render the separator as space.
• NavigationViewItemHeader objects. Headers for labeling groups of items.
• An optional AutoSuggestBox control to allow for app-level search. Assign the control to the NavigationView.AutoSuggestBox property.
• An optional entry point for app settings. To hide the settings item, set the IsSettingsVisible property to false.

The left pane also contains:

• A menu button to toggle the pane opened and closed. On larger app windows when the pane is open, you may choose to hide this button using the IsPaneToggleButtonVisible property.

The NavigationView has a back button that is placed in the top left-hand corner of the pane. However, it does not automatically handle backwards navigation and add content to the back stack. To enable backwards navigation, see the backwards navigation section.

Here is the detailed pane anatomy for the top and left pane positions.

Top navigation pane

1. Headers
2. Navigation items
3. Separators
4. AutoSuggestBox (optional)
5. Settings button (optional)

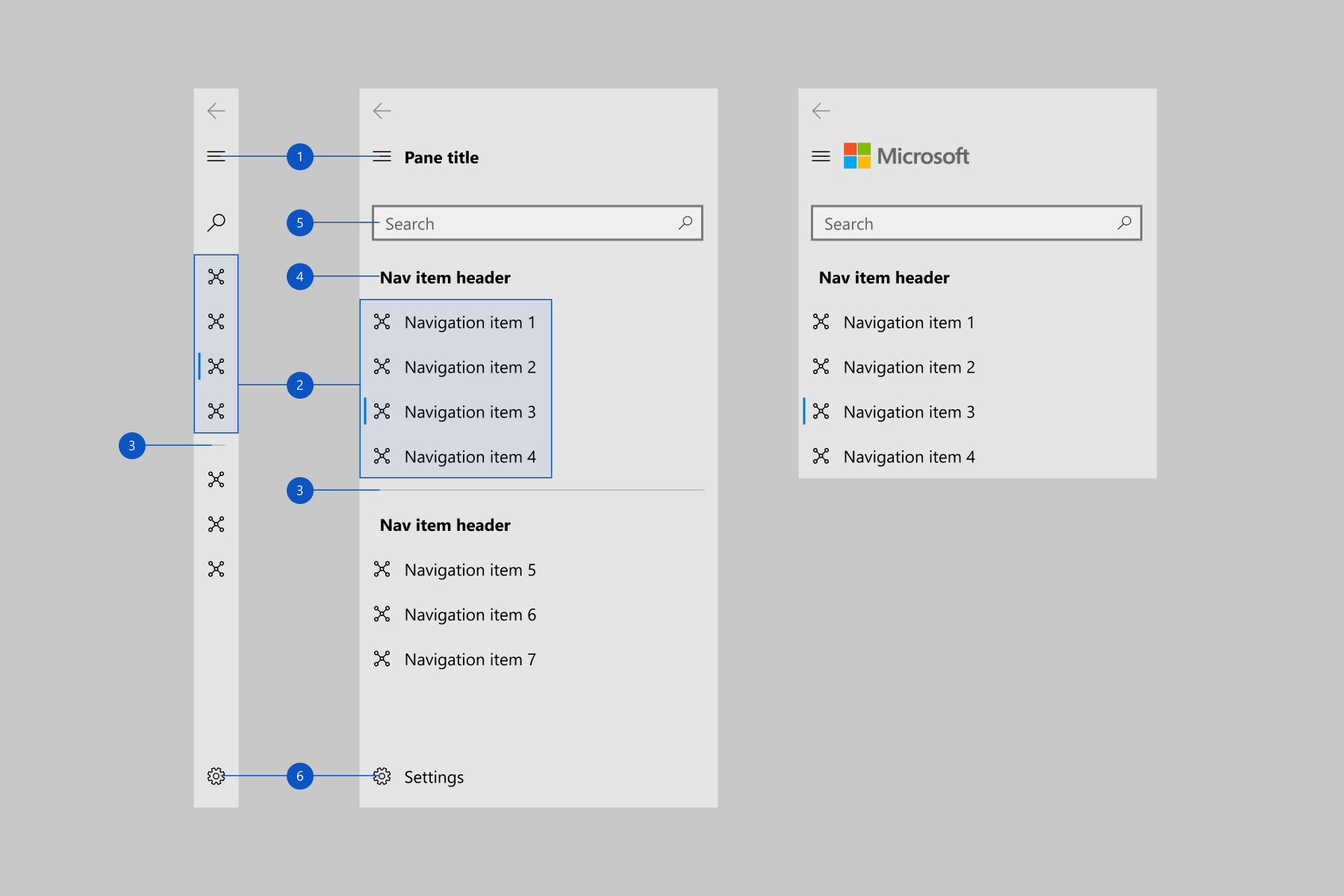

Left navigation pane

1. Menu button
2. Navigation items
3. Separators
4. Headers
5. AutoSuggestBox (optional)
6. Settings button (optional)

Footer menu items

You can use FooterMenuItems to place navigation items at the end of the navigation pane, contrasted with the MenuItems property which places items at the start of the pane.

FooterMenuItems will be displayed before the Settings item by default. The Settings item can still be toggled using the IsSettingsVisible property.

Only Navigation items should be placed in FooterMenuItems - any other content that needs to align to the footer of the pane should be placed in PaneFooter.

For an example of how to add FooterMenuItems to your NavigationView, see the FooterMenuItems class.

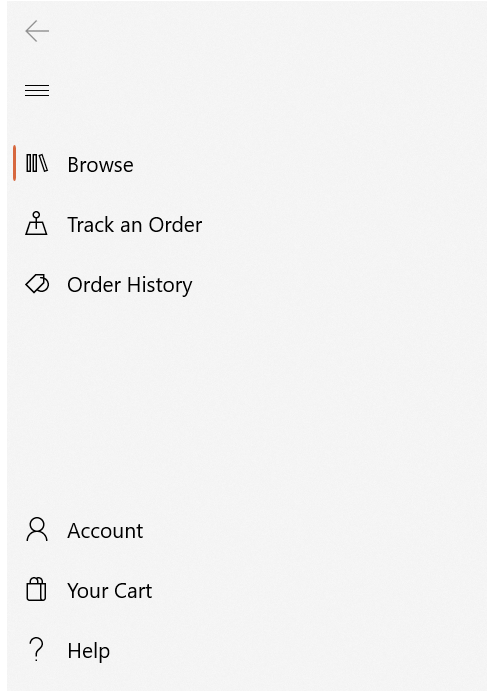

The image below shows a NavigationView with Account, Your Cart, and Help navigation items in the footer menu.

Pane footer

You can place free-form content in the pane's footer by adding it to the PaneFooter property.

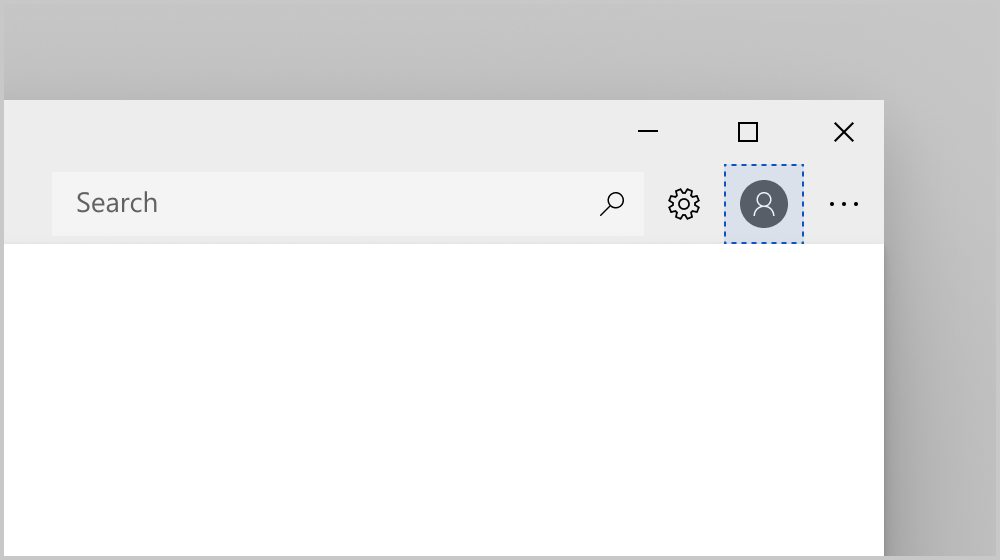

Top pane footer

Left pane footer

Pane title and header

You can place text content in the pane header area by setting the PaneTitle property. It takes a string and shows the text next to the menu button.

To add non-text content, such as an image or logo, you can place any element in the pane's header by adding it to the PaneHeader property.

If both PaneTitle and PaneHeader are set, the content is stacked horizontally next to the menu button, with the PaneTitle closest to the menu button.

Top pane header

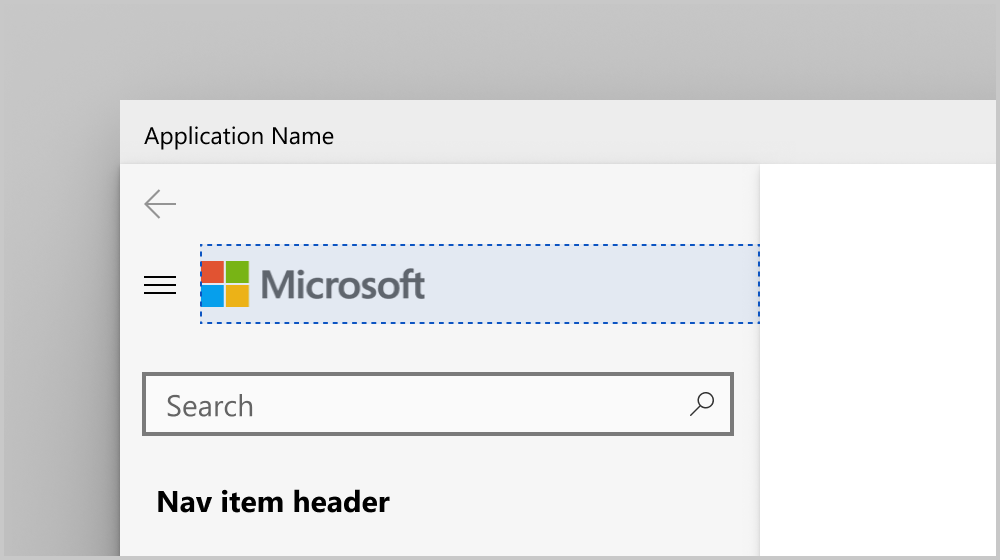

Left pane header

Pane content

You can place free-form content in the pane by adding it to the PaneCustomContent property.

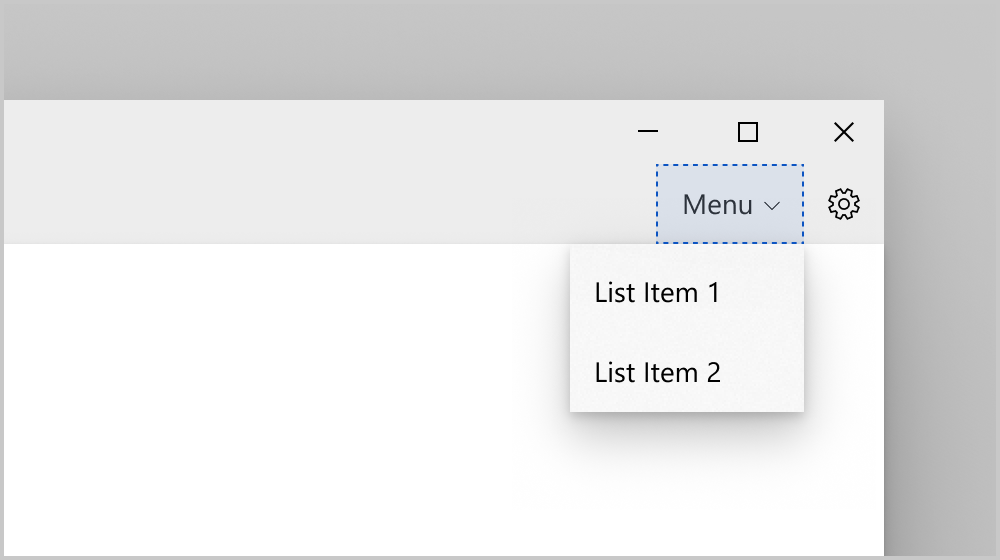

Top pane custom content

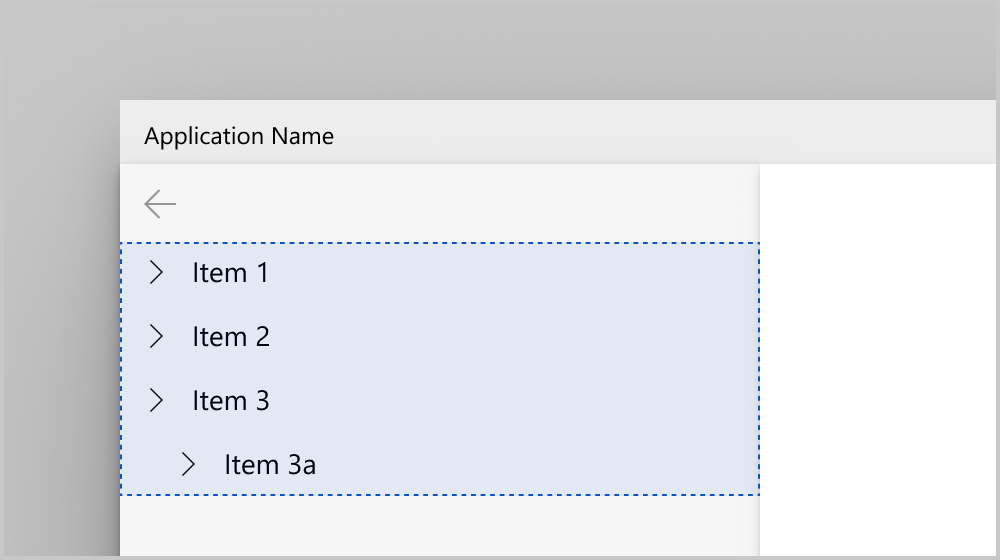

Left pane custom content

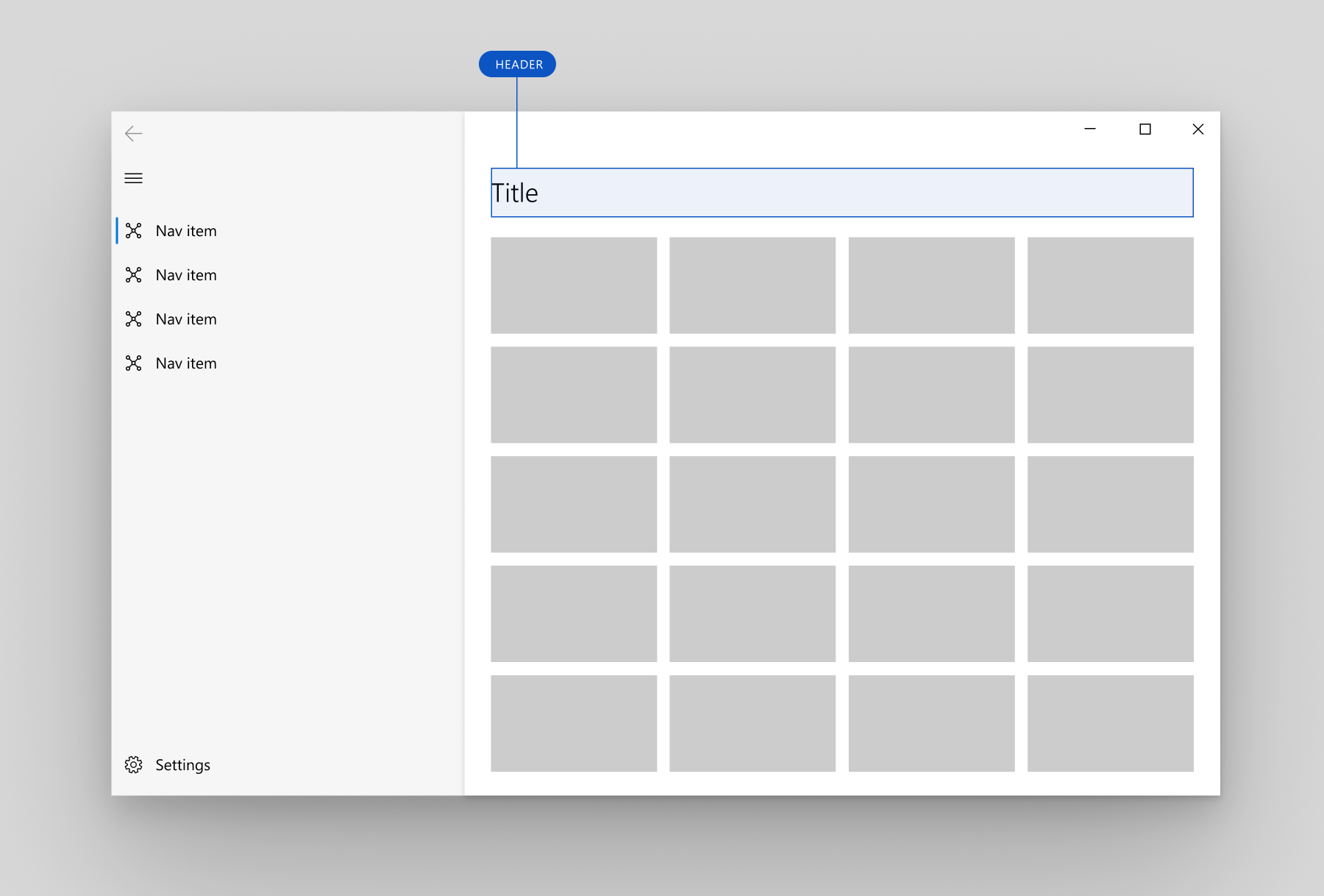

Header

You can add a page title by setting the Header property.

NavigationView header

The header area is vertically aligned with the navigation button in the left pane position, and lies below the pane in the top pane position. It has a fixed height of 52 px. Its purpose is to hold the page title of the selected navigation category. The header is docked to the top of the page and acts as a scroll clipping point for the content area.

The header is visible any time the NavigationView is in Minimal display mode. You may choose to hide the header in other modes, which are used on larger window widths. To hide the header, set the AlwaysShowHeader property to false.

Content

NavigationView content

The content area is where most of the information for the selected navigation category is displayed.

We recommend 12px margins for your content area when NavigationView is in Minimal mode and 24px margins otherwise.

Adaptive behavior

By default, the NavigationView automatically changes its display mode based on the amount of screen space available to it. The CompactModeThresholdWidth and ExpandedModeThresholdWidth properties specify the breakpoints at which the display mode changes. You can modify these values to customize the adaptive display mode behavior.

Default

When PaneDisplayMode is set to its default value of Auto, the adaptive behavior is to show:

• An expanded left pane on large window widths (1008px or greater).
• A left, icon-only, nav pane (LeftCompact) on medium window widths (641px to 1007px).
• Only a menu button (LeftMinimal) on small window widths (640px or less).

For more information about window sizes for adaptive behavior, see Screen sizes and breakpoints.

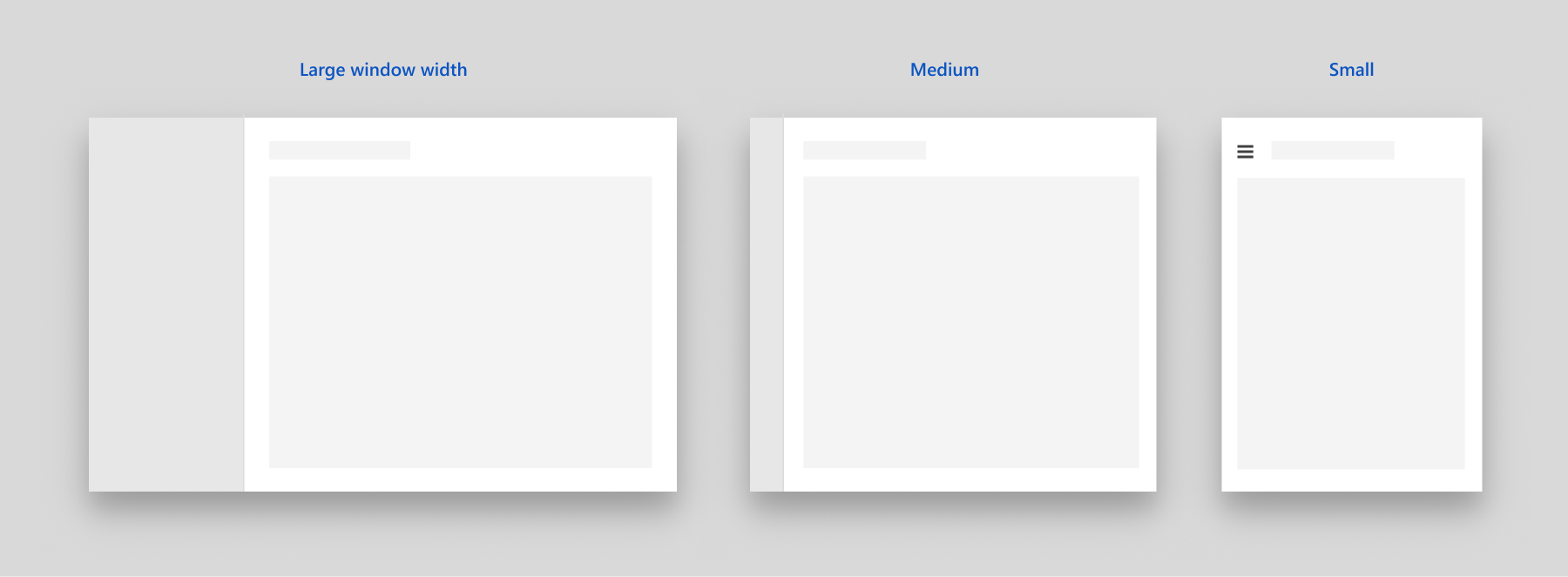

NavigationView default adaptive behavior

Minimal

A second common adaptive pattern is to use an expanded left pane on large window widths, and only a menu button on both medium and small window widths.

We recommend this when:

• You want more space for app content on smaller window widths.
• Your navigation categories cannot be clearly represented with icons.

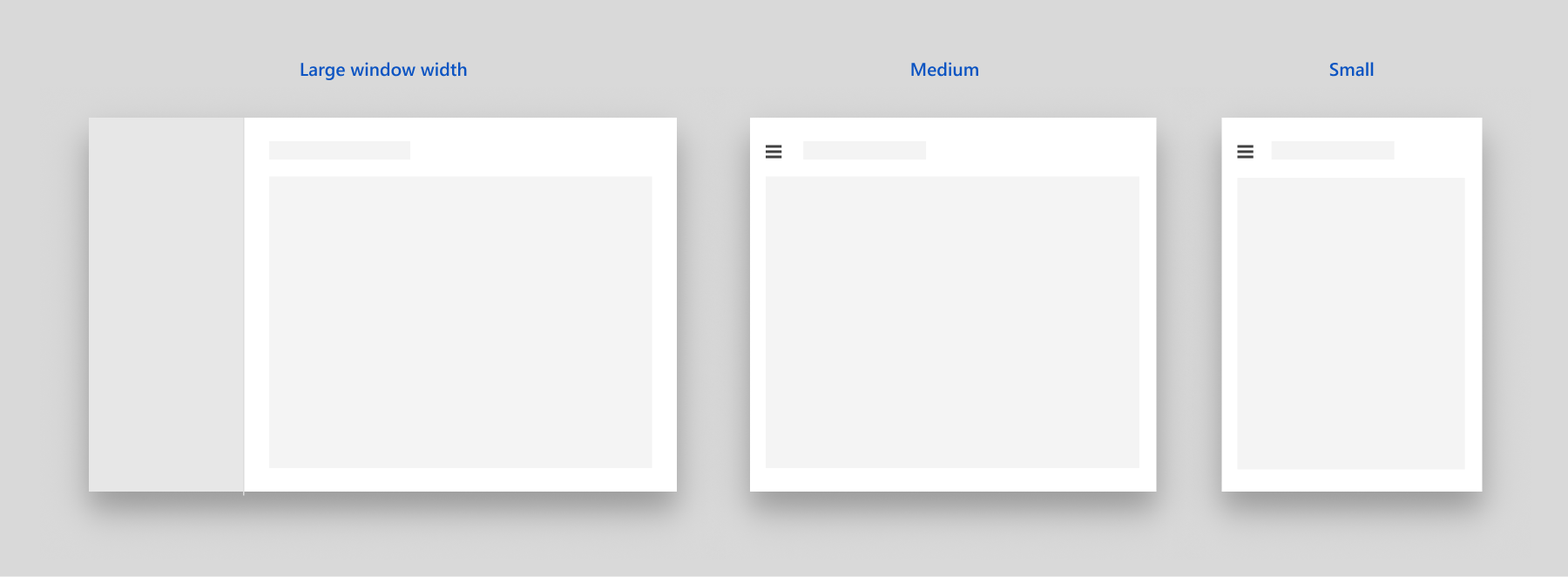

NavigationView "minimal" adaptive behavior

To configure this behavior, set CompactModeThresholdWidth to the width at which you want the pane to collapse. Here, it's changed from the default of 640 to 1007. You should also set ExpandedModeThresholdWidth to ensure the values don't conflict.

<NavigationView CompactModeThresholdWidth="1007" ExpandedModeThresholdWidth="1007"/>

Compact

A third common adaptive pattern is to use an expanded left pane on large window widths, and a LeftCompact, icon-only, nav pane on both medium and small window widths.

We recommend this when:

• It is important to always show all navigation options on screen.
• Your navigation categories can be clearly represented with icons.

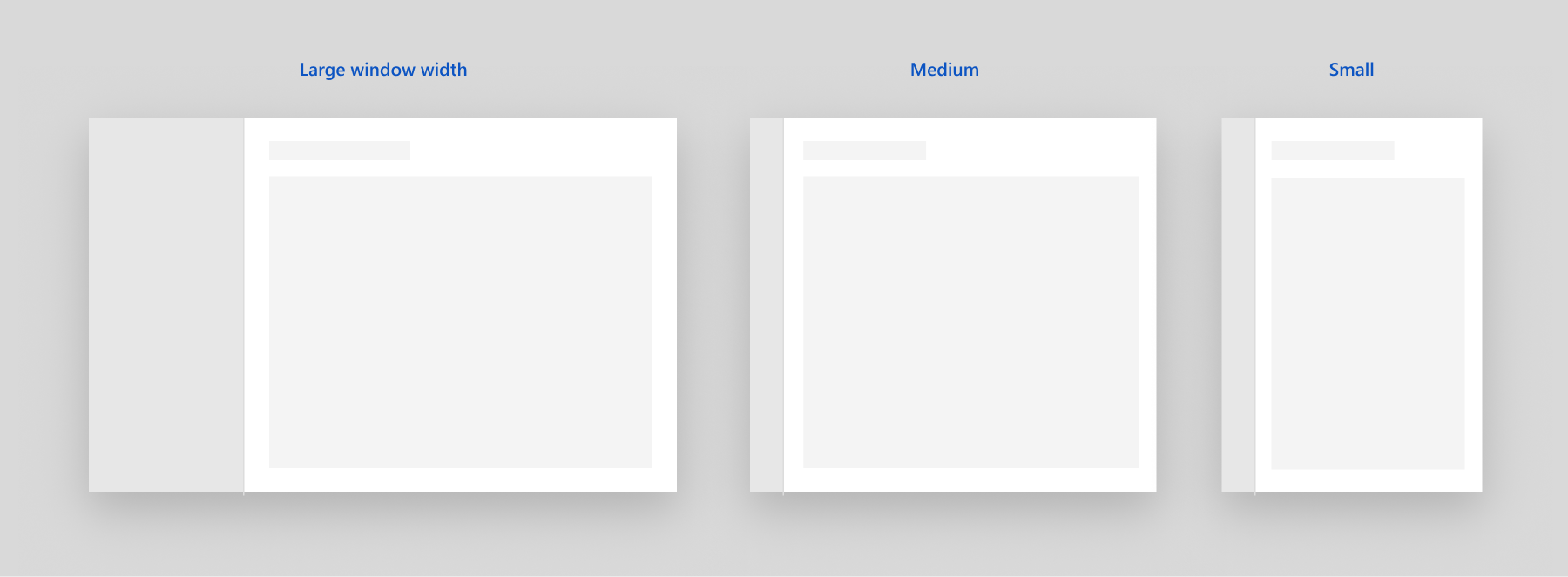

NavigationView "compact" adaptive behavior

To configure this behavior, set CompactModeThresholdWidth to 0.

<NavigationView CompactModeThresholdWidth="0"/>

No adaptive behavior

To disable the automatic adaptive behavior, set PaneDisplayMode to a value other than Auto. Here, it's set to LeftMinimal, so only the menu button is shown regardless of the window width.

NavigationView with PaneDisplayMode set to LeftMinimal

<NavigationView PaneDisplayMode="LeftMinimal" />

As described previously in the Display modes section, you can set the pane to be always on top, always expanded, always compact, or always minimal. You can also manage the display modes yourself in your app code. An example of this is shown in the next section.

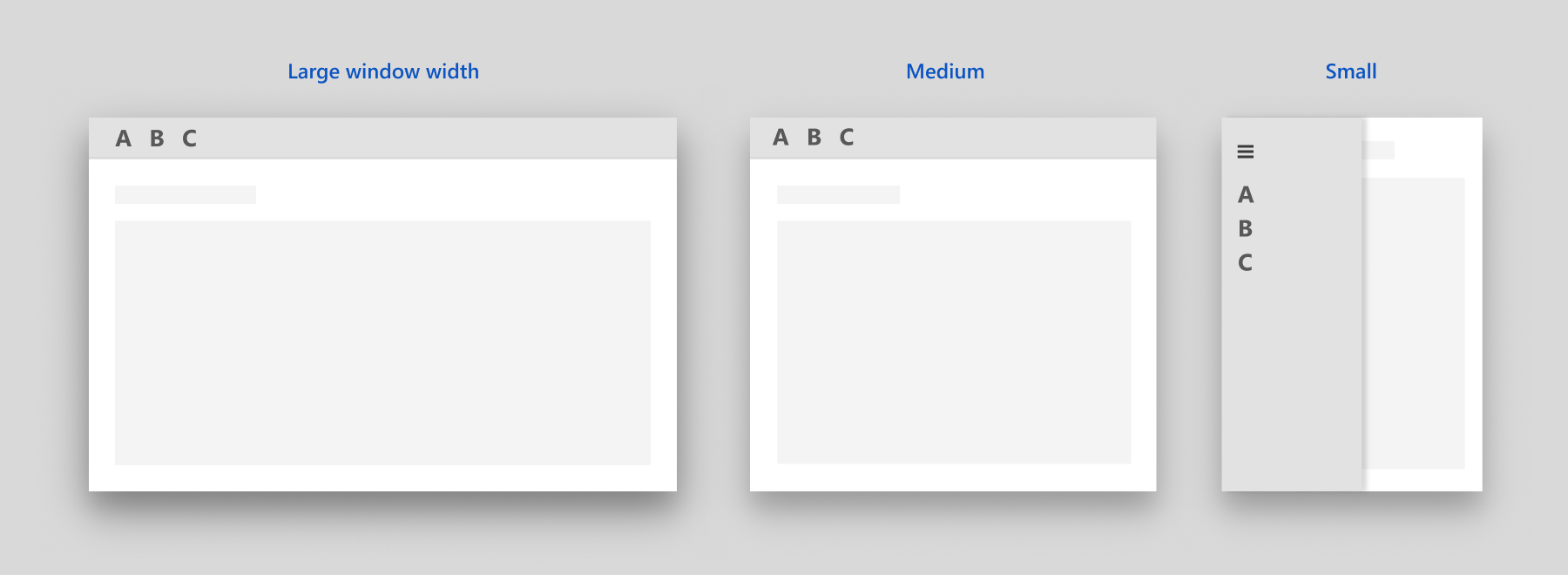

Top to left navigation

When you use top navigation in your app, navigation items collapse into an overflow menu as the window width decreases. When your app window is narrow, it can provide a better user experience to switch the PaneDisplayMode from Top to LeftMinimal navigation, rather than letting all the items collapse into the overflow menu.

We recommend using top navigation on large window sizes and left navigation on small window sizes when:

• You have a set of equally important top-level navigation categories to be displayed together, such that if one category in this set doesn't fit on screen, you collapse to left navigation to give them equal importance.
• You wish to preserve as much content space as possible in small window sizes.

This example shows how to use a VisualStateManager and AdaptiveTrigger.MinWindowWidth property to switch between Top and LeftMinimal navigation.

<Grid>
    <NavigationView x:Name="NavigationViewControl" >
        <NavigationView.MenuItems>
            <NavigationViewItem Content="A" x:Name="A" />
            <NavigationViewItem Content="B" x:Name="B" />
            <NavigationViewItem Content="C" x:Name="C" />
        </NavigationView.MenuItems>
    </NavigationView>

    <VisualStateManager.VisualStateGroups>
        <VisualStateGroup>
            <VisualState>
                <VisualState.StateTriggers>
                    <AdaptiveTrigger
                        MinWindowWidth="{x:Bind NavigationViewControl.CompactModeThresholdWidth}" />
                </VisualState.StateTriggers>

                <VisualState.Setters>
                    <Setter Target="NavigationViewControl.PaneDisplayMode" Value="Top"/>
                </VisualState.Setters>
            </VisualState>
        </VisualStateGroup>
    </VisualStateManager.VisualStateGroups>
</Grid>

Tip

When you use AdaptiveTrigger.MinWindowWidth, the visual state is triggered when the window is wider than the specified minimum width. This means the default XAML defines the narrow window, and the VisualState defines the modifications that are applied when the window gets wider. The default PaneDisplayMode for the NavigationView is Auto, so when the window width is less than or equal to CompactModeThresholdWidth, LeftMinimal navigation is used. When the window gets wider, the VisualState overrides the default, and Top navigation is used.

Navigation

The NavigationView doesn't perform any navigation tasks automatically. When the user taps on a navigation item, the NavigationView shows that item as selected and raises an ItemInvoked event. If the tap results in a new item being selected, a SelectionChanged event is also raised.

You can handle either event to perform tasks related to the requested navigation. Which one you should handle depends on the behavior you want for your app. Typically, you navigate to the requested page and update the NavigationView header in response to these events.

• ItemInvoked is raised any time the user taps a navigation item, even if it's already selected. (The item can also be invoked with an equivalent action using mouse, keyboard, or other input. For more info, see Input and interactions.) If you navigate in the ItemInvoked handler, by default, the page will be reloaded, and a duplicate entry is added to the navigation stack. If you navigate when an item is invoked, you should disallow reloading the page, or ensure that a duplicate entry is not created in the navigation backstack when the page is reloaded. (See code examples.)
• SelectionChanged can be raised by a user invoking an item that isn't currently selected, or by programmatically changing the selected item. If the selection change occurs because a user invoked an item, the ItemInvoked event occurs first. If the selection change is programmatic, ItemInvoked is not raised.

All navigation items are part of the same selection model, whether they are a part of MenuItems or FooterMenuItems. Only one navigation item can be selected at a time.

Backwards navigation

NavigationView has a built-in back button; but, as with forward navigation, it doesn't perform backwards navigation automatically. When the user taps the back button, the BackRequested event is raised. You handle this event to perform backwards navigation. For more info and code examples, see Navigation history and backwards navigation.

In Minimal or Compact mode, the NavigationView Pane is open as a flyout. In this case, clicking the back button will close the Pane and raise the PaneClosing event instead.

You can hide or disable the back button by setting these properties:

• IsBackButtonVisible: use to show and hide the back button. This property takes a value of the NavigationViewBackButtonVisible enumeration, and is set to Auto by default. When the button is collapsed, no space is reserved for it in the layout.
• IsBackEnabled: use to enable or disable the back button. You can data bind this property to the CanGoBack property of your navigation frame. BackRequested is not raised if IsBackEnabled is false.

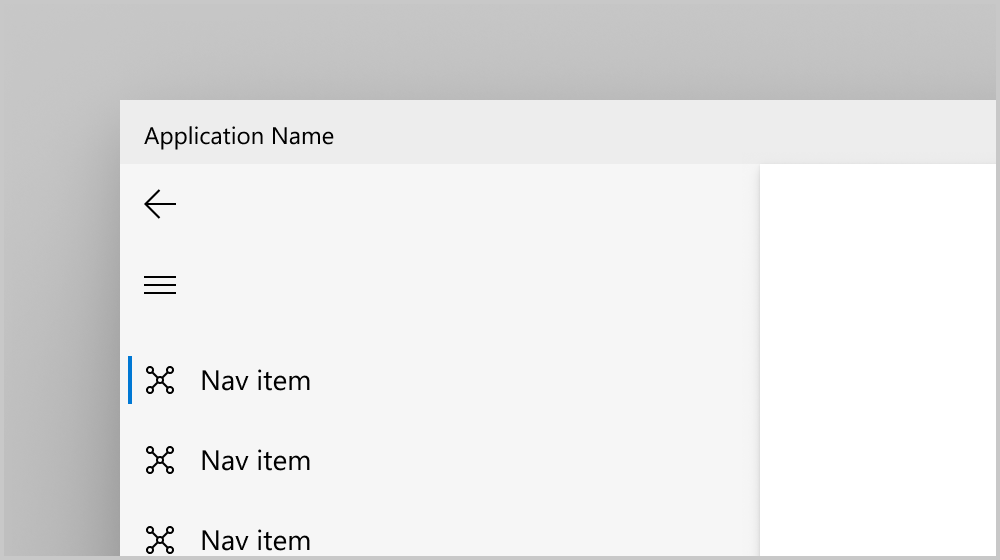

The back button in the left navigation pane

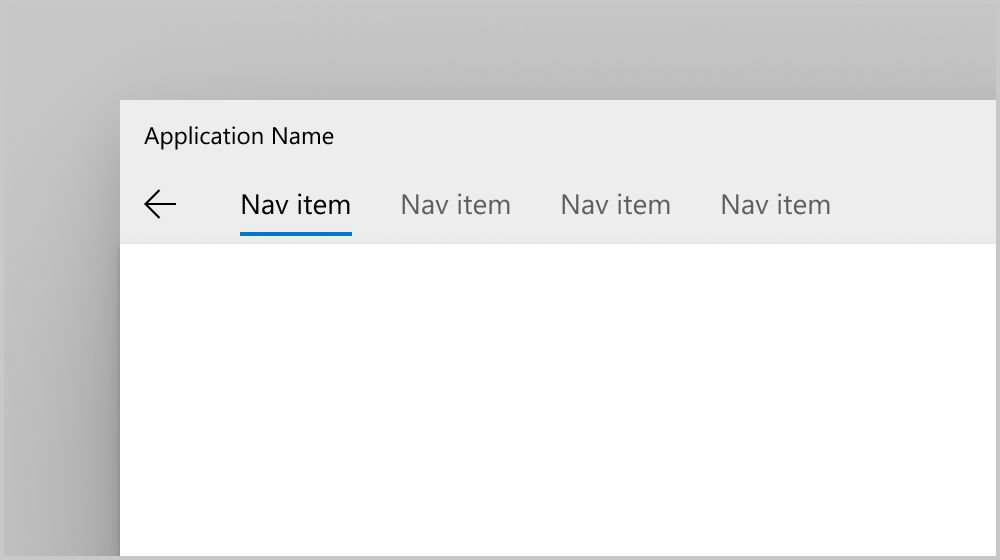

The back button in the top navigation pane

Code example

This example shows how you can use NavigationView with both a top navigation pane on large window sizes and a left navigation pane on small window sizes. It can be adapted to left-only navigation by removing the top navigation settings in the VisualStateManager.

The example demonstrates a common way to set up navigation data that will work for many scenarios. In this example, you first store (in the tag of the NavigationViewItem) the full type name of the page to which you want to navigate. In the event handler, you unbox that value, turn it into a Type(C#) or Windows::UI::Xaml::Interop::TypeName(C++/WinRT) object, and use that to navigate to the destination page. This lets you create unit tests to confirm that the values inside your tags are of a valid type. (Also see Boxing and unboxing values to IInspectable with C++/WinRT). It also demonstrates how to implement backwards navigation with NavigationView's back button.

This code assumes that your app contains pages with the following names to navigate to: HomePage, AppsPage, GamesPage, MusicPage, MyContentPage, and SettingsPage. Code for these pages is not shown.

<Page ... >
 <Grid>
     <NavigationView x:Name="NavView"
                     Loaded="NavView_Loaded"
                     ItemInvoked="NavView_ItemInvoked"
                     BackRequested="NavView_BackRequested">
         <NavigationView.MenuItems>
             <NavigationViewItem Tag="NavigationViewDemo.HomePage" Icon="Home" Content="Home"/>
             <NavigationViewItemSeparator/>
             <NavigationViewItemHeader x:Name="MainPagesHeader"
                                       Content="Main pages"/>
             <NavigationViewItem Tag="NavigationViewDemo.AppsPage" Content="Apps">
                 <NavigationViewItem.Icon>
                     <FontIcon Glyph="&#xEB3C;"/>
                 </NavigationViewItem.Icon>
             </NavigationViewItem>
             <NavigationViewItem Tag="NavigationViewDemo.GamesPage" Content="Games">
                 <NavigationViewItem.Icon>
                     <FontIcon Glyph="&#xE7FC;"/>
                 </NavigationViewItem.Icon>
             </NavigationViewItem>
             <NavigationViewItem Tag="NavigationViewDemo.MusicPage" Icon="Audio" Content="Music"/>
         </NavigationView.MenuItems>

         <NavigationView.AutoSuggestBox>
             <!-- See AutoSuggestBox documentation for
              more info about how to implement search. -->
             <AutoSuggestBox x:Name="NavViewSearchBox" QueryIcon="Find"/>
         </NavigationView.AutoSuggestBox>

         <ScrollViewer>
             <Frame x:Name="ContentFrame" IsTabStop="True"
                NavigationFailed="ContentFrame_NavigationFailed"/>
         </ScrollViewer>
     </NavigationView>

     <VisualStateManager.VisualStateGroups>
         <VisualStateGroup>
             <VisualState>
                 <VisualState.StateTriggers>
                     <AdaptiveTrigger
                     MinWindowWidth="{x:Bind NavViewCompactModeThresholdWidth}"/>
                 </VisualState.StateTriggers>
                 <VisualState.Setters>
                     <!-- Remove the next 3 lines for left-only navigation. -->
                     <Setter Target="NavView.PaneDisplayMode" Value="Top"/>
                     <Setter Target="NavViewSearchBox.Width" Value="200"/>
                     <Setter Target="MainPagesHeader.Visibility" Value="Collapsed"/>
                     <!-- Leave the next line for left-only navigation. -->
                     <Setter Target="ContentFrame.Padding" Value="24,0,24,24"/>
                 </VisualState.Setters>
             </VisualState>
         </VisualStateGroup>
     </VisualStateManager.VisualStateGroups>
 </Grid>
</Page>

private double NavViewCompactModeThresholdWidth { get { return NavView.CompactModeThresholdWidth; } }

private void ContentFrame_NavigationFailed(object sender, NavigationFailedEventArgs e)
{
    throw new Exception("Failed to load Page " + e.SourcePageType.FullName);
}

private void NavView_Loaded(object sender, RoutedEventArgs e)
{
    // You can also add items in code.
    NavView.MenuItems.Add(new NavigationViewItemSeparator());
    NavView.MenuItems.Add(new NavigationViewItem
    {
        Content = "My content",
        Icon = new SymbolIcon((Symbol)0xF1AD),
        Tag = "NavigationViewDemo.MyContentPage"
    });

    // Add handler for ContentFrame navigation.
    ContentFrame.Navigated += On_Navigated;

    // NavView doesn't load any page by default, so load home page.
    NavView.SelectedItem = NavView.MenuItems[0];
    // If navigation occurs on SelectionChanged, this isn't needed.
    // Because we use ItemInvoked to navigate, we need to call Navigate
    // here to load the home page.
    NavView_Navigate(typeof(HomePage), new EntranceNavigationTransitionInfo());
}

private void NavView_ItemInvoked(NavigationView sender,
                                 NavigationViewItemInvokedEventArgs args)
{
    if (args.IsSettingsInvoked == true)
    {
        NavView_Navigate(typeof(SettingsPage), args.RecommendedNavigationTransitionInfo);
    }
    else if (args.InvokedItemContainer != null)
    {
        Type navPageType = Type.GetType(args.InvokedItemContainer.Tag.ToString());
        NavView_Navigate(navPageType, args.RecommendedNavigationTransitionInfo);
    }
}

// NavView_SelectionChanged is not used in this example, but is shown for completeness.
// You will typically handle either ItemInvoked or SelectionChanged to perform navigation,
// but not both.
private void NavView_SelectionChanged(NavigationView sender,
                                      NavigationViewSelectionChangedEventArgs args)
{
    if (args.IsSettingsSelected == true)
    {
        NavView_Navigate(typeof(SettingsPage), args.RecommendedNavigationTransitionInfo);
    }
    else if (args.SelectedItemContainer != null)
    {
        Type navPageType = Type.GetType(args.SelectedItemContainer.Tag.ToString());
        NavView_Navigate(navPageType, args.RecommendedNavigationTransitionInfo);
    }
}

private void NavView_Navigate(
    Type navPageType,
    NavigationTransitionInfo transitionInfo)
{
    // Get the page type before navigation so you can prevent duplicate
    // entries in the backstack.
    Type preNavPageType = ContentFrame.CurrentSourcePageType;

    // Only navigate if the selected page isn't currently loaded.
    if (navPageType is not null && !Type.Equals(preNavPageType, navPageType))
    {
        ContentFrame.Navigate(navPageType, null, transitionInfo);
    }
}

private void NavView_BackRequested(NavigationView sender,
                                   NavigationViewBackRequestedEventArgs args)
{
    TryGoBack();
}

private bool TryGoBack()
{
    if (!ContentFrame.CanGoBack)
        return false;

    // Don't go back if the nav pane is overlayed.
    if (NavView.IsPaneOpen &&
        (NavView.DisplayMode == NavigationViewDisplayMode.Compact ||
         NavView.DisplayMode == NavigationViewDisplayMode.Minimal))
        return false;

    ContentFrame.GoBack();
    return true;
}

private void On_Navigated(object sender, NavigationEventArgs e)
{
    NavView.IsBackEnabled = ContentFrame.CanGoBack;

    if (ContentFrame.SourcePageType == typeof(SettingsPage))
    {
        // SettingsItem is not part of NavView.MenuItems, and doesn't have a Tag.
        NavView.SelectedItem = (NavigationViewItem)NavView.SettingsItem;
        NavView.Header = "Settings";
    }
    else if (ContentFrame.SourcePageType != null)
    {
        // Select the nav view item that corresponds to the page being navigated to.
        NavView.SelectedItem = NavView.MenuItems
                    .OfType<NavigationViewItem>()
                    .First(i => i.Tag.Equals(ContentFrame.SourcePageType.FullName.ToString()));

        NavView.Header =
            ((NavigationViewItem)NavView.SelectedItem)?.Content?.ToString();

    }
}

// MainPage.idl
runtimeclass MainPage : Microsoft.UI.Xaml.Controls.Page
{
    ...
    Double NavViewCompactModeThresholdWidth{ get; };
}

// pch.h
...
#include <winrt/Windows.UI.Xaml.Interop.h>
#include <winrt/Microsoft.UI.Xaml.Media.Animation.h>


// MainPage.h
#pragma once

#include "MainPage.g.h"

namespace muxc
{
    using namespace winrt::Microsoft::UI::Xaml::Controls;
};

namespace winrt::NavigationViewDemo::implementation
{
    struct MainPage : MainPageT<MainPage>
    {
        MainPage();

        double NavViewCompactModeThresholdWidth();
        void ContentFrame_NavigationFailed(
            Windows::Foundation::IInspectable const& /* sender */,
            Microsoft::UI::Xaml::Navigation::NavigationFailedEventArgs const& args);
        void NavView_Loaded(
            Windows::Foundation::IInspectable const& /* sender */,
            Microsoft::UI::Xaml::RoutedEventArgs const& /* args */);
        void NavView_ItemInvoked(
            Windows::Foundation::IInspectable const& /* sender */,
            muxc::NavigationViewItemInvokedEventArgs const& args);

        // NavView_SelectionChanged is not used in this example, but is shown for completeness.
        // You'll typically handle either ItemInvoked or SelectionChanged to perform navigation,
        // but not both.
        void NavView_SelectionChanged(
            muxc::NavigationView const& /* sender */,
            muxc::NavigationViewSelectionChangedEventArgs const& args);
        void NavView_Navigate(
            Windows::UI::Xaml::Interop::TypeName navPageType,
            Microsoft::UI::Xaml::Media::Animation::NavigationTransitionInfo const& transitionInfo);
        void NavView_BackRequested(
            muxc::NavigationView const& /* sender */,
            muxc::NavigationViewBackRequestedEventArgs const& /* args */);
        void On_Navigated(
            Windows::Foundation::IInspectable const& /* sender */,
            Microsoft::UI::Xaml::Navigation::NavigationEventArgs const& args);
        bool TryGoBack();

    private:

    };
}

namespace winrt::NavigationViewDemo::factory_implementation
{
    struct MainPage : MainPageT<MainPage, implementation::MainPage>
    {
    };
}

// MainPage.cpp
#include "pch.h"
#include "MainPage.xaml.h"
#if __has_include("MainPage.g.cpp")
#include "MainPage.g.cpp"
#endif

using namespace winrt;
using namespace Microsoft::UI::Xaml;

namespace winrt::NavigationViewDemo::implementation
{
    MainPage::MainPage()
    {
        InitializeComponent();
    }

    double MainPage::NavViewCompactModeThresholdWidth()
    {
        return NavView().CompactModeThresholdWidth();
    }

    void MainPage::ContentFrame_NavigationFailed(
        Windows::Foundation::IInspectable const& /* sender */,
        Microsoft::UI::Xaml::Navigation::NavigationFailedEventArgs const& args)
    {
        throw winrt::hresult_error(
            E_FAIL, winrt::hstring(L"Failed to load Page ") + args.SourcePageType().Name);
    }

    void MainPage::NavView_Loaded(
        Windows::Foundation::IInspectable const& /* sender */,
        Microsoft::UI::Xaml::RoutedEventArgs const& /* args */)
    {
        // You can also add items in code.
        NavView().MenuItems().Append(muxc::NavigationViewItemSeparator());
        muxc::NavigationViewItem navigationViewItem;
        navigationViewItem.Content(winrt::box_value(L"My content"));
        navigationViewItem.Icon(muxc::SymbolIcon(static_cast<muxc::Symbol>(0xF1AD)));
        navigationViewItem.Tag(winrt::box_value(L"NavigationViewDemo.MyContentPage"));
        NavView().MenuItems().Append(navigationViewItem);

        // Add handler for ContentFrame navigation.
        ContentFrame().Navigated({ this, &MainPage::On_Navigated });

        // NavView doesn't load any page by default, so load home page.
        NavView().SelectedItem(NavView().MenuItems().GetAt(0));
        // If navigation occurs on SelectionChanged, then this isn't needed.
        // Because we use ItemInvoked to navigate, we need to call Navigate
        // here to load the home page.
        NavView_Navigate(winrt::xaml_typename<NavigationViewDemo::HomePage>(),
            Microsoft::UI::Xaml::Media::Animation::EntranceNavigationTransitionInfo());
    }

    void MainPage::NavView_ItemInvoked(
        Windows::Foundation::IInspectable const& /* sender */,
        muxc::NavigationViewItemInvokedEventArgs const& args)
    {
        if (args.IsSettingsInvoked())
        {
            NavView_Navigate(winrt::xaml_typename<NavigationViewDemo::SettingsPage>(),
                args.RecommendedNavigationTransitionInfo());
        }
        else if (args.InvokedItemContainer())
        {
            Windows::UI::Xaml::Interop::TypeName pageTypeName;
            pageTypeName.Name = unbox_value<hstring>(args.InvokedItemContainer().Tag());
            pageTypeName.Kind = Windows::UI::Xaml::Interop::TypeKind::Primitive;
            NavView_Navigate(pageTypeName, args.RecommendedNavigationTransitionInfo());
        }
    }

    // NavView_SelectionChanged is not used in this example, but is shown for completeness.
    // You will typically handle either ItemInvoked or SelectionChanged to perform navigation,
    // but not both.
    void MainPage::NavView_SelectionChanged(
        muxc::NavigationView const& /* sender */,
        muxc::NavigationViewSelectionChangedEventArgs const& args)
    {
        if (args.IsSettingsSelected())
        {
            NavView_Navigate(winrt::xaml_typename<NavigationViewDemo::SettingsPage>(),
                args.RecommendedNavigationTransitionInfo());
        }
        else if (args.SelectedItemContainer())
        {
            Windows::UI::Xaml::Interop::TypeName pageTypeName;
            pageTypeName.Name = unbox_value<hstring>(args.SelectedItemContainer().Tag());
            pageTypeName.Kind = Windows::UI::Xaml::Interop::TypeKind::Primitive;
            NavView_Navigate(pageTypeName, args.RecommendedNavigationTransitionInfo());
        }
    }

    void MainPage::NavView_Navigate(
        Windows::UI::Xaml::Interop::TypeName navPageType,
        Microsoft::UI::Xaml::Media::Animation::NavigationTransitionInfo const& transitionInfo)
    {
        // Get the page type before navigation so you can prevent duplicate
        // entries in the backstack.
        Windows::UI::Xaml::Interop::TypeName preNavPageType =
            ContentFrame().CurrentSourcePageType();

        // Navigate only if the selected page isn't currently loaded.
        if (navPageType.Name != L"" && preNavPageType.Name != navPageType.Name)
        {
            ContentFrame().Navigate(navPageType, nullptr, transitionInfo);
        }
    }

    void MainPage::NavView_BackRequested(
        muxc::NavigationView const& /* sender */,
        muxc::NavigationViewBackRequestedEventArgs const& /* args */)
    {
        TryGoBack();
    }

    bool MainPage::TryGoBack()
    {
        if (!ContentFrame().CanGoBack())
            return false;
        // Don't go back if the nav pane is overlayed.
        if (NavView().IsPaneOpen() &&
            (NavView().DisplayMode() == muxc::NavigationViewDisplayMode::Compact ||
                NavView().DisplayMode() == muxc::NavigationViewDisplayMode::Minimal))
            return false;
        ContentFrame().GoBack();
        return true;
    }

    void MainPage::On_Navigated(
        Windows::Foundation::IInspectable const& /* sender */,
        Microsoft::UI::Xaml::Navigation::NavigationEventArgs const& args)
    {
        NavView().IsBackEnabled(ContentFrame().CanGoBack());

        if (ContentFrame().SourcePageType().Name ==
            winrt::xaml_typename<NavigationViewDemo::SettingsPage>().Name)
        {
            // SettingsItem is not part of NavView.MenuItems, and doesn't have a Tag.
            NavView().SelectedItem(NavView().SettingsItem().as<muxc::NavigationViewItem>());
            NavView().Header(winrt::box_value(L"Settings"));
        }
        else if (ContentFrame().SourcePageType().Name != L"")
        {
            for (auto&& eachMenuItem : NavView().MenuItems())
            {
                auto navigationViewItem =
                    eachMenuItem.try_as<muxc::NavigationViewItem>();
                {
                    if (navigationViewItem)
                    {
                        winrt::hstring hstringValue =
                            winrt::unbox_value_or<winrt::hstring>(
                                navigationViewItem.Tag(), L"");
                        if (hstringValue == ContentFrame().SourcePageType().Name)
                        {
                            NavView().SelectedItem(navigationViewItem);
                            NavView().Header(navigationViewItem.Content());
                        }
                    }
                }
            }
        }
    }
}

Hierarchical navigation

Some apps may have a more complex hierarchical structure that requires more than just a flat list of navigation items. You may want to use top-level navigation items to display categories of pages, with children items displaying specific pages. It is also useful if you have hub-style pages that only link to other pages. For these kinds of cases, you should create a hierarchical NavigationView.

To show a hierarchical list of nested navigation items in the pane, use either the MenuItems property or the MenuItemsSource property of NavigationViewItem. Each NavigationViewItem can contain other NavigationViewItems and organizing elements like item headers and separators. To show a hierarchical list when using MenuItemsSource, set the ItemTemplate to be a NavigationViewItem, and bind its MenuItemsSource property to the next level of the hierarchy.

Although NavigationViewItem can contain any number of nested levels, we recommend keeping your app's navigation hierarchy shallow. We believe two levels is ideal for usability and comprehension.

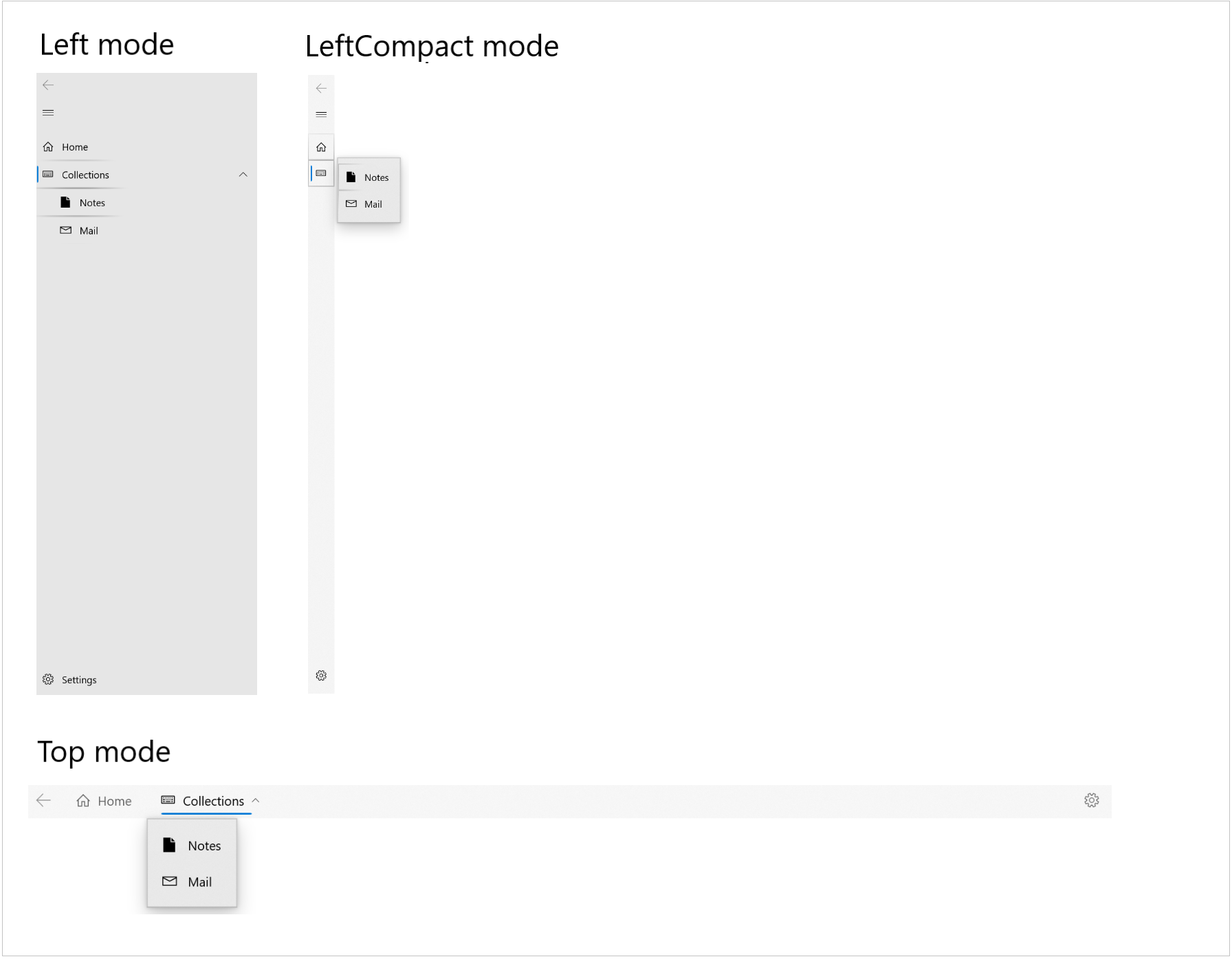

NavigationView shows hierarchy in Top, Left, and LeftCompact pane display modes. Here is what an expanded subtree looks like in each of the pane display modes:

Adding a hierarchy of items in markup

This example shows how to declare hierarchical app navigation in XAML markup.

<NavigationView>
    <NavigationView.MenuItems>
        <NavigationViewItem Content="Home" Icon="Home" ToolTipService.ToolTip="Home"/>
        <NavigationViewItem Content="Collections" Icon="Keyboard" ToolTipService.ToolTip="Collections">
            <NavigationViewItem.MenuItems>
                <NavigationViewItem Content="Notes" Icon="Page" ToolTipService.ToolTip="Notes"/>
                <NavigationViewItem Content="Mail" Icon="Mail" ToolTipService.ToolTip="Mail"/>
            </NavigationViewItem.MenuItems>
        </NavigationViewItem>
    </NavigationView.MenuItems>
</NavigationView>

Adding a hierarchy of items using data binding

Add a hierarchy of menu items to the NavigationView by

• binding the MenuItemsSource property to the hierarchical data
• defining the item template to be a NavigationViewMenuItem, with its Content set to be the label of the menu item, and its MenuItemsSource property bound to the next level of the hierarchy

This example also demonstrates the Expanding and Collapsed events. These events are raised for a menu item with children.

<Page ... >
    <Page.Resources>
        <DataTemplate x:Key="NavigationViewMenuItem" x:DataType="local:Category">
            <NavigationViewItem Content="{x:Bind Name}" MenuItemsSource="{x:Bind Children}"/>
        </DataTemplate>
    </Page.Resources>

    <Grid>
        <NavigationView x:Name="navview"
    MenuItemsSource="{x:Bind Categories, Mode=OneWay}"
    MenuItemTemplate="{StaticResource NavigationViewMenuItem}"
    ItemInvoked="{x:Bind OnItemInvoked}"
    Expanding="OnItemExpanding"
    Collapsed="OnItemCollapsed"
    PaneDisplayMode="Left">
            <StackPanel Margin="10,10,0,0">
                <TextBlock Margin="0,10,0,0" x:Name="ExpandingItemLabel" Text="Last Expanding: N/A"/>
                <TextBlock x:Name="CollapsedItemLabel" Text="Last Collapsed: N/A"/>
            </StackPanel>
        </NavigationView>
    </Grid>
</Page>

public class Category
{
    public String Name { get; set; }
    public String CategoryIcon { get; set; }
    public ObservableCollection<Category> Children { get; set; }
}

public sealed partial class HierarchicalNavigationViewDataBinding : Page
{
    public HierarchicalNavigationViewDataBinding()
    {
        this.InitializeComponent();
    }

    public ObservableCollection<Category> Categories = new ObservableCollection<Category>()
    {
        new Category(){
            Name = "Menu item 1",
            CategoryIcon = "Icon",
            Children = new ObservableCollection<Category>() {
                new Category(){
                    Name = "Menu item 2",
                    CategoryIcon = "Icon",
                    Children = new ObservableCollection<Category>() {
                        new Category() {
                            Name  = "Menu item 3",
                            CategoryIcon = "Icon",
                            Children = new ObservableCollection<Category>() {
                                new Category() { Name  = "Menu item 4", CategoryIcon = "Icon" },
                                new Category() { Name  = "Menu item 5", CategoryIcon = "Icon" }
                            }
                        }
                    }
                }
            }
        },
        new Category(){
            Name = "Menu item 6",
            CategoryIcon = "Icon",
            Children = new ObservableCollection<Category>() {
                new Category(){
                    Name = "Menu item 7",
                    CategoryIcon = "Icon",
                    Children = new ObservableCollection<Category>() {
                        new Category() { Name  = "Menu item 8", CategoryIcon = "Icon" },
                        new Category() { Name  = "Menu item 9", CategoryIcon = "Icon" }
                    }
                }
            }
        },
        new Category(){ Name = "Menu item 10", CategoryIcon = "Icon" }
    };

    private void OnItemInvoked(object sender, NavigationViewItemInvokedEventArgs e)
    {
        var clickedItem = e.InvokedItem;
        var clickedItemContainer = e.InvokedItemContainer;
    }
    private void OnItemExpanding(object sender, NavigationViewItemExpandingEventArgs e)
    {
        var nvib = e.ExpandingItemContainer;
        var name = "Last expanding: " + nvib.Content.ToString();
        ExpandingItemLabel.Text = name;
    }
    private void OnItemCollapsed(object sender, NavigationViewItemCollapsedEventArgs e)
    {
        var nvib = e.CollapsedItemContainer;
        var name = "Last collapsed: " + nvib.Content;
        CollapsedItemLabel.Text = name;
    }
}

// Category.idl
namespace HierarchicalNavigationViewDataBinding
{
    runtimeclass Category
    {
        String Name;
        String CategoryIcon;
        Windows.Foundation.Collections.IObservableVector<Category> Children;
    }
}

// Category.h
#pragma once
#include "Category.g.h"

namespace winrt::HierarchicalNavigationViewDataBinding::implementation
{
    struct Category : CategoryT<Category>
    {
        Category();
        Category(winrt::hstring name,
            winrt::hstring categoryIcon,
            Windows::Foundation::Collections::
                IObservableVector<HierarchicalNavigationViewDataBinding::Category> children);

        winrt::hstring Name();
        void Name(winrt::hstring const& value);
        winrt::hstring CategoryIcon();
        void CategoryIcon(winrt::hstring const& value);
        Windows::Foundation::Collections::
            IObservableVector<HierarchicalNavigationViewDataBinding::Category> Children();
        void Children(Windows::Foundation::Collections:
            IObservableVector<HierarchicalNavigationViewDataBinding::Category> const& value);

    private:
        winrt::hstring m_name;
        winrt::hstring m_categoryIcon;
        Windows::Foundation::Collections::
            IObservableVector<HierarchicalNavigationViewDataBinding::Category> m_children;
    };
}

// Category.cpp
#include "pch.h"
#include "Category.h"
#include "Category.g.cpp"

namespace winrt::HierarchicalNavigationViewDataBinding::implementation
{
    Category::Category()
    {
        m_children = winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
    }

    Category::Category(
        winrt::hstring name,
        winrt::hstring categoryIcon,
        Windows::Foundation::Collections::
            IObservableVector<HierarchicalNavigationViewDataBinding::Category> children)
    {
        m_name = name;
        m_categoryIcon = categoryIcon;
        m_children = children;
    }

    hstring Category::Name()
    {
        return m_name;
    }

    void Category::Name(hstring const& value)
    {
        m_name = value;
    }

    hstring Category::CategoryIcon()
    {
        return m_categoryIcon;
    }

    void Category::CategoryIcon(hstring const& value)
    {
        m_categoryIcon = value;
    }

    Windows::Foundation::Collections::IObservableVector<HierarchicalNavigationViewDataBinding::Category>
        Category::Children()
    {
        return m_children;
    }

    void Category::Children(
        Windows::Foundation::Collections::IObservableVector<HierarchicalNavigationViewDataBinding::Category>
            const& value)
    {
        m_children = value;
    }
}

// MainPage.idl
import "Category.idl";

namespace HierarchicalNavigationViewDataBinding
{
    [default_interface]
    runtimeclass MainPage : Windows.UI.Xaml.Controls.Page
    {
        MainPage();
        Windows.Foundation.Collections.IObservableVector<Category> Categories{ get; };
    }
}

// MainPage.h
#pragma once

#include "MainPage.g.h"

namespace muxc
{
    using namespace winrt::Microsoft::UI::Xaml::Controls;
};

namespace winrt::HierarchicalNavigationViewDataBinding::implementation
{
    struct MainPage : MainPageT<MainPage>
    {
        MainPage();

        Windows::Foundation::Collections::IObservableVector<HierarchicalNavigationViewDataBinding::Category>
            Categories();

        void OnItemInvoked(muxc::NavigationView const& sender, muxc::NavigationViewItemInvokedEventArgs const& args);
        void OnItemExpanding(
            muxc::NavigationView const& sender,
            muxc::NavigationViewItemExpandingEventArgs const& args);
        void OnItemCollapsed(
            muxc::NavigationView const& sender,
            muxc::NavigationViewItemCollapsedEventArgs const& args);

    private:
        Windows::Foundation::Collections::
            IObservableVector<HierarchicalNavigationViewDataBinding::Category> m_categories;
    };
}

namespace winrt::HierarchicalNavigationViewDataBinding::factory_implementation
{
    struct MainPage : MainPageT<MainPage, implementation::MainPage>
    {
    };
}

// MainPage.cpp
#include "pch.h"
#include "MainPage.h"
#include "MainPage.g.cpp"

#include "Category.h"

namespace winrt::HierarchicalNavigationViewDataBinding::implementation
{
    MainPage::MainPage()
    {
        InitializeComponent();

        m_categories =
            winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();

        auto menuItem10 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 10", L"Icon", nullptr);

        auto menuItem9 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 9", L"Icon", nullptr);
        auto menuItem8 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 8", L"Icon", nullptr);
        auto menuItem7Children =
            winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
        menuItem7Children.Append(*menuItem9);
        menuItem7Children.Append(*menuItem8);

        auto menuItem7 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 7", L"Icon", menuItem7Children);
        auto menuItem6Children =
            winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
        menuItem6Children.Append(*menuItem7);

        auto menuItem6 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 6", L"Icon", menuItem6Children);

        auto menuItem5 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 5", L"Icon", nullptr);
        auto menuItem4 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 4", L"Icon", nullptr);
        auto menuItem3Children =
            winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
        menuItem3Children.Append(*menuItem5);
        menuItem3Children.Append(*menuItem4);

        auto menuItem3 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 3", L"Icon", menuItem3Children);
        auto menuItem2Children =
            winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
        menuItem2Children.Append(*menuItem3);

        auto menuItem2 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 2", L"Icon", menuItem2Children);
        auto menuItem1Children =
            winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
        menuItem1Children.Append(*menuItem2);

        auto menuItem1 = winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
            (L"Menu item 1", L"Icon", menuItem1Children);

        m_categories.Append(*menuItem1);
        m_categories.Append(*menuItem6);
        m_categories.Append(*menuItem10);
    }

    Windows::Foundation::Collections::IObservableVector<HierarchicalNavigationViewDataBinding::Category>
        MainPage::Categories()
    {
        return m_categories;
    }

    void MainPage::OnItemInvoked(
        muxc::NavigationView const& /* sender */,
        muxc::NavigationViewItemInvokedEventArgs const& args)
    {
        auto clickedItem = args.InvokedItem();
        auto clickedItemContainer = args.InvokedItemContainer();
    }

    void MainPage::OnItemExpanding(
        muxc::NavigationView const& /* sender */,
        muxc::NavigationViewItemExpandingEventArgs const& args)
    {
        auto nvib = args.ExpandingItemContainer();
        auto name = L"Last expanding: " + winrt::unbox_value<winrt::hstring>(nvib.Content());
        ExpandingItemLabel().Text(name);
    }

    void MainPage::OnItemCollapsed(
        muxc::NavigationView const& /* sender */,
        muxc::NavigationViewItemCollapsedEventArgs const& args)
    {
        auto nvib = args.CollapsedItemContainer();
        auto name = L"Last collapsed: " + winrt::unbox_value<winrt::hstring>(nvib.Content());
        CollapsedItemLabel().Text(name);
    }
}

Selection

By default, any item can contain children, be invoked, or be selected.

When providing users with a hierarchical tree of navigation options, you may choose to make parent items non-selectable, for example when your app doesn't have a destination page associated with that parent item. If your parent items are selectable, it's recommend you use the Left-Expanded or Top pane display modes. LeftCompact mode will cause the user to navigate to the parent item in order to open the child subtree every time it's invoked.

Selected items will draw their selection indicators along their left edge when in left mode or their bottom edge when in top mode. Shown below are NavigationViews in left and top mode where a parent item is selected.

The selected item may not always remain visible. If a child in a collapsed/non-expanded subtree is selected, their first visible ancestor will show as selected. The selection indicator will move back to the selected item if/when the sub-tree is expanded.

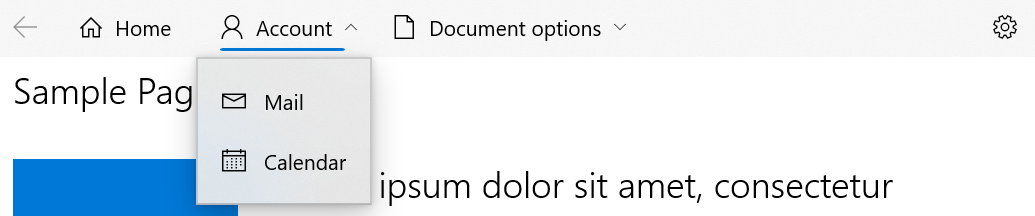

For example - in the above image, the Calendar item may be selected by the user, and then the user may collapse its subtree. In this case, the selection indicator would show up underneath the Account item as Account is Calendar's first visible ancestor. The selection indicator will move back to the Calendar item as the user expands the subtree again.

The entire NavigationView will show no more than one selection indicator.

In both Top and Left modes, clicking the arrows on NavigationViewItems will expand or collapse the subtree. Clicking or tapping elsewhere on the NavigationViewItem will trigger the ItemInvoked event, and it will also collapse or expand the subtree.

To prevent an item from showing the selection indicator when invoked, set its SelectsOnInvoked property to False, as shown below:

<Page ...>
    <Page.Resources>
        <DataTemplate x:Key="NavigationViewMenuItem" x:DataType="local:Category">
            <NavigationViewItem Content="{x:Bind Name}"
            MenuItemsSource="{x:Bind Children}"
            SelectsOnInvoked="{x:Bind IsLeaf}"/>
        </DataTemplate>
    </Page.Resources>

    <Grid>
        <NavigationView x:Name="navview"
    MenuItemsSource="{x:Bind Categories, Mode=OneWay}"
    MenuItemTemplate="{StaticResource NavigationViewMenuItem}">
        </NavigationView>
    </Grid>
</Page>

public class Category
{
    public String Name { get; set; }
    public String CategoryIcon { get; set; }
    public ObservableCollection<Category> Children { get; set; }
    public bool IsLeaf { get; set; }
}

public sealed partial class HierarchicalNavigationViewDataBinding : Page
{
    public HierarchicalNavigationViewDataBinding()
    {
        this.InitializeComponent();
    }

    public ObservableCollection<Category> Categories = new ObservableCollection<Category>()
    {
        new Category(){
            Name = "Menu item 1",
            CategoryIcon = "Icon",
            Children = new ObservableCollection<Category>() {
                new Category(){
                    Name = "Menu item 2",
                    CategoryIcon = "Icon",
                    Children = new ObservableCollection<Category>() {
                        new Category() {
                            Name  = "Menu item 3",
                            CategoryIcon = "Icon",
                            Children = new ObservableCollection<Category>() {
                                new Category() { Name  = "Menu item 4", CategoryIcon = "Icon", IsLeaf = true },
                                new Category() { Name  = "Menu item 5", CategoryIcon = "Icon", IsLeaf = true }
                            }
                        }
                    }
                }
            }
        },
        new Category(){
            Name = "Menu item 6",
            CategoryIcon = "Icon",
            Children = new ObservableCollection<Category>() {
                new Category(){
                    Name = "Menu item 7",
                    CategoryIcon = "Icon",
                    Children = new ObservableCollection<Category>() {
                        new Category() { Name  = "Menu item 8", CategoryIcon = "Icon", IsLeaf = true },
                        new Category() { Name  = "Menu item 9", CategoryIcon = "Icon", IsLeaf = true }
                    }
                }
            }
        },
        new Category(){ Name = "Menu item 10", CategoryIcon = "Icon", IsLeaf = true }
    };
}

// Category.idl
namespace HierarchicalNavigationViewDataBinding
{
    runtimeclass Category
    {
        ...
        Boolean IsLeaf;
    }
}

// Category.h
...
struct Category : CategoryT<Category>
{
    ...
    Category(winrt::hstring name,
        winrt::hstring categoryIcon,
        Windows::Foundation::Collections::IObservableVector<HierarchicalNavigationViewDataBinding::Category> children,
        bool isleaf = false);
    ...
    bool IsLeaf();
    void IsLeaf(bool value);

private:
    ...
    bool m_isleaf;
};

// Category.cpp
...
Category::Category(winrt::hstring name,
    winrt::hstring categoryIcon,
    Windows::Foundation::Collections::IObservableVector<HierarchicalNavigationViewDataBinding::Category> children,
    bool isleaf) : m_name(name), m_categoryIcon(categoryIcon), m_children(children), m_isleaf(isleaf) {}
...
bool Category::IsLeaf()
{
    return m_isleaf;
}

void Category::IsLeaf(bool value)
{
    m_isleaf = value;
}

// MainPage.h and MainPage.cpp
// Delete OnItemInvoked, OnItemExpanding, and OnItemCollapsed.

// MainPage.cpp
...
MainPage::MainPage()
{
    InitializeComponent();

    m_categories = winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();

    auto menuItem10 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 10", L"Icon", nullptr, true);

    auto menuItem9 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 9", L"Icon", nullptr, true);
    auto menuItem8 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 8", L"Icon", nullptr, true);
    auto menuItem7Children =
        winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
    menuItem7Children.Append(*menuItem9);
    menuItem7Children.Append(*menuItem8);

    auto menuItem7 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 7", L"Icon", menuItem7Children);
    auto menuItem6Children =
        winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
    menuItem6Children.Append(*menuItem7);

    auto menuItem6 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 6", L"Icon", menuItem6Children);

    auto menuItem5 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 5", L"Icon", nullptr, true);
    auto menuItem4 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 4", L"Icon", nullptr, true);
    auto menuItem3Children =
        winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
    menuItem3Children.Append(*menuItem5);
    menuItem3Children.Append(*menuItem4);

    auto menuItem3 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 3", L"Icon", menuItem3Children);
    auto menuItem2Children =
        winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
    menuItem2Children.Append(*menuItem3);

    auto menuItem2 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 2", L"Icon", menuItem2Children);
    auto menuItem1Children =
        winrt::single_threaded_observable_vector<HierarchicalNavigationViewDataBinding::Category>();
    menuItem1Children.Append(*menuItem2);

    auto menuItem1 =
        winrt::make_self<HierarchicalNavigationViewDataBinding::implementation::Category>
        (L"Menu item 1", L"Icon", menuItem1Children);

    m_categories.Append(*menuItem1);
    m_categories.Append(*menuItem6);
    m_categories.Append(*menuItem10);
}
...

Keyboarding within hierarchical NavigationView

Users can move focus around the NavigationView using their keyboard. The arrow keys expose "inner navigation" within the pane and follow the interactions provided in tree view. The key actions change when navigating through the NavigationView or its flyout menu, which is displayed in Top and Left-compact modes of HierarchicalNavigationView. Below are the specific actions that each key can take in a hierarchical NavigationView:

Key	In Left Mode	In Top Mode	In Flyout
Up	Moves focus to the item directly above the item currently in focus.	Does nothing.	Moves focus to the item directly above the item currently in focus.
Down	Moves focus directly below the item currently in focus.*	Does nothing.	Moves focus directly below the item currently in focus.*
Right	Does nothing.	Moves focus to the item directly to the right of the item currently in focus.	Does nothing.
Left	Does nothing.	Moves focus to the item directly to the left the item currently in focus.	Does nothing.
Space/Enter	If item has children, expands/collapses item and does not change focus.	If item has children, expands children into a flyout and places focus on first item in flyout.	Invokes/selects item and closes flyout.
Esc	Does nothing.	Does nothing.	Closes flyout.

The space or enter key always invokes/selects an item.

*Note that the items do not need to be visually adjacent, focus will move from the last item in the pane's list to the settings item.

NavigationView customization

Pane Backgrounds

By default, the NavigationView pane uses a different background depending on the display mode:

• the pane is a solid grey color when expanded on the left, side-by-side with the content (in Left mode).
• the pane uses in-app acrylic when open as an overlay on top of content (in Top, Minimal, or Compact mode).

To modify the pane background, you can override the XAML theme resources used to render the background in each mode. (This technique is used rather than a single PaneBackground property in order to support different backgrounds for different display modes.)

This table shows which theme resource is used in each display mode.

Display mode	Theme resource
Left	NavigationViewExpandedPaneBackground
LeftCompact LeftMinimal	NavigationViewDefaultPaneBackground
Top	NavigationViewTopPaneBackground

This example shows how to override the theme resources in App.xaml. When you override theme resources, you should always provide "Default" and "HighContrast" resource dictionaries at a minimum, and dictionaries for "Light" or "Dark" resources as needed. For more info, see ResourceDictionary.ThemeDictionaries.

Important

This code shows how to use the WinUI 2 version of AcrylicBrush. If you use the platform version of AcrylicBrush instead, the minimum version for your app project must be SDK 16299 or greater. To use the platform version, remove all references to muxm:.

<Application ... xmlns:muxm="using:Microsoft.UI.Xaml.Media" ...>
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <XamlControlsResources xmlns="using:Microsoft.UI.Xaml.Controls"/>
                <ResourceDictionary>
                    <ResourceDictionary.ThemeDictionaries>
                        <ResourceDictionary x:Key="Default">
                            <!-- The "Default" theme dictionary is used unless a specific
                                 light, dark, or high contrast dictionary is provided. These
                                 resources should be tested with both the light and dark themes,
                                 and specific light or dark resources provided as needed. -->
                            <muxm:AcrylicBrush x:Key="NavigationViewDefaultPaneBackground"
                                   BackgroundSource="Backdrop"
                                   TintColor="LightSlateGray"
                                   TintOpacity=".6"/>
                            <muxm:AcrylicBrush x:Key="NavigationViewTopPaneBackground"
                                   BackgroundSource="Backdrop"
                                   TintColor="{ThemeResource SystemAccentColor}"
                                   TintOpacity=".6"/>
                            <LinearGradientBrush x:Key="NavigationViewExpandedPaneBackground"
                                     StartPoint="0.5,0" EndPoint="0.5,1">
                                <GradientStop Color="LightSlateGray" Offset="0.0" />
                                <GradientStop Color="White" Offset="1.0" />
                            </LinearGradientBrush>
                        </ResourceDictionary>
                        <ResourceDictionary x:Key="HighContrast">
                            <!-- Always include a "HighContrast" dictionary when you override
                                 theme resources. This empty dictionary ensures that the
                                 default high contrast resources are used when the user
                                 turns on high contrast mode. -->
                        </ResourceDictionary>
                    </ResourceDictionary.ThemeDictionaries>
                </ResourceDictionary>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

Top whitespace

The IsTitleBarAutoPaddingEnabled property requires WinUI 2.2 or later.

Some apps choose to customize their window's title bar, potentially extending their app content into the title bar area. When NavigationView is the root element in apps that extend into the title bar using the ExtendViewIntoTitleBar API, the control automatically adjusts the position of its interactive elements to prevent overlap with the draggable region.

If your app specifies the draggable region by calling the Window.SetTitleBar method and you would prefer to have the back and menu buttons draw closer to the top of your app window, set IsTitleBarAutoPaddingEnabled to false.

<muxc:NavigationView x:Name="NavView" IsTitleBarAutoPaddingEnabled="False">

Remarks

To further adjust the position of NavigationView's header area, override the NavigationViewHeaderMargin XAML theme resource, for example in your Page resources.

<Page.Resources>
    <Thickness x:Key="NavigationViewHeaderMargin">12,0</Thickness>
</Page.Resources>

This theme resource modifies the margin around NavigationView.Header.

Related topics

• NavigationView class
• List/details
• Navigation basics
• Fluent Design overview
