ALM in Power Platform with Test Engine (preview)

Note

Preview features aren’t meant for production use and may have restricted functionality. These features are available before an official release so that customers can get early access and provide feedback.

Application Lifecycle Management (ALM) is a comprehensive approach to managing the lifecycle of applications from initial concept through development, testing, deployment, and ongoing maintenance. In the context of Power Platform, incorporating automated testing with Test Engine into your ALM process ensures that applications are thoroughly tested at each stage of development, resulting in higher quality releases.

Understanding test automation in ALM

Test automation plays a critical role in the ALM process by:

• Ensuring quality - Verifying that applications function as expected before deployment
• Reducing risk - Catching issues early before they reach production environments
• Enabling continuous integration - Supporting automated build verification testing
• Facilitating controlled deployments - Adding quality gates to release pipelines

With Power Apps Test Engine, you can integrate automated testing into your existing Power Platform ALM workflows, regardless of which CI/CD tooling you use.

Test automation lifecycle

The Test Engine supports a complete testing lifecycle that integrates with your ALM processes:

1. Development - Create and run tests locally during app development
2. Build validation - Execute tests as part of automated build verification
3. Release gates - Use test results as quality gates for controlled deployments
4. Production verification - Validate critical functionality in production environments

Getting started with test automation in ALM

To get started with incorporating Test Engine into your ALM processes:

1. Create your test plan - Design YAML test plans for your Power Platform solutions
2. Run tests locally - Verify tests work in your development environment
3. Set up authentication - Configure appropriate authentication for your local execute and pipeline environments
4. Integrate with your pipeline - Connect Test Engine to your existing ALM pipeline
5. Implement quality gates - Use test results to control the promotion of solutions

Tip

Start with critical user journeys and gradually expand your automated test coverage as you become more familiar with Test Engine.

Source code version of Test Engine (optional)

If you're using the source code version of Test Engine, you'll also need:

• .NET 8.0 SDK - If you plan to build Test Engine from source
• Git - To pull changes from Power Apps Test Engine repository
• Complete the source code Setup Steps to run tests using the local compiled version of Test Engine

Integration options

Test Engine integrates seamlessly with various ALM tools and processes

Local Execution

You can use a local editor like Visual Studio Code to edit the YAML files to author the Test Engine tests. To run the tests locally:

1. Ensure you have Microsoft Power Platform CLI installed
2. If you're using source control integration clone your project to your local machine
3. Use the pac test run to execute your test
4. Review the pass / fail results of the test

The Azure CLI is essential for obtaining access tokens to connect to Dataverse. Locally, you can use:

az login --allow-no-subscriptions

Power Platform Pipelines

You can easily integrate Test Engine with Power Platform's built-in pipelines for a native integrated experience:

• Solution Pipelines - Add automated testing to your solution pipelines to ensure quality at each stage
• Environment Strategy - Test in development and test environments before promoting to production
• Pipeline Templates - Use pipeline templates to standardize testing across your organization

You can trigger execution of automated tests when using a Custom pipelines host:

1. Create a Power Automate cloud flow that triggers based on pipeline events
2. Connect to your CI/CD system to run the tests
3. Process test results and update the pipeline status

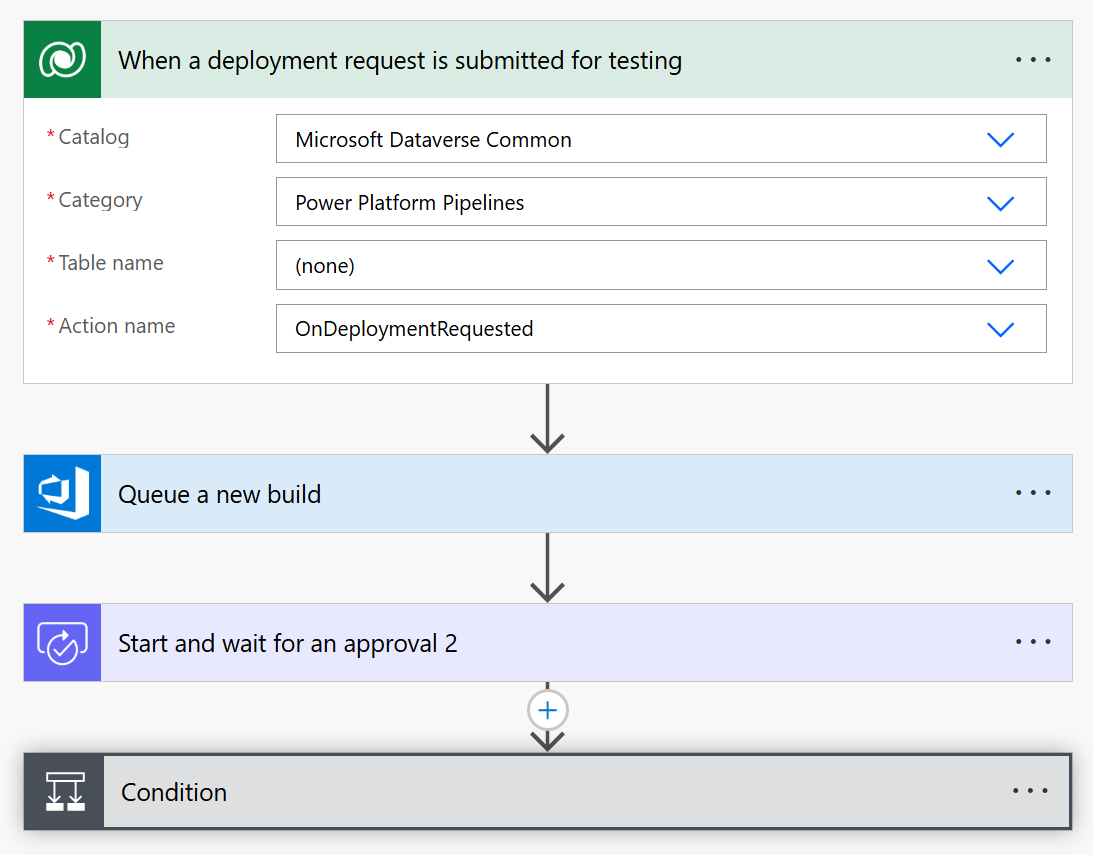

The following diagram shows an example of this integration pattern:

This flow uses:

• Dataverse Triggers to start a pipeline when conditions are met
• Trigger conditions to determine which deployment stage applies
• Azure DevOps Connector to start a build with parameters
• Approval actions to manage the approval process
• Dataverse Actions to update the pipeline based on results

Custom CI/CD integration with Power Automate

For organizations with existing CI/CD tooling, Test Engine integrates with custom pipelines through Power Automate using the Power Platform Custom Host feature. With the Custom Host approach, you can:

• Define a custom pipeline host that executes your automated tests
• Create Power Automate cloud flows that trigger automatically from deployment events
• Execute pac test run commands directly from cloud flows to run tests stored in source control
• Connect to your preferred CI/CD system (Azure DevOps, GitHub Actions, etc.)
• Implement approval workflows based on test results
• Update deployment status based on the test results

This integration enables you to maintain your existing CI/CD investments while adding Test Engine's capabilities to your ALM process. The Custom Host acts as a bridge between Power Platform's native ALM features and your external testing infrastructure.

DevOps Pipeline

You can extend your Power Platform Pipeline using custom host or directly integrate the pac test run command into to execute your build scripts.

Here's an example of an Azure DevOps pipeline YAML file that demonstrates how to set up and run Power Apps Test Engine tests:

trigger:
- main

pool:
  vmImage: 'windows-latest'

variables:
  - group: PowerPlatformTestVariables # Create a variable group with these variables
  # Required variables in the variable group:
  # ClientId - Service Principal App ID
  # ClientSecret - Service Principal Secret (mark as secret)
  # TenantId - Microsoft Entra Tenant ID
  # EnvironmentUrl - Power Platform Environment URL
  # EnvironmentId - Power Platform Environment ID

steps:
# Download the test plan file from secure files
- task: DownloadSecureFile@1
  name: testPlan
  displayName: 'Download Test Plan File'
  inputs:
    secureFile: 'testplan.te.yaml' # Upload your test plan to Secure Files in Azure DevOps

# Install Power Platform CLI
- task: PowerShell@2
  displayName: 'Install Power Platform CLI'
  inputs:
    targetType: 'inline'
    script: |
      Write-Host "Installing Power Platform CLI..."
      $pacUrl = "https://aka.ms/PowerAppsCLI"
      $pacZip = "$env:TEMP\pac.zip"
      $pacDestination = "$env:TEMP\pac"

      # Create the destination folder if it doesn't exist
      if (-not (Test-Path $pacDestination)) {
          New-Item -ItemType Directory -Path $pacDestination -Force | Out-Null
      }

      # Download PAC CLI
      Invoke-WebRequest -Uri $pacUrl -OutFile $pacZip

      # Extract PAC CLI
      Expand-Archive -Path $pacZip -DestinationPath $pacDestination -Force

      # Add PAC CLI to PATH
      $env:PATH = "$pacDestination;$env:PATH"

      # Verify installation
      pac help

# Install Azure CLI and authenticate with service principal
- task: PowerShell@2
  displayName: 'Install Azure CLI and Authenticate'
  inputs:
    targetType: 'inline'
    script: |
      Write-Host "Installing Azure CLI..."
      $azureCliUrl = "https://aka.ms/installazurecliwindows"
      $azureCliInstaller = "$env:TEMP\AzureCLI.msi"

      # Download Azure CLI installer
      Invoke-WebRequest -Uri $azureCliUrl -OutFile $azureCliInstaller

      # Install Azure CLI silently
      Start-Process -FilePath msiexec.exe -Args "/i $azureCliInstaller /quiet /norestart" -Wait

      # Reload PATH to include Azure CLI
      $env:PATH = [System.Environment]::GetEnvironmentVariable("PATH", "Machine") + ";" + [System.Environment]::GetEnvironmentVariable("PATH", "User")

      # Authenticate with service principal
      Write-Host "Authenticating with Azure CLI..."
      az login --service-principal -u "$(ClientId)" -p "$(ClientSecret)" --tenant "$(TenantId)" --allow-no-subscriptions

# Authenticate PAC CLI with service principal
- task: PowerShell@2
  displayName: 'Authenticate PAC CLI'
  inputs:
    targetType: 'inline'
    script: |
      Write-Host "Authenticating PAC CLI..."

      # Create authentication profile
      pac auth create --name TestEngineAuth --url "$(EnvironmentUrl)" --applicationId "$(ClientId)" --clientSecret "$(ClientSecret)" --tenant "$(TenantId)"

      # Select the authentication profile
      pac auth select --name TestEngineAuth

# Run the tests
- task: PowerShell@2
  displayName: 'Execute Test Engine Tests'
  inputs:
    targetType: 'inline'
    script: |
      Write-Host "Running Test Engine tests..."

      # Create output directory
      $outputDir = "$(Build.ArtifactStagingDirectory)\TestResults"
      New-Item -ItemType Directory -Path $outputDir -Force | Out-Null

      # Run the tests
      pac test run `
        --test-plan-file "$(testPlan.secureFilePath)" `
        --environment-id "$(EnvironmentId)" `
        --tenant "$(TenantId)" `
        --logConsole info `
        --trx `
        --outputDirectory $outputDir

      if ($LASTEXITCODE -ne 0) {
          Write-Error "Test execution failed with exit code $LASTEXITCODE"
          exit $LASTEXITCODE
      }

# Publish test results
- task: PublishTestResults@2
  displayName: 'Publish Test Results'
  inputs:
    testResultsFormat: 'VSTest'
    testResultsFiles: '$(Build.ArtifactStagingDirectory)\TestResults\*.trx'
    mergeTestResults: true
    testRunTitle: 'Power Apps Test Engine Results'
  condition: always() # Ensure results are published even if tests fail

# Publish test artifacts
- task: PublishBuildArtifacts@1
  displayName: 'Publish Test Artifacts'
  inputs:
    PathtoPublish: '$(Build.ArtifactStagingDirectory)\TestResults'
    ArtifactName: 'TestArtifacts'
    publishLocation: 'Container'
  condition: always()

Reference components

The following reference components might be useful as you build your automation test pipeline.

Component	Resource	Purpose
Pipeline Creation	Create Azure DevOps pipeline	Set up your CI/CD pipeline
Source Control	Dataverse Git integration	Connect to solution source code
Authentication	Service principals & managed identities	Secure connection to Dataverse
.NET Setup	Use dotnet v2 task	Install .NET SDK if needed
Test Execution	PowerShell v2 task	Execute pac test run commands
Secret Management	Variable groups	Store secure test configuration values
Config Files	Secure files	Store test configuration files
File Access	Download secure file v1 task	Access configuration files during pipeline run
Results Publishing	Publish test results v2 task	Publish test results (*.trx) to Azure DevOps

GitHub Runner

Here's an example of a GitHub Actions workflow that performs the same test execution process:

name: Test Engine Execution

on:
  push:
    branches: [ main ]
  pull_request:
    branches: [ main ]
  workflow_dispatch:  # Allow manual triggering

jobs:
  test:
    runs-on: windows-latest

    env:
      TENANT_ID: ${{ secrets.TENANT_ID }}
      CLIENT_ID: ${{ secrets.CLIENT_ID }}
      CLIENT_SECRET: ${{ secrets.CLIENT_SECRET }}
      ENVIRONMENT_URL: ${{ secrets.ENVIRONMENT_URL }}
      ENVIRONMENT_ID: ${{ secrets.ENVIRONMENT_ID }}

    steps:
    - name: Checkout repository
      uses: actions/checkout@v3

    - name: Install Power Platform CLI
      run: |
        Write-Host "Installing Power Platform CLI..."
        $pacUrl = "https://aka.ms/PowerAppsCLI"
        $pacZip = "$env:TEMP\pac.zip"
        $pacDestination = "$env:TEMP\pac"

        # Create the destination folder if it doesn't exist
        if (-not (Test-Path $pacDestination)) {
            New-Item -ItemType Directory -Path $pacDestination -Force | Out-Null
        }

        # Download PAC CLI
        Invoke-WebRequest -Uri $pacUrl -OutFile $pacZip

        # Extract PAC CLI
        Expand-Archive -Path $pacZip -DestinationPath $pacDestination -Force

        # Add PAC CLI to PATH
        $env:PATH = "$pacDestination;$env:PATH"
        echo "$pacDestination" >> $env:GITHUB_PATH

        # Verify installation
        pac help

    - name: Install Azure CLI
      run: |
        Write-Host "Installing Azure CLI..."
        $ProgressPreference = 'SilentlyContinue'
        Invoke-WebRequest -Uri https://aka.ms/installazurecliwindows -OutFile .\AzureCLI.msi
        Start-Process msiexec.exe -Wait -ArgumentList '/I AzureCLI.msi /quiet'
        rm .\AzureCLI.msi

    - name: Azure CLI Authentication
      run: |
        Write-Host "Authenticating with Azure CLI..."
        az login --service-principal -u "$env:CLIENT_ID" -p "$env:CLIENT_SECRET" --tenant "$env:TENANT_ID" --allow-no-subscriptions

    - name: PAC CLI Authentication
      run: |
        Write-Host "Authenticating PAC CLI..."
        # Create authentication profile
        pac auth create --name TestEngineAuth --url "$env:ENVIRONMENT_URL" --applicationId "$env:CLIENT_ID" --clientSecret "$env:CLIENT_SECRET" --tenant "$env:TENANT_ID"

        # Select the authentication profile
        pac auth select --name TestEngineAuth

    - name: Run Test Engine tests
      run: |
        Write-Host "Running Test Engine tests..."

        # Create output directory
        $outputDir = "./TestResults"
        New-Item -ItemType Directory -Path $outputDir -Force | Out-Null

        # Run the tests
        pac test run `
          --test-plan-file "./TestPlan/testplan.te.yaml" `
          --environment-id "$env:ENVIRONMENT_ID" `
          --tenant "$env:TENANT_ID" `
          --logConsole info `
          --trx `
          --outputDirectory $outputDir

        if ($LASTEXITCODE -ne 0) {
            Write-Error "Test execution failed with exit code $LASTEXITCODE"
            exit $LASTEXITCODE
        }

    - name: Upload test results
      uses: actions/upload-artifact@v3
      if: always()
      with:
        name: test-results
        path: ./TestResults

    - name: Publish Test Results
      uses: EnricoMi/publish-unit-test-result-action@v2
      if: always()
      with:
        files: ./TestResults/**/*.trx

Related articles

Learn about Test Engine YAML syntax
Set up authentication for your tests
Test canvas applications, model-driven applications, or Dataverse extensions
Understand Power Platform ALM
