Operações do MB eSIM

Arquitetura do eSIM

O componente LPA (Local Profile Assitant) do sistema operacional Windows é o Serviço LPA, enquanto o acesso UICC de baixo nível é exposto por meio do Serviço WWAN. O Serviço LPA manipula a descoberta de perfil, o download de perfis e o gerenciamento de perfil.

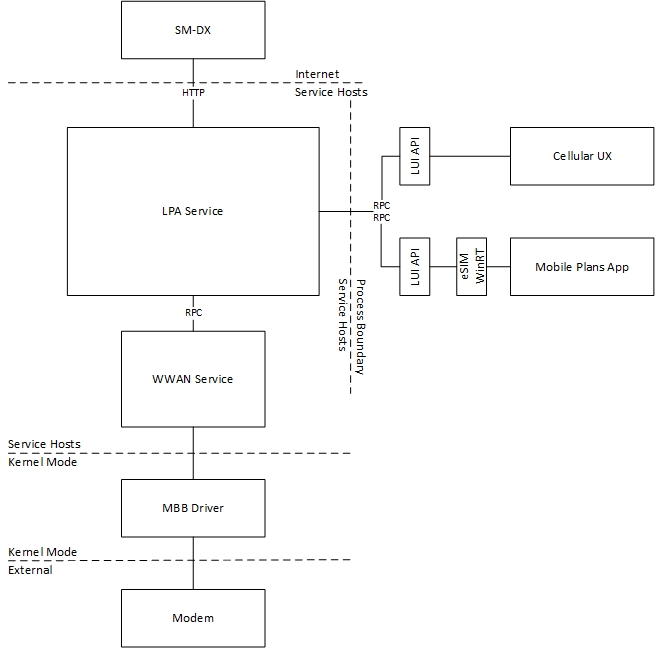

Diagrama que mostra a arquitetura eSIM com componentes do Serviço LPA e do Serviço WWAN.

Atualização da interface MB para operações do eSIM

O modem precisa dar suporte aos SEGUINTEs CIDs de acesso UICC de baixo nível mb para a funcionalidade eSIM.

 MBIM_CID_MS_UICC_ATR
 MBIM_CID_MS_UICC_OPEN_CHANNEL
 MBIM_CID_MS_UICC_CLOSE_CHANNEL
 MBIM_CID_MS_UICC_APDU
 MBIM_CID_MS_UICC_TERMINAL_CAPABILITY
 MBIM_CID_MS_UICC_RESET

Inicialização do serviço eSIM

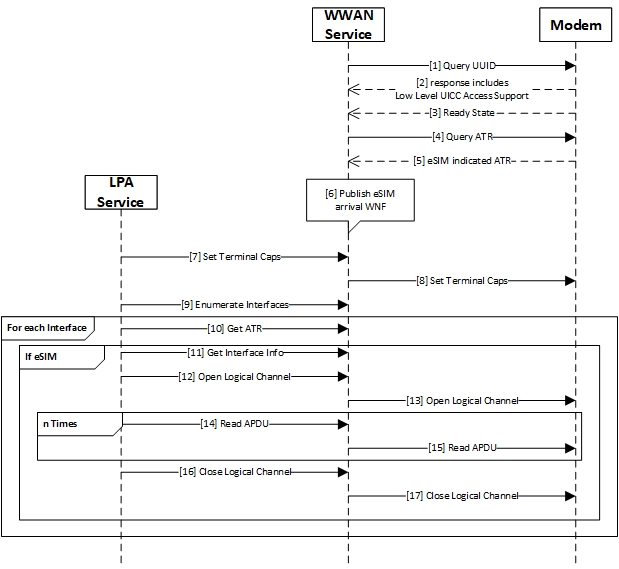

Fluxograma ilustrando o processo de inicialização do serviço eSIM.

Download e instalação de perfil do eSIM

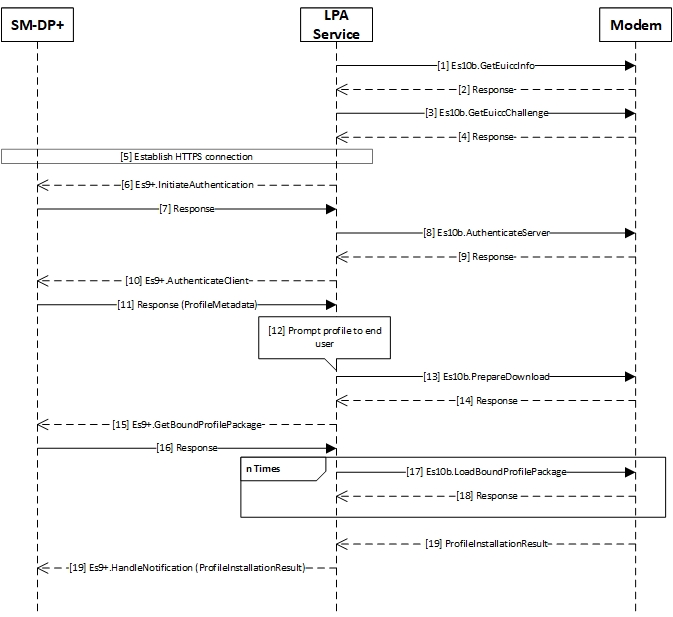

Fluxograma que descreve o processo de download e instalação do perfil eSIM.

Operações de perfil do eSIM

As operações de perfil do eSIM incluem:

Enable Profile
Disable Profile
Delete Profile
Wipe eSIM
Update NickName

Abaixo está um fluxo de exemplo para a operação Habilitar Perfil. As outras Operações de Perfil seguem um fluxo semelhante, exceto que MBIM_CID_MS_UICC_APDU conterá o comando Es10c para a respectiva operação.

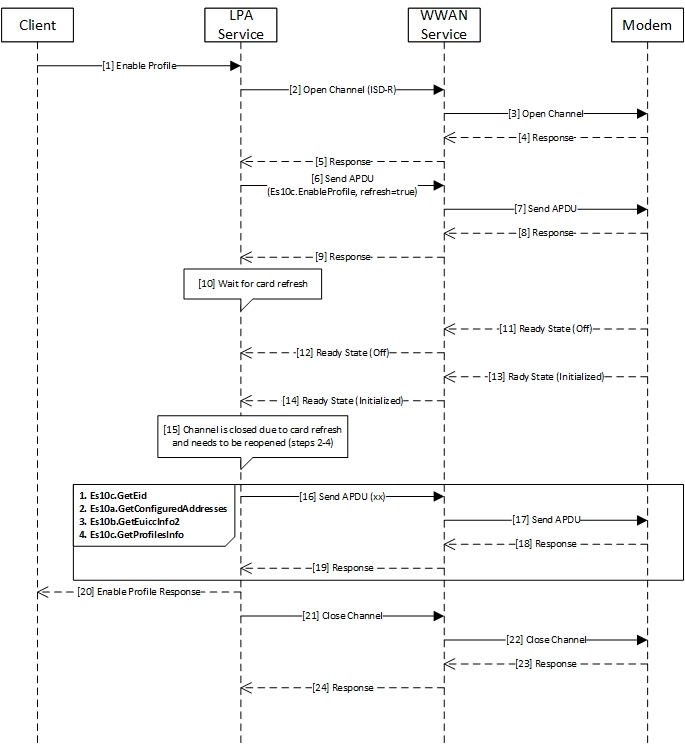

Fluxograma demonstrando que o eSIM habilita a operação de perfil com comandos de exemplo.

Atualização de cartão

As Operações de Perfil do eSIM esperam que cartão atualização seja executada seguida pela alteração de estado pronta de acordo com as diretrizes de estado prontas para MB ESIM mbim do MBIM.

Testes do HLK (Hardware Lab Kit)

Os seguintes testes no HLK podem ser usados para verificar a funcionalidade do eSIM:

TestLowLevelUiccAccess

TestReadyInfo

TestResetPassthrough

Por meio do netsh, podemos executar a lista de testes TestLowLevelUiccAccess HLK. Para obter mais informações sobre como usar a ferramenta netsh, consulte netsh-mbn e netsh-mbn-test-installation.

netsh mbn test feature=esim testpath="C:\data\test\bin" taefpath="C:\data\test\bin" param="AccessString=internet"

O arquivo que mostra os resultados do teste HLK deveria ter sido gerado no diretório do qual o comando 'netsh mbn test' foi executado em: TestLowLevelUiccAccess.htm.

Teste manuais

Testar o gerenciamento de perfil do eSIM

  1. Recursos necessários: um eSIM e um código de ativação ou um código QR para o download do perfil. O perfil precisa de um código de confirmação para baixar.
  2. Abra Configurações-Rede> & Internet –> Celular.
  3. Clique em Gerenciar perfis eSIM.
  4. Clique em Adicionar um novo perfil.
  5. Escolha Deixe-me inserir um código de ativação que tenho da minha operadora móvel e clique em Avançar.
  6. Examine o código QR ou digite o código de ativação.
  7. Aguarde até que a página de confirmação apareça. Preencha o código de confirmação e clique em Avançar.
  8. Ignore a caixa de diálogo e habilite o perfil.
  9. Altere o nome do perfil. O novo nome deve ser exibido para o perfil.
  10. Exclua o perfil.
  11. Instale o perfil novamente (repetindo as etapas 4-7), mas desta vez com o código de confirmação errado. Por exemplo, ao verificar um código QR, o hash de código é exibido por um segundo antes de entrar em contato com o servidor. Clique muito rapidamente em qualquer lugar dentro dele e pressione a tecla voltar para excluir um único caractere antes de falar com o servidor.
  12. Você deverá ver uma mensagem de erro e, eventualmente, chegar à página de confirmação novamente. Digite o código de confirmação correto desta vez e clique em Avançar.
  13. Ignore a caixa de diálogo e exclua o perfil.

Testar a conexão automática após a reinicialização

  1. Verifique se a Ethernet está desconectada e se Wi-Fi está desativada. Com um bom perfil eSIM conhecido presente no eSIM físico no dispositivo, navegue até Configurações -> Rede & Internet - Celular ->> Gerenciar perfis eSIM -> perfis eSIM, selecione o perfil e clique em Usar. Verifique se a navegação na Internet funciona normalmente.
  2. Reinicie o computador, faça logon e navegue até Configurações –> Rede & Internet –> Celular –> Gerenciar perfis eSIM –> perfis eSIM. O perfil deve ser mostrado como Ativo, o systray deve mostrar as barras de conexão da rede celular e a navegação na Internet deve funcionar normalmente.
  3. De volta em Gerenciar perfis eSIM, selecione o perfil e clique em Parar de usar. O perfil deve desconectar dados.

Guia de solução de problemas do MB eSIM

Siga este guia para depurar problemas do eSIM.

Falhas de download e instalação de perfil

  1. Coletar e decodificar os logs usando as instruções em MB Coletando logs
  2. Abra o arquivo .txt gerado em TextAnalysisTool
  3. Carregar o filtro de download e instalação do eSIM

Aqui está o log de sucesso de exemplo para Download e Instalação de Perfil:

 37 24515    None    2020-03-04T08:54:48.6922406    0.0000922    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForLpaNotifications,ulTransactionId=1
 47 25637    None    2020-03-04T08:54:48.7058023    0.0000081    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForEsimNotifications,ulTransactionId=2
 48 25638    None    2020-03-04T08:54:48.7058116    0.0000093    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForAllProfileNotifications,ulTransactionId=3
 87 42955    None    2020-03-04T08:54:50.8459033    0.0000357    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForLpaNotifications,ulTransactionId=1
 96 43009    None    2020-03-04T08:54:50.8470189    0.0000401    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForEsimNotifications,ulTransactionId=2
104 43039    None    2020-03-04T08:54:50.8473061    0.0000092    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForAllProfileNotifications,ulTransactionId=3
110 43856    None    2020-03-04T08:55:10.1453397    19.2978242    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    RpcDownloadProfile: Component=LuiApiServer,esimId=89033023**********************06,hr=0,Location=LuiApiProcessActivationCode,luicontext=2,strActivation=1$*******************************,ulTransactionId=4
113 43861    None    2020-03-04T08:55:10.1459912    0.0000161    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnInitiateCommonMutualAuthentication,fsmevent=3,Location=LPA::Lpd::DownloadInstance::InitiateCommonMutualAuthentication,task=2,taskId=6
115 43863    None    2020-03-04T08:55:10.1461554    0.0000022    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=ProcessActivation,fsmevent=1,Location=LPA::Lpd::DownloadInstance::ProcessActivationCode,task=3,taskId=6
130 44745    None    2020-03-04T08:55:10.1901431    0.0000464    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetEuiccChallenge,fsmevent=4,Location=LPA::Lpd::DownloadInstance::OnEs10bGetChallengeComplete,task=2,taskId=6
134 45589    None    2020-03-04T08:55:10.2226549    0.0000204    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetUiccInfo1,fsmevent=5,Location=LPA::Lpd::DownloadInstance::OnEs10bGetUiccInfo1Complete,task=2,taskId=6
146 46509    None    2020-03-04T08:55:11.7773024    0.0002176    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9OrEs11InitiateAuthentication,fsmevent=6,Location=LPA::Lpd::DownloadInstance::OnEs9OrEs11InitiateAuthentication,task=2,taskId=6
153 50421    None    2020-03-04T08:55:12.9320399    0.0008653    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bAuthenticateServer,fsmevent=7,Location=LPA::Lpd::DownloadInstance::OnEs10bAuthenticateServerComplete,task=2,taskId=6
164 51032    None    2020-03-04T08:55:13.3763368    0.0001906    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9AuthenticateClient,fsmevent=8,Location=LPA::Lpd::DownloadInstance::OnEs9AuthenticateClient,task=2,taskId=6
176 51183    None    2020-03-04T08:55:14.9352658    0.0000603    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnInstallProfile,fsmevent=11,Location=LPA::Lpd::DownloadInstance::DownloadAndInstallProfile,task=4,taskId=6
190 54213    None    2020-03-04T08:55:18.1904783    0.0000651    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bPrepareDownload,fsmevent=14,Location=LPA::Lpd::DownloadInstance::OnEs10bPrepareDownloadComplete,task=4,taskId=11
197 54784    None    2020-03-04T08:55:19.5200686    0.0013163    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9BoundProfileDownloaded,fsmevent=15,Location=LPA::Lpd::DownloadInstance::OnEs9BoundProfileDownloaded,task=4,taskId=11
407 257461    None    2020-03-04T08:55:36.3645723    0.0001640    8820    7812    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bLoadBoundProfilePackage,fsmevent=16,Location=LPA::Lpd::DownloadInstance::OnEs10bLoadBoundProfilePackageComplete,task=4,taskId=11
412 258044    None    2020-03-04T08:55:36.6932923    0.3206194    8820    7812    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9HandleNotification,fsmevent=17,Location=LPA::Lpd::DownloadInstance::OnEs9HandleNotification,task=4,taskId=11
416 258628    None    2020-03-04T08:55:37.6234007    0.0000315    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bRemoveNotificationFromListComplete,fsmevent=18,Location=LPA::Lpd::DownloadInstance::OnEs10bRemoveNotificationFromListComplete,task=4,taskId=11
426 258790    None    2020-03-04T08:55:37.6239355    0.0000168    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=4
449 261202    None    2020-03-04T08:55:37.6883598    0.0000121    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=5
509 326884    None    2020-03-04T08:55:45.5722501    0.0000155    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=6
522 329627    None    2020-03-04T08:55:45.8306288    0.0000257    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetUiccInfo1,fsmevent=5,Location=LPA::Lpd::DownloadInstance::OnEs10bGetUiccInfo1Complete,task=2,taskId=27
524 330152    None    2020-03-04T08:55:46.6963292    0.8655163    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9HandleNotification,fsmevent=17,Location=LPA::Lpd::DownloadInstance::OnEs9HandleNotification,task=4,taskId=27
528 330865    None    2020-03-04T08:55:46.7211677    0.0000375    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bRemoveNotificationFromListComplete,fsmevent=18,Location=LPA::Lpd::DownloadInstance::OnEs10bRemoveNotificationFromListComplete,task=4,taskId=27

Falhas de operação de perfil

  1. Coletar e decodificar os logs usando as instruções em MB Coletando logs
  2. Abra o arquivo .txt gerado em TextAnalysisTool
  3. Carregar o filtro de operações de perfil do eSIM

Aqui está o log de sucesso de exemplo para a Operação Habilitar Perfil:

 2 39    None    2020-03-04T09:06:12.6782819        11720    2720    Microsoft_Windows_Cellcore_LPA_Service    RpcEnableProfile: Component=LuiApiServer,esimId=89033023**********************06,hr=0,Location=LuiApiEnableProfile,luicontext=2,profileId=8935401************6,ulTransactionId=5
12 209    None    2020-03-04T09:06:12.6937921    0.0152614    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    OpenChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OpenChannelOperation::Execute
17 1003    None    2020-03-04T09:06:12.7248172    0.0309320    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    ChannelOpened: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationOpenChannelComplete,ulChannel=1
18 1343    None    2020-03-04T09:06:12.7271141    0.0022969    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,20,191,49,17,160,12,90,10,152,83,4,1,0,0,0,0,85,101,129,1,255,0],vCommandApdu.data().Count=26
19 2067    None    2020-03-04T09:06:12.7489842    0.0218701    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,49,3,128,1,0],pApduCompleteInfo->ApduInfo.Response.Count=6
20 2445    None    2020-03-04T09:06:12.7505212    0.0015370    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,16,191,45,13,92,11,90,79,159,112,144,145,146,147,148,149,153,0],vCommandApdu.data().Count=22
23 4341    None    2020-03-04T09:06:12.7651848    0.0000718    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=0
24 6343    None    2020-03-04T09:06:12.7870313    0.0218465    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    WwapiAsyncResponseFailure: Component=LpaApduHelper,hr=-1073479677,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete
27 11067    None    2020-03-04T09:06:13.1843659    0.0000080    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
28 11070    None    2020-03-04T09:06:13.1843928    0.0000269    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    CardResetComplete: Component=LpaServiceEsimManager,count=0,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,hr=0,Location=LPA::EsimManager::ProcessWwapiSimUpdate,midoperation=True,readyState=6
29 13752    None    2020-03-04T09:06:13.2040341    0.0196413    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    OpenChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OpenChannelOperation::Execute
31 17057    None    2020-03-04T09:06:13.2232087    0.0133736    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
33 33469    None    2020-03-04T09:06:13.3307557    0.0000034    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
34 36738    None    2020-03-04T09:06:13.3658938    0.0351381    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    ChannelOpened: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationOpenChannelComplete,ulChannel=1
35 37169    None    2020-03-04T09:06:13.3699437    0.0040499    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,6,191,62,3,92,1,90,0],vCommandApdu.data().Count=12
36 41856    None    2020-03-04T09:06:13.4055017    0.0355580    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,62,18,90,16,137,3,48,35,66,67,32,0,0,0,0,4,86,35,54,6],pApduCompleteInfo->ApduInfo.Response.Count=21
37 42027    None    2020-03-04T09:06:13.4073896    0.0018879    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,60,0,0],vCommandApdu.data().Count=9
38 44071    None    2020-03-04T09:06:13.4249377    0.0175481    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,60,17,129,15,108,112,97,46,100,115,46,103,115,109,97,46,99,111,109],pApduCompleteInfo->ApduInfo.Response.Count=20
39 44341    None    2020-03-04T09:06:13.4353474    0.0104097    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,34,0,0],vCommandApdu.data().Count=9
40 45644    None    2020-03-04T09:06:13.4574746    0.0221272    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,34,129,134,129,3,2,1,0,130,3,2,2,0,131,3,3,2,0,132,15,129,1,0,130,4,0,13,186,0,131,4,0,0,105,233,133,4,5,127,50,224,134,3,9,2,0,135,3,2,3,0,136,2,4,208,169,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,170,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,139,1,2,153,2,6,64,4,3,0,0,2,12,20,71,79,45,80,65,45,48,52,49,57,32,32,32,32,32,32,32,32,32,32],pApduCompleteInfo->ApduInfo.Response.Count=138
41 45763    None    2020-03-04T09:06:13.4628539    0.0053793    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,16,191,45,13,92,11,90,79,159,112,144,145,146,147,148,149,153,0],vCommandApdu.data().Count=22
42 47274    None    2020-03-04T09:06:13.5033394    0.0404855    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,45,130,1,143,160,130,1,139,227,73,90,10,152,16,66,7,0,0,0,0,0,249,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,0,16,0,159,112,1,0,145,9,83,80,71,116,111,69,122,67,120,146,23,69,90,32,67,111,110,110,101,99,116,32,80,114,111,118,105,115,105,111,110,105,110,103,149,1,1,227,78,90,10,152,16,0,0,0,0,0,0,0,6,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,0,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,28,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,77,105,108,101,110,97,103,101,149,1,0,227,76,90,10,152,16,0,0,0,0,0,0,0,135,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,1,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,26,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,88,79,82,32,54,52,149,1,0,227,77,90,10,152,16,0,0,0,0,0,0,0,104,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,2,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,27,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,88,79,82,32,49,50,56,149,1,0,227,81,90,10,152,83,4,1,0,0,0,0,85,101,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,0,17,0,159,112,1,1,145,4,101,67,84,67,146,36,101,67,84,67,32,80,114,111,102,105,108,101,32,102,111,114,32,68,117,109,109,121,32,83,117,98,115,99,114,105,112,116,105,111,110,115,149,1,2],pApduCompleteInfo->ApduInfo.Response.Count=404
57 47329    None    2020-03-04T09:06:13.5038992    0.0000179    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=5
58 47419    None    2020-03-04T09:06:13.5057078    0.0018086    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,43,0,0],vCommandApdu.data().Count=9
74 50078    None    2020-03-04T09:06:13.7457319    0.2395537    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,43,130,5,15,160,130,5,11,48,130,5,7,191,47,63,128,1,53,129,2,6,64,12,42,101,99,116,99,45,108,105,118,101,108,97,98,46,112,114,111,100,46,111,110,100,101,109,97,110,100,99,111,110,110,101,99,116,105,118,105,116,121,46,99,111,109,90,10,152,83,4,1,0,0,0,0,85,101,95,55,64,42,56,96,255,201,144,175,106,113,19,175,113,18,210,3,109,79,148,57,237,59,174,37,216,33,105,134,155,220,172,95,224,174,24,219,51,85,61,97,207,2,255,147,95,163,16,82,210,218,197,4,207,189,214,187,212,199,133,250,29,52,5,42,72,48,130,1,221,48,130,1,132,160,3,2,1,2,2,17,0,128,80,86,187,39,45,44,80,66,120,232,145,219,50,27,96,48,10,6,8,42,134,72,206,61,4,3,2,48,50,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,27,48,25,6,3,85,4,3,12,18,71,69,77,65,76,84,79,32,69,85,77,32,67,69,32,80,65,85,48,32,23,13,49,57,48,51,50,53,48,48,48,48,48,48,90,24,15,57,57,57,57,49,50,51,49,50,51,53,57,53,57,90,48,64,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,41,48,39,6,3,85,4,5,19,32,56,57,48,51,51,48,50,51,52,50,52,51,50,48,48,48,48,48,48,48,48,48,48,52,53,54,50,51,51,54,48,54,48,89,48,19,6,7,42,134,72,206,61,2,1,6,8,42,134,72,206,61,3,1,7,3,66,0,4,220,59,239,236,155,254,120,18,18,152,140,158,193,12,233,47,93,241,4,164,84,133,39,169,12,11,226,18,112,94,39,144,174,227,237,242,37,73,25,64,210,4,184,60,17,114,103,226,235,246,229,229,226,54,4,208,245,174,180,198,239,7,98,176,163,107,48,105,48,31,6,3,85,29,35,4,24,48,22,128,20,220,222,26,105,31,233,175,117,221,161,187,146,153,49,139,41,177,212,22,178,48,29,6,3,85,29,14,4,22,4,20,200,220,224,111,237,248,116,35,250,198,112,246,190,164,149,129,214,2,198,159,48,14,6,3,85,29,15,1,1,255,4,4,3,2,0,128,48,23,6,3,85,29,32,1,1,255,4,13,48,11,48,9,6,7,103,129,18,1,2,1,1,48,10,6,8,42,134,72,206,61,4,3,2,3,71,0,48,68,2,32,63,48,8,73,147,118,41,144,127,5,77,200,133,217,208,20,34,133,6,19,182,144,58,15,70,229,67,72,111,167,73,240,2,32,37,234,11,51,98,141,182,118,16,21,38,167,115,14,72,111,47,143,45,213,157,184,236,156,11,34,63,177,207,73,42,251,48,130,2,157,48,130,2,67,160,3,2,1,2,2,16,38,116,211,243,157,55,39,121,8,126,27,89,53,236,251,82,48,10,6,8,42,134,72,206,61,4,3,2,48,68,49,24,48,22,6,3,85,4,10,19,15,71,83,77,32,65,115,115,111,99,105,97,116,105,111,110,49,40,48,38,6,3,85,4,3,19,31,71,83,77,32,65,115,115,111,99,105,97,116,105,111,110,32,45,32,82,83,80,50,32,82,111,111,116,32,67,73,49,48,30,23,13,49,55,48,53,50,53,48,48,48,48,48,48,90,23,13,52,55,48,53,50,52,50,51,53,57,53,57,90,48,50,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,27,48,25,6,3,85,4,3,12,18,71,69,77,65,76,84,79,32,69,85,77,32,67,69,32,80,65,85,48,89,48,19,6,7,42,134,72,206,61,2,1,6,8,42,134,72,206,61,3,1,7,3,66,0,4,178,83,182,218,149,17,229,225,138,112,30,182,68,55,158,224,64,192,174,31,121,186,38,129,24,66,117,75,251,252,97,44,56,126,103,229,223,178,243,184,125,24,62,148,245,200,21,56,225,114,221,60,21,125,154,123,136,205,30,47,187,198,82,182,163,130,1,39,48,130,1,35,48,18,6,3,85,29,19,1,1,255,4,8,48,6,1,1,255,2,1,0,48,23,6,3,85,29,32,1,1,255,4,13,48,11,48,9,6,7,103,129,18,1,2,1,2,48,77,6,3,85,29,31,4,70,48,68,48,66,160,64,160,62,134,60,104,116,116,112,58,47,47,103,115,109,97,45,99,114,108,46,115,121,109,97,117,116,104,46,99,111,109,47,111,102,102,108,105,110,101,99,97,47,103,115,109,97,45,114,115,112,50,45,114,111,111,116,45,99,105,49,46,99,114,108,48,14,6,3,85,29,15,1,1,255,4,4,3,2,1,6,48,60,6,3,85,29,30,1,1,255,4,50,48,48,160,46,48,44,164,42,48,40,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,17,48,15,6,3,85,4,5,19,8,56,57,48,51,51,48,50,51,48,23,6,3,85,29,17,4,16,48,14,136,12,43,6,1,4,1,129,248,2,135,106,4,3,48,29,6,3,85,29,14,4,22,4,20,220,222,26,105,31,233,175,117,221,161,187,146,153,49,139,41,177,212,22,178,48,31,6,3,85,29,35,4,24,48,22,128,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,48,10,6,8,42,134,72,206,61,4,3,2,3,72,0,48,69,2,32,66,41,14,233,224,150,13,19,243,91,225,69,204,238,251,34,51,242,209,112,206,71,158,159,79,106,47,210,84,210,156,187,2,33,0,205,238,69,205,202,163,47,35,70,41,24,250,125,165,233,16,22,196,115,13,165,10,153,178,254,108,220,88,138,37,17,163],pApduCompleteInfo->ApduInfo.Response.Count=1300
76 50290    None    2020-03-04T09:06:13.7503562    0.0032197    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,32,0,0],vCommandApdu.data().Count=9
77 51346    None    2020-03-04T09:06:13.7754287    0.0250725    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,32,53,130,3,2,2,0,169,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,170,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251],pApduCompleteInfo->ApduInfo.Response.Count=56
82 51796    None    2020-03-04T09:06:14.9911183    0.0020754    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,6,191,48,3,128,1,53,0],vCommandApdu.data().Count=12
83 52474    None    2020-03-04T09:06:15.0374406    0.0463223    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,48,3,128,1,0],pApduCompleteInfo->ApduInfo.Response.Count=6
86 52736    None    2020-03-04T09:06:15.0451263    0.0076479    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,43,0,0],vCommandApdu.data().Count=9
87 53507    None    2020-03-04T09:06:15.0622867    0.0171604    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,43,2,160,0],pApduCompleteInfo->ApduInfo.Response.Count=5
90 54169    None    2020-03-04T09:06:45.0792254    0.0166565    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    CloseChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::CloseChannelOperation::Execute,ulChannel=1
91 54435    None    2020-03-04T09:06:45.0965610    0.0173356    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    ChannelClosed: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationCloseChannelComplete
