Enable Azure Monitor on your Azure Stack Edge Pro GPU device

  • Articol

APPLIES TO: Yes for Pro GPU SKUAzure Stack Edge Pro - GPUYes for Pro 2 SKUAzure Stack Edge Pro 2Yes for Pro R SKUAzure Stack Edge Pro RYes for Mini R SKUAzure Stack Edge Mini R

Monitoring containers on your Azure Stack Edge Pro GPU device is critical, specially when you are running multiple compute applications. Azure Monitor lets you collect container logs and memory and processor metrics from the Kubernetes cluster running on your device.

This article describes the steps required to enable Azure Monitor on your device and gather container logs in Log Analytics workspace. The Azure Monitor metrics store is currently not supported with your Azure Stack Edge Pro GPU device.

Note

If Azure Arc is enabled on the Kubernetes cluster on your device, follow the steps in Azure Monitor Container Insights for Azure Arc-enabled Kubernetes clusters to set up container monitoring.

Prerequisites

Before you begin, you'll need:

Create Log Analytics workspace

Take the following steps to create a log analytics workspace. A log analytics workspace is a logical storage unit where the log data is collected and stored.

  1. In the Azure portal, select + Create a resource and search for Log Analytics Workspace and then select Create.

  2. In the Create Log Analytics workspace, configure the following settings. Accept the remainder as default.

    1. On the Basics tab, provide the subscription, resource group, name, and region for the workspace.

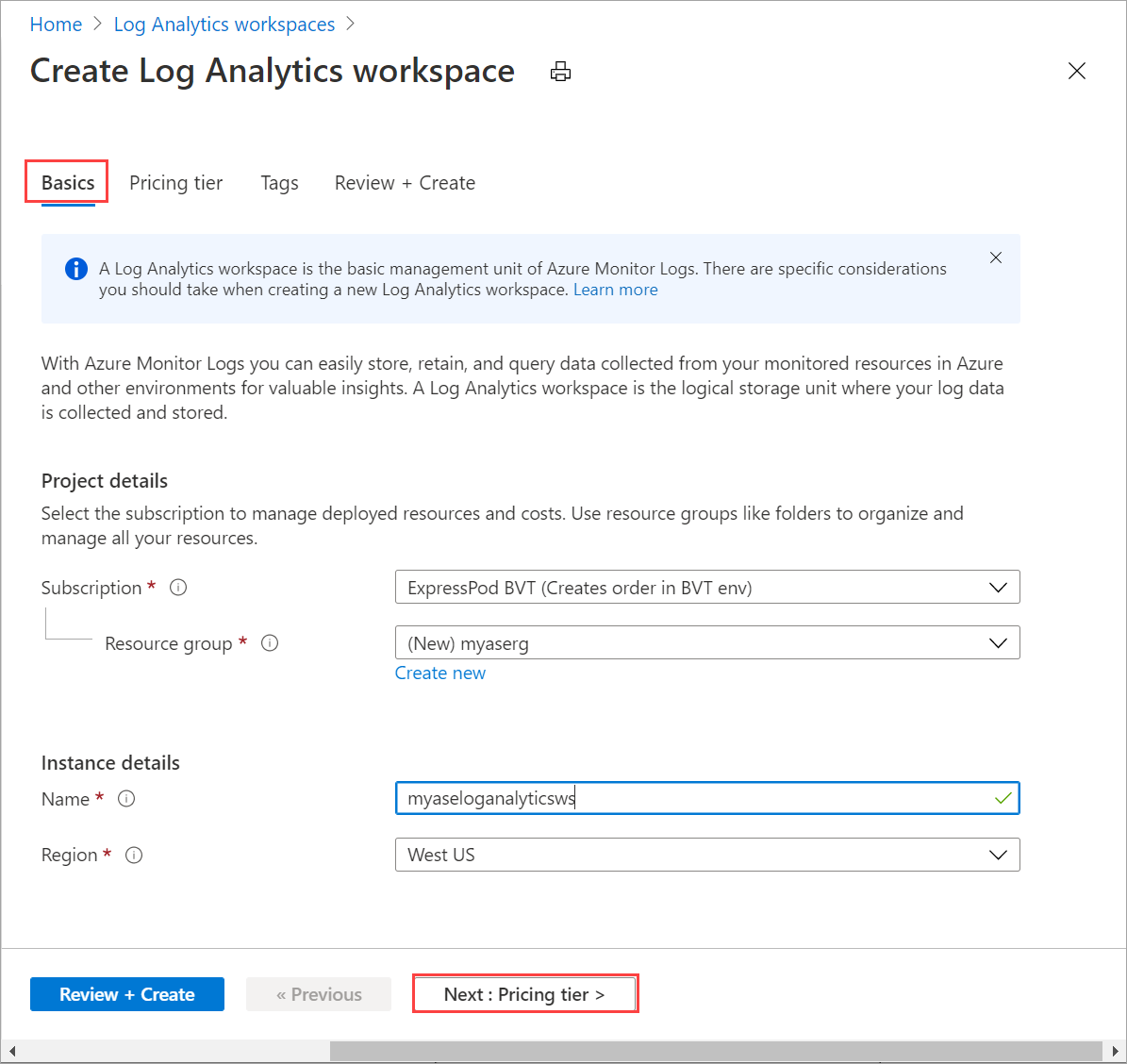

      Basics tab for Log Analytics workspace

    2. On the Pricing tier tab, accept the default Pay-as-you-go plan.

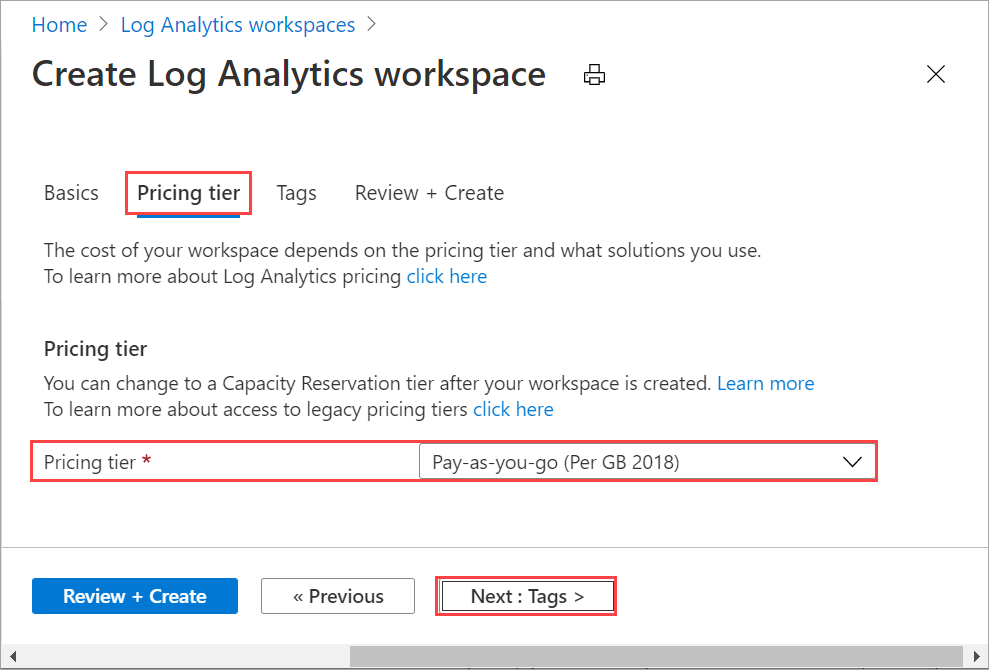

      Pricing tab for Log Analytics workspace

    3. On the Review + Create tab, review the information for your workspace and select Create.

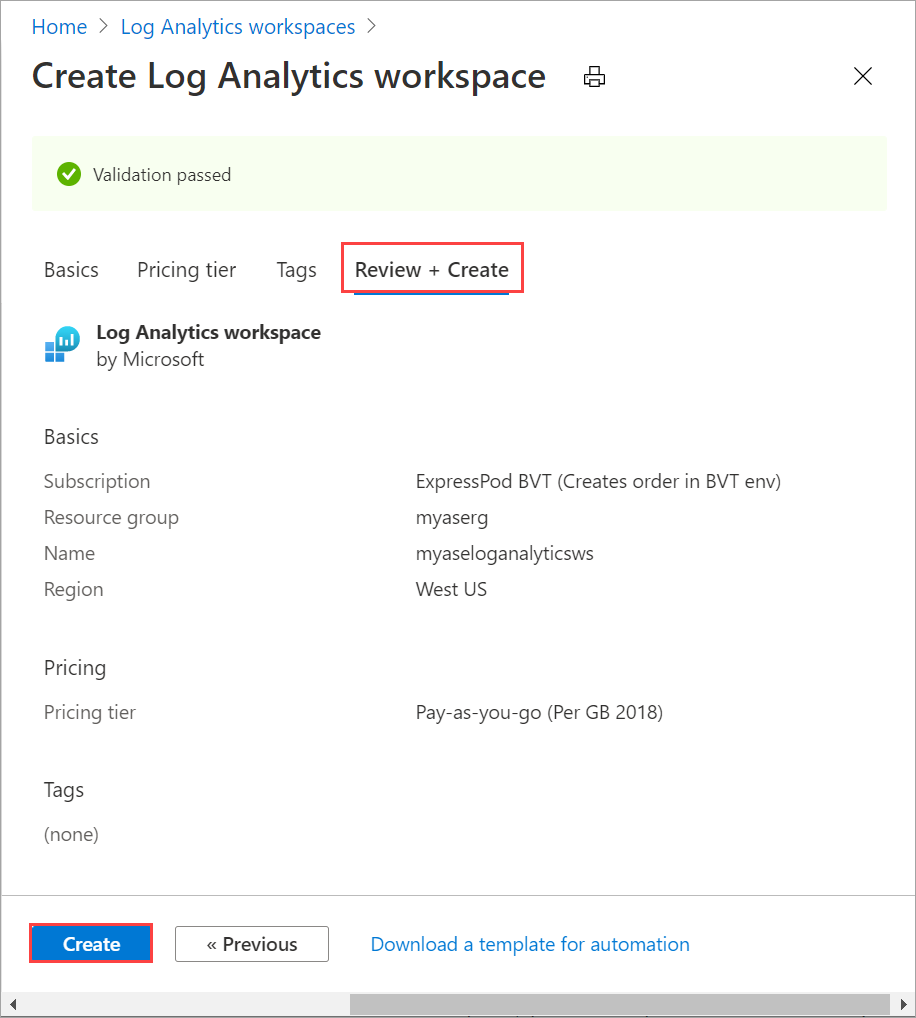

      Review + Create for Log Analytics workspace

For more information, see the detailed steps in Create a Log Analytics workspace via Azure portal.

Enable container insights

Take the following steps to enable Container Insights on your workspace.

  1. Follow the detailed steps in Add the Azure Monitor Containers solution. Use the following template file containerSolution.json:

    {
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {
    "workspaceResourceId": {
        "type": "string",
        "metadata": {
            "description": "Azure Monitor Log Analytics Workspace Resource ID"
        }
    },
    "workspaceRegion": {
        "type": "string",
        "metadata": {
            "description": "Azure Monitor Log Analytics Workspace region"
        }
    }
},
"resources": [
    {
        "type": "Microsoft.Resources/deployments",
        "name": "[Concat('ContainerInsights', '-',  uniqueString(parameters('workspaceResourceId')))]",
        "apiVersion": "2017-05-10",
        "subscriptionId": "[split(parameters('workspaceResourceId'),'/')[2]]",
        "resourceGroup": "[split(parameters('workspaceResourceId'),'/')[4]]",
        "properties": {
            "mode": "Incremental",
            "template": {
                "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
                "contentVersion": "1.0.0.0",
                "parameters": {},
                "variables": {},
                "resources": [
                    {
                        "apiVersion": "2015-11-01-preview",
                        "type": "Microsoft.OperationsManagement/solutions",
                        "location": "[parameters('workspaceRegion')]",
                        "name": "[Concat('ContainerInsights', '(', split(parameters('workspaceResourceId'),'/')[8], ')')]",
                        "properties": {
                            "workspaceResourceId": "[parameters('workspaceResourceId')]"
                        },
                        "plan": {
                            "name": "[Concat('ContainerInsights', '(', split(parameters('workspaceResourceId'),'/')[8], ')')]",
                            "product": "[Concat('OMSGallery/', 'ContainerInsights')]",
                            "promotionCode": "",
                            "publisher": "Microsoft"
                        }
                    }
                ]
            },
            "parameters": {}
        }
        }
    ]
}

  2. Get the resource ID and location. Go to Your Log Analytics workspace > General > Properties. Copy the following information:

    • resource ID, which is the fully qualified Azure resource ID of the Azure Log Analytics workspace.
    • location, which is the Azure region.

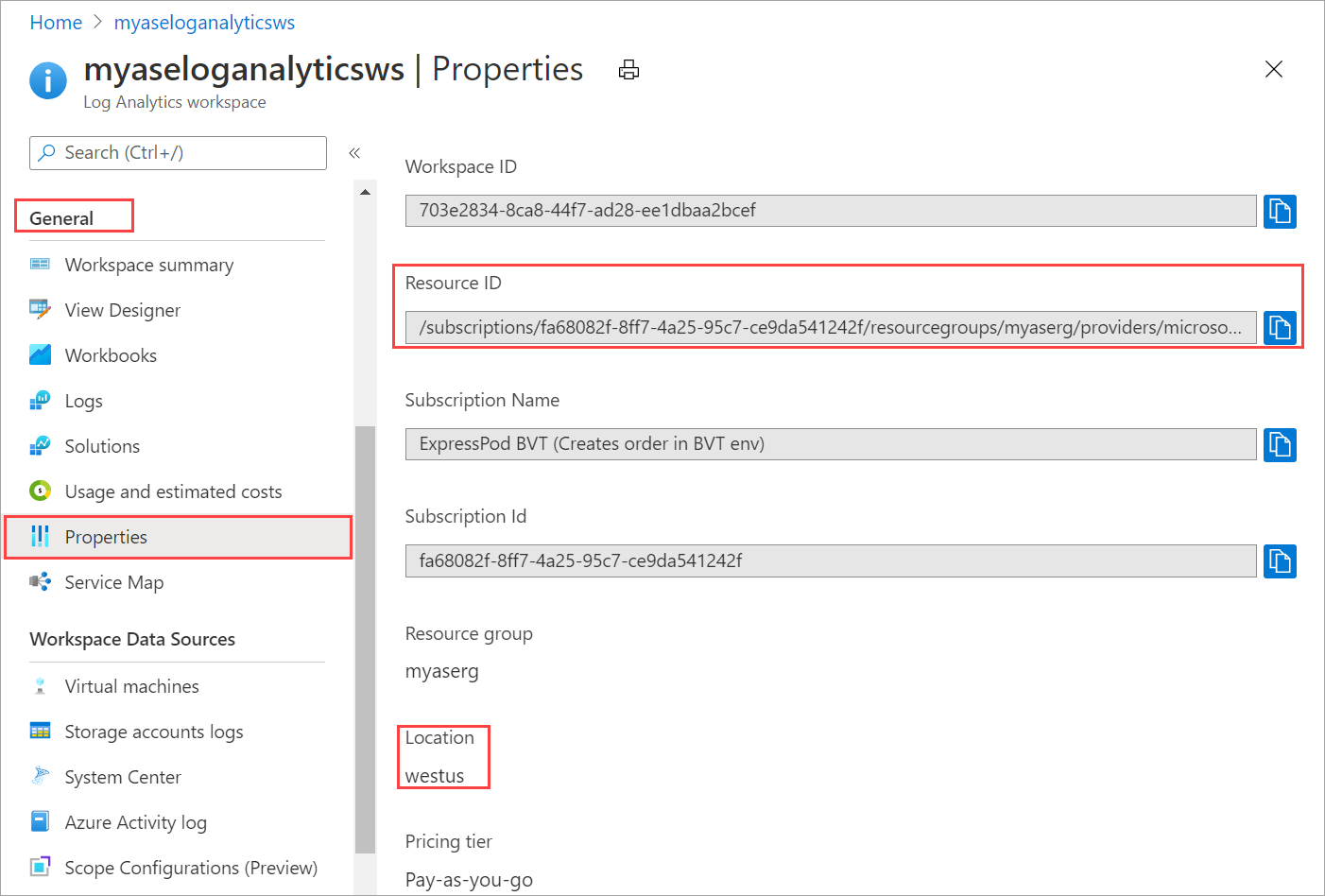

    Properties of Log Analytics workspace

  3. Use the following parameters file containerSolutionParams.json. Replace workspaceResourceId with the resource ID and workspaceRegion with the location copied in the earlier step.

    {
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentParameters.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
    "workspaceResourceId": {
        "value": "/subscriptions/fa68082f-8ff7-4a25-95c7-ce9da541242f/resourcegroups/myaserg/providers/microsoft.operationalinsights/workspaces/myaseloganalyticsws"
    },
    "workspaceRegion": {
    "value": "westus"
    }
    }
}

    Here is a sample output of a Log Analytics workspace with Container Insights enabled:

    Requesting a Cloud Shell.Succeeded.
Connecting terminal...
MOTD: Switch to Bash from PowerShell: bash
VERBOSE: Authenticating to Azure ...
VERBOSE: Building your Azure drive ...

PS /home/myaccount> az account set -s fa68082f-8ff7-4a25-95c7-ce9da541242f
PS /home/myaccount> ls
clouddrive  containerSolution.json
PS /home/myaccount> ls
clouddrive  containerSolution.json  containerSolutionParams.json
PS /home/myaccount> az deployment group create --resource-group myaserg --name Testdeployment1 --template-file containerSolution.json --parameters containerSolutionParams.json
{- Finished ..
    "id": "/subscriptions/fa68082f-8ff7-4a25-95c7-ce9da541242f/resourceGroups/myaserg/providers/Microsoft.Resources/deployments/Testdeployment1",
    "location": null,
    "name": "Testdeployment1",
    "properties": {
    "correlationId": "3a9045fe-2de0-428c-b17b-057508a8c575",
    "debugSetting": null,
    "dependencies": [],
    "duration": "PT11.1588316S",
    "error": null,
    "mode": "Incremental",
    "onErrorDeployment": null,
    "outputResources": [
        {
        "id": "/subscriptions/fa68082f-8ff7-4a25-95c7-ce9da541242f/resourceGroups/myaserg/providers/Microsoft.OperationsManagement/solutions/ContainerInsights(myaseloganalyticsws)",
        "resourceGroup": "myaserg"
        }
    ],
    "outputs": null,
    "parameters": {
        "workspaceRegion": {
        "type": "String",
        "value": "westus"
        },
        "workspaceResourceId": {
        "type": "String",
        "value": "/subscriptions/fa68082f-8ff7-4a25-95c7-ce9da541242f/resourcegroups/myaserg/providers/microsoft.operationalinsights/workspaces/myaseloganalyticsws"
        }
    },
    "parametersLink": null,
    "providers": [
        {
        "id": null,
        "namespace": "Microsoft.Resources",
        "registrationPolicy": null,
        "registrationState": null,
        "resourceTypes": [
            {
            "aliases": null,
            "apiProfiles": null,
            "apiVersions": null,
            "capabilities": null,
            "defaultApiVersion": null,
            "locations": [
                null
            ],
            "properties": null,
            "resourceType": "deployments"
            }
        ]
        }
    ],
    "provisioningState": "Succeeded",
    "templateHash": "10500027184662969395",
    "templateLink": null,
    "timestamp": "2020-11-06T22:09:56.908983+00:00",
    "validatedResources": null
    },
    "resourceGroup": "myaserg",
    "tags": null,
    "type": "Microsoft.Resources/deployments"
}
PS /home/myaccount>

Configure Azure Monitor on your device

  1. Go to the newly created Log Analytics Resource and copy the Workspace ID and Primary key (workspace key).

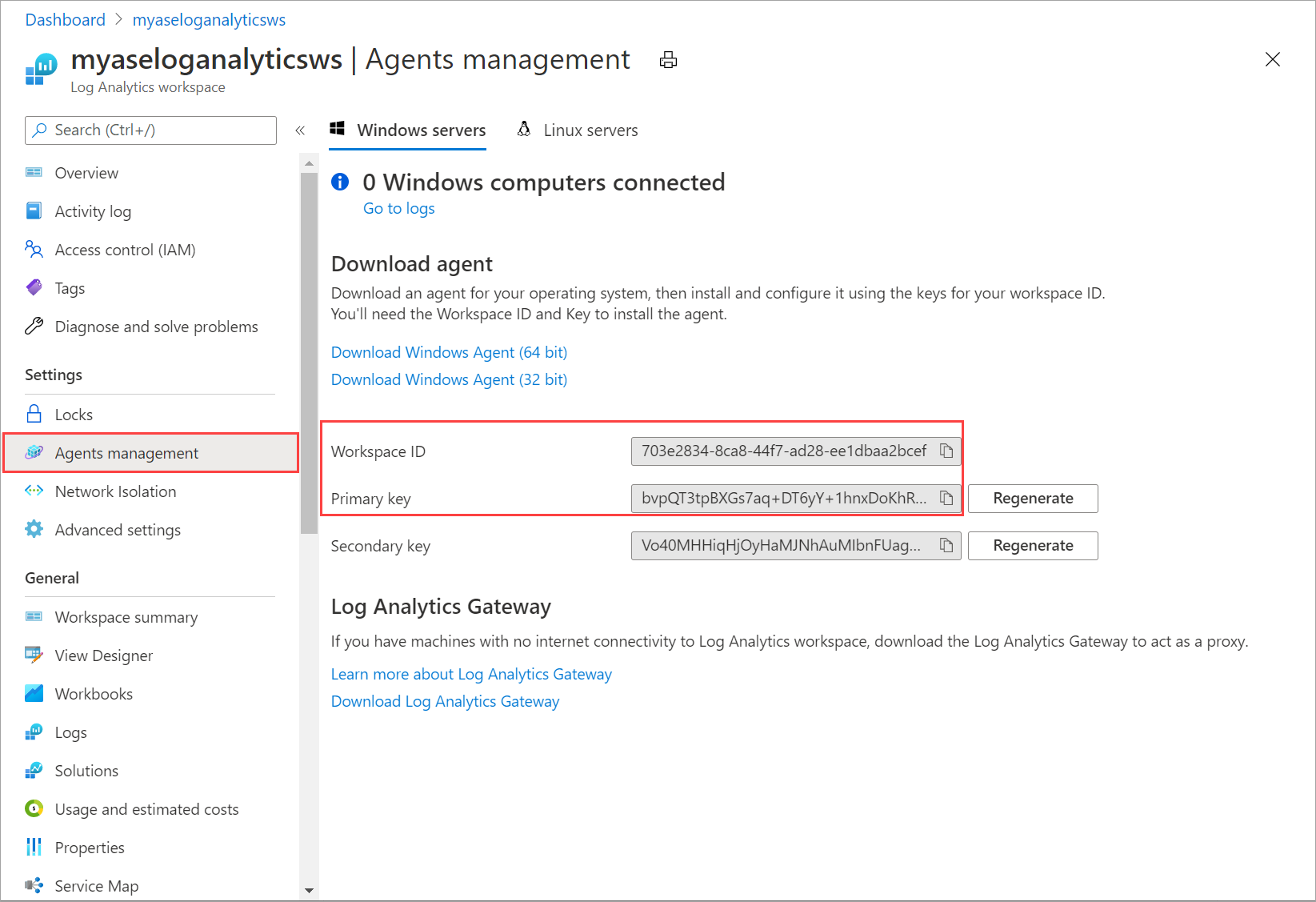

    Agents management in Log Analytics workspace

    Save this information as you will use it in a later step.

  2. Connect to the PowerShell interface of the device.

  3. Use the log analytics Workspace ID and Workspace key with the following cmdlet:

    Set-HcsKubernetesAzureMonitorConfiguration -WorkspaceId <> -WorkspaceKey <>

    Note

    By default, this cmdlet configures the Azure public cloud. To configure a government cloud or non-public cloud, use the parameter AzureCloudDomainName.

  4. After the Azure Monitor is enabled, you should see logs in the Log Analytics workspace. To view the status of the Kubernetes cluster deployed on your device, go to Azure Monitor > Insights > Containers. For the environment option, select All.

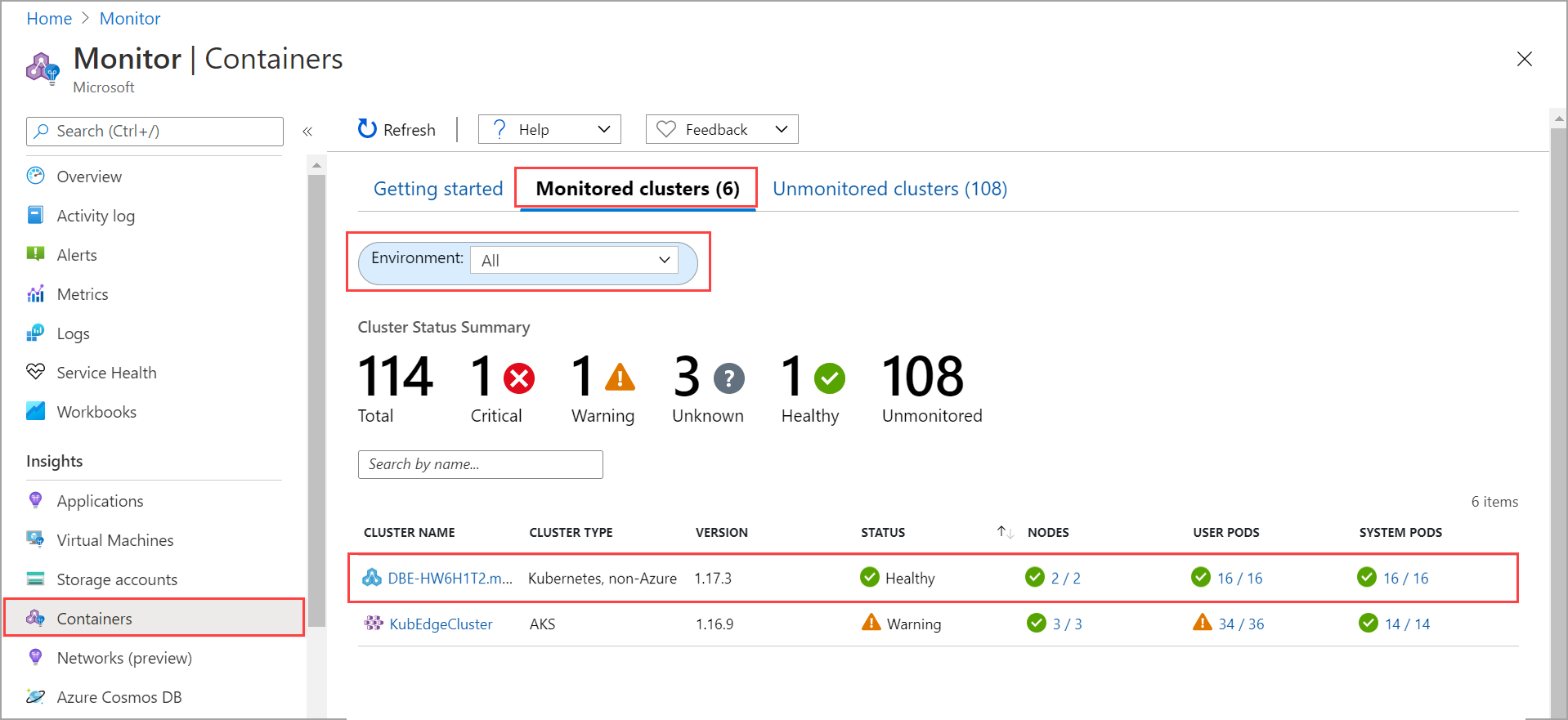

    Metrics in Log Analytics workspace
