PenLineJoin Enum
Definition
Important
Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.
Describes the shape that joins two lines or segments.
public enum class PenLineJoinpublic enum PenLineJointype PenLineJoin = Public Enum PenLineJoin- Inheritance
Fields
| Name | Value | Description |
|---|---|---|
| Miter | 0 | Regular angular vertices. |
| Bevel | 1 | Beveled vertices. |
| Round | 2 | Rounded vertices. |
Examples
The following example shows several different joints used at the vertices of a shape.
<Canvas Height="400" Width="400">
<Polyline
Points="10,110 60,10 110,110"
Stroke="Black"
StrokeThickness="4" />
<Polyline
Points="10,110 110,110 110,10"
Stroke="Black"
StrokeThickness="4"
Canvas.Left="150" />
</Canvas>

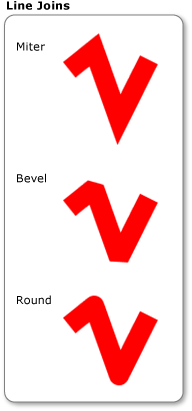

The following illustration shows the different line joins.
