Analyze memory usage by using the .NET Object Allocation tool

You can see how much memory your app uses and what code paths allocate the most memory by using the .NET Object Allocation tool.

After running the tool, you can see the function execution paths where objects are being allocated. You can then trace back to the root of the call tree that is taking up the most memory.

For a tutorial that shows how to improve performance using the .NET Object Allocation tool, see Case study: Beginner's guide to optimizing code.

Setup

1. Select Alt+F2 to open the Performance Profiler in Visual Studio.

2. Select the .NET Object Allocation Tracking check box.



3. Select the Start button to run the tool.

   If you enable the Start with collection paused option before starting the profiler, data will not be collected until you select the Record button in the diagnostic session view.

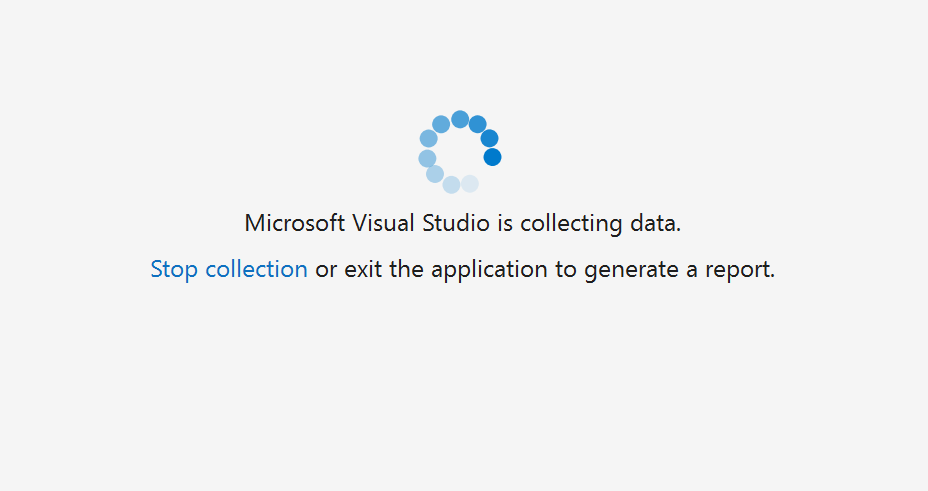

4. After the tool starts running, go through the scenario you want to profile in your app. Then select Stop collection or close your app to see your data.

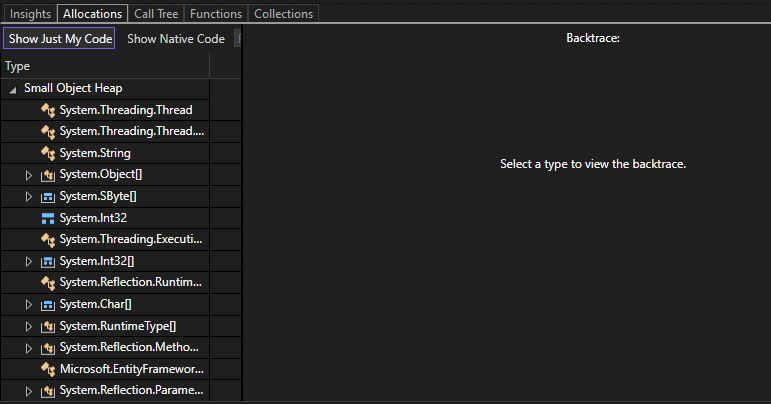

5. Select the Allocation tab. Memory allocation data similar to the following appears.



You can now analyze the memory allocation of the objects.

During collection, the tracking tool can slow down the profiled app. If performance of the tracking tool or the app is slow, and if you don't need to track every object, you can adjust the sampling rate. To do so, select the gear symbol next to the tracking tool in the profiler summary page.

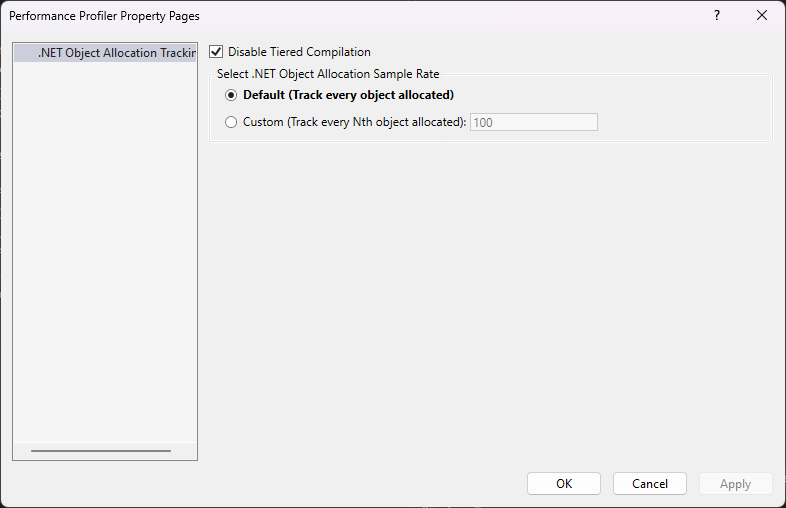

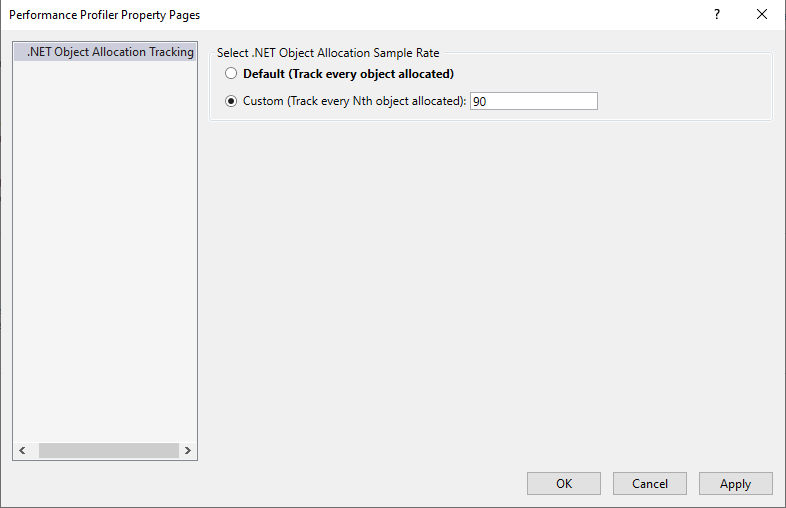

Adjust the sampling rate to the rate you want. This change helps speed up performance of your app during collection and analysis.

For more information on how to make the tool more efficient, see Optimizing Profiler settings.

Understand your data

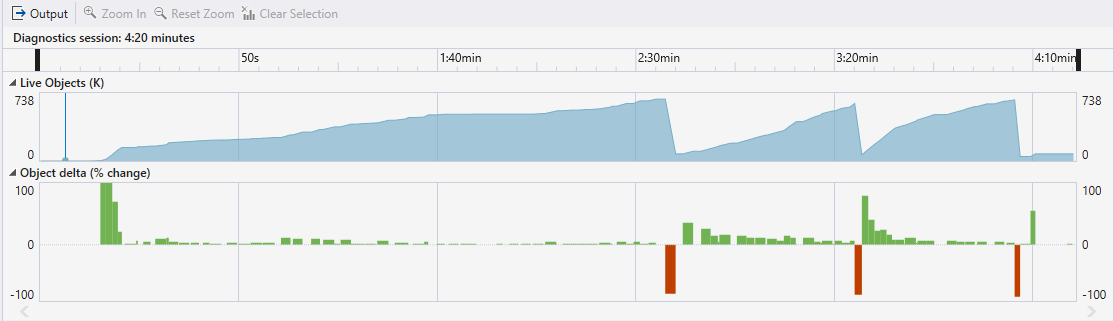

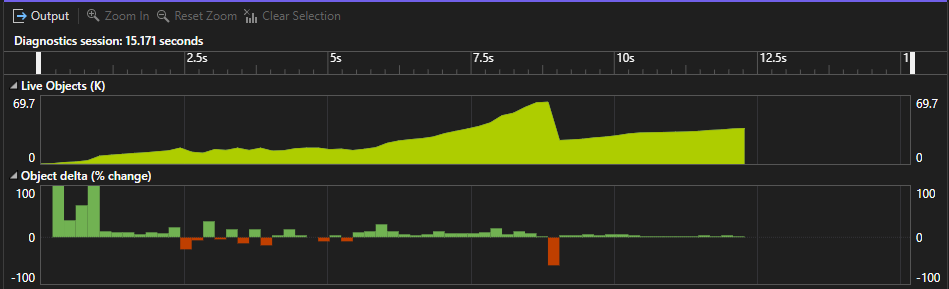

In the following graphical view, the top graph shows the number of live objects in your app. The bottom Object delta graph shows the percentage change of app objects. Red bars denote when garbage collection took place.

You can filter the tabular data to display activity for only a specified time range by selecting a time range. When you do this, the information that appears in the tabs is scoped to the filtered time range.

You can also zoom into or out of the graph.

Allocation

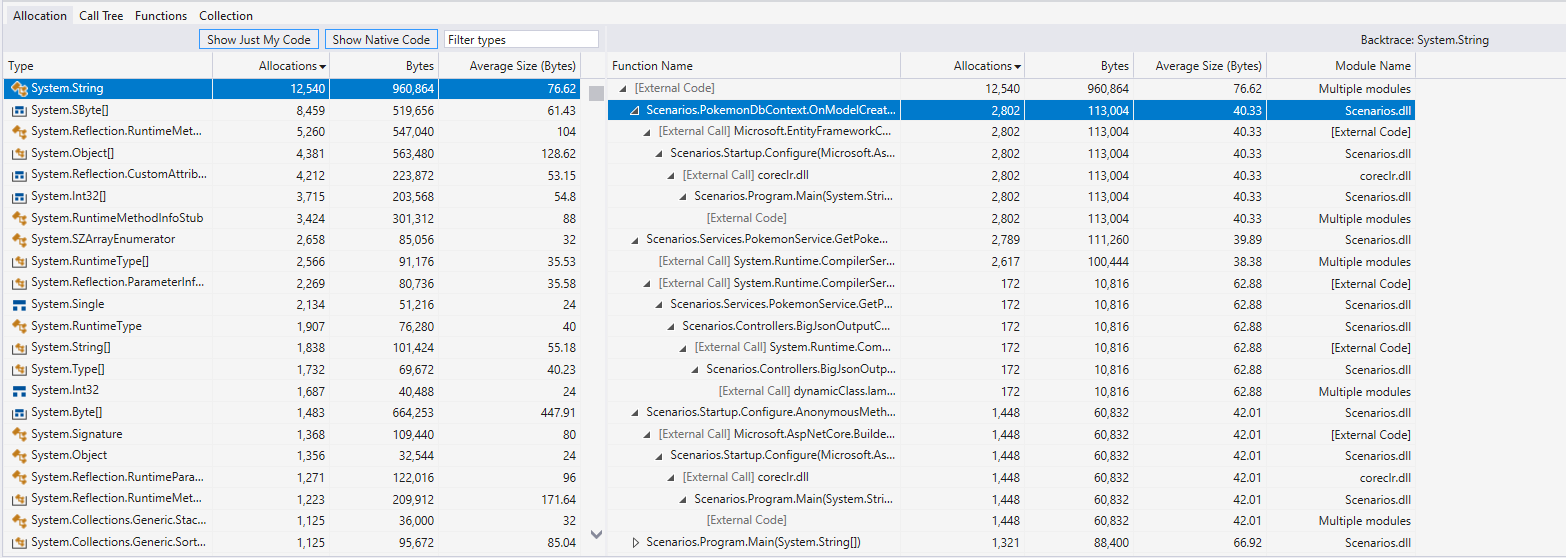

The Allocation view shows the location of objects that are allocating memory and how much memory those objects are allocating.

The following information appears in the Allocation view:

• The Type column is a list of classes and structures that take up memory. Double-click a type to view its backtrace as an inverted call tree. In the Allocation view only, you can see items within the selected category that take up memory.

• The Allocations column shows the number of objects that take up memory within a particular allocation type or function. This column appears only in the Allocation, Call Tree, and Functions views.

• The Bytes and Average Size (Bytes) columns don't appear by default. To show them, right-click the Type or Allocations column, and then select the Bytes and Average Size (Bytes) options to add them to the chart.

  The two columns are similar to Total (Allocations) and Self (Allocations), except they show the amount of memory taken up instead of the number of objects taking up memory. These columns appear only in the Allocation view.

• The Module name column shows the module that contains the function or process that is calling.

All of these columns are sortable. For the Type and Module Name columns, you can sort items alphabetically in either ascending or descending order. For Allocations, Bytes and Average Size (Bytes), you can sort items by increasing or decreasing numeric value.

Symbols

The following symbols appear in the Allocation, Call Tree, and Functions tabs:

• - A value type like integer

• - A value-type collection like array of integers

• - A reference type like string

• - A reference-type collection like array of strings

Call Tree

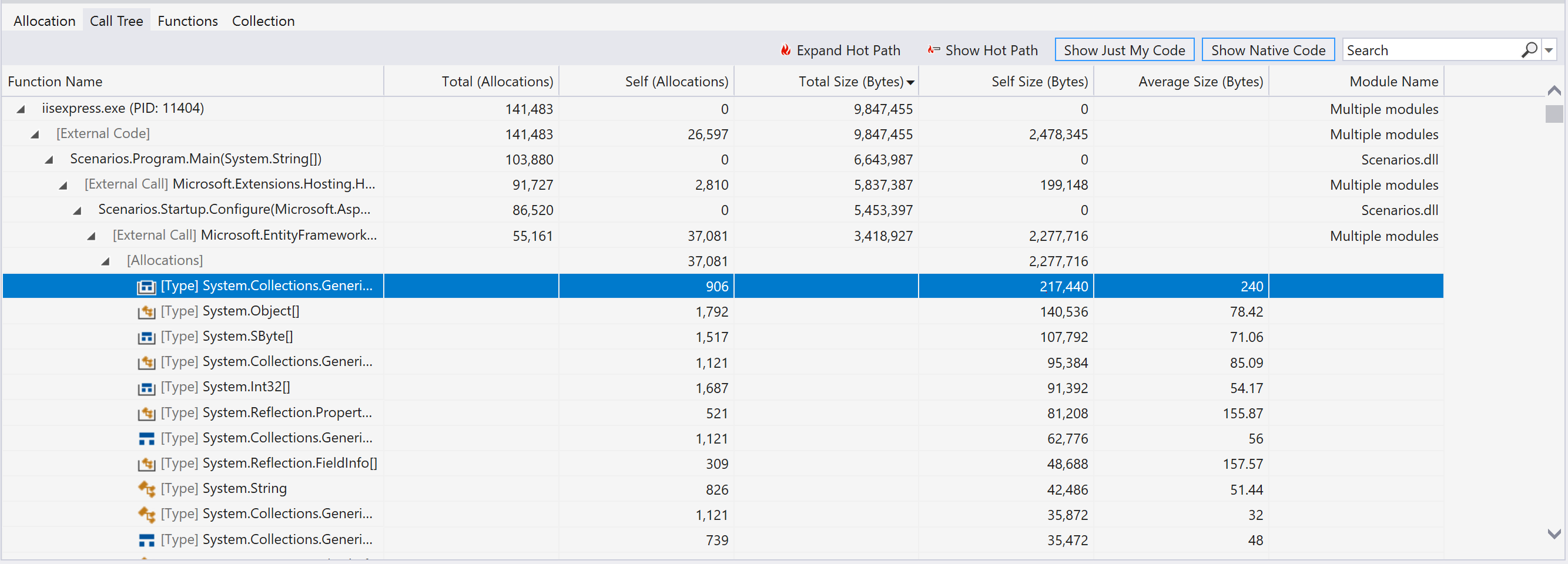

The Call Tree view shows the function execution paths that contain objects allocating much memory.

The following information appears in the Call Tree view:

• The Function Name column shows the process or name of the function containing objects that allocate memory. The display is based on the level of the node you're inspecting.
• The Total (Allocations) and Total Size (Bytes) columns show the number of allocated objects and the amount of memory that is used by a function and all other functions it calls. The Total Size (Bytes) column is hidden by default.
• The Self (Allocations) and Self-Size (Bytes) columns show the number of allocated objects and the amount of memory that is used by a single selected function or allocation type.
• The Average Size (Bytes) column shows the same information as it does in the Allocations view. This column is hidden by default.
• The Module name column shows the module that contains the function or process that is calling.

Additional options that appear in the Call Tree view include:

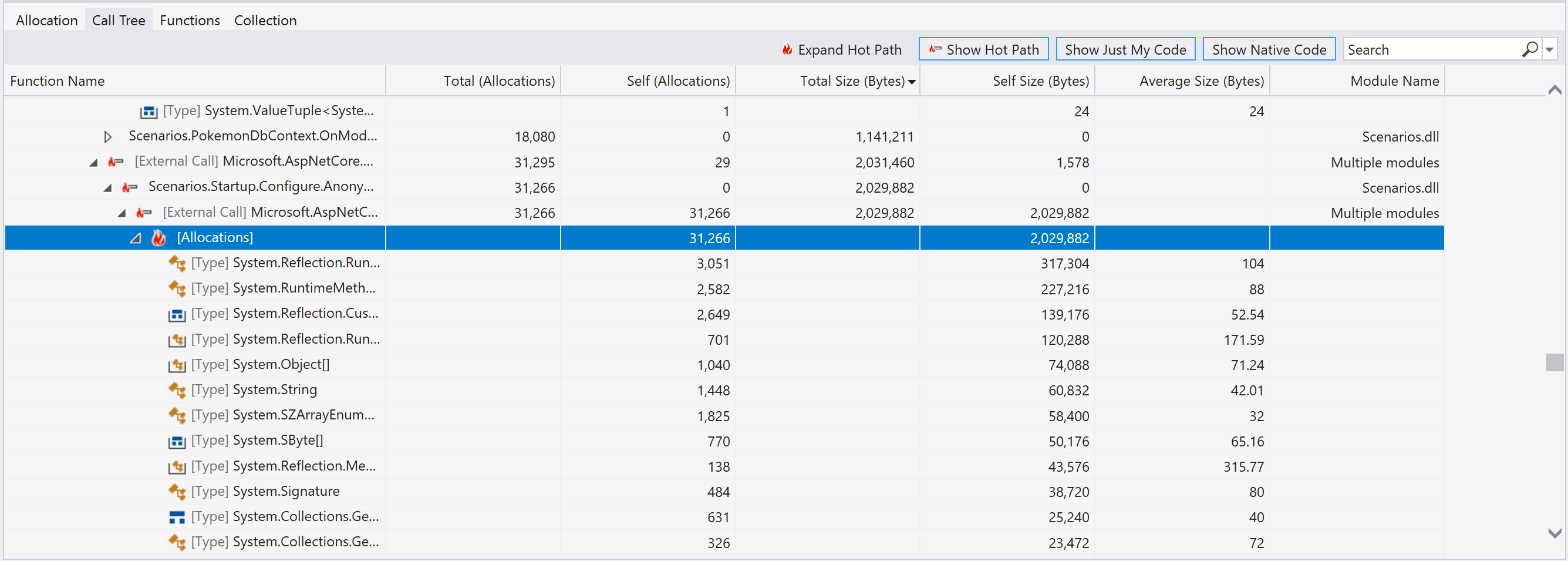

• The Expand Hot Path button highlights a function execution pathway that contains many objects that are allocating memory. The algorithm starts at a node you select and highlights the path of the most allocations, guiding you in your investigation.
• The Show Hot Path button shows or hides the flame symbols that indicate which nodes are part of the hot path.

Functions

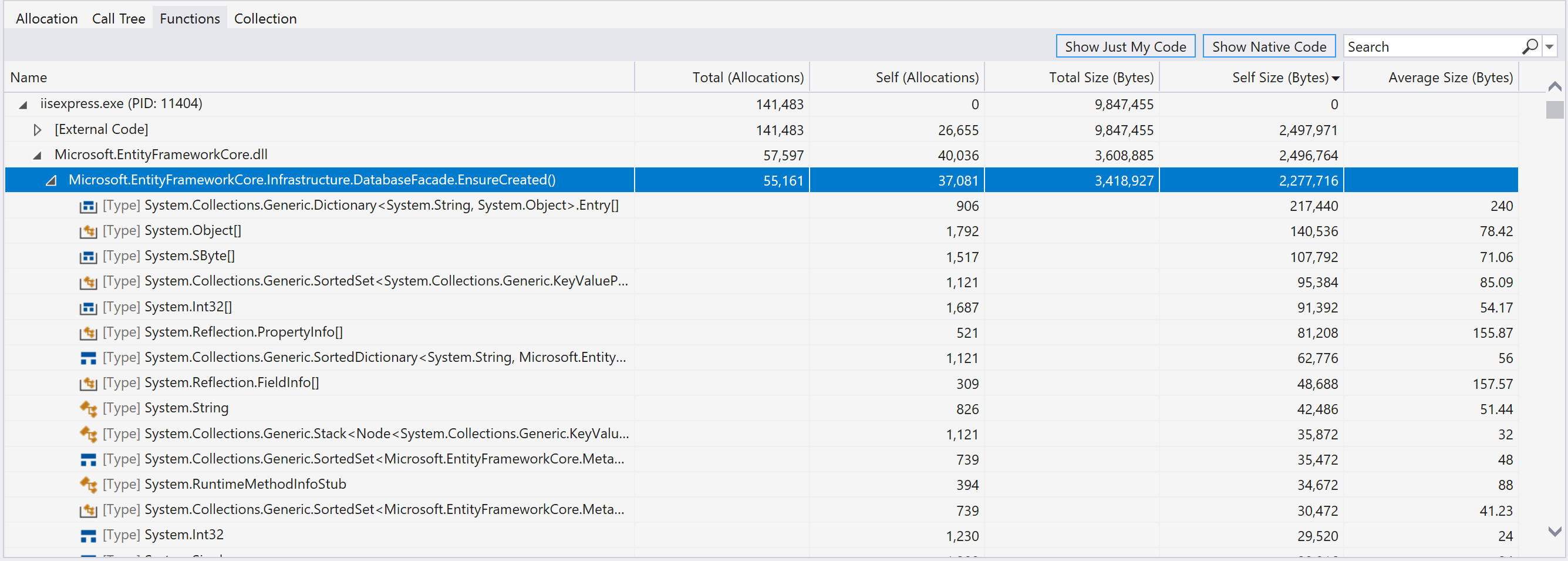

The Functions view shows processes, modules, and functions that are allocating memory.

Information that appears in the Functions view includes:

• The Name column shows processes as the highest-level nodes. Underneath processes are modules, and underneath modules are functions.

• The following columns, which show the same information as they do in the Allocation and Call tree views:

  • Total (Allocations)
  • Self (Allocations)
  • Total Size (Bytes)
  • Self Size (Bytes)
  • Average Size (Bytes)

Collection

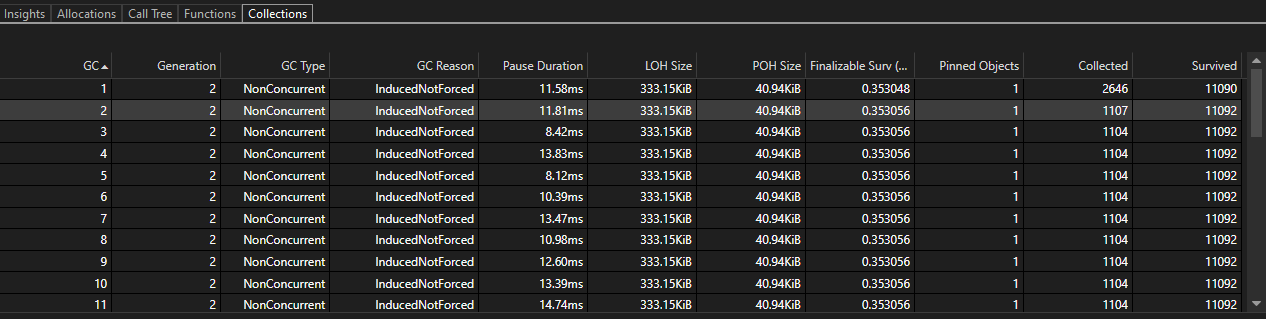

The Collection view shows how many objects were collected or retained during garbage collection.

The following information appears in the Collection view.

• The GC column shows the ID of this garbage collection in the executable's lifecycle.
• The Generation column shows the Generation of the garbage collection.
• The GC Type column shows the type of this garbage collection.
• The GC Reason column shows the reason for this garbage collection event.
• The Pause Duration column shows the time that execution was blocked because the garbage collector needs exclusive use of the heap. For a background garbage collection, this value is small.
• The LOH Size column shows the size of the Large Object Heap after the garbage collector was run.
• The POH Size column shows the size of the Pinned Object Heap after the garbage collector was run.
• The Finalizable Surv (MB) column shows the number of MB of objects that have finalizers (destructors) that survived the garbage collection.
• The Pinned Objects column shows the number of pinned objects this garbage collection promoted.
• The Collected column shows the number of objects that the garbage collector collected.
• The Survived column shows the number of objects that survived after the garbage collector was run.

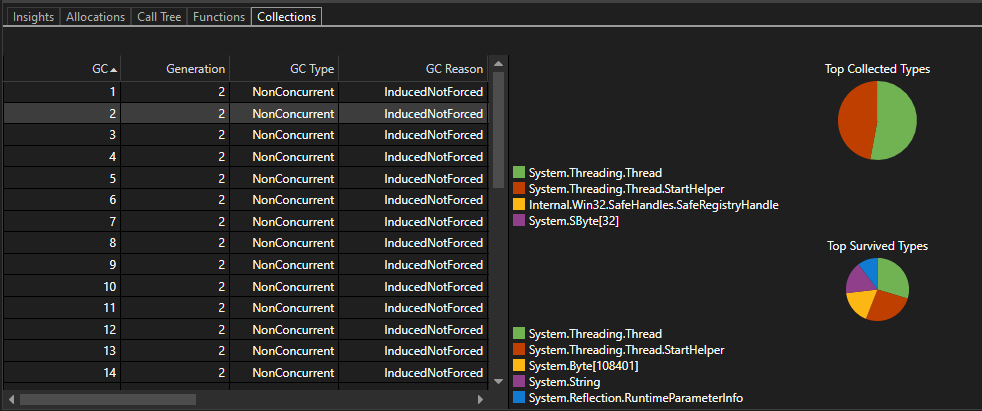

When you select a row, this view also shows pie charts to visualize collected and survived objects by type.

Filtering tools

The Allocations, Call Tree, and Functions views all contain the Show Just My Code and Show Native Code options and a filter box.

• Show Just My Code collapses systems, frameworks, and other nonuser code into [External Code] frames so that you can focus on just your code. For more information, see Debug user code with Just My Code.
• Show Native Code shows native code within the analysis target and can include nonuser code.
• With the filter box, you can filter down the Name or Function name column based on the value you provide. Enter a string value in the box. The table then shows only types that contain that string.
