Convert a legacy Exchange peering to an Azure resource using the Azure portal

In this article, you learn how to convert an existing legacy Exchange peering to an Azure resource using the Azure portal.

Предпосылки

Вход в Azure

Войдите на портал Azure.

Convert a legacy Exchange peering to an Azure resource

As an Internet Exchange Provider, you can convert a legacy exchange peering to an Azure resource using the Azure portal:

  1. In the search box at the top of the portal, enter peering. Select Peerings from the search results.

    снимок экрана поиска пирингов в Интернете на портале Azure.

  2. На странице Peerings, нажмите кнопку + Создать.

  3. On the Basics tab of Create a Peering page, enter, or select the following values:

    Настройки Ценность
    Сведения о проекте
    Подписка Выберите подписку Azure.
    Группа ресурсов Выберите группу ресурсов или создайте новую.
    Instance details
    Имя Enter a name for the peering you're creating.
    Peer ASN Выберите ASN.

    Screenshot that shows the Basics tab of creating a peering in the Azure portal.

Important

You can only choose an ASN with ValidationState as Approved before you submit a peering request. If you just submitted your PeerAsn request, wait for 12 hours or so for ASN association to be approved. If the ASN you select is pending validation, you'll see an error message. If you don't see the ASN you need to choose, check that you selected the correct subscription. If so, check if you have already created PeerAsn using Associate Peer ASN to Azure subscription.

  1. Выберите Далее: Конфигурация>.

  2. On the Configuration tab, enter, or select the following values:

    Настройки Ценность
    Peering type Выберите Exchange.
    артикул Выберите "Базовый бесплатный".
    Metro Select the metro location where you want to convert peering to an Azure resource. If you have peering connections with Microsoft in the selected metro location that aren't converted to an Azure resource, they'll be listed in the Peering connections section.

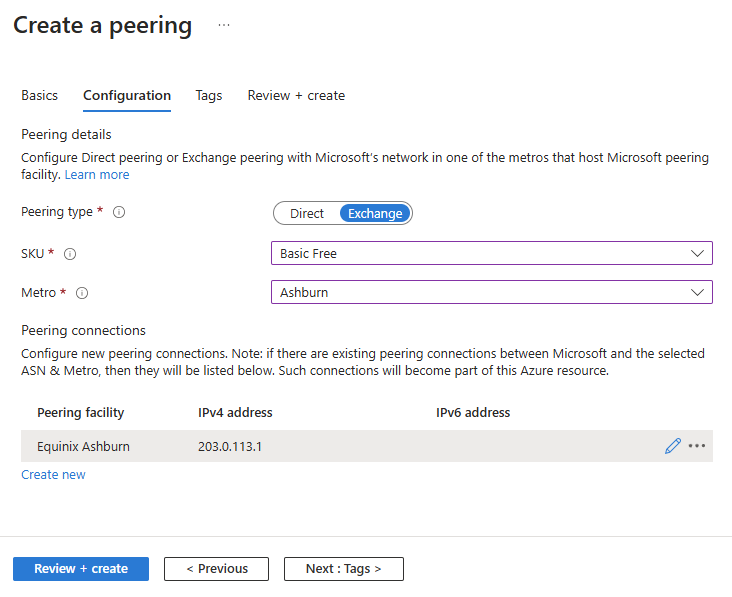

    Снимок экрана: вкладка

    Note

    You can't modify settings for legacy peering connections. If you want to add additional peering connections with Microsoft in the selected Metro location, select Create new. For more information, see Create or modify an Exchange peering using the portal.

  3. Select Review + create.

  4. Проверьте параметры, а затем нажмите кнопку Создать.

Verify an Exchange peering

  1. Go to the Peering resource you created in the previous section.

  2. В разделе "Параметры" выберите "Подключения" , чтобы просмотреть сводку подключений пиринга между ASN и Корпорацией Майкрософт.

    Снимок экрана: пиринговые подключения в портал Azure.

    • Connection State corresponds to the state of the peering connection setup. The states displayed in this field follow the state diagram shown in the Exchange peering walkthrough.
    • IPv4 Session State and IPv6 Session State correspond to the IPv4 and IPv6 BGP session states, respectively.
